- Built In Crossovers : Yes
- Built-in EQ : Yes
- DIN : 1
- Preamp Voltage : 2 volts
- Display Size : 9 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Rear USB Input : 1
- Preamp Outputs : 5
- Audio/Video Outputs : 1
Features:

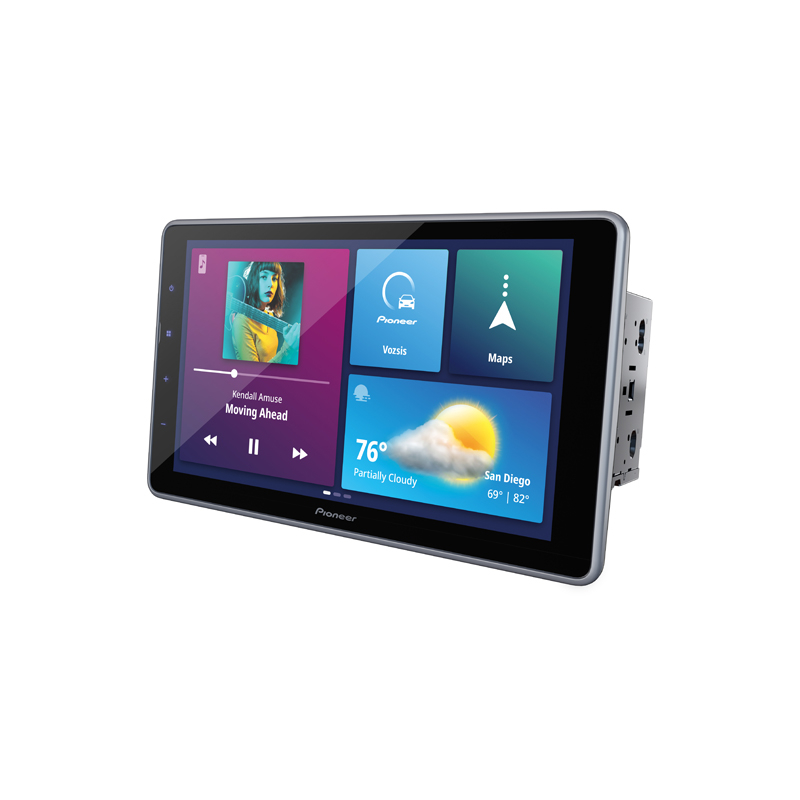

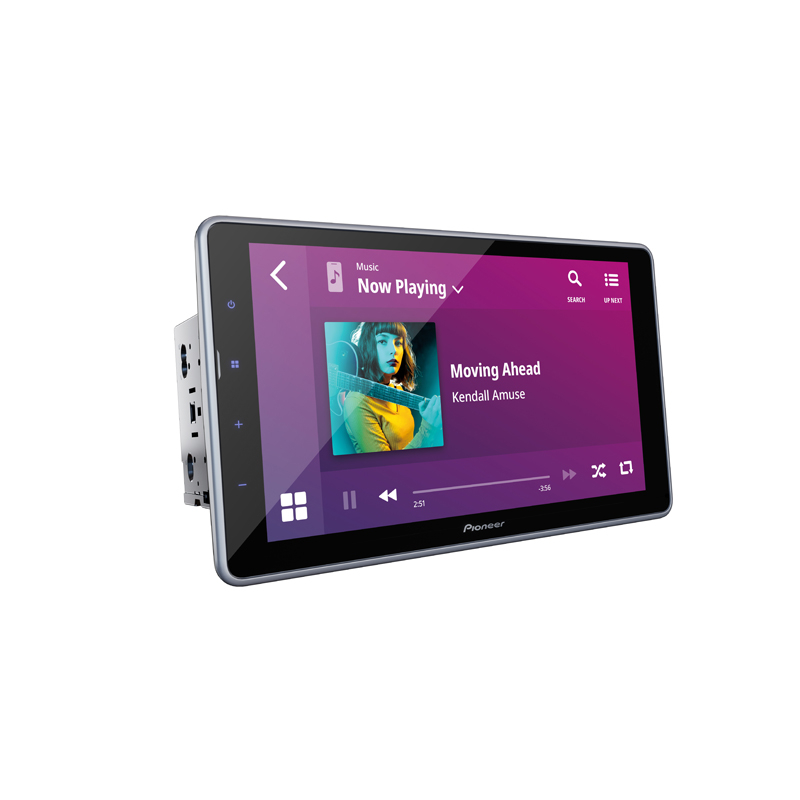

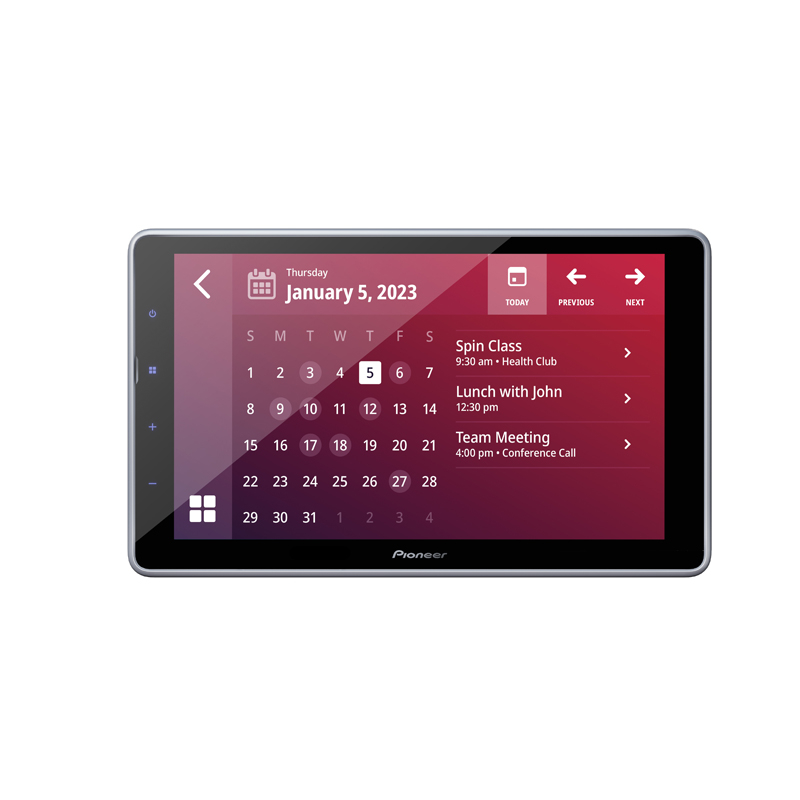

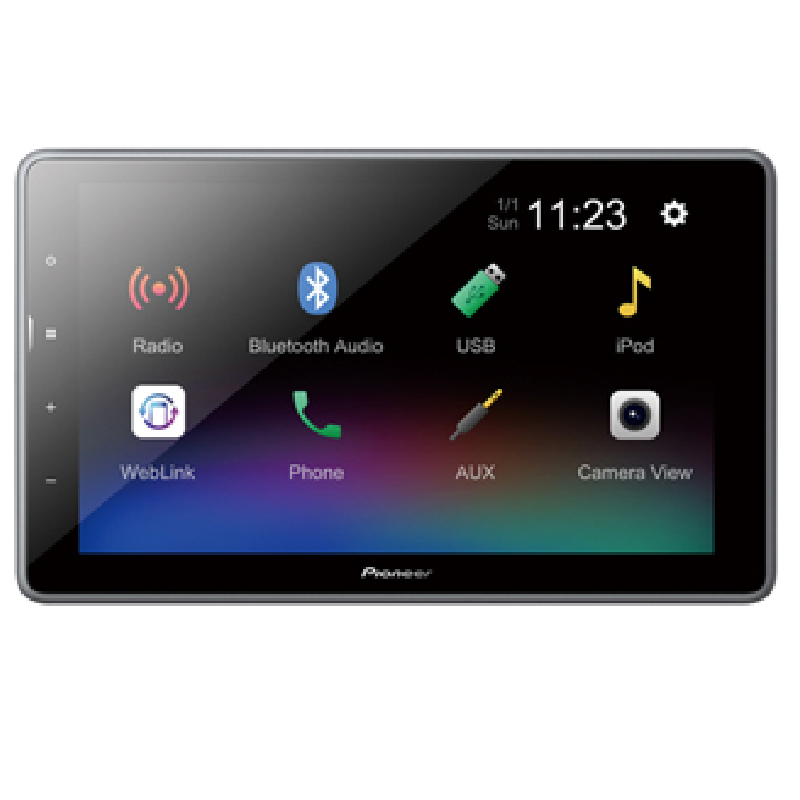

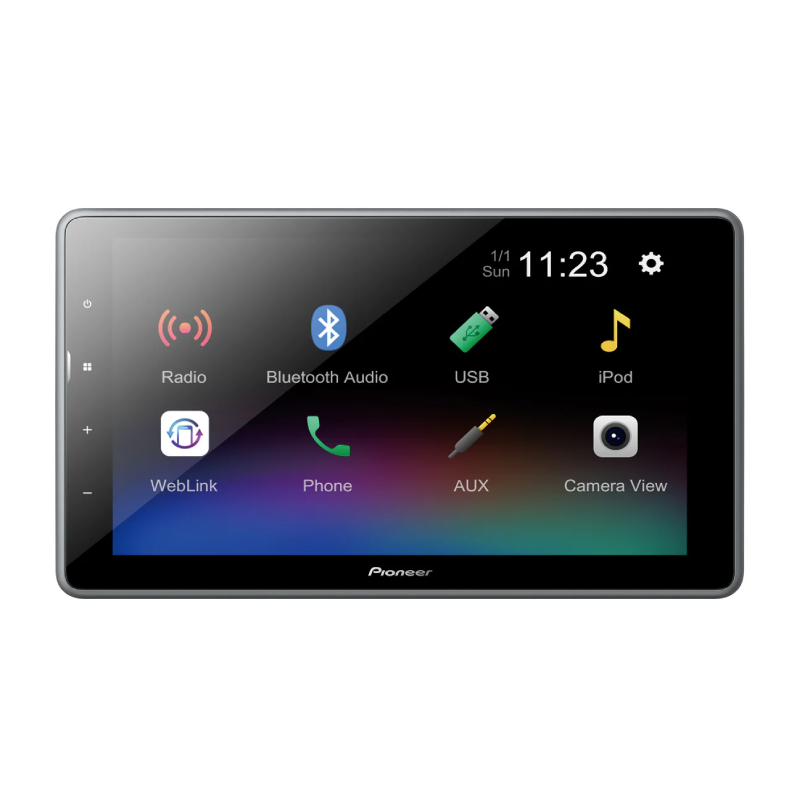

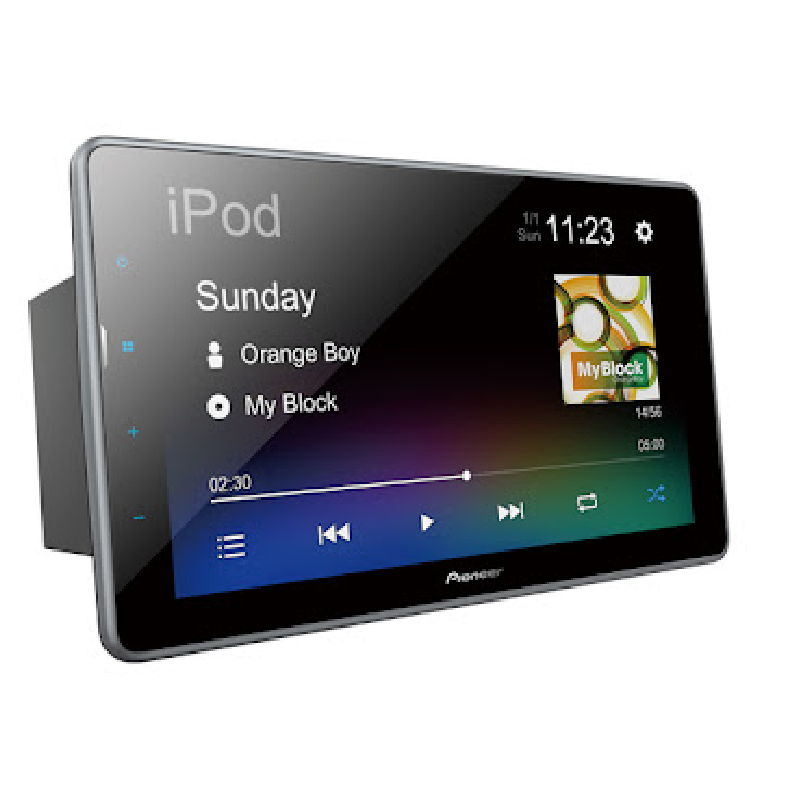

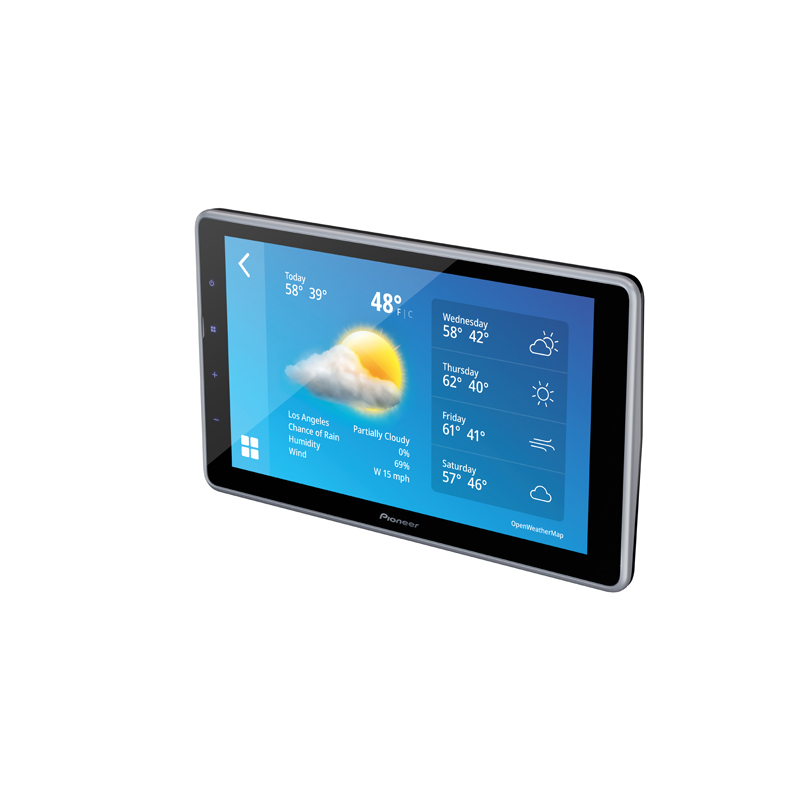

- 9.0" Floating Capacitive Touchscreen with LED Backlight
- WSVGA Resolution of 1024x600 (132DPI)
- Apple CarPlay
- Android Auto
- Amazon Alexa Built-in when Paired with Pioneer Vozsis App
- Smartphone Compatible
- Built-in Bluetooth
- Back-up Camera Ready
- Color Customization
Specifications:
Standards
Performance
- Continuous Power Output: 22 W x 4-Channel
- Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output: 50 W x 4-ch 4 ohm
- RCA Preamp Outputs: 5-Channel
- RCA Pre-out: 2V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
Display
- Anti-Glare/Reflection: Yes
- Back Light: LED
- Brightness Control: Yes
- Color Customization: 5 key colors, 3 Preset Background Images

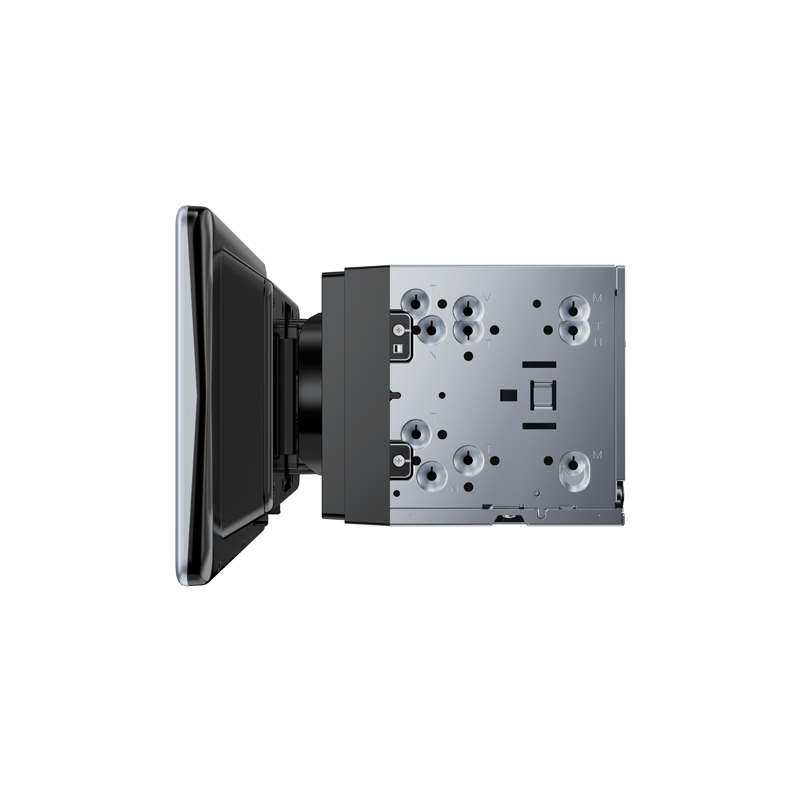

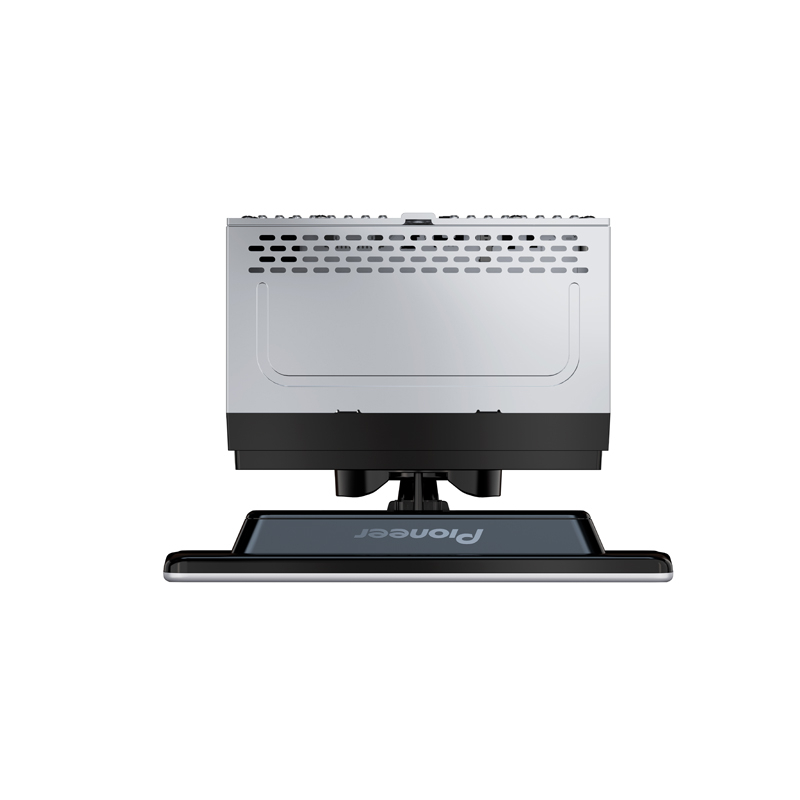

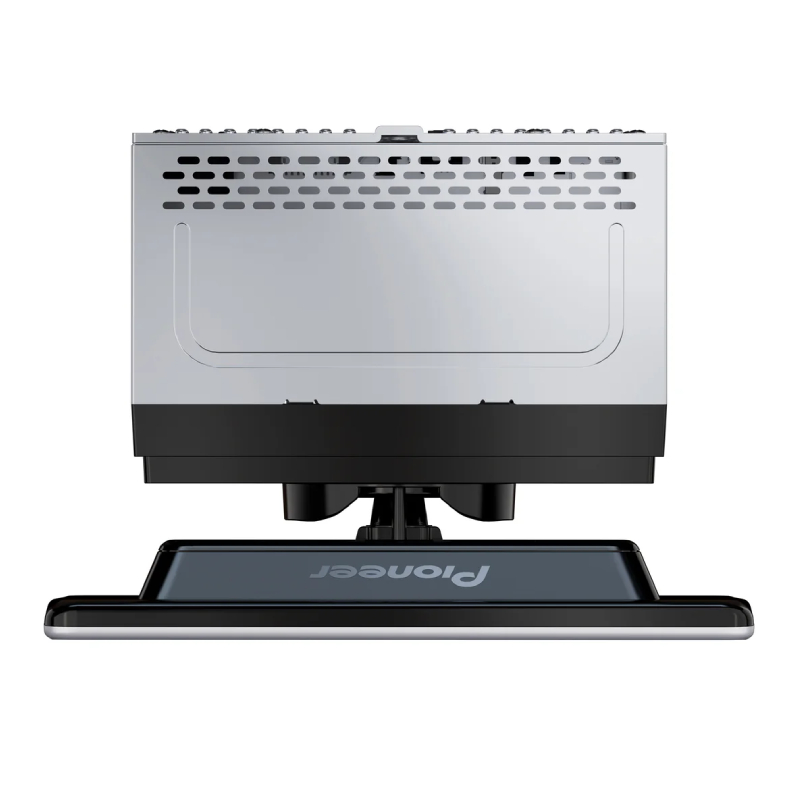

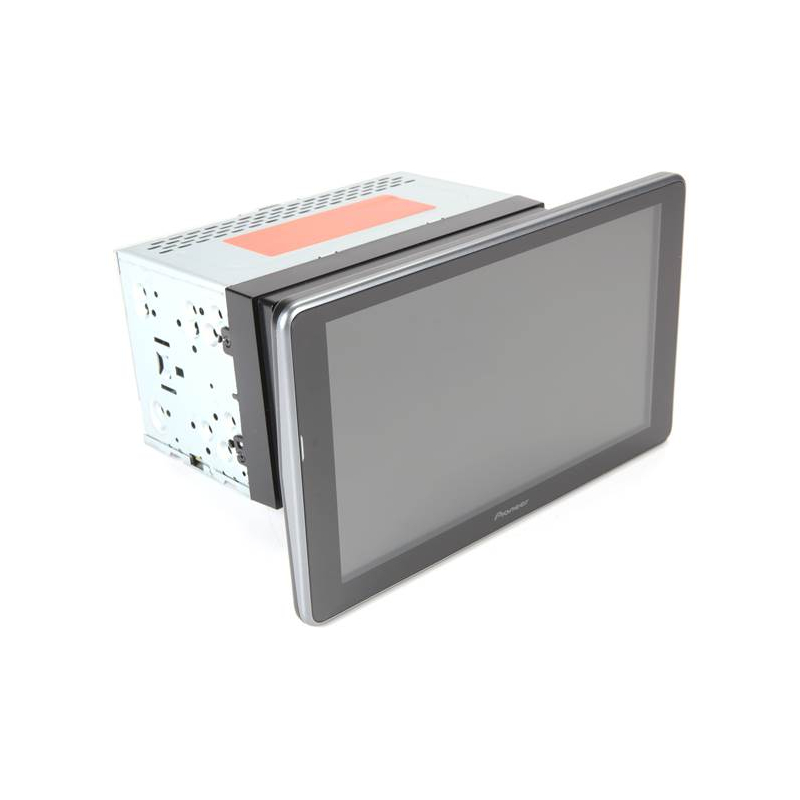

- Device (Non-DIN/Modular Unit): 2-DIN, Floating
- Dimmer: Automatic with vehicle illumination, Manual
- Display Off Mode: Yes
- Monitor Mechanism: Fixed
- Resolution: 1024x600
- Screen Size/Aspect Ratio: 9"/16:9
- Touch Screen: Capacitive
Bluetooth
- Advanced Audio Distribution Profile (A2DP): Yes
- AVRCP: 1.6
- Built-in Bluetooth®: Yes
- Dual Phone Connection: Yes
- Hands-Free: Yes

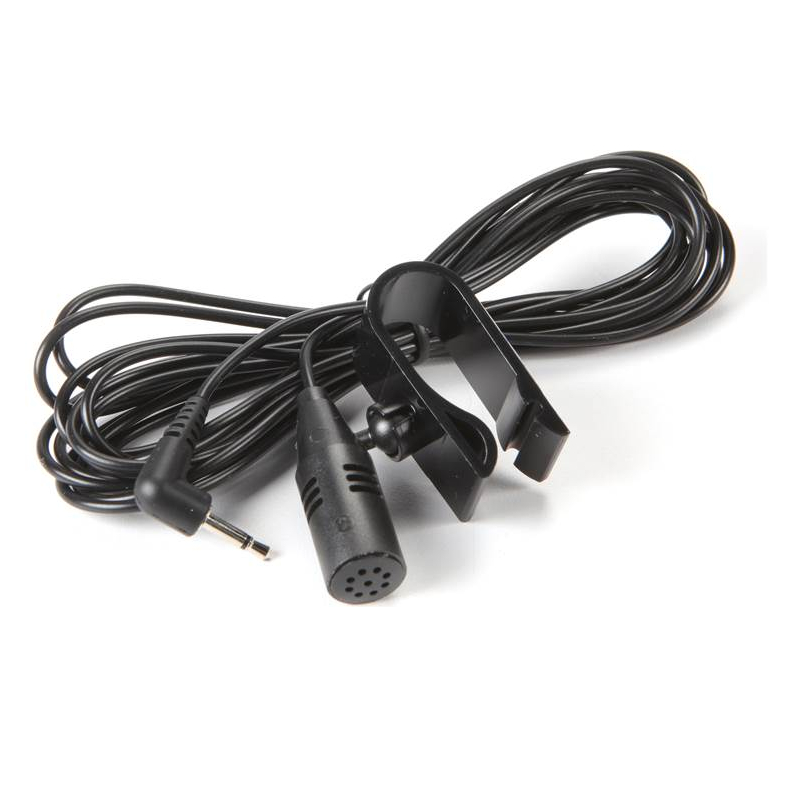

- Microphone Included: Included
- Phone Registration: 5-phone
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
Tuner
- Best Station Memory: Yes
- Local Seek tuning: Yes
- Presets: 18 FM, 6 AM
- PS (Preset Scan): Hide or display radio station name
- RDS: Yes
Integration
- Amazon Alexa: Paired with Pioneer Vozsis
- Mobile Operating System: Android / Apple iOS
- Pandora®: Bluetooth Audio Source
- Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
- Siri® Eyes Free (VR) (Internet Required): iPhone Only
- Spotify: Bluetooth Audio Source
- Voice Control: Yes
- Weblink: 3.0
Digital Media Playback
- Audio Playback via USB: AAC Audio Playback / FLAC Audio Playback (Hi-Res) / MP3 Audio Playback / WAV Audio Playback (Hi-Res) / WMA Audio Playback

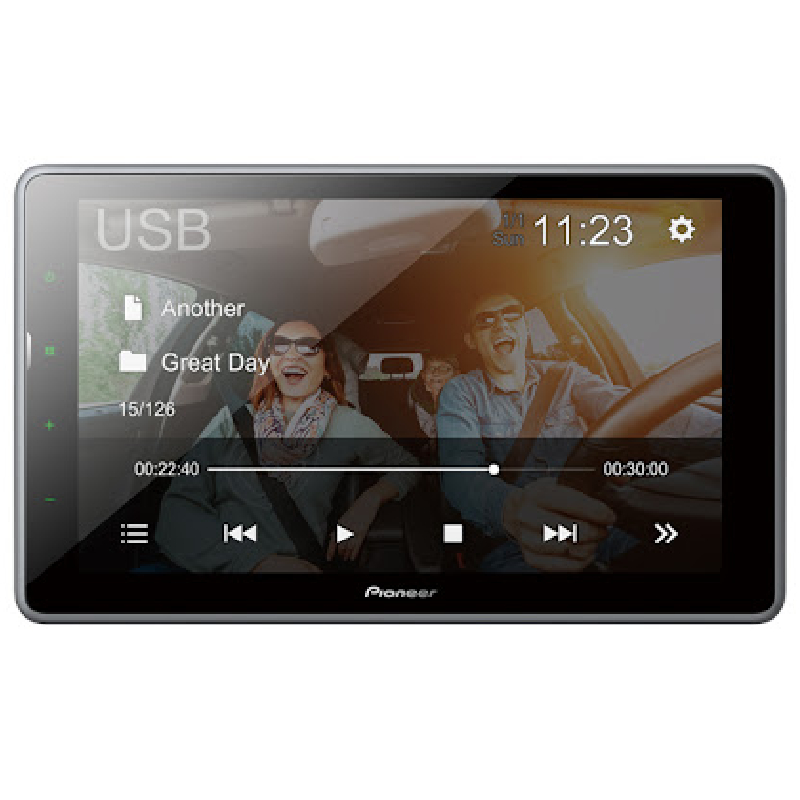

- Audio Video Playback via USB: .avi / .mpg/mpeg / .mp4 / .mkv / .mov / .flv / .m4v / .ts/.m2ts/.mts / H.263 / H.264
- Image Display via USB: BMP / JPEG / PNG
Audio
- Bass Boost: Yes
- Balance: Yes
- Built-in Amplifier: MOSFET 50 W x 4
- Crossover Standard Mode: HPF/LPF
- Customizable Graphic Equalizer: 13 Band
- DA Converter: 24 Bit
- Digital Signal Processor: Built In
- Easy EQ (EEQ) Preset Equalizer: Yes
- Fade: Yes
- Loudness: High/Mid/Low/Off
- Speaker Output: 4-Channel
- Subwoofer Control: Yes

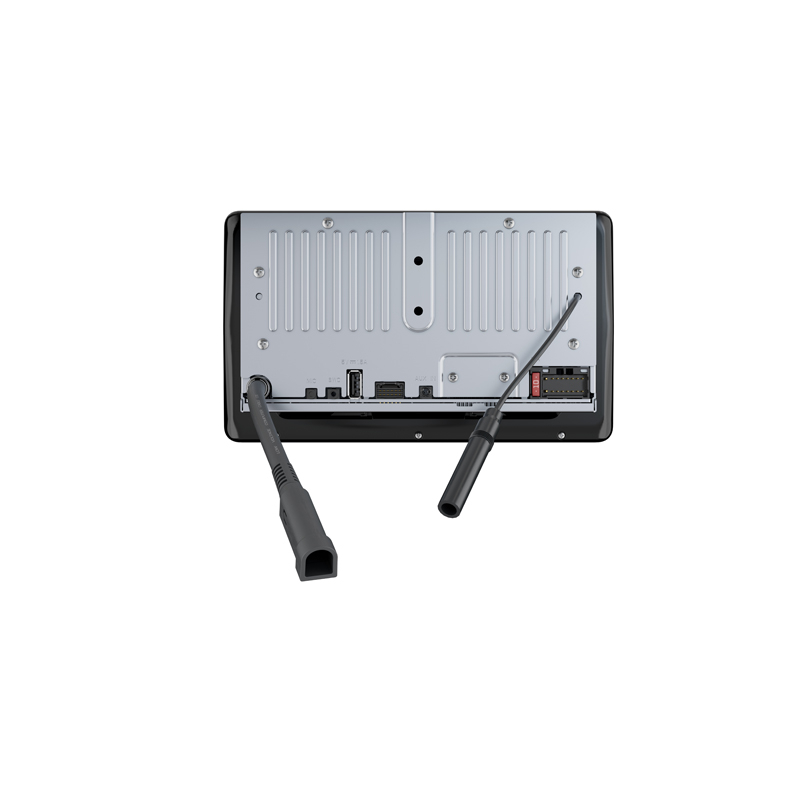

Expandability
- RCA Video Output: Yes

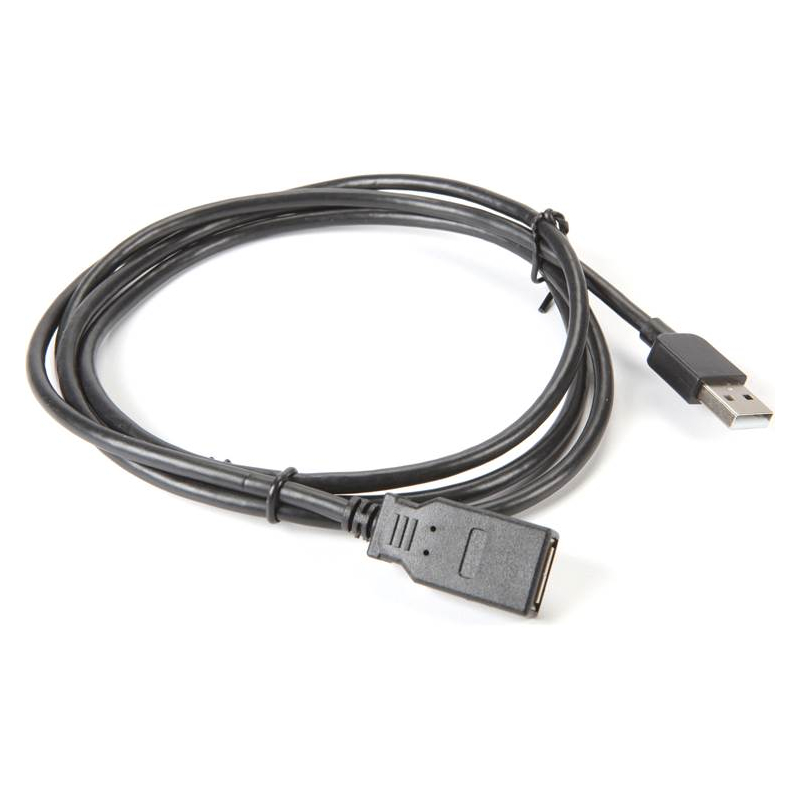

- USB: Single Rear Type-A (5V, 1.5 A)
- USB Direct Control for iPhone®: 5s and newer
Inputs
- Input 1: Backup Camera Dedicated
- Input 2: AUX (Minijack)
General
- Detachable Face Security: Fixed
- Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
- Music Browser: USB
- Remote Control: Optional
- Steering Wheel Control Ready (Adapter Sold Separately)
- UPC: 884938499071
- Weight: 24.03
