Rockford Fosgate P300-12T Punch Series 12" Powered Loaded Subwoofer Amplified Enclosure
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

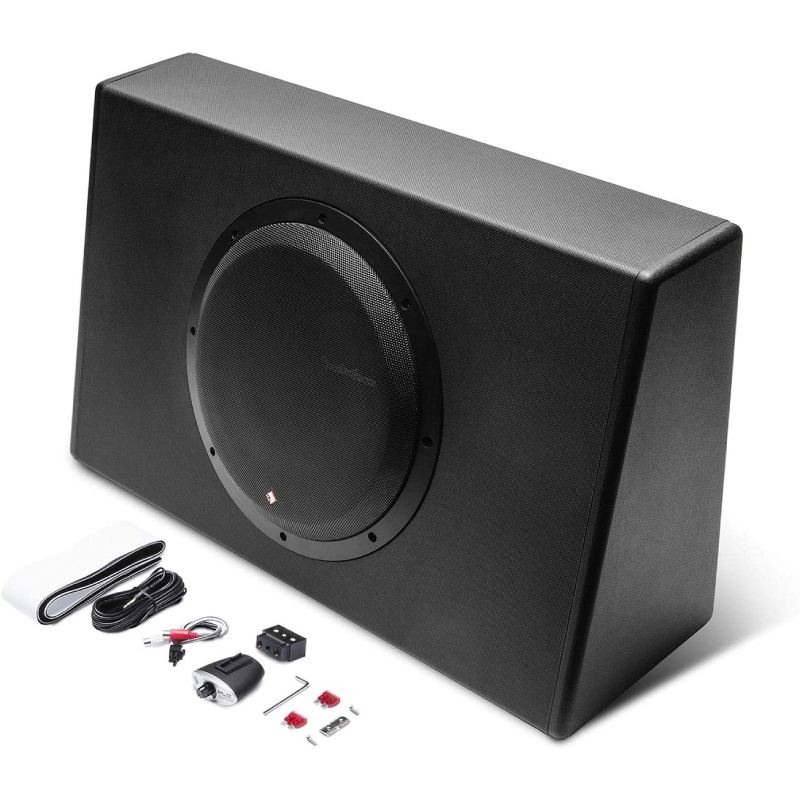

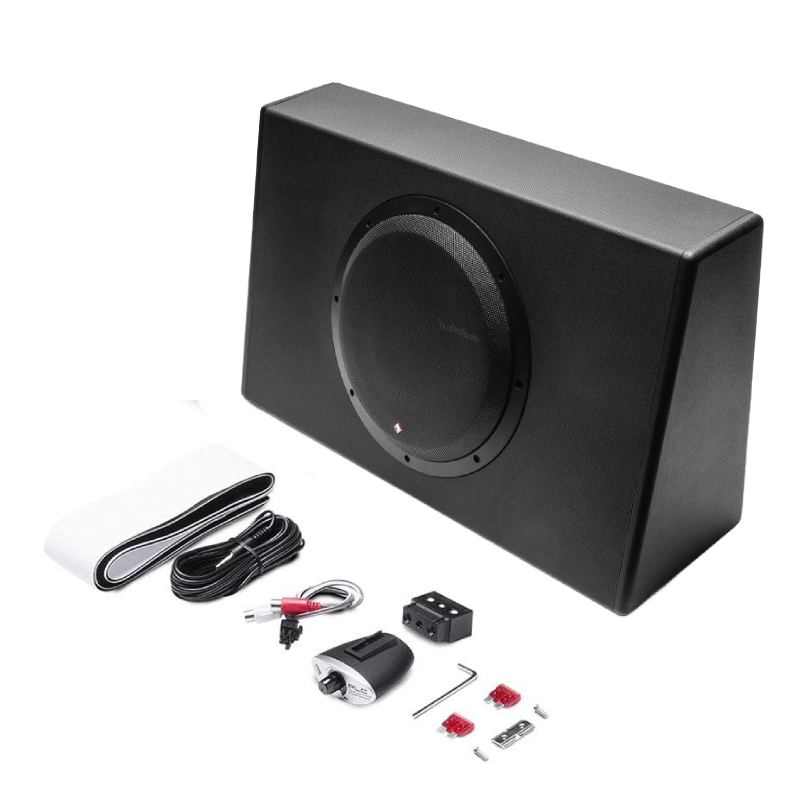

What's Inside?
- • Powered subwoofer enclosure
- • Remote Punch Level Control (w/ mounting plate and 2 screws)
- • 16.5' Remote cable (3.5mm stereo plugs on both ends)
- • Power/ground terminal block
- • 12" Input harness (4-pin Molex - RCA)
- • 25" Strip of hook-and-loop fastener
- • 3mm Allen key
- • (4) 10A ATO fuses (two installed / two spare)
- • Owner's Manual
Why Choose Rockford Fosgate P300-12T Powered Subwoofer?
With Built-in Amplifier
The Punch 300-12T is a self-contained subwoofer enclosure with a built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 12" high-output subwoofer is impedance-optimized for the built-in 300-watt class-D amplifier that features a low-pass crossover, bass EQ, and phase switch.
Designed and Constructed Using MDF
The enclosure can be connected via speaker-level inputs for connection to factory systems, or traditional line-level inputs for aftermarket systems. It also features an intelligent auto turn-on/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision-designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with a heat-activated vinyl finish to resist marks.
Frequently Asked Questions (FAQ)
- • Why is there no bass after installation?
Check the power, ground, input signal, and gain settings. Make sure all connections are secure and the unit is receiving a clean audio signal.
- • Why does the bass sound distorted?
Lower the gain and bass boost slightly. Excessive input levels, clipping, or aggressive settings can cause distortion at higher listening volumes.
- • Why does it shut off at high volume?
Low voltage, overheating, or excessive input levels can trigger protection. Check the power connections, amplifier settings, and available electrical supply.
- • Why is the bass weaker than expected?
Check the gain, crossover, polarity, and placement carefully. Incorrect settings, wiring, or enclosure placement can reduce the overall bass response significantly.
- • Why does it make a popping sound?
Popping can result from signal problems, loose connections, or incorrect gain settings. Check the input, power wiring, and source connections carefully.
- • Why do I hear engine noise through the subwoofer?
Engine noise may be caused by grounding or signal interference. Check the ground connection and keep signal cables away from power wiring.
- • Why does the bass cut out while driving?
Loose power, ground, or signal connections can cause intermittent output. Inspect the wiring carefully and secure all terminals and connections properly.
- • Can it work with a factory stereo?
Yes, depending on the vehicle and available signal connections. Confirm the correct input method and compatibility with the factory audio system first.
- • Why does the enclosure get very hot?
Some heat is normal, but excessive heat can indicate poor ventilation or prolonged high output. Allow adequate airflow around the unit during operation.
- • What should I check if it suddenly stops working?
Check the fuse, power and ground connections, input signal, and protection indicator. Inspect for loose, damaged, or disconnected wiring before testing again.
- Diameter : 12 Inch
- Maximum Power : 600 Watts
- Frequency Response : 20-200 Hz
Features:
- Optimized 12" Low Impedance Woofer
- Adjustable 12db/Octave low pass crossover
- On Board Phase Switch
- Intelligent auto turn on/off function
- 300 Watt Class-D Amplifier with Optimized "Closed Loop" Design
- Robust Power/Ground connections
- Remote bass level control included
- On Board Adjustable Bass EQ
- Quick Input Connections for Easy Removal
- Separate low level and speaker level inputs
- Thermal and over/under voltage protection
- Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
- Slim Design For Truck Applications
- 1 Year Warranty
Specifications:
- Enclosure Type: Sealed
- Finish Material: Vinyl covered MDF
- Grille: Metal-mesh
- Connector Type: Terminal block, Molex
- Quick-disconnect Plug: Yes
- Bi-amp Inputs: No
- Woofer Size (inches): 12
- Woofer Material: Not given
- Passive Radiator: None
- Width: 27-1/2"
- Height: 15"
- Depth: 9-1/2"
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- Frequency Response: 20-200
- Amplifier Power (RMS): 300 watts
- Maximum Wattage: 600 watts
- Sensitivity: N/A
- Impedance: N/A
- Second Voice Coil Impedance: ---
- Crossover Point: 50-200
- UPC: 780687353995
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
