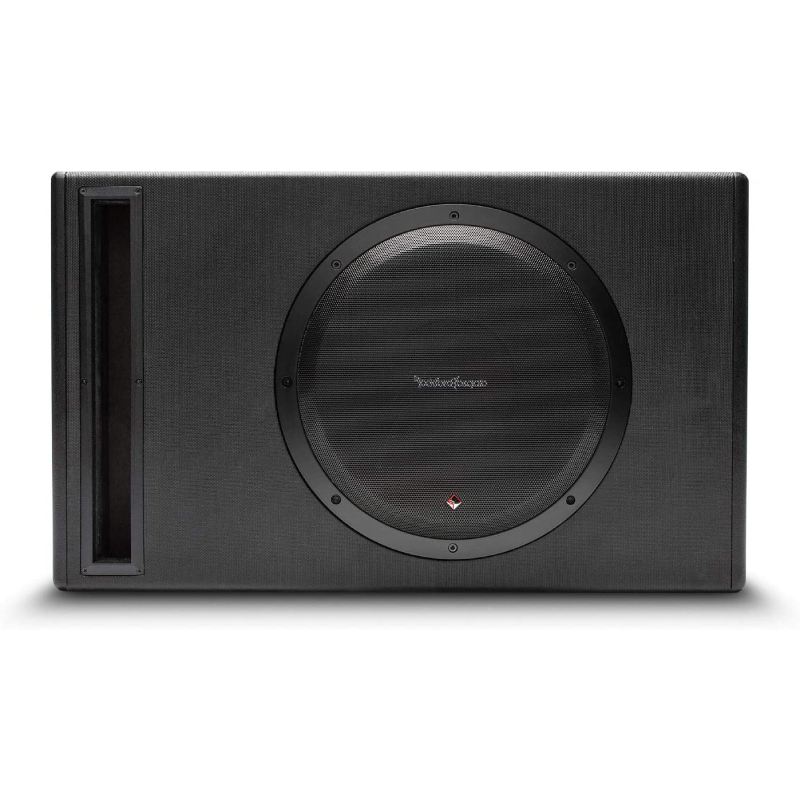

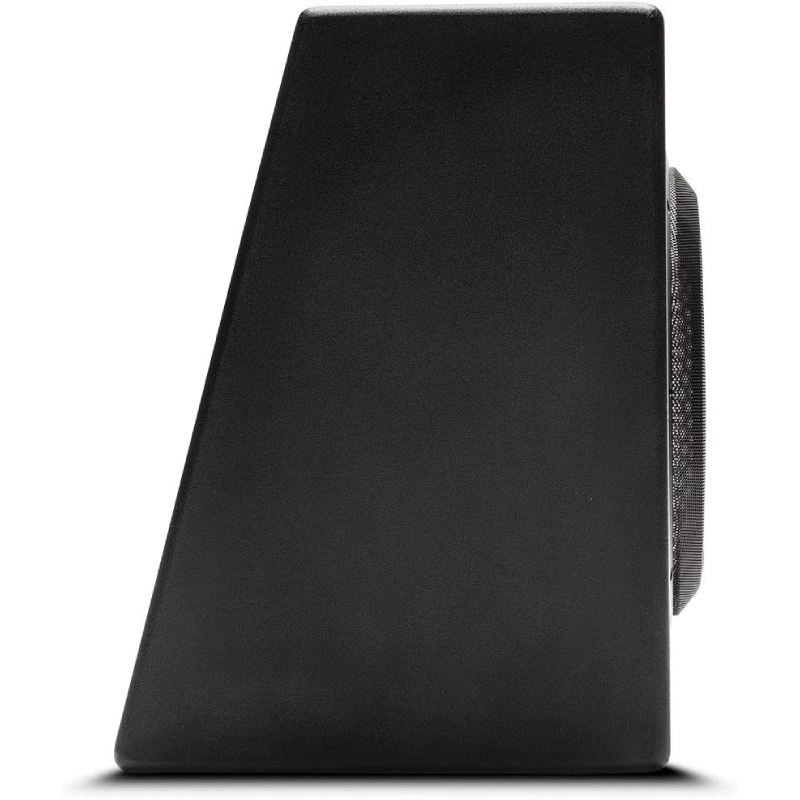

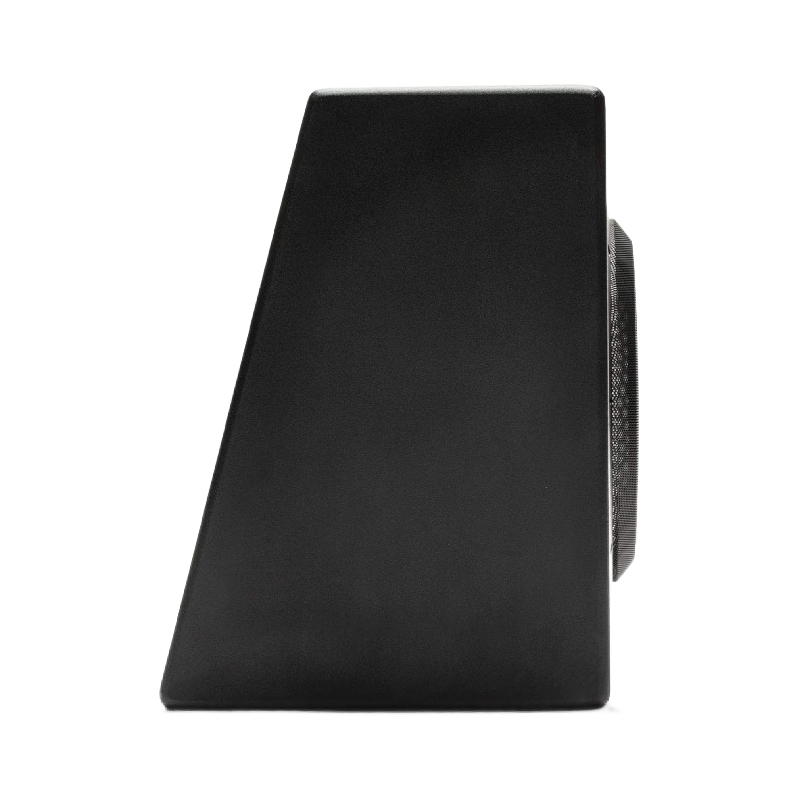

Rockford Fosgate P500-12P Punch Series 12" Powered Loaded Subwoofer Amplified Enclosure
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

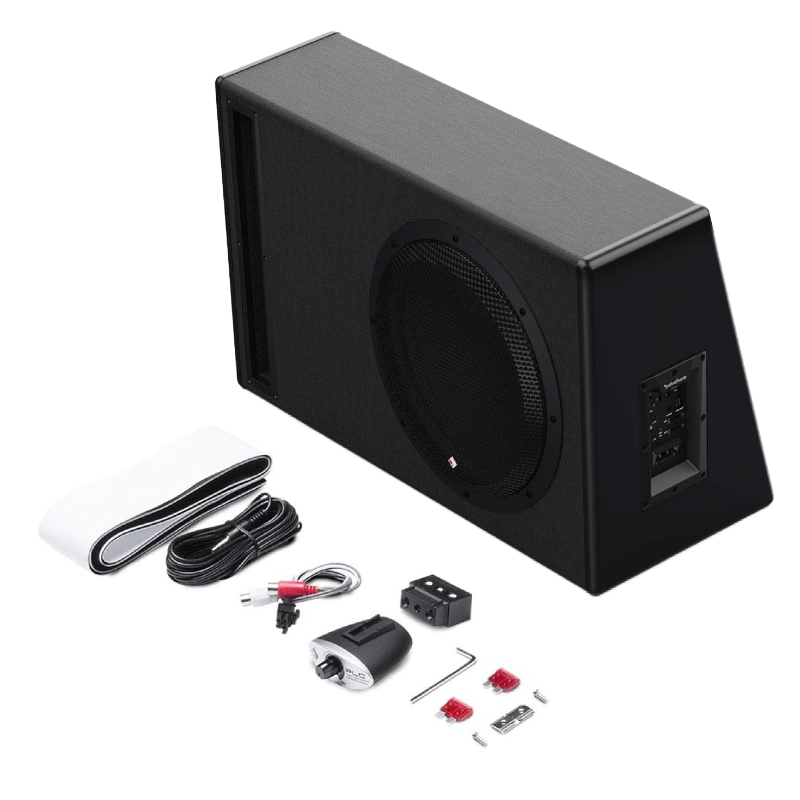

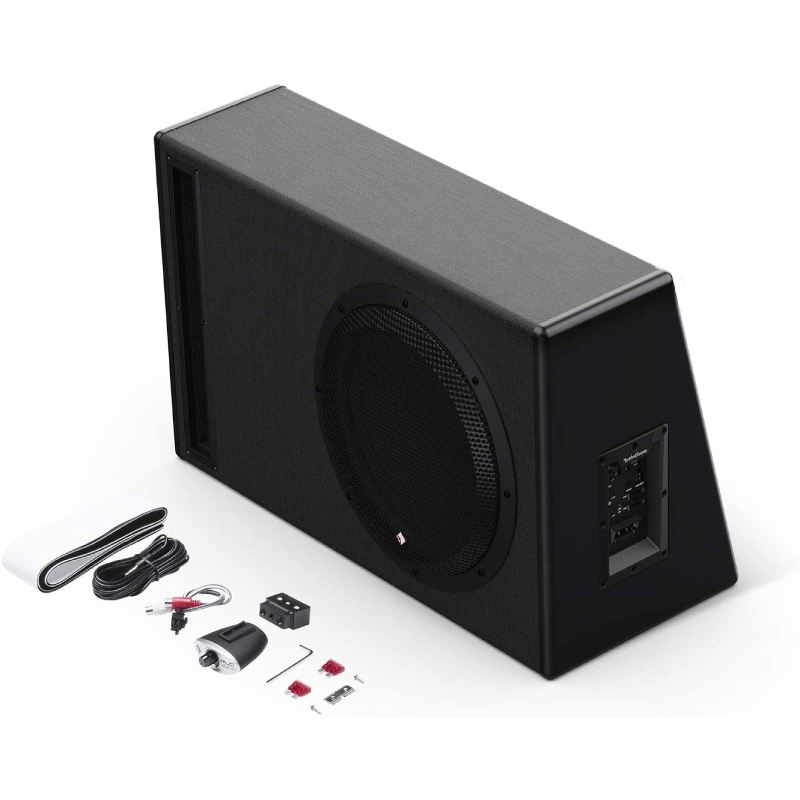

What's Inside?
- • Powered subwoofer enclosure
- • PLC Wired remote control
- • Wired remote mounting plate
- • (2) 10mm screws
- • 196" Wired remote cable (3.5mm stereo plugs on both ends)
- • 12" RCA to 4-pin Molex harness
- • Power/ground terminal block
- • (4) 15A ATC fuses (2 pre-installed)
- • 3mm Allen key
- • 25.5" Strip of hook-and-loop fastener
- • Owner's Manual
Why Choose Rockford Fosgate P500-12P Powered Subwoofer?
With Built-in Amplifier

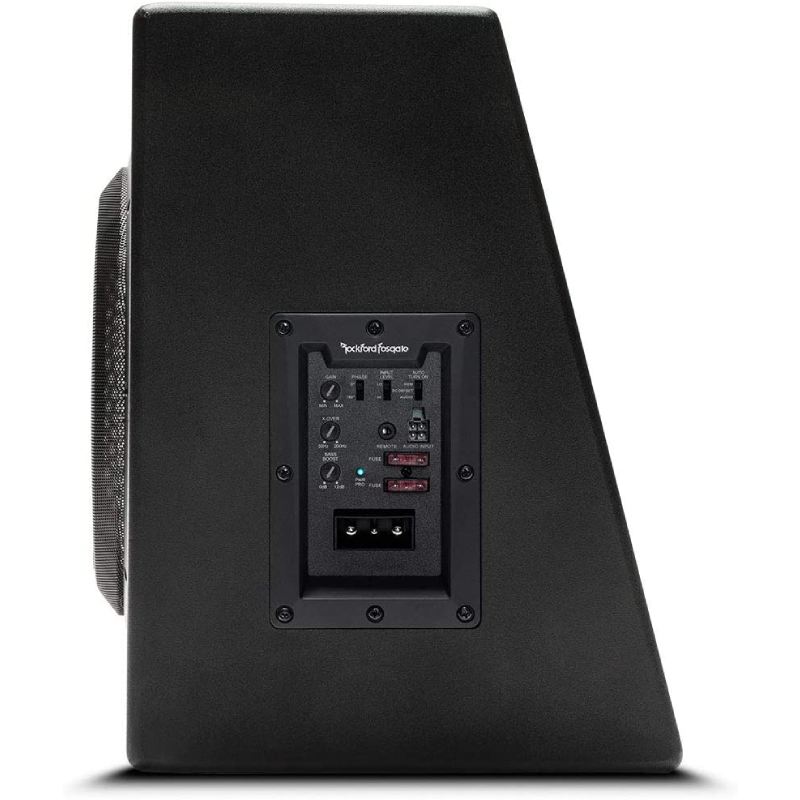

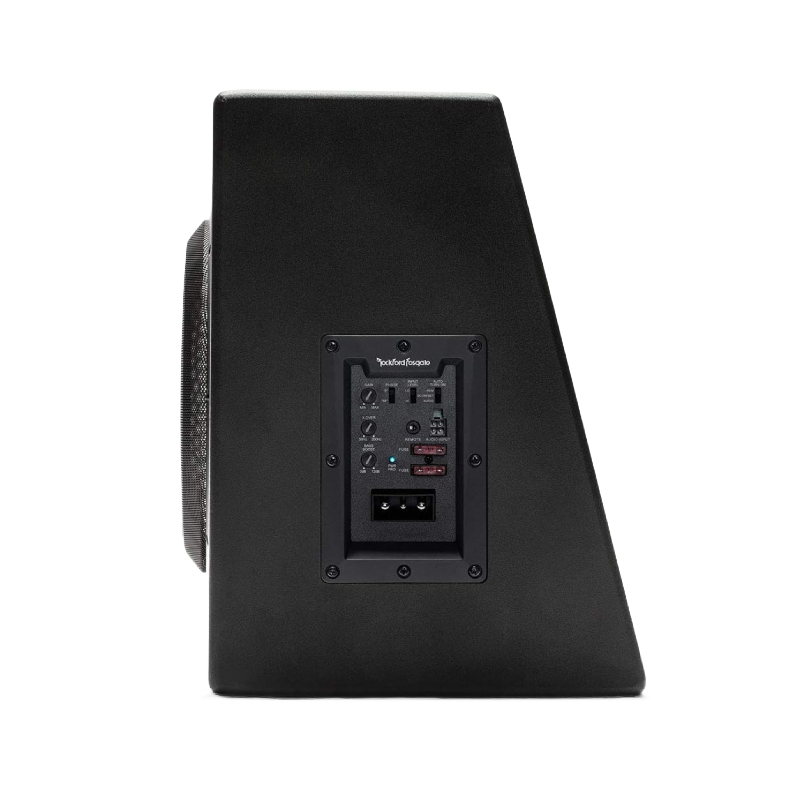

The Punch 500-12P is a self-contained subwoofer enclosure with a built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 12" high-output subwoofer is impedance optimized for the built-in 500-watt class-D amplifier that features a low-pass crossover, bass EQ, and phase switch. You can change the amount of bass on the fly with the included remote level control. The slot port provides powerful output at lower frequencies for enhanced bass reproduction.
Designed and Constructed Using MDF
The enclosure can be connected via speaker-level inputs for connection to factory systems, or traditional line-level inputs for aftermarket systems. It also features an intelligent auto turn-on/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision-designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with a heat-activated vinyl finish to resist marks.
Frequently Asked Questions (FAQ)
- • Why is there no bass after installation?
Check the power, ground, input signal, and speaker connections. Verify the gain and crossover are set correctly.
- • Why does the bass sound distorted?
Lower the gain and bass boost. Excessive input levels, clipping, or incorrect settings can cause distortion.
- • Why does it shut off at high volume?
Overheating, low voltage, or excessive input levels can trigger protection. Check the power connections and settings.
- • Why is the bass weaker than expected?
Check the gain, crossover, polarity, and enclosure placement. Incorrect settings or placement can reduce bass output.
- • Why does it make a popping sound?
Popping can result from signal issues, loose connections, or improper gain settings. Check the input and power wiring.
- • Why do I hear engine noise through the bass?
Engine noise can come from grounding or signal interference. Check the ground and keep signal cables away from power wires.
- • Why does the bass cut out while driving?
Loose power, ground, or signal connections can cause intermittent output. Inspect and secure all wiring.
- • Can it work with a factory stereo?
Yes, depending on the vehicle and available signal connections. Confirm the required input method before installation.
- • Why does the enclosure get very hot?
Some heat is normal, but excessive heat may indicate poor ventilation or sustained high output. Allow adequate airflow around the unit.
- • What should I check if it suddenly stops working?
Check the fuse, power and ground, input signal, and protection indicators. Inspect for loose or damaged wiring before testing again.
- Diameter : 12 Inch
- Frequency Response : 20-200 Hz
Features:
- Optimized 12" Low Impedance Woofer
- 500 Watt Class-D Amplifier with Optimized "Closed Loop" Design
- Adjustable 12db/Octave low pass crossover
- Intelligent auto turn on/off function
- On Board Phase Switch
- Robust Power/Ground connections
- Quick Input Connections for Easy Removal
- Remote bass level control included
- On Board Adjustable Bass EQ
- Separate low level and speaker level inputs
- Thermal and over/under voltage protection
- Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
- Designed For Hatchback, Sedan, and SUV Applications
- 1 Year Warranty
Specifications:
- Enclosure Type: Ported
- Finish Material: Vinyl
- Grille: Metal-mesh
- Connector Type: Removable terminal block
- Quick-disconnect Plug: Yes
- Bi-amp Inputs: No
- Woofer Size (inches): 12
- Woofer Material: N/A
- Passive Radiator: ---
- Width: 26"
- Height: 15"
- Depth: 11-1/2"
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- Frequency Response: 20-200 Hz
- Amplifier Power (RMS): 500 watts
- Maximum Wattage: ---
- Sensitivity: ---
- Impedance: ---
- Second Voice Coil Impedance: ---
- Crossover Point: 50-200 Hz
- UPC: 780687354008
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
