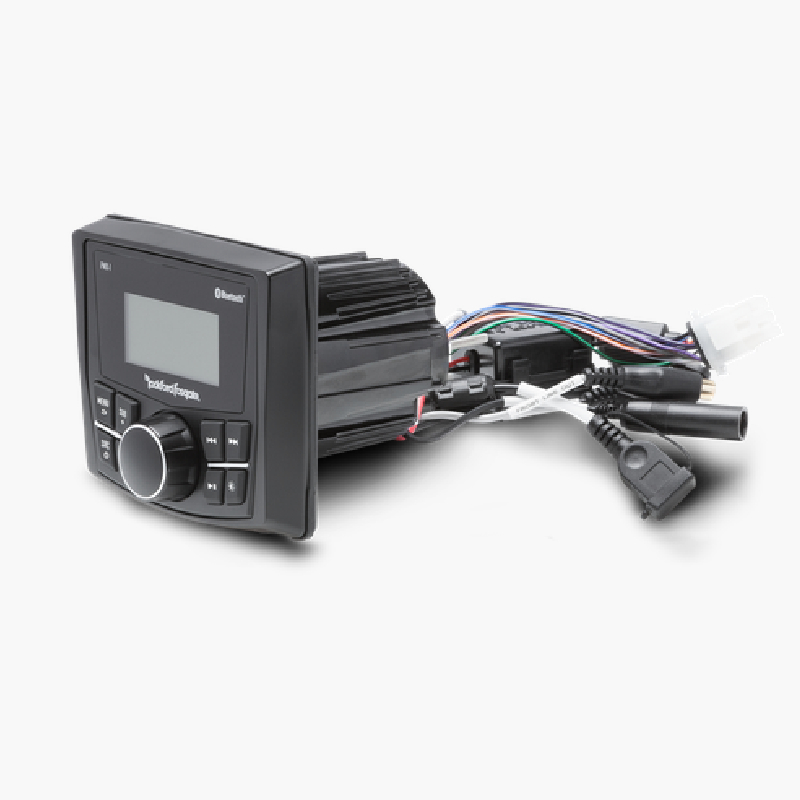

Rockford Fosgate PMX-1 Punch Marine Grade Digital Media Receiver with Built-In Bluetooth
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

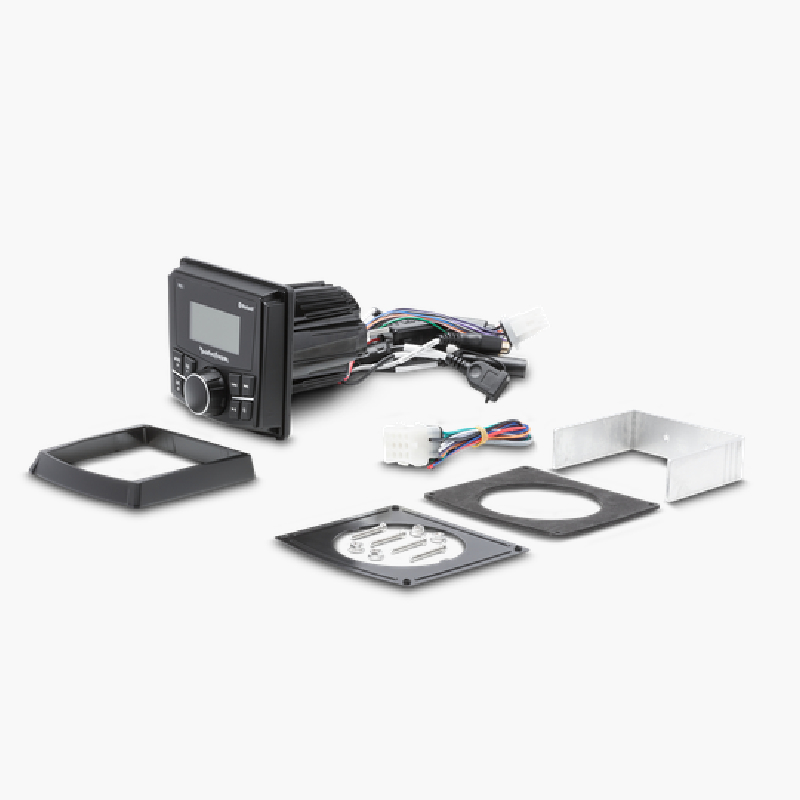

What's Inside?
- • Marine Digital Media Receiver
- • Trim-Ring
- • Mounting Plate
- • Mounting Bracket
- • Wiring Harness
- • (4) Machine Screws
- • (4) Hex-Nuts
- • Owner's Manual
Why Choose Rockford Fosgate PMX-1 Marine Receiver?
Built for the Elements, Ready for Anything
The Rockford Fosgate PMX-1 Marine Grade Digital Media Receiver is designed for riders, boaters, and enthusiasts who need gear that can handle real-world punishment. Fully marine-certified, it is built to withstand water, dust, UV exposure, vibration, and extreme temperatures without compromising performance. From rough waters to off-road trails, this receiver keeps your system stable, responsive, and ready to perform whenever you are.
Clear Display and Smart Control in Any Condition

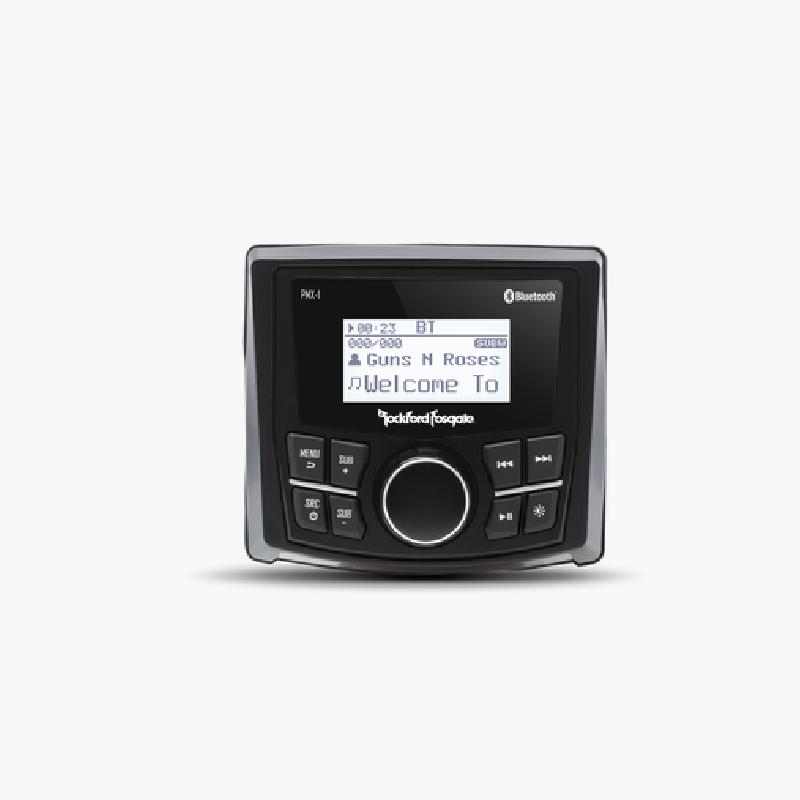

The 2.3 inch optically bonded LCD gives you sharp contrast and excellent readability even under direct sunlight, so you are never guessing what is playing or what setting you are on. The sealed rotary encoder and LED-backlit controls feel solid and responsive, while the integrated voltage gauge and low-voltage warning keep you informed about your system in real time. It is a control that feels simple but works like a serious command center.
Every Source, Every Sound, Fully Connected
With Bluetooth streaming, USB playback, and rear RCA auxiliary input, the PMX-1 makes it easy to connect almost any device you want. You also get AM FM radio with weather band access for added convenience on the go. Built-in MOSFET amplification delivers clean output across all four channels, while 7-band EQ, Punch EQ tuning, and crossover control let you shape your sound exactly the way you like it. Add in flexible 4-volt preouts and easy system expansion support, and you have a receiver that is ready to grow with your setup.
Frequently Asked Questions (FAQ)
- • Why won't the receiver turn on?
Check the fuse, battery voltage, power connections, and ground. The unit requires 10.5–16 volts for normal operation, so low voltage can prevent startup.
- • Why can't the radio find any stations?
Check that the antenna is connected securely and that the cable is not damaged. Weak reception areas can also make station searching difficult.
- • Why won't the USB drive be recognized?
A damaged USB drive or loose connection can prevent recognition. Disconnect and reconnect the drive, then try another compatible USB device if necessary.
- • Why does the display say "No File" when I connect a USB drive?
The drive may not contain supported MP3 or WMA files. Add compatible audio files and try the drive again using a properly formatted storage device.
- • Why does USB music skip or sound noisy?
Improperly encoded MP3 or WMA files can cause skipping and noise. Test properly encoded files to determine whether the issue is with the audio files.
- • Why won't my phone play music through the USB connection?
The USB port is intended for compatible USB media and does not support Android or Apple devices for audio playback. Use the appropriate Bluetooth or AUX connection instead.
- • Why isn't an MP3 file playing through the AUX source?
The file or playback format may not be compatible with the receiver. Try a supported MP3 format and verify that the connected source is producing an audio signal.
- • Why is it difficult to change FM frequencies?
Some users have found that changing frequencies requires several button operations. Become familiar with the tuner controls and save frequently used stations as presets.
- • Why is there no sound even though the display is working?
Check the selected source, volume level, speaker wiring, and amplifier connections. If an external amplifier is being used, verify that it is receiving power and signal.
- • Why did the receiver suddenly stop working after previously working normally?
Check the fuse, power supply, ground, and wiring for intermittent connections. Corrosion or a loose connection can cause unexpected operation problems in marine environments.
- Frequency Response : 20-20000 Hz
- RMS Power Output : 4x50 Watts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Preamp Outputs : 2
- Color : Black
Features:
- Compact Marine Hardened Digital Control Interface: The Rockford Fosgate PMX-1 is a fully marine certified digital media receiver engineered to withstand dust, UV exposure, temperature extremes, water intrusion, corrosion, and vibration for dependable performance in harsh marine and motorsports environments.
- Optically Bonded High Visibility LCD Display System: Features a 2.3 inch optically bonded LCD with high contrast white background and black text, designed for superior readability in direct sunlight while preventing dust and moisture penetration.
- Sealed Precision Control and System Monitoring Interface: Equipped with a water resistant rotary encoder knob, LED backlit push controls, integrated voltage gauge, and low voltage warning system for real time system monitoring and control.
- Bluetooth Wireless Audio Streaming Capability: Supports Bluetooth 3.0+EDR connectivity for wireless playback from smartphones and devices, with track control, playlist browsing, metadata display, and album art support via AVRCP 1.4 compatible devices.
- Multi Source Media Input Flexibility System: Includes rear USB input for MP3 and WMA playback with folder navigation and device charging, along with a rear RCA auxiliary input for external audio sources with customizable naming.
- Integrated AM FM and Weather Band Tuner System: Provides full AM FM radio functionality with preset storage, local and distance tuning modes, selectable US or European standards, and built in weather band access for environmental updates.
- MOSFET Powered High Efficiency Amplification Stage: Delivers 25 watts RMS x 4 channels with 50 watts peak per channel output, ensuring clean and efficient power delivery with low distortion and high clarity audio performance.
- Advanced Equalization and Audio Tuning Suite: Features seven EQ presets, a 7 band graphic equalizer, Punch EQ bass and treble enhancement, and configurable high pass and low pass crossover controls for precise sound shaping.
- Flexible System Integration and Expansion Connectivity: Offers 4 volt front and rear/sub preouts, internal amplifier bypass capability, and adjustable source gain matching for seamless integration with external amplification systems.
- Marine Grade Construction With Full Environmental Protection: Built with epoxy coated PCB boards, UV resistant materials, and fully sealed components tested for vibration and thermal shock resistance to ensure long term reliability in demanding conditions.
Specifications:
- RMS Power (CTA-2006): 25 watts
- Peak Output: 50 watts
- AUX Input: RCA (rear)
- USB Input: Rear
- USB Port Power: 1A
- Preamp Outputs: 4-channel
- Sub Preamp Outputs: No
- Switchable Rear Preamp Outputs: Yes
- Memory Card Slot: USB memory
- iPhone Compatibility: No
- CarPlay: No
- Siri Control: No
- Android Control: Yes
- Android Auto: No
- Alexa Voice Control: No
- FM Sensitivity: 8 dBf
- European Tuning: Yes
- Seek/Scan: Seek
- Radio Data System (RDS): No
- Supported Music Formats: MP3, WMA
- High-Res Playback: No
- Built-in Navigation: No
- Navigation App Compatible (iOS/Android): No
- Bluetooth Compatibility: Built-in
- Bluetooth Version: 3.0+EDR
- Satellite Radio Ready: No
- HD Radio: No
- Video Screen: No
- Preamp Voltage: 4V
- Screen Size: N/A
- Screen Type: N/A
- Display Color: White
- Key Button Color: White
- EQ Bands: 7
- Wireless Remote: No
- Steering Wheel Control Compatible: No
- UPC: 780687351762
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
