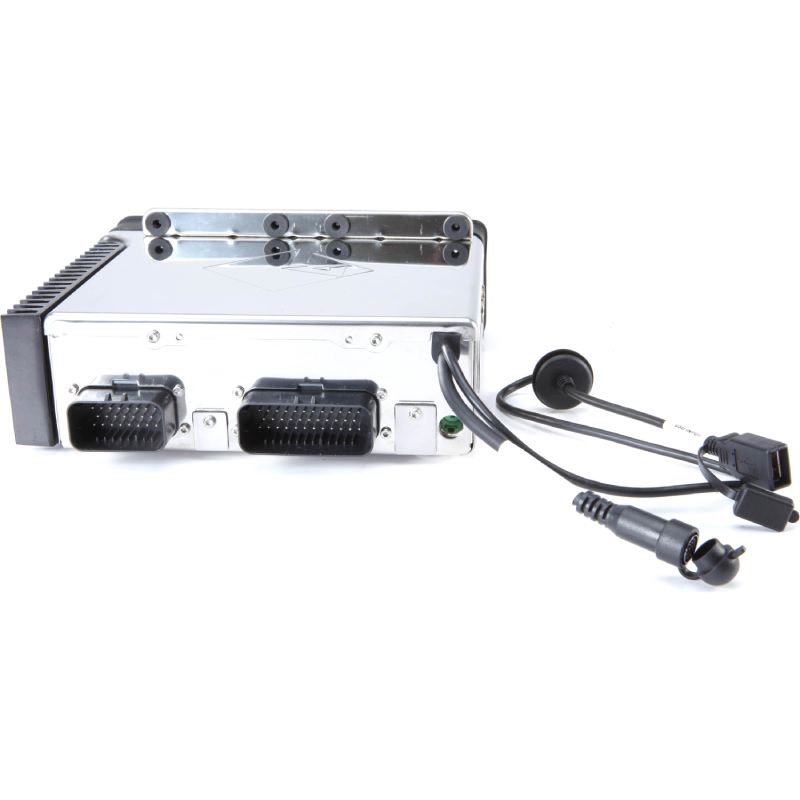

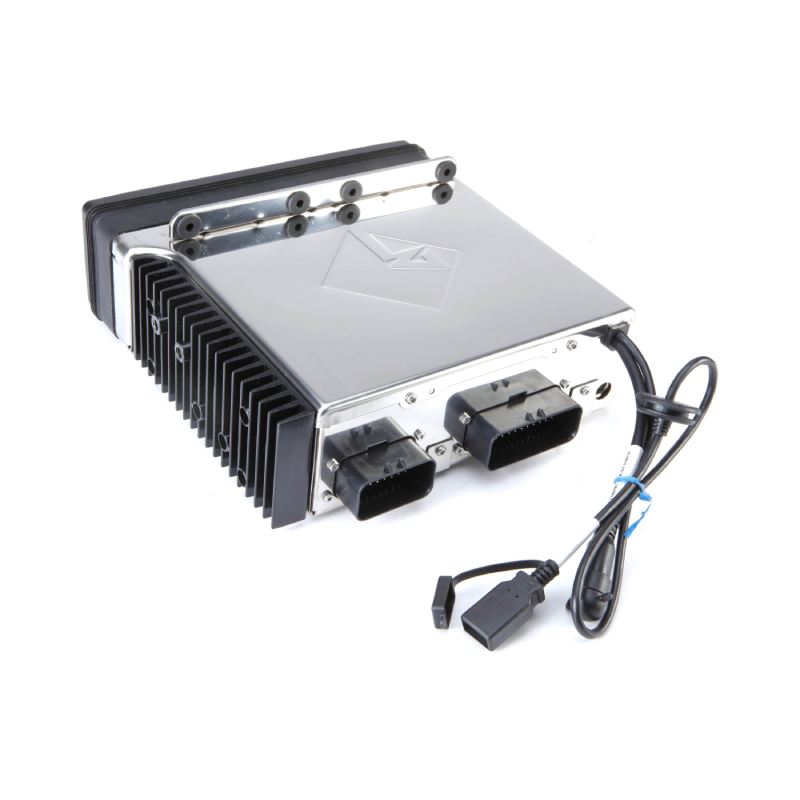

Rockford Fosgate PMX-HD9813 Single DIN Digital Media Receiver for 1998-13 Harley-Davidson® Motorcycles
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Single DIN Digital Media Receiver

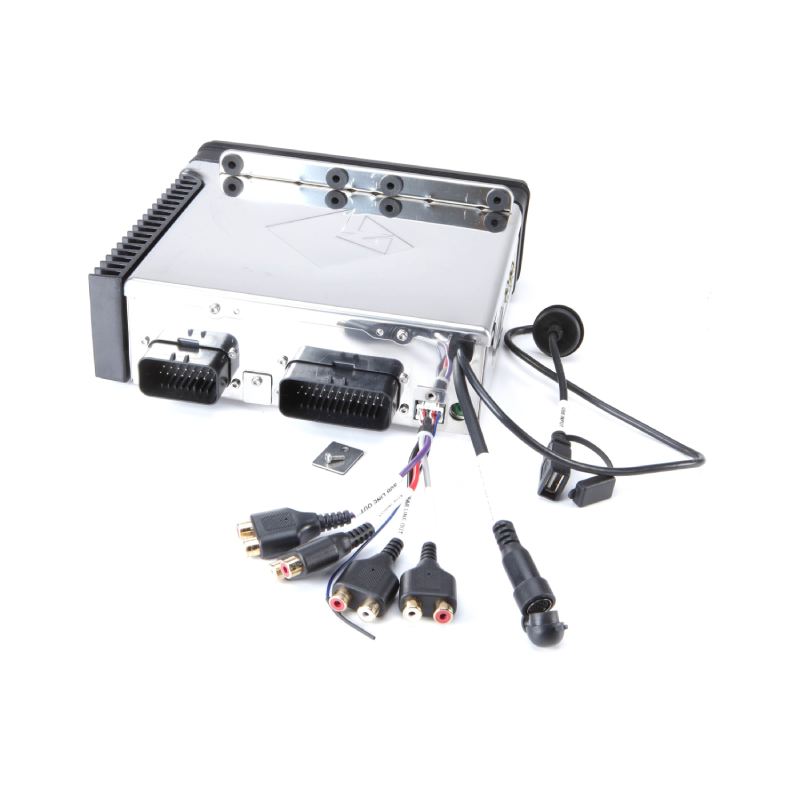

- • Pre-out harness
- • Owner's Manual
All-Weather Harley Upgrade Built for the Ride

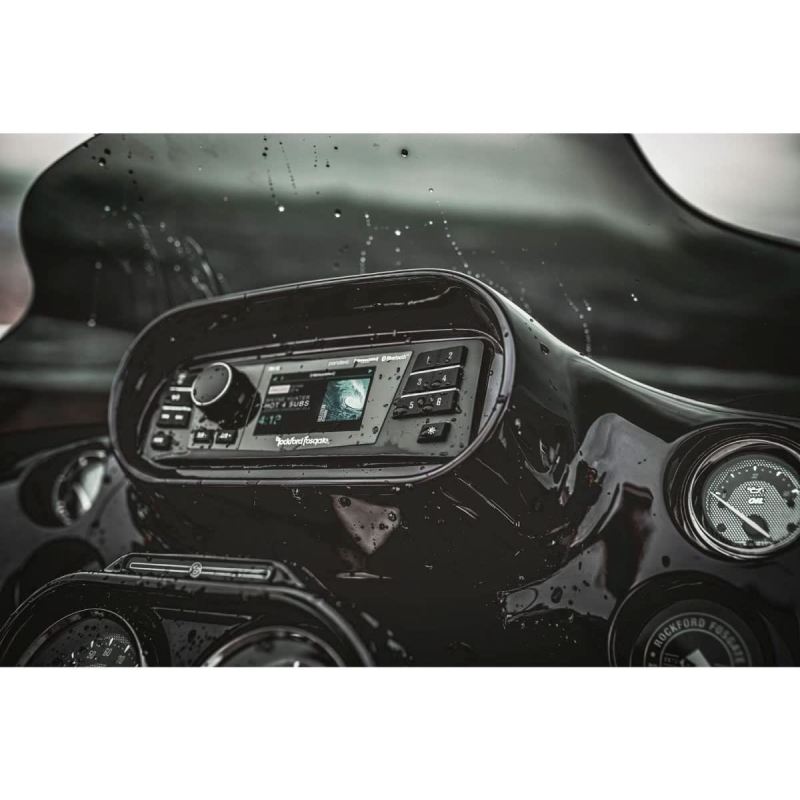

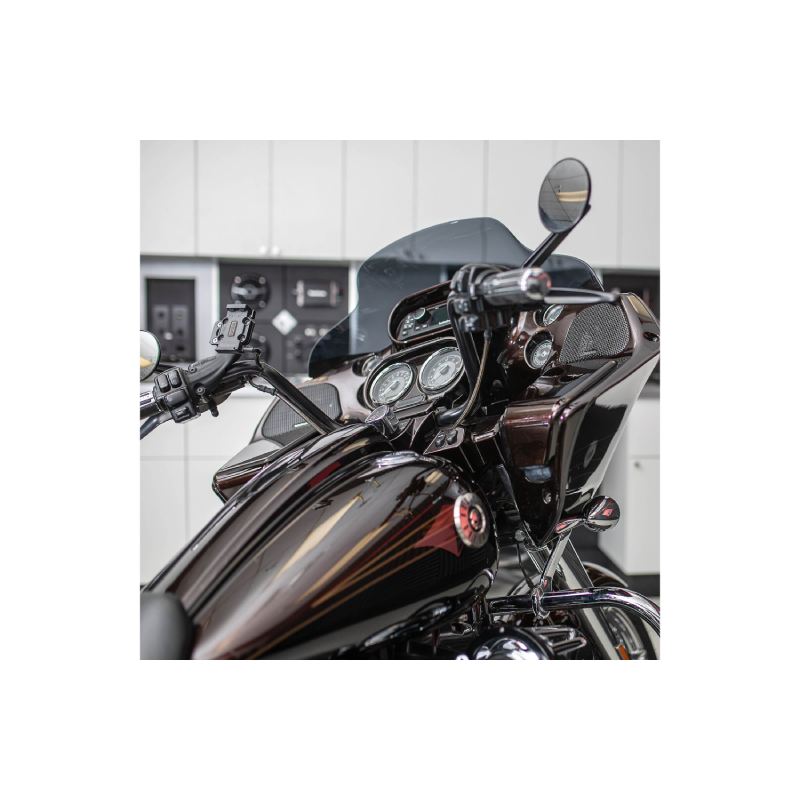

The Rockford Fosgate PMX-HD9813 brings a serious audio upgrade to your Harley-Davidson without losing that factory feel. It is built as a direct-fit Single DIN replacement for select 1998–2013 Electra Glide, Road Glide, and Street Glide models, so it installs clean using OEM wiring and a bolt-in design. Once it is in, you get Rockford Fosgate’s Element Ready protection, meaning it is tested against dust, UV, vibration, corrosion, temperature swings, and water exposure with IPX-rated durability. Basically, it is made to survive rain, heat, long highway runs, and rough road abuse without giving up performance.
Smart Control, Big Sound, Zero Compromise Experience
This receiver is not just about durability, it is packed with modern control and sound features that actually make riding better. The 3 inch full color display is bright and easy to read in sunlight, with day and night modes plus simple oversized controls for quick adjustments on the road. Bluetooth streaming gives you wireless music with full track, artist, and album info right on screen, while USB, iPhone support, AUX input, AM/FM radio, weather band, and SiriusXM readiness keep your entertainment options wide open. Add in the built-in MOSFET amplifier pushing clean power, plus full EQ tuning, Punch EQ bass boost, and crossover control, and you get a system that can be dialed in exactly how you like it whether you want loud, clear, or heavy bass riding sound.
Power Packed Audio Control and Clean Amplified Performance
The Rockford Fosgate PMX-HD9813 does not just play music, it gives you full control over how your ride sounds. With a built-in high efficiency MOSFET amplifier pushing up to 25 watts RMS per channel, you get loud, clear output without distortion even when you crank it up on the highway. The advanced tuning section lets you shape your sound exactly how you want it using a 7-band EQ, preset sound modes, Punch EQ bass boost, crossover control, and source gain adjustment so every source hits at the same level. Whether you want tight vocals, deep bass, or a full balanced stage, this unit gives you the tools to dial it in right from the dash without needing extra gear.
- DIN : 1
- Preamp Voltage : 4 volts
- Bluetooth : Yes
- Aux Input : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Preamp Outputs : Front, Rear & Sub
Features:
- All-Weather Factory Fit Harley-Davidson Integration System: The Rockford Fosgate PMX-HD9813 is engineered as a direct replacement Single DIN digital media receiver for select 1998–2013 Harley-Davidson motorcycles, including Electra Glide, Road Glide, and Street Glide models, delivering a true OEM-style installation with factory wiring harness compatibility and bolt-in mounting design for a clean dashboard integration.
- Extreme Condition Element Ready Protection Engineering: Built as part of Rockford Fosgate’s Element Ready Series, this receiver is fully tested against dust, UV exposure, vibration, corrosion, temperature extremes, and water intrusion with IPX-rated protection, ensuring reliable performance and long-term durability in harsh riding environments.

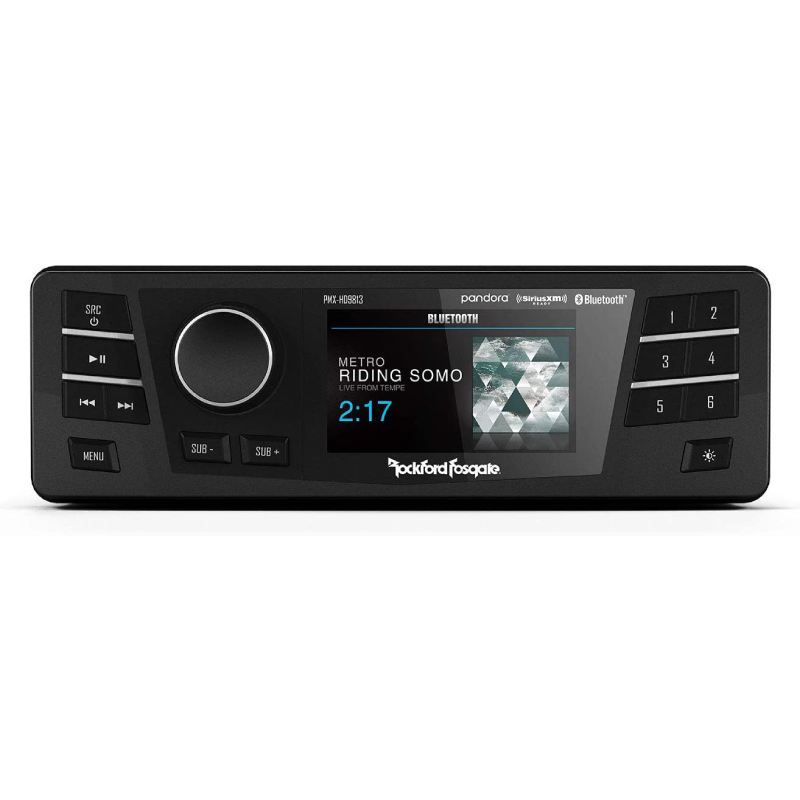

- High-Visibility 3 Inch Full Color Display Interface System: Features an ultra-bright 3-inch TFT full color screen with day and night modes, adjustable brightness, and oversized tactile controls, providing clear visibility and easy operation even in direct sunlight and high-vibration riding conditions.
- Advanced Bluetooth Wireless Audio Streaming Platform: Integrated Bluetooth 3.0+EDR allows wireless music streaming with full control of playback functions including play, pause, track skip, shuffle, and category browsing, while displaying song, artist, and album art information directly on the screen.
- Multi-Source Media Connectivity and Device Integration System: Supports USB playback for MP3, WMA, and FLAC files, direct iPhone connectivity with charging and full music navigation, plus rear RCA AUX input for external devices, offering flexible audio source options for different user preferences.
- SiriusXM Ready and Multi-Band Radio Entertainment System: Compatible with SiriusXM tuner integration, AM/FM radio with preset memory, and built-in weather band reception, providing access to a wide range of entertainment and real-time broadcast information on the road.
- High-Efficiency MOSFET Amplifier Output Performance Design: Built-in 4-channel MOSFET amplifier delivers 25 watts RMS per channel with low distortion and high efficiency, producing clean, powerful sound output while maintaining thermal stability under demanding riding conditions.
- Advanced Audio Tuning and Custom Sound Control System: Includes 7-band EQ, multiple preset sound modes, Punch EQ bass enhancement, crossover controls, and source gain adjustment, allowing precise audio tuning for balanced and high-impact sound performance.
Specifications:
- Operating Voltage: 9.5 - 16 VDC
- Output Impedance: < 500 Ohms
- CEA-2006 Power Rating
- 25W x 4 @ 4? RMS
- 50W x 4 @ 2? MAX
- ≤1.0% THD+N
- THD+N: 4-Ohms: < 1.0 %
- Front: 4 V Max
- Rear: 4 V Max
- Sub: 4 V Max
- CrossoverSub-Out variable from 60 Hz - 120 Hz
- Channel SeparationRCA: > 50 dB
- High-Level: > 50 dB
- Signal-to-Noise RatioRCA 2V: > 85 dB
- High Level (CEA-2006): > 75 dB
- Max Wrms: > 80 dB
- AM TunerRange: 530 - 1710 kHz
- Sensitivity: 40 dB
- Frequency Response: 45 to 2.4 kHz
- FM TunerRange: 87.9 - 107.9 MHz
- Sensitivity: 8 dB
- Frequency Response: 20 - 15 kHz
- Bluetooth®3.0+EDR
- A2DP 1.3
- USB Version2.0
- Supported Media FormatsMP3
- WMA
- USB Output Current1.5A
- ClockYes
- USB Capacity32 Gb max
- 255 Folders max
- 999 Songs max
- Format Win USB as FAT32
- Format Mac USB as MS-DOS (FAT)
- Display Size:Nominal Size: 3" Color TFT
- Resolution: 960 x 240
- Brightness: 380 nits
- Contrast: 400
- Pixels: 320 x 240
- View Angle: 120
- Made for iPhone ModelsiPhone XS Max
- iPhone XR
- iPhone 8 Plus
- iPhone 7 Plus
- iPhone SE
- iPhone 6s
- iPhone 6
- iPhone 5c
- iPhone XS
- iPhone X
- iPhone 8
- iPhone 7
- iPhone 6s Plus
- iPhone 6 Plus
- iPhone 5s
- iPhone 5
- Made for iPod ModelsiPod touch (5th generation)
- iPod touch (6th generation)
- (HxWxD)Faceplate: 2.7" x 8.4" x 0.7"
- (68.4 mm x 213 mm x 17.1 mm)
- Chassis: 2.5" x 8.2" x 7.5"
- (63.5 mm x 209.3 mm x 191 mm)
- UPC: 780687356286
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Rockford Fosgate is absolute junk. I have gone through two of their PMX9813 motorcycle radios. The first one the screen separated from the unit as the adhesive just failed. I was sent a second unit that stopped functioning after riding through a rainstorm. These radios are not marine grade. This is a cheap and poorly made product. Customer service is even worse. They’re sarcastic towards your loss and inconvenience and refuse to help. Steer clear of this garbage. Soundstream is putting out a way better product and their company stands behind their product. It’s a novel concept RF is too big to have to care about anymore.
