Rockford Fosgate HD14-SBSUB 10" 4 Ohms Saddlebag Subwoofer Kit for Select 2014-up Harley-Davidson® Motorcycles
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Bass That Hits Hard, Built for the Road

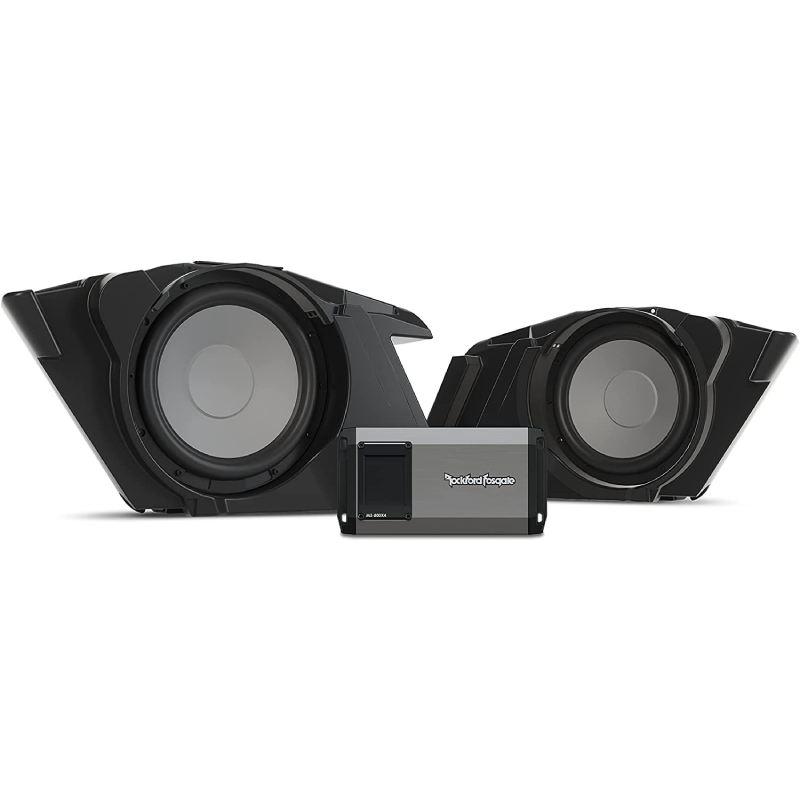

Turn your Harley into a rolling sound machine with the Rockford Fosgate HD14-SBSUB Saddlebag Subwoofer Kit. This system brings serious low-end power with dual 10-inch M1D2-10B Element Ready subwoofers housed in sealed, vehicle-specific saddlebag enclosures. It is designed for riders who want deep, controlled bass that you can feel at highway speed, not just hear at a stoplight. Paired with the M5-800X4 4-channel amplifier delivering up to 100 watts RMS per channel, you get a perfectly balanced setup that pushes both your full-range speakers and subs with clean, controlled power. Whether you are riding a Batwing or Sharknose fairing setup on 2014–2024 Harley-Davidson Touring models, this kit fits like it was built at the factory.
Built for Weather, Tuned for Pure Ride Control
This is not just loud, it is smart and tough. The Element Ready design means marine-grade sealing, corrosion resistance, and IPX6-rated protection so rain, dust, heat, and vibration are not a problem. Rockford Fosgate also packs in Class-AD amplification with MEHSA 4 thermal control and DSM efficiency tech, so it stays cool and clean even when you are pushing it hard. CLEAN gain optimization makes tuning simple and distortion-free, while flexible crossover and EQ controls let you dial in your sound exactly how you like it. With factory integration for Stage 2 and Stage 3 systems plus a complete install kit included, this setup keeps your bike looking stock while delivering concert-level bass on every ride.
Frequently Asked Questions (FAQ)
- • Why Did My HD14-SBSUB Subwoofers Start Sounding Extremely Distorted?
A common installation mistake is feeding the subwoofer amplifier from the speaker outputs of another amplifier, effectively amplifying an already amplified signal. Rockford Fosgate specifically warns that this can cause severe distortion or premature subwoofer failure; the sub amp input should instead receive the appropriate radio-level signal.
- • Why Did One of My Saddlebag Subs Stop Working?
Check the individual subwoofer connection, amplifier channel, and harness before replacing the driver. The HD14-SBSUB uses a 4-channel amplifier with each subwoofer driven by a bridged pair of channels, so a connection or channel problem can affect one side independently.
- • Can I Run the HD14-SBSUB With Only One Subwoofer Installed?
Yes. Rockford states that either the clutch-side or brake-side subwoofer can be removed while the amplifier remains safe to operate. If only one enclosure is removed, distribute luggage weight appropriately between the saddlebags to avoid upsetting the motorcycle's balance.
- • Why Does My HD14-SBSUB Have Plenty of Power but Weak Bass?
If the system is loud but the bass lacks impact, check the amplifier's tuning, signal source, crossover settings, and input wiring. An incorrect signal connection can make the system appear powerful while producing poor-quality bass. Rockford specifically identifies improper amplifier-to-amplifier signal feeding as a cause of bad subwoofer performance.
- • Why Did My Subwoofers Fail After I Installed the Kit?
Before assuming the woofers are defective, inspect the signal routing. Rockford's current advisory identifies incorrect input wiring as a potential cause of distorted sound and subwoofer failure, particularly when the subwoofer amp is connected to another amplifier's speaker outputs.
- • Why Doesn't My HD14-SBSUB Work With the Factory BOOM! Audio System?
The HD14-SBSUB is designed to integrate with the Rockford Fosgate aftermarket Harley-Davidson audio ecosystem, not factory BOOM! or Harley-Davidson Audio Powered by Rockford Fosgate systems. Verify the existing audio equipment before purchasing the kit.
- • Does Adding the HD14-SBSUB Require My Harley Radio to Be Re-Flashed?
Not necessarily. Rockford states that a re-flash is not required when adding the HD14-SBSUB to an existing Rockford Fosgate TMS system if the factory radio was already flashed correctly during the original aftermarket installation.
- • Why Does the Bass Change After I Remove One Saddlebag Sub?
Removing one woofer naturally changes the system's overall bass output and balance. Rockford confirms the system can operate with one subwoofer, but riders should also redistribute luggage weight when removing only one side.
- • Why Is My HD14-SBSUB Making Bass but the Sound Seems Dirty or Clipped?
Start by checking the input source and amplifier gain rather than immediately replacing the subwoofers. If the subwoofer amplifier is receiving an already-amplified speaker signal, the resulting double amplification can produce severe distortion.
- • Can I Replace the Original HD14-SBSUB Woofers With Different 10-Inch Subwoofers?
Physical replacement may be possible, and aftermarket installers have demonstrated alternatives fitting the enclosure, but changing the driver can alter impedance, power handling, and acoustic performance. The safest approach is to use the intended replacement driver and maintain the original amplifier/load configuration. Rockford lists a dedicated 10-inch replacement woofer for the HD14-SBSUB system.
Features:

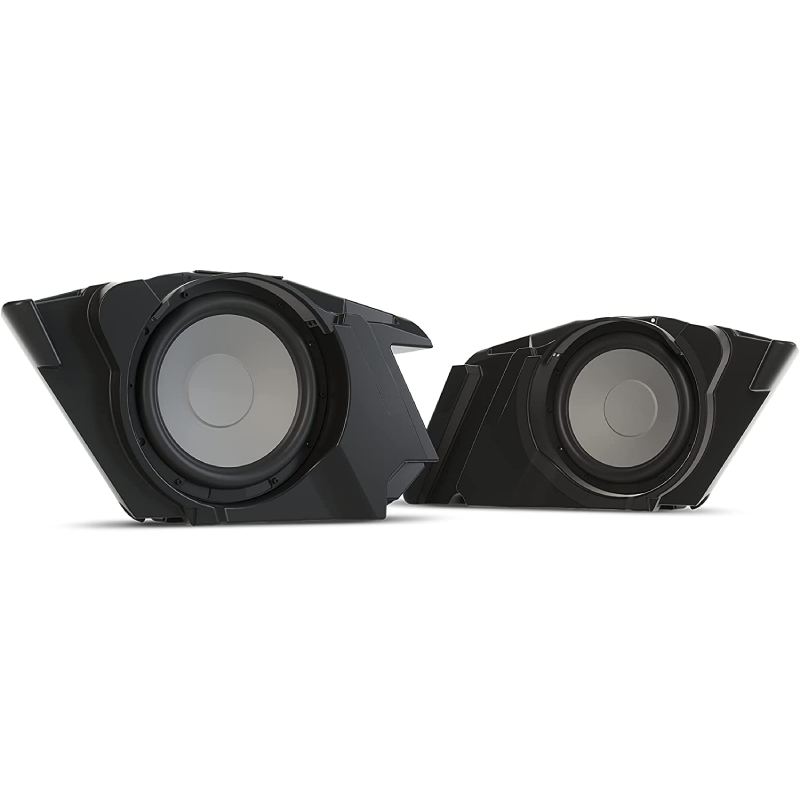

- High-Output Saddlebag Subwoofer Integration: Utilizes dual 10-inch M1D2-10B Element Ready subwoofers housed in sealed, vehicle-specific saddlebag enclosures for deep, controlled low-frequency reproduction on Harley-Davidson touring motorcycles.
- Dedicated Multi-Channel Amplification Platform: Includes the M5-800X4 4-channel amplifier delivering up to 100 watts RMS per channel, engineered to provide balanced system drive for both full-range speakers and subwoofer channels.
- Motorcycle-Specific Engineering Fitment: Designed exclusively for select 2014–2024 Harley-Davidson Touring models with compatibility for Batwing and Sharknose fairing platforms and standard ABS saddlebag configurations.
- Element Ready Environmental Protection: Built with marine-grade sealing, corrosion-resistant materials, and IPX6-rated amplifier protection to ensure reliable operation under rain, vibration, dust, and UV exposure.
- Factory System Integration Compatibility: Engineered to work with Rockford Fosgate Stage 2 and Stage 3 infotainment systems, ensuring optimized tuning, signal matching, and seamless OEM audio integration.
- Advanced Thermal and Efficiency Design: Features Class-AD amplification, MEHSA 4 thermal management, and DSM circuit architecture for improved efficiency, reduced heat, and long-term durability under sustained load.
- CLEAN Gain Optimization Technology: Integrated input/output clipping indicators simplify system tuning, allowing precise gain matching without external diagnostic tools for distortion-free playback.

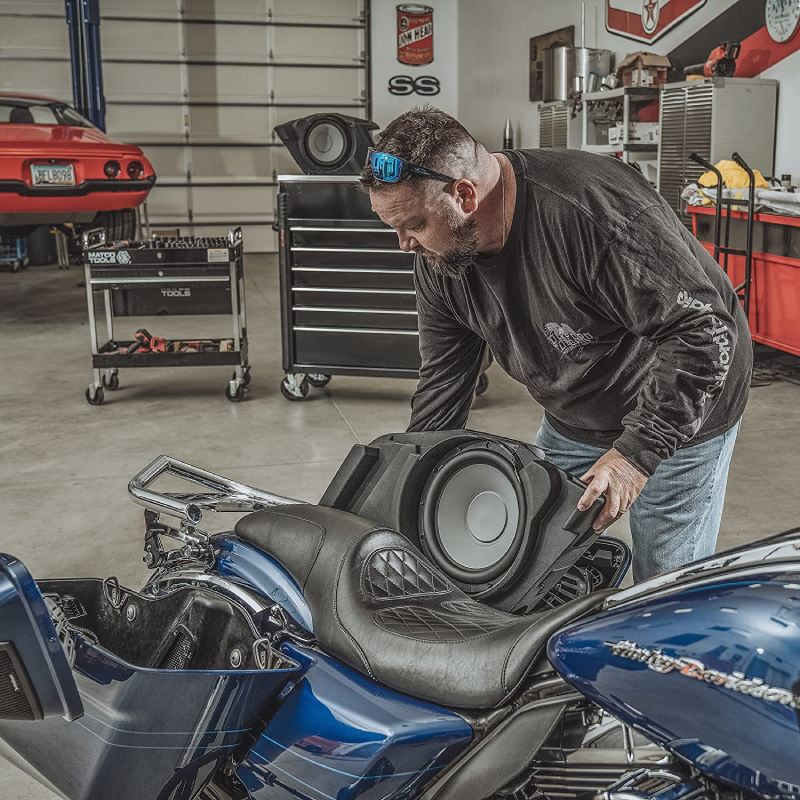

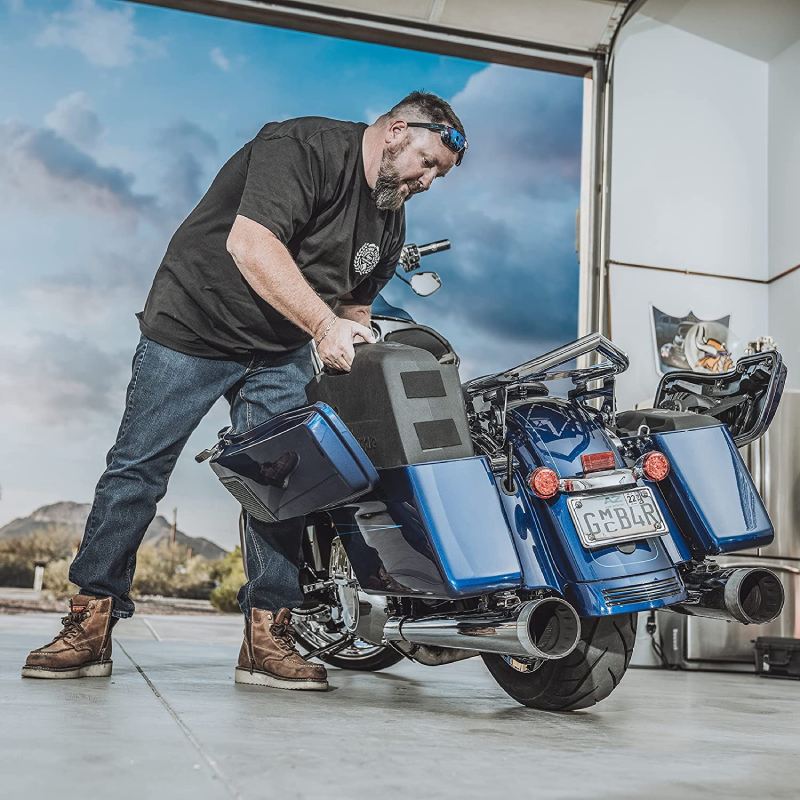

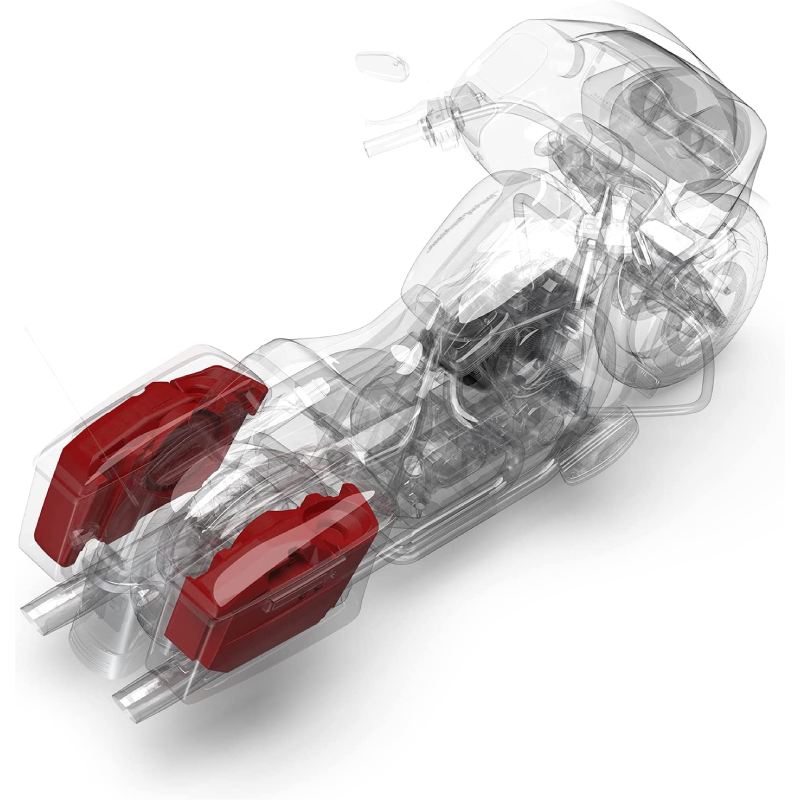

- Custom Saddlebag Enclosure Design: Precision-molded enclosures fit inside stock saddlebag compartments, preserving motorcycle aesthetics while delivering high-impact bass response without external modification visibility.
- Flexible Signal and Crossover Control: Independent front/rear input management with variable crossover and Punch EQ tuning enables detailed system calibration based on rider preference and system configuration.
- Complete Installation Hardware Package: Includes pre-terminated wiring harnesses, mounting hardware, and templates for controlled saddlebag modification and streamlined professional installation.

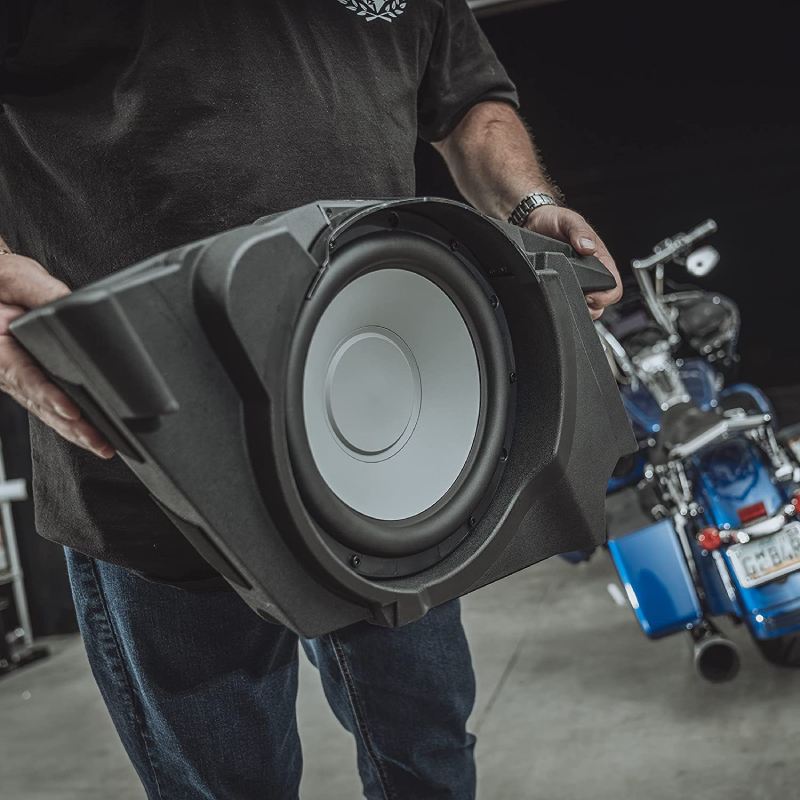

M1D2-10B subwoofer info:
- 10" motorcycle subwoofers (pair in enclosures)
- power handling: 300 watts RMS/1200 watts peak
- designed to fit factory bag lid locations
- Element Ready design is IP67-rated
- dual air space keeps TMS saddlebag speakers separate from subwoofers
- injection-molded mineral-filled polypropylene cone with Santoprene rubber surround
- selectable impedance: 1 or 4 ohms
- these subs do NOT offer RGB LED Color Optix functionality
- warranty: 2 years

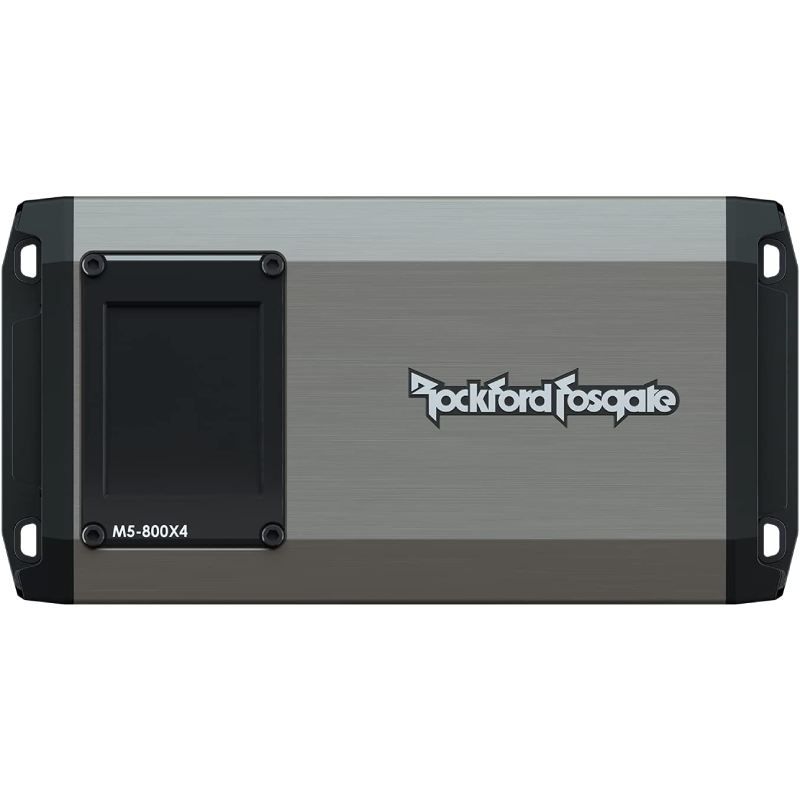

M5-800X4 amplifier info:
- marine 4-channel amplifier
- Class AD design
- 100 watts RMS CTA-2006 x 4 at 2 or 4 ohms
- variable low-pass and high-pass filters (50-250 Hz, 12 dB/octave)
- Element Ready chassis and conformal-coated PC boards
- IPX6 water intrusion rating
- dimensions: 12"W (includes wiring) x 1-13/16"H x 4-1/4"D
- warranty: 2 years
Specifications:
- Woofer Qty: 2
- Woofer Size: 10"
- Woofer Series: M1D2-10B
- Nominal Impedance: 4Ω (2Ω DVC wired to create 4Ω bridged amp load)
- Power Handling: 300 Watts RMS/ 1200 Watts Peak
- Enclosure Type: Sealed
- Enclosure Material: Rotomolded HDPE
- Speaker Connector: 2-pin Deutsch™/Amphenol™
- Frequency Response: 20 Hz – 750 Hz
- Amplifier Type: Class-AD
- Total Power: 800 Watts
- Grille/Trim Ring Included: Yes
- Mounting Hardware: Yes
- UPC: 780687359669
- Weight: 46
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
