Rockford Fosgate RFK-HD9813M5 Amplifier Wiring Kit for Select for Select 1998-2013 Road Glide, Street Glide, & Electra Glide Motorcycles
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

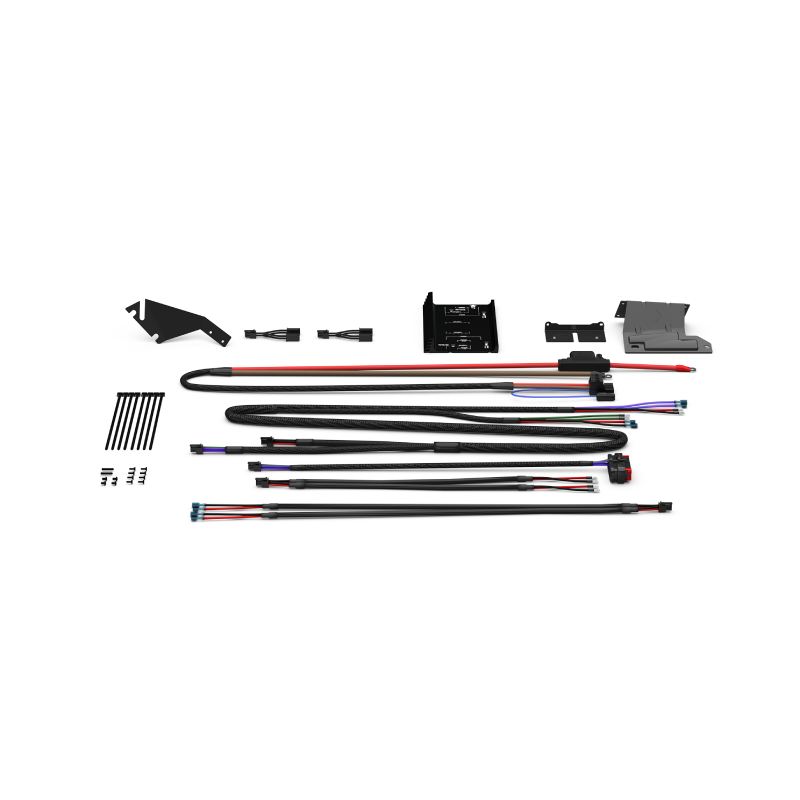

What's Inside?
- •(1) Amp mounting bracket
- •(1) Heatsink
- • T-harness
- • Power/ground harness w/ inline 60A Maxi fuse
- • Amplifier output harness
- • Amp output harnress
- • Owner's Manual
Why Choose Rockford Fosgate RFK-HD9813M5 Amp Installation Kit?
100% Pure Crystal-Oxygen Free Copper

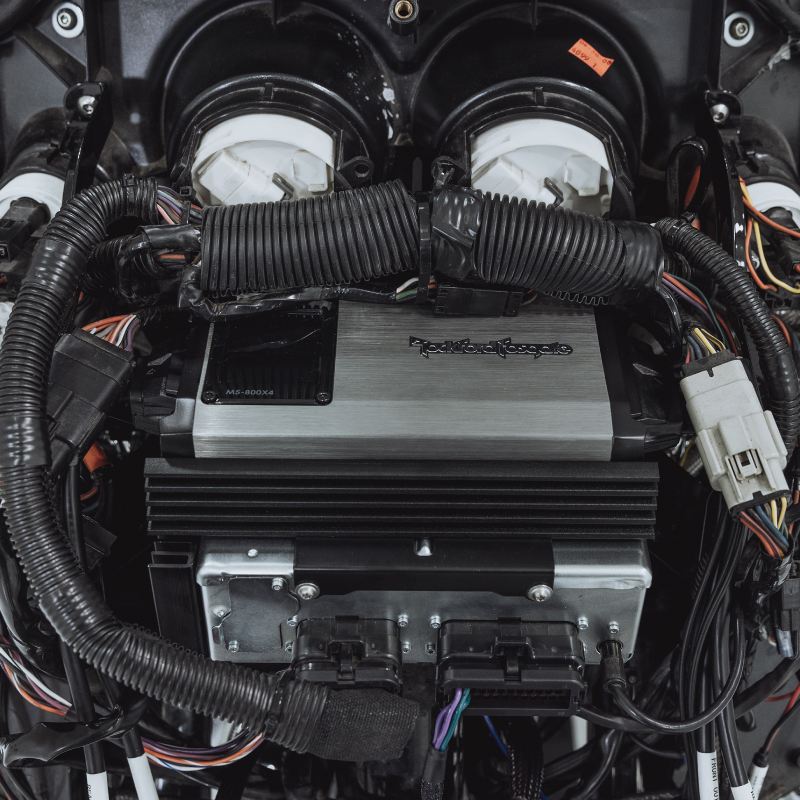

This complete kit includes a heatsink, bracket, hardware and wiring harness needed to install the M5-800X4 amplifier on select 1998-2013 Harley-Davidson® motorcycles. The cables have been upgraded to provide the necessary current and voltage requirements for the amplifier, and the heat-sink provides extended thermal time under demanding situations. Integrates into factory electrical system without modifications or cutting.
Plug and Play Design for Easy Installation
Plug-and-Play Design: Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.
Element Ready™: Purpose built for the harsh motorcycle environment. The speakers and amplifier are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time
Frequently Asked Questions (FAQ)
- • Why does the amp have no power after installation?
Check the fuse, battery connection, ground point, and power cable. Loose terminals or a poor ground can keep the amplifier from powering on.
- • Why does the fuse keep blowing?
A blown fuse may indicate a short, damaged cable, incorrect wiring, or excessive current. Inspect the wiring and confirm the fuse rating is correct.
- • Why does the amplifier cut out while riding?
Loose connections, vibration, overheating, or low voltage can cause shutdowns. Check the battery, ground, fuse holder, and power connections.
- • How do I know if the ground connection is good?
Connect the ground securely to clean, bare chassis metal. Remove paint or rust from the contact point and tighten the connection firmly.
- • Why does the power cable get hot?
Heat may indicate a loose connection, undersized cable, or excessive current. Check the terminals, cable size, and fuse rating.
- • Why do I hear noise after installation?
Electrical noise can result from poor grounding or signal and power cables being routed too closely. Check the ground and separate the wiring.
- • Where should the fuse holder be installed?
Install the main fuse close to the battery. Keep it secured away from heat, moving parts, and areas exposed to water.
- • Why does power drop over bumps?
Vibration can loosen battery, ground, fuse, or amplifier connections. Inspect the terminals and secure all wiring properly.
- • Can I install the kit myself?
Yes, if you are comfortable with automotive wiring. Follow the amplifier instructions, disconnect the battery, and verify connections before powering up.
- • What if the amp stays off after installation?
Check battery voltage, fuse continuity, power, ground, and remote turn-on connections. If everything is correct, inspect for a fault or protection condition.
Features:
- FULL spec cable - meets or exceeds AWG (American Wire Gauge) requirements
- 100% Pure Crystal-Oxygen Free Copper (PC-OFC)
- Plug and Play design for easy installation
- Designed for use with 1998-2013 Harley-Davidson® Motorcycles
- Y-adaptors included in amp install kit supports expansion of lower fairing, saddlebag, or Tour-Pak® speakers
- Designed for use with M5-800X4 amplifier
- Designed for use with TM400X4ad amplifier
- Includes mounting brackets for Bat Wing and Shark Nose fairings
- Includes rear speaker output harness for connection of rear speakers
Specifications:
- Battery PWR/GND Gauge: 8 AWG
- Fuse Type: MAXI
- Fuse Size: 60 Amp
- Amplifier PWR/GND Gauge: 8 AWG
- Speaker Wire Gauge: 16 AWG
- Dual Amp Installation Kit: No
- UPC: 780687360399
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
