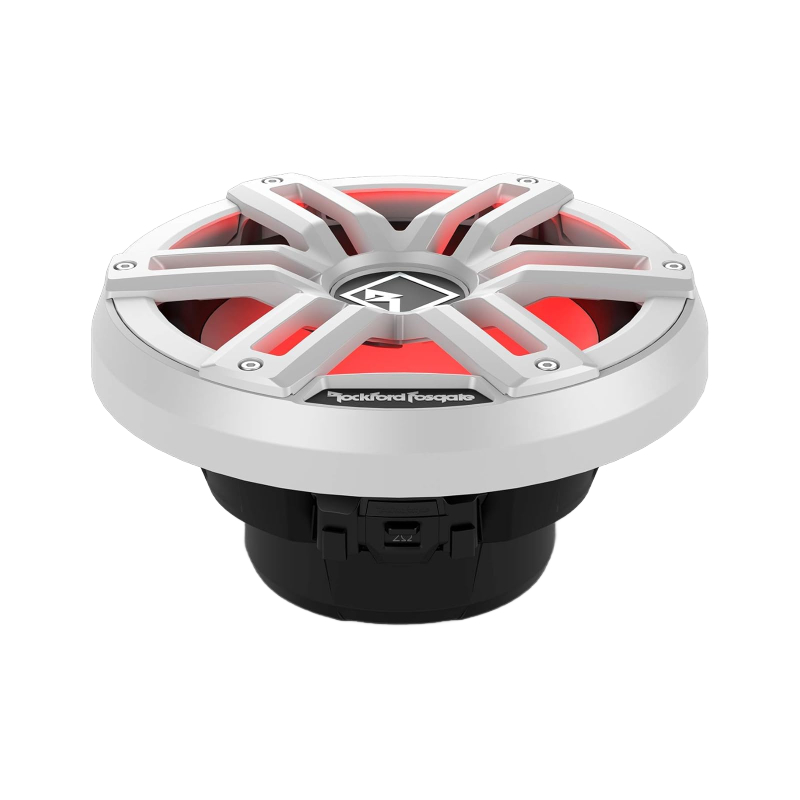

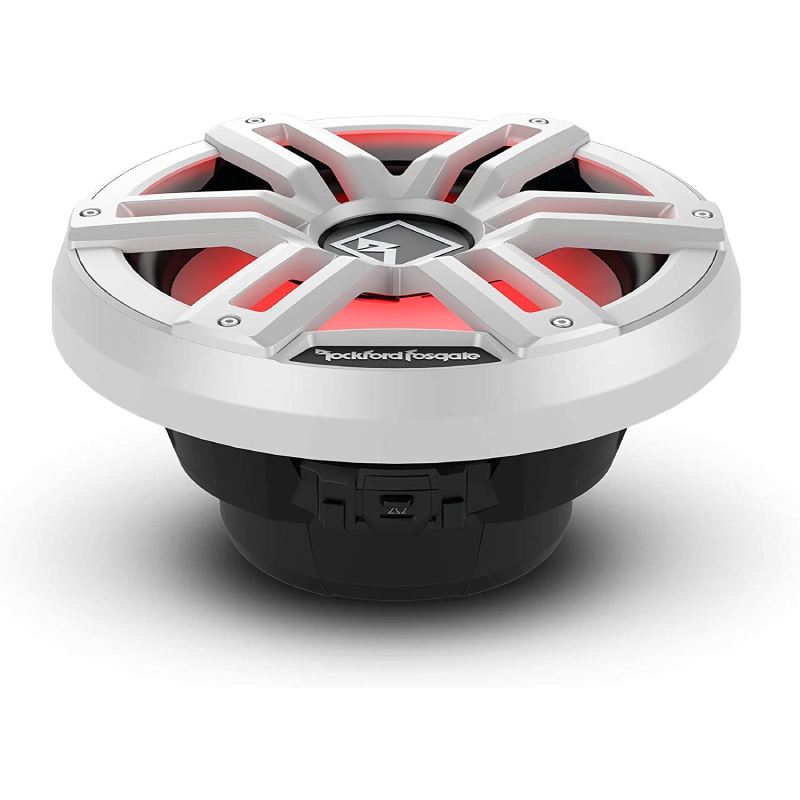

Rockford Fosgate M2D4-12I M2 Series 12" 400W RMS (1600W Peak Power Handling) 4 Ohms Dual Voice Coils RGB LED Lighting Marine Subwoofer - White
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

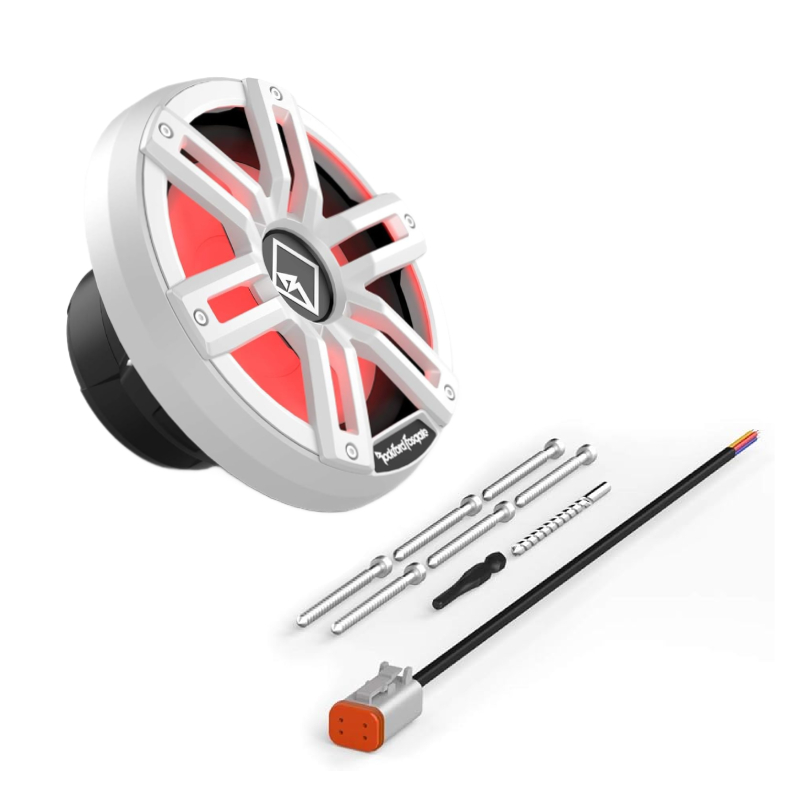

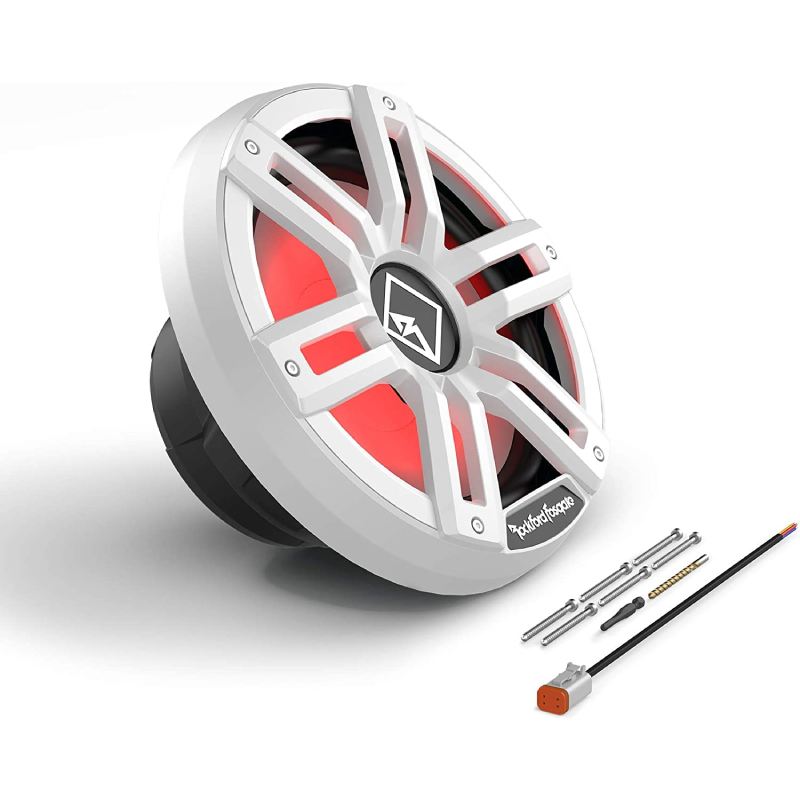

What's Inside?
- • 12" M2 Series Marine Subwoofer

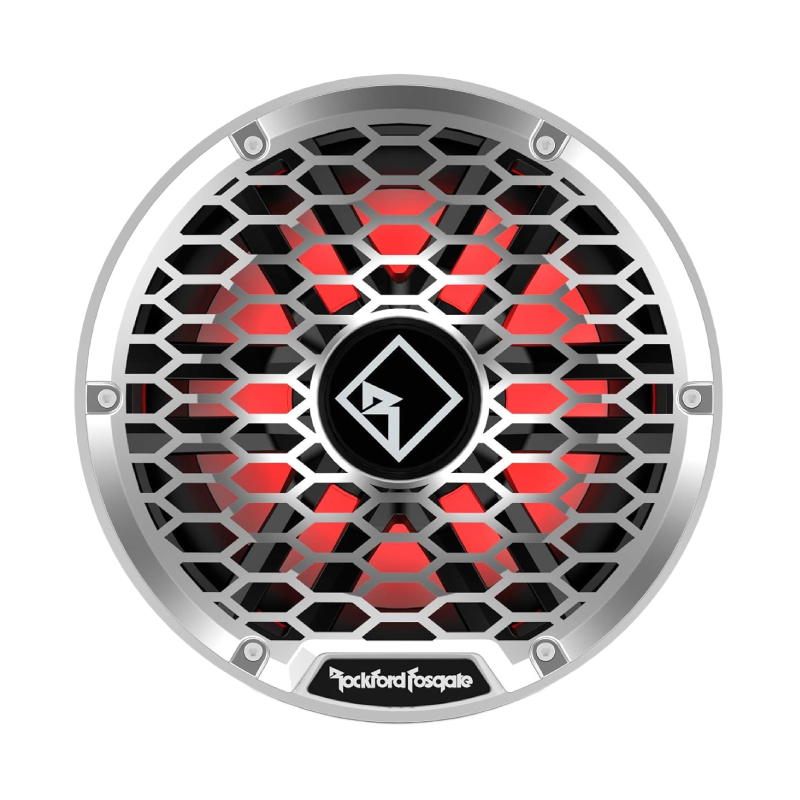

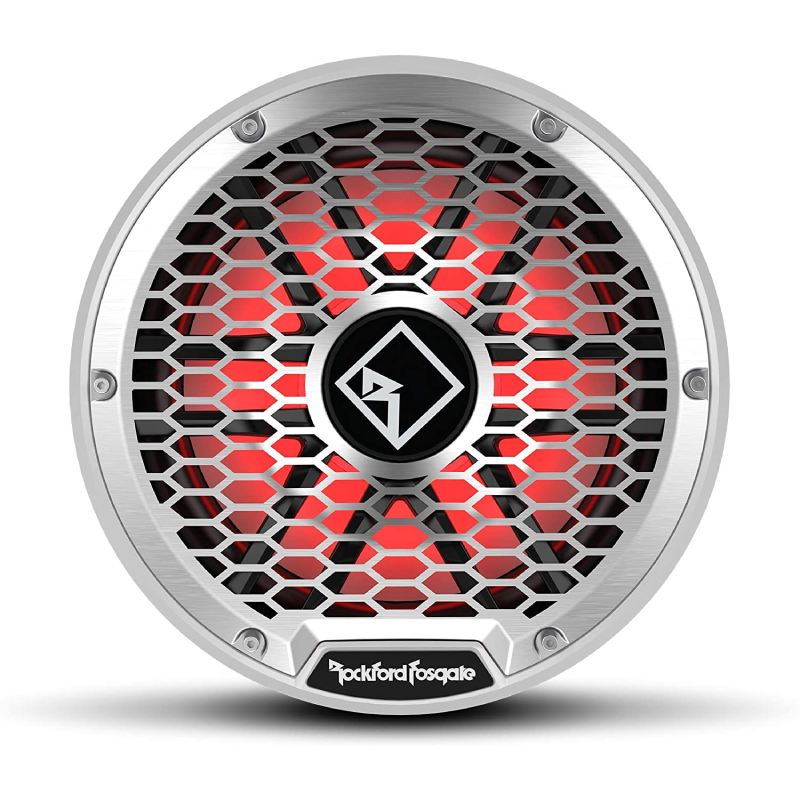

- • Stainless steel grille

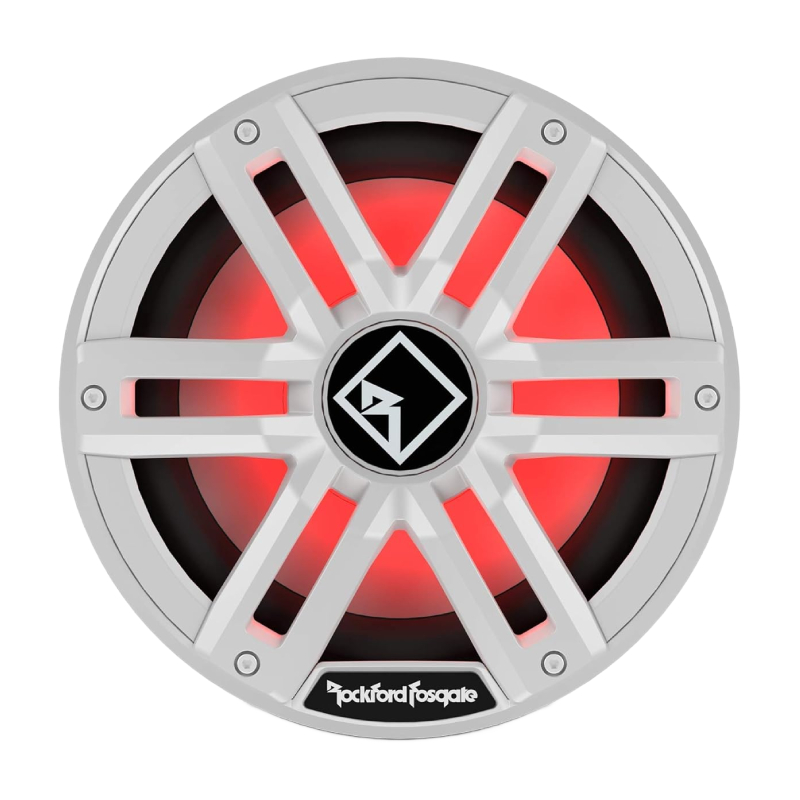

- • Sport grille (White)
- • Grille frame (White)
- • 11" LED power harnesses with 4-pin Deutsch connector on one end
- • (6) 3" Stainless steel Allen head screws
- • 4mm Allen head bit
- • 4.5mm Drill bit (for fiberglass enclosures only)
- • Owner's manual
One Subwoofer, Endless Install Possibilities
The Rockford Fosgate M2D4-12I is built for people who don’t want to be locked into a single way of doing things. Whether you’re running sealed boxes or going full open-air free-air setup, this marine subwoofer adapts to your build. It’s designed for both ported and infinite-baffle applications, giving you the freedom to shape your bass exactly how you want it while still delivering strong, controlled low-frequency output that fills the space.
Built for Water, Sun, and Everything in Between
This sub doesn’t flinch when conditions get rough. It’s engineered and tested to ASTM B117 salt fog and ASTM G154 UV standards, so it can handle long-term exposure to sun, moisture, and corrosion without losing performance. Add in waterproof Deutsch connectors and sealed terminals, and you get a setup that stays solid even in wet, high-vibration environments where most gear would struggle to survive.
Powerful Bass with Custom Looks and Clean Engineering
Under the surface, the M2D4-12I is all about control and output. You get selectable 2Ω or 8Ω impedance wiring, keeping your system flexible without sacrificing its 400W RMS and 1600W peak capability. VAST surround technology increases cone area for bigger bass without increasing size, while Klippel Verified tuning keeps distortion low even when you push it hard. And if you like a bit of style with your sound, the built-in RGB lighting lets you dial in colors like white, aqua, pink, or yellow, giving your setup a clean, custom glow that matches your ride.
Frequently Asked Questions (FAQ)
- • Why Does My M2D4-12I Have Plenty of Cone Movement but Barely Any Bass?
Excessive cone movement without strong bass can indicate acoustic cancellation in an infinite-baffle installation. Make sure the front and rear sides of the woofer are properly isolated so the sound waves cannot cancel each other.
- • Why Does Sealing the Mounting Area Make Such a Big Difference?
An infinite-baffle installation depends heavily on separating the front and rear acoustic waves. Even relatively small openings around the mounting panel can reduce bass performance, so inspect the baffle and surrounding structure for unwanted gaps.
- • Why Does My M2D4-12I Sound Great on Some Songs but Weak on Others?
Different recordings contain different amounts of low-frequency information. If certain tracks produce strong bass while others do not, compare the source material and crossover settings before assuming there is a problem with the subwoofer.
- • Why Does My Amplifier Get Hot After Running the M2D4-12I for a Long Time?
A hot amplifier can be caused by heavy continuous operation, inadequate ventilation, or an incorrect impedance load. The M2D4-12I can be configured for 2Ω or 8Ω, so verify that the amplifier is designed for the selected load. Real-world audio users frequently encounter overheating when an amplifier is driven hard or operated below its supported impedance.
- • Why Does the Bass Change When I Open a Hatch, Door, or Storage Panel?
Opening a panel can alter the air volume and acoustic separation surrounding an infinite-baffle installation. If that panel is part of the baffle structure, opening it may allow the front and rear sound waves to interact and reduce bass.
- • What Should I Do If the M2D4-12I Makes a Mechanical Noise at High Volume?
Stop increasing the volume and inspect the mounting hardware, grille, cone, surround, and nearby panels. Mechanical sounds can be caused by loose installation parts or excessive excursion rather than a normal operating characteristic.
- • Why Does My New M2D4-12I Not Sound as Powerful as I Expected From a 12-Inch Subwoofer?
A 12-inch driver does not automatically guarantee maximum bass output. Infinite-baffle performance depends strongly on the installation cavity, baffle construction, amplifier setup, and acoustic environment; the M2D4-12I is specifically optimized for installation without a conventional enclosure.
- • Why Did Changing the Voice-Coil Setting Change My Amplifier's Performance?
The M2D4-12I uses a switchable DVC configuration that changes the final impedance between 2Ω and 8Ω. Changing this setting changes the electrical load presented to the amplifier, which can significantly alter its available output.
- • Why Does the Subwoofer Stop Playing When I Push the Volume Near Maximum?
If the system cuts out only at high volume, investigate amplifier protection, voltage drop, clipping, wiring resistance, and impedance configuration. Rockford Fosgate also warns that many products returned for service are ultimately found to have installation-related issues rather than an actual product fault.
- • Why Do the Color Optix LEDs Work Intermittently on My M2D4-12I?
Intermittent lighting can result from a loose RGB connection, unstable power, damaged wiring, or a controller connection problem. The M2D4-12I uses separate Color Optix lighting connections, so the subwoofer can continue playing even when the RGB system has an issue. Rockford specifies integrated Deutsch/Amphenol connections for the marine installation.
- Diameter : 12 Inch
- Sensitivity : 88 dB
- Impedance : 4 Ohm
- Frequency Response : 20-750 Hz
- RMS Power Range : 400 Watts
- Peak Power Handling : 1600 Watts
- Color : White
- Mounting Depth : 5 Inches
Features:
- Versatile Marine Bass Engineering Platform: The M2D4-12I marine subwoofer is designed to deliver powerful low-frequency performance in both sealed and open-air installations, offering flexibility for a wide range of marine and powersports audio builds.
- Marine-Grade Durability Certification: Engineered and validated using ASTM B117 salt/fog and ASTM G154 UV testing standards, ensuring long-term resistance against corrosion, sun exposure, and harsh environmental conditions.

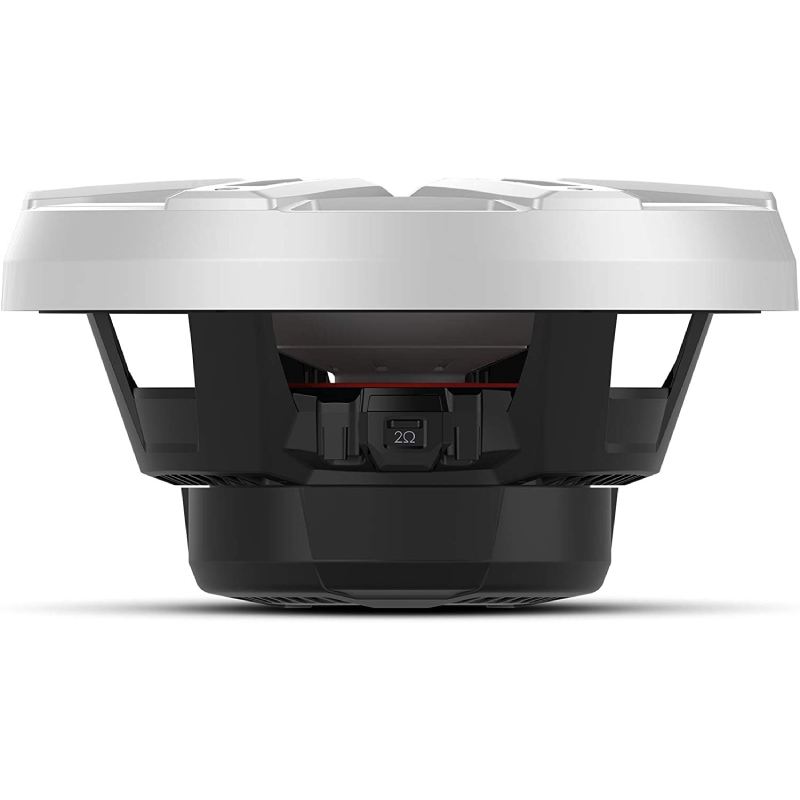

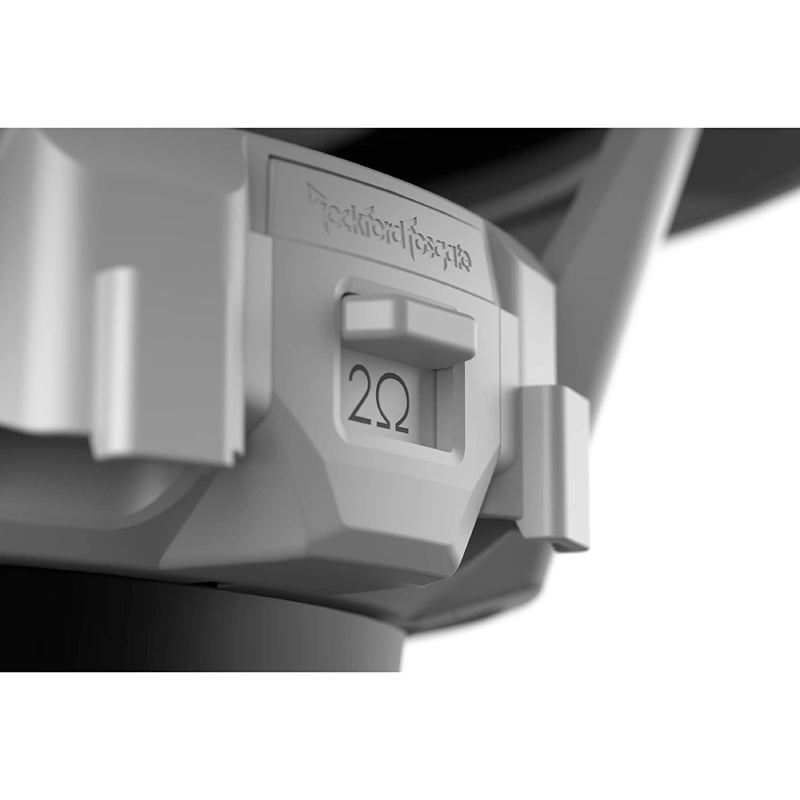

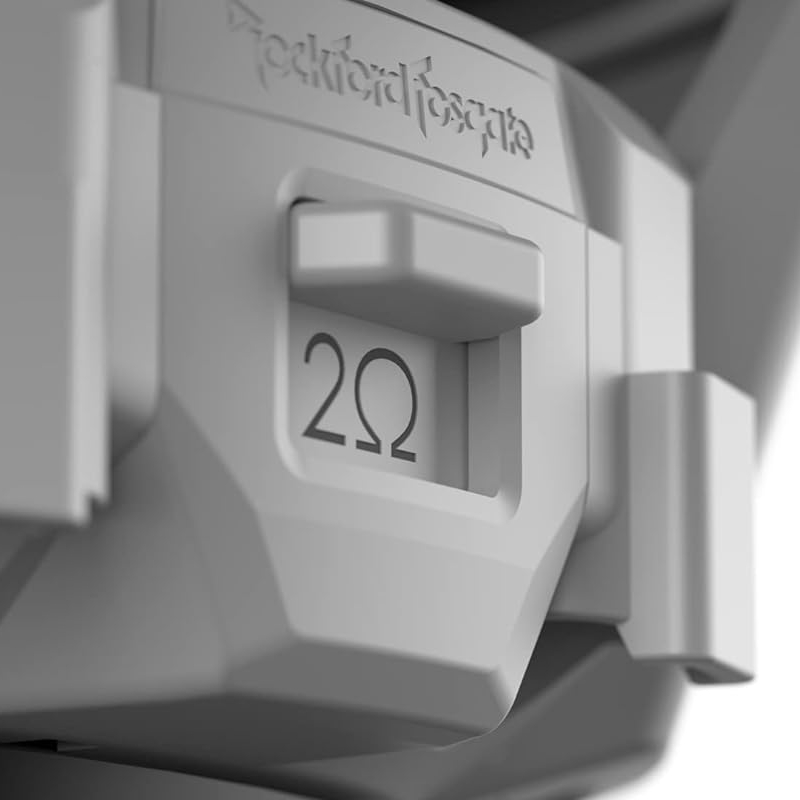

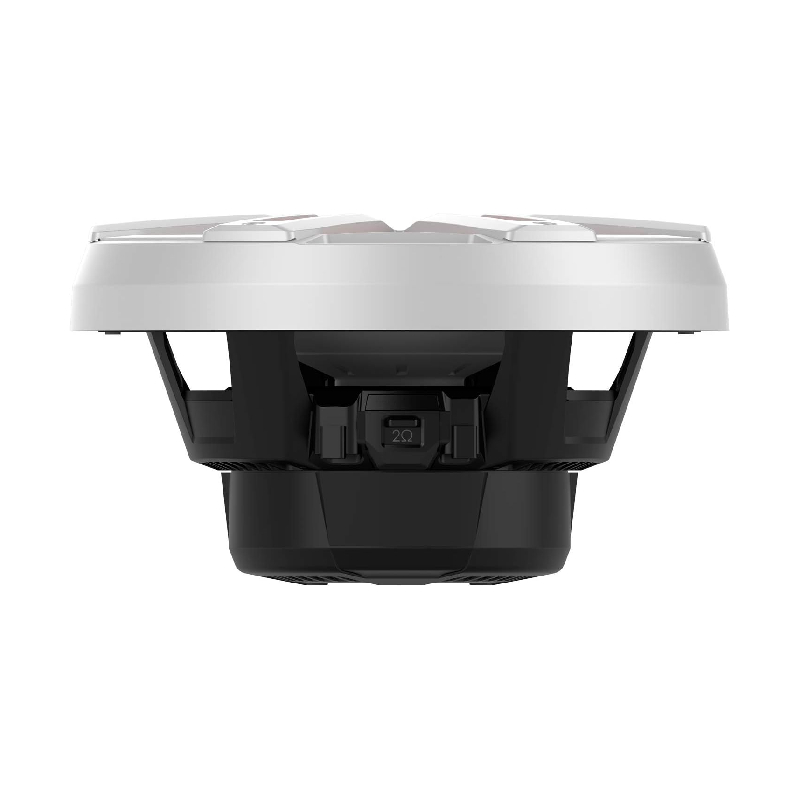

- Selectable Dual Impedance Configuration: Integrated switch allows seamless adjustment between 2Ω and 8Ω impedance by reconfiguring dual voice coils in parallel or series, maintaining consistent 400W RMS / 1600W peak power handling across both settings.
- Optimized Infinite-Baffle Compatibility: Designed specifically for free-air applications, allowing installation without a dedicated enclosure while maintaining strong low-frequency output and efficient space utilization.

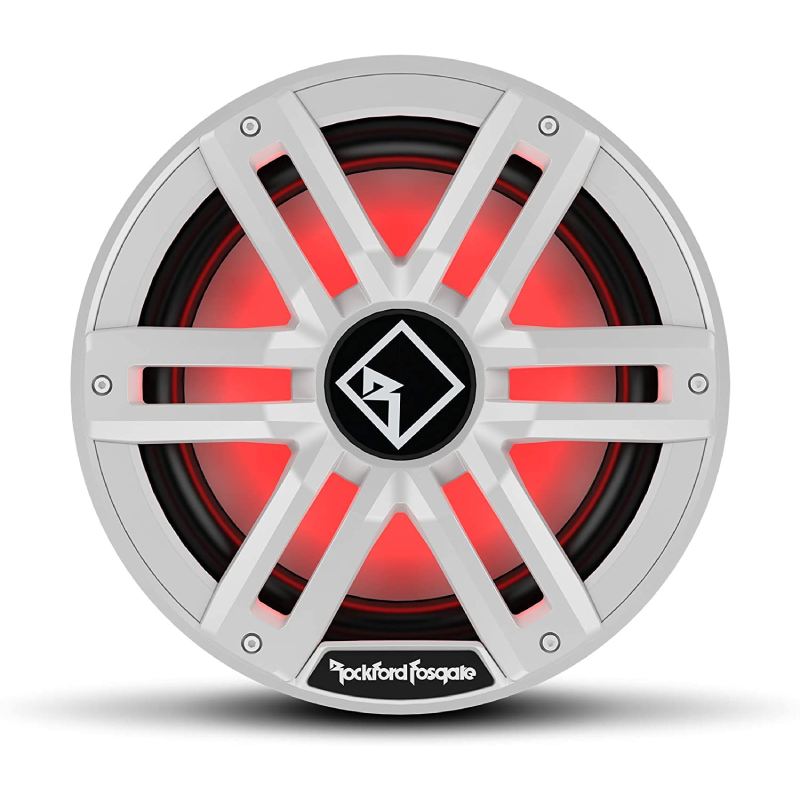

- Dynamic Multi-Color LED Illumination System: Features red, green, and blue LED backlighting with customizable color combinations, including white, yellow, pink, and aqua, for enhanced visual presence in any installation.
- Waterproof Marine Connection System: Equipped with sealed Deutsch DT Series connectors and integrated terminal options to ensure secure, corrosion-resistant electrical connections in wet and high-vibration environments.
- Enhanced Cone Efficiency Technology: VAST (Vertical Attach Surround Technique) increases effective radiating surface area, improving bass response and output efficiency without enlarging the overall basket design.
- Precision-Optimized Driver Architecture: Klippel Verified engineering ensures refined motor structure alignment and suspension performance, reducing distortion and improving overall sound accuracy at high output levels.
- Flexible Enclosure and Free-Air Application Support: Compatible with both ported enclosure setups and infinite-baffle configurations, offering tailored tuning options for different acoustic performance goals.
Speicifications:
- Size: 12"
- Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
- Power Handling (Watts RMS): 400 Watts RMS/1,600 Watts PEAK
- Voice Coil Type: Dual Voice Coil
- Voice Coil Diameter: 1.95" (49.53 mm)
- Magnet Weight (oz): 61.09 oz. (1.7 Kg)
- Frequency Response (Hz): 20 Hz - 750 Hz
- Fs (Hz): 38
- Re (Ohms): 6.5
- Le (mH): 3.43
- Sd (cm2): 539
- Qms: 5.27
- Qes: 1.14
- Qts: 0.94
- Vas: 64.2
- SPL (dB @ 1w/1m): 88
- SPL (dB @ 2.8v): 90
- Xmax (mm): 15
- Woofer Displacement: 0.121 (3.43 Liters)
- Speaker Connector: 2-pin Deutsch™ and 1/8" Spade
- Cutout Diameter: 11” (279.4 mm)
- Mounting Depth: 5.13" (130.4 mm)
- UPC: 780687355715
- Weight: 15
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
