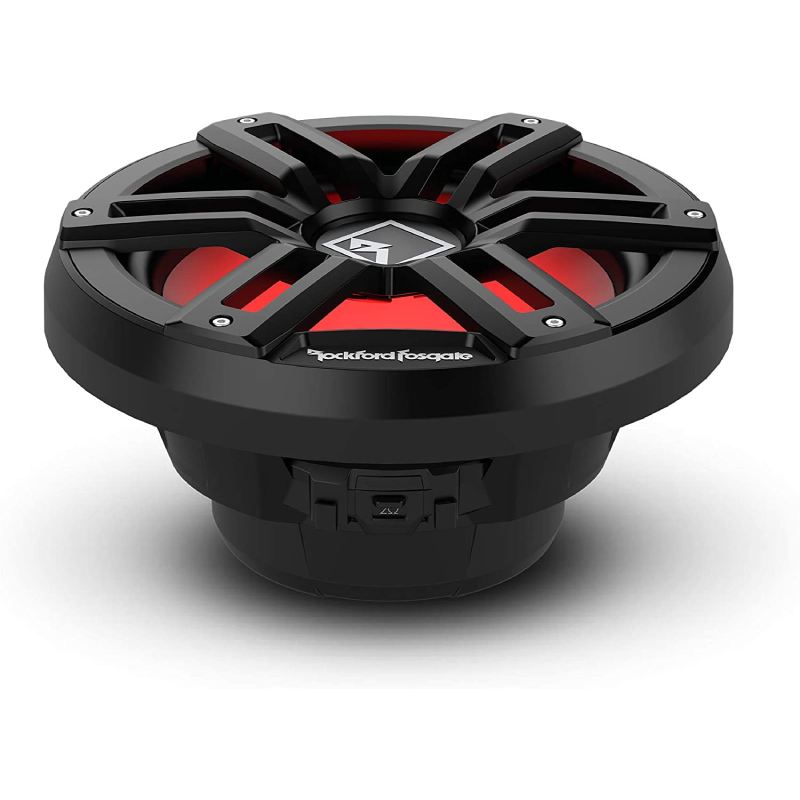

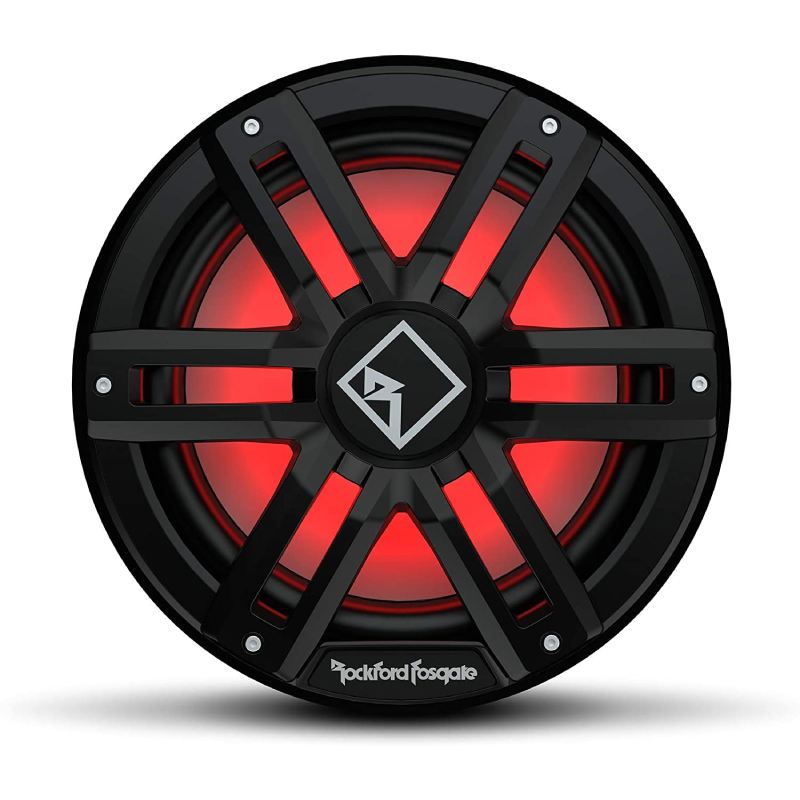

Rockford Fosgate  M2D4-12IB

M2 Series 12" 1600W Peak Power Handling 4 Ohms Dual Voice Coils RGB LED Lighting Marine Subwoofer - Black

Item #90975

Condition:   Brand New

Product Highlights

  • 12" Marine Subwoofer
  • 400W RMS Power
  • 1600W Peak Power
  • 4 Ohms Dual Voice Coils
  • RGB LED Lighting

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$599.99

Reg. Price $699.99  Save $100.00
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

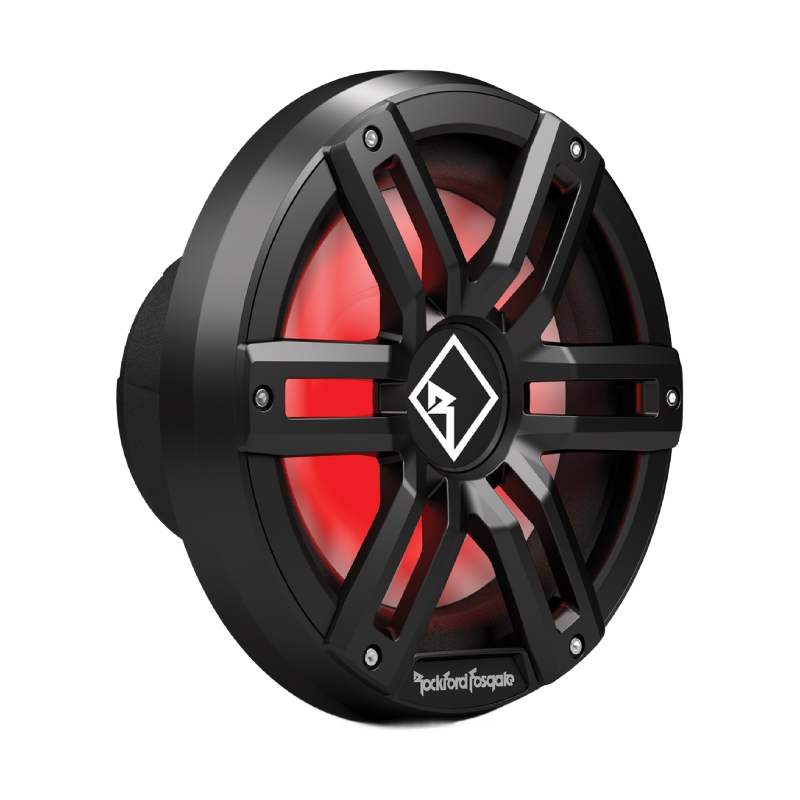

Rockford Fosgate M2D4-12IB M2 Series 12" 400W RMS (1600W Peak Power Handling) 4 Ohms Dual Voice Coils RGB LED Lighting Marine Subwoofer - Black


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

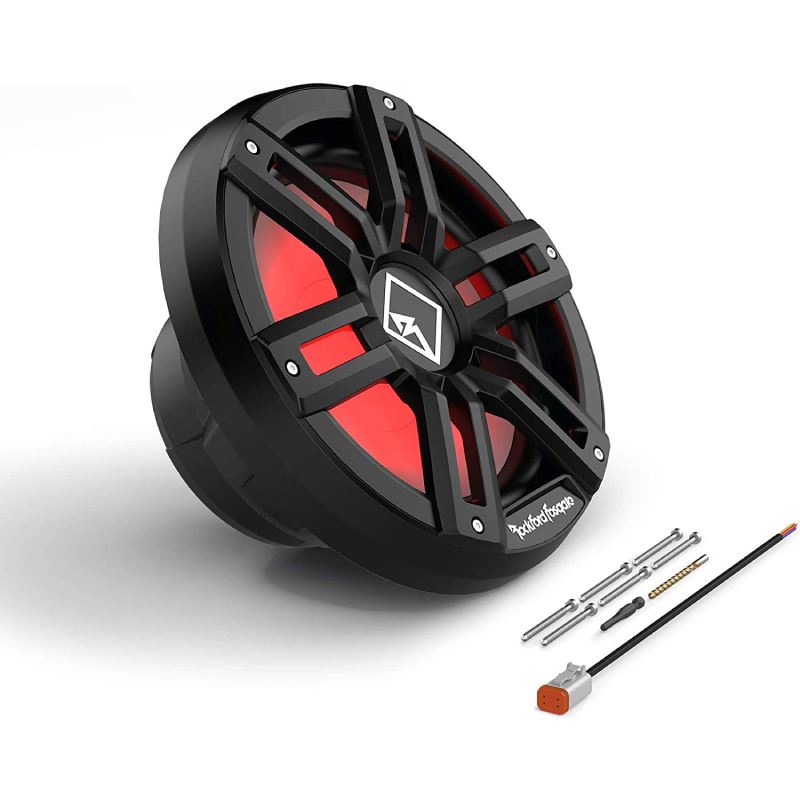

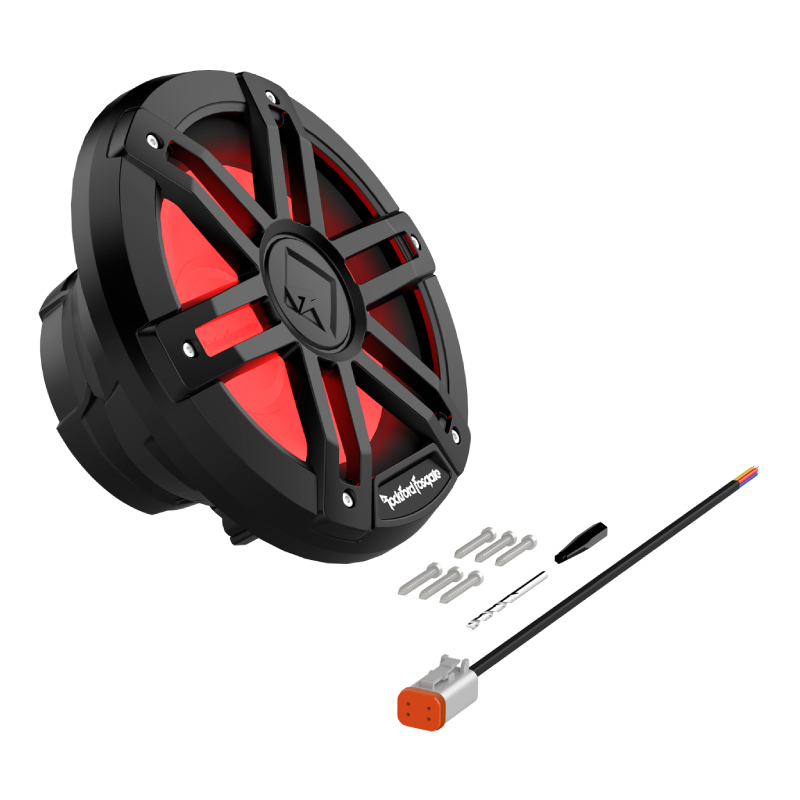

What's Inside?
  • • 12" M2 Series Marine Subwoofer

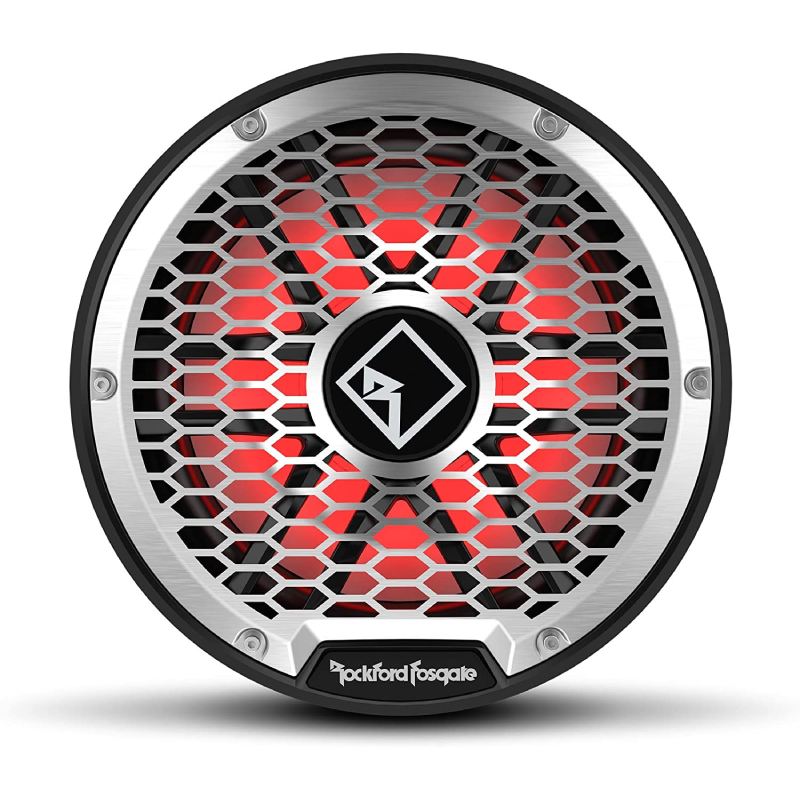

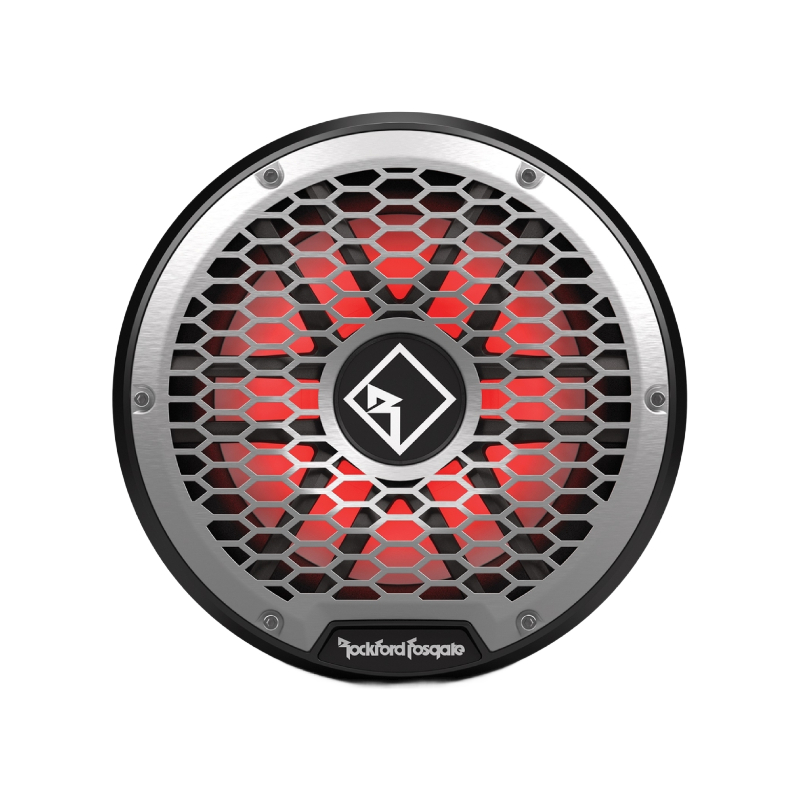

  • • Stainless steel grille
  • • Sport grille (White)
  • • Grille frame (White)
  • • 11" LED power harnesses with 4-pin Deutsch connector on one end
  • • (6) 3" Stainless steel Allen head screws
  • • 4mm Allen head bit
  • • 4.5mm Drill bit (for fiberglass enclosures only)
  • • Owner's manual
Built for Real Marine Abuse, Not Just Light Duty Use

The Rockford Fosgate M2D4-12IB is made for environments where most subwoofers would fail fast. It is tested using ASTM B117 salt fog and ASTM G154 UV exposure standards, so it is built to handle constant moisture, salt, and harsh sunlight without breaking down. Whether it is installed on a boat or an open-air setup, this sub is designed to keep performing strong and consistent no matter how rough the conditions get.

Flexible Wiring and Serious Power Control

This subwoofer gives you the kind of flexibility that makes system building easier and more efficient. The selectable dual impedance design lets you switch between 2 ohms and 8 ohms by wiring the dual 4 ohm voice coils in series or parallel, while still delivering a solid 400W RMS and 1600W peak power output. It is also optimized for infinite-baffle free-air installations, so you can mount it in more locations without needing a traditional enclosure, while still getting clean and powerful low-end response.

Clean Bass Performance With Rugged Engineering and Style

The M2D4-12IB does not just hit hard, it is engineered to stay precise while doing it. VAST technology increases cone efficiency for stronger bass output without increasing size, while Klippel Verified tuning keeps distortion low and sound accuracy tight. The RGB lighting system behind the grille lets you customize your look with colors like aqua, pink, yellow, or white, and the waterproof Deutsch connector keeps everything sealed for marine use. Add stainless steel corrosion-resistant hardware and flexible wiring options, and you get a subwoofer that delivers deep bass, clean design, and long-term reliability in one package.


SPECIFICATIONS


  • Diameter : 12 Inch
  • Sensitivity : 88 dB
  • Impedance : 4 Ohm
  • Frequency Response : 20-750 Hz
  • RMS Power Range : 400 Watts
  • Peak Power Handling : 1600 Watts
  • Color : Black
  • Mounting Depth : 5 Inches

FEATURES


Features:

  • Marine Environmental Validation: Built and tested using ASTM B117 salt/fog and ASTM G154 UV exposure standards to ensure consistent durability in harsh marine conditions.

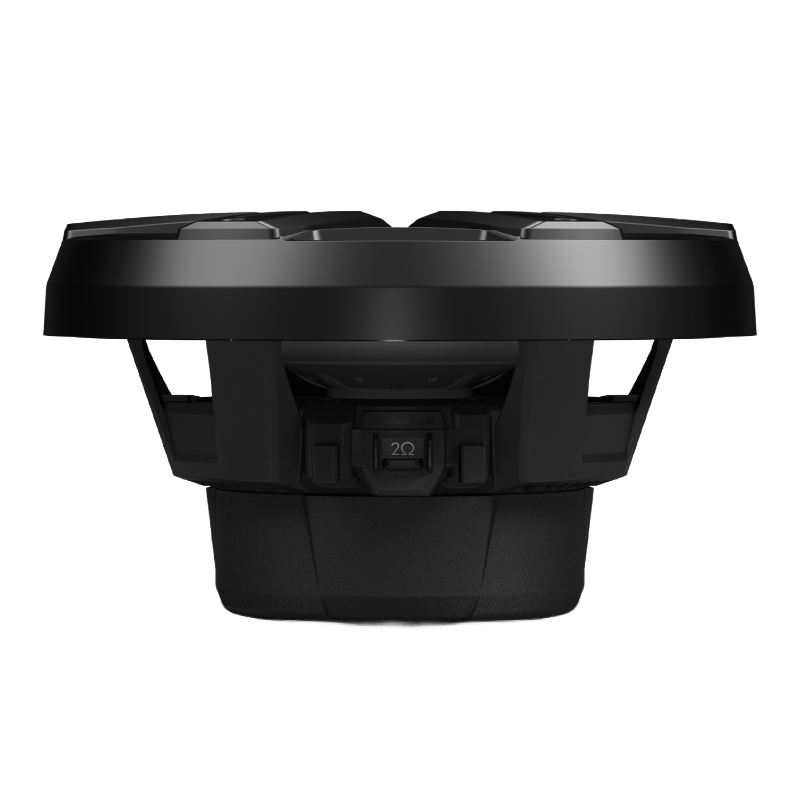

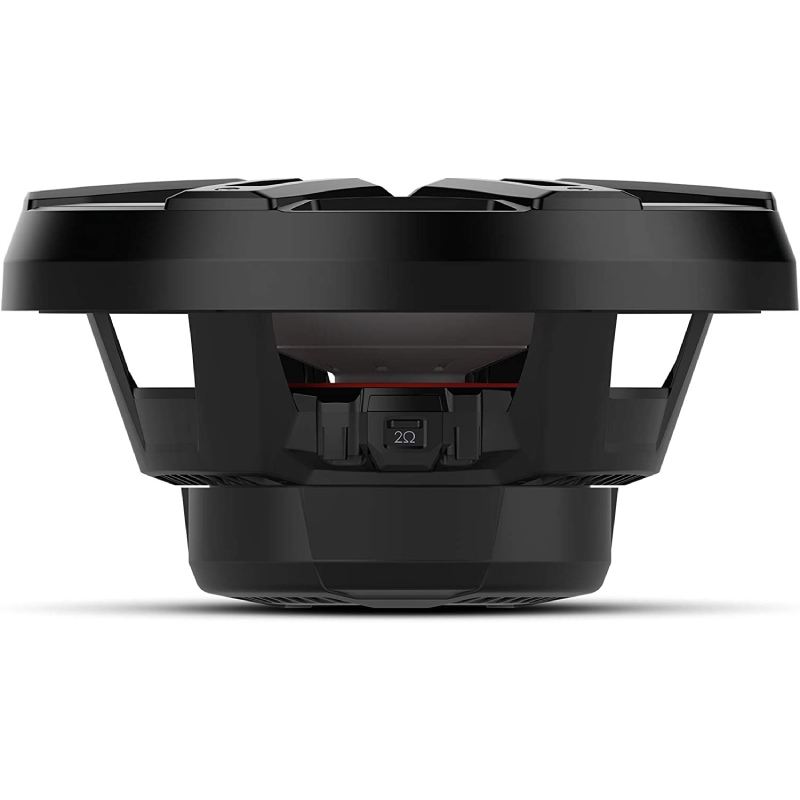

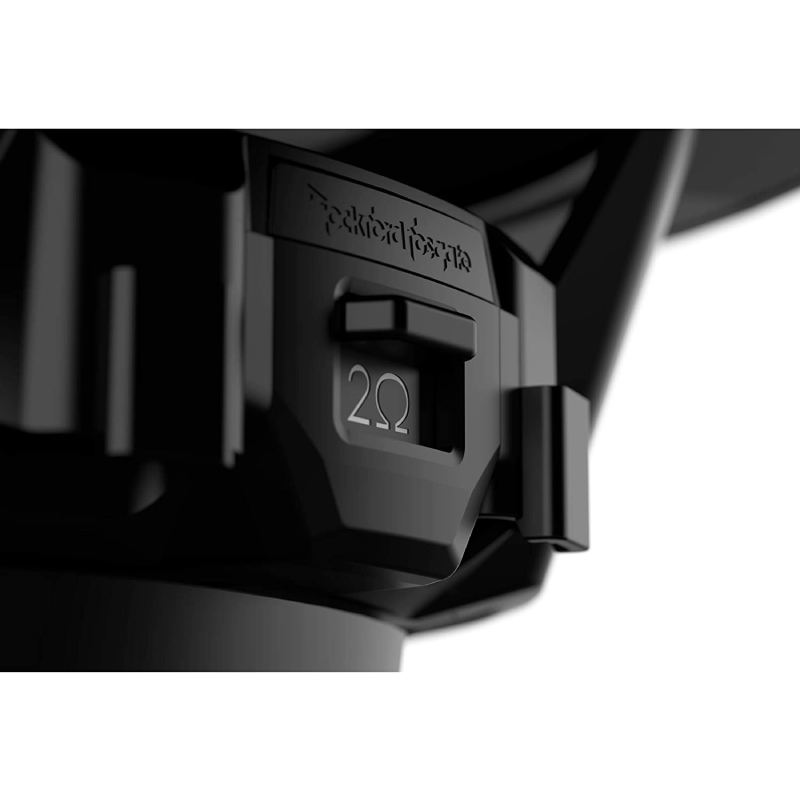

  • Selectable Dual Impedance Design: Integrated switch enables configuration between 2Ω and 8Ω by rewiring dual 4Ω voice coils in series or parallel, supporting 400W RMS and 1600W peak output.
  • Optimized Infinite-Baffle Performance: Engineered for free-air installation, allowing versatile mounting locations without requiring a dedicated enclosure while maintaining strong low-frequency response.

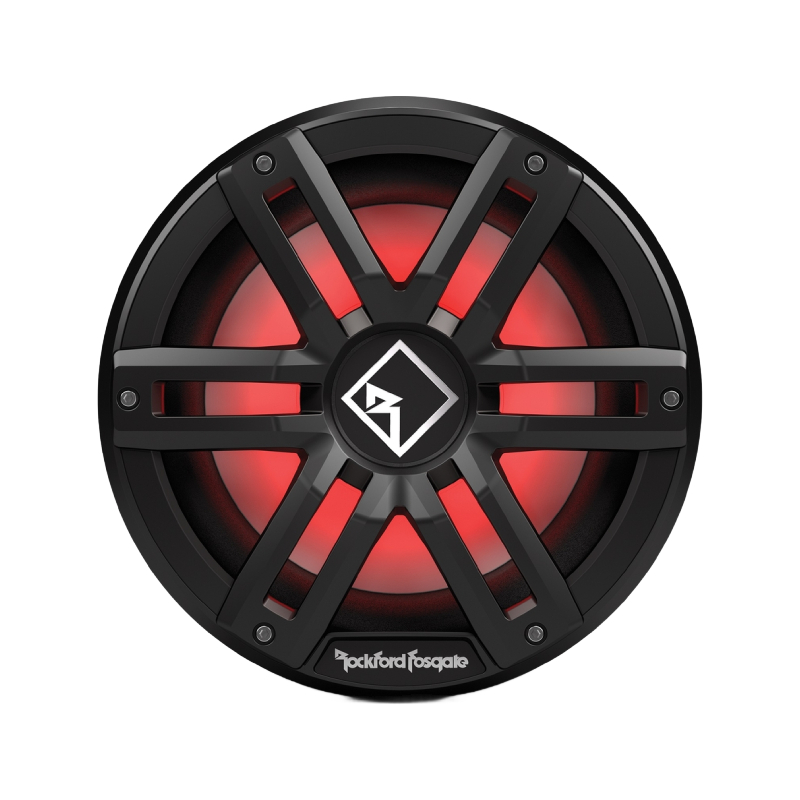

  • Customizable RGB Illumination System: Integrated red, green, and blue LEDs behind the grille enable multiple color combinations including white, yellow, pink, and aqua for visual enhancement.
  • Marine-Grade LED Connectivity: Includes a 4-pin waterproof Deutsch DT Series connector and harness for secure LED integration, with compatibility for external RGB controllers (sold separately).
  • Dual Terminal Configuration: Equipped with both standard quick-slide terminals and a 2-pin waterproof Deutsch connector for flexible, corrosion-resistant wiring options.
  • Expanded Acoustic Efficiency: Incorporates VAST (Vertical Attach Surround Technique) to increase effective cone area, improving bass output without increasing overall frame size.
  • Precision Engineered Performance: Klippel Verified design optimizes motor structure, suspension behavior, and voice coil alignment for reduced distortion and improved sound accuracy.
  • Corrosion-Resistant Construction: Features stainless steel mounting hardware designed to withstand prolonged exposure to saltwater and marine environments.
  • Flexible System Integration: Supports both ported enclosure and infinite-baffle applications, providing tuning flexibility for different bass response characteristics.



Speicifications:

  • Size: 12"
  • Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
  • Power Handling (Watts RMS): 400 Watts RMS/1,600 Watts PEAK
  • Voice Coil Type: Dual Voice Coil
  • Voice Coil Diameter: 1.95" (49.53 mm)
  • Magnet Weight (oz): 61.09 oz. (1.7 Kg)
  • Frequency Response (Hz): 20 Hz - 750 Hz
  • Fs (Hz): 38
  • Re (Ohms): 6.5
  • Le (mH): 3.43
  • Sd (cm2): 539
  • Qms: 5.27
  • Qes: 1.14
  • Qts: 0.94
  • Vas: 64.2
  • SPL (dB @ 1w/1m): 88
  • SPL (dB @ 2.8v): 90
  • Xmax (mm): 15
  • Woofer Displacement: 0.121 (3.43 Liters)
  • Speaker Connector: 2-pin Deutsch™ and 1/8" Spade
  • Cutout Diameter: 11” (279.4 mm)
  • Mounting Depth: 5.13" (130.4 mm)
  • UPC: 780687358273
  • Weight: 18
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
