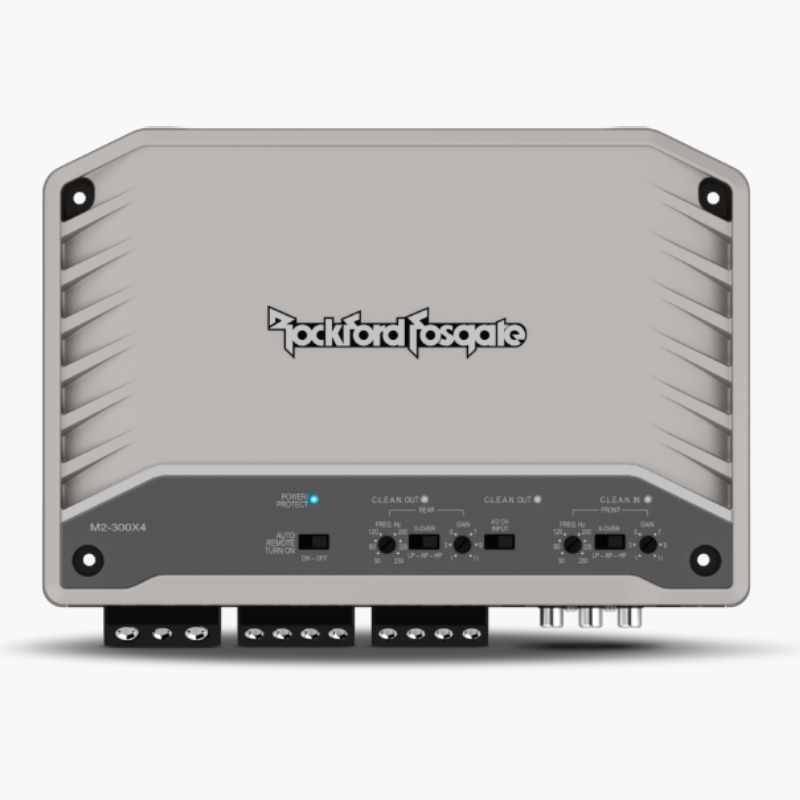

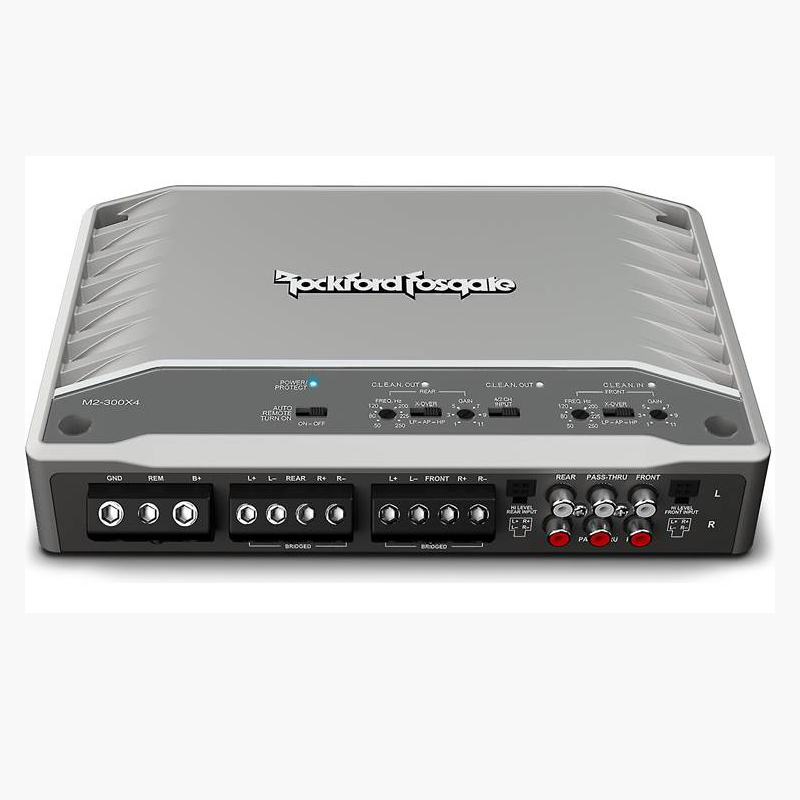

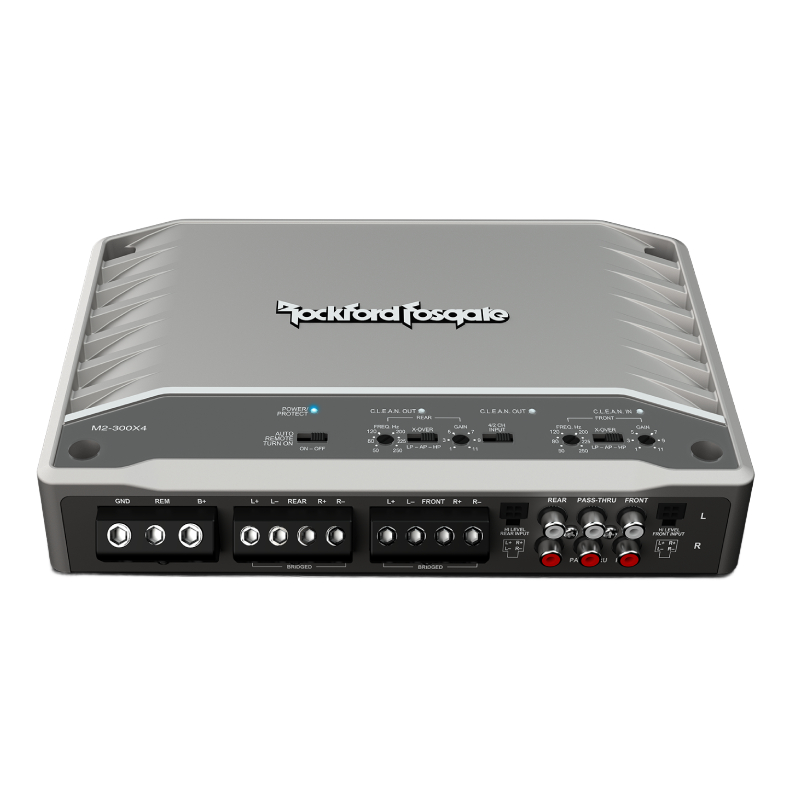

Rockford Fosgate M2-300X4 M2 Series 4-Channel 75W RMS x 4 at 2-Ohms, Class-D Marine/Powersports Amplifier
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

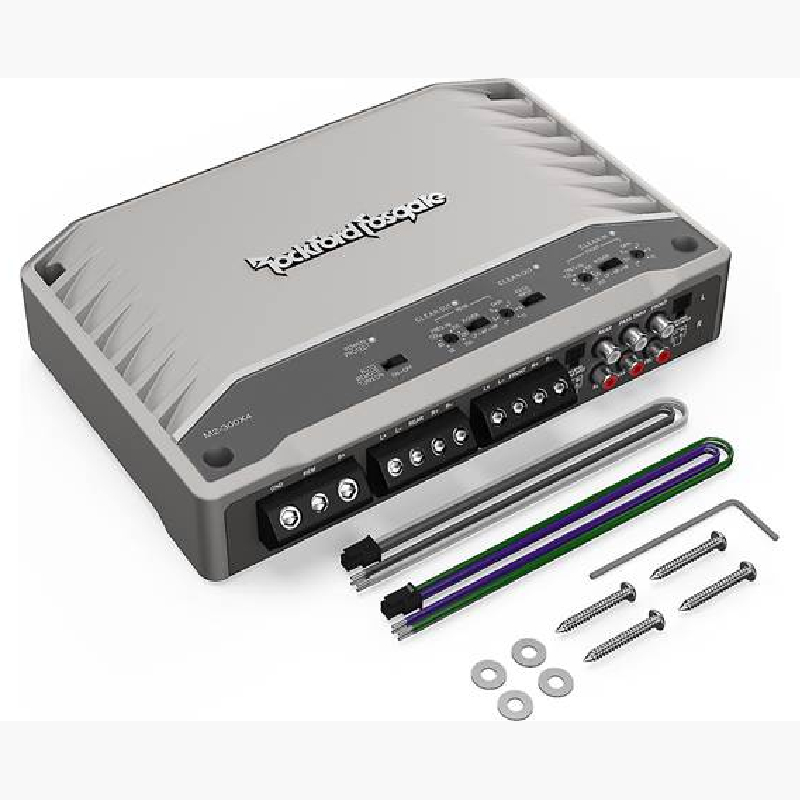

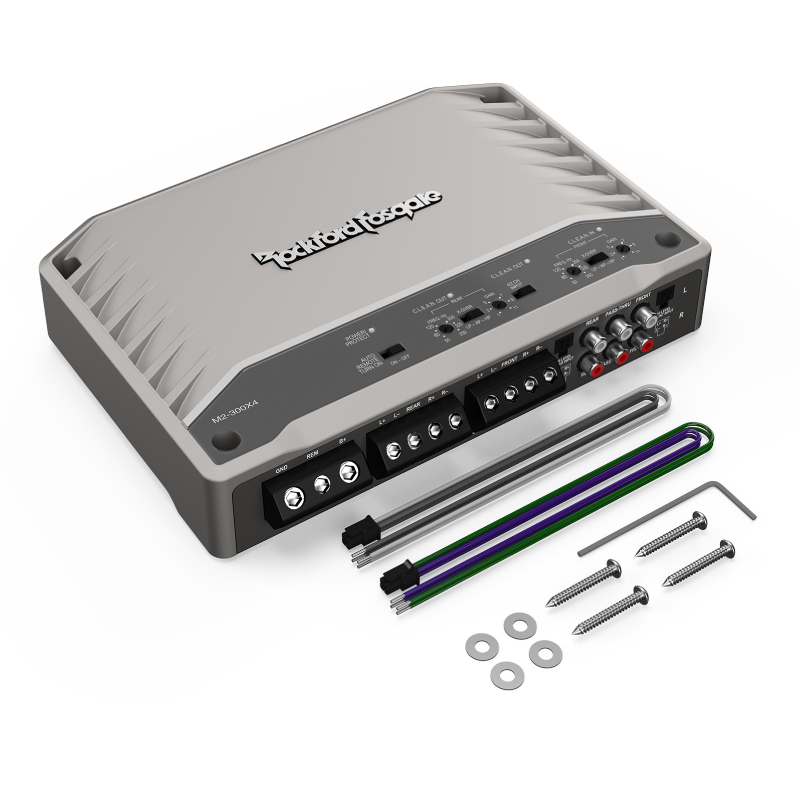

What's Inside?
- • 4-Channel marine amplifier
- • (2) 7" Speaker input harnesses
- • 3mm Hex key
- • (4) 3/4" Screws
- • (4) Flat washers
- • Certificate of Performance Verification
- • Rockford Fosgate contact information
- • Owner's Manual
Built to Handle Anything You Throw at It
The Rockford Fosgate M2-300X4 Class-D Marine/Powersports Amplifier is made for enthusiasts who want serious power in a tough, no-nonsense package. With a flexible 4-channel design that can also run 3-channel or bridged 2-channel setups, it adapts easily whether you are building a full system or upgrading step by step. It is the kind of amplifier that fits into almost any plan without limiting your creativity.
Clean Power You Can Actually Trust
This amplifier delivers CEA-2006 verified output with 50 watts RMS across four channels at 4 ohms, giving you consistent and measurable performance you can rely on. It is not just about numbers, it is about how clean and controlled the sound stays even when you push it. The balanced differential inputs help strip away unwanted noise so what you hear is pure, detailed audio instead of interference or distortion.
Rugged Marine Engineering with Smart Control

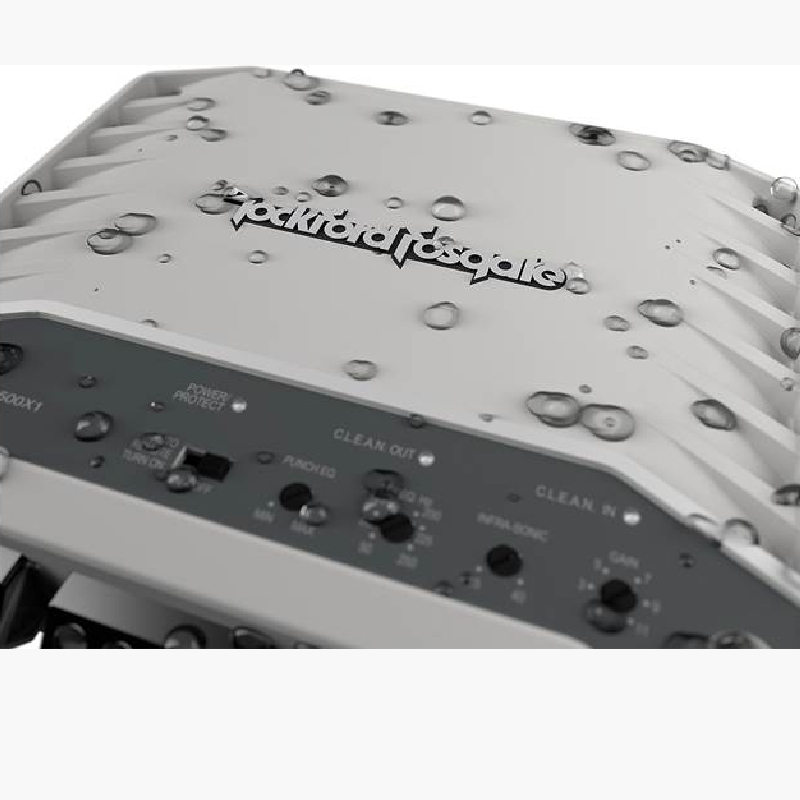

The M2-300X4 is built for real-world abuse with a conformal-coated PCB and UV-resistant marine-grade construction that stands up to moisture, corrosion, and vibration without breaking a sweat. Inside, MEHSA-4 thermal management keeps temperatures under control while NOMAD protection technology constantly monitors system conditions to protect your gear without killing performance. Add in the CLEAN gain setup system, independent channel tuning, and flexible crossover controls, and you get an amplifier that is not just powerful but also incredibly easy to dial in exactly how you want it.
Frequently Asked Questions (FAQ)
- • Why does my M2-300X4 show the Protect light after connecting the speakers?
The Protect indicator can point to a shorted speaker wire or an incorrect speaker load. Owners should inspect every terminal for stray wire strands and use a meter to check the speaker wiring before assuming the amplifier has failed.
- • Why does the amplifier have power but none of my speakers are playing?
A powered amplifier can still have an interrupted signal path. Check the RCA or high-level connections, input selector, speaker terminals, and source output; Rockford's troubleshooting procedure specifically recommends verifying these connections when there is no audio.
- • Why does my M2-300X4 shut down when I turn the music up?
A low-impedance load, shorted speaker connection, inadequate power wiring, or excessive heat can trigger protection. The amplifier supports 4Ω or 2Ω stereo and 4Ω bridged operation, so the final speaker impedance needs to match the selected configuration.
- • Why is my rear speaker output missing when I only connected one RCA pair?
The M2-300X4 has a 2/4-channel input switch. In a two-channel configuration, the available input signal can be routed to the additional channels; if the switch is configured for four inputs without rear signal connections, the rear channels may appear dead.
- • Why does the amplifier get hot even though it is a Class-D model?
The M2-300X4 uses convection cooling, so it depends on the aluminum heatsink and surrounding airflow rather than a cooling fan. Restricted mounting space or sustained high output can increase operating temperature, making proper ventilation important.
- • Why does my audio sound distorted after increasing the gain?
The M2-300X4 includes C.L.E.A.N. input and output indicators specifically for identifying clipping during setup. If the indicators show excessive signal levels, reduce the source or amplifier gain instead of continuing to increase it.
- • Why won't the amplifier automatically turn on with my factory stereo?
The amplifier supports Auto-Sense turn-on from high-level input, but the Auto-Sense switch must be configured correctly. Rockford also provides a conventional remote-turn-on connection when automatic sensing is not appropriate for the vehicle's source.
- • Why am I hearing engine or electrical noise through my speakers?
Signal cables can pick up interference from nearby power wiring. The M2-300X4 uses balanced differential inputs to reduce this problem, but proper grounding and cable routing are still important if noise appears after installation.
- • Why did my stereo stop working after an aftermarket installation?
One real-world customer report described a stereo that suddenly stopped working, only for the installer to discover incorrect wiring during diagnosis. This is a useful reminder that a new amplifier installation can expose wiring mistakes rather than indicate a defective amplifier.
- • Why doesn't the M2-300X4 deliver the same power to every speaker setup?
Its output changes according to impedance and whether the channels are bridged: 50W x4 at 4Ω, 75W x4 at 2Ω, or 150W x2 bridged at 4Ω. Choosing the wrong speaker configuration can therefore produce less output than expected.
- Maximum Power : 300 Watts
- Low Frequency Response : 50-250 Hz
- High Frequency Response : 50-250 Hz
- Number of Channels : 4
- Frequency Response : 20-20000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 4x75 Watts
- Amplifier Class : D
- Fuse Rating : 60 A
Features:
- High Efficiency Four Channel Marine Grade Power Platform: The Rockford Fosgate M2-300X4 is a Class-D 4-channel full-range amplifier designed with a flexible front and rear architecture that can be configured as 4-channel, 3-channel, or bridged 2-channel operation for versatile system integration.
- CEA-2006 Verified Output Performance Standard: Delivers 50 watts RMS x 4 at 4 ohms with a signal-to-noise ratio greater than 70 dBA, ensuring accurate, repeatable, and industry-standard power measurement for transparent performance comparison.
- Marine Rated Conformal Coated Circuit Protection: Built with a UV resistant finish and conformal-coated PCB design, making it highly resistant to moisture, corrosion, and environmental stress for reliable marine and powersports use.

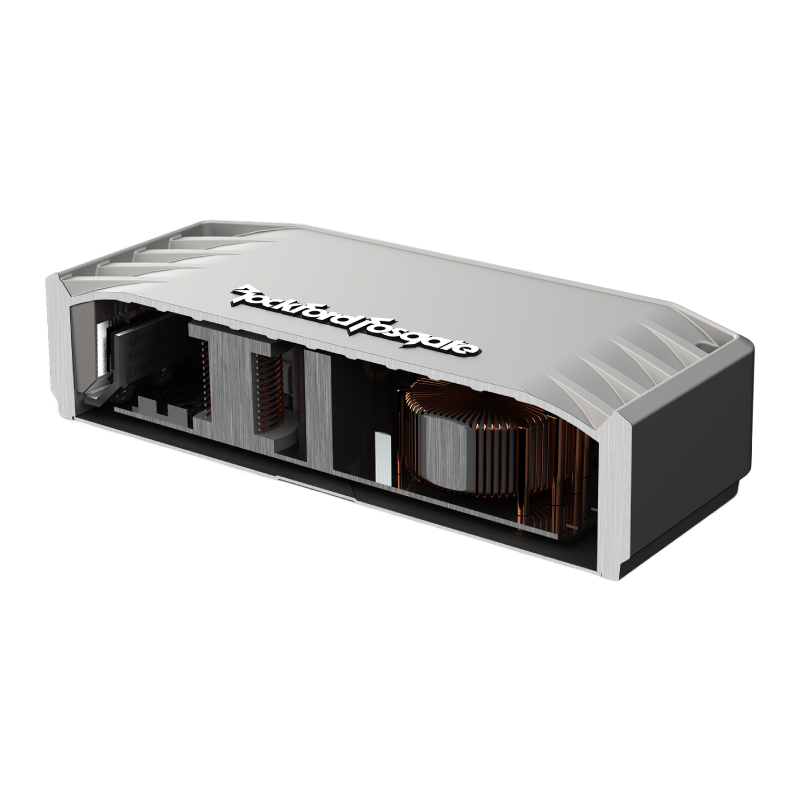

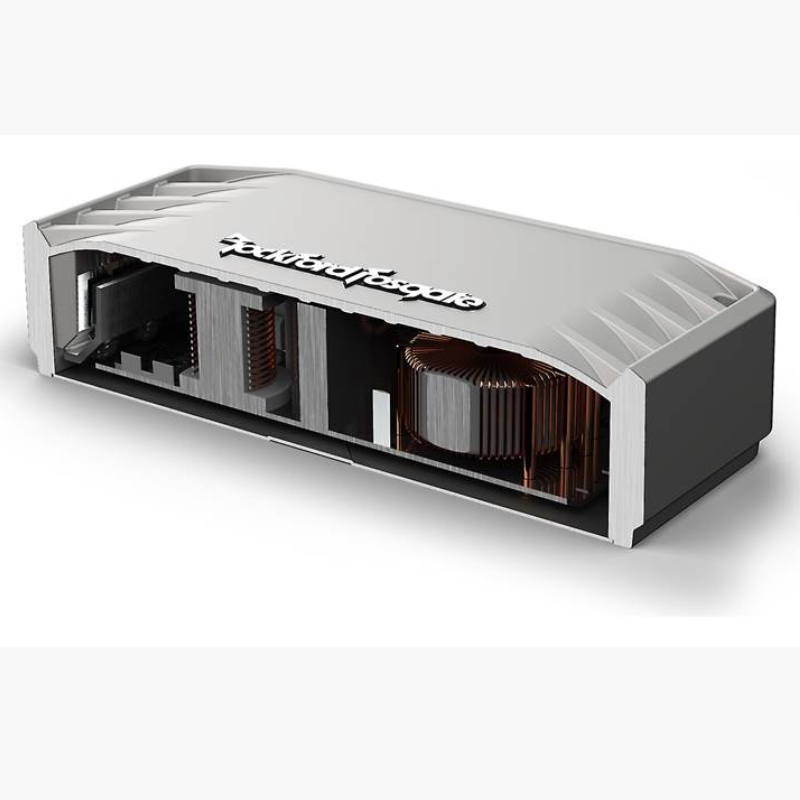

- Advanced MEHSA-4 Thermal Management System: Utilizes Maximum Efficiency Heat Sink Application technology with cast aluminum heatsink construction to increase heat transfer efficiency by approximately 30 percent for improved stability under load.
- Intelligent NOMAD Protection Processing: Features real-time analog monitoring of temperature, voltage, current, and impedance conditions, dynamically protecting the amplifier without unnecessary power limiting during operation.
- Precision CLEAN Gain Calibration System: Integrated clip indicator system simplifies setup by allowing accurate gain matching between source unit and amplifier to minimize distortion and maximize output clarity.
- Balanced Differential Noise Rejection Inputs: Reduces unwanted signal noise by comparing and canceling interference between positive and negative input conductors for cleaner audio reproduction.
- Fully Independent Channel Control Architecture: Includes separate front and rear gain controls, selectable crossover modes, and variable frequency adjustment from 50 Hz to 250 Hz for precise tuning flexibility.

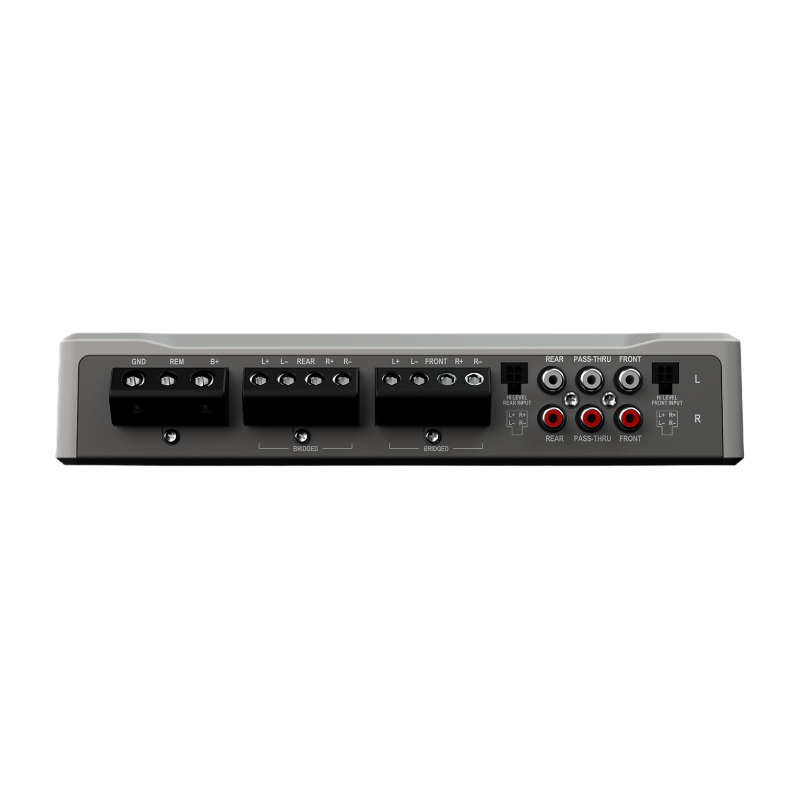

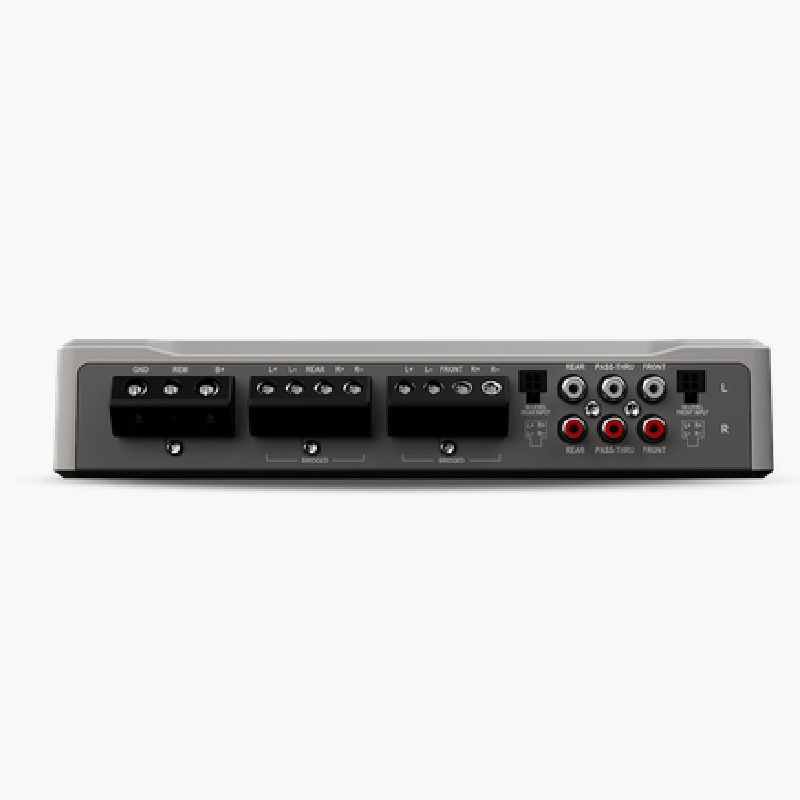

- Heavy Duty Installation and Connectivity Design: Supports 4-gauge power input, 8-gauge speaker connections, RCA pass-through linking, and optional auto turn-on functionality for streamlined system expansion and integration.
Specifications:
- RMS Power Output (Watts x Channels): 50 x 4
- Power at 2 Ohms (Watts x Channels): 75 x 4
- Bridged Power (Watts x Channels): 150 x 2
- Frequency Response at Rated RMS Power: 20 Hz – 20 kHz
- THD at Rated RMS Power: 1%
- Signal to Noise Ratio: 70 dB
- Input Voltage: 14.4V
- Peak Power Output (Watts x Channels): N/A
- Minimum Impedance Bridged: 4 Ohms
- Minimum Impedance Unbridged: 2 Ohms
- Amplifier Class: D
- Low-Pass Crossover Frequency: 50 – 250 Hz
- Low-Pass Slope (dB/octave): 12 dB/octave
- High-Pass Crossover Frequency: 50 – 250 Hz
- High-Pass Slope (dB/octave): 12 dB/octave
- Bass Boost: No
- Bass Boost Frequency: N/A
- Fan Cooled: No
- Fuse Rating: 60A
- Speaker Level Inputs: Yes
- Preamp Outputs: 2
- Height (inches): 2
- Width (inches): 10-1/16
- Depth (inches): 7-3/4
- UPC: 780687358303
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
