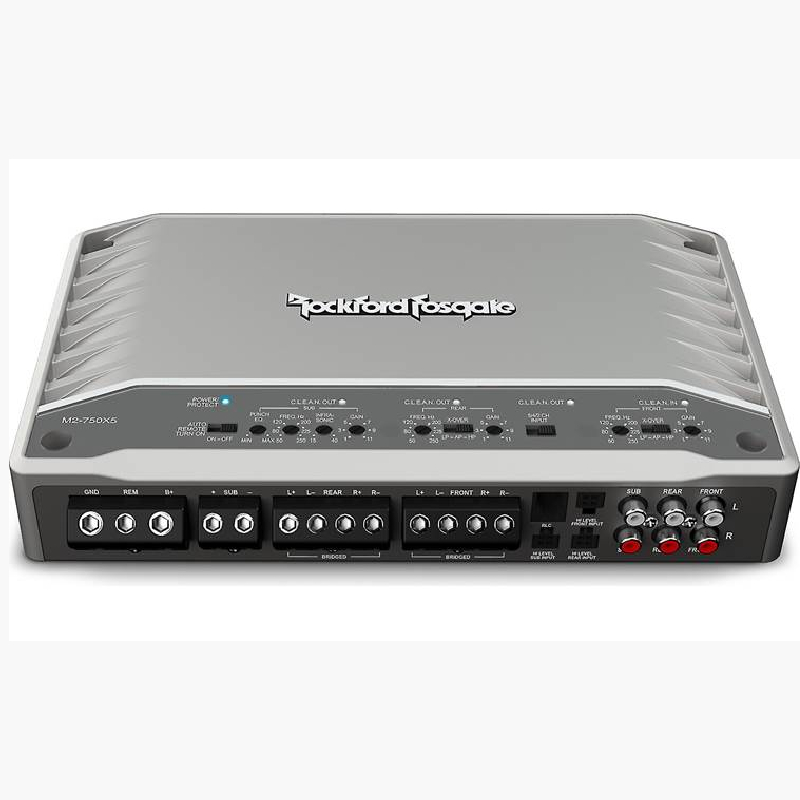

Rockford Fosgate  M2-750X5

• Maximum Power : 750 Watts
• Low Frequency Response : 50-250 Hz
• High Frequency Response : 50-250 Hz
• Number of Channels : 5
• Frequency Response : 20-20000 Hz
• Built In Crossovers : Yes
• RMS Power Output : 4x100+350 Watts
• Amplifier Class : D
• Fuse Rating : 120 A

Features:

• Stay in the Safe Zone: C.L.E.A.N. input/output clip detection with indicator LEDs
• Built Tough: Conformal coated circuit board for dust and water resistance
• Audio Optimized: Tuned using AudioGraph PowerCube measurement tool
• Marine-Grade Strength: Zinc Nickel-plated brass connection terminals
• Perfect Sound Control: Fully adjustable 12 dB/octave Butterworth crossovers

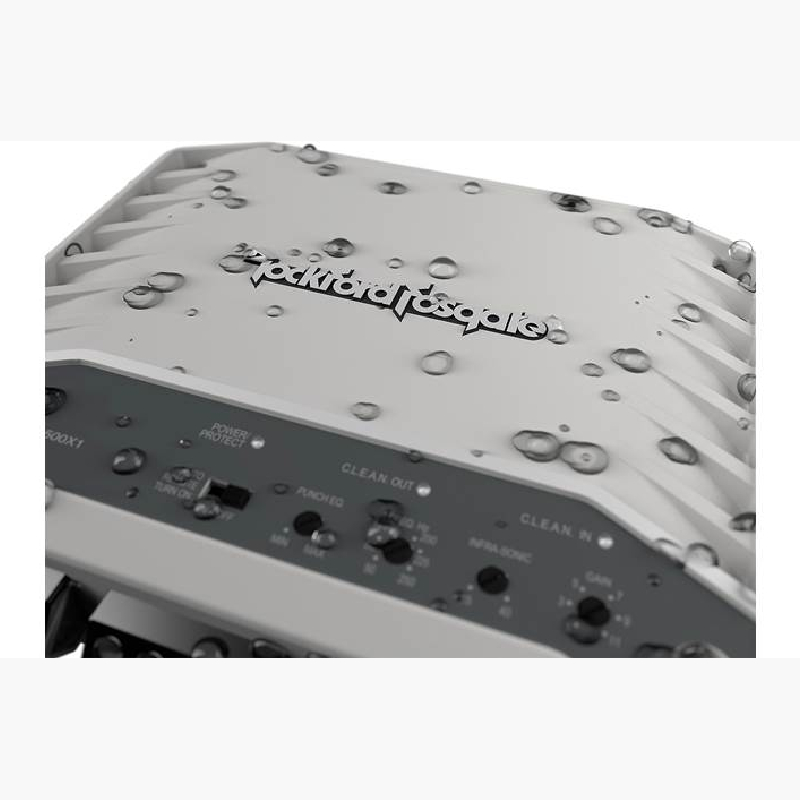

• Outdoor-Ready: Element Ready™ design for all-weather protection
• Seamless Integration: Works with OEM and aftermarket radios
• Tested to Perfection: RATS proprietary quality and performance testing
• Powerful Performance: Low impedance stability for demanding setups
• Smart Switching: Auto-Sense bypass for vehicles with RAP (Retained Accessory Power)
• Punch It Up: Continuously variable on-board Punch EQ
• Safety First: Short circuit and over-current protection

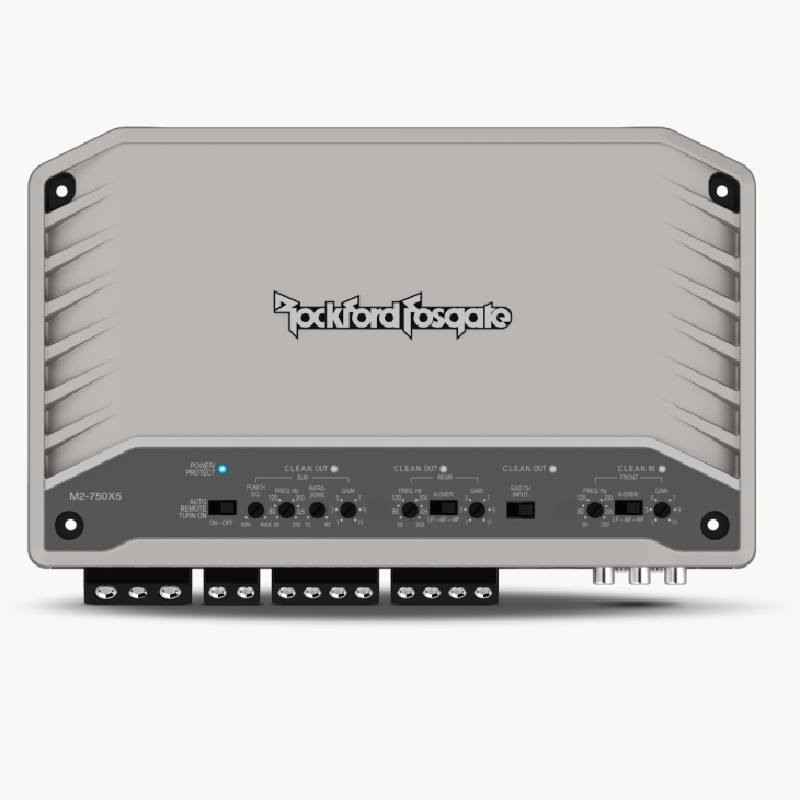

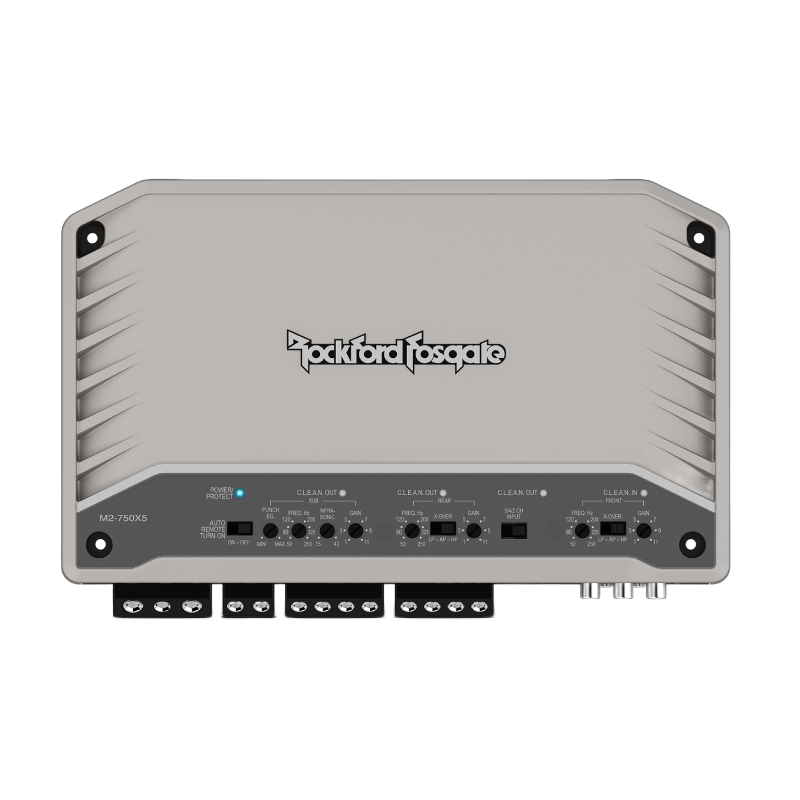

• Easy Access: Top-mounted control panel for quick adjustments

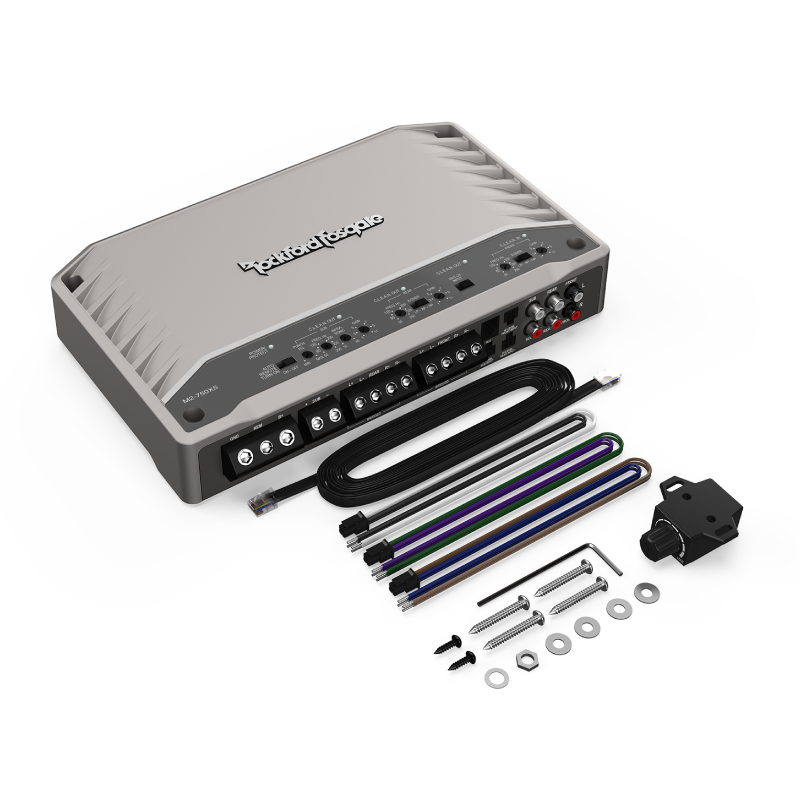

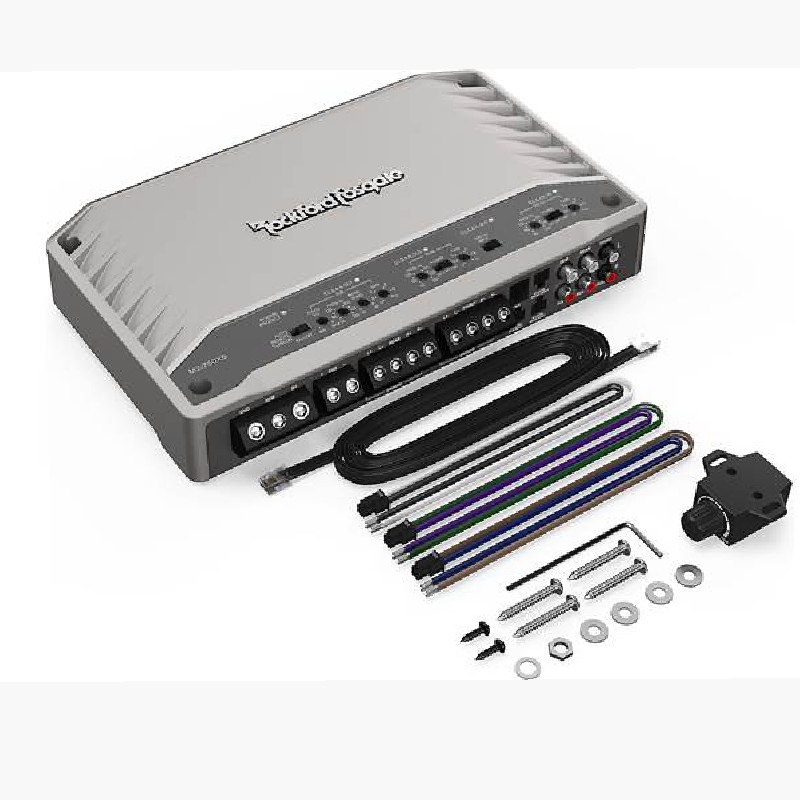

• Extra Control: Includes RLC Remote Level Control
• Flexible Inputs: 2/4/5 channel input selection switch
• Noise-Free Clarity: Balanced differential inputs eliminate interference
• Subsonic Protection: Variable infrasonic filter for clean bass
• Durable Finish: UV-stable powder-coated cast aluminum heatsink

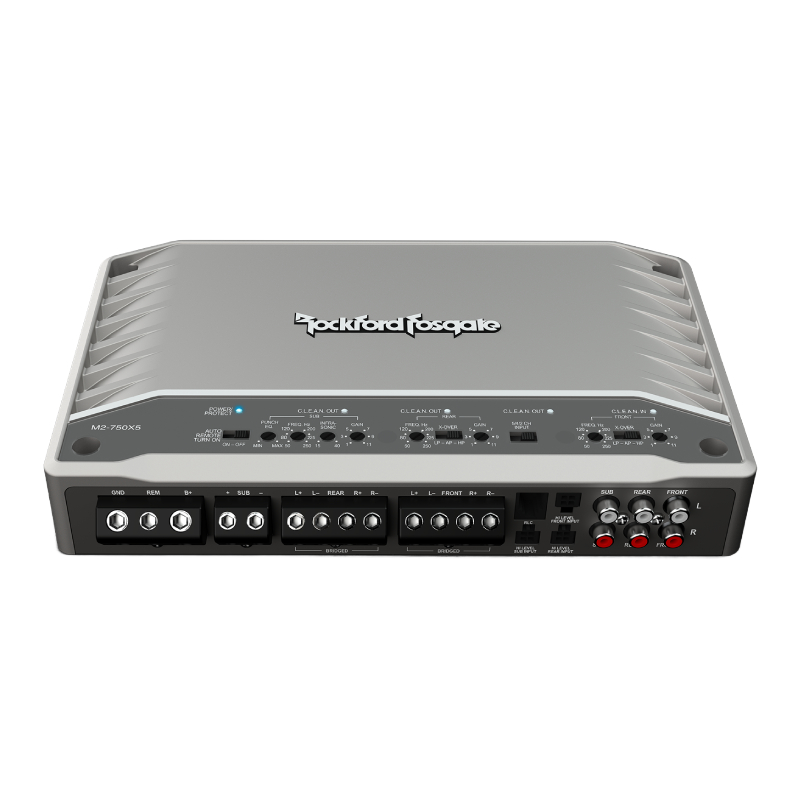

• Neat & Secure: Integrated power and speaker terminals

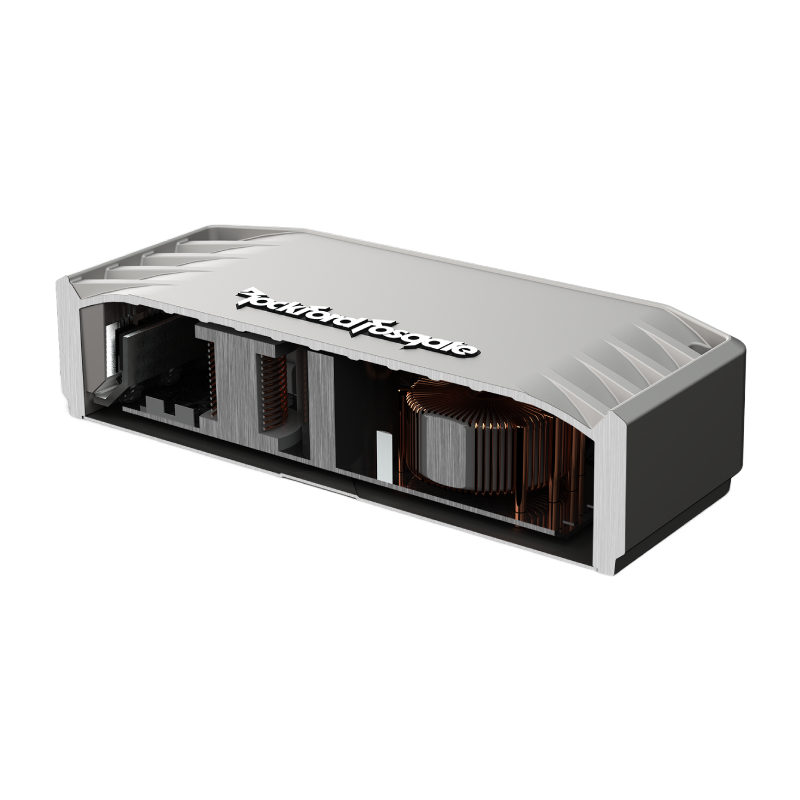

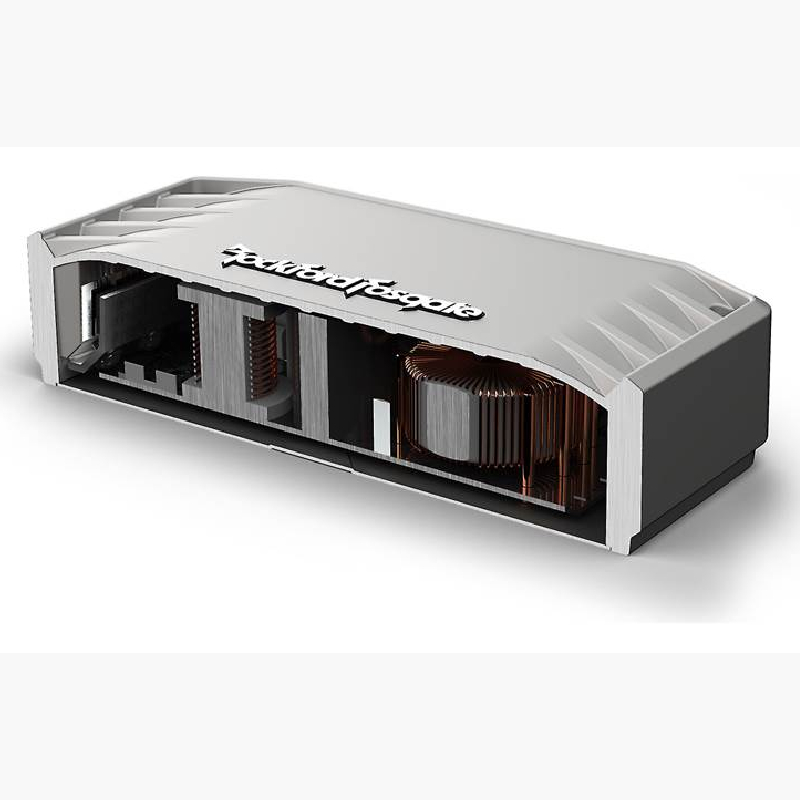

• Cool & Efficient: Focused mass heatsink for maximum heat dissipation
• Smart Start: Auto-Sense turn-on with remote out (high level in)
• Certified Quality: CEA-2006 and CE compliant
• Protected Performance: Rollback protection for reliability

Specifications:

• Cta-2006 Compliant
• Number of Channels: 5
• Total Power (Sum of Rated Power): 750 Watts
• Rated Power (RMS Continuous Power)
  • 50 Watts x 4 + 200 Watts x 1 @ 4Ω
  • 100 Watts x 4 + 350 Watts x 1 @ 2Ω
  • 200 Watts x 2 + N/A @ 4Ω Bridged/Mono
• Dynamic Power (PVC/PowerCube®)
  • 70 Watts x 4 + 241 Watts x 1 @ 4Ω
  • 114 Watts x 4 + 426 Watts x 1 @ 2Ω
  • 234 Watts x 2 + N/A @ 4Ω Bridged/Mono
• Bridgeable: Yes
• Frequency Response: 20 Hz - 20 kHz
• Input Sensitivity
  • Low-Level: 150 mV - 4 V
  • High-Level: 450 mV - 12 V
• Circuit Topology Class: Class D
• Total Harmonic Distortion (THD+Noise)
  • 4Ω: <1.0%
  • 2Ω: <1.0%

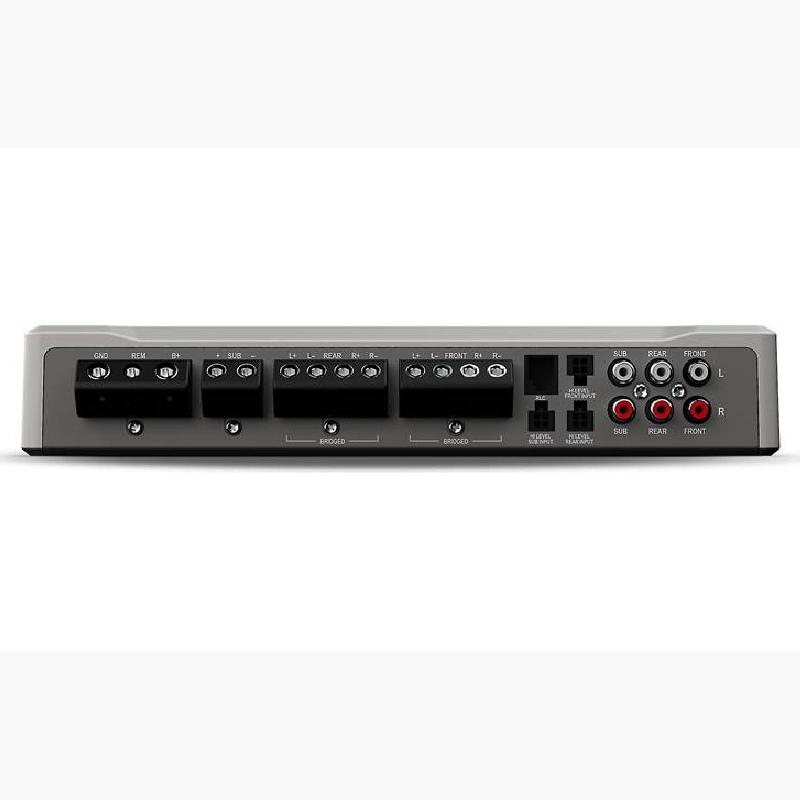

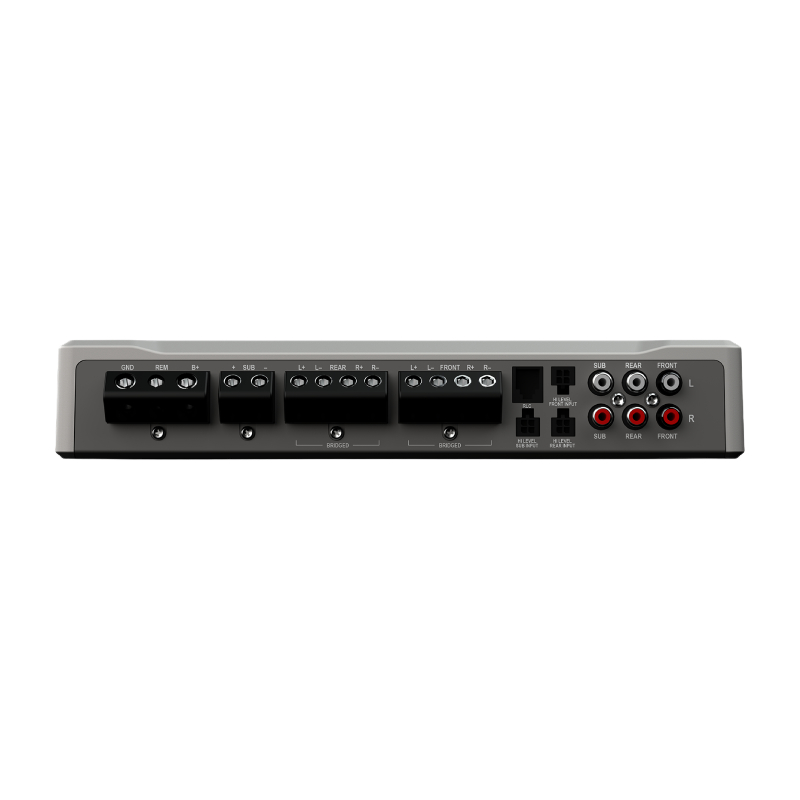

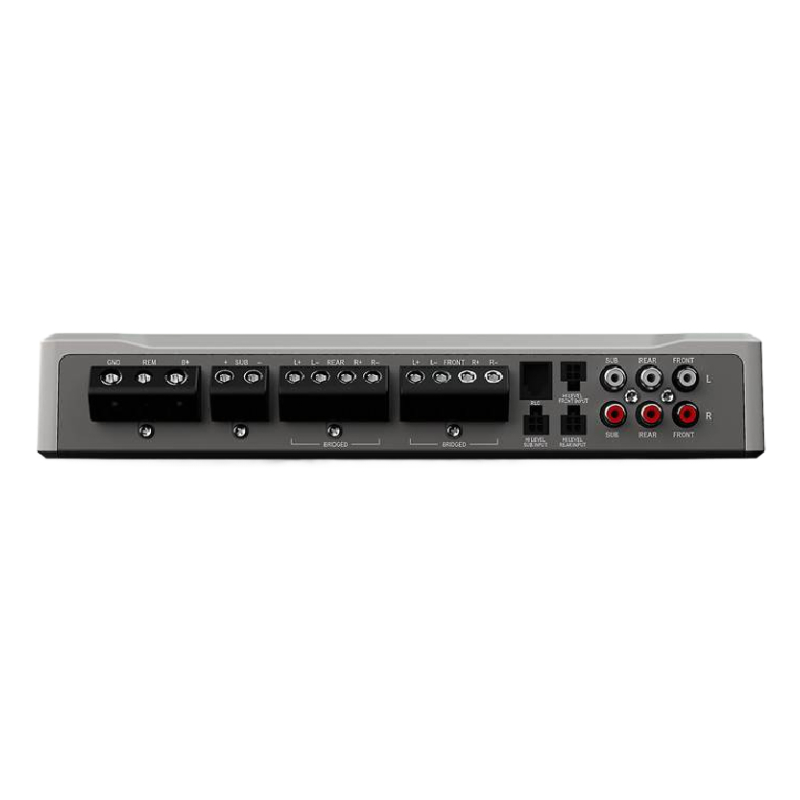

• Signal Input
  • Front Low-Level: 2 RCA
  • Front High-Level: 4-Pin Molex
  • Rear Low-Level: 2 RCA
  • Rear High-Level: 4-Pin Molex
  • Sub Low-Level: 2 RCA
  • Sub High-Level: 4-Pin Molex
• Tone Controls: 0 to +18 dB @ 45 Hz
• Crossover Controls
  • Front High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • Front Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • Rear High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • Rear Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • Sub Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • Sub Infrasonic:  15 Hz - 40 Hz @ 12dB/Octave Butterworth
• Remote Controls: Yes
• Visual Indicators
  • Power/Protect
  • C.L.E.A.N. In
  • C.L.E.A.N. Out (front)
  • C.L.E.A.N. Out (rear)
  • C.L.E.A.N. Out (sub)
• Power Wire Gauge: 4 AWG
• Power Input Connector: Compression Terminal Block
• Speaker Wire Gauge: 8 AWG
• Speaker Output Connector: Compression Terminal Block
• Cooling: Convection
• Operating Voltage: 9 - 16 VDC
• Recommended Fuse (not included): 120 A
• Max. Current Draw (13.8V Sinewave): 71 A
• Dimensions (H x W x D)1.9" x 6.8" x 11.2"
  • (4.9 cm x 17.3 cm x 28.5 cm)
• Shipping Weight: 6.13 Lbs. (2.78 Kg)

• UPC: 780687358310
• Weight: 7
