Rockford Fosgate M2D2-12SB M2 Series 12" 400W RMS (1600W Peak Power Handling) 2 Ohms Dual Voice Coils Color Optix™ Sealed Enclosure Marine Subwoofer - Black
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

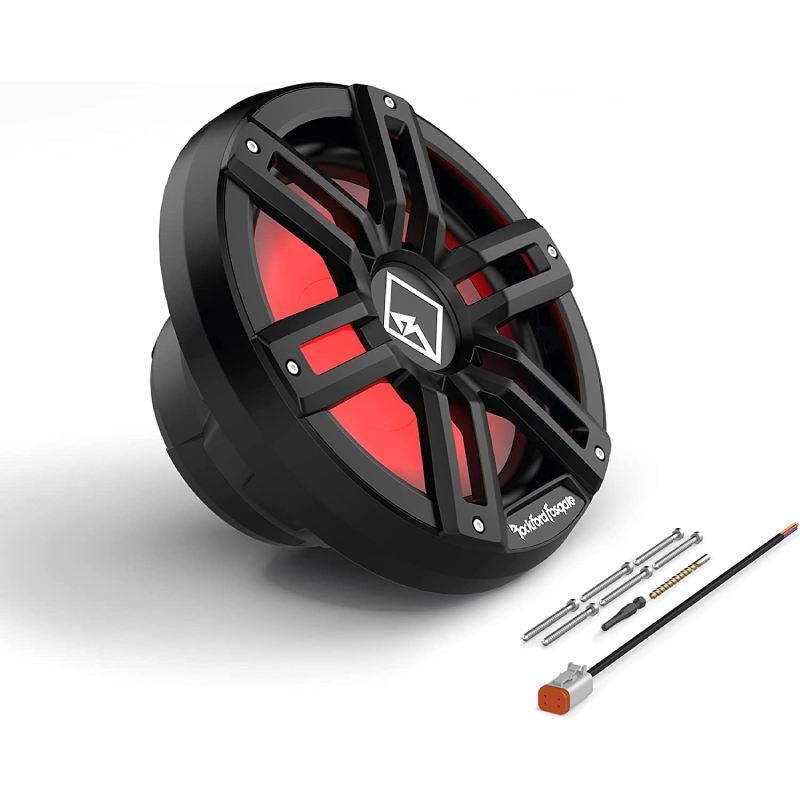

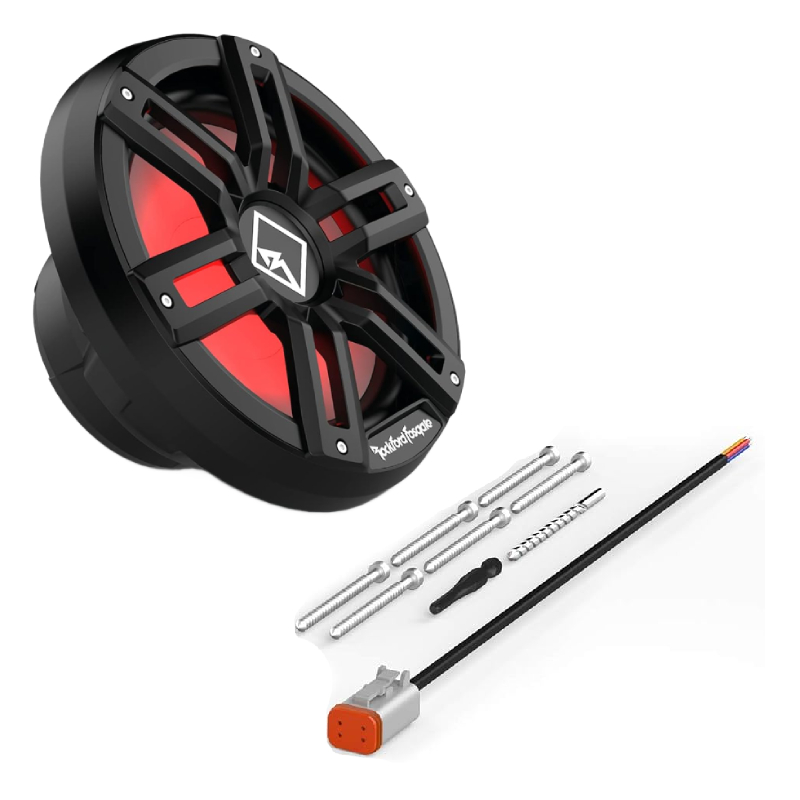

What's Inside?
- • 12" M2 Series Marine Subwoofer

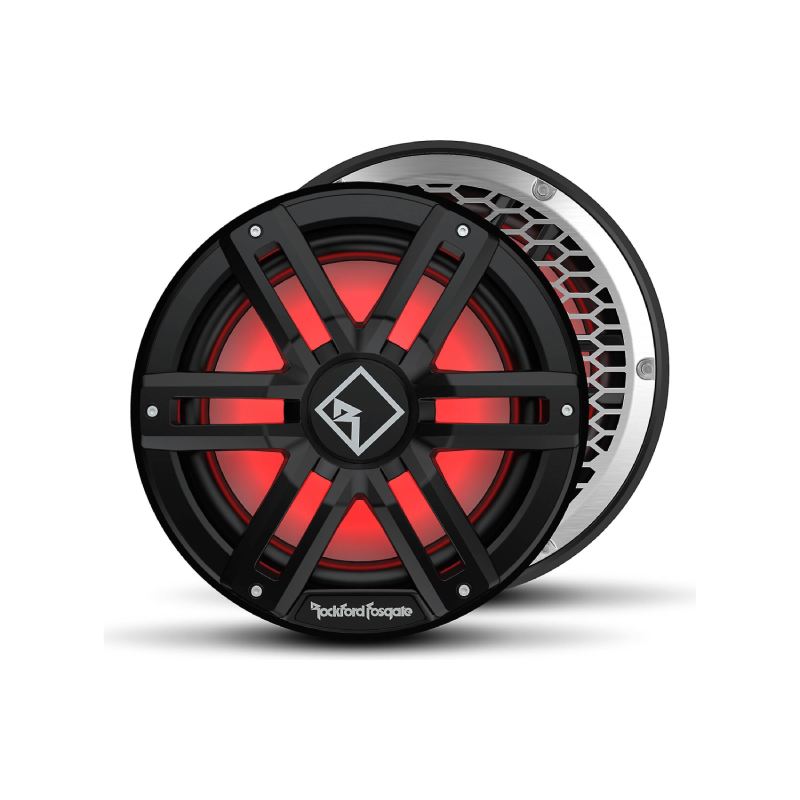

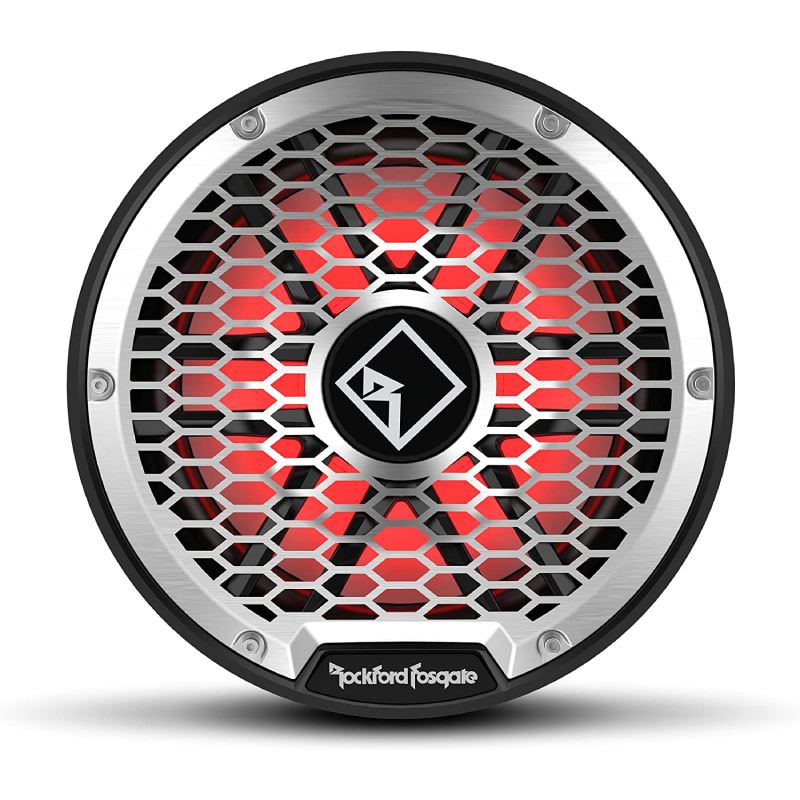

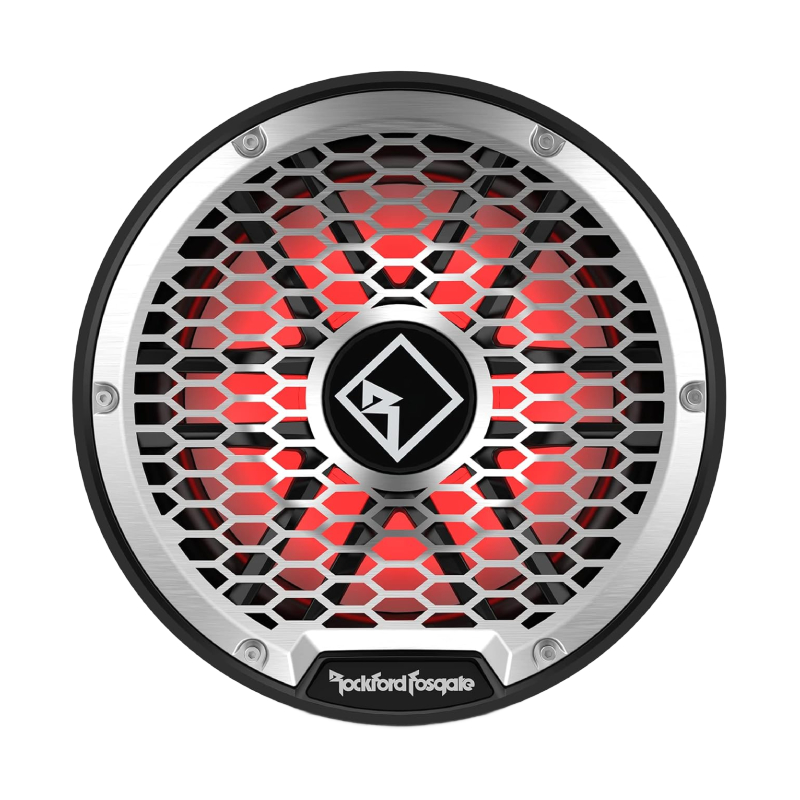

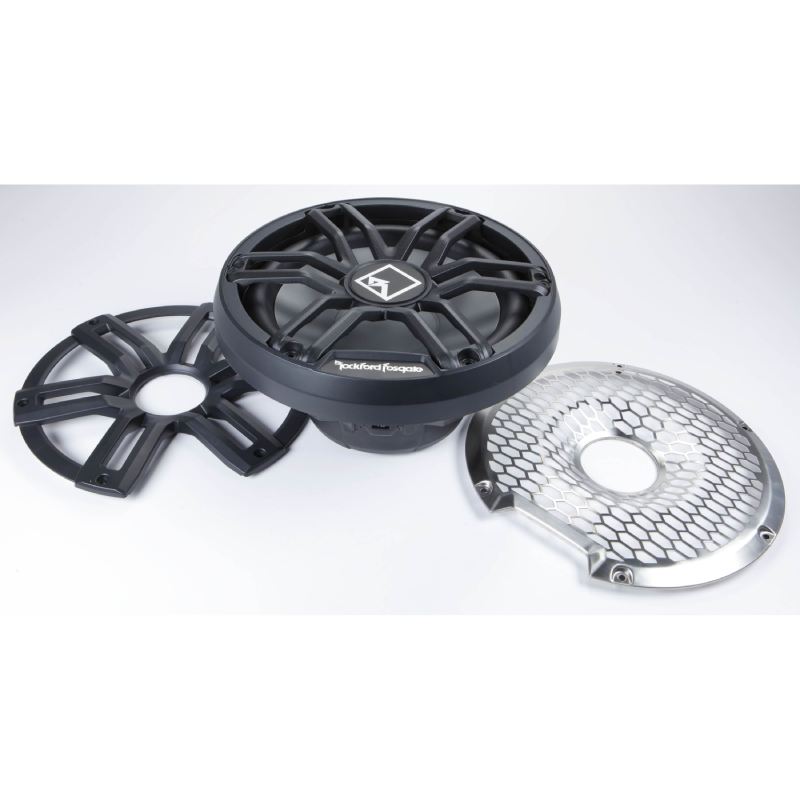

- • Stainless steel grille
- • Sport grille (Black)
- • Grille frame (Black)
- • 11" LED power harnesses with 4-pin Deutsch connector on one end
- • (6) 3" Stainless steel Allen head screws
- • 4mm Allen head bit
- • 4.5mm Drill bit (for fiberglass enclosures only)
- • Rockford Fosgate contact information
- • Owner's Manual
Built Tough for Real Marine Conditions
The Rockford Fosgate M2D2-12SB is made for environments where regular subwoofers would not last long. It is tested using ASTM B117 salt fog and ASTM G154 UV standards, so it is proven to handle constant exposure to moisture, salt, and harsh sunlight. Whether it is on a boat or in an open-air setup, this sub is designed to stay reliable and deliver consistent bass even in demanding marine conditions.
Serious Power With Flexible System Matching
This sub gives you real control over how your system performs. The selectable dual impedance configuration lets you switch between 1 ohm and 4 ohms by wiring the dual 2 ohm voice coils in series or parallel, while still delivering a strong 400W RMS and 1600W peak power output. It is also optimized for compact sealed enclosures, tuned specifically for a 0.75 cubic foot box, so you get tight, accurate, and punchy bass without needing a large enclosure to make it work.
Clean Bass, Smart Engineering, and Custom Marine Style
The M2D2-12SB is built to sound as good as it looks. The integrated RGB lighting system behind the grille lets you customize colors like aqua, pink, yellow, or white, while the waterproof Deutsch connector keeps everything sealed and marine ready. VAST technology increases cone efficiency for stronger bass in a compact footprint, and Klippel Verified engineering keeps distortion low for clean, accurate sound. Add stainless steel corrosion resistant hardware and flexible wiring options, and you get a subwoofer that delivers tight bass, reliable performance, and a clean custom look built for marine life.
Frequently Asked Questions (FAQ)
- • Why Does My M2D2-12SB Sound Weak After Installation?
A common concern is low bass output after installation. Check that both dual voice coils are wired correctly and that the amplifier is matched to the subwoofer’s configured impedance. Incorrect wiring can significantly reduce performance.
- • Why Is the Subwoofer Making a Buzzing or Rattling Noise?
If you hear unwanted vibration, inspect the mounting surface, grille, screws, and enclosure for looseness. The sealed enclosure should also be properly airtight to prevent unwanted noise.
- • Why Are the Color Optix Lights Not Turning On?
The RGB lighting requires the appropriate Color Optix controller and wiring. Verify the lighting connections, power supply, polarity, and fuse before assuming the LEDs have failed. Rockford specifies a 9–16V LED operating range.
- • Can I Connect the M2D2-12SB Directly to Any Amplifier?
Not every amplifier is a suitable match. The M2D2-12SB is a dual-voice-coil subwoofer rated at 400 watts RMS, and its impedance configuration should be matched to the amplifier’s recommended load.
- • Why Does My Bass Distort When I Turn the Volume Up?
Distortion at higher volume can come from amplifier clipping, excessive gain, an unsuitable crossover setting, or insufficient power. Adjust the amplifier gain properly rather than treating the gain control as a volume boost.
- • Why Does the Subwoofer Stop Working After Getting Wet?
The M2D2-12SB is designed for marine environments, but its waterproof construction does not mean wiring or external connections can be installed carelessly. Inspect the Deutsch/Amphenol connectors and wiring for moisture, corrosion, or poor connections.
- • Why Doesn't the M2D2-12SB Fit My Existing Speaker Opening?
The installation requires the correct mounting dimensions. Rockford lists an approximately 11-inch cutout and 4.87-inch mounting depth for the current product specifications, so measuring the available space before installation is important.
- • Why Did the Bass Change After I Installed a Different Enclosure?
The M2D2-12SB is optimized for a small sealed enclosure, with Rockford specifying approximately 0.75 cubic feet for the sealed-box design. A different enclosure volume or an enclosure with air leaks can change the subwoofer's response noticeably.
- • Why Is My Amplifier Going Into Protection Mode?
Protection can occur when the amplifier sees an unsuitable impedance, a wiring short, excessive heat, or another electrical problem. Recheck the dual voice-coil wiring and confirm the final impedance is within the amplifier's supported range before increasing output.
- • Why Does My M2D2-12SB Have No Bass Even Though the Amplifier Has Power?
Amplifier power alone does not confirm that the subwoofer is receiving the correct signal. Check the RCA/signal connection, amplifier crossover, gain, speaker polarity, and both voice-coil connections. Rockford specifically recommends diagnosing installation and wiring issues before assuming the subwoofer itself has failed.
- Diameter : 12 Inch
- Sensitivity : 88 dB
- Impedance : 2 Ohm
- Frequency Response : 20-750 Hz
- RMS Power Range : 400 Watts
- Peak Power Handling : 1600 Watts
- Color : Black
- Mounting Depth : 4.87 Inches
Features:
- Marine Environmental Durability Testing: Engineered and validated using ASTM B117 salt/fog and ASTM G154 UV standards to ensure reliable performance under harsh marine exposure conditions.

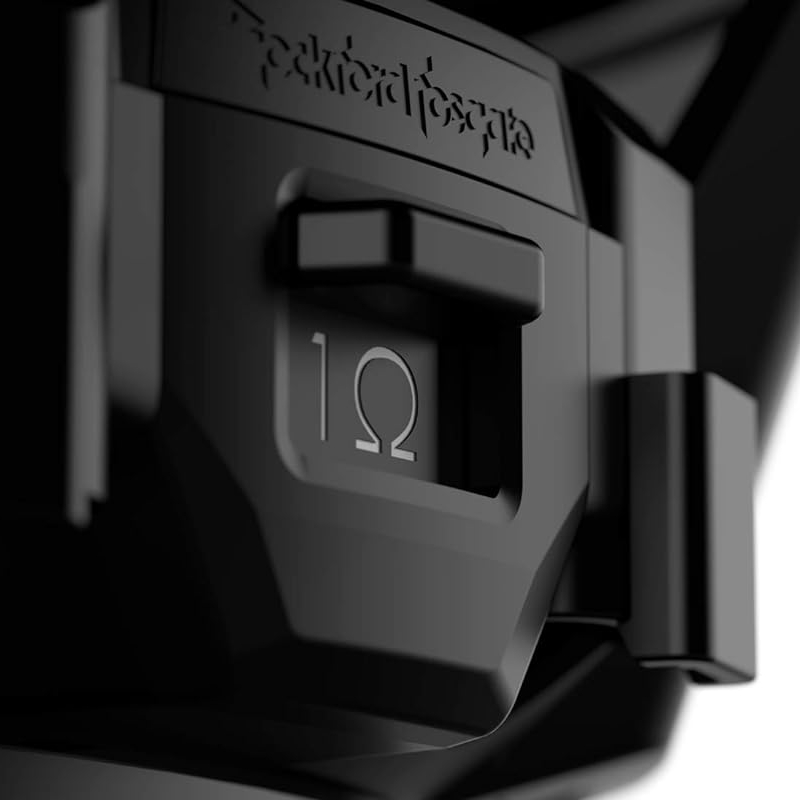

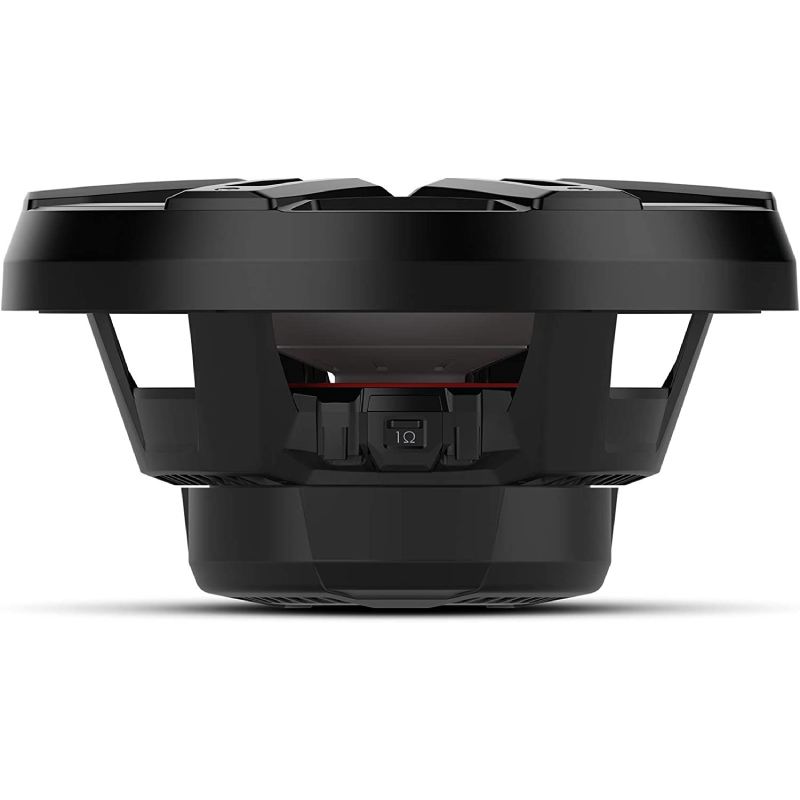

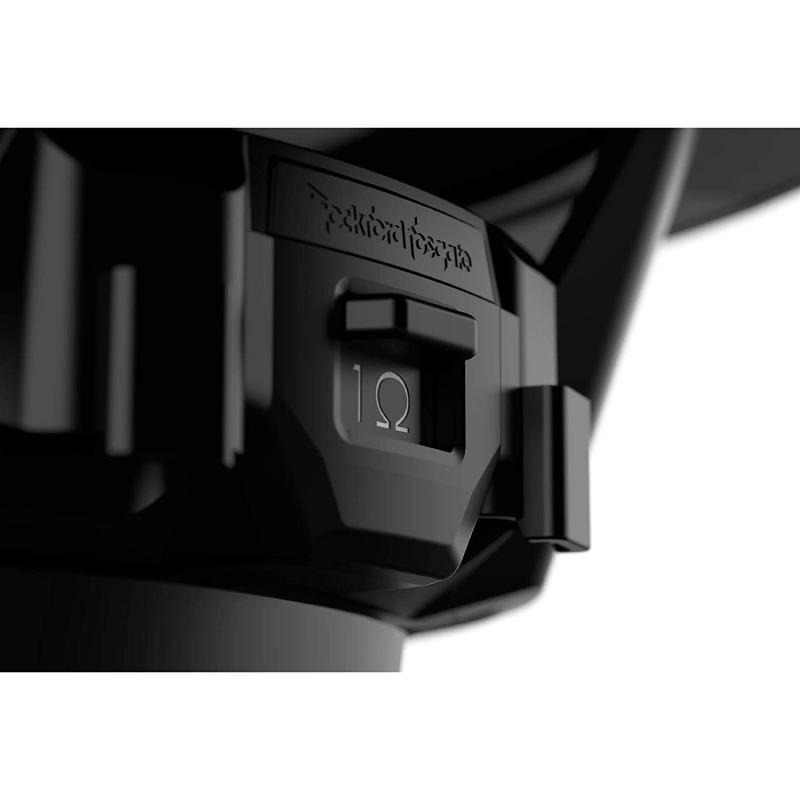

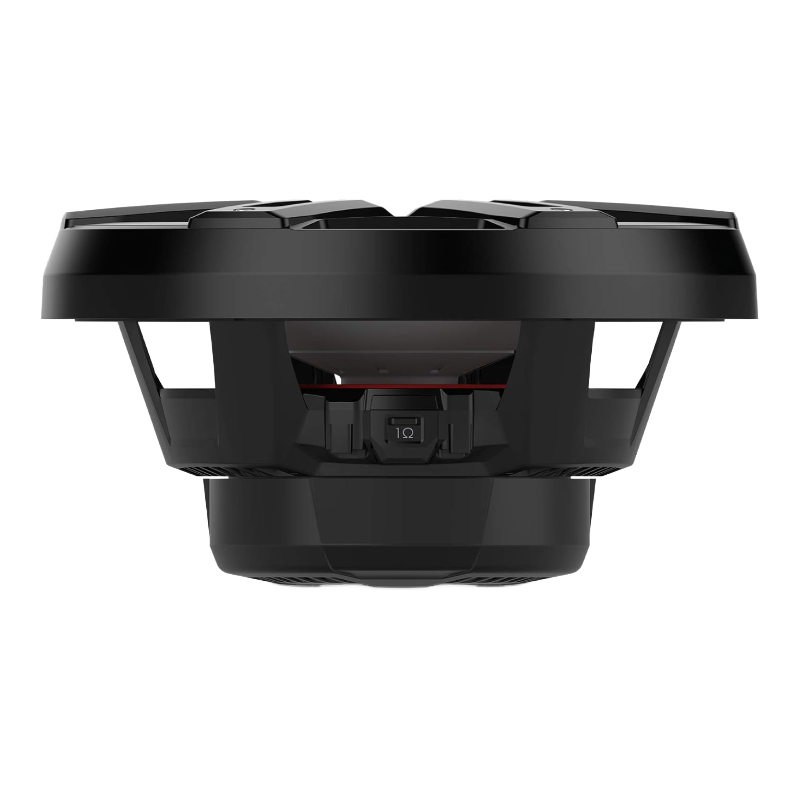

- Selectable Dual Impedance Configuration: Integrated switch allows seamless adjustment between 1Ω and 4Ω by configuring dual 2Ω voice coils in series or parallel, delivering consistent 400W RMS and 1600W peak power handling.
- Compact Sealed Enclosure Optimization: Specifically designed for small sealed box applications, tuned for 0.75 ft³ internal volume to deliver controlled, accurate, and powerful bass response.

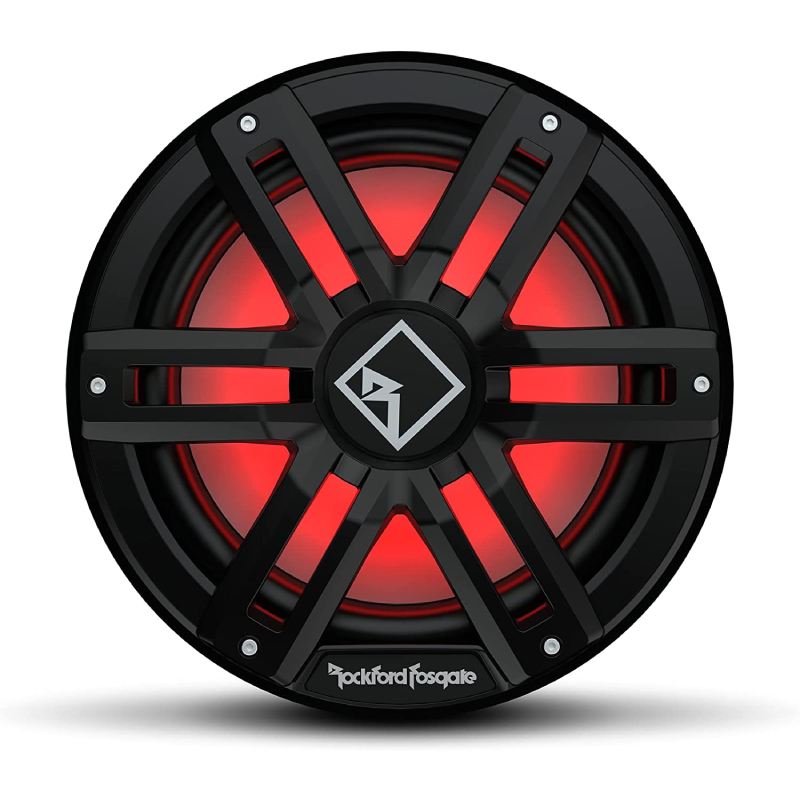

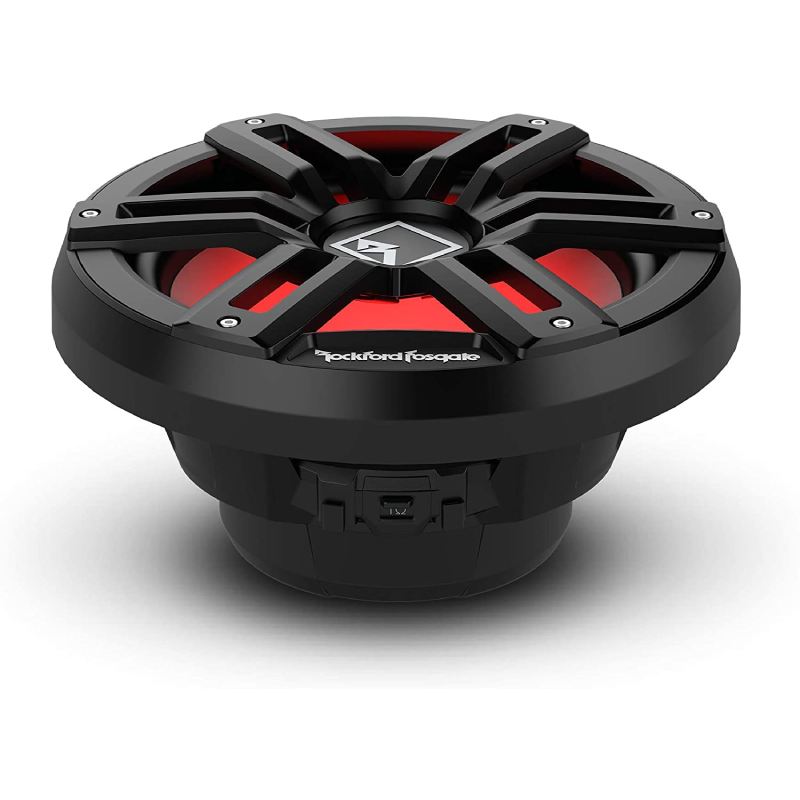

- Dynamic RGB Illumination System: Built-in red, green, and blue LEDs behind the grille provide customizable lighting effects with multiple color combinations including white, aqua, yellow, and pink.

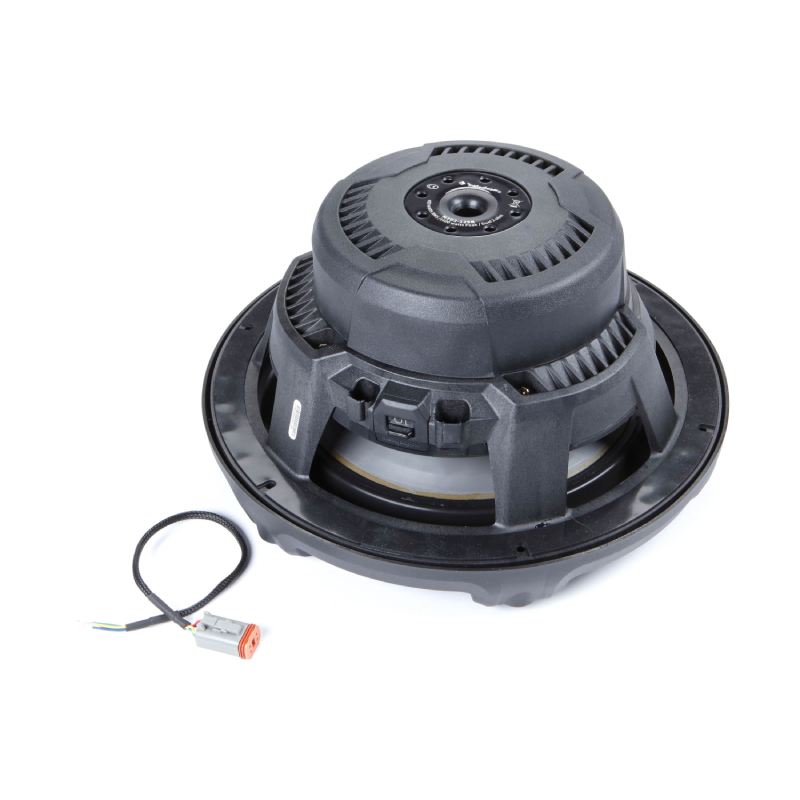

- Marine-Grade LED Connectivity: Includes a 4-pin waterproof Deutsch DT Series connector and LED harness for secure, corrosion-resistant installation, with compatibility for external LED control systems (sold separately).
- Dual Wiring Terminal Design: Features both standard quick-slide terminals and a sealed 2-pin Deutsch connector for flexible and secure marine-grade wiring options.
- Enhanced Cone Efficiency Technology: Utilizes VAST (Vertical Attach Surround Technique) to maximize effective cone area, improving bass output without increasing overall basket size.
- Precision Acoustic Engineering: Klippel Verified design optimizes motor structure, suspension movement, and voice coil alignment for reduced distortion and improved audio accuracy.
- Corrosion-Resistant Construction: Built with stainless steel mounting hardware to ensure long-term durability in saltwater and high-moisture environments.
- High-Performance Sealed Design Tuning: Optimized specifically for sealed enclosures, delivering tight, punchy low-frequency response ideal for compact marine audio systems.
Specicfications:
- Size: 12"
- Nominal Impedance (Ohms): 1-Ohm or 4-Ohm Switchable
- Power Handling (Watts RMS): 400 Watts RMS /1,600 Watts PEAK
- Voice Coil Type: Dual Voice Coil
- Voice Coil Diameter: 1.95" (49.53 mm)
- Magnet Weight (oz): 61.09 oz. (1.7 Kg)
- Frequency Response (Hz): 20 Hz - 750 Hz
- Fs (Hz): 32
- Re (Ohms): 3.3
- Le (mH): 3.43
- Sd (cm2): 539
- Qms: 4.437
- Qes0.91
- Qts0.76
- Vas: 72
- SPL (dB @ 1w/1m): 88
- SPL (dB @ 2.8v): 89
- Xmax (mm): 15
- Speaker Connector: 2-pin Deutsch™ and 1/8" Spade
- Cutout Diameter: 11” (279.4 mm)
- Mounting Depth: 4.87" (123.8 mm)
- Woofer Displacement: 0.121 (3.43 Liters)
- Sealed Box Volume (Vb): 0.75 (21 Liters)
- Shipping Weight: 10.64 Lbs. (4.83 Kg.)
- UPC: 780687358242
- Weight: 11
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
