Rockford Fosgate M2D4-12SB M2 Series 12" 400W RMS (1600W Peak Power Handling) 4 Ohms Dual Voice Coils Color Optix™ Sealed Enclosure Marine Subwoofer - Black
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

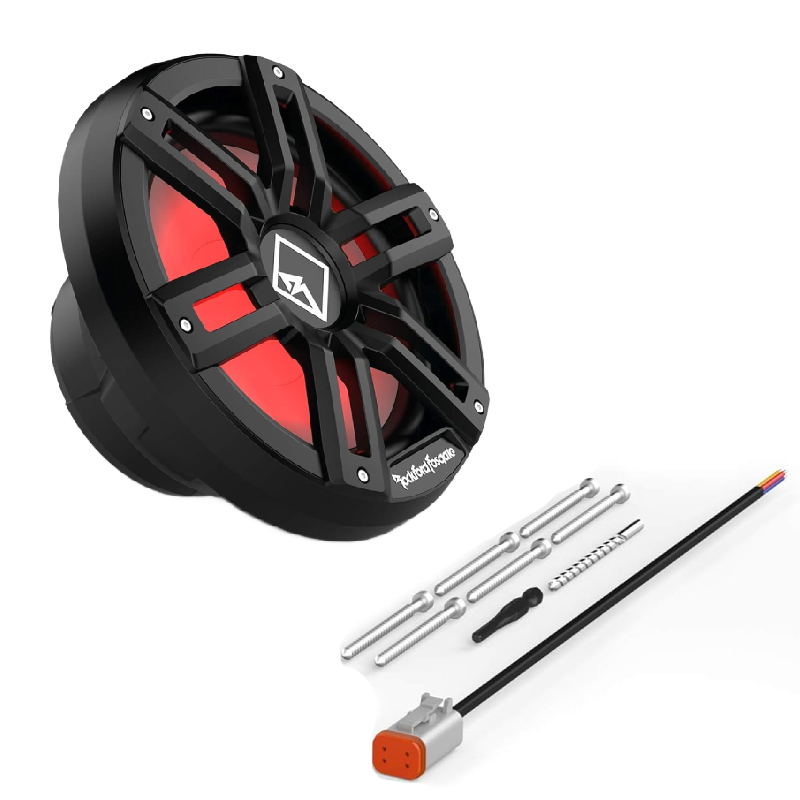

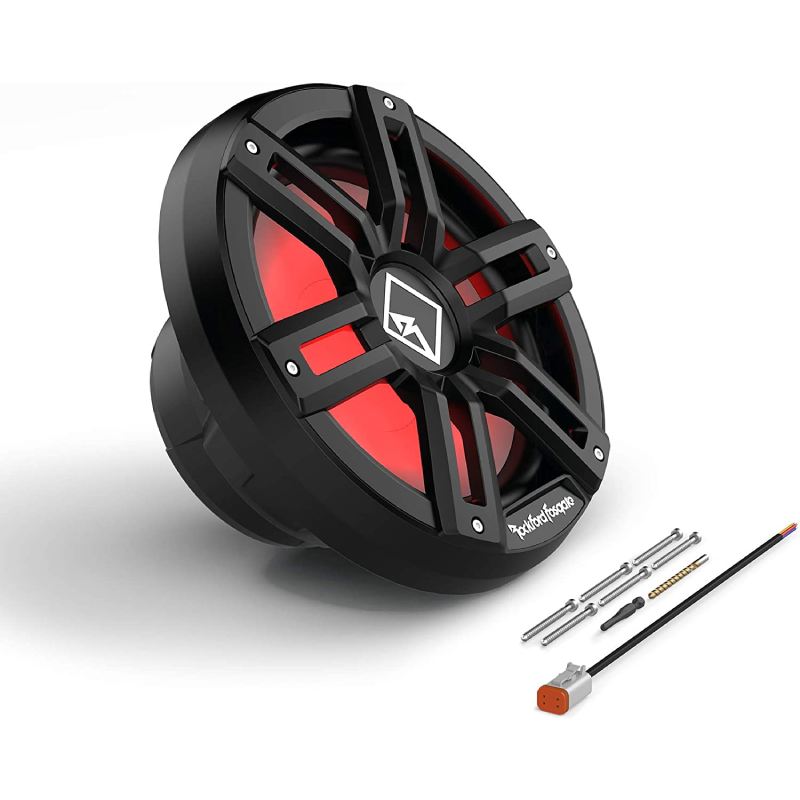

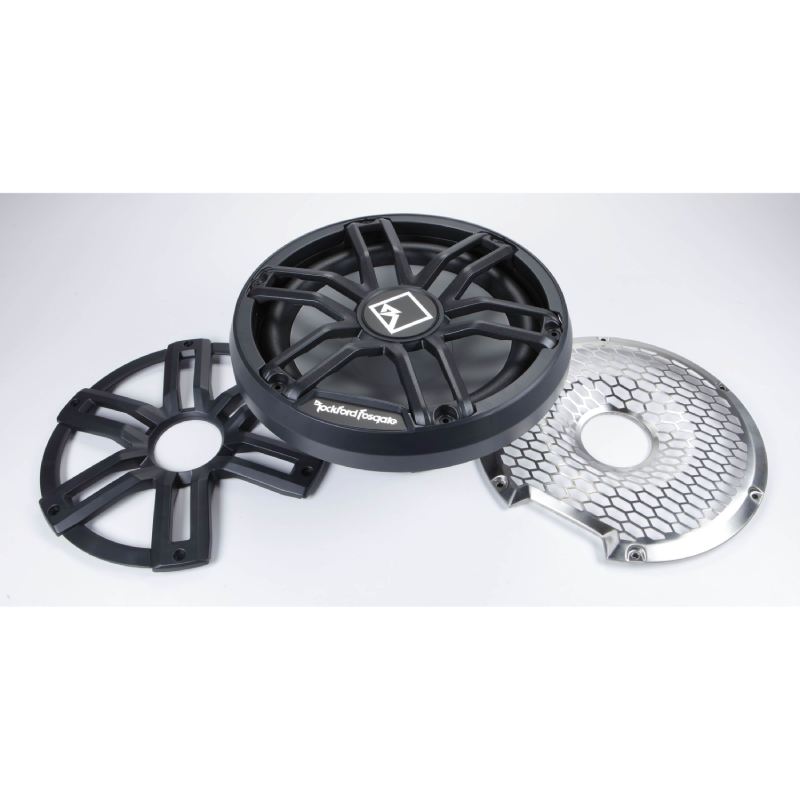

What's Inside?
- • 12" M2 Series Marine Subwoofer

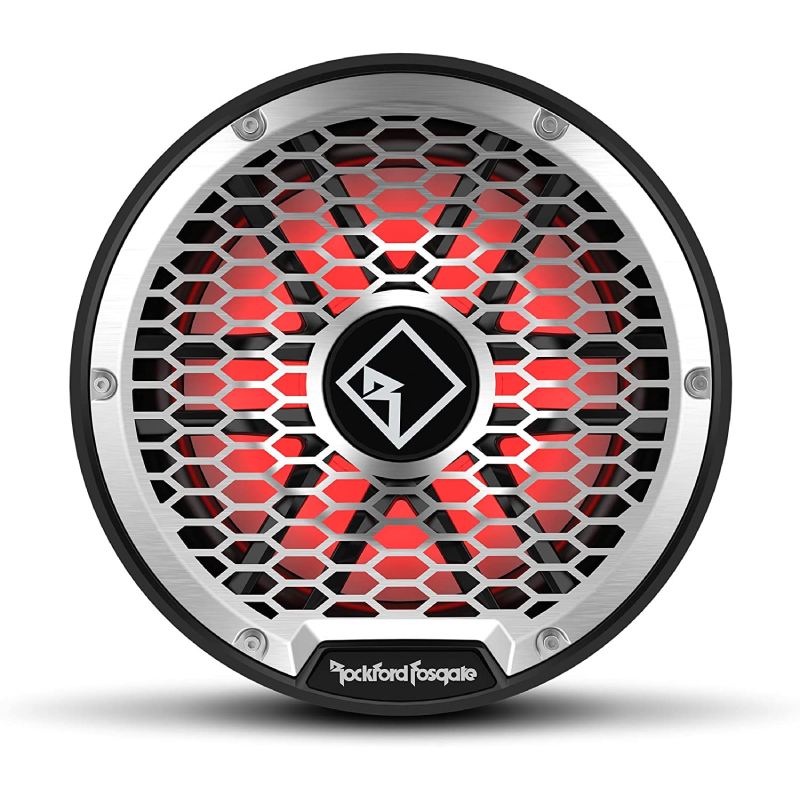

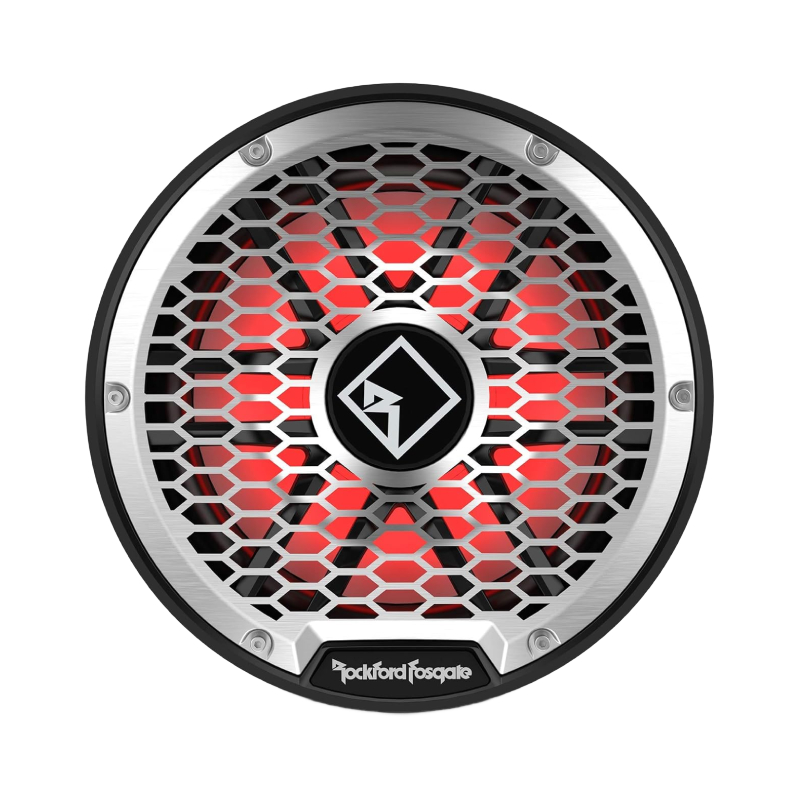

- • Stainless steel grille

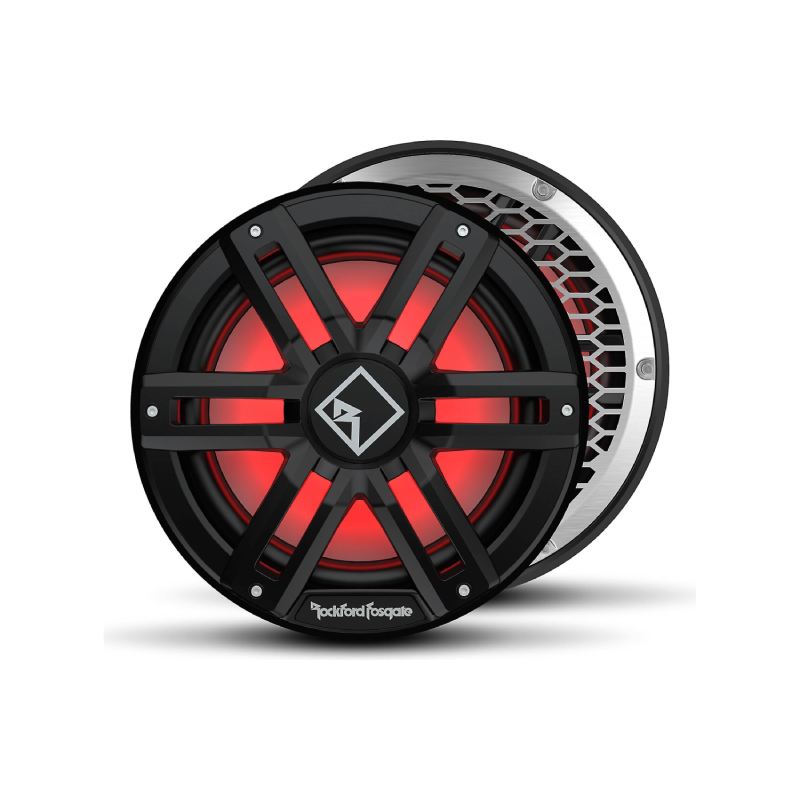

- • Sport grille (Black)
- • Grille frame (Black)

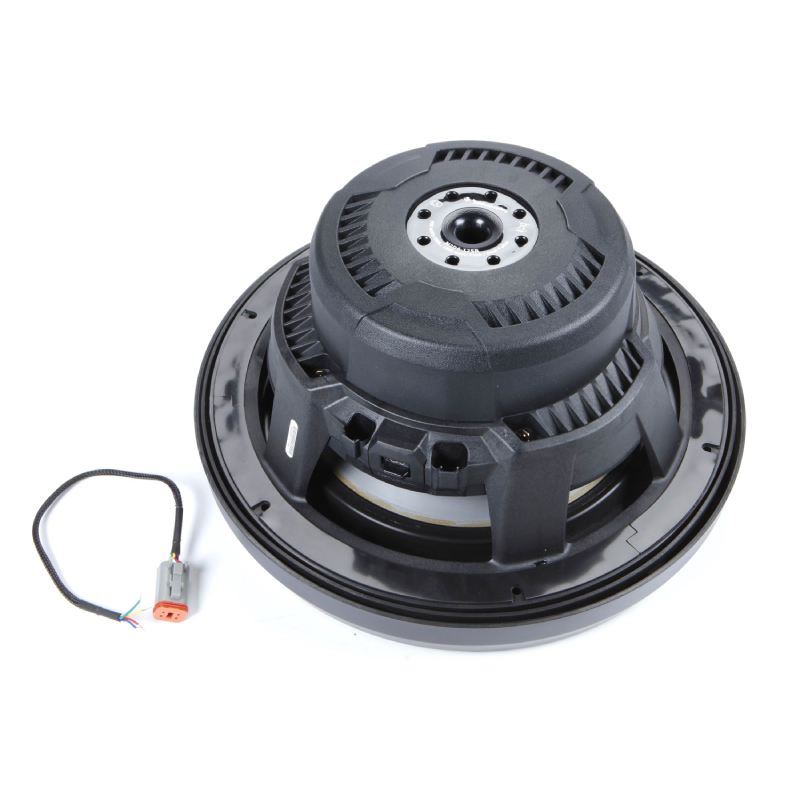

- • 11" LED power harnesses with 4-pin Deutsch connector on one end
- • (6) 3" Stainless steel Allen head screws
- • 4mm Allen head bit
- • 4.5mm Drill bit (for fiberglass enclosures only)
- • Rockford Fosgate contact information
- • Owner's Manual
Built to Survive Salt, Sun, and Serious Marine Abuse
The Rockford Fosgate M2D4-12SB is engineered for the kind of environments where most subs give up early. It is tested to ASTM B117 salt fog and ASTM G154 UV standards, meaning it is built to handle constant moisture, harsh sunlight, and salt exposure without losing reliability. Whether it is installed on a boat or an open-air system, this sub is designed to keep performing strong and consistent in real-world marine conditions.
Power Control That Fits Your Setup Perfectly
This subwoofer gives you flexible system matching without the headache. The selectable dual impedance design lets you switch between 2 ohms and 8 ohms by rewiring the dual 4 ohm voice coils in series or parallel, while still delivering solid output at 400W RMS and 1600W peak power. It is also optimized specifically for compact sealed enclosures tuned to 0.75 cubic feet, giving you tight, accurate, and controlled bass that hits clean without needing a large box.
Clean Bass Performance With Smart Engineering and Custom Style
The M2D4-12SB brings together performance, precision, and style in one package. The RGB lighting system behind the grille lets you customize your look with colors like aqua, pink, yellow, or white, while the waterproof Deutsch connector keeps everything sealed and marine ready. VAST technology increases cone efficiency for stronger bass in a compact design, and Klippel Verified engineering ensures low distortion and accurate sound reproduction. With stainless steel corrosion resistant hardware and flexible wiring options, this subwoofer delivers tight bass, reliable durability, and a clean custom look built for serious marine setups.
Frequently Asked Questions (FAQ)
- • Why Does My M2D4-12SB Produce Less Bass Than I Expected?
Users sometimes discover that the subwoofer sounds noticeably quieter after installation. Check the amplifier's output, crossover settings, phase, and impedance configuration before assuming there is a problem with the woofer.
- • Can Incorrect DVC Wiring Make the M2D4-12SB Sound Different?
Yes. Because the M2D4-12SB uses dual 4-ohm voice coils, incorrect connections can create an unexpected load for the amplifier and reduce performance. Verify the final impedance configuration before powering the system.
- • Why Does My Amplifier Shut Down When I Push the Bass Higher?
An amplifier may enter protection when the connected load is outside its rated range, particularly if the subwoofer wiring creates an impedance the amplifier cannot handle. Check the final load and amplifier specifications before increasing the gain.
- • Why Does the M2D4-12SB Start Distorting at Higher Volume?
A customer may hear harsh or muddy bass when the system is pushed aggressively. Excessive gain, clipped source signals, insufficient amplifier headroom, or incorrect crossover settings can all contribute to distortion.
- • Why Is Only One Side of My Subwoofer Wiring Connected?
The M2D4-12SB has two voice coils, so leaving one coil disconnected does not provide the same power handling or impedance configuration as using both coils correctly. Both coils should be wired according to the desired amplifier load.
- • Why Won't the M2D4-12SB Fit My Existing Mounting Location?
Before cutting the mounting surface, verify the available clearance against the required 11-inch cutout and approximately 4.87-inch mounting depth. Limited space can make an otherwise suitable installation impossible.
- • Why Does My Subwoofer Sound Different After Changing the Enclosure?
The M2D4-12SB is designed for compact sealed applications, and Rockford specifies approximately 0.75 ft³ of sealed enclosure volume. Changing the enclosure size, construction, or sealing can noticeably alter the bass response.
- • Why Does My Subwoofer Get Hot or Smell After Playing Loud?
A strong burning smell or excessive heat can indicate that the voice coil is being overdriven. Incorrect gain settings and clipped signals are frequently discussed by users as causes of damaged subwoofers, even when the amplifier appears to be within its advertised power range.
- • Why Aren't the Color Optix Lights Working Even Though the Subwoofer Plays?
The M2D4-12SB's lighting system requires the appropriate Color Optix controller, and the lighting connections are separate from the audio signal. Check the controller, power, connectors, and lighting wiring if the bass works but the LEDs do not.
- • Can Moisture Still Cause Problems With the M2D4-12SB?
Although the M2D4-12SB is designed for marine environments and uses protected connections, users should still inspect connectors and wiring for damage, corrosion, or improper installation after prolonged exposure to water and salt. Rockford specifically recommends diagnosing installation-related issues before assuming the product itself has failed.
- Diameter : 12 Inch
- Sensitivity : 88 dB
- Impedance : 4 Ohm
- Frequency Response : 20-750 Hz
- RMS Power Range : 400 Watts
- Peak Power Handling : 1600 Watts
- Color : Black

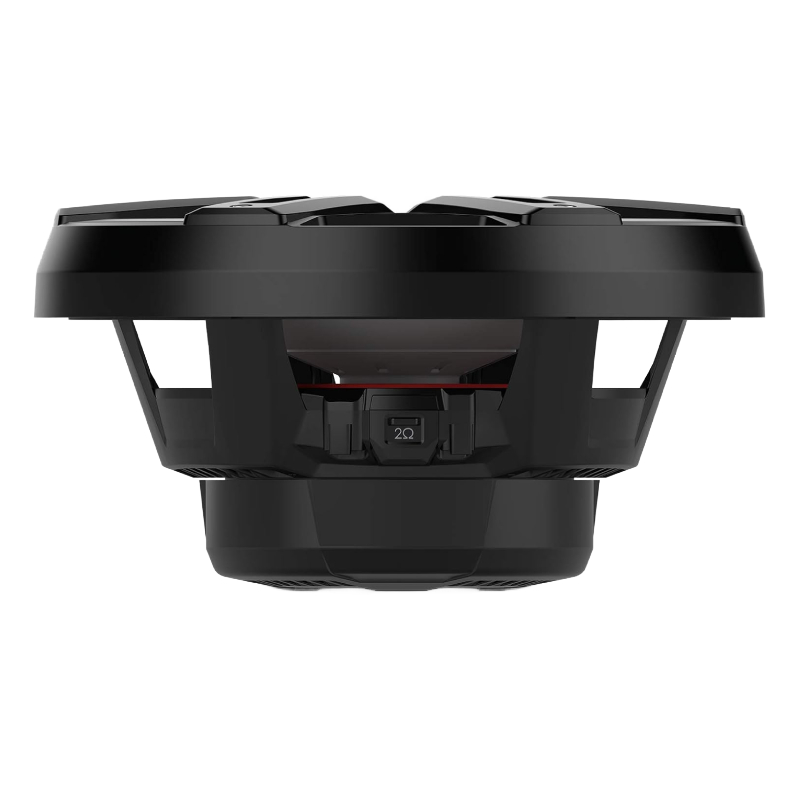

- Mounting Depth : 4.87 Inches
Features:
- Marine Environmental Certification: Built and tested to ASTM B117 salt/fog and ASTM G154 UV standards to ensure dependable operation in harsh marine and outdoor conditions.

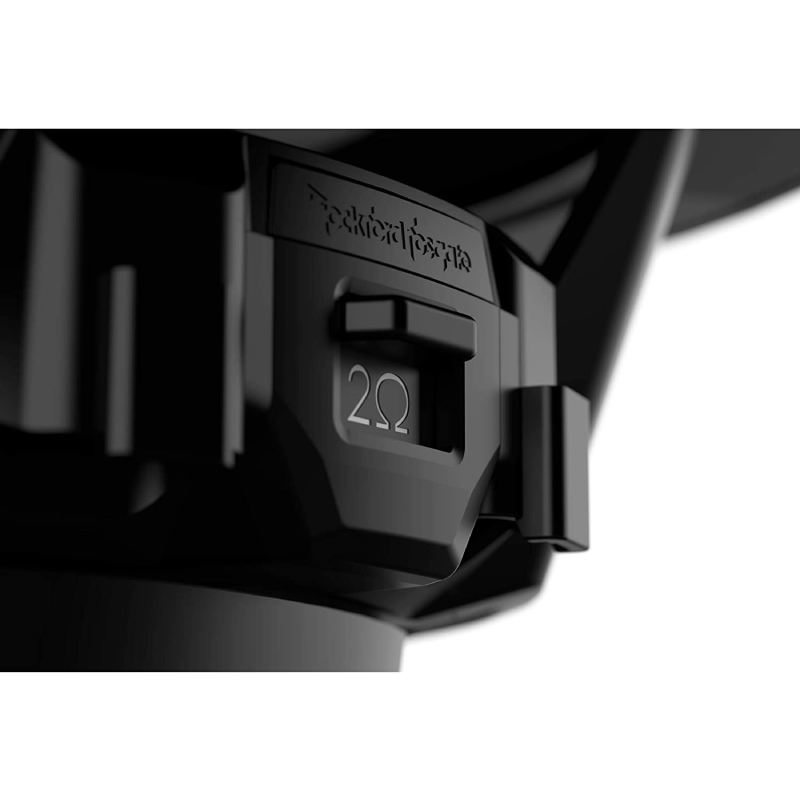

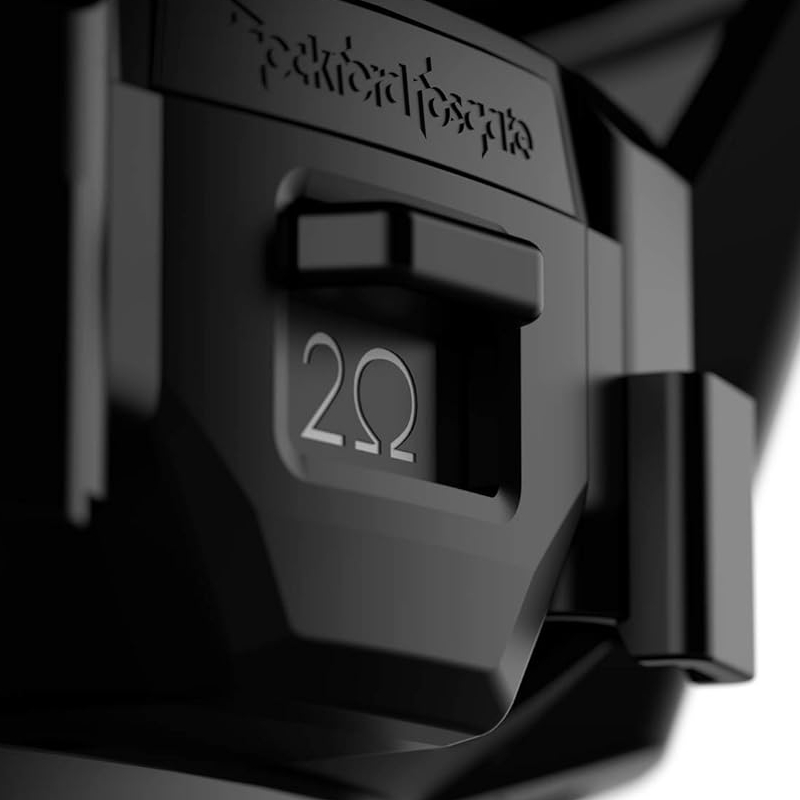

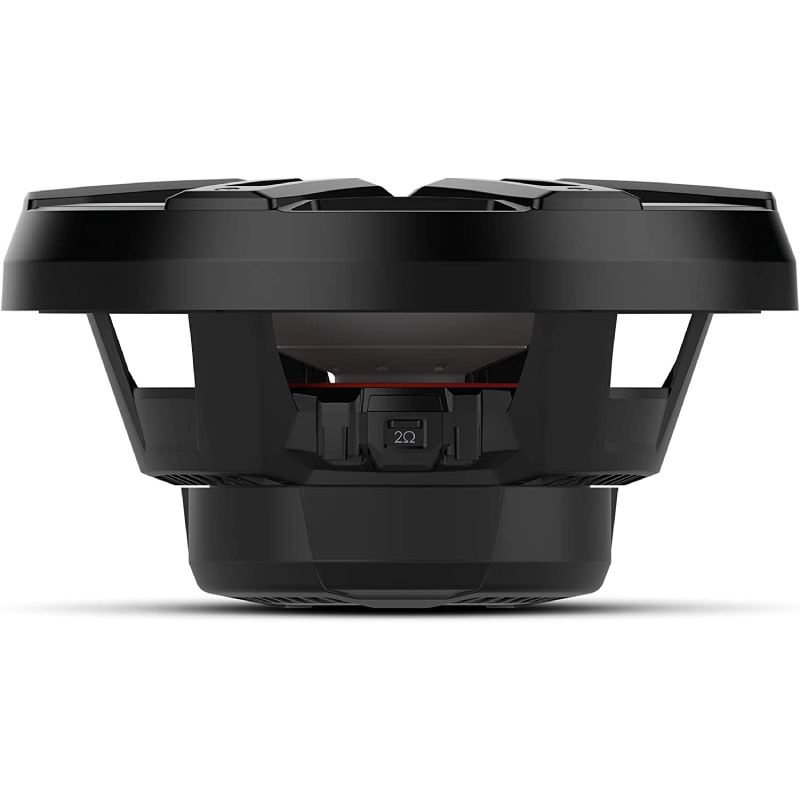

- Selectable Dual Impedance Design: Integrated switch enables easy configuration between 2Ω and 8Ω by rewiring dual 4Ω voice coils in series or parallel, supporting 400W RMS and 1600W peak power handling.
- Optimized Sealed Enclosure Performance: Designed specifically for compact sealed box applications, tuned for 0.75 ft³ enclosure volume to deliver tight, accurate, and controlled bass response.

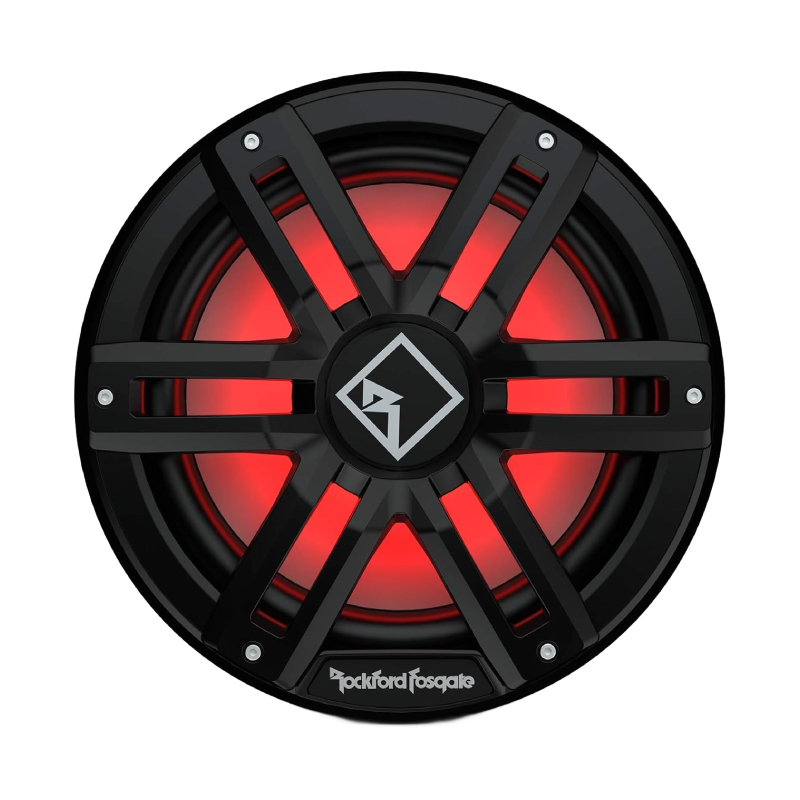

- Dynamic RGB Lighting System: Integrated red, green, and blue LEDs behind the grille allow customizable multi-color lighting effects including white, aqua, yellow, and pink.
- Marine-Grade LED Connectivity: Includes a 4-pin waterproof Deutsch DT Series connector and harness for secure installation, with compatibility for external LED controllers (sold separately).

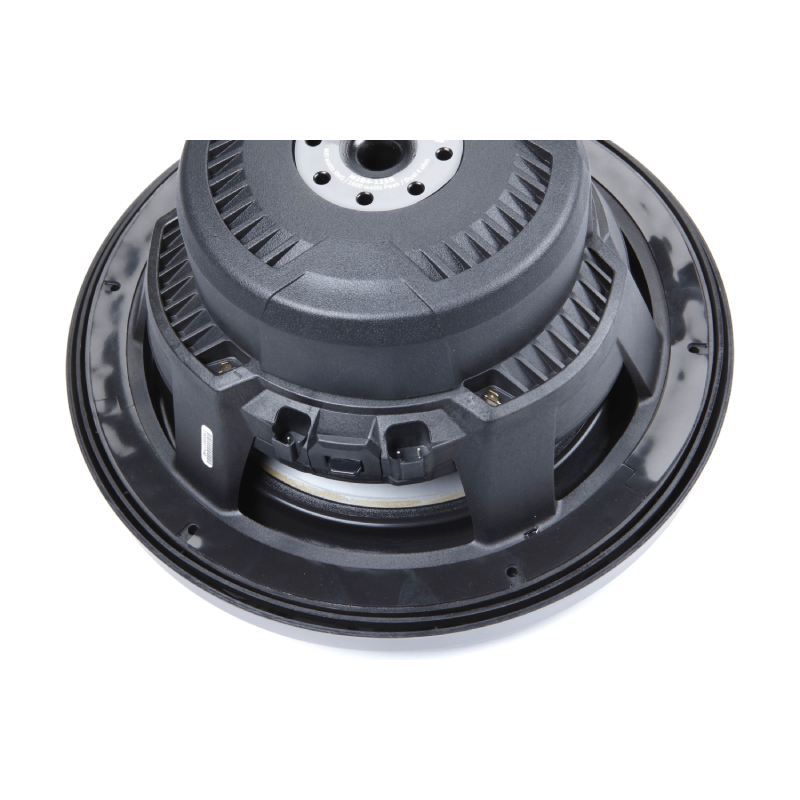

- Dual Terminal Connectivity Options: Features both standard quick-slide terminals and a sealed 2-pin Deutsch connector for flexible and corrosion-resistant wiring.
- Advanced Cone Efficiency Design: Incorporates VAST (Vertical Attach Surround Technique) to maximize cone surface area and enhance bass output without increasing overall frame size.
- Precision Acoustic Engineering: Klippel Verified design optimizes motor structure, suspension movement, and voice coil alignment for reduced distortion and improved sound accuracy.
- Corrosion-Resistant Construction: Equipped with stainless steel mounting hardware designed to withstand long-term exposure to saltwater and marine environments.
- Sealed Box System Tuning: Engineered specifically for small sealed enclosures, delivering deep, controlled bass ideal for compact marine audio installations.
Specifications:
- Size: 12"
- Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
- Power Handling (Watts RMS): 400 Watts RMS/ 1,600 Watts PEAK
- Voice Coil Type: Dual Voice Coil
- Voice Coil Diameter: 1.95" (49.53 mm)
- Magnet Weight (oz): 61.09 oz. (1.7 Kg)
- Frequency Response (Hz): 20 Hz - 750 Hz
- Fs (Hz): 32
- Le (mH): 3.43
- Re (Ohms): 6.5
- Sd (cm2): 539
- Qms: 4.26
- Qes: 1.08
- Qts: 0.85
- Vas: 7
- SPL (dB @ 1w/1m): 88
- SPL (dB @ 2.8v): 89
- Xmax (mm): 15
- Speaker Connector: 2-pin Deutsch™ and 1/8" Spade
- Cutout Diameter: 11” (279.4 mm)
- Mounting Depth: 4.87" (123.8 mm)
- Sealed Box Volume (Vb): 0.75 (21 Liters)
- Woofer Displacement: 0.121 (3.43 Liters
- UPC: 780687358235
- Weight: 11
