Rockford Fosgate  M1D2-8B

M1 Series 8" 600W Peak Power Handling 2 Ohm, Dual Voice Coil RGB Marine Subwoofer (Black)

Item #90994

Condition:   Brand New

Product Highlights

  • M1 Series
  • 8"
  • 600W Peak Power Handling
  • 2 Ohm
  • Dual Voice Coil
  • RGB Marine Subwoofer
  • Black

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$239.99

Reg. Price $339.99  Save $100.00
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

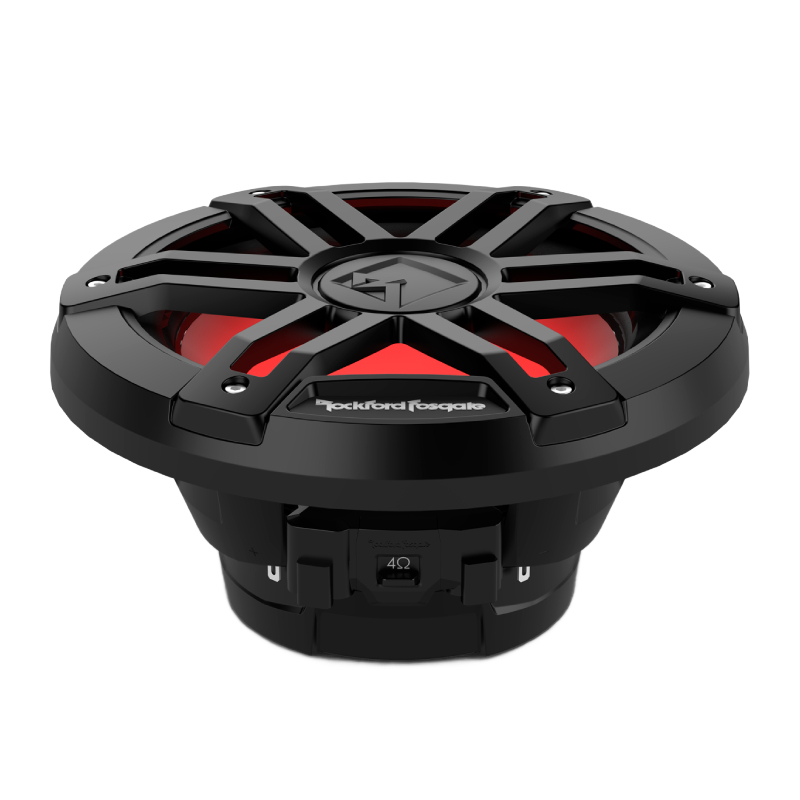

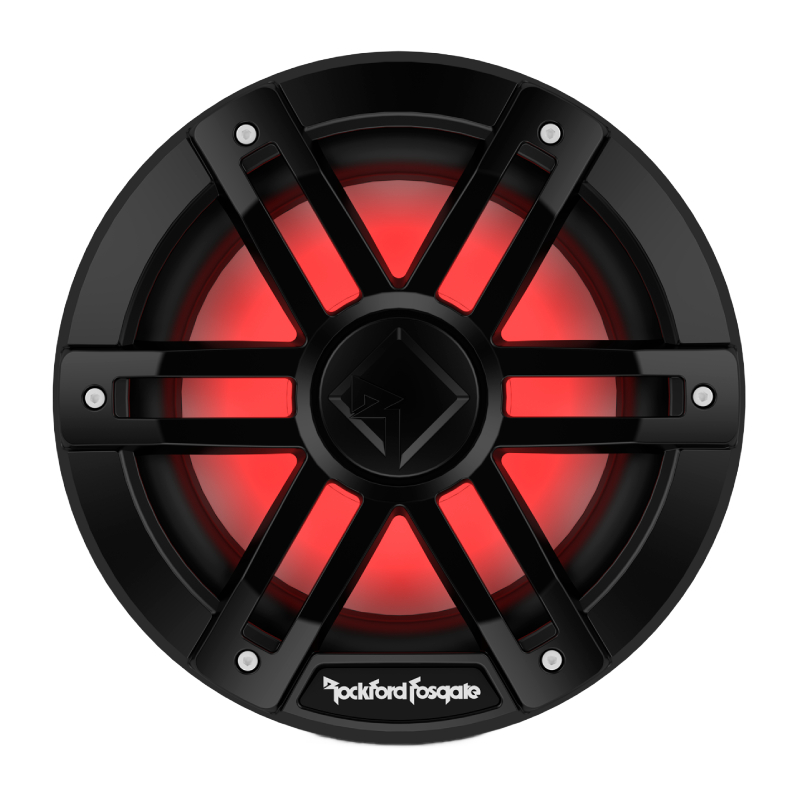

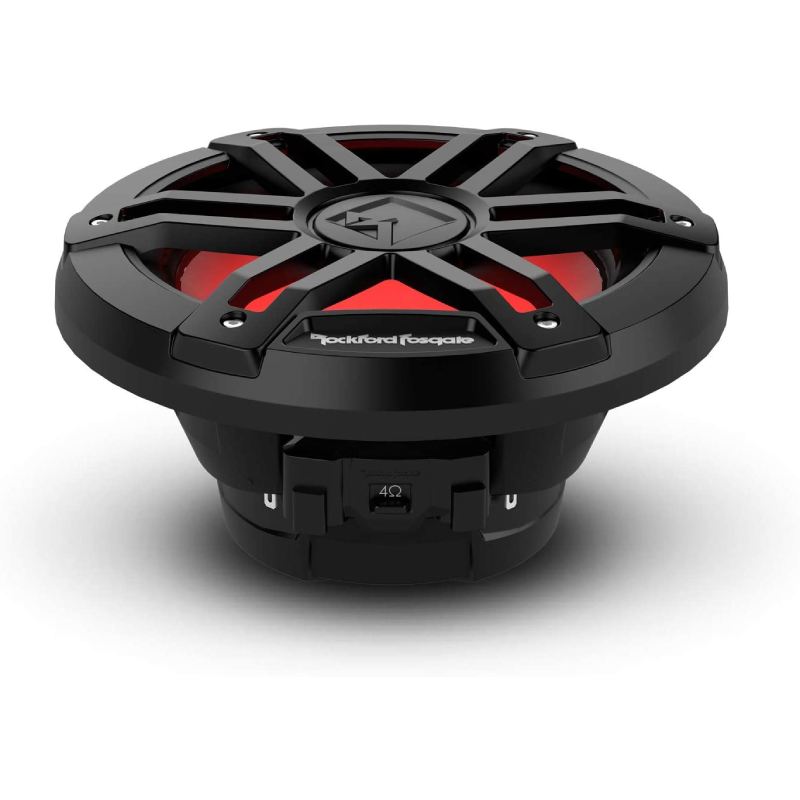

Rockford Fosgate M1D2-8B M1 Series 8" 150W RMS (600W Peak Power Handling) 2 Ohm, Dual Voice Coil RGB Marine Subwoofer (Black)


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

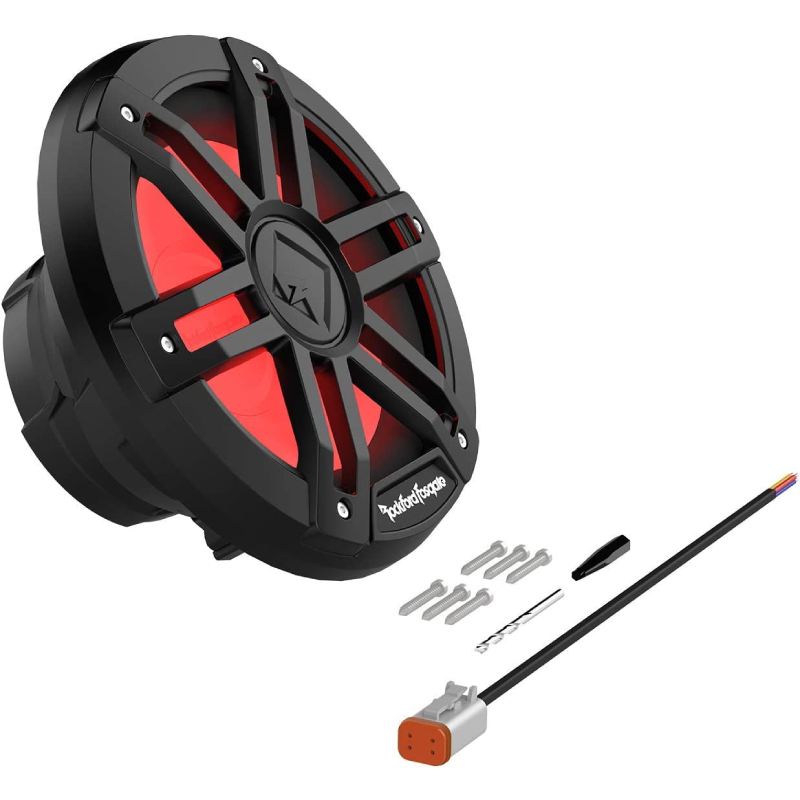

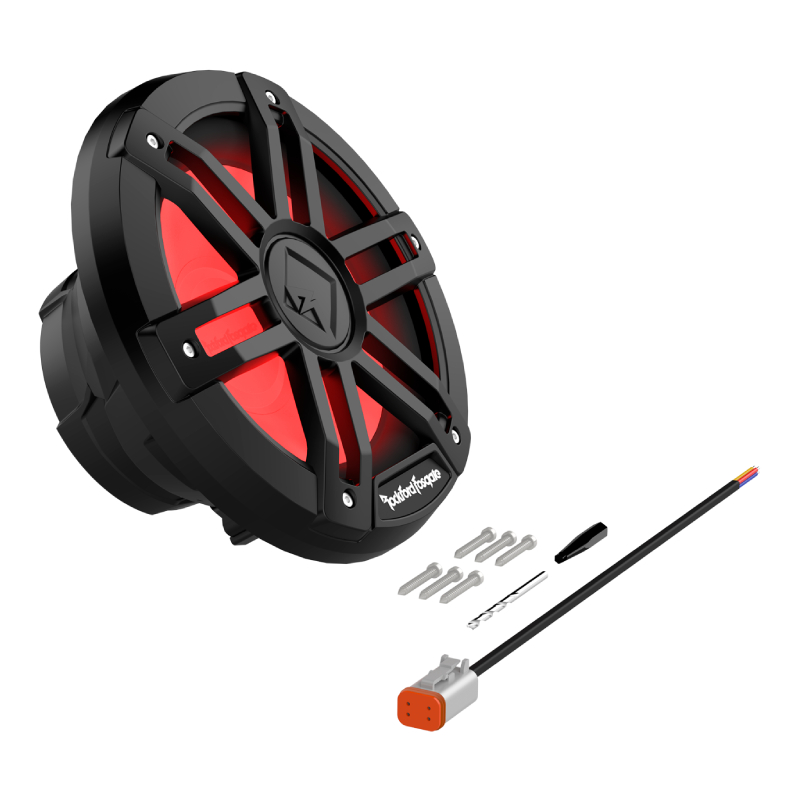

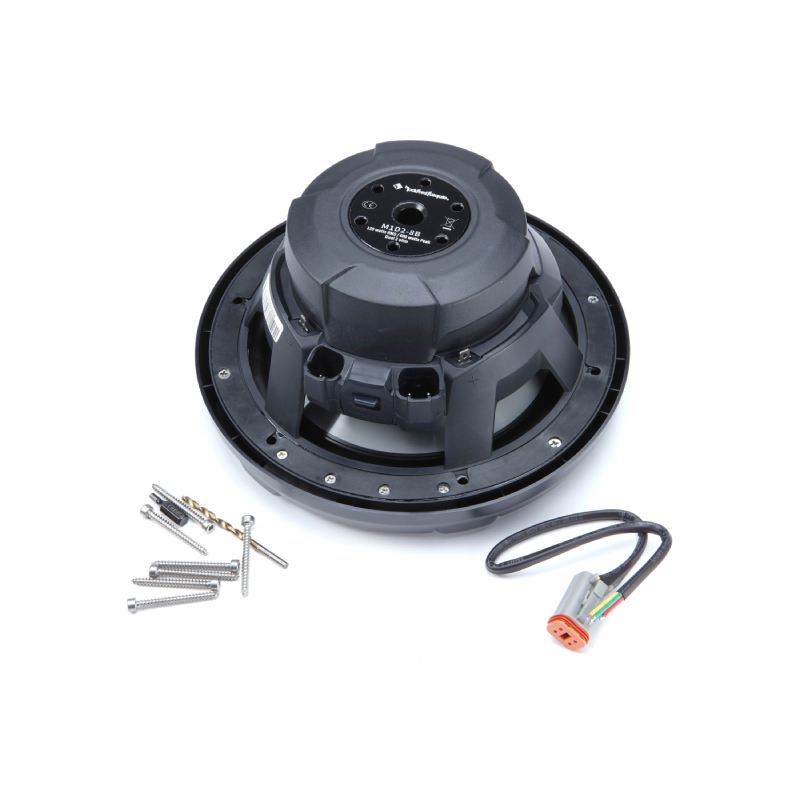

What's Inside?
  • • 8" M1 Series RGB Marine Subwoofer (Black)
  • • 11" LED power harnesses with 4-pin Deutsch connector on one end
  • • (6) 1-1/2" Stainless steel Allen head screws
  • • 3mm Allen head bit
  • • 3.5mm Drill bit
  • • Rockford Fosgate contact information
  • Owner's Manual





Built to Handle Salt, Sun, and Constant Marine Abuse

The Rockford Fosgate M1D2-8B is designed for environments where most compact subs would struggle to survive. It is engineered using ASTM B117 salt fog and ASTM G154 UV testing standards, so it is built to resist corrosion, moisture, and harsh sunlight over long periods of use. Whether it is installed on a boat or an open-air setup, this sub is made to stay reliable and keep delivering clean bass in real marine conditions.

Flexible Power Setup in a Compact Form Factor

Do not let the size fool you, this sub gives you real tuning flexibility. The selectable dual impedance design lets you switch between 1 ohm and 4 ohms by rewiring the dual 2 ohm voice coils in series or parallel, while still delivering 150W RMS and 600W peak power. It is also built for multiple enclosure types, including sealed, ported, and infinite-baffle setups, so you can tune your system exactly how you want without being locked into one design style.

Clean Bass, Smart Engineering, and Custom Marine Style

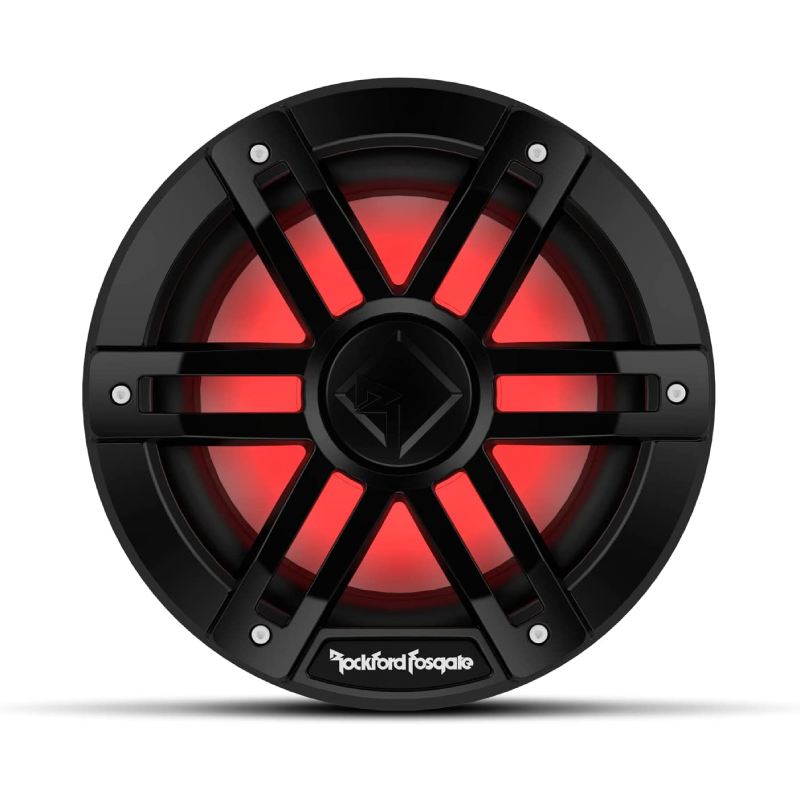

The M1D2-8B brings together performance, durability, and visual customization in one compact package. The RGB lighting system behind the grille lets you choose colors like aqua, pink, yellow, or white, while the waterproof Deutsch connector keeps everything sealed for marine use. VAST technology increases cone efficiency for stronger bass in a small footprint, and Klippel Verified engineering keeps distortion low for accurate sound reproduction. With stainless steel corrosion-resistant hardware, flexible wiring terminals, and a compact high-performance design, this subwoofer is built to deliver tight bass, clean looks, and reliable marine performance wherever it is installed.




Frequently Asked Questions (FAQ)


  • • Why Does My M1D2-8B Sound Weak Compared With a Larger Subwoofer?
    The 8-inch M1D2-8B is designed for applications where space is limited, so its output characteristics will naturally differ from larger 10- or 12-inch subwoofers. Proper enclosure volume, amplifier setup, and mounting location are important for getting the strongest bass possible.
  • • Why Does My Amplifier Get Unusually Hot With the M1D2-8B?
    The M1D2-8B's dual 2-ohm voice coils can be configured for a 1-ohm or 4-ohm load. If the amplifier is not designed to operate safely at the selected impedance, excessive heat or protection shutdowns may occur. Always verify the amplifier's minimum impedance rating.

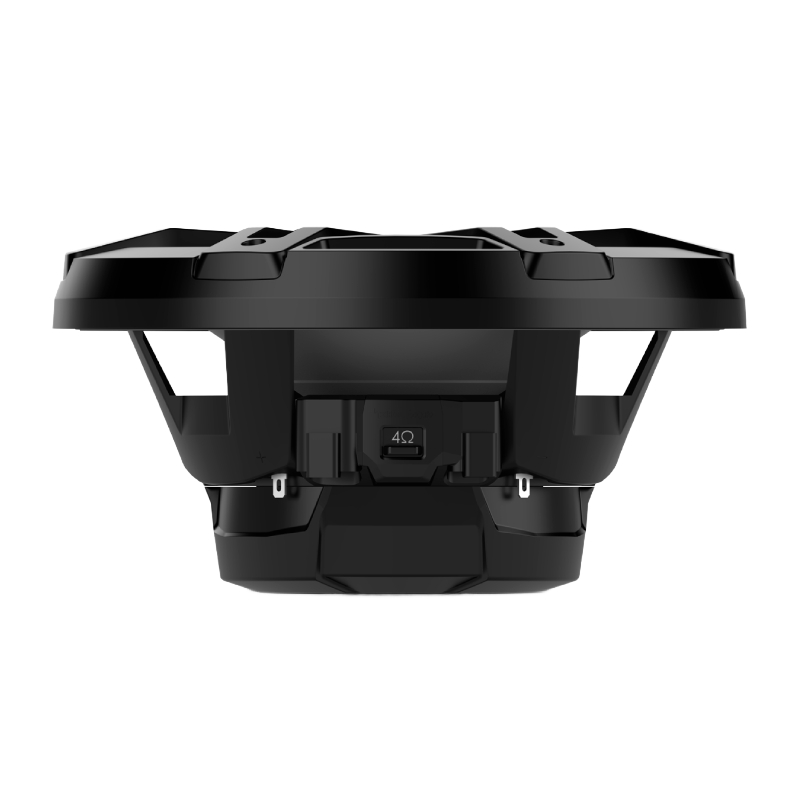

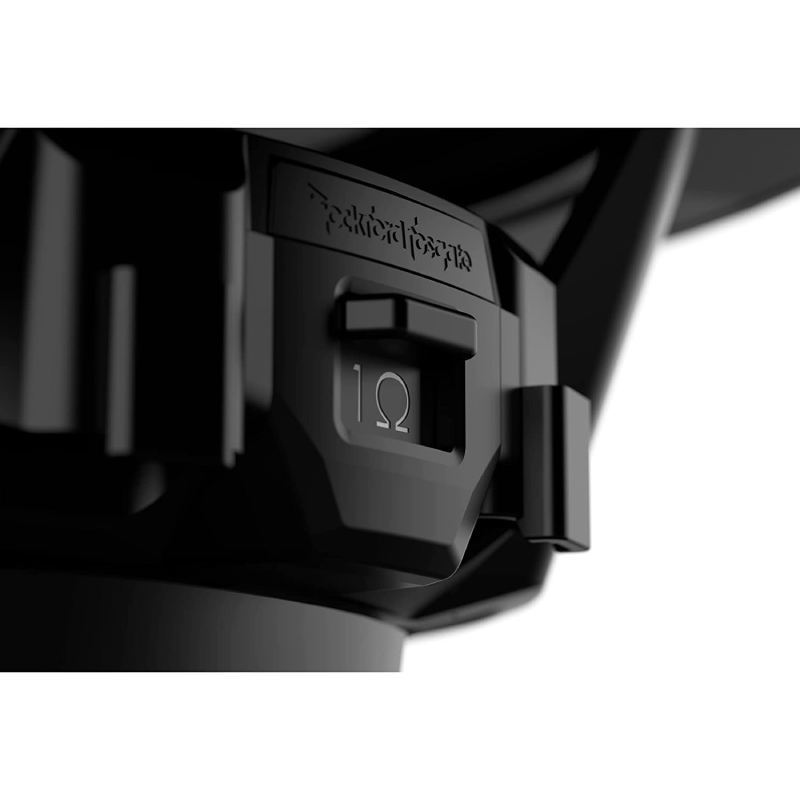

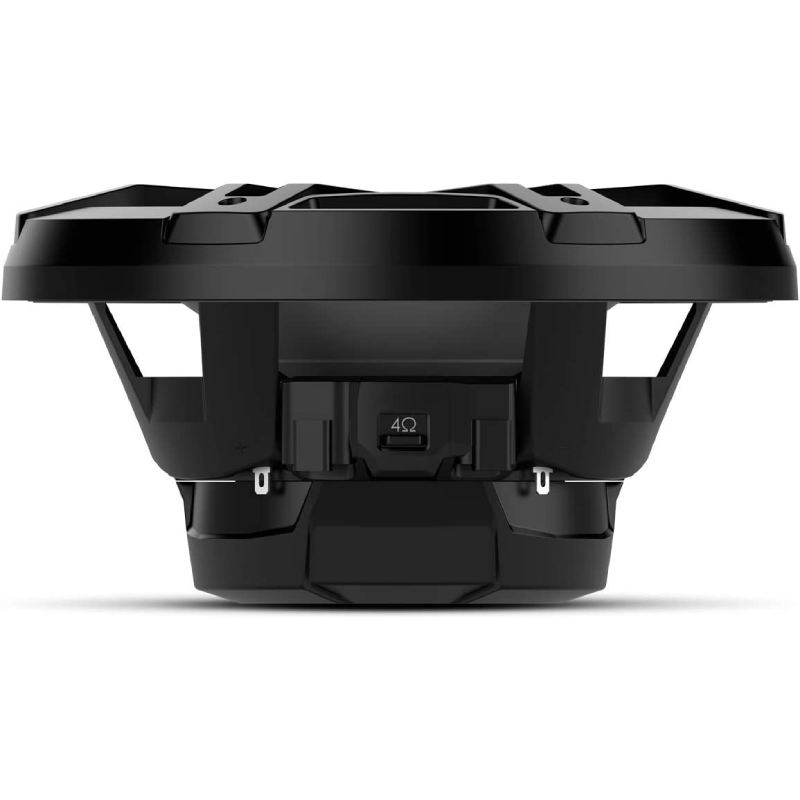

  • • Why Does the Bass Change After Flipping the VERSA Switch?
    The VERSA switch changes the voice-coil configuration between series and parallel without requiring additional wiring. Because the resulting load changes from 1Ω to 4Ω, the amplifier's output can change significantly as well.
  • • What Could Make the M1D2-8B Produce a Hollow-Sounding Bass?
    A hollow or unusually thin sound can occur when the enclosure is leaking air or the subwoofer's polarity is incorrect. Check the enclosure seams, mounting gasket, speaker terminals, and positive/negative connections before changing the amplifier settings.
  • • Why Does My M1D2-8B Make a Clicking Noise During Heavy Bass?
    A clicking sound during strong cone movement may indicate loose mounting hardware, excessive excursion, or something contacting the cone or surround. Reduce the volume and inspect the installation before continuing to operate the subwoofer at high levels.
  • • Why Does the M1D2-8B Stop Producing Bass When I Turn It Up?
    If the bass disappears at higher volume, the amplifier may be clipping, overheating, or entering protection because of the selected impedance. Check the amplifier load, gain setting, power wiring, and VERSA switch position rather than immediately assuming the subwoofer is damaged.
  • • Why Won't the RGB Lighting Come On Even Though the Subwoofer Works?
    The M1D2-8B's Color Optix lighting requires the PMX-RGB controller and RF Connect App. The audio portion can work normally while the lighting remains inactive if the RGB controller, power connection, or lighting cable is not connected correctly.
  • • Why Does the M1D2-8B Have a Loose or Vibrating Grille?
    The grille and mounting area can develop unwanted vibration if the fasteners are not sufficiently secure. Inspect the supplied mounting screws and surrounding panel, particularly if rattling only occurs when the bass is turned up.
  • • Can the M1D2-8B Handle a Wet or Salty Marine Environment?
    The M1D2-8B is designed for marine use with an IP67 rating, UV-stable construction, corrosion-resistant terminals, and protected marine connections. However, damaged wiring or improperly sealed installation points can still create problems, so connectors should be inspected after prolonged exposure to water or salt.
  • • Why Did My New M1D2-8B Stop Working After Installation?
    Before requesting a replacement, check the amplifier channel, fuse, speaker wiring, voice-coil configuration, and connectors. Rockford Fosgate specifically notes that some products returned for service are found to have no trouble because of incorrect installation, making installation diagnosis an important first step.

SPECIFICATIONS


  • Diameter : 8 Inch
  • Sensitivity : 87.5 dB
  • Impedance : 2 Ohm
  • Frequency Response : 20-750 Hz
  • RMS Power Range : 150 Watts
  • Peak Power Handling : 600 Watts
  • Color : Black
  • Mounting Depth : 3.43 Inches

FEATURES


Features:

  • Marine Environmental Validation: Engineered using ASTM B117 salt/fog and ASTM G154 UV testing standards to ensure consistent performance and resistance to corrosion, moisture, and UV exposure.
  • Selectable Dual Impedance Design: Integrated switch allows configuration between 1Ω and 4Ω by rewiring dual 2Ω voice coils in series or parallel, delivering 150W RMS and 600W peak power handling.
  • Flexible Enclosure Compatibility: Supports sealed, ported, and infinite-baffle installations, providing tuning flexibility for different system designs and bass response preferences.
  • Dynamic RGB Lighting System: Built-in red, green, and blue LEDs behind the grille enable customizable multi-color lighting effects including white, aqua, yellow, and pink.
  • Marine-Grade LED Connectivity: Includes a 4-pin waterproof Deutsch DT Series connector and harness for secure LED integration, with optional compatibility for external RGB lighting controllers (sold separately).
  • Versatile Wiring Terminals: Equipped with both standard quick-slide terminals and a sealed 2-pin Deutsch connector for secure and corrosion-resistant installation.
  • Enhanced Cone Efficiency Technology: Utilizes VAST (Vertical Attach Surround Technique) to maximize effective cone area and improve bass output without increasing overall basket size.
  • Precision Acoustic Engineering: Klippel Verified design optimizes motor structure, suspension behavior, and voice coil alignment for reduced distortion and improved sound accuracy.
  • Corrosion-Resistant Construction: Built with stainless steel mounting hardware designed to withstand long-term exposure to saltwater and marine environments.
  • Compact High-Performance Design: Optimized for small-format installations while still delivering impactful low-frequency output suitable for marine audio systems.



Specifications:

  • Voice Coil Type: Dual Voice Coil
  • Power Handling (Watts RMS): 150 Watts RMS
  • 600 Watts PEAK
  • Size: 8"
  • Nominal Impedance (Ohms): 1-Ohm or 4-Ohm Switchable
  • Frequency Response: 20 Hz - 750 Hz
  • Re (Ohms): 3.2
  • SPL (dB @ 1w/1m): 87.5
  • Le (mH): 1.70
  • Xmax (mm)1.40 cu. ft. (0.05 Liters)
  • Sd (cm2): 227
  • Vas (Liters): 15.7
  • Qms: 12.3
  • Voice Coil Diameter: 1.5" (38.6 mm)
  • Qes: 0.98
  • Qts: 0.90
  • Cutout Diameter: 7.10 in. (180.4 mm)
  • Mounting Depth: 3.43 in. (87.1 mm)
  • Fs (Hz)44.5
  • Woofer Displacement: 1.40 (0.05 Liters)
  • Magnet Weight (oz): 17.72 oz. (0.50 Kg)
  • Speaker Connector: Deutsch™
  • UPC: 780687353797
  • Weight: 5.56
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
