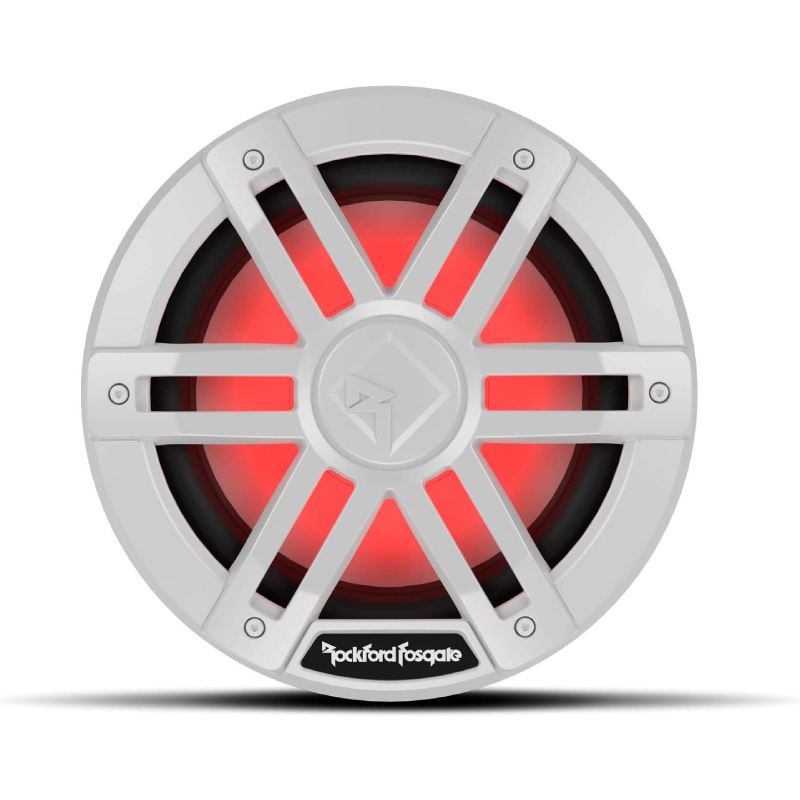

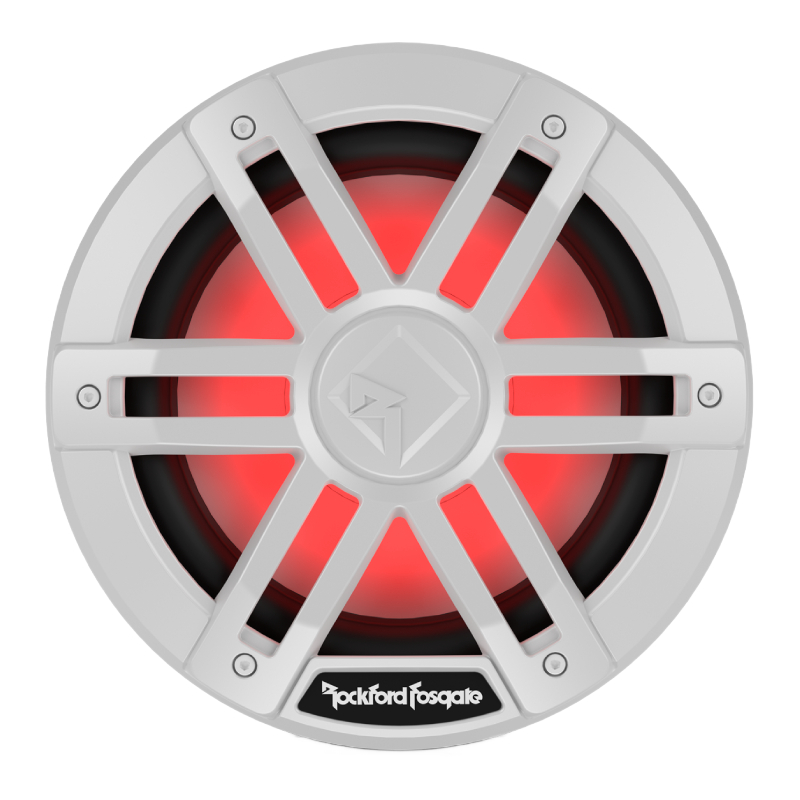

Rockford Fosgate  M1D4-8

M1 Series 8" 600W Peak Power Handling 4 Ohm, Dual Voice Coil RGB Marine Subwoofer (White)

Item #90998

Condition:   Brand New

Product Highlights

  • M1 Series
  • 8"
  • 600W Peak Power Handling
  • 4 Ohm
  • Dual Voice Coil
  • RGB Marine Subwoofer
  • White

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$239.99

Reg. Price $339.99  Save $100.00
Add Extended Warranty
  Free 2-Years Warranty Included!

No Credit needed for acima logoLearn More

Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

Rockford Fosgate M1D2-8 M1 Series 8" 150W RMS (600W Peak Power Handling) 4 Ohm, Dual Voice Coil RGB Marine Subwoofer (White)


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

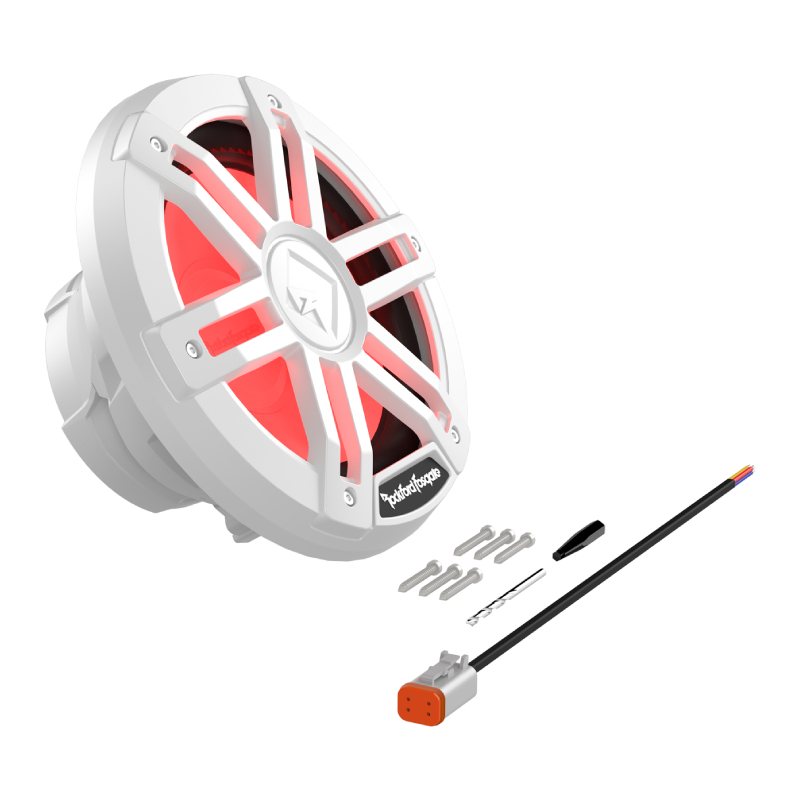

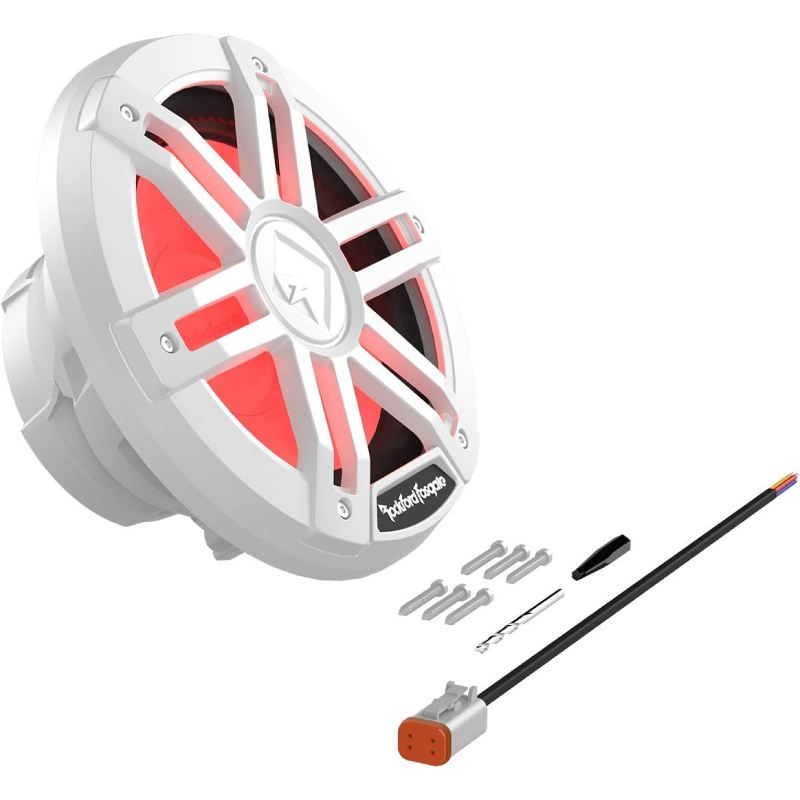

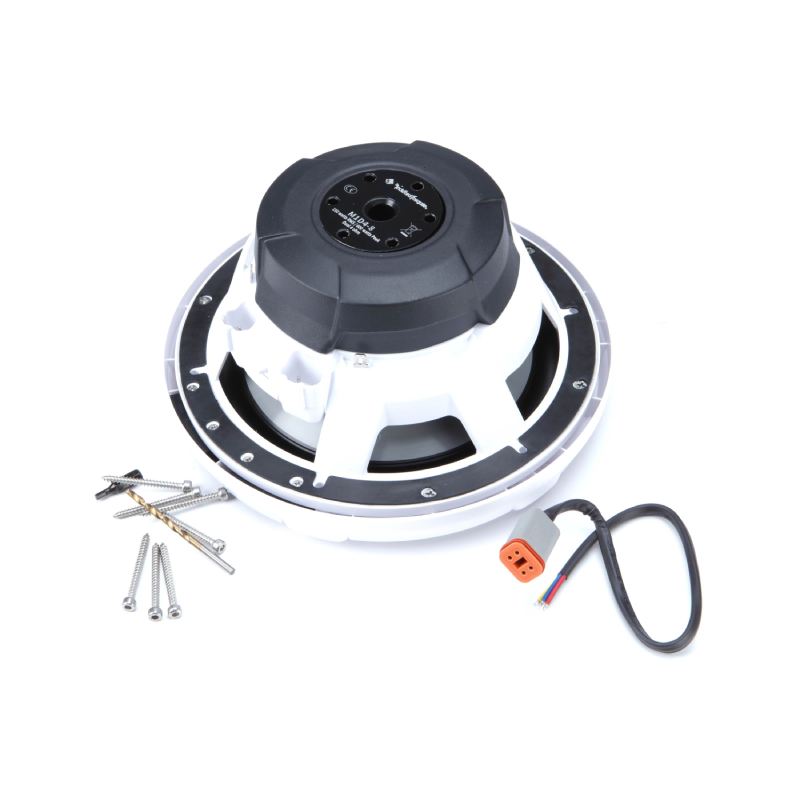

What's Inside?
  • • 8" M1 Series RGB Marine Subwoofer (White)
  • • 11" LED power harnesses with 4-pin Deutsch connector on one end
  • • (6) 1-1/2" Stainless steel Allen head screws
  • • 3mm Allen head bit
  • • 3.5mm Drill bit
  • • Rockford Fosgate contact information
  • Owner's Manual





Built for Salt, Sun, and Serious Marine Conditions

The Rockford Fosgate M1D4-8 is made for environments where normal subs just do not survive. It is tested using ASTM B117 salt fog and ASTM G154 UV exposure standards, so it is built to resist corrosion, moisture, and constant sun exposure without losing performance. Whether it is installed on a boat or an open-air marine setup, this subwoofer is designed to stay reliable and keep delivering clean bass in tough conditions.

Compact Power With Flexible System Control

Do not let the size fool you, this sub is built to perform. The adjustable dual impedance operation lets you switch between 2 ohms and 8 ohms by rewiring the dual 4 ohm voice coils in series or parallel, giving you system flexibility without hassle. Even with that control, it still delivers solid output at 150W RMS and 600W peak power, making it a great match for compact but capable marine audio systems. It also supports sealed, ported, and infinite-baffle setups, so you can tune it exactly how you want.

Clean Bass, Smart Engineering, and Marine-Ready Style

The M1D4-8 is not just about durability, it is built for performance and visual appeal too. The integrated RGB lighting behind the grille lets you customize colors like aqua, pink, yellow, or white, while the waterproof Deutsch connector keeps everything sealed and reliable in wet environments. VAST technology increases cone efficiency for stronger bass in a compact design, and Klippel Verified engineering keeps distortion low while improving clarity. With stainless steel corrosion-resistant hardware and flexible wiring options, this subwoofer brings together clean installation, strong bass, and long-term marine reliability in one package.


SPECIFICATIONS


  • Diameter : 8 Inch
  • Sensitivity : 87.5 dB
  • Impedance : 4 Ohm
  • Frequency Response : 20-750 Hz
  • RMS Power Range : 150 Watts
  • Peak Power Handling : 600 Watts
  • Color : White
  • Mounting Depth : 3.43 Inches

FEATURES


Features:

  • Marine Environment Durability Standards: Tested using ASTM B117 salt/fog and ASTM G154 UV exposure protocols to ensure dependable performance and long-term resistance to corrosion, moisture, and sun exposure.

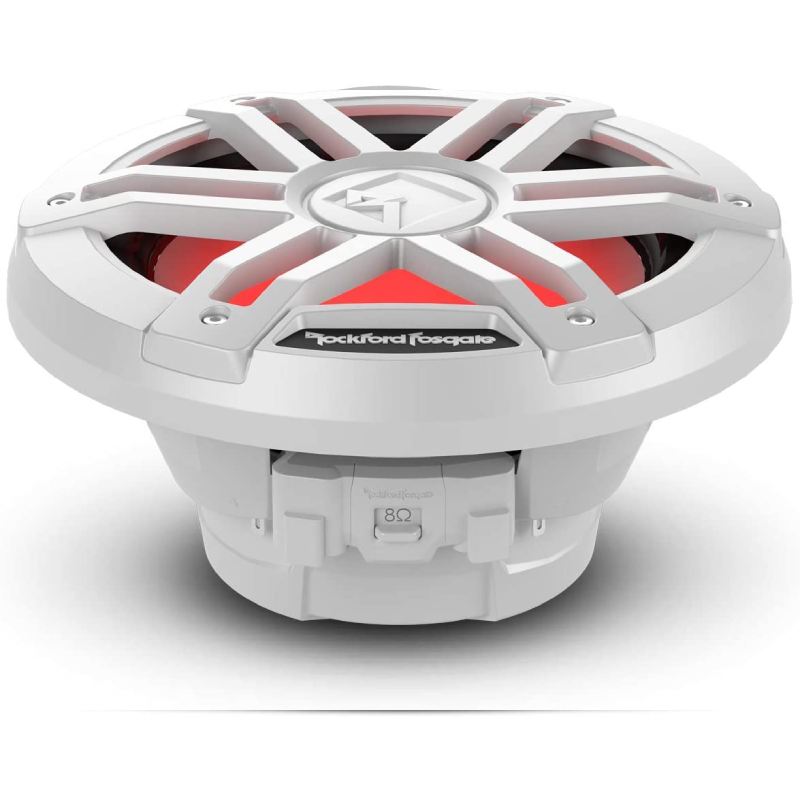

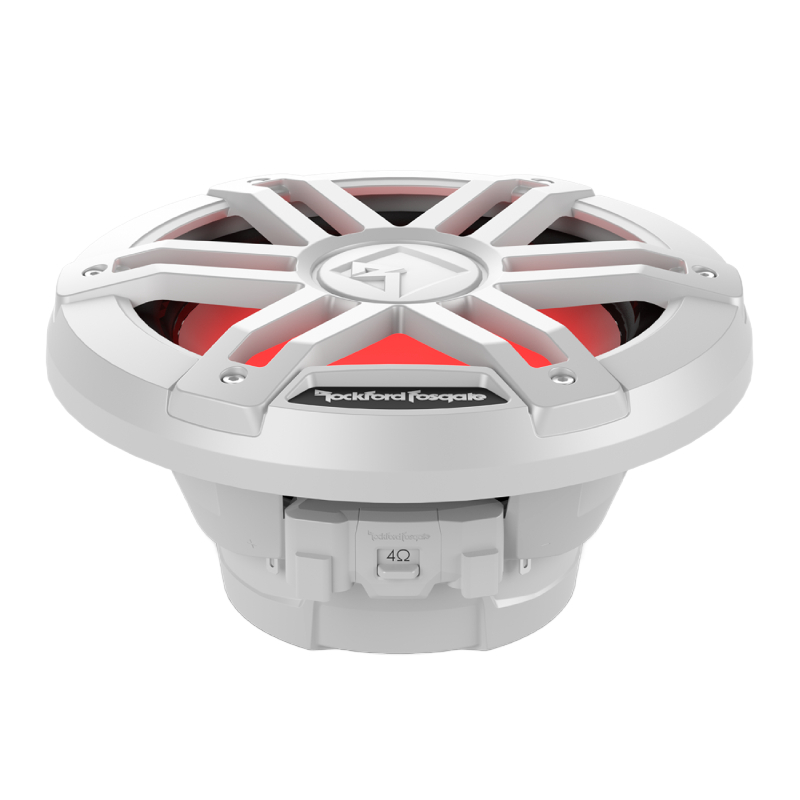

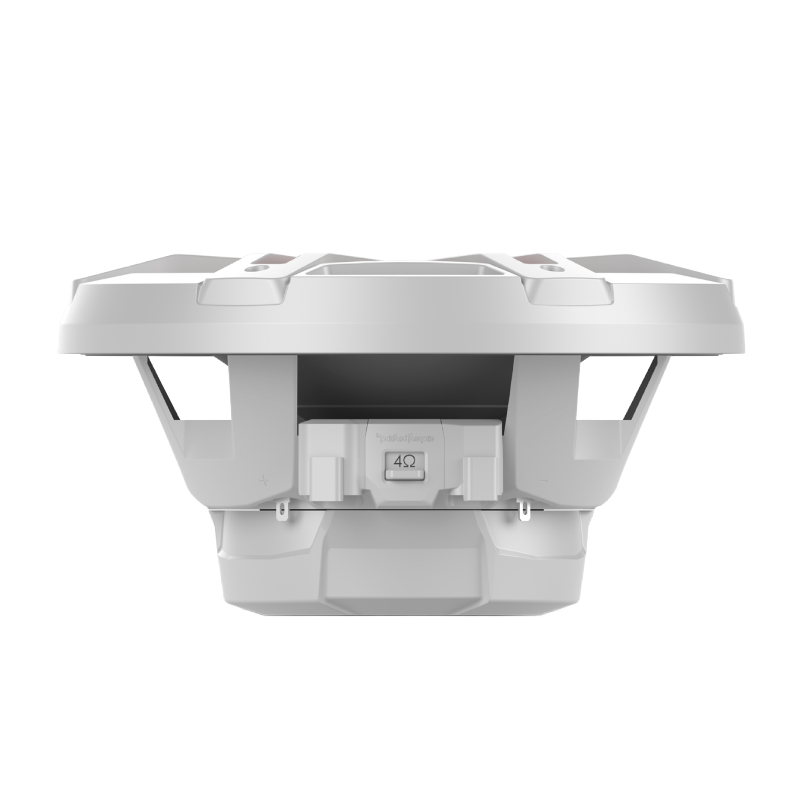

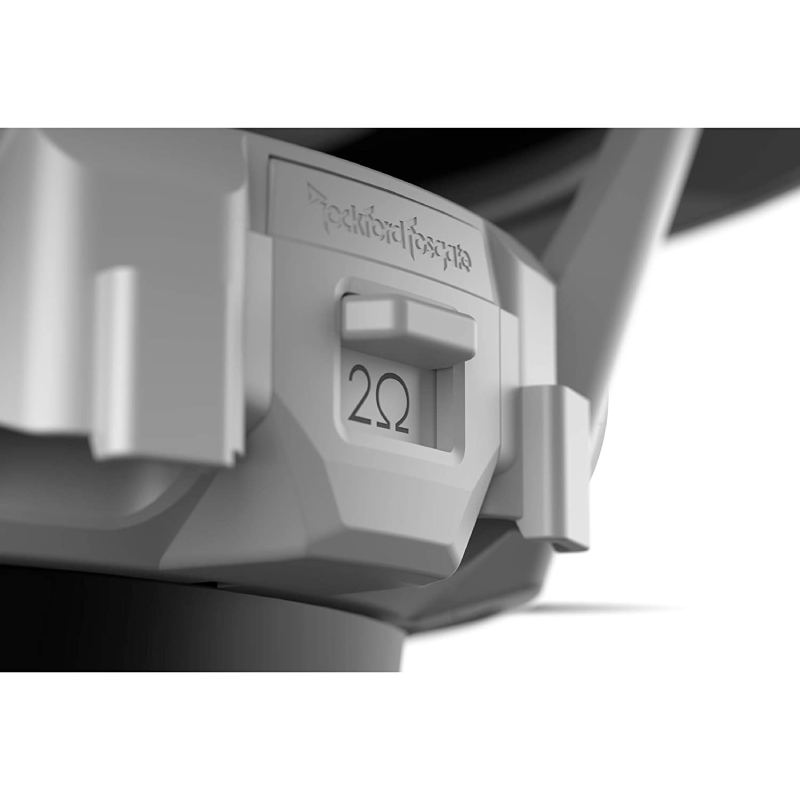

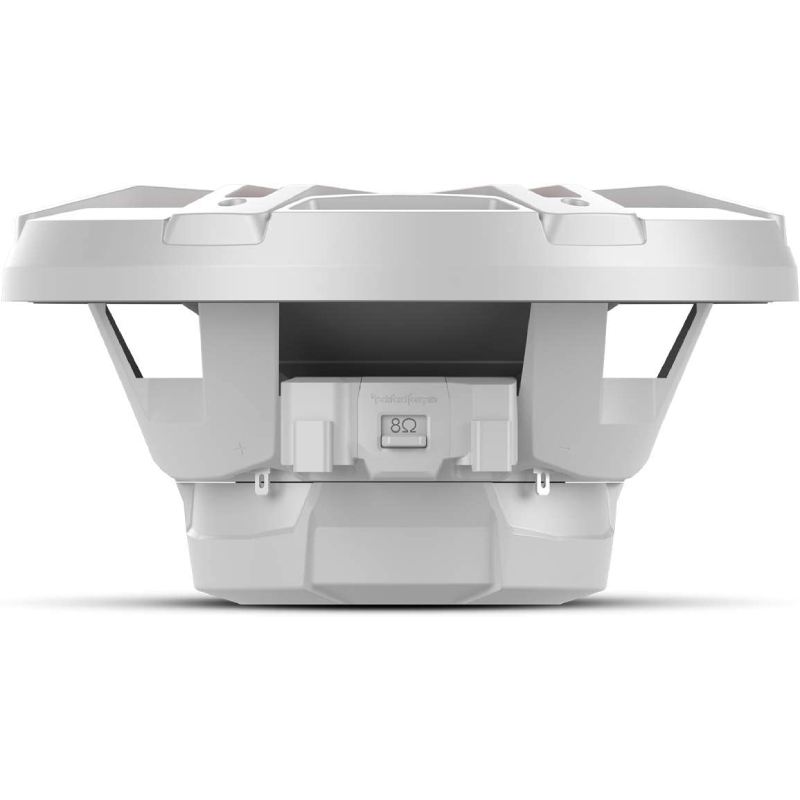

  • Adjustable Dual Impedance Operation: Integrated impedance switch allows configuration between 2Ω and 8Ω by rewiring dual 4Ω voice coils in series or parallel, maintaining consistent 150W RMS and 600W peak power handling.
  • Customizable RGB Lighting Output: Built-in red, green, and blue LEDs behind the grille enable multiple color combinations including yellow, pink, aqua, and white for enhanced visual customization.
  • Marine-Grade LED Power Interface: Includes a 4-pin waterproof Deutsch DT Series connector and LED harness for secure and sealed installation, with optional compatibility for external RGB control systems.
  • Flexible Wiring Connectivity: Designed with both standard quick-slide terminals and a 2-pin waterproof Deutsch connector for reliable and corrosion-resistant electrical connections.
  • Enhanced Cone Efficiency Design: Incorporates VAST (Vertical Attach Surround Technique) to increase effective radiating surface area for improved bass output in a compact form factor.
  • Precision Acoustic Engineering: Klippel Verified design ensures optimized motor strength, voice coil alignment, and suspension performance for reduced distortion and improved sound accuracy.
  • Corrosion-Resistant Construction: Built with stainless steel mounting hardware to withstand harsh saltwater environments and long-term exposure to marine conditions.
  • Flexible Enclosure Compatibility: Supports sealed, ported, and infinite-baffle installations, allowing tuning flexibility for different system designs and bass response preferences.



Specifications:

  • Size: 8"
  • Le (mH): 1.70
  • Re (Ohms): 6.3
  • Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
  • SPL (dB @ 1w/1m): 87.5
  • Voice Coil Type: Dual Voice Coil
  • Frequency Response: 20 Hz - 750 Hz
  • Sd (cm2): 227
  • Woofer Displacement: 1.40 cu. ft. (0.05 Liters)
  • Xmax (mm): 7.0
  • Vas (Liters): 15.7
  • Qts: 0.90
  • Fs (Hz): 44.5
  • Cutout Diameter: 7.10 in. (180.4 mm)
  • Mounting Depth: 3.43 in. (87.1 mm)
  • Qes: 0.79
  • Power Handling (Watts RMS): 150 Watts RMS
  • 600 Watts PEAK
  • Qms: 9.2
  • Magnet Weight (oz): 17.72 oz. (0.50 Kg)
  • Voice Coil Diameter: 1.5" (38.6 mm)
  • Speaker Connector: Deutsch™
  • UPC: 780687353803
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
