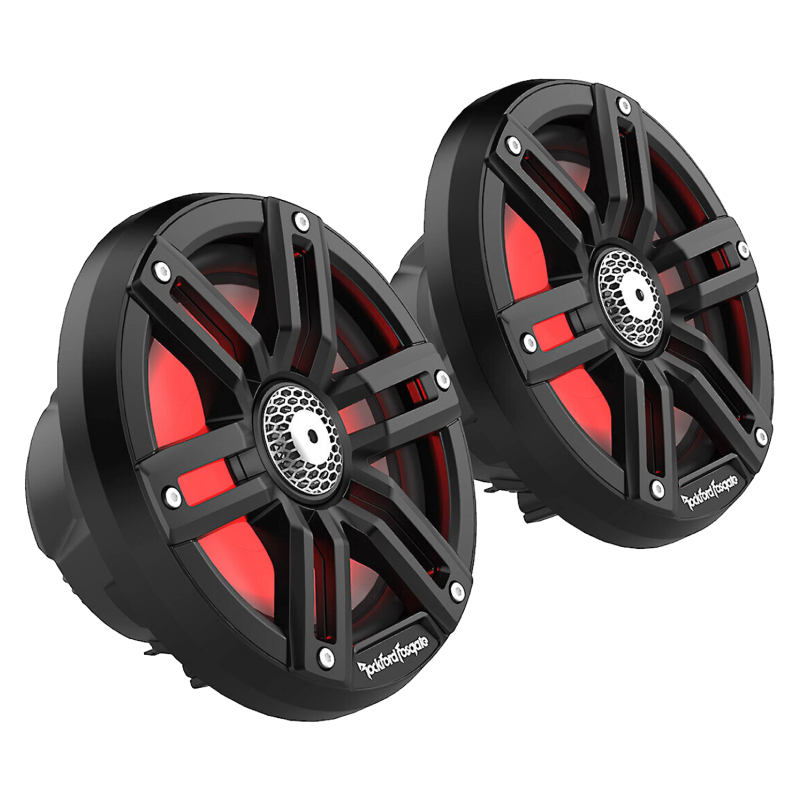

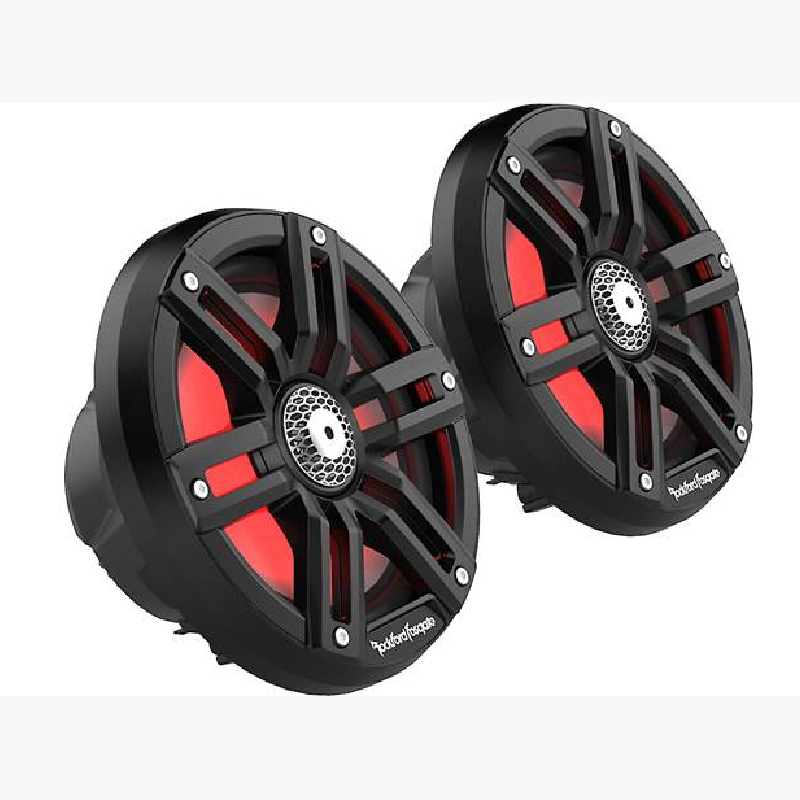

Rockford Fosgate M2-65B M2 Series 6.5” 600W Peak Power Handling at 4 Ohms, 2-Way Coaxial Marine/Powersports Speaker
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

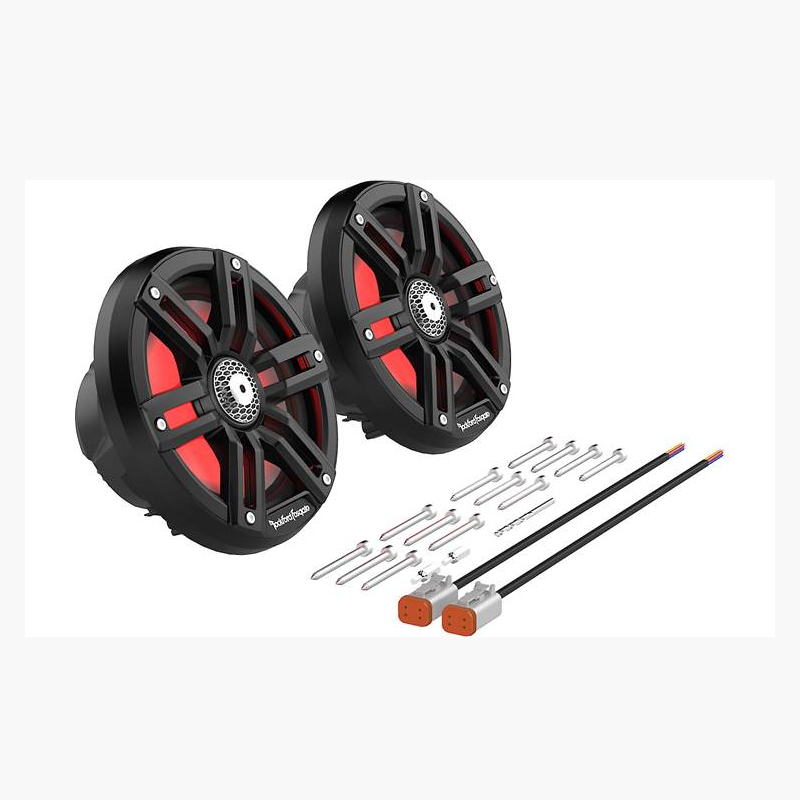

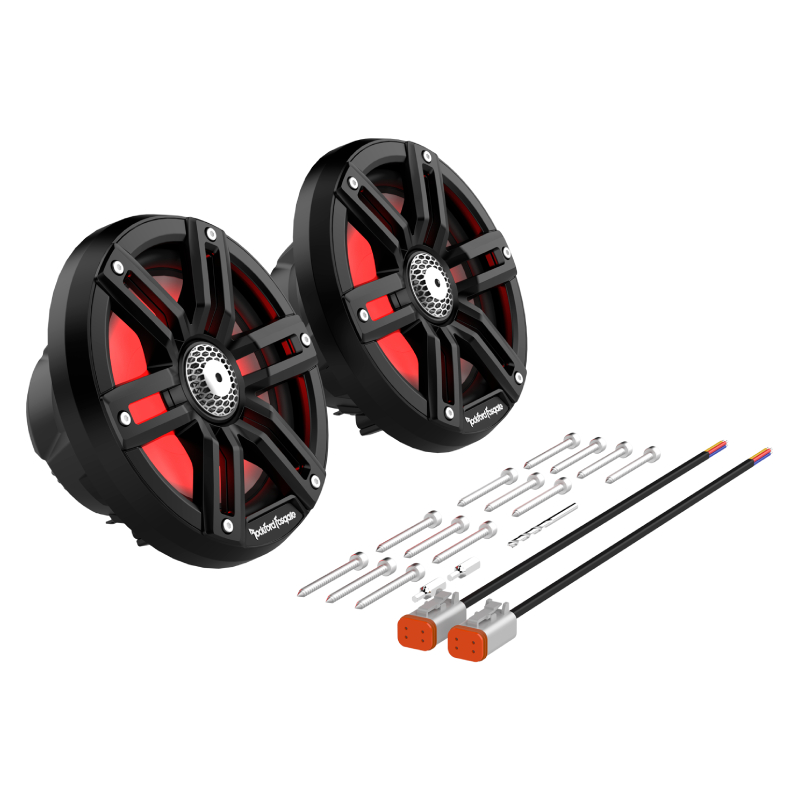

What's Inside?
- • (2) 2-way marine speakers

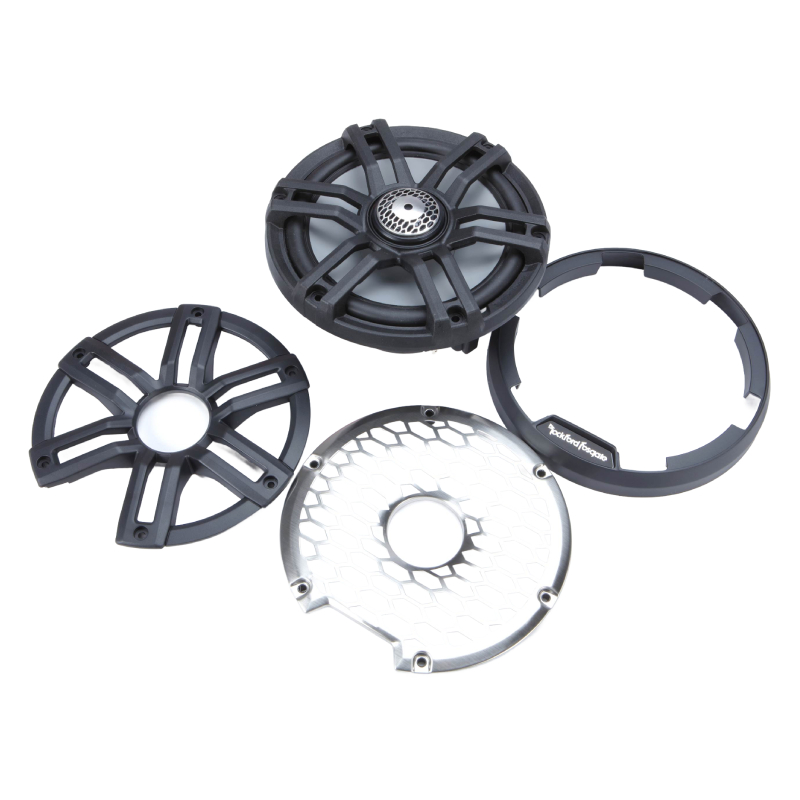

- • (2) Centrex plastic grilles (Black)

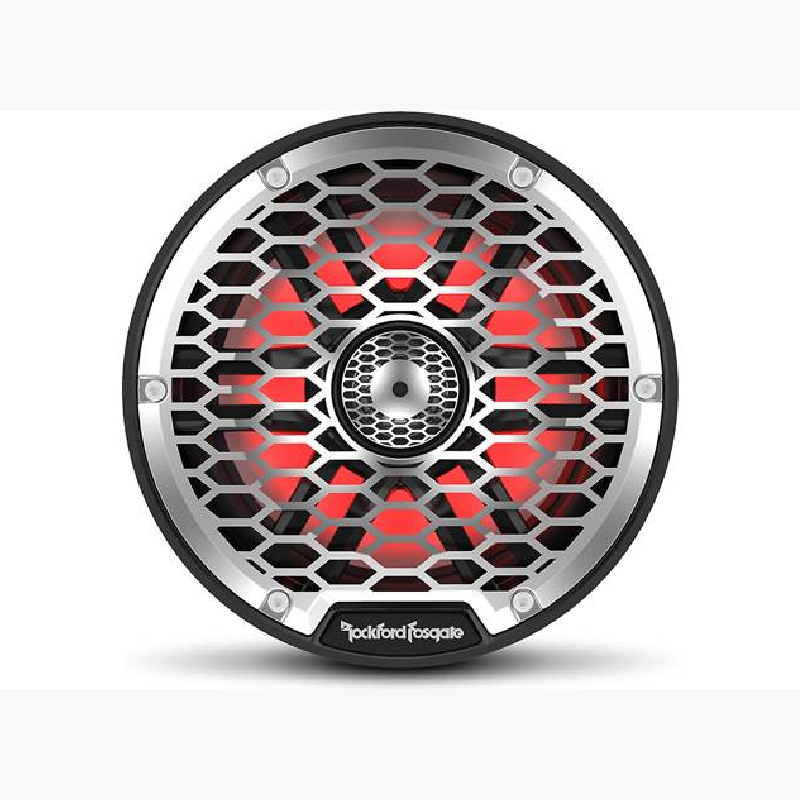

- • (2) Stainless steel grilles
- • (2) Grille rings (Black)
- • (2) 11" LED power harnesses with 4-pin Deutsch connectors on one end
- • (12) 1-3/4" Stainless steel Allen head screws
- • (1) 3mm Allen head bit
- • (1) 3.5mm Drill bit
- • Owner's Manual
Why Choose Rockford Fosgate M2-65B Marine Speakers?

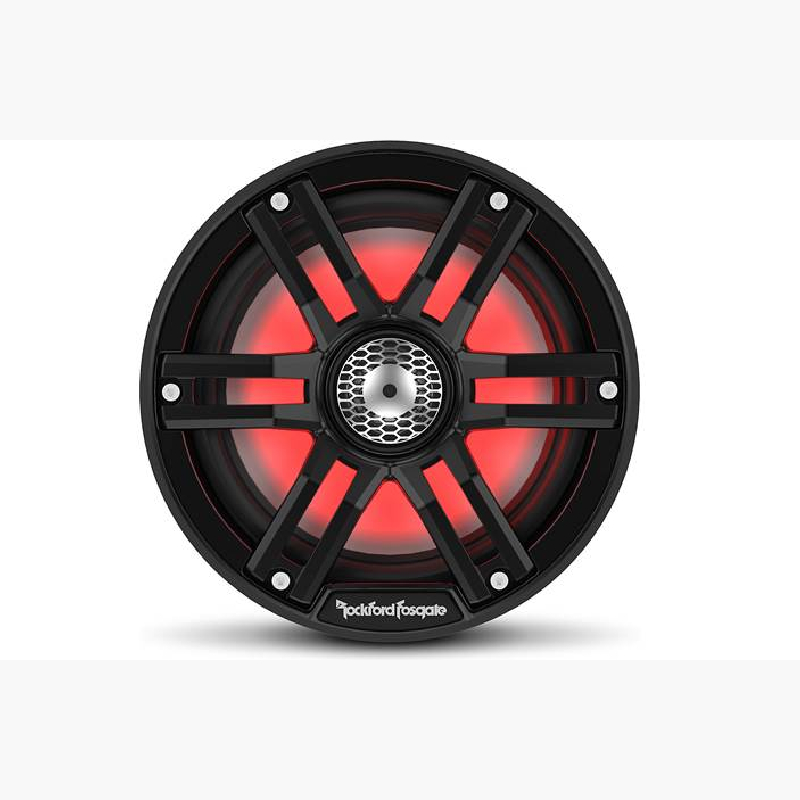

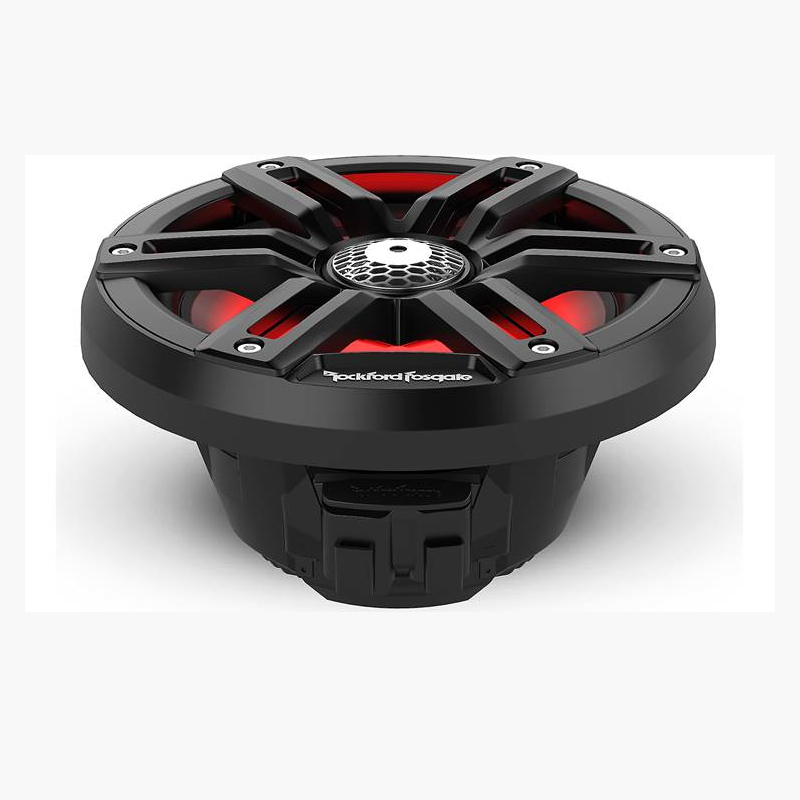

Rockford Fosgate M2 Series Coaxial Speakers
Rockford Fosgate equips this M2 Series 6-1/2" Color-Optix™ 2-way marine speaker with a laminated dome tweeter for full-hearted highs and a polypropylene woofer for impactful lows. A built-in 12dB/octave crossover network, concealed inside the basket, keeps transitions smooth for a well-rounded, moving sound.

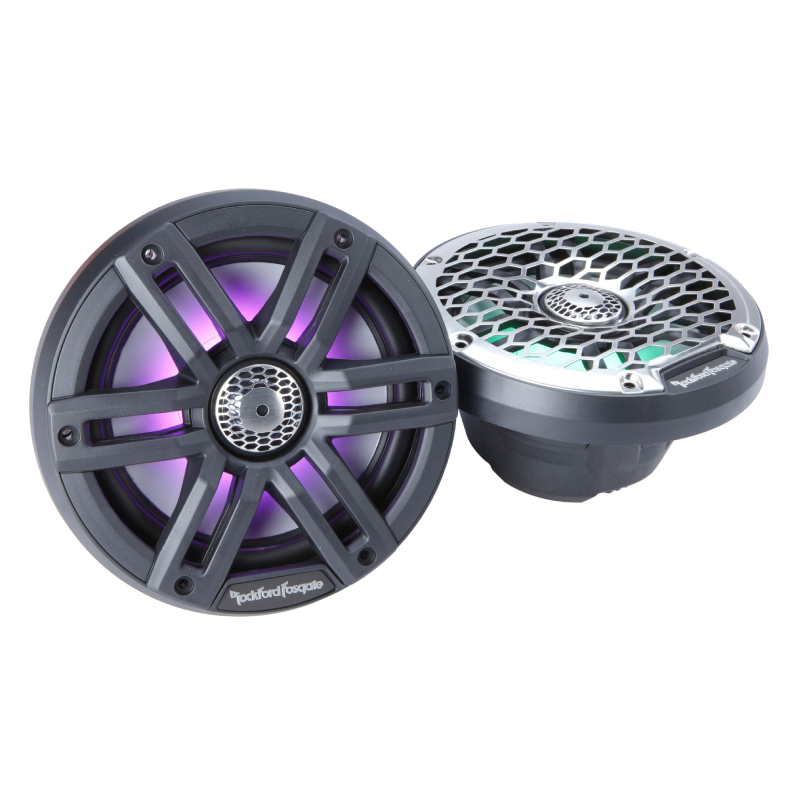

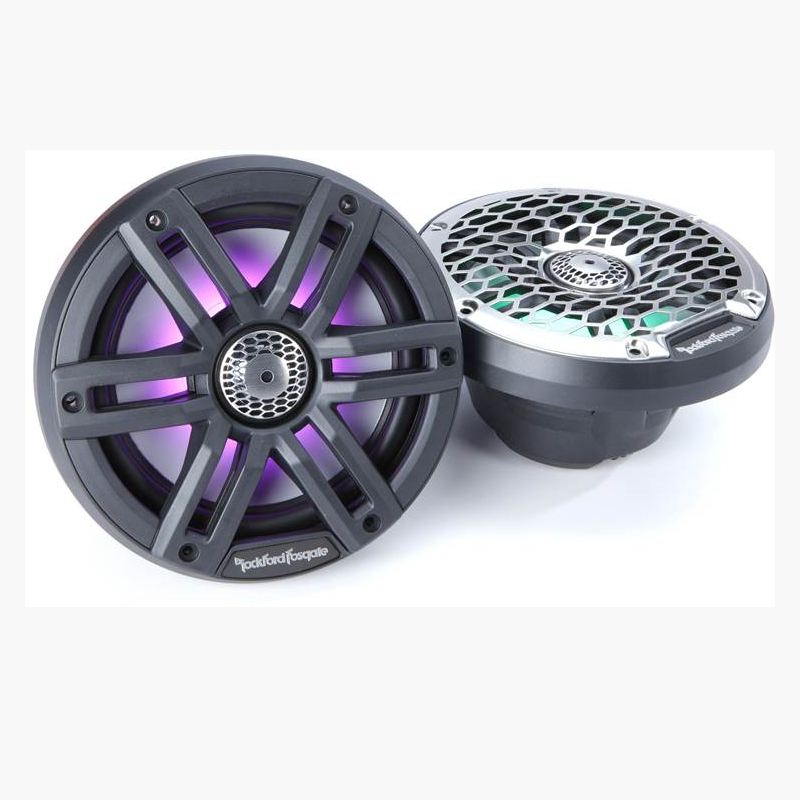

Color Optix
Built-in illumination brings these speakers to life, and you can coordinate them with other Color Optix™ speakers and subs using Rockford Fosgate's Color Optix™ Controller (not included) and RF Connect App.
Element Ready™
The rugged grilles can endure years in the sun and spray and still look great. And gold-plated marine-grade terminals make for a superior connection, year after year.
Frequently Asked Questions (FAQ)
- • Why don't these fit my existing 6.5-inch speaker opening?
A 6.5-inch speaker can still have different mounting dimensions. The required cutout is about 5.36 inches, with approximately 2.49 inches of mounting depth, so measure the opening before installation.
- • Can I install them in a wakeboard tower or speaker pod?
Yes, if the pod accommodates the mounting dimensions and depth. Verify the cutout, mounting pattern, and available clearance before drilling or modifying the installation.
- • Can I use these on a Harley or other powersports vehicle?
They can be used in some powersports applications, but vehicle-specific fitment is not guaranteed. Measure the mounting area and available clearance carefully before installation.
- • Do the LED wires need to be connected for the speakers to work?
No. The speakers will play normally without the lighting connected. The separate LED wiring only needs to be connected if you want to use the built-in Color Optix illumination.
- • Why aren't the Color Optix lights turning on?
Check the LED power harness, connectors, ground, and 9–16V supply. Also inspect the fuse and wiring for loose connections before assuming there is a lighting failure.
- • Why does the bass sound weak after installation?
Incorrect polarity, poor mounting, insufficient amplifier power, or an open-air installation can reduce perceived bass. Check polarity and mounting first, then verify the amplifier is supplying clean power.
- • Why do they distort when I turn the volume up?
Clipping, excessive gain, or aggressive bass boost can cause distortion. The speakers are rated for 150 watts RMS at 4 ohms, so use an appropriately matched amplifier and clean signal.
- • Why is one speaker quieter than the other?
Check the speaker polarity, terminals, amplifier channels, and source balance. Swapping the left and right outputs can help determine whether the problem follows the speaker or remains with the wiring.
- • Why do the speakers rattle after installation?
Loose mounting hardware or an uneven mounting surface can cause vibration. Secure the speaker evenly and avoid overtightening, which can potentially distort the speaker frame.
- • Do I need an amplifier to get good sound from them?
Not necessarily. They can produce good output from a capable head unit, while an external amplifier can provide additional clean power for louder marine and powersports applications.
- Diameter : 6.5 Inch
- Sensitivity : 91.8 dB
- Impedance : 4 Ohm
- Frequency Response : 40-24000 Hz
- Peak Power Handling : 600 Watts
- Color : Black
- RMS Power Handling : 150 Watts
Features:
- Integrated 1" (25 mm) tweeter with dual neodymium magnet motor
- Laminated "PXNX" Dome tweeter
- Ultra-high temperature PA66 with 30% glass-fill injection-molded frame with UV inhibitors
- Proprietary Dual Function Input Terminals
- 1" (25mm) High Temp Kapton™ Woofer Voice Coil Former
- Gold plated Marine grade brass terminals provide a corrosion resistant connection
- Vented motor design with water-repelling nano coated mesh screen
- 100% UV Stable Centrex plastic grill

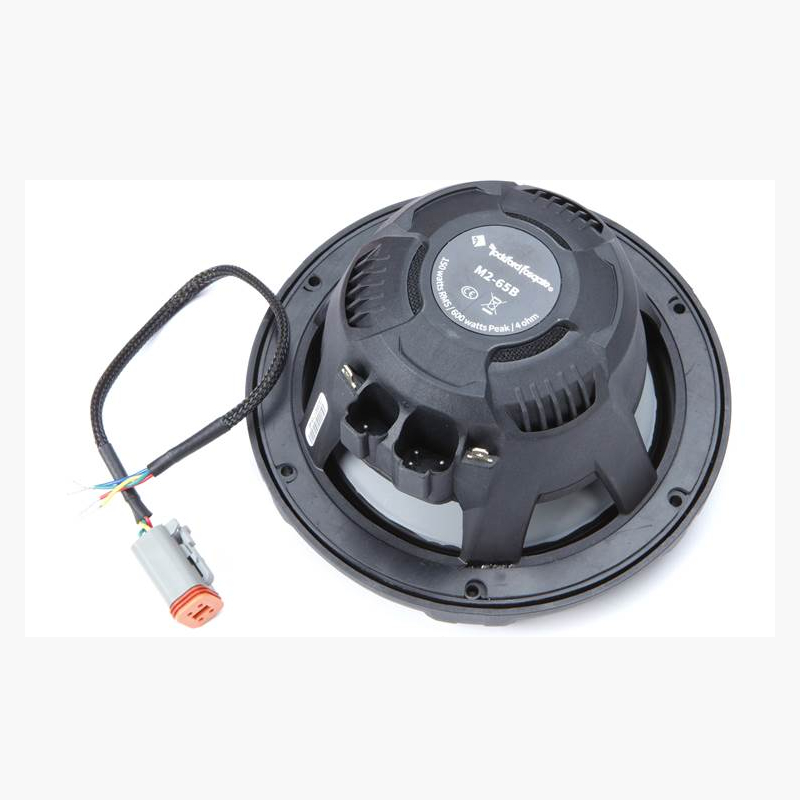

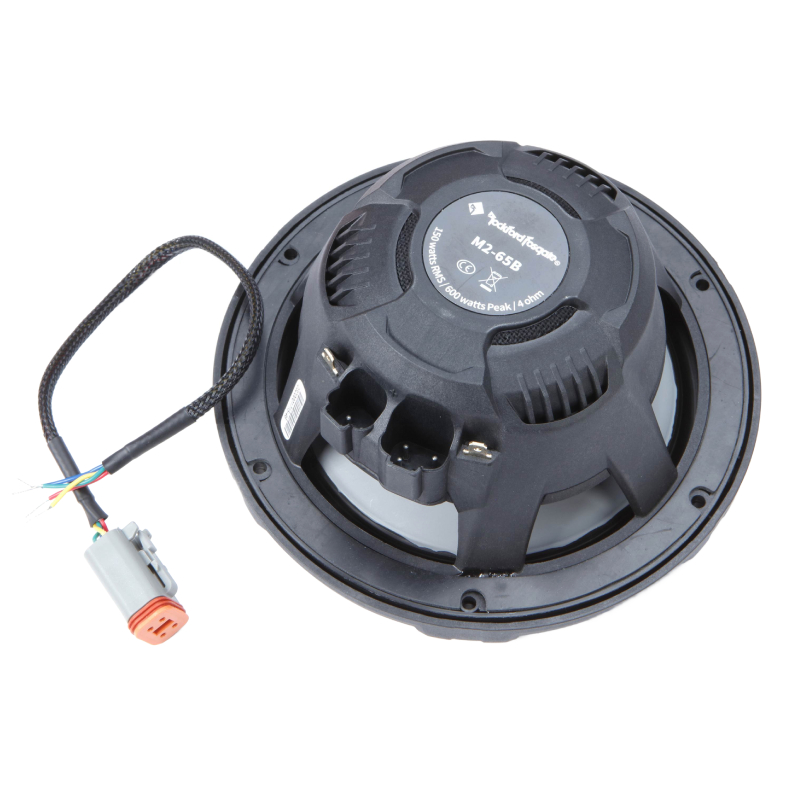

- Integrated Deutsch RGB and Speaker receptacles
- Linear Aramid-Polyester Composite Spider
- Fully insulated silicone tinsel leads
- UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- Co-molded surround and cone body
- 12dB/Octave Crossover network
- Fully sealed integrated concealed crossover (ICC) network
- Metallized Polyester Film Capacitors
- Optically clear UV stable Encapsulated LED PCB
- Multiplexed RGB Input
- Optically clear UV stable RGB Lighting Encapsulation
- Ultra-Bright, Wide Angle Tri-Color Surface Mount LED's with Flat Mold Lenses
- 2-Year Warranty
Specifications:
- Speaker Type: 2-way Coax
- Midrange Size (Nominal Diameter): 6.5"
- Power Handling (RMS)
- 150 Watts RMS
- 600 Watts PEAK
- Nominal Impedance: 4-Ohms

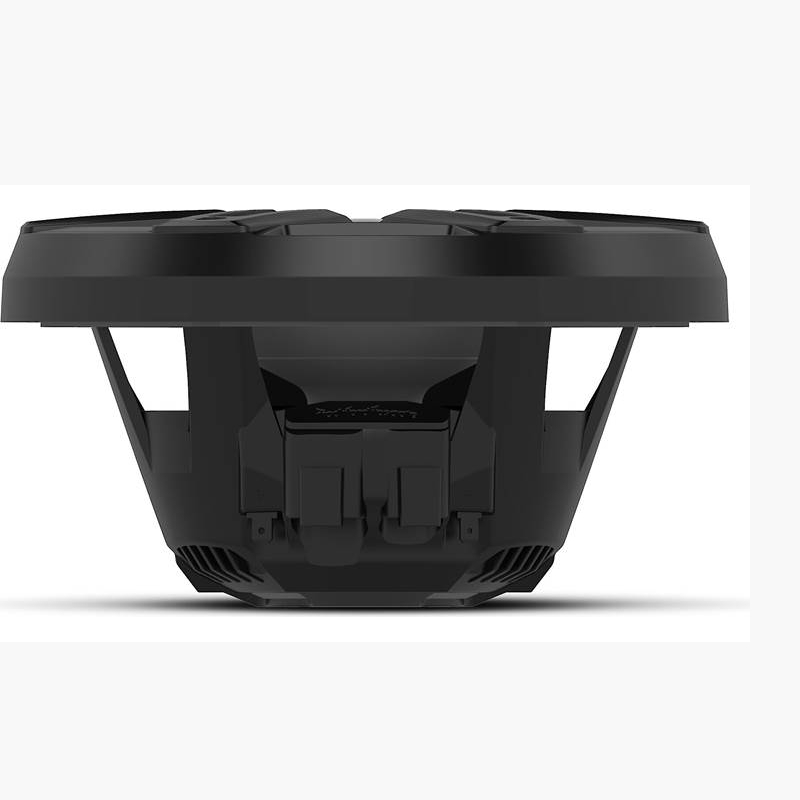

- Midrange Mounting Depth: 2.49" (63.2 mm)
- Tweeter Size: 1" (25.4 mm)
- Crossover: High Pass: 12dB/Octave
- Sensitivity (dB @ 1W/1M): 91.8
- Sensitivity (dB @ 2.83V/1M): 92
- Frequency Response: 40 Hz - 24 kHz
- Mounting Hardware: Stainless Steel
- Grille/Trim Ring Included: Yes
- Shipping Weight: 2.7 Lbs. (1.23 Kg.)
- UPC: 780687353728
- Weight: 6.93
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
