Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

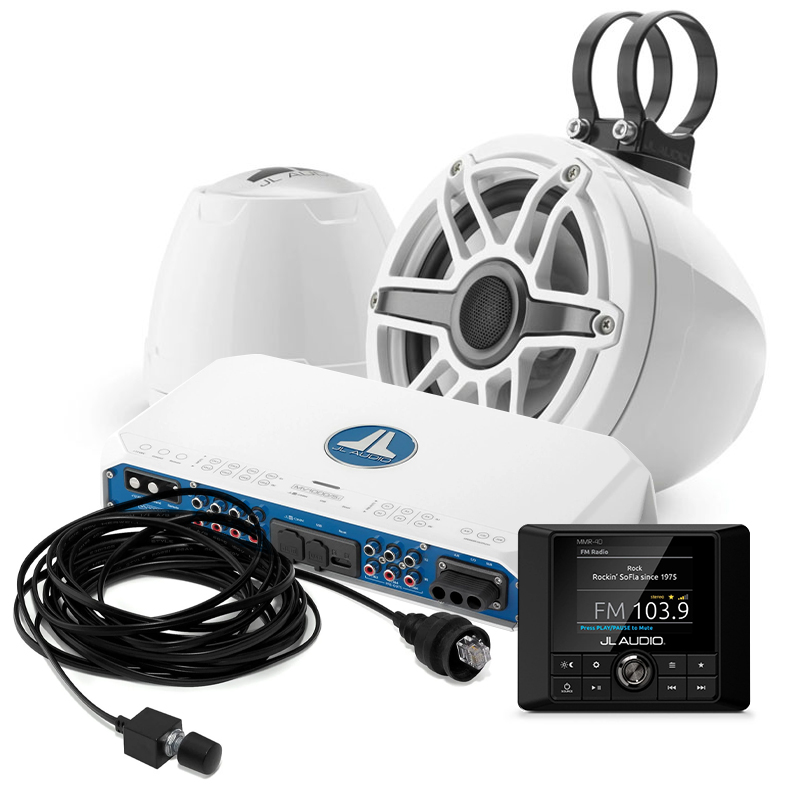

JL Audio MMR-40-Bundle JL Audio MMR-40 MediaMaster® Receiver + JL Audio MV1000/5i 5-Channel Marine Amplifier + JL Audio M-RBC-1 Remote Bass Control + JL Audio M6-650VEX-Gw-S-GwGw 6.5" 75 W Marine Speakers + JL Audio M7-12IB-S-GMTI-4 12" Marine Subwoofer
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •JL Audio MMR-40 MediaMaster® Receive
- •JL Audio MV1000/5i 5-Channel Marine Amplifier
- •JL Audio M-RBC-1 Remote Bass Control
- •JL Audio M6-650VEX-Gw-S-GwGw 6.5" 75 W Marine Speakers
- •JL Audio M7-12IB-S-GMTI-4 12" Marine Subwoofer
- • Owner's Manual

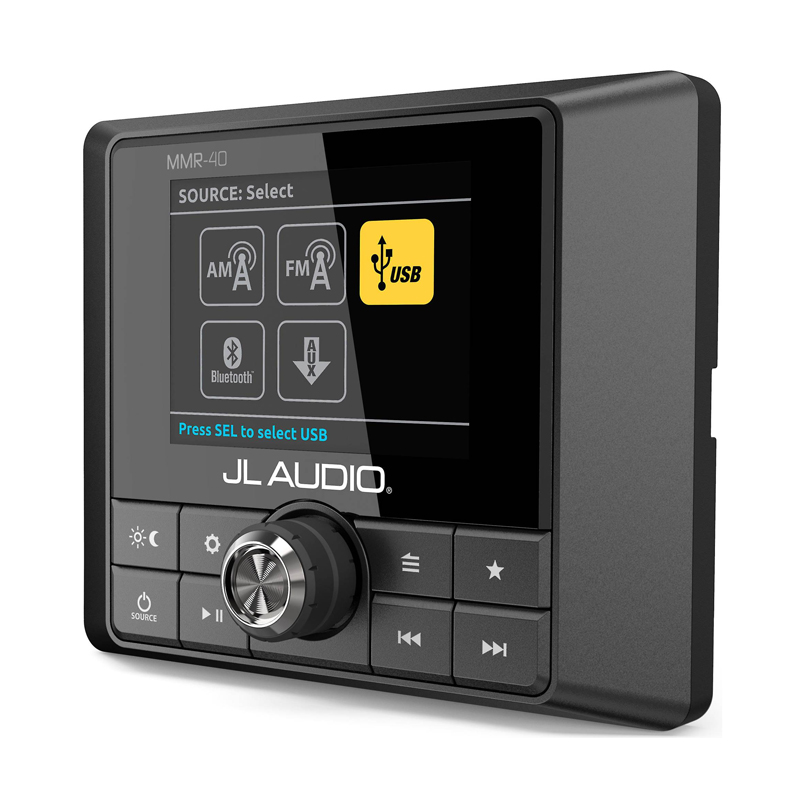

JL Audio MMR-40 Wired NMEA 2000 Remote Control with Full-Color LCD Display for use with MediaMaster® Receivers
Network Controller Engineered to Add Full-function
The MMR-40 is a NMEA 2000® Network Controller engineered to add full-function, auxiliary control to MediaMaster® source units. Outfitted with a NMEA 2000® Micro-C connector, the MMR-40 connects to a host MediaMaster® source unit in two ways: Direct interface with a vessel's NMEA 2000® network using applicable NMEA 2000® cables and connectors (not included) Direct connection of one MMR-40 with one host MediaMaster® source unit using MMC-PN2K powered network cables (sold separately) to simulate an isolated, stand-alone NMEA 2000® network Once connected, the MMR-40 automatically recognizes the host MediaMaster® source unit and will then mirror all host source unit controls and screen info onto the MMR-40's full-color, 2.8-inch LCD display, resulting in a complete MediaMaster® user experience.

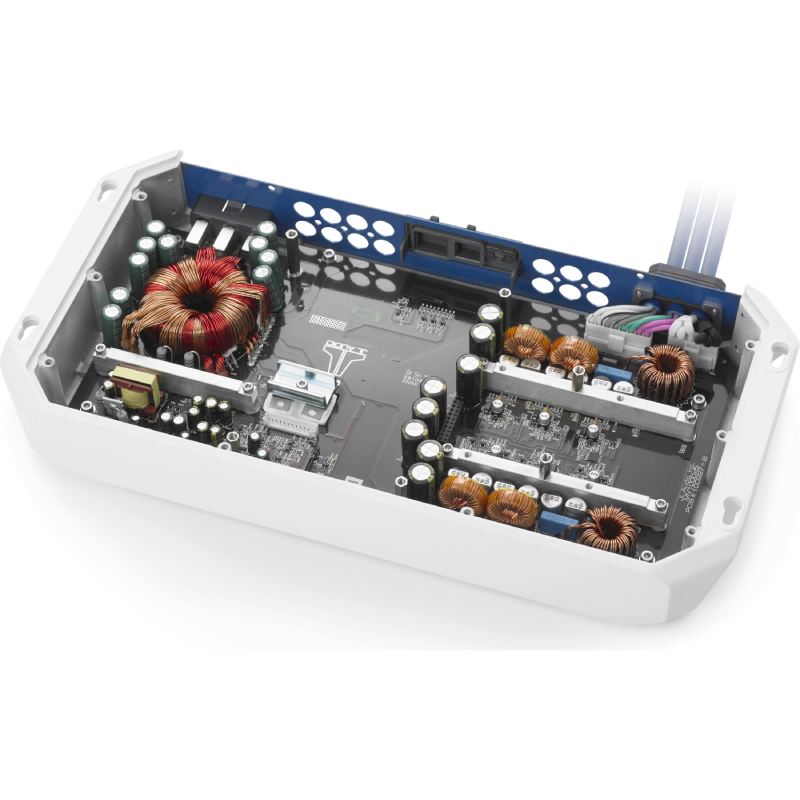

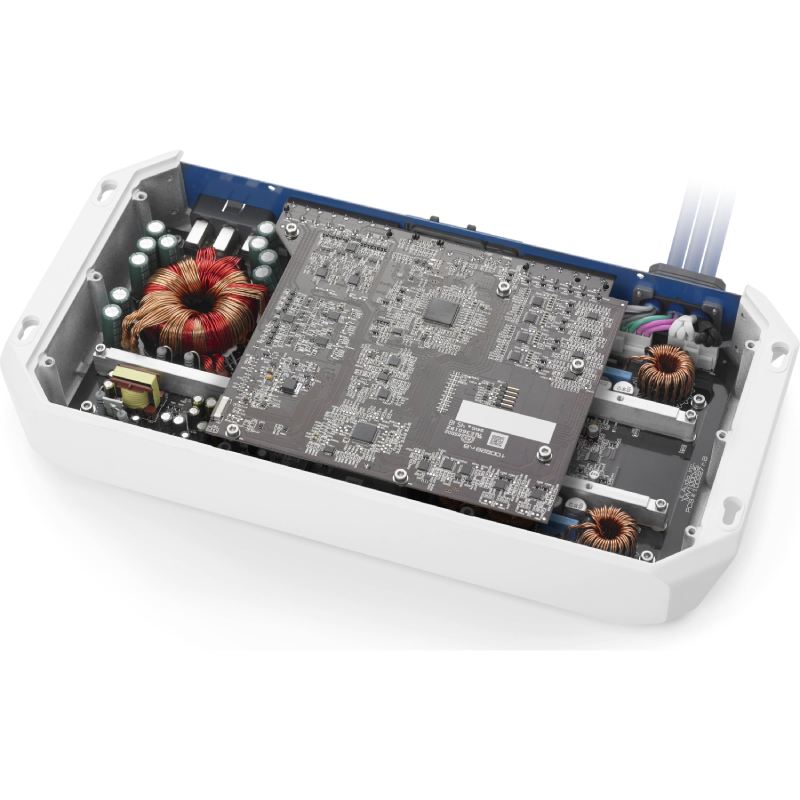

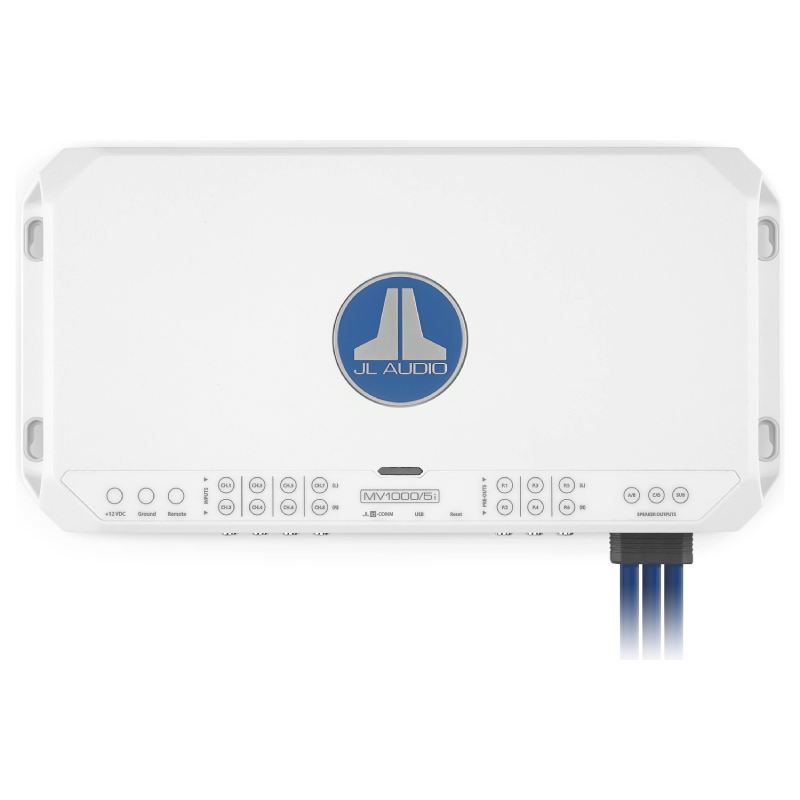

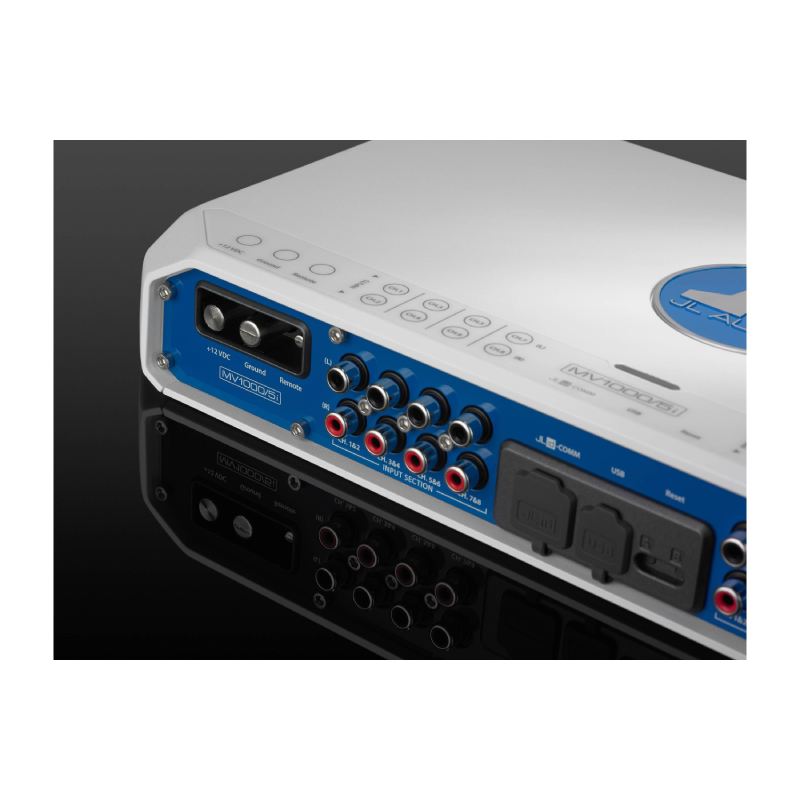

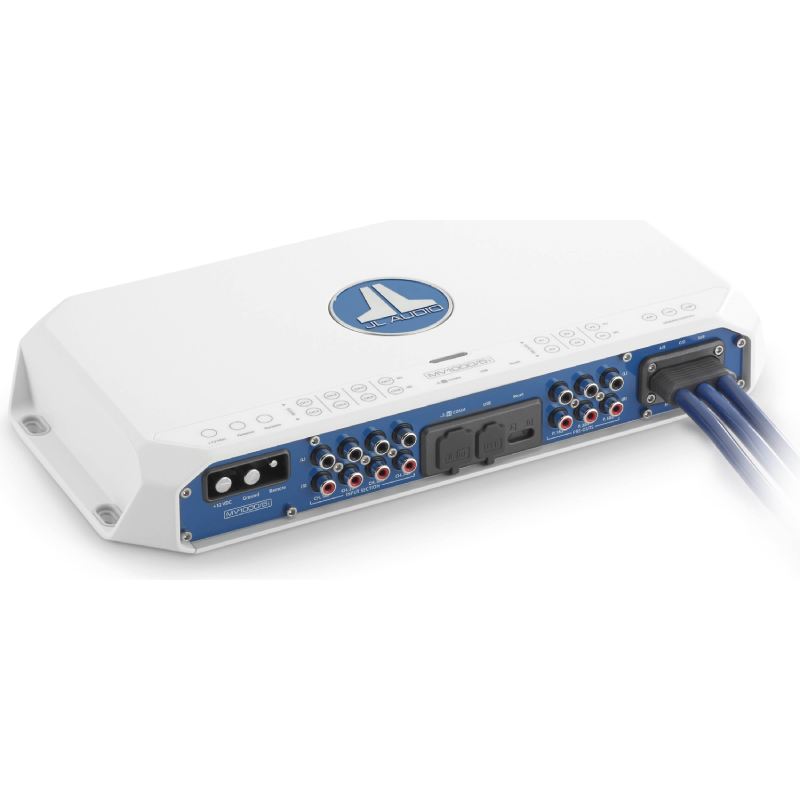

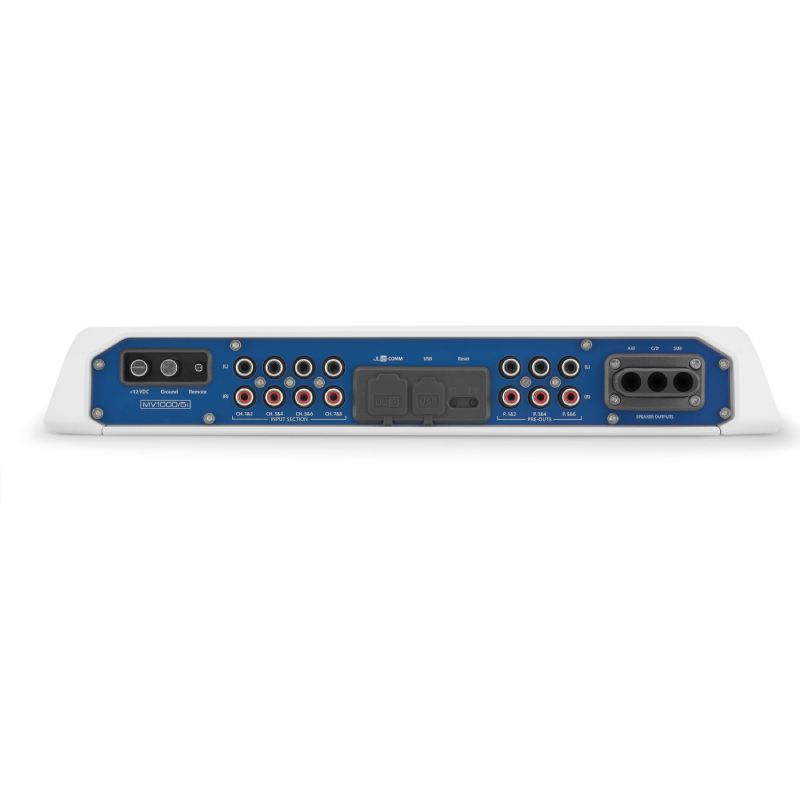

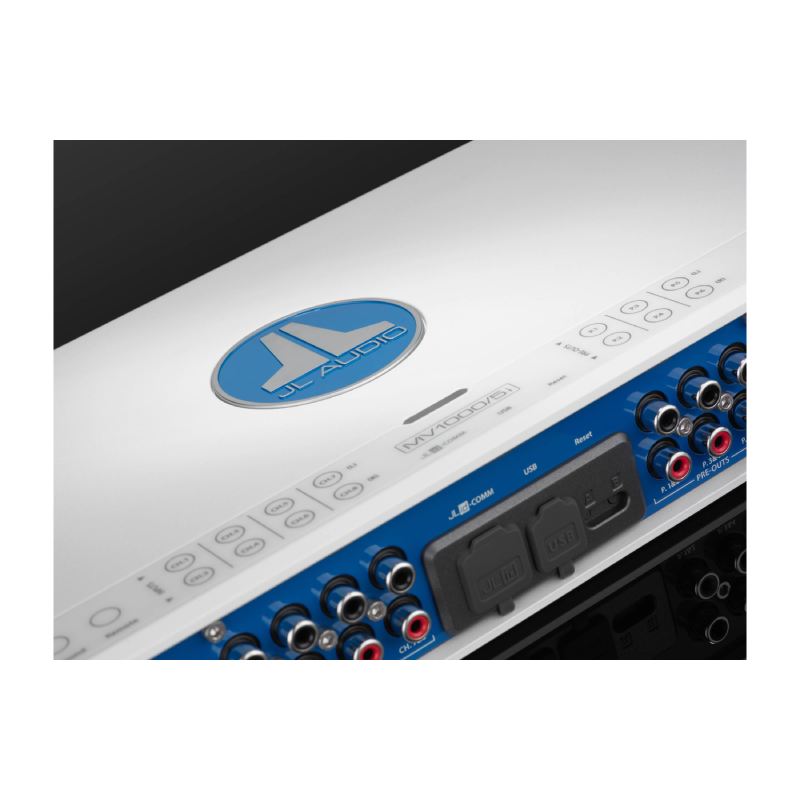

JL Audio MV1000/5i MVi Series 75Wx4 RMS 4 ohms + 600Wx1 RMS 2ohms Class D 5 Channel Marine Amplifier
Amplifier Plus DSP
The MVi Series marine amplifiers combine JL Audio's latest amplifier technology with powerful digital signal processing, providing unprecedented sound quality for your music. JL Audio teamed up with micro-device maker AKM™ to create this customized processor-amp hybrid. They also improved the amp's Class D performance by making the signal path through the amp shorter, placing the output capacitor banks nearer the outputs, and using up-to-date DirectFET® MOSFET output devices, resulting in higher efficiency, reliability, and audio quality.
75 Watts RMS by Four Channels Plus 600 Watts for a Sub and More
The MV1000/5i five-channel amplifier puts out 75 watts RMS through each of four channels, plus up to 600 watts RMS through its sub channel, and features six additional channels of digital signal processing. You can bridge this amplifier into 3-channel mode to power a pair of high-performance speakers with up to 200 watts RMS each and a sub with 600 watts, plus send six processed signals on to separate amplifiers to power even more speakers. You can sum and re-route the eight input channels — the signals for multiple factory tweeters and woofers in multiple locations for example — using the TüN™ software to produce five channels of powered output, plus six processed preamp signals for other amps to handle.

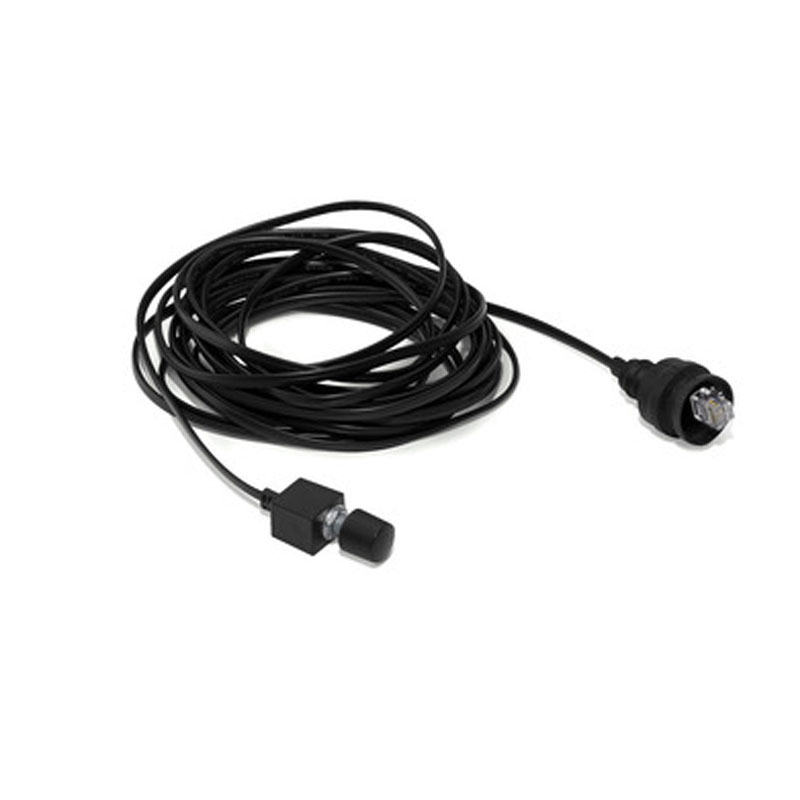

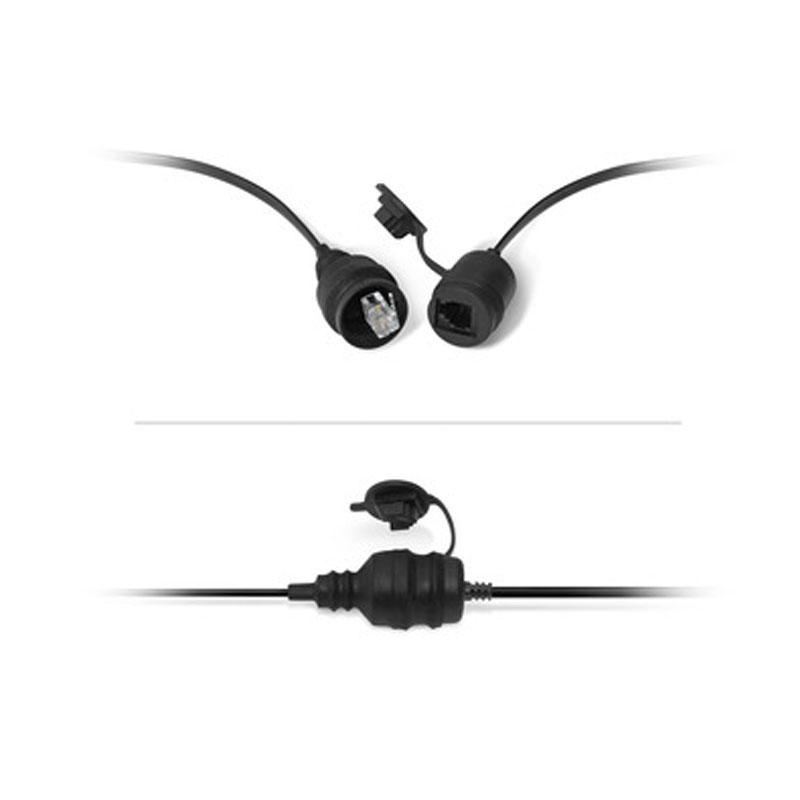

JL Audio M-RBC-1 Water Resistant Remote Bass Control
Water Resistant Connection
This M-RBC-1 wired remote controls the output level of JL Audio's HX-Series and MHX-Series amps — amps designed for powersport and marine applications that need a wired remote built for rough conditions.Also controls the Bass Level of select JL Audio amplifiers. Remotely controls the Bass EQ boost feature of select JL Audio amplifiers.

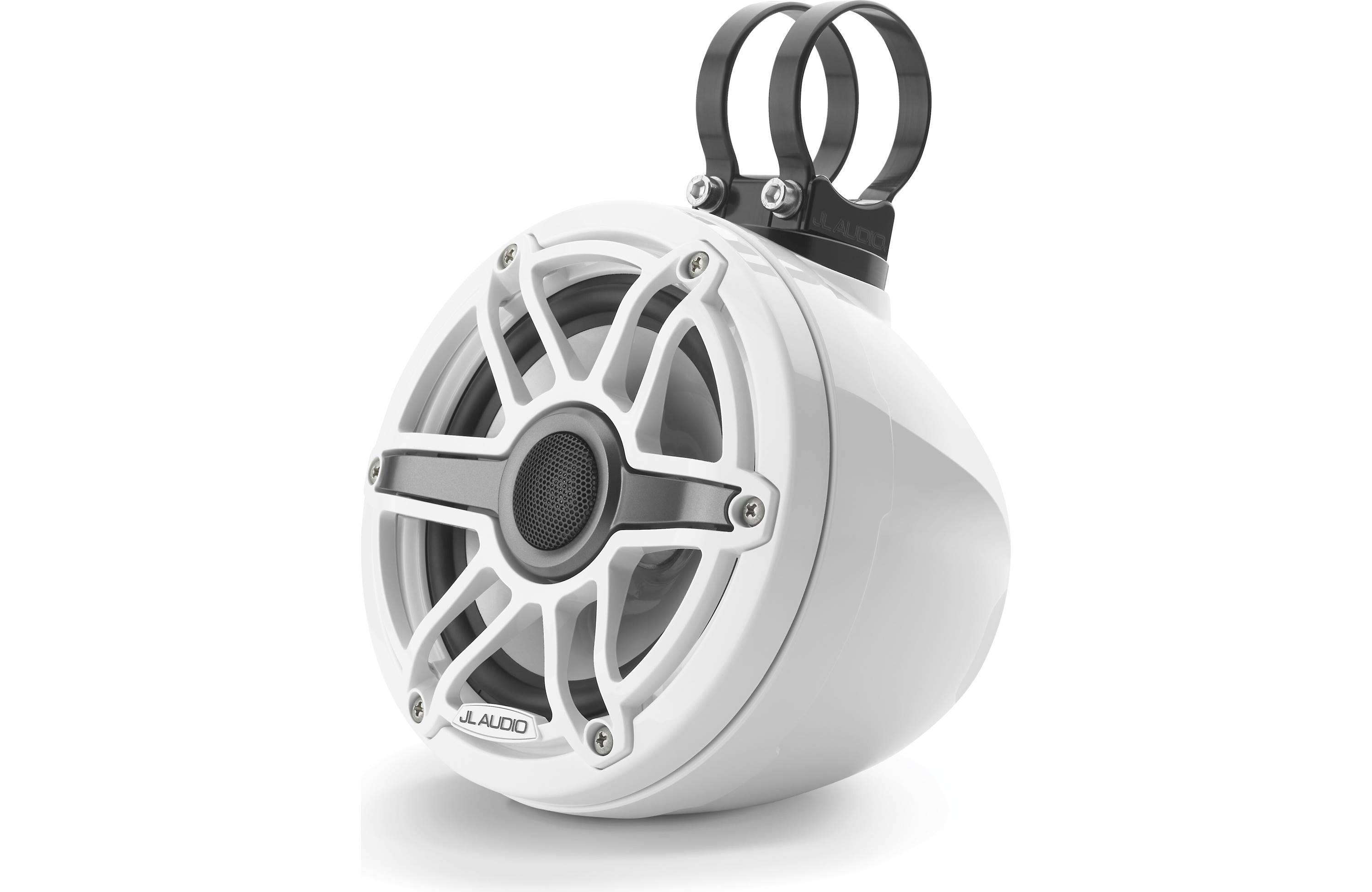

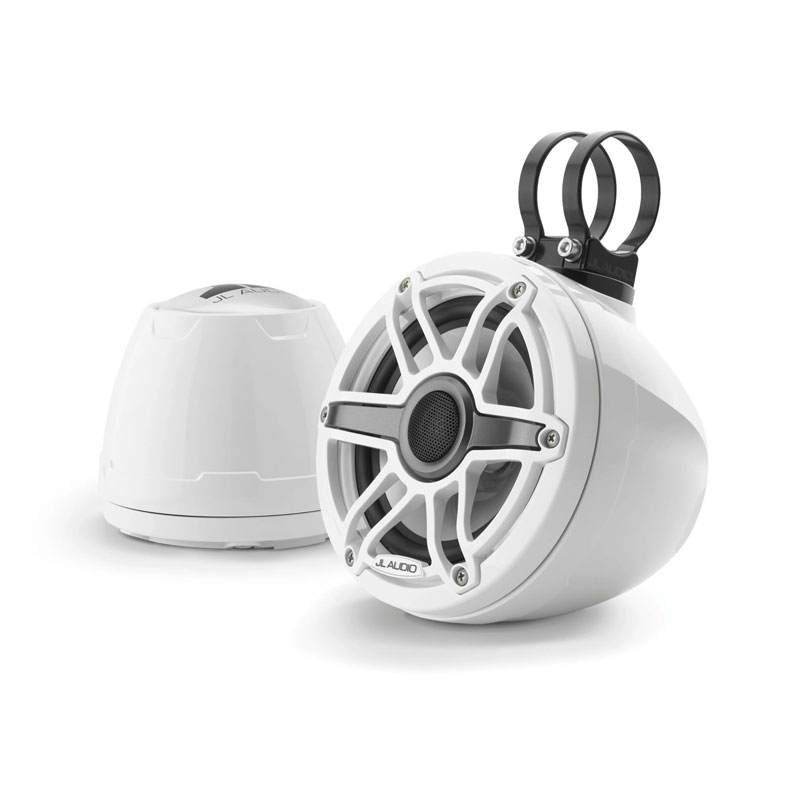

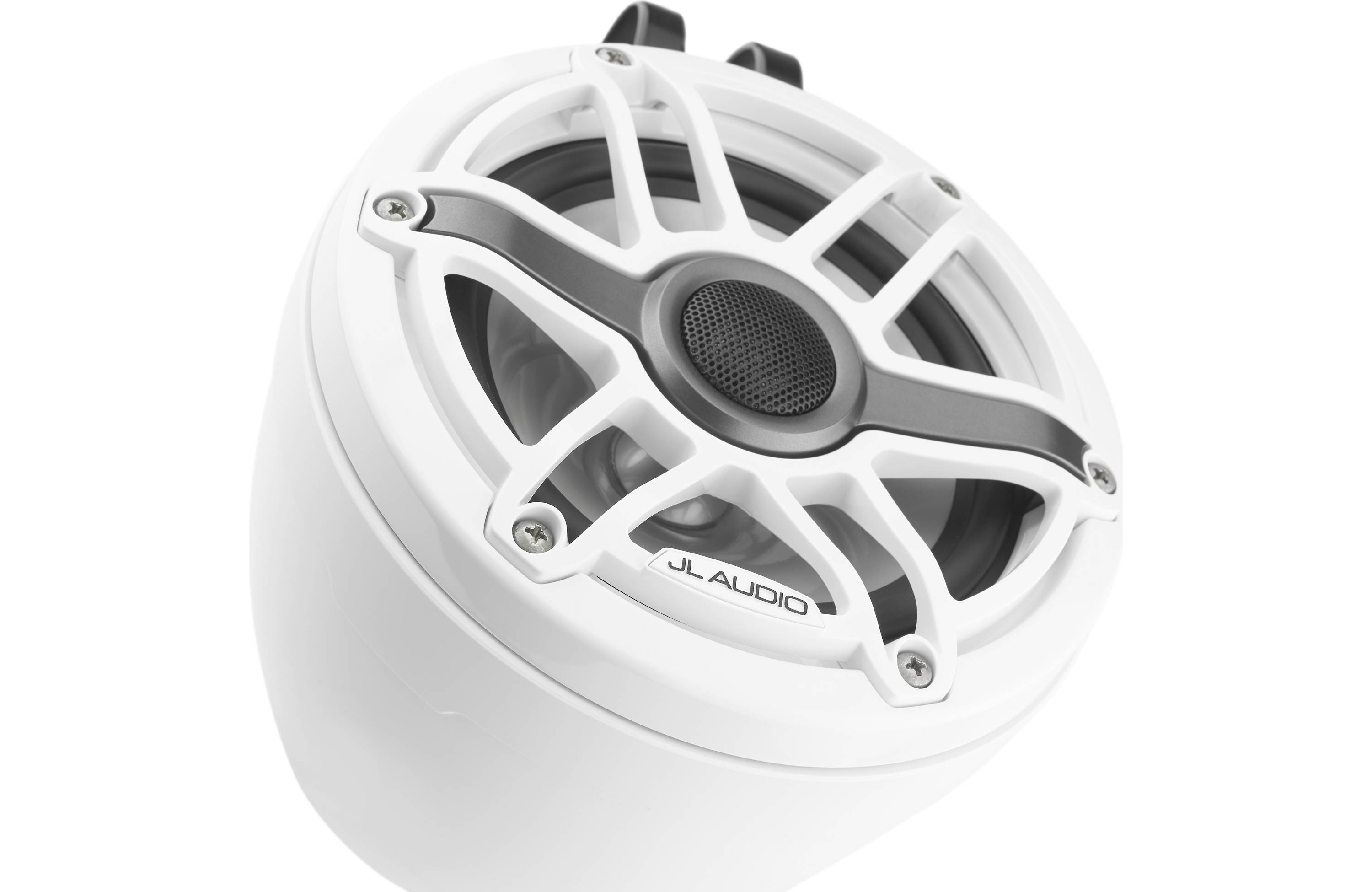

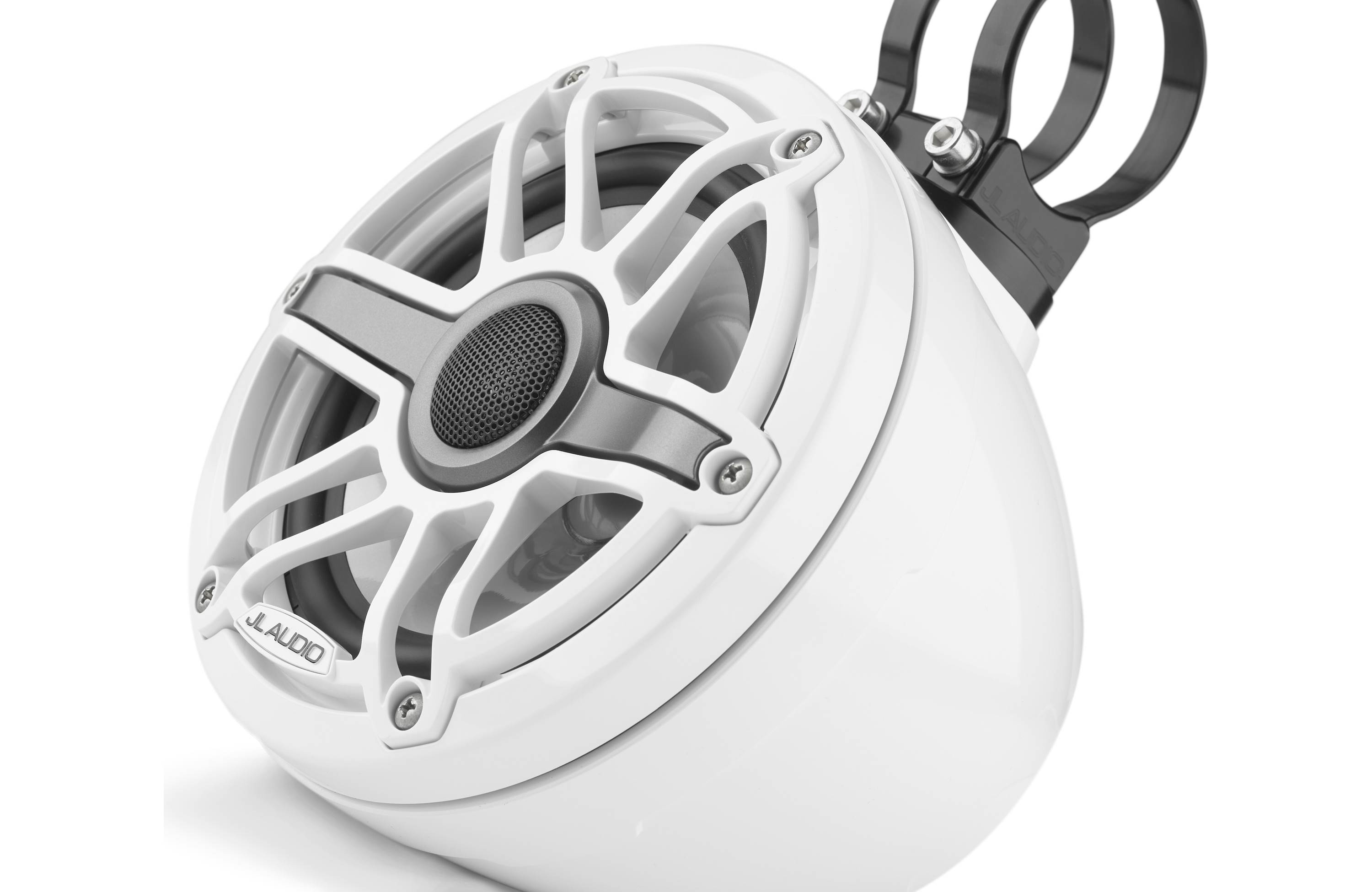

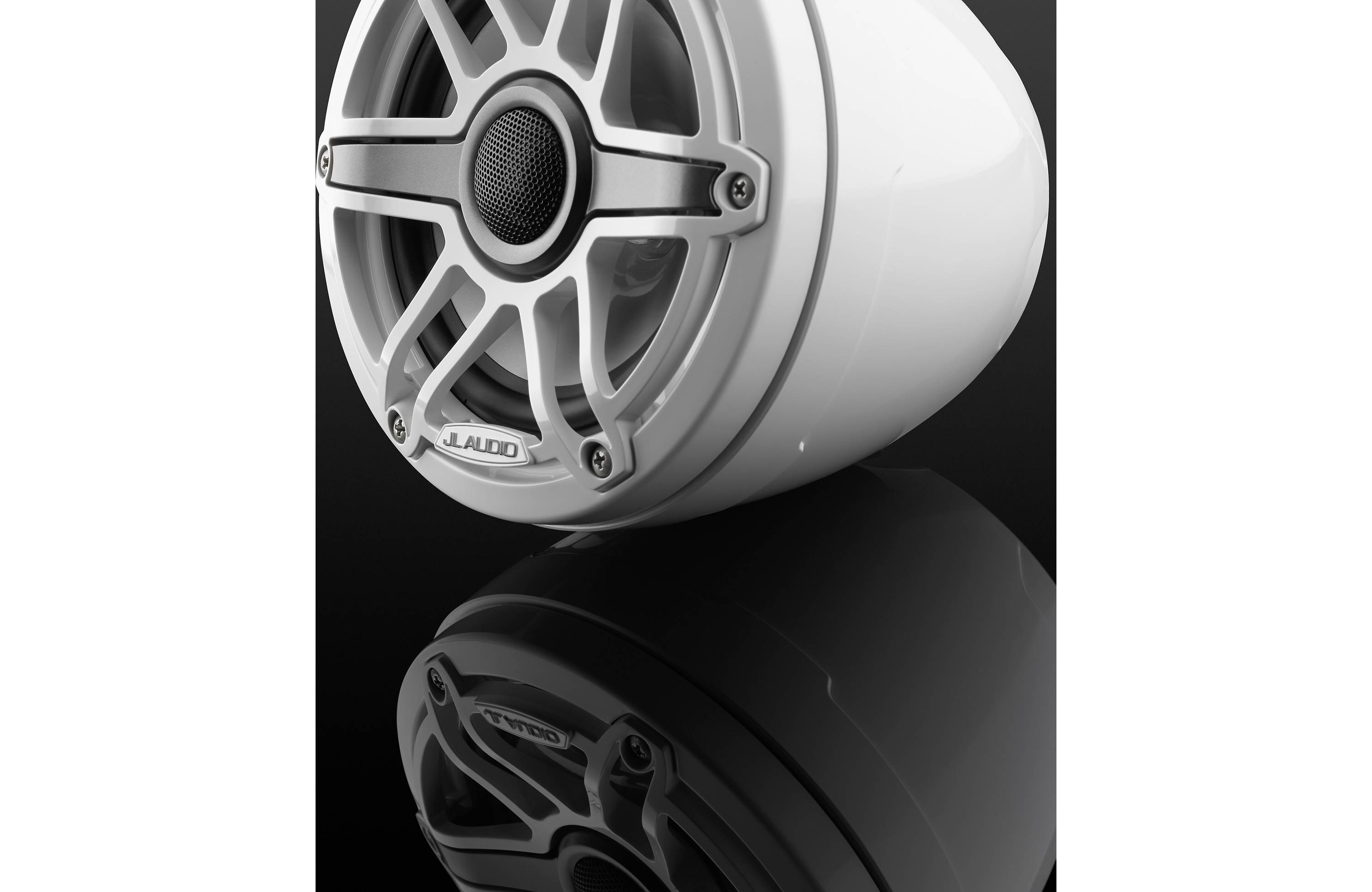

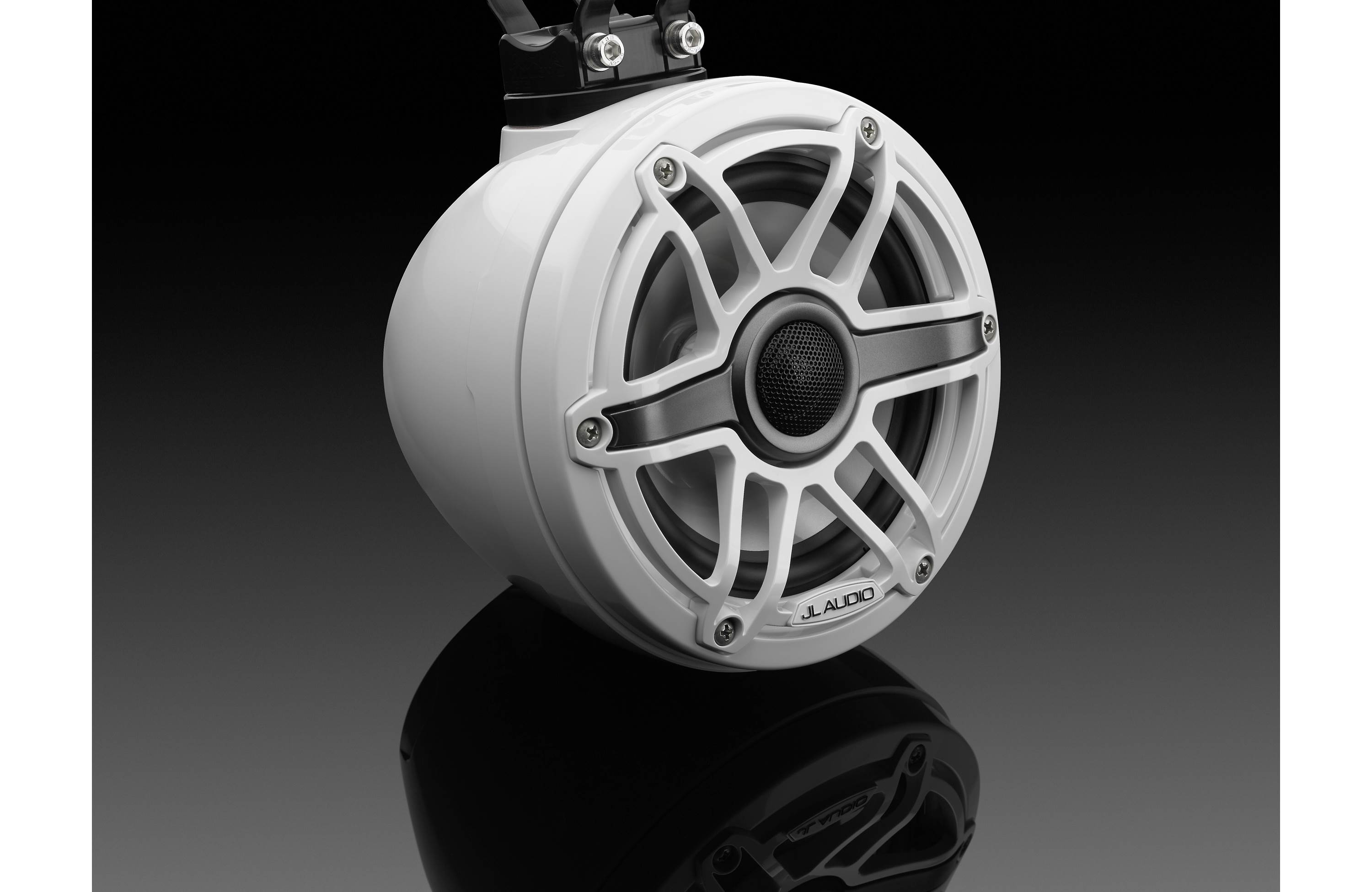

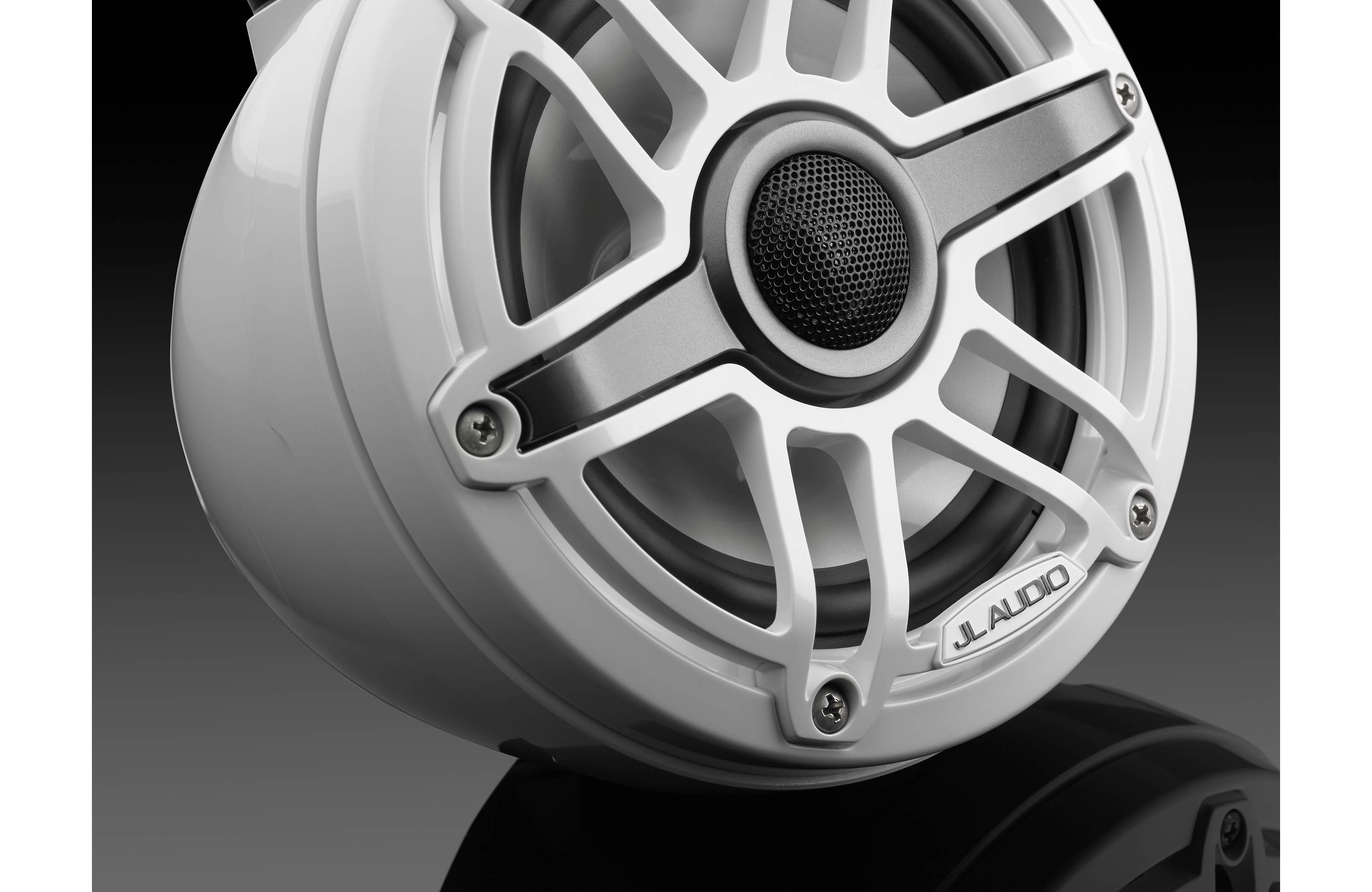

JL Audio M6-650VEX-Gw-S-GwGw 6.5" 75W RMS (225W Peak Power Handling) 4 Ohm 2-Way Enclosed Coaxial System

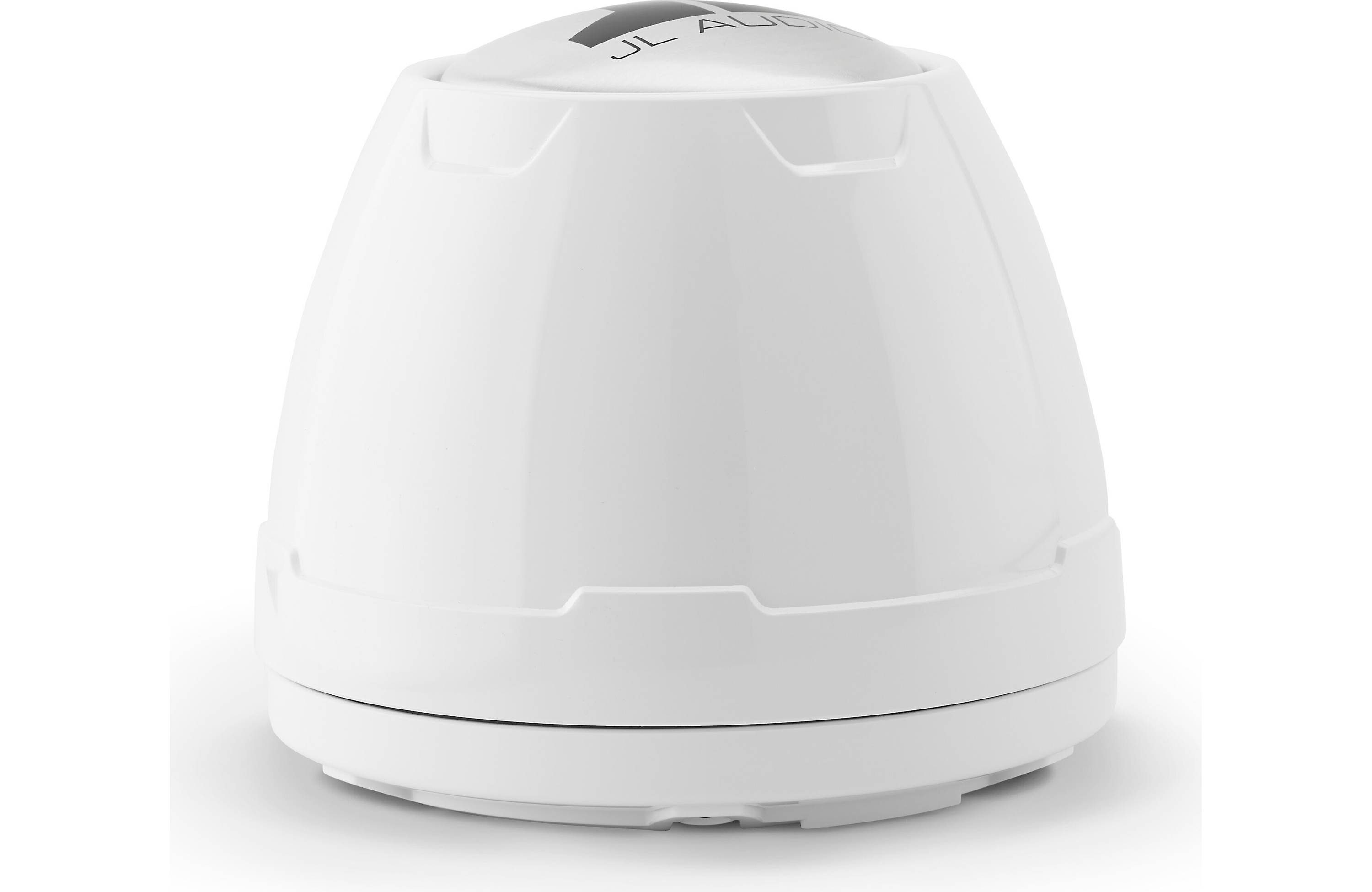

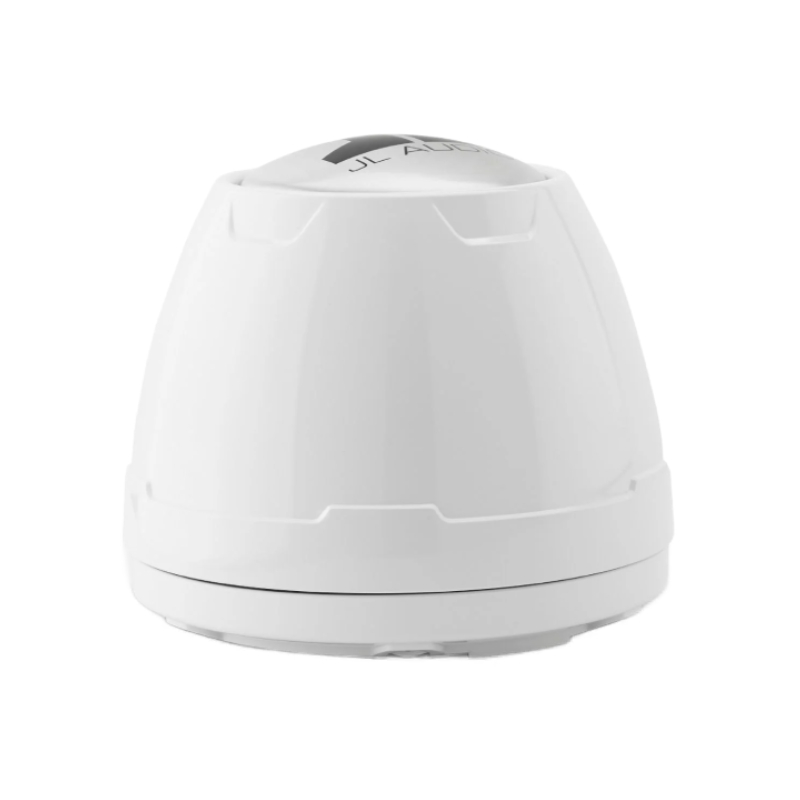

Beautiful Injection-molded Enclosures
M3 7.7-inch Marine Enclosed Coaxial Speaker System (70 W, 4 Ω) - Gloss White Enclosure, Gloss White Sport Grille Enclosed in these beautiful, injection-molded enclosures are our high-performance, M3 7.7-inch coaxial tower speakers. Specifically tuned for tower enclosure applications, these coaxial drivers deliver clean, loud audio that can be heard well beyond the boat when mounted up high.
Withstand a Real Saltwater Marine Environment
Like all JL Audio marine speakers, this system is built to withstand a real saltwater marine environment and deliver years of listening enjoyment. Production of this model takes place in JL Audio's Miramar, Florida factory, using global materials and components. Sold as a pair.

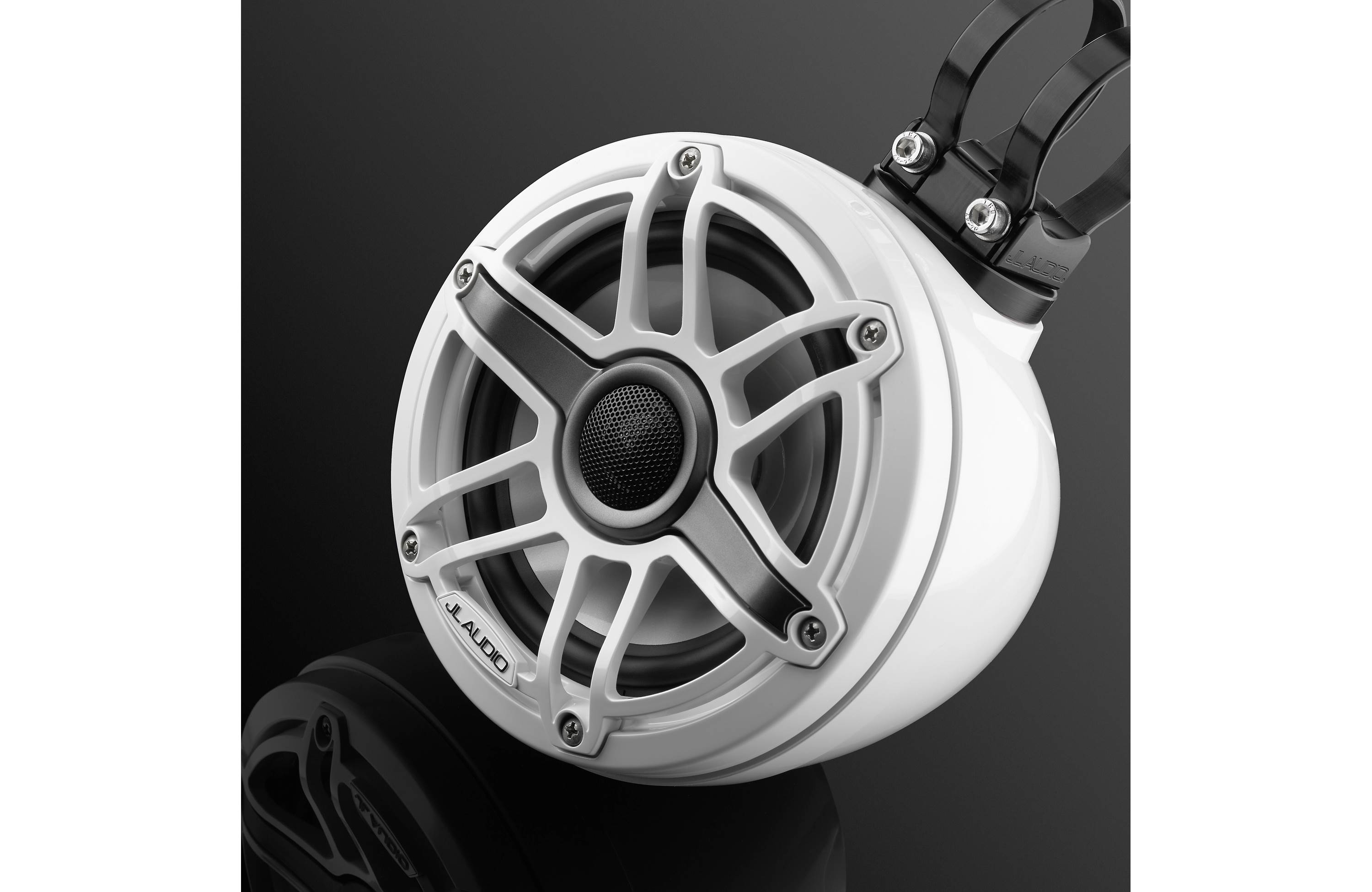

Designed to Mate With One of Our Clamp Systems

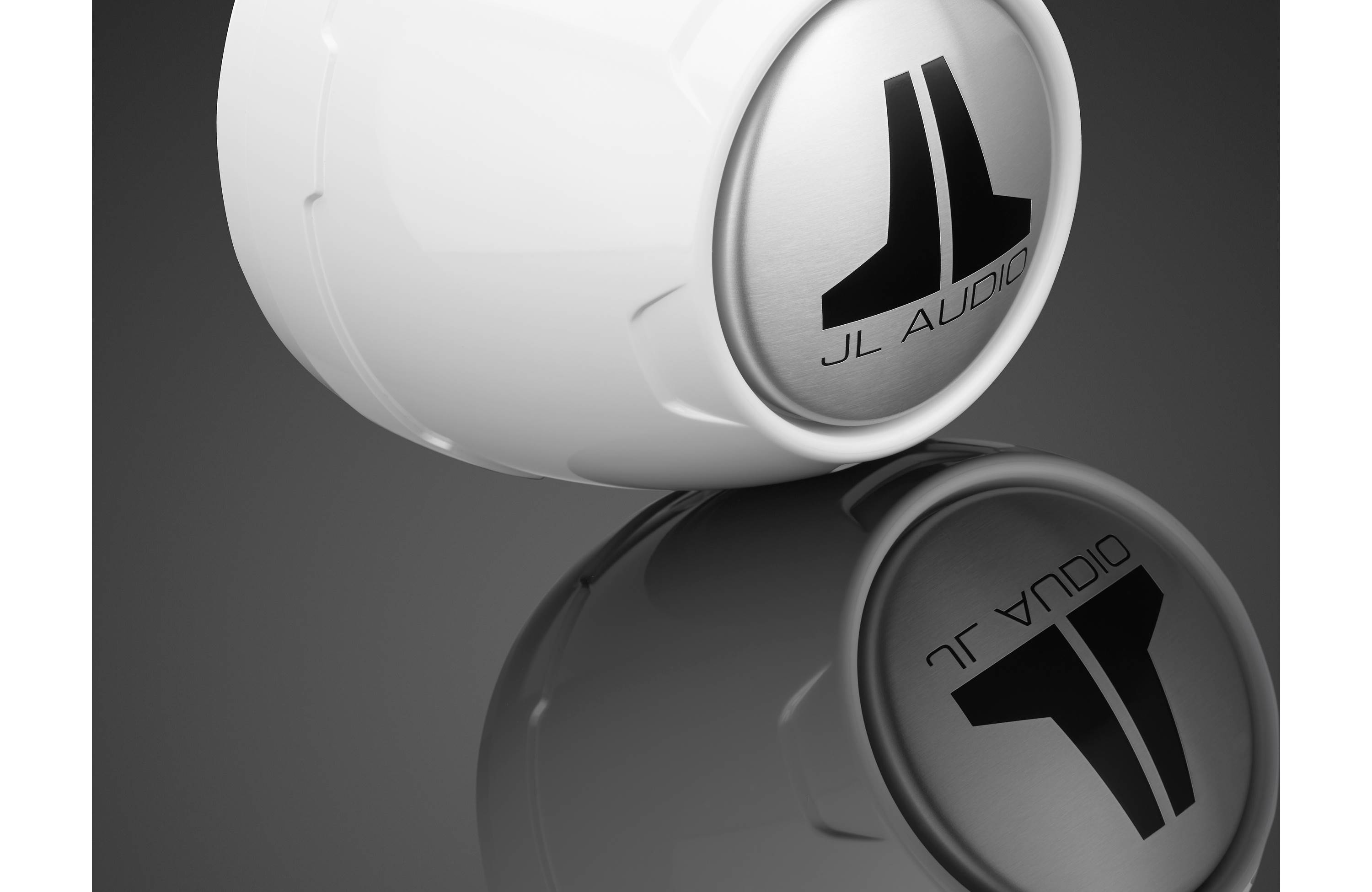

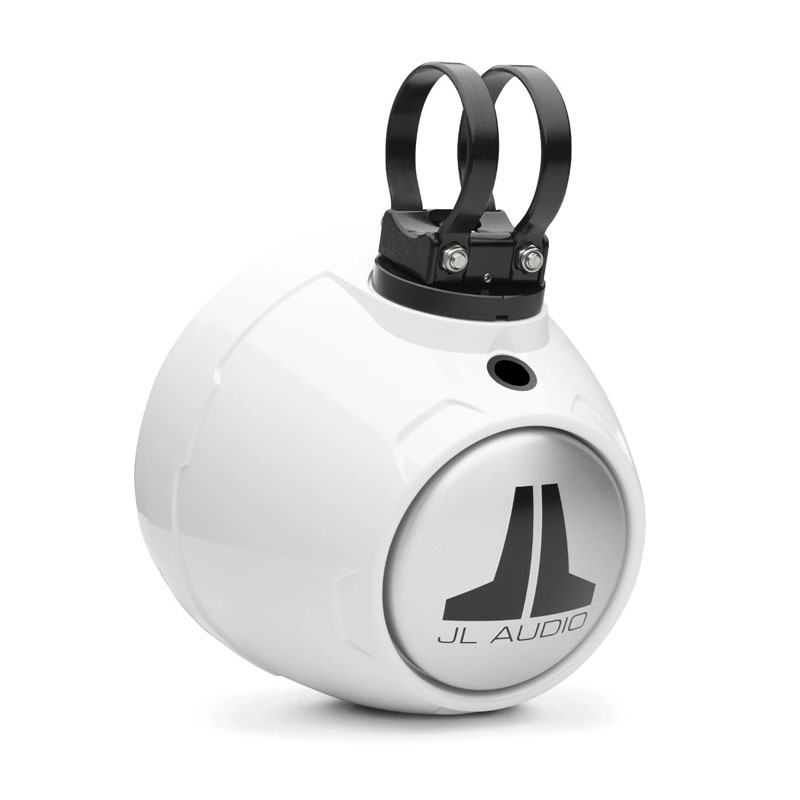

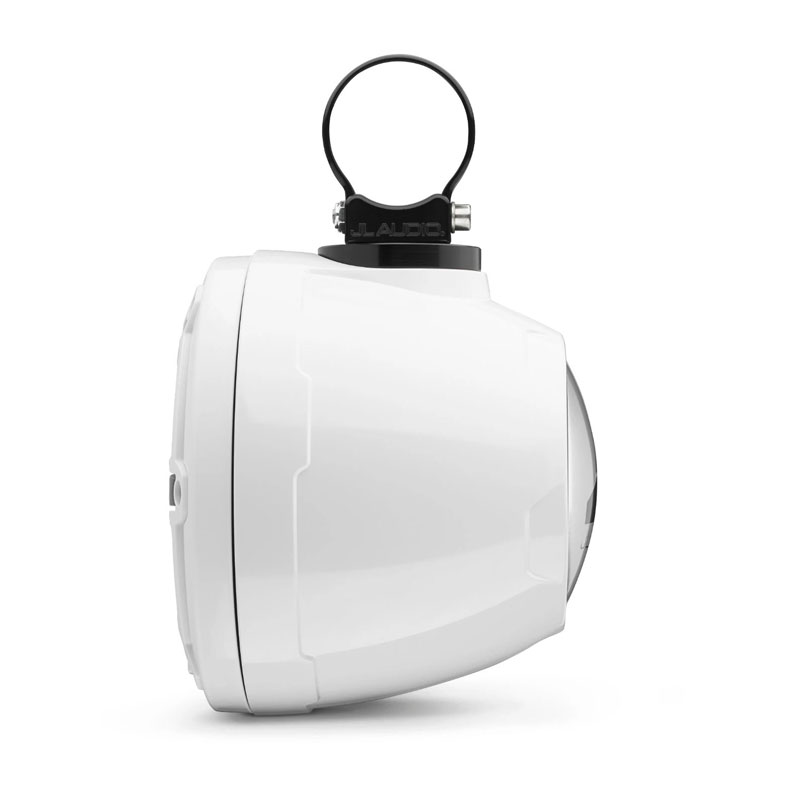

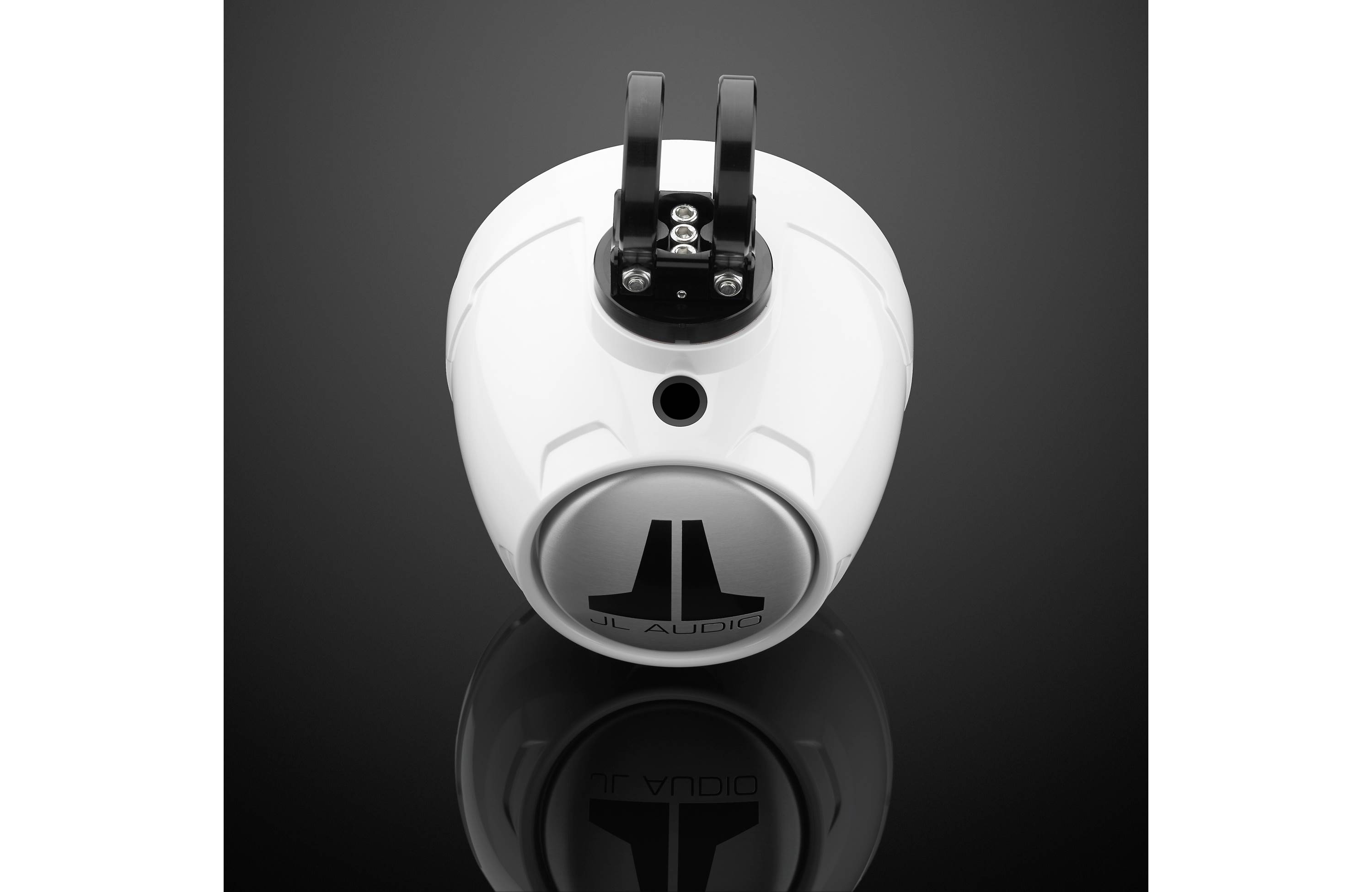

The enclosures feature a decorative, aluminum logo cap on the end opposite the speaker, which can be oriented to match any custom mounting application. Each is designed to mate with one of our clamp systems (sold separately, and available to fit a wide range of pipe diameters). The wire exits through the center of the mount, staying high and dry, and out of sight. Professional installation is strongly recommended. For best results, we recommend powering these systems with an amplifier in the 25-140 W per channel range.

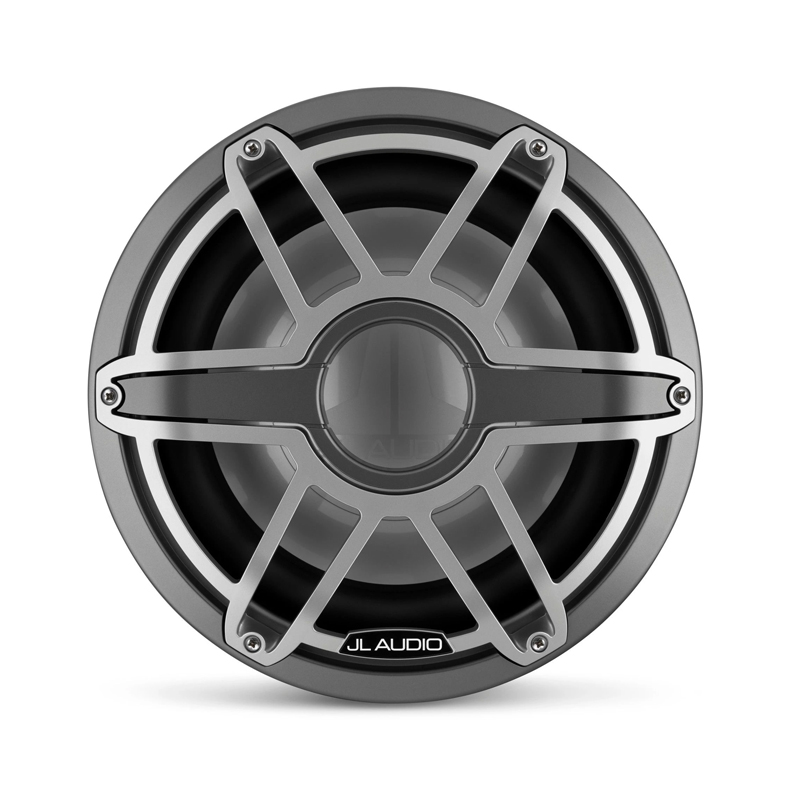

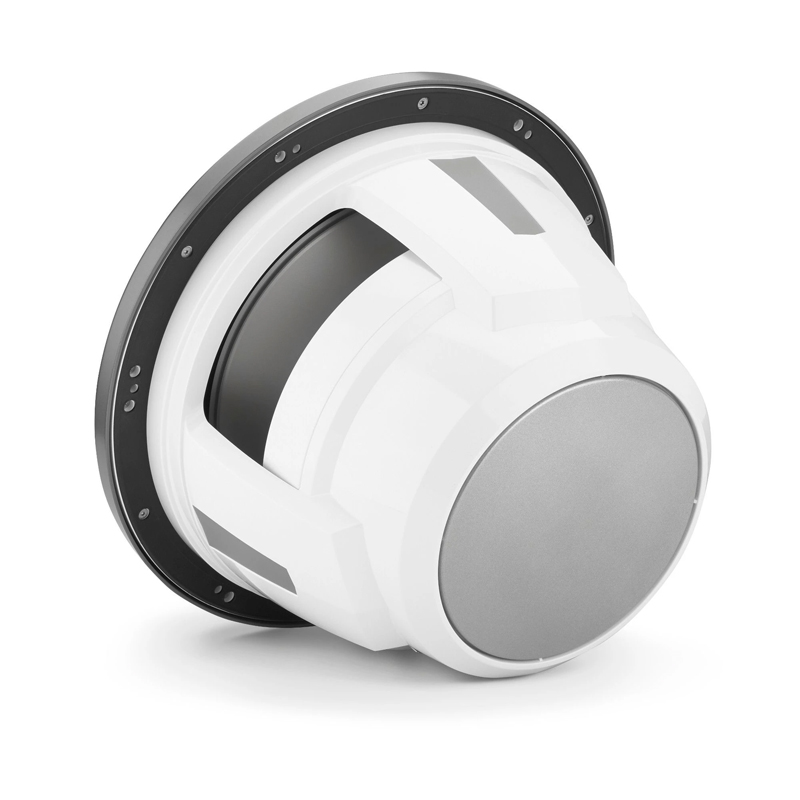

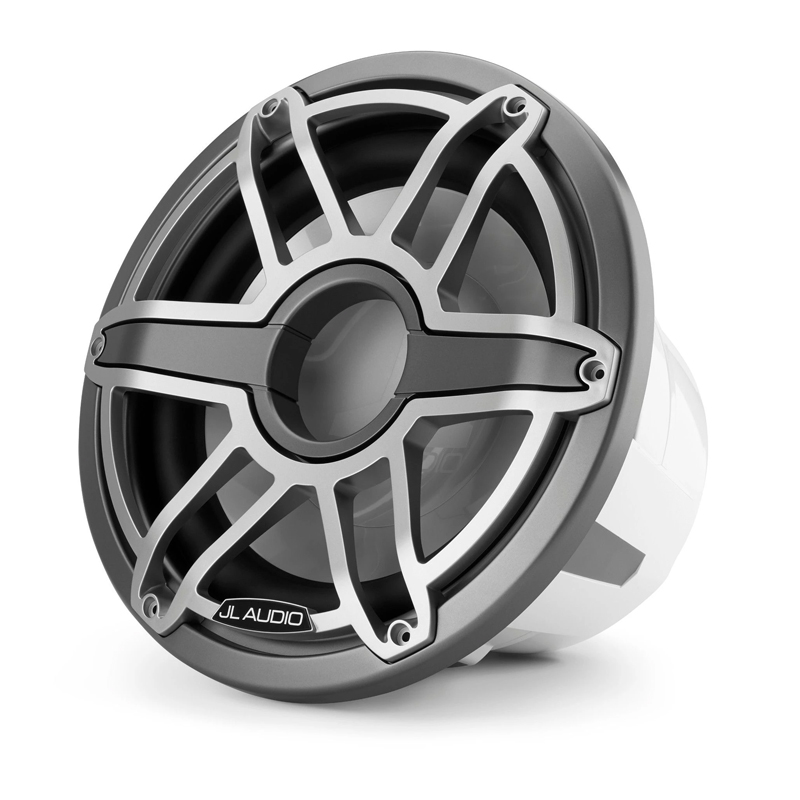

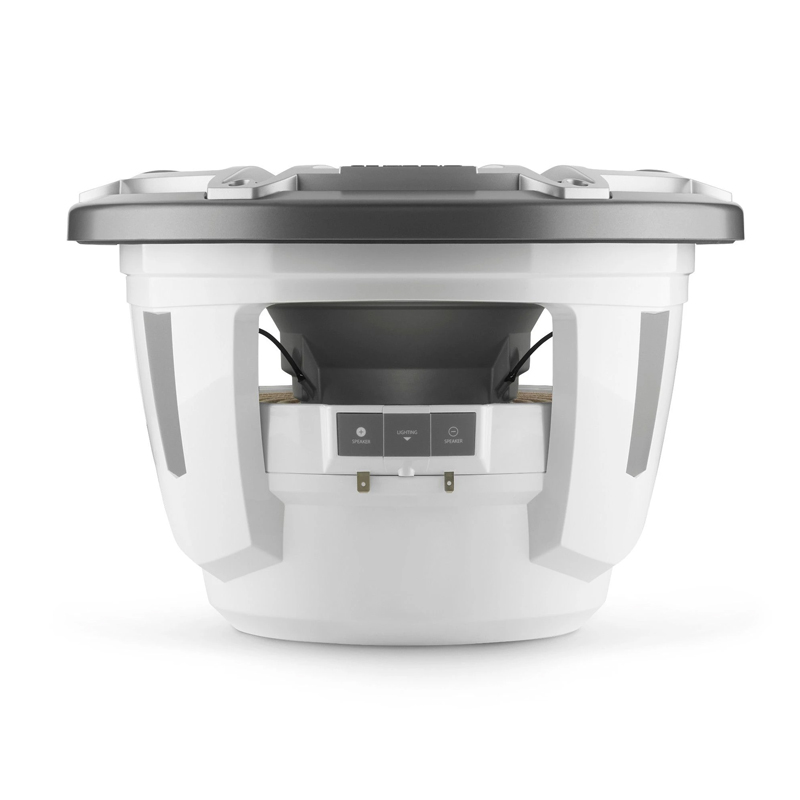

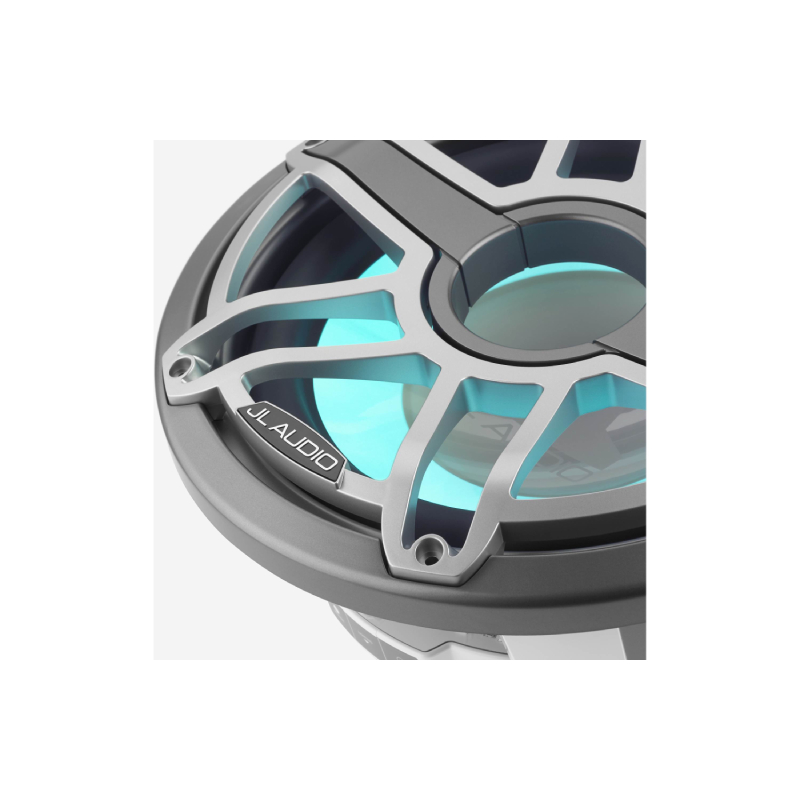

JL Audio M7-12IB-S-GMTI-4 M7 Series 12" 600W RMS (1200W Peak Power Handling) 4 Ohms Marine Subwoofer Driver, Gunmetal Trim Ring, Titanium Sport Grille
Producing Staggering Amounts of Jaw-dropping Bass
M7 12-inch Marine Subwoofer for Infinite-Baffle Use (600 W, 4 Ω) - Gray Metallic Trim Ring, Titanium Sport Grille. Engineered as the reference standard for marine subwoofer performance, the M7-12IB is capable of producing staggering amounts of jaw-dropping bass in infinite-baffle applications.
Built for Real Marine Duty
Built to withstand real-world marine duty, this M7-12IB is designed to operate without a dedicated enclosure. It boasts a monstrous 4-inch voice coil and rugged suspension system to deliver outstanding linear excursion for high output and power handling.
JL Audio MMR-40 Wired NMEA 2000 Remote Control with Full-Color LCD Display for use with MediaMaster® Receivers
Features:
Rated Continuous (RMS) Power @ 14.4 V
- Main Channels @ 4 ohms: 75 W RMS x 4
- Main Channels @ 2 ohms: 100 W RMS x 4
- Main Channels - Bridged @ 4Ω 200 W RMS x 2
- Subwoofer Channel @ 4 ohms: 400 W RMS x 1
- Subwoofer Channel @ 3 ohms: 500 W RMS x 1
- Subwoofer Channel @ 2 ohms: 600 W RMS x 1
- Subwoofer Channel @ 1.5 ohms: N/A
- Rated Continuous (RMS) Power @ 12.5 V
- Main Channels @ 4 ohms: 60 W RMS x 4
- Main Channels @ 2 ohms: 90 W RMS x 4
- Main Channels - Bridged @ 4 ohms: 180 W RMS x 2
- Subwoofer Channel @ 4 ohms: 360 W RMS x 1
- Subwoofer Channel @ 3 ohms: 480 W RMS x 1
- Subwoofer Channel @ 2 ohms: 600 W RMS x 1
- Subwoofer Channel @ 1.5 ohms: N/A
- Frequency Response (Main Channels): 12 Hz - 24 kHz (+0, -1dB)
- S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W (Analog Inputs - Main Channels): 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel): 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 2 ohms: >50 / 50 Hz
- Damping Factor @ 4 ohms: >150 / 50 Hz
- THD+N @ Rated Power (Main Channels): <1% @ 2 ohms per Ch.
- THD+N @ Rated Power (Subwoofer Channels): <1% @ 2 ohms per Ch.
- Input Voltage Range @ RCA Inputs: 250 mV - 16 V RMS
- Min.Copper Power / Ground Wire Gauge: 4 AWG wire
- Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)
- Height (H): 2.05 in / 52 mm
- Width (W): 13.96 in / 355 mm
- Depth (D): 6.93 in / 176 mm
- Net Weight: 5.6 lb / 2.54 kg
Specifications:
- Height (H): 3.74 in / 95 mm
- Width (W): 4.65 in / 118 mm
- Depth (D1): 0.55 in / 14 mm
- Depth (D2): 1.96 in / 50 mm
- Mounting Hole Height (A): 3.12 in / 80 mm
- Mounting Hole Width (B): 3.74 in / 95 mm
JL Audio MV1000/5i MVi Series 75Wx4 RMS 4 ohms + 600Wx1 RMS 2ohms Class D 5 Channel Marine Amplifier
Features:
- Rated Continuous (RMS) Power @ 14.4 V
- Main Channels @ 4 ohms: 75 W RMS x 4
- Main Channels @ 2 ohms: 100 W RMS x 4
- Main Channels - Bridged @ 4Ω 200 W RMS x 2
- Subwoofer Channel @ 4 ohms: 400 W RMS x 1
- Subwoofer Channel @ 3 ohms: 500 W RMS x 1
- Subwoofer Channel @ 2 ohms: 600 W RMS x 1
- Subwoofer Channel @ 1.5 ohms: N/A
- Rated Continuous (RMS) Power @ 12.5 V
- Main Channels @ 4 ohms: 60 W RMS x 4
- Main Channels @ 2 ohms: 90 W RMS x 4
- Main Channels - Bridged @ 4 ohms: 180 W RMS x 2
- Subwoofer Channel @ 4 ohms: 360 W RMS x 1
- Subwoofer Channel @ 3 ohms: 480 W RMS x 1
- Subwoofer Channel @ 2 ohms: 600 W RMS x 1
- Subwoofer Channel @ 1.5 ohms: N/A
- Frequency Response (Main Channels): 12 Hz - 24 kHz (+0, -1dB)
- S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to highest rated power (Analog Inputs - Main Channels): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to highest rated power (Analog Inputs - Subwoofer Channel): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W (Analog Inputs - Main Channels): 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W (Analog Inputs - Subwoofer Channel): 72 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 2 ohms: >50 / 50 Hz
- Damping Factor @ 4 ohms: >150 / 50 Hz
- THD+N @ Rated Power (Main Channels): <1% @ 2 ohms per Ch.
- THD+N @ Rated Power (Subwoofer Channels): <1% @ 2 ohms per Ch.
- Input Voltage Range @ RCA Inputs: 250 mV - 16 V RMS
- Min.Copper Power / Ground Wire Gauge: 4 AWG wire
- Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)
- Height (H): 2.05 in / 52 mm
- Width (W): 13.96 in / 355 mm
- Depth (D): 6.93 in / 176 mm
- Net Weight: 5.6 lb / 2.54 kg
JL Audio M-RBC-1 Water Resistant Remote Bass Control
Features:
- The M-RBC-1 controls the Bass Level and features a water resistant connection cover designed for use with the following JL Audio amplifiers:
- MX-Series: MX300/1 (in Low Pass Mode)
- MX-Series: MX500/1 (in Low Pass Mode)
- MX-Series: MX600/3 (Subwoofer Channel)
- HX-Series (discontinued): HX300/1 (in Low Pass Mode)
- MHX-Series (discontinued): MHX300/1 (in Low Pass Mode)
- The M-RBC-1 controls the Bass Level of the following JL Audio amplifiers:
- JX-Series: JX250/1, JX500/1, JX500/1D, JX1000/1D ( also available)
- When the M-RBC-1 is connected to the above amplifiers, it acts as an attenuator on the input gain of the amplifier and is used to adjust the overall level of the amplifier from the front of the vehicle.
- The M-RBC-1 remotely controls the Bass EQ boost feature of the following JL Audio amplifiers:
- Slash v3 Series: 600/1v3, 1200/1v3
- Slash v2 Series: 250/1v2, 500/1v2, 1000/1v2, 450/4v2
- Original Slash Series: 500/1, 1000/1, 450/4, 500/5
- G-Series: All Models
- A-Series: All Models
- e-Series: All Models (including marine versions)
- M-Series: M1400, M1700, M2150, M2250, M4300, M4500, M6450, M6600
JL Audio M6-650VEX-Gw-S-GwGw 6.5" 75W RMS (225W Peak Power Handling) 4 Ohm 2-Way Enclosed Coaxial System
Feratures:
- Continuous Power Handling (RMS): 75 W
- Recommended Amplifier Power (RMS): 25 - 150 W / Ch.
- System Efficiency: 89.5 dB @ 1 W / 1 m
- System Nominal Impedance: 4 ohms
- System Frequency Response: 100 Hz - 25 KHz ± 3 dB
Physical Specifications:
- Enclosure Diameter (A): 7.03 in / 179 mm
- Enclosure Depth (B): 6.17 in / 157 mm
- Height including Mounting Clamp Receiver* (C): 7.27 in / 185 mm
- Mounting Clamp Receiver / Enclosure Offset (D): 0.20 in / 5 mm
- *Mounting Clamps Required (Sold Separately)

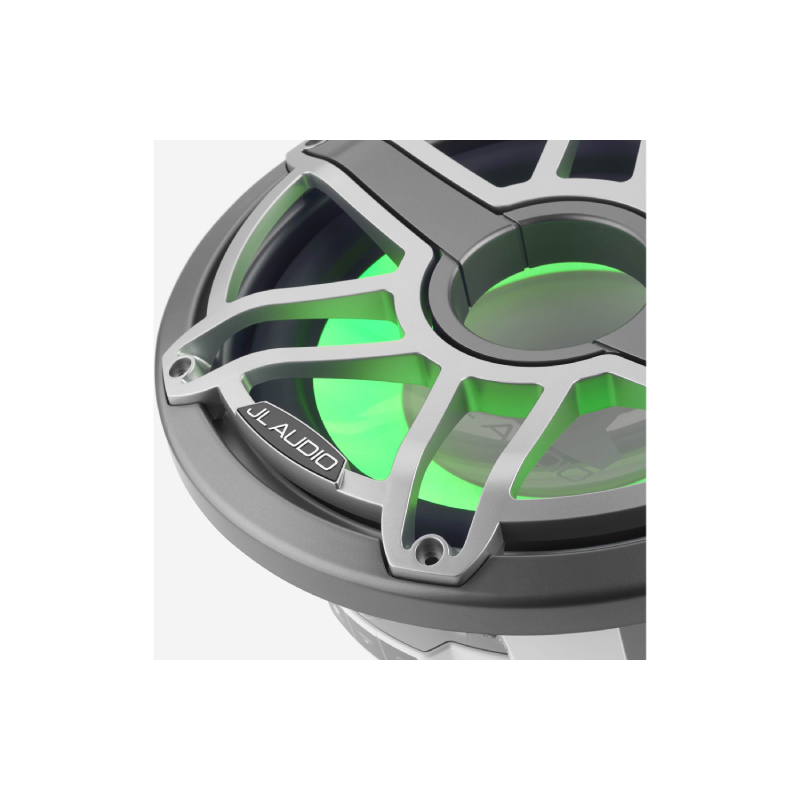

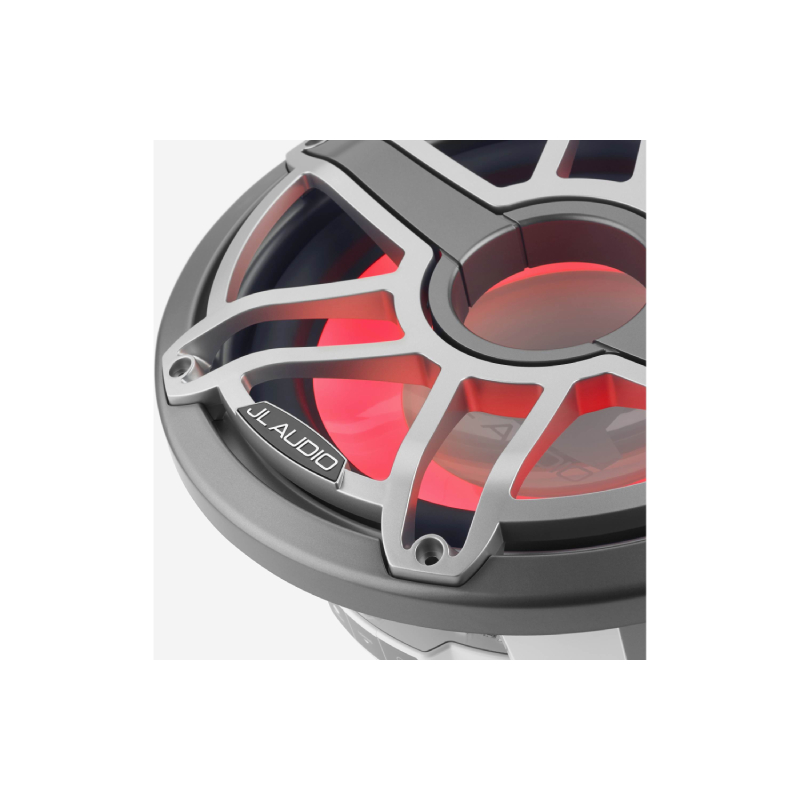

JL Audio M7-12IB-S-GMTI-4 M7 Series 12" 600W RMS (1200W Peak Power Handling) 4 Ohms Marine Subwoofer Driver, Gunmetal Trim Ring, Titanium Sport Grille
Features:
- 12" 4-ohm marine subwoofer with LED illumination
- titanium polymer Sport grille included
- Transflective cone offers even glow when lit, appears silver with lighting off
- injection-molded mica-filled polypropylene woofer with synthetic rubber surround
- polymer basket with stainless steel back plate
- marine-grade brass binding posts
- marine-grade synthetic fiber spider
- designed for free air applications
- also works in large sealed (2 cu ft) and ported (3 cu ft) boxes
Specifications:
- Continuous Power Handling (RMS): 600 W
- Nominal Impedance (Znom): 4 ohms
- Free Air Resonance (Fs): 35.34 Hz
- Electrical “Q” (Qes): 0.856
- Mechanical “Q” (Qms): 10.389
- Total Speaker “Q” (Qts): 0.791
- Equivalent Compliance (Vas): 1.99 cu ft / 56.35 L
- One-Way Linear Excursion (Xmax)*: 0.73 in / 18.5 mm
- Reference Efficiency (no): 0.28%
- Efficiency (1 W / 1 m)**: 86.7 dB SPL
- Effective Piston Area (Sd): 80.54 sq in / 0.052 sq m
- DC Resistance (Re): 3.543 ohms
- UPC:
- Weight: 17
- Authorized Internet Dealer
Warranty: 2 Years Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
