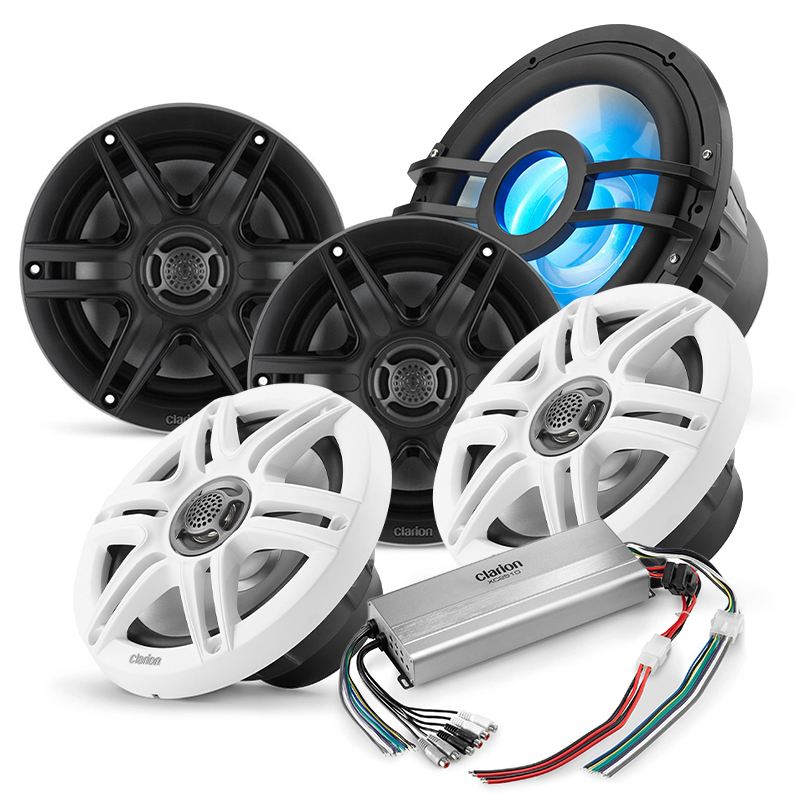

XC2510 Micro Size 50Wx4 RMS @4Ohms, Class D 5-Channel Marine Amplifier
Features:
- Ultra-Compact and Ultra-Versatile!
- Tiny footprint accommodates limited-space installations. XC2510: 1.54 x 11.02 x 4.33 in. (39 x 280 x 110 mm)
- Drive an entire audio system with a single amplifier (4 speakers + sub)
- Salt & Sun Certified
- Built to exceed industry standards for salt-fog/UV exposure (ASTM B117/D4329), and vibration resistance, ensuring durability in harsh marine environments.
- Tough, hard-anodized aluminum chassis for exceptional heat dissipation and mechanical integrity.
- Coated, corrosion-resistant, double-layer circuit board.
- MOSFET Class D Amplifier Topology
- Highly-efficient design reduces heat output and current draw.
- Delivers impressive power and fidelity from a very compact chassis.
- Battery-friendly design, draws very little current when turned off.
- Complete Signal Processing Onboard
- Variable High-Pass Filters (15-250 Hz, 12dB/octave, non-defeatable) on main channels.
- Variable Low-Pass Filter (35-250 Hz, 12dB/octave, non-defeatable) on subwoofer channel.
- Adjustable Bass Boost EQ (0-12 dB @ 50 Hz) on subwoofer channel
- Flexible Inputs
- Dedicated inputs accept preamp level signals (200mV-8V) and high-power, speaker level signals (600mV-20V)
Specifications:
- 700 Watts of Maximum Power Output
- 50 Watts × 4 + 200 Watts × 1 Continuous @ 4-Ohms
- 75 Watts × 4 + 300 Watts × 1 Continuous @ 2-Ohms
- 150 Watts × 2 Continuous @ 4-Ohms Bridged
- 4 Layer Conformal Coated PCB Assembly
- Bass Boost Adjustment
- MOS-FET Power Supply
- 12dB/Oct. Low/High Pass Electronic Crossover. Variable 35-250Hz (SUB) / 15-250Hz (FR/RR)
- Variable Gain Control
- Turn-On/Off Muting Circuitry (Soft Mute)
- Ground Loop Isolation Input Circuit
- Corrosion Resistant Nickel Plated RCA, Power, and Speaker Connections
- RCA and High Level Speaker Inputs
(2) CMS-651-SWB 6.5" 30W RMS (60W Peak Power Handling) 4 Ohm Marine Coaxial Speakers
Salt & Sun Certified
- All models are built to exceed industry standards for salt-fog/ UV exposure (ASTM B117/D4329) and shock/vibration resistance, ensuring durability in harsh marine environments.
Engineered for Open-Air Sound
- All-new designs deliver superb sound in all outdoor applications.
- Vacuum-formed polymer woofer cone bodies and marine-grade suspension components, for superior sound and reliability
- Bridge-mounted, balanced-dome, polymer tweeters with neodymium magnets and ferrofluid cooling for crystal-clear, high-frequency reproduction
- 2nd order, high-pass tweeter filters, integrated within the woofer baskets
- Standard cutout size and mounting hole pattern for easy retrofitting.
Moderate Power Requirements
- Perfect for source unit-powered systems
Choose Your Look, and Get Both Colors!
- Two grille styles available: traditional “Classic” or modern “Sport”
- White and Black grilles are included with each speaker.
- Allows you to coordinate the look of the speakers with your boat’s theme.

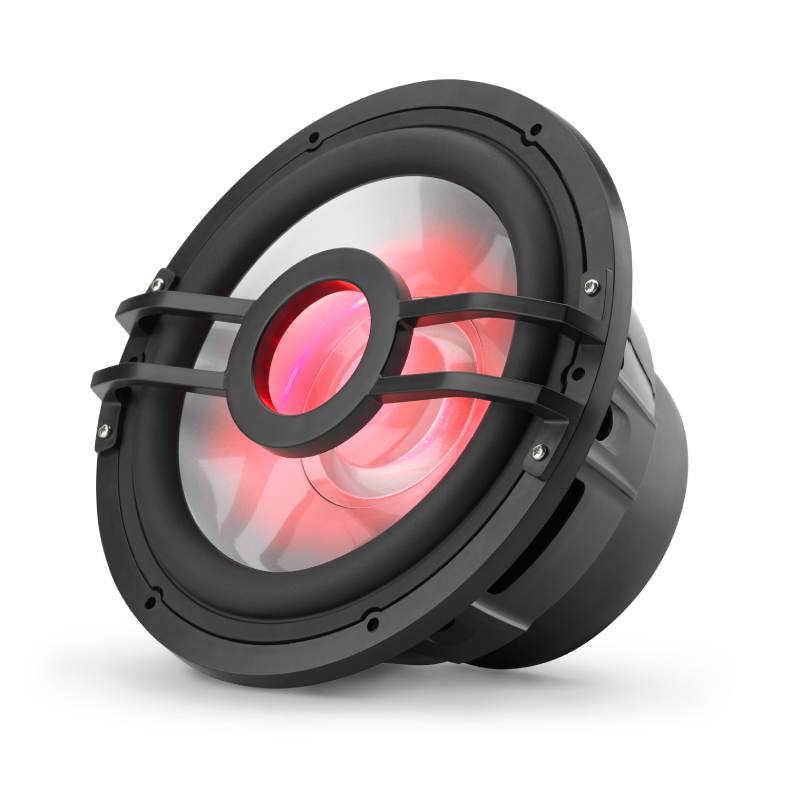

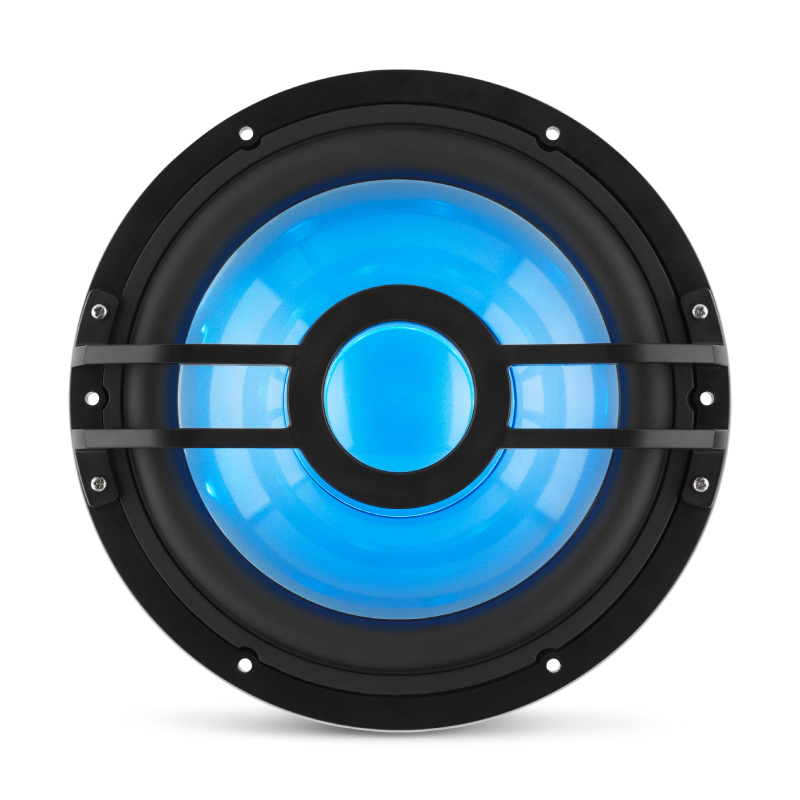

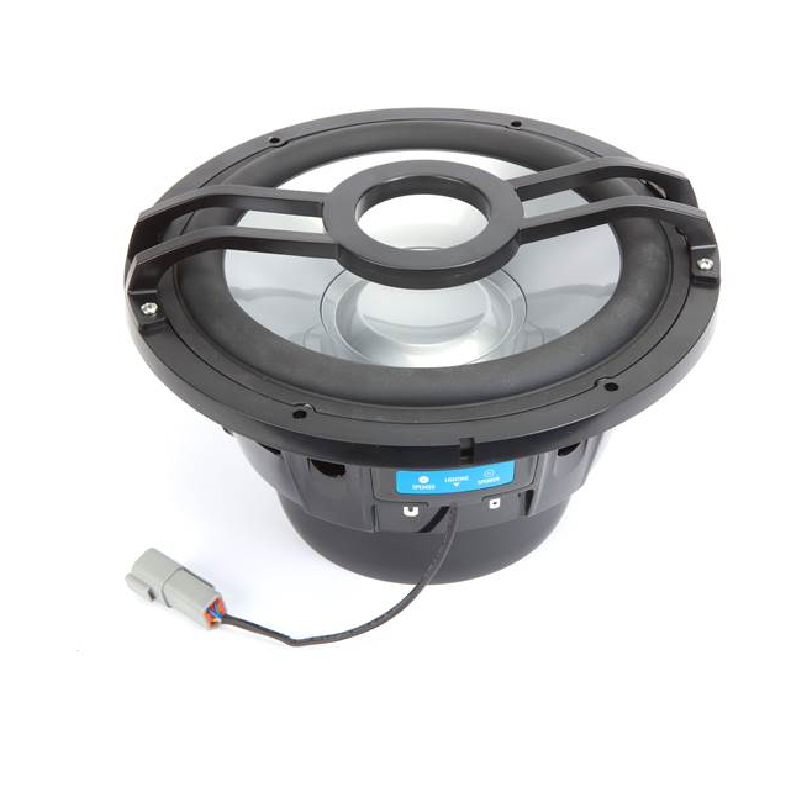

CMSP-101RGB-2 Premium Series 10" 250W RMS (500W Peak Power Handling) 2 Ohms Infinite Baffle Marine Subwoofer, with built-in RGB LED lighting (sold individually, with no grille)
Salt & Sun Certified
- All models are built to exceed industry standards for salt-fog/UV exposure (ASTM B117/D4329) and shock/vibration resistance, ensuring durability in harsh marine environments.
Remarkable Sound Quality and Output
- Optimized for infinite-baffle applications, without a dedicated enclosure behind the subwoofer
- Long-excursion, high power handling design delivers low distortion and excellent low frequency capability.
- High power handling, ideally matched with the Clarion Marine subwoofer amplifier, or with the subwoofer channel of our 5-channel system amplifier.
Your Choice of Impedance and Looks!
- Sold individually, with no grille, in single 2-ohm or single 4-ohm voice coil models, for maximum versatility.
- “Sport” grilles available in White or Gunmetal finishes (each sold separately)
- Allows you to coordinate the look of the speakers with your boat’s theme.
Onboard Built-In RGB LED Lighting
- Multi-color LEDs are embedded and concealed from direct sight to produce lively accent lighting.
- Choose from seven fixed LED colors or connect a RGB lighting controller (sold separately) for adjustable control. (LED functionality requires 12V DC wiring at each speaker location.)
- UPC:
- Weight: 28
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
