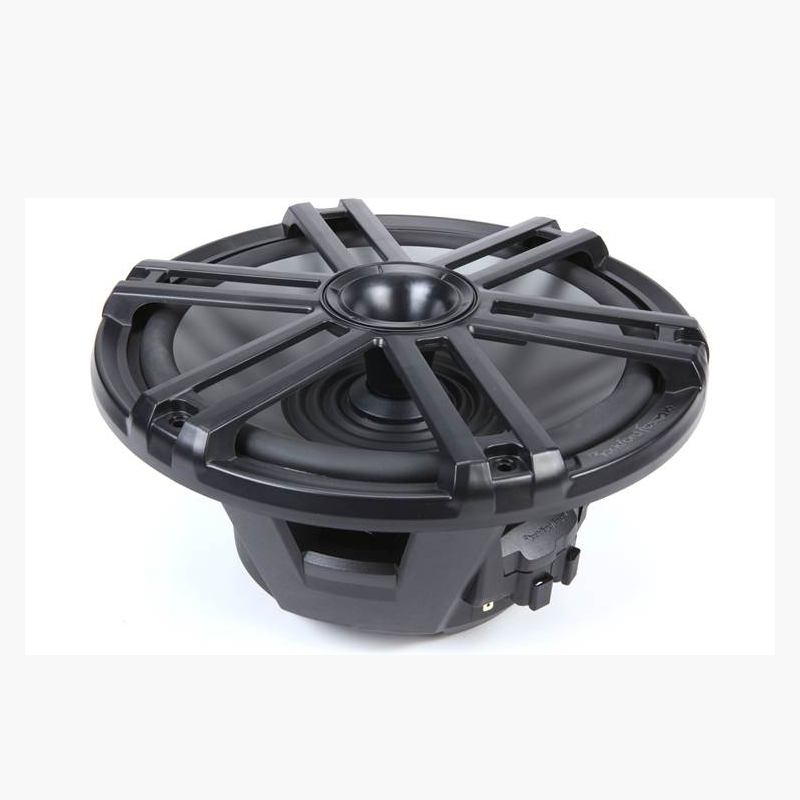

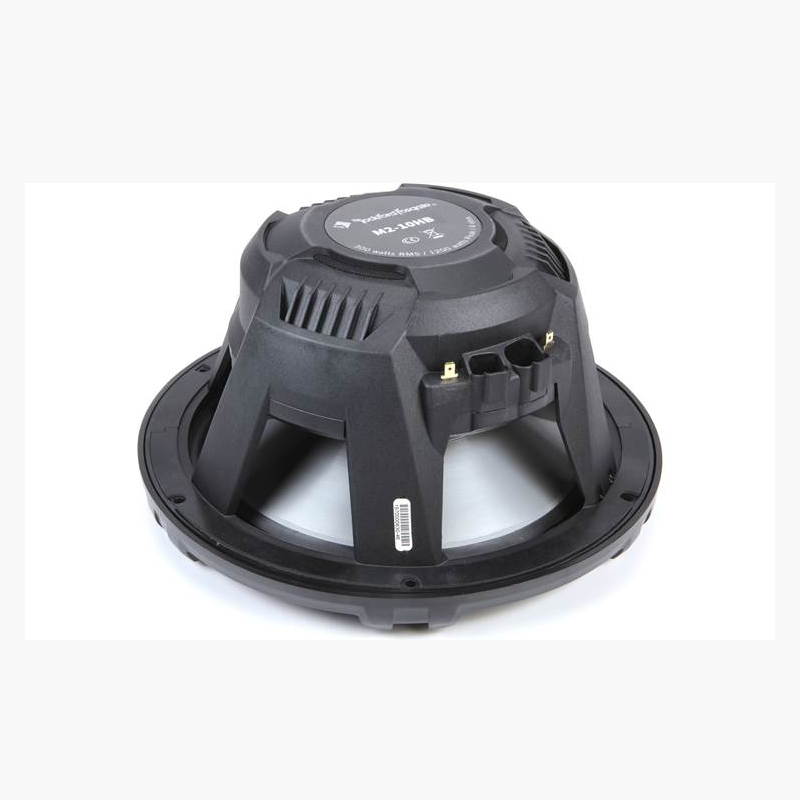

Rockford Fosgate M2-10HB M2 Series 10" 300W RMS (1200W Peak Power Handling) at 4 Ohms, 2-way Coaxial Marine/Powersports Speaker
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

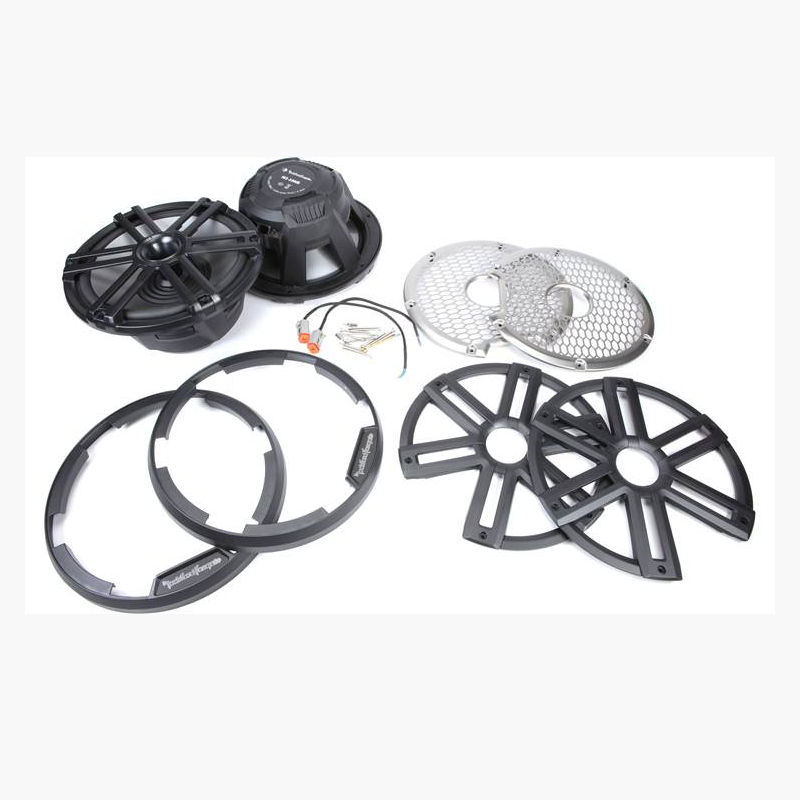

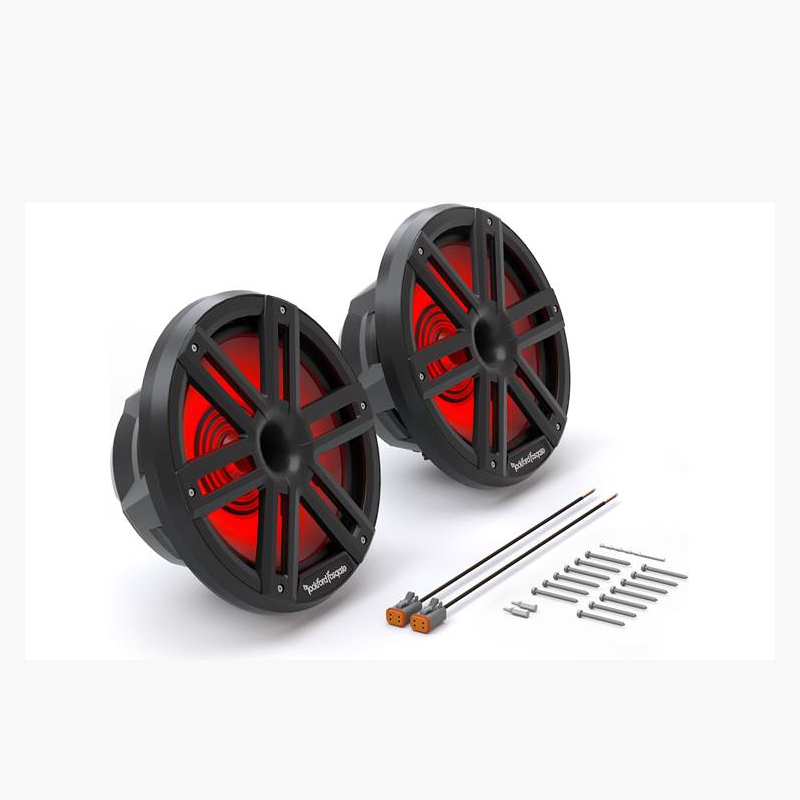

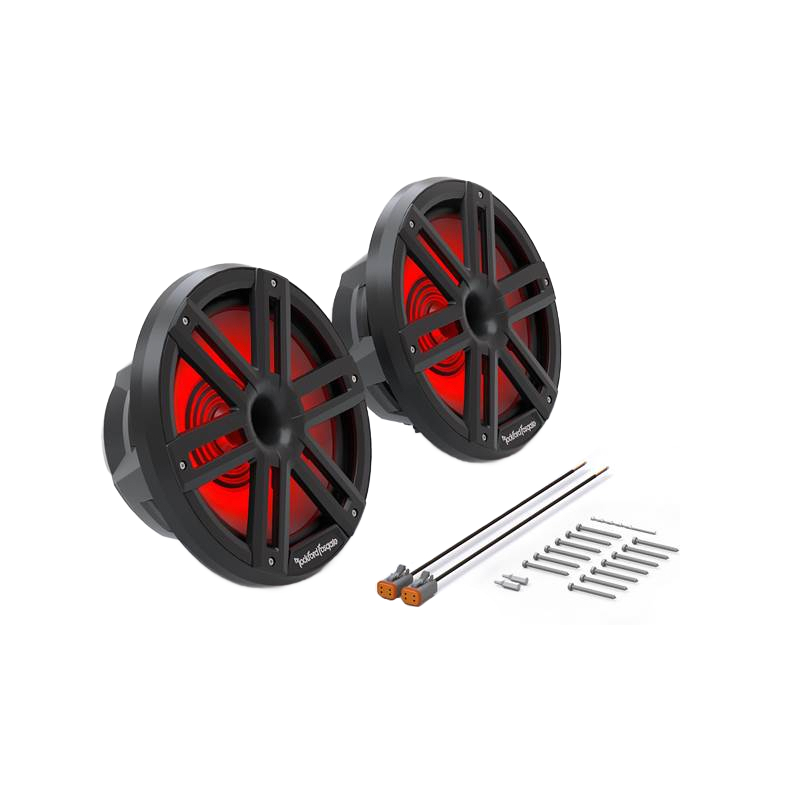

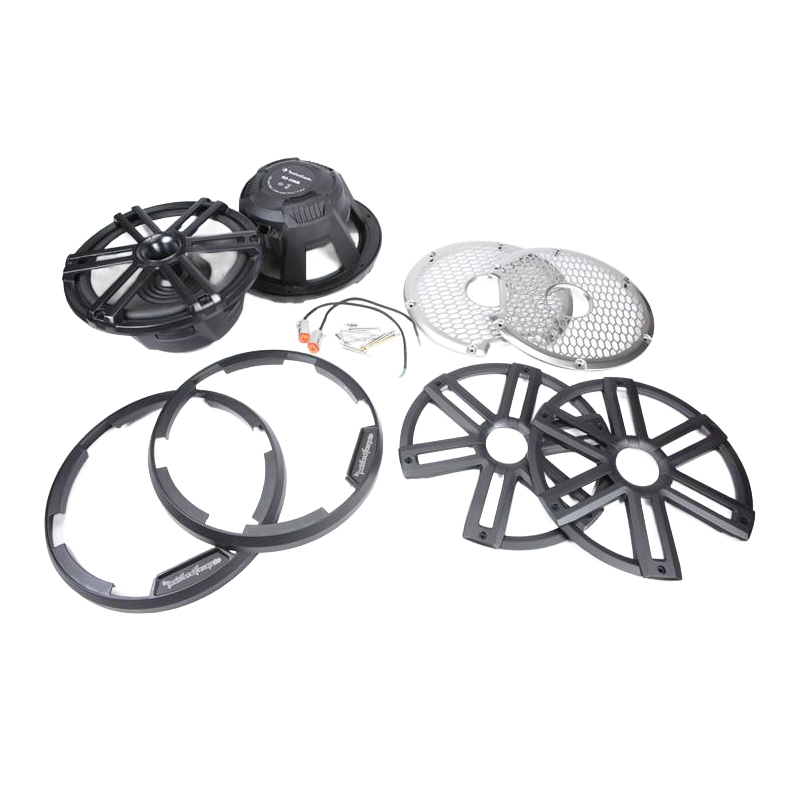

What's Inside?

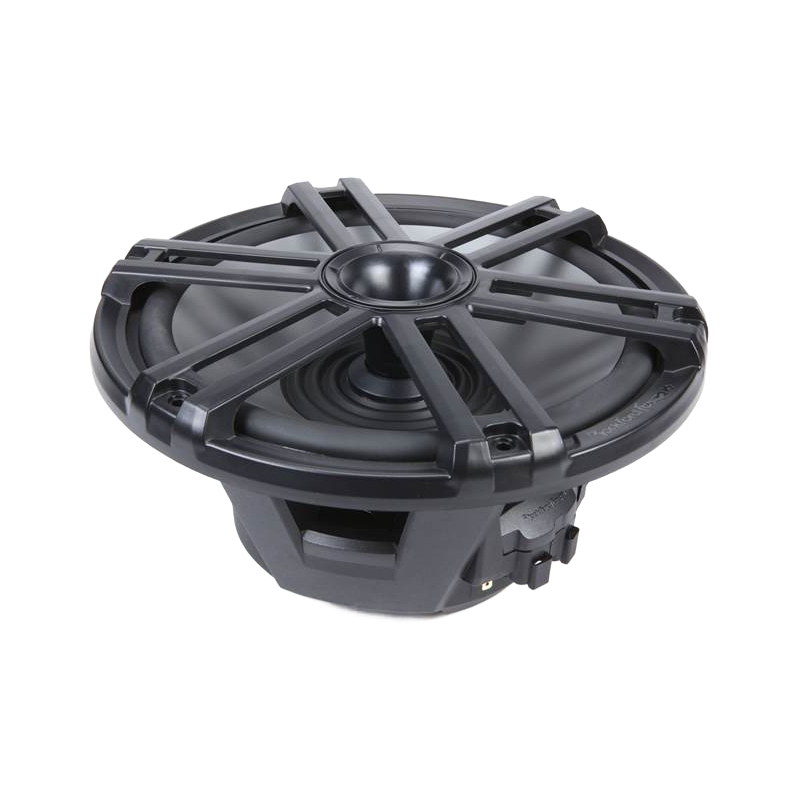

- • (2) 10" M2 Series 2-way Coaxial Marine/Powersports Speaker

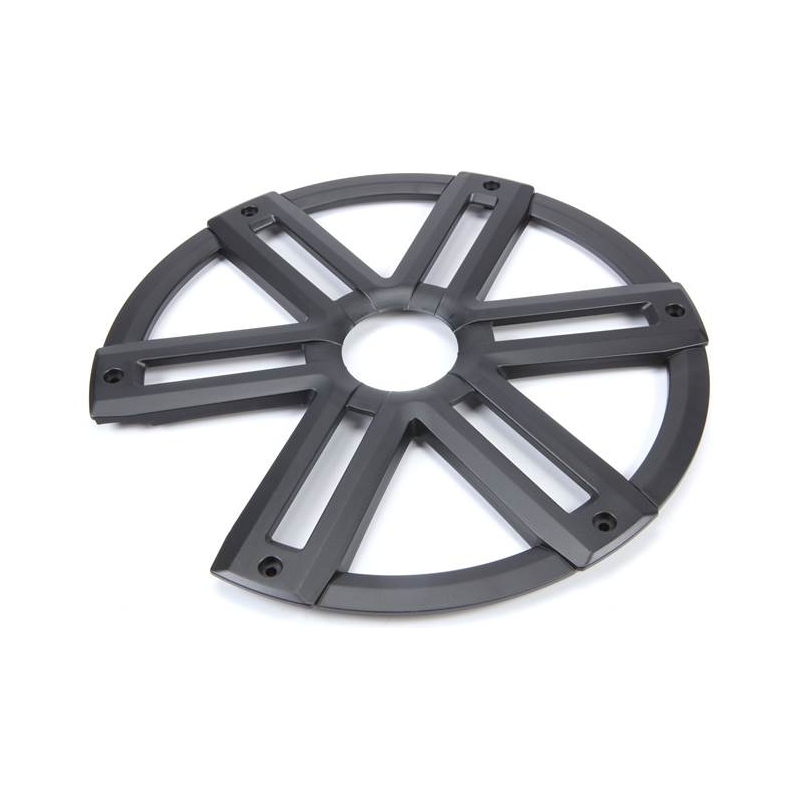

- • (2) Centrex plastic grilles (White)

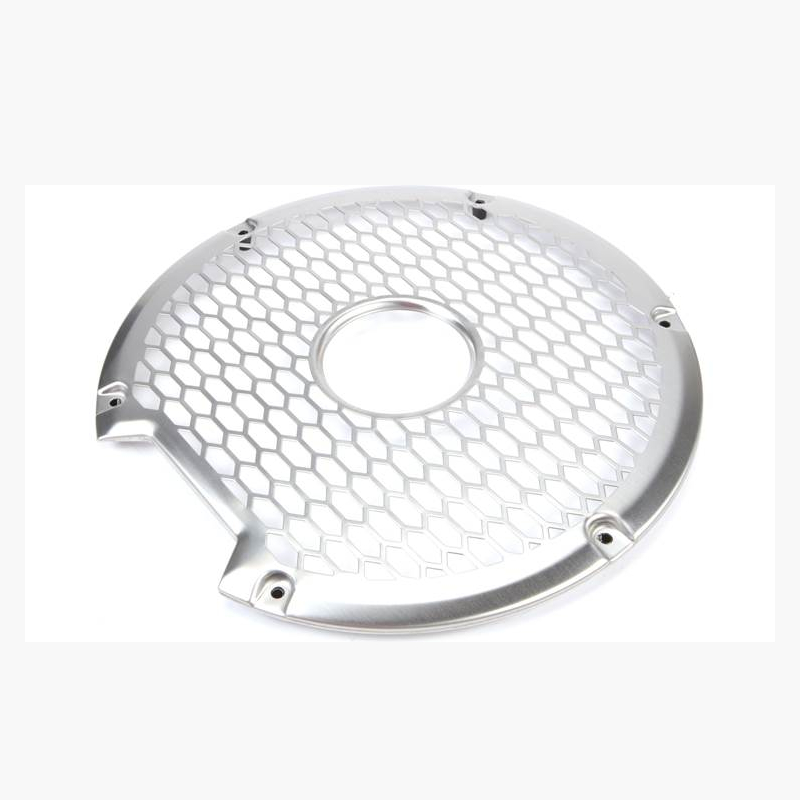

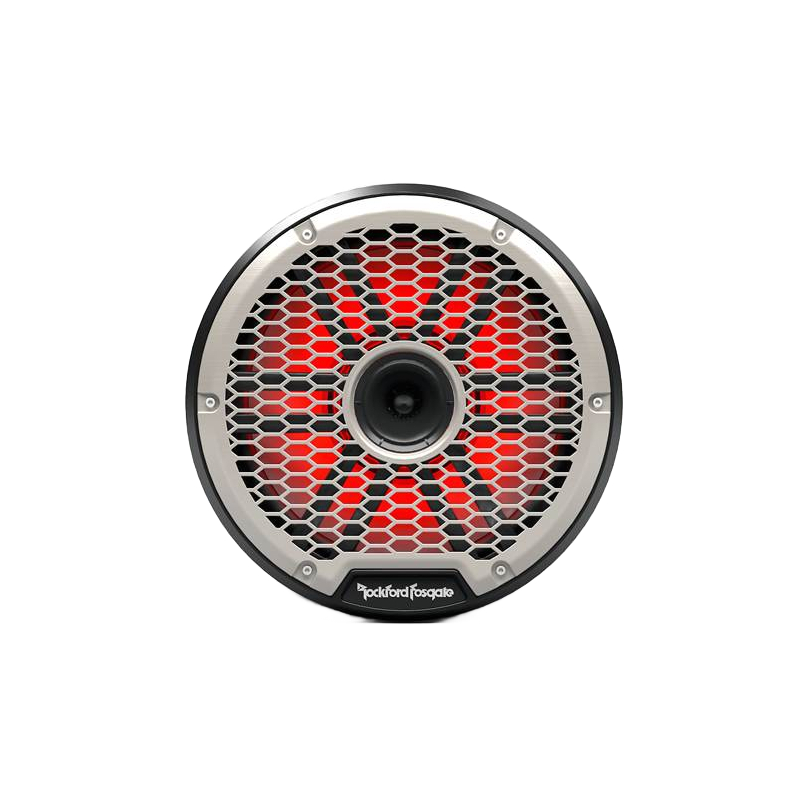

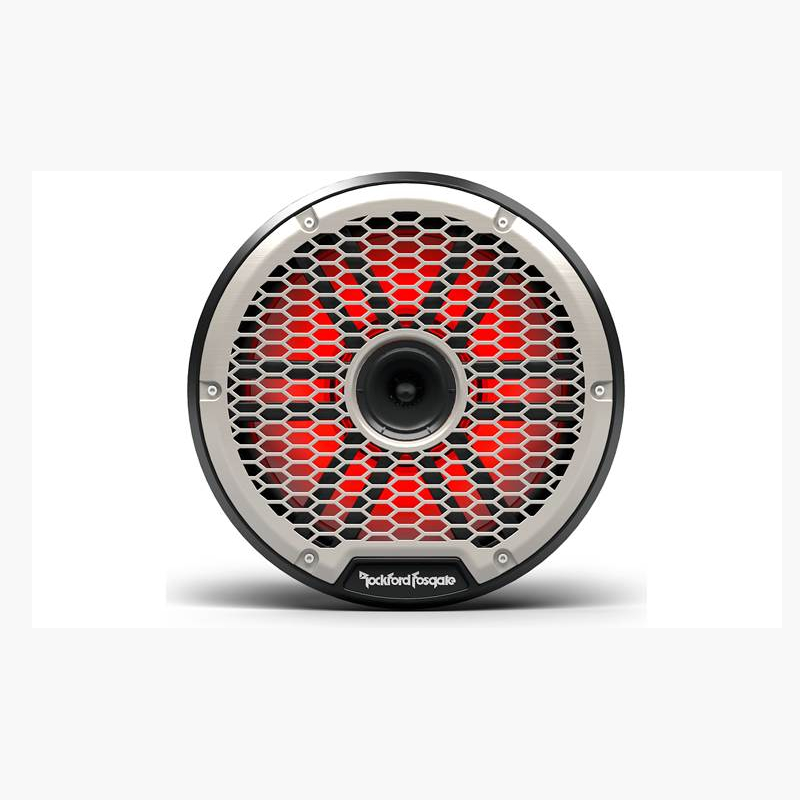

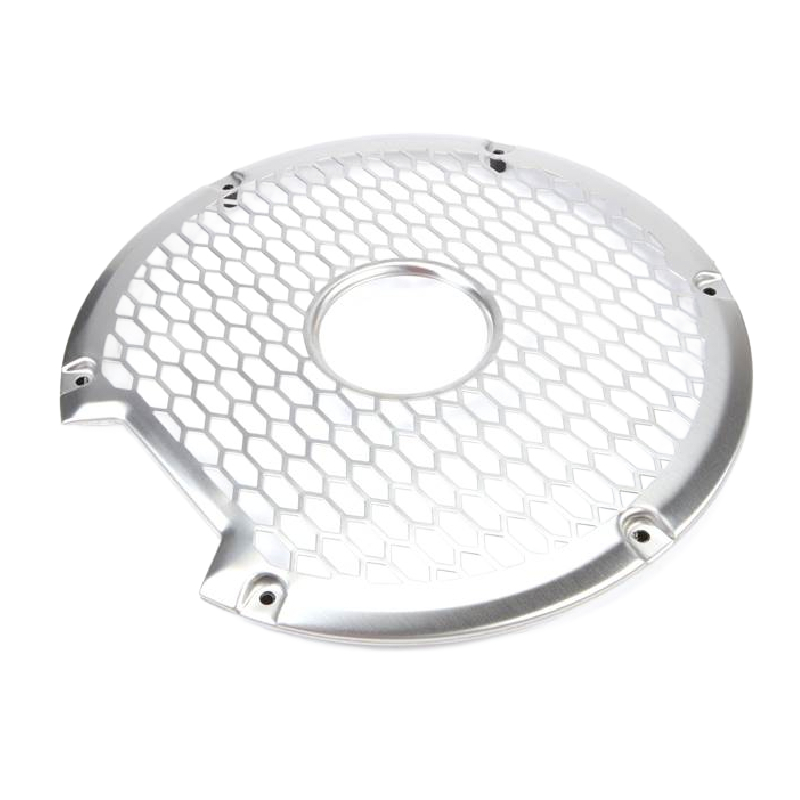

- • (2) Stainless steel grilles

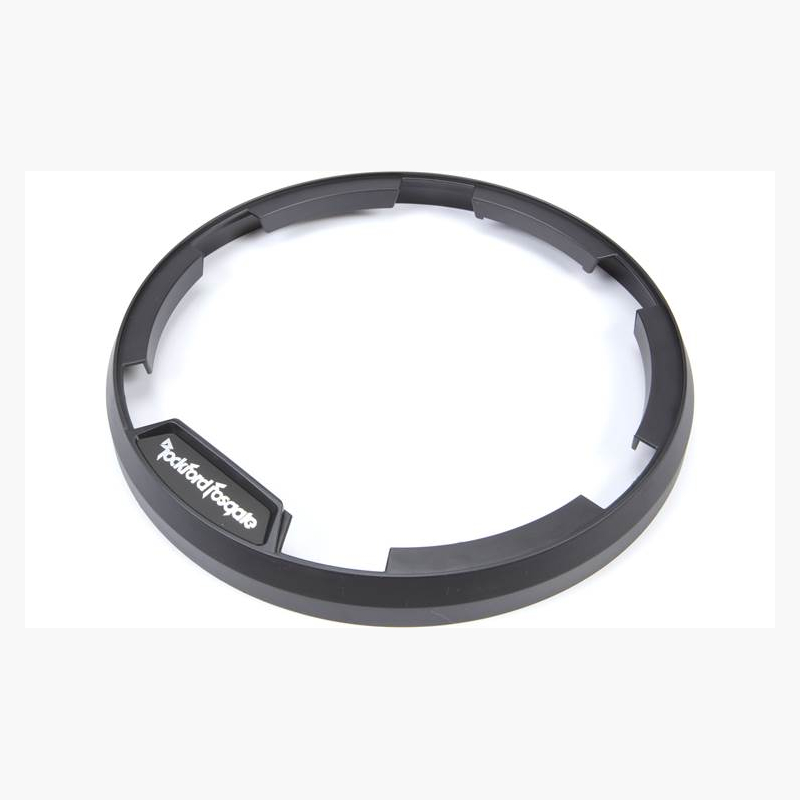

- • (2) Grille rings (White)

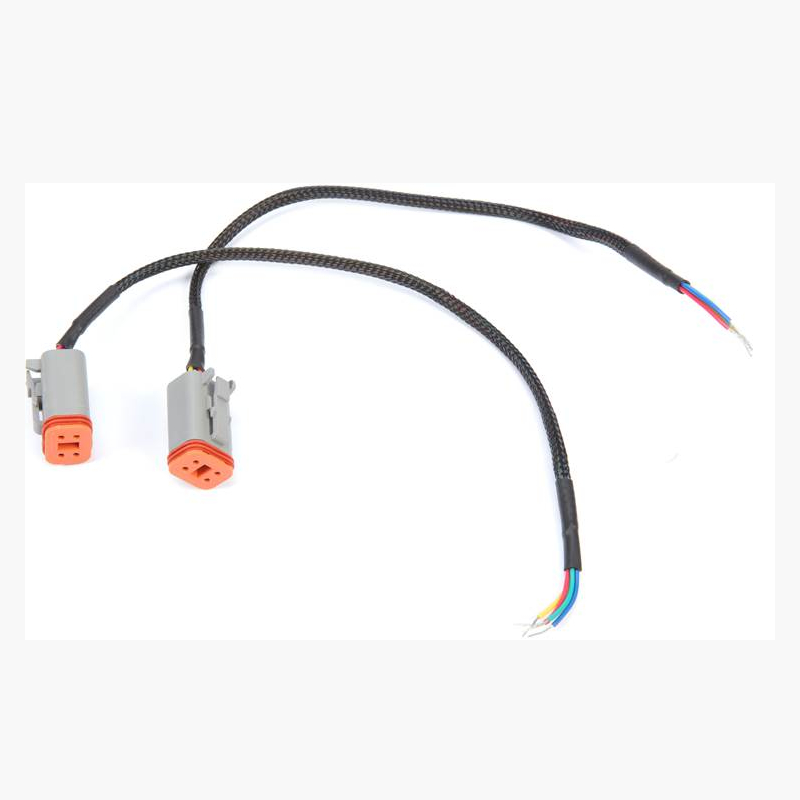

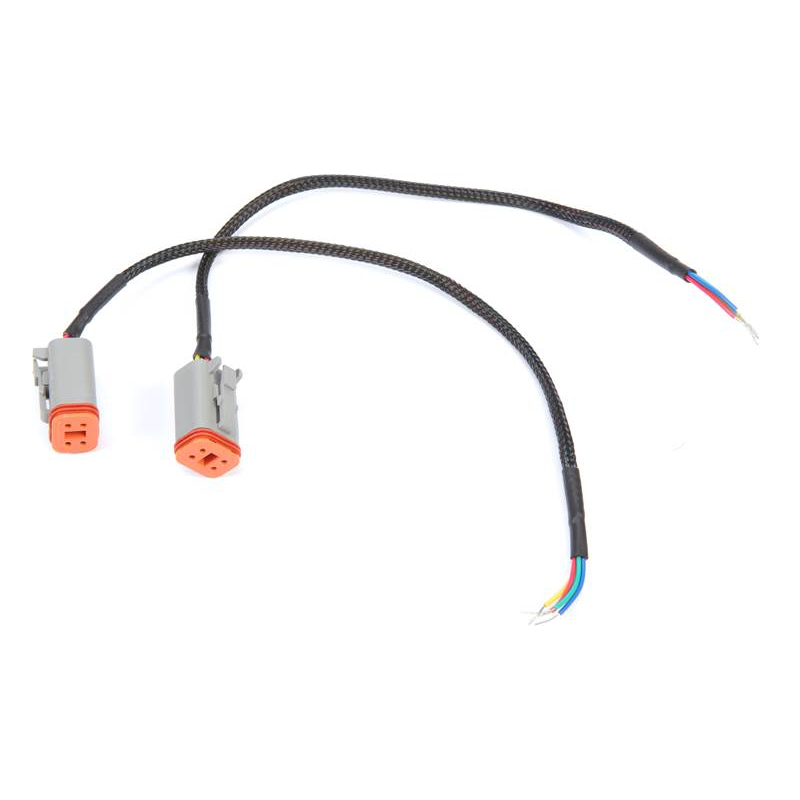

- • (2) 11" LED power harnesses with 4-pin Deutsch connectors on one end

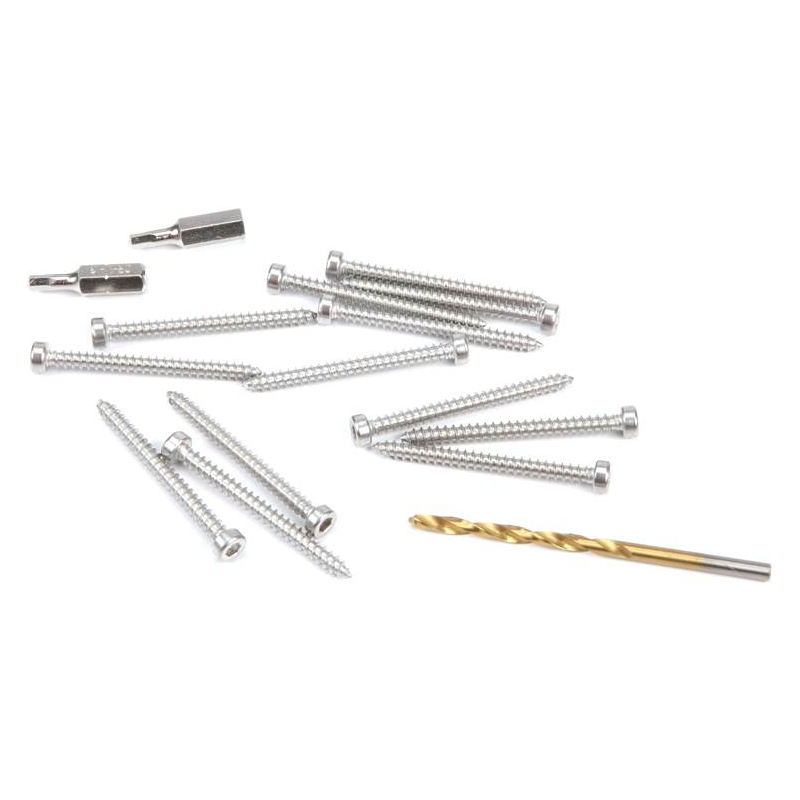

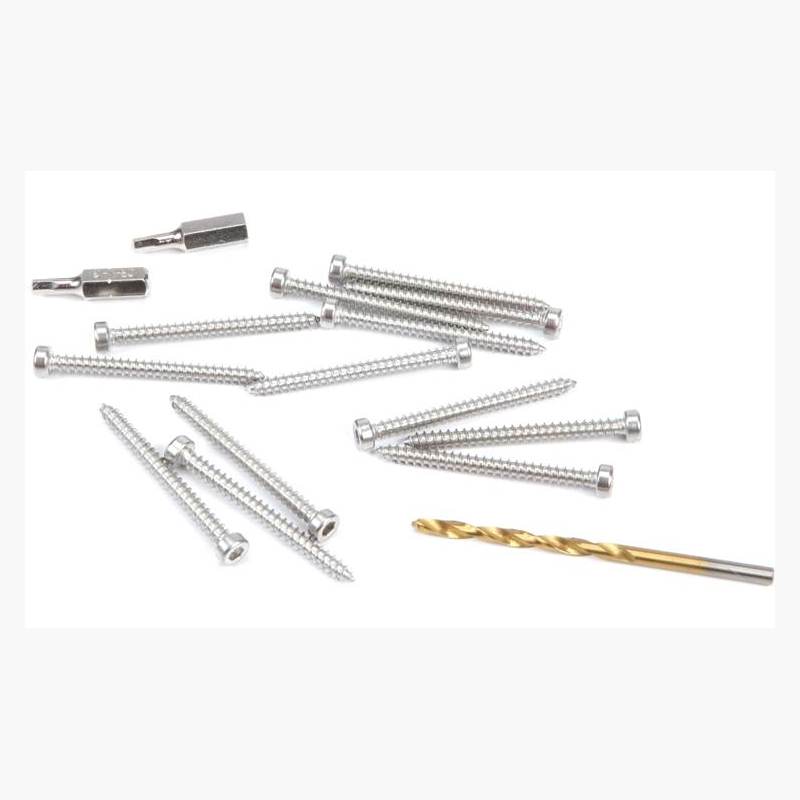

- • (12) 1-3/4" Stainless steel Allen head screws
- • (1) 3mm Allen head bit
- • (1) 3.5mm Drill bit
- • Owner's Manual
Why Choose Rockford Fosgate M2-10HB Marine Speakers?
Built for the Roughest Conditions Without Flinching
The Rockford Fosgate M2-10HB Coaxial Marine and Powersports Speaker is built for people who push their audio systems into extreme environments. Tested under ASTM B117 salt fog and ASTM G154 UV exposure standards, it is engineered to resist corrosion, sunlight damage, and long-term environmental stress. Whether you are on the water, in the mud, or out in direct sun all day, this speaker is designed to keep performing without compromise.
Big Cone Energy With Deep Controlled Bass
This large format speaker uses a mineral-filled polypropylene woofer that delivers strong rigidity and consistent cone movement for cleaner bass response. The UV and salt-resistant TPE surround keeps the cone stable and flexible even after long exposure to harsh conditions, helping maintain sound quality over time. With VAST surround technology expanding the effective cone area, you get more output and stronger low-frequency impact without increasing the overall size of the speaker.

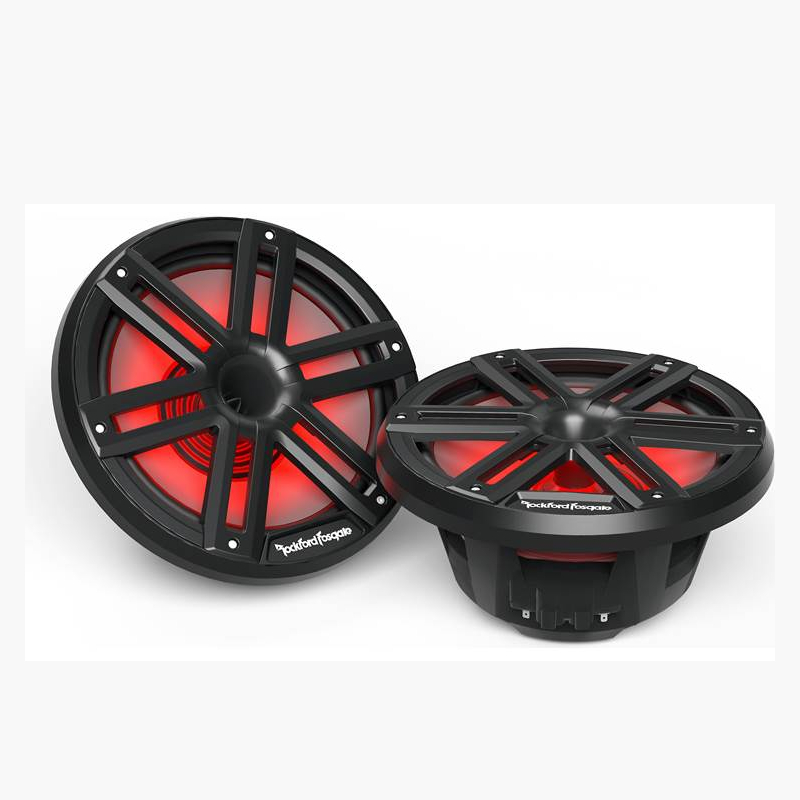

Light It Up With Custom Color Control

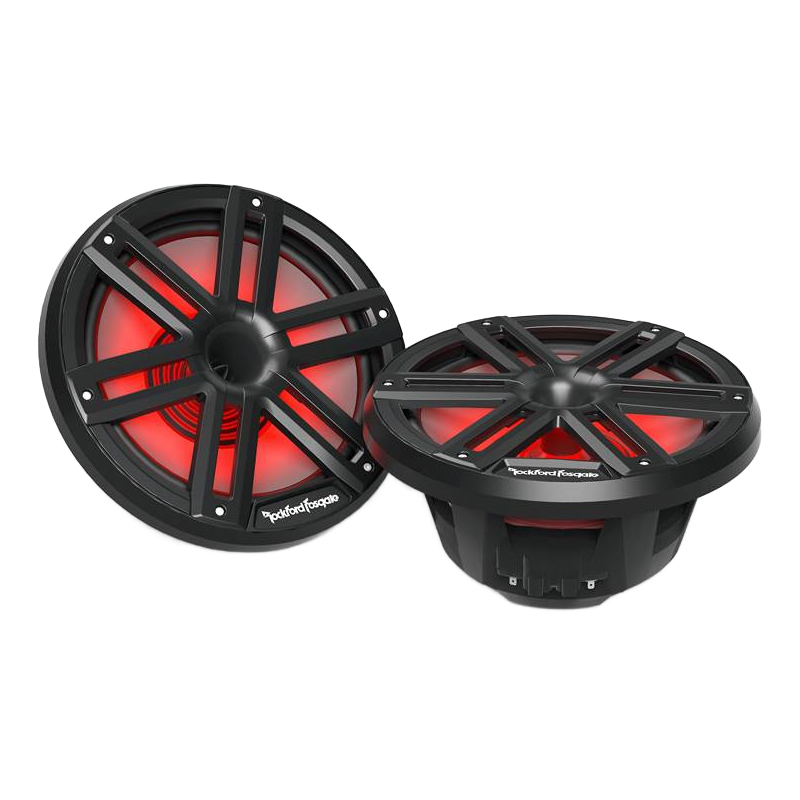

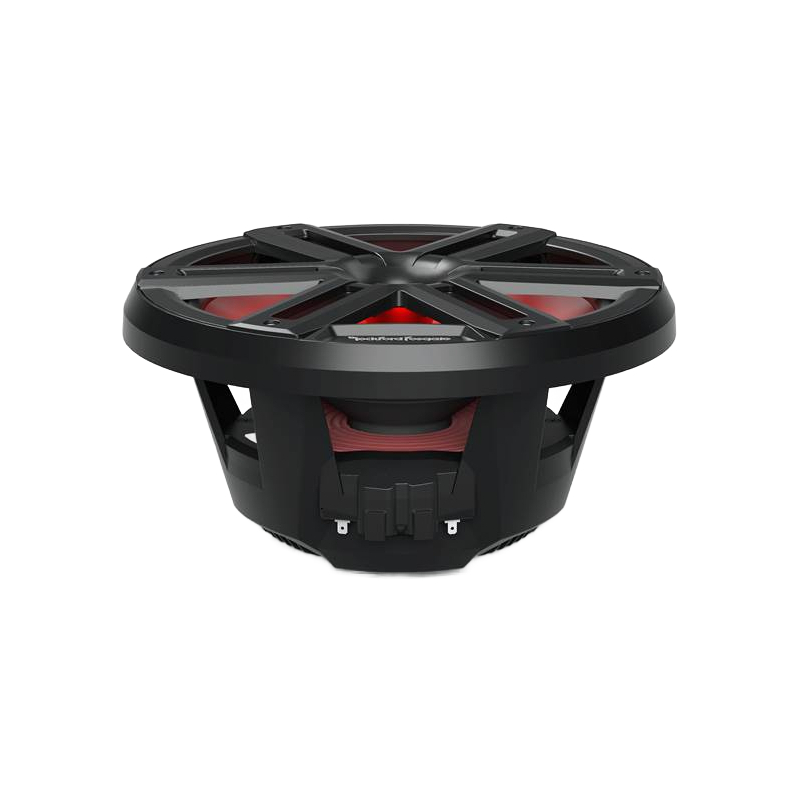

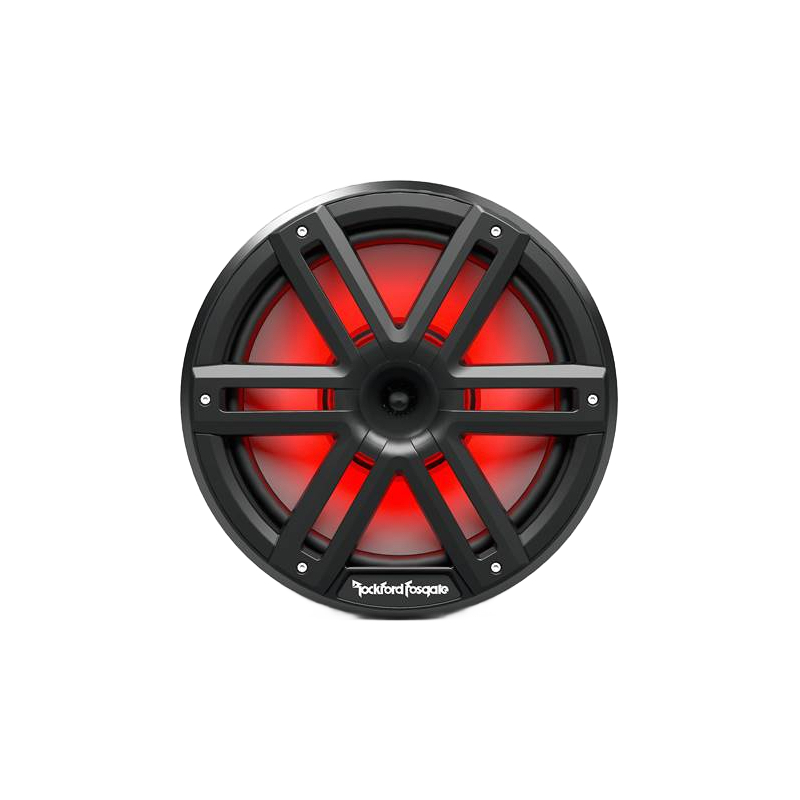

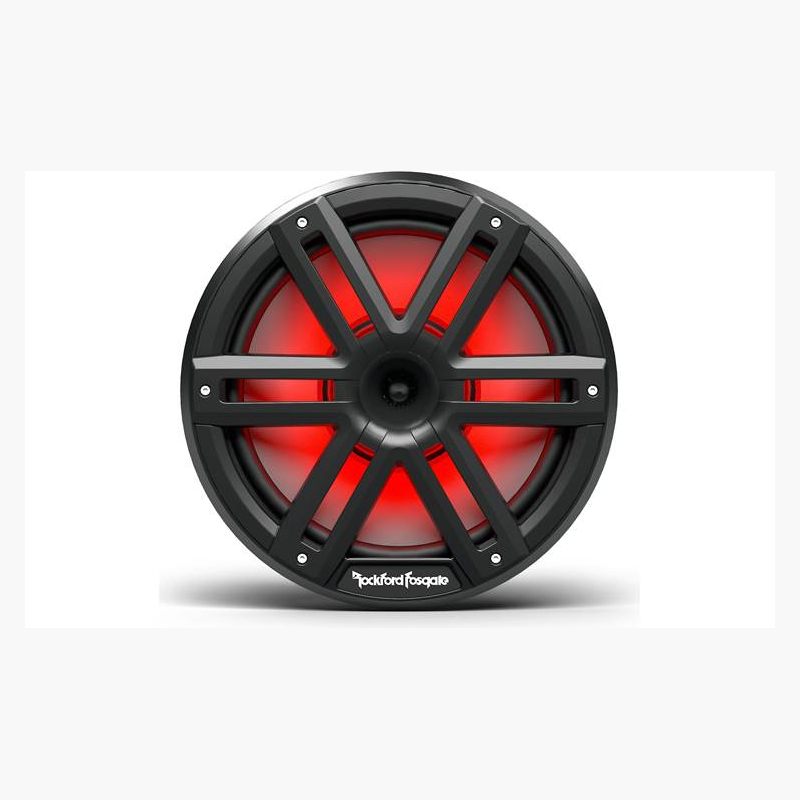

The M2-10HB is not just about sound, it also adds a visual punch with integrated RGB LED lighting that can be customized into multiple color combinations. You can run solid colors or blend tones like aqua, pink, yellow, or white depending on your setup and style. It is a simple way to turn your ride or marine system into something that looks as good as it sounds, especially at night.
Built for Clean Install and Long Term Reliability

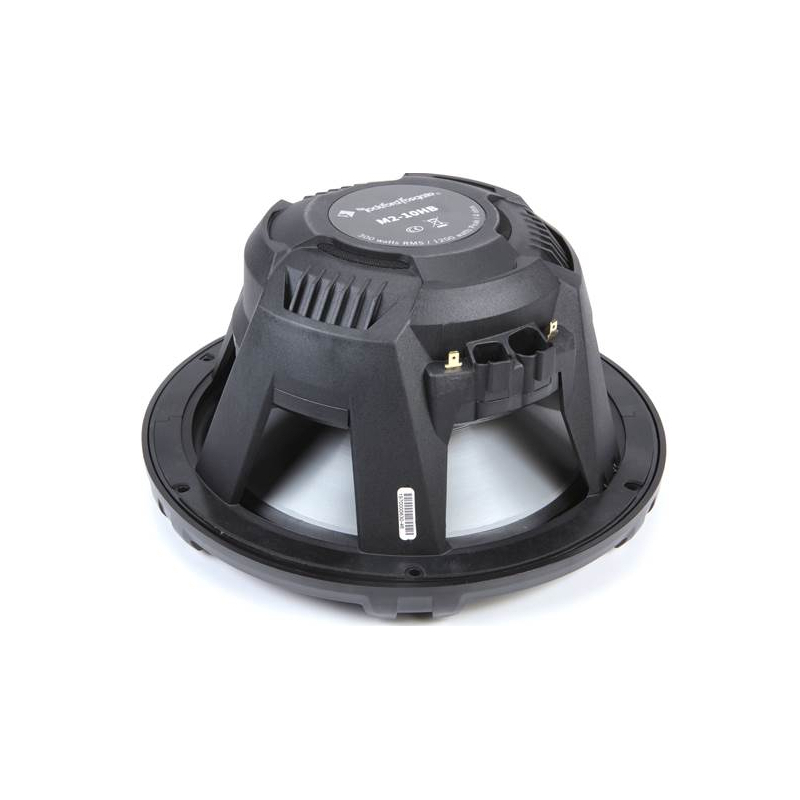

Installation is made easier with a dual interface terminal system that includes standard quick connects and waterproof Deutsch connectors for secure, corrosion-resistant wiring. Inside, a concealed ICC crossover with a 12 dB per octave design keeps things protected while maintaining a clean, factory-style look. Add in Klippel-verified tuning for precise sound accuracy and stainless steel mounting hardware for long-term durability, and you get a speaker that is built to hit hard, last long, and stay reliable in any environment you throw at it.
Frequently Asked Questions (FAQ)
- • Why does the bass sound weaker than expected?
Open-air marine installations provide less low-frequency reinforcement than enclosed spaces. Check speaker polarity, mounting, and amplifier power, and consider adding a dedicated subwoofer for deeper bass.
- • Why don't these fit my existing 10-inch speaker opening?
A nominal 10-inch size does not guarantee identical mounting dimensions. Measure the cutout, mounting depth, and screw pattern before installation to avoid unexpected modifications.
- • Can I install them in a wakeboard tower speaker pod?
Yes, provided the pod has enough space for the frame and approximately 4 inches of mounting depth. Confirm the cutout and mounting pattern before purchasing or drilling.
- • Why does the speaker distort when I turn up the volume?
Clipping, excessive gain, or an improperly matched amplifier can cause distortion. These speakers are rated for high power, but clean amplifier output and correct gain settings are still essential.
- • Why isn't the horn tweeter as loud as expected?
Check the amplifier output, crossover settings, polarity, and EQ. The integrated horn-loaded tweeter is designed for high output, but incorrect system settings can reduce its perceived level.
- • Why aren't the Color Optix lights turning on?
Check the RGB wiring, power connection, ground, connectors, and fuse. The lighting system operates separately from the speaker audio circuit and requires the appropriate 9–16V power connection.
- • Do I need a Color Optix controller for the speakers to work?
No. The speakers will operate normally without the lighting controller. The optional controller is used to manage and customize the integrated RGB lighting effects.
- • Why is one speaker louder than the other?
Check the source balance, amplifier channels, wiring, and speaker polarity. Swap the left and right connections to determine whether the problem follows the speaker or stays with the channel.
- • Why do the speakers vibrate or rattle after installation?
Loose mounting hardware or an uneven mounting surface can create vibration. Make sure the speaker is mounted securely and that the mounting surface is rigid and properly supported.
- • Can these handle a high-powered marine amplifier?
Yes. They are designed for high-power applications, but the amplifier should be matched carefully to the speakers' impedance and RMS rating. Proper gain adjustment helps prevent clipping and damage.
- Diameter : 10 Inch
- Sensitivity : 94 dB
- Impedance : 4 Ohm
- Frequency Response : 20-25000 Hz
- Peak Power Handling : 1200 Watts
- Color : Black
- RMS Power Handling : 300 Watts
Features:
- Extreme Duty Marine Certified High Output Coaxial Speaker System: The Rockford Fosgate M2-10HB is engineered for harsh marine and powersports environments, validated through ASTM B117 salt fog and ASTM G154 UV testing to ensure long term resistance to corrosion, UV exposure, and environmental stress.
- Large Format Mineral Filled Polypropylene Woofer Construction: Features injection molded polypropylene cones with mineral reinforcement and UV inhibitors, delivering rigid cone performance, consistent thickness, reduced distortion, and strong low frequency bass response.
- UV and Salt Resistant TPE Surround Engineering: Utilizes thermoplastic elastomer surrounds designed to withstand UV radiation and salt fog exposure while maintaining long term flexibility and acoustic stability in extreme conditions.
- Customizable Multi Color LED Illumination System: Includes integrated red, green, and blue LEDs with combinable wiring options that produce multiple color effects including yellow, pink, aqua, and white, with optional external controller compatibility for advanced lighting control.

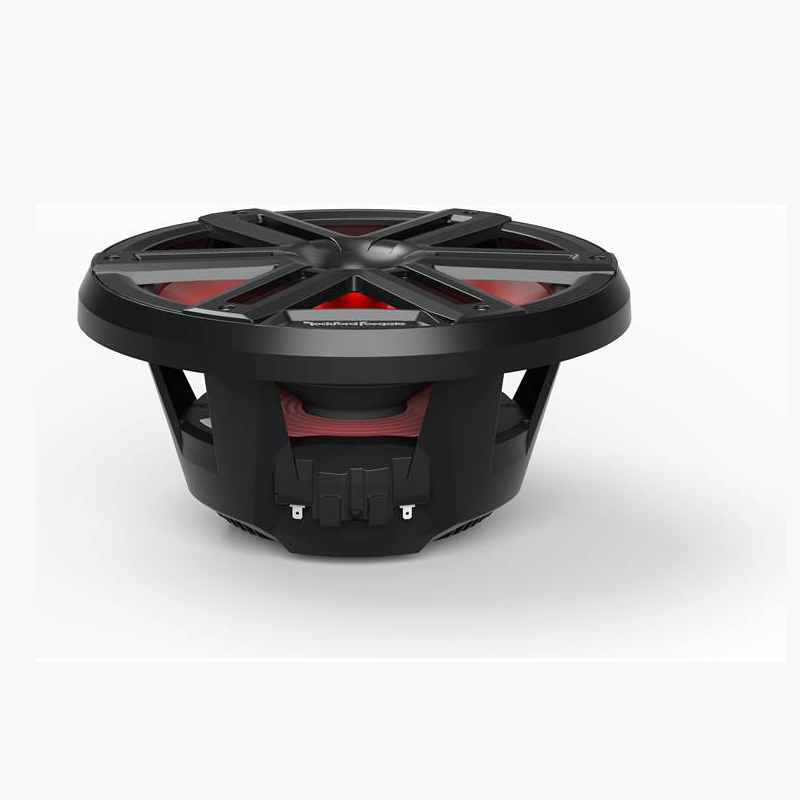

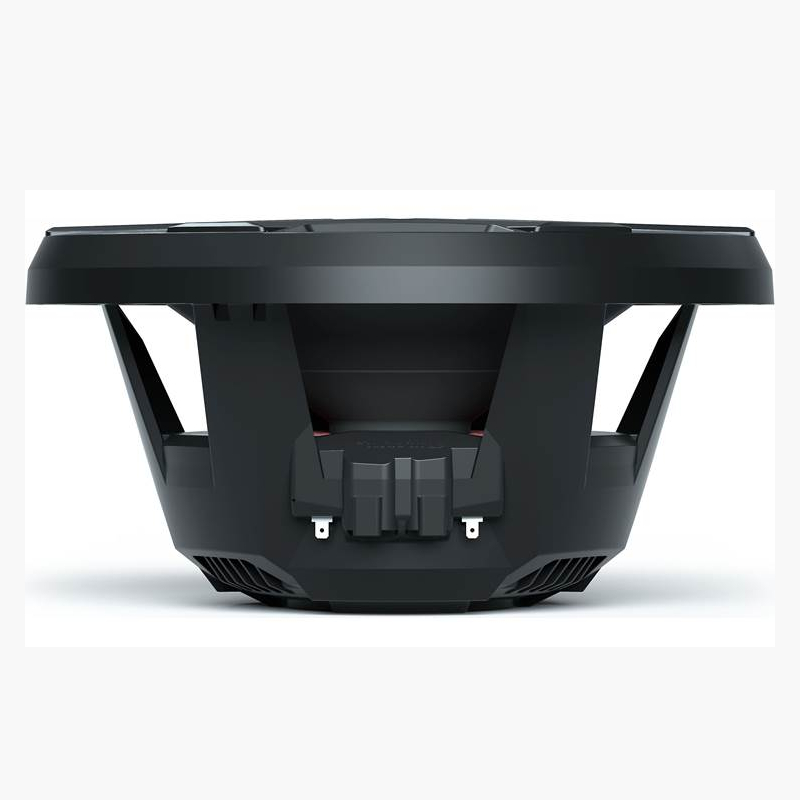

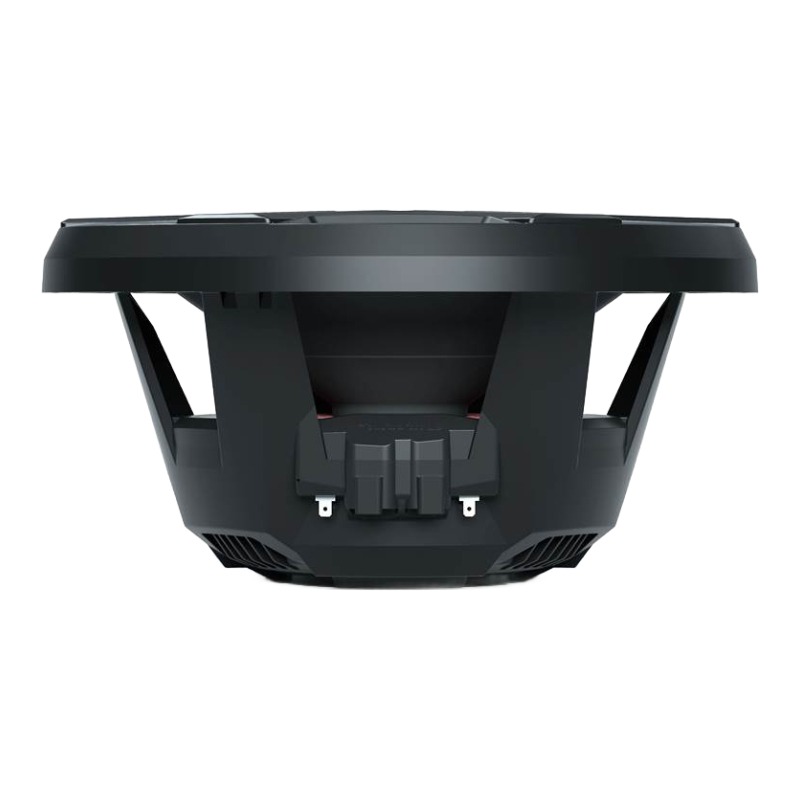

- Dual Interface Waterproof Speaker Terminal System: Equipped with standard quick connect terminals and 2 pin waterproof Deutsch connectors to provide secure, corrosion resistant wiring flexibility for marine and off road installations.
- Integrated ICC Concealed High Pass Crossover Design: Features a built in 12 dB per octave high pass crossover housed within the basket structure for simplified installation, improved protection, and a clean factory style appearance.
- Advanced VAST Surround Acoustic Expansion Technology: Uses Vertical Attach Surround Technique to increase effective radiating cone area without enlarging the basket, improving efficiency and overall acoustic output performance.
- Klippel Verified Precision Acoustic Engineering Optimization: Designed using laser based Klippel analysis technology to refine motor structure alignment, voice coil behavior, and suspension performance for reduced distortion and improved sound accuracy.
- Marine Grade Stainless Steel Mounting Hardware System: Built with corrosion resistant stainless steel hardware to ensure long term structural integrity and reliable performance in saltwater, moisture rich, and high vibration environments.
Specifications:
- Speaker Type: 2-Way
- Midrange Size (Nominal Diameter): 10"
- Power Handling (RMS)
- 300 Watts RMS
- 1200 Watts PEAK
- Nominal Impedance: 4-Ohms
- Midrange Mounting Depth: 4.66 in (118.4 mm)
- Tweeter Size: 1” (25.4 mm) High Efficiency Horn Tweeter
- Crossover: 12dB/Octave
- Sensitivity (dB @ 1w/1m): 94
- Sensitivity (dB @ 2.83V): 97
- Frequency Response: 20 Hz - 25 kHz
- In The Box
- 2) 4-pin Deutsch harness (1130-74637-01)
- 2) Stainless grills

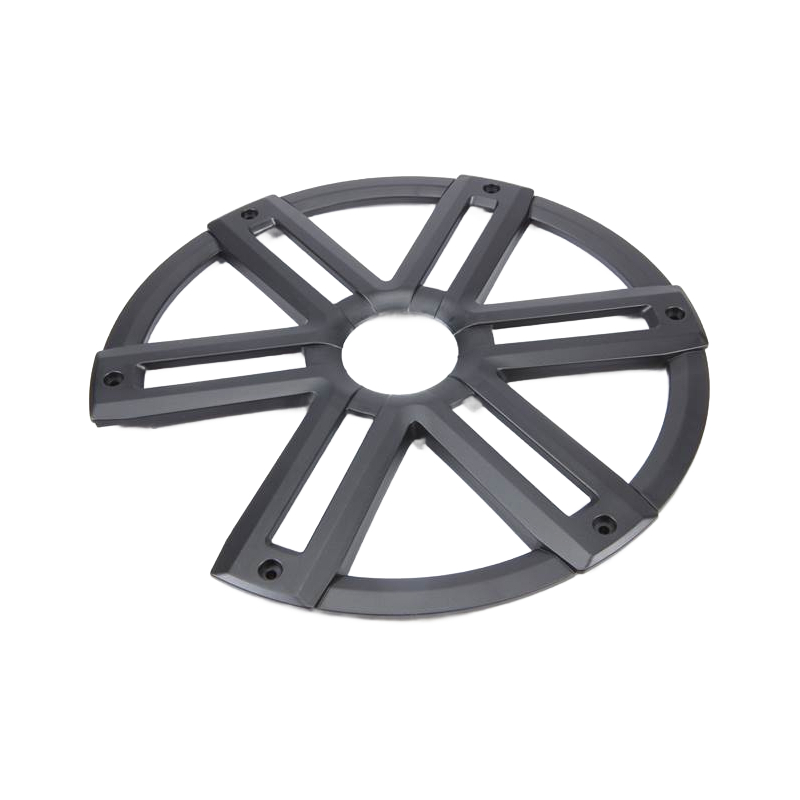

- 2) Black sport grills
- 2) Driver bits
- 1) Drill bit
- 12) Mounting screws
- Mounting Hardware: Yes
- Grille/Trim Ring Included: Yes
- UPC: 780687354343
- Weight: 11
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
