Rockford Fosgate RZR19RCPXP-STG4 Stage 4 Audio System for Select RZR Pro XP, Pro R, and Turbo R Models with Ride Command 2019 Up
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

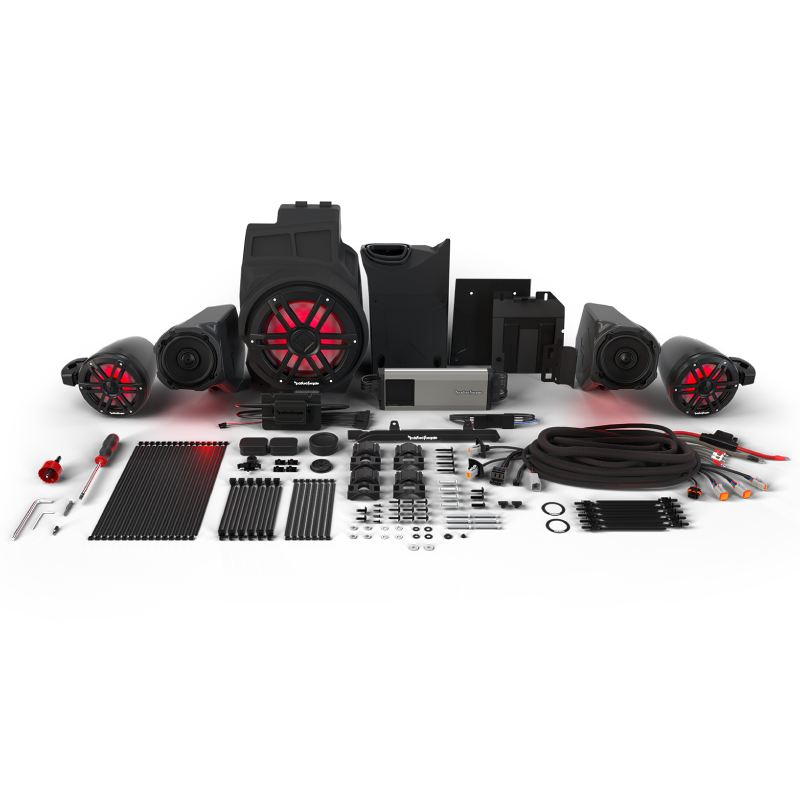

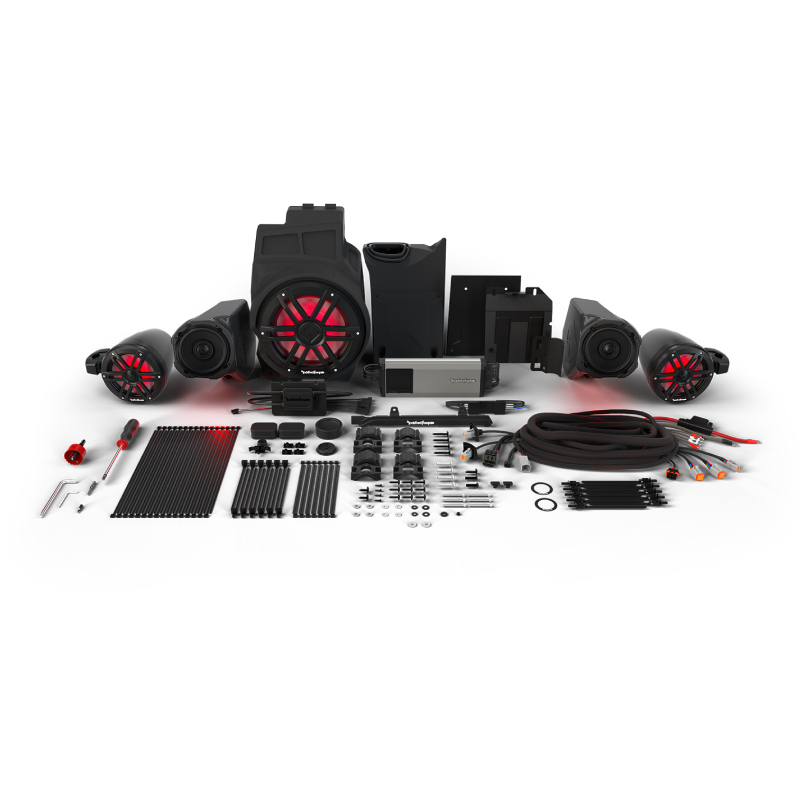

What's Inside?
•M5-1500X5:
- •5-Channel powersports amplifier attached to mounting bracket
- •11" Power/ground/turn-on & subwoofer output harness (installed)
- •11" Input harness (installed)
- •Amplifier power certificate
•RZR19PXP-FSE:
- •(2) enclosures loaded with 6.5" 2-way Color Optix speakers (attached 5" input/tweeter output harnesses)
- •(2) 16" tweeter harnesses with inline crossovers
- •(2) Rubber caps
- •Dash trim piece
- •Torx screwdriver
•RZR19PXP-RCA:
- •30" Ride Command active noise reduction interface
•PMX-RGB:
- •Color Optix Light controller mounted to bracket (attached 1.5' power/ground/RGB harnesses w/inline 2A ATO fuse)
•M1WL-65MB:
- •(2) M1 6.5" Color Optix moto-Can speakers w/installed sport grille
- •(2) Upper mounting brackets
- •(2) Lower mounting brackets
- •(4) 1.0" - 1.6" rubber shims w/mounting hardware (four 1-3/8" bolts / 4 flat washers / 4 lock washers)
- •(4) 1.6" - 2.0" rubber shims w/mounting hardware (four 1-3/4" bolts / 4 flat washers / 4 lock washers)
- •T-45 Torx wrench
• RZR19PXP-M1FWE:
- •M1D4-10B 10" DVC subwoofer with Color Optix grille
- •Subwoofer enclosure with attached internal 16" speaker harness
- •Add-on enclosure chamber
- •(3) Mounting brackets
- •Port plug
•RZR19PXP-K4:
- •Pre-configured 15' wiring harness with 4 AWG Power/ground wires and inline Maxi fuse holder
- •(2) 10" foam strips with 3M adhesive backing
- •(32) 14" Wire ties
- •(25) 8" wire ties
- •(10) 6" wire ties with push-fasteners
- •(12) 7" wire ties with clips
- •(1) rubber grommet
- •1.75" Hole saw with bit
•Hardware Pack:
- •(2) Moto-can terminal covers
- •Allen key
- •100A Maxi fuse
- •(1) Tube of grease
- •Amp mounting clamp with nut and washer
- •(9) 7/8" screws
- •(8) 3/4" screws
- •(2) 3/4" Torx screws
- •(4) Speed-clips
- •(4) 1-1/2" Torx bolts
- •(3) 25mm Torx bolts
- •(6) 60mm screws
- •(4) Flat-washers
- •(2) Lock-washers
- •Hex-head bit
- •Owner's Manual
Takes Entertainment to a New Level With Higher Performance
The Stage 4 is a 1,500 watt audio system for Ride Command® takes entertainment to a new level with higher performance, louder output, and greater clarity while retaining your GPS navigation. This complete waterproof solution provides the ability to take your UTV into any environment. The subwoofer enclosure – vented to provide maximum bass performance – offers the ability to seal the vent when submerging the vehicle.
Allows RGB Color Adjustment of Speakers

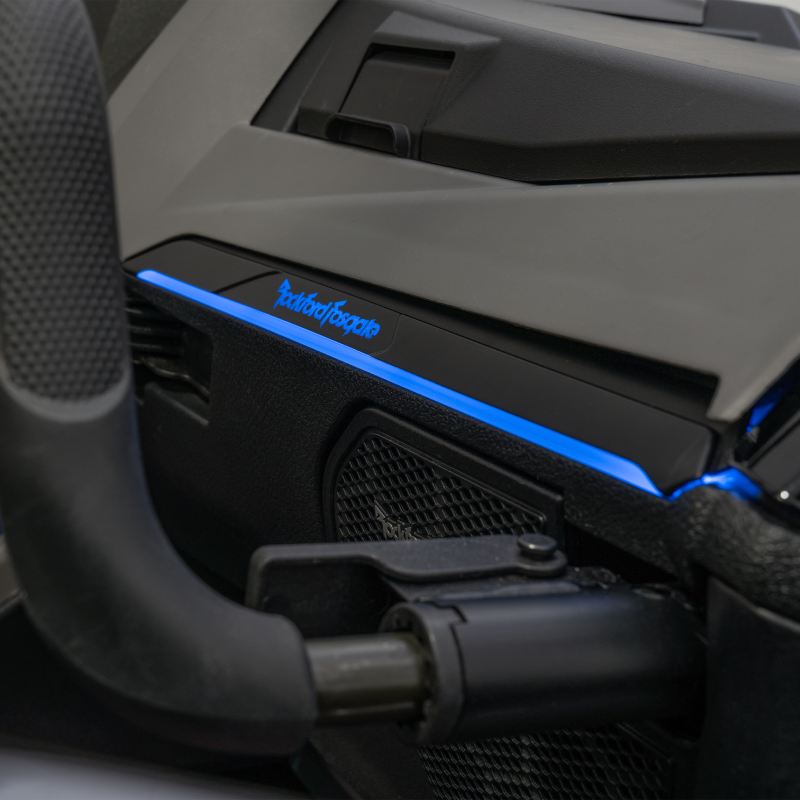

The plug-and-play design requires minimal cutting or drilling by using OEM mounting points and features an easy to set-up “Rockford Fosgate” preset to optimize performance. The Color Optix™ control allows RGB color adjustment of speakers and rear moto-cans in addition to a Rockford Fosgate illuminated logo for a finishing touch to the passenger dash.
Great Way to Up the Audio Performance
This Rockford Fosgate Stage 4 audio upgrade kit is a great way to up the audio performance on select Polaris RZR Pro XP models with Ride Command. With four speakers, a 5-channel amplifier, and a 10" subwoofer, this Color Optix™ enabled system really rocks. Each component is built for max performance and tough enough for trail duty, so you can crank it up without worrying about your stereo getting swamped. Rockford Fosgate designed this Element Ready™ package to fit right into your RZR Pro XP, with no cutting and no modification needed. It also comes with all the parts and pieces needed for a smooth, hassle-free installation.
Features:
- Plug-n-Play wiring harnesses for select RZR models
- Direct bolt into vehicle using OEM mounting holes. Minimal drilling required
- Element Ready™ to withstand the harsh outdoor environment
- Enclosures for speakers and/or subwoofer integrate with no loss of passenger space
- RZR19PXP-RCA: 3-way active noise reduction adaptor for select RZR® with Ride Command®
- RZR19PXP-FSE: 6.5" speaker in a front ported Color Optix™ enclosure for select RZR® models
- M1WL-65MB: M1 6.5" Element Ready™ Color Optix™ Moto-Can Speaker - Black
- M1D4-10B: M1 10" DVC 4Ω Element Ready™ Color Optix™ Subwoofer - Black
- RZR19PXP-M1FWE: M1 10" Element Ready™ subwoofer enclosure for select RZR® models
- M5-1500X5: 1500 Watt 5-Channel IPX6 Element Ready™ Amplifier
- RZR19PXP-K4: 4 AWG amp installation kit for select RZR® models
- PMX-RGB: Color Optix™ Light Controller with Optional App Interface
- Element Ready UTV system includes two sets of 6-1/2" speakers, a 5-channel amp, and a 10" subwoofer
- also includes front and rear speaker pods, sub enclosure, Color Optix controller, wiring, amp kit and mounting plate
Rockford Fosgate TMS6SG 6-1/2" 2-way marine speakers
- speakers preloaded into front enclosures
- built-in Color Optix lighting
- power handling up to 75 watts RMS (150 watts max)
- carbon-fiber reinforced polypropylene cone
- 1" dome tweeter
- warranty: 2 years
Rockford Fosgate M1WL-65MB 6-1/2" roll bar speakers
- power handling: 75 watts RMS (300 watts peak power)
- 360° rotational mounting capability for unlimited flexibility
- high-density sealed polyethylene enclosures with stainless steel grilles
- warranty: 2 years
Rockford Fosgate M1D4-10B 10" marine subwoofer
- handles up to 300 watts RMS (1200 watts peak)
- sensitivity: 91.5 dB
- impedance: 2 ohms (dual 4-ohm voice coils)
- integrated Deutsch/Amphenol connectors for easier wiring connections
- injection-molded frame with UV inhibitors
- warranty: 2 years
Rockford Fosgate M5-1500X5 5-channel amp
- 100 watts RMS x 4 + 600 watts x 1 at 2 ohms
- 100 watts RMS x 4 + 400 watts x 1 at 4 ohms
- conformal-coated circuit board — suitable for power sports and marine applications
- top-mounted control panel with waterproof smoked lens
- warranty: 2 years
Specifications:
- Speaker Qty: 5
- Amplifier Type: External
- Total Power: 1,500 Watts
- Mounting Hardware: Yes
- Grille/Trim Ring Included: Yes
- UPC: 780687361761
- Weight: 92
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
