Rockford Fosgate  RZR14-STG4

Stage-4 Audio System for Select 2014-Up Polaris RZR Models (Gen-3)

Item #91070

Condition:   Brand New

Product Highlights

  • Stage-4 Audio System
  • For Select 2014-Up Polaris RZR Models (Gen-3)

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

$2,649.99

Reg. Price $2,749.99  Save $100.00
Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping.
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Rockford Fosgate Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Rockford Fosgate Banner

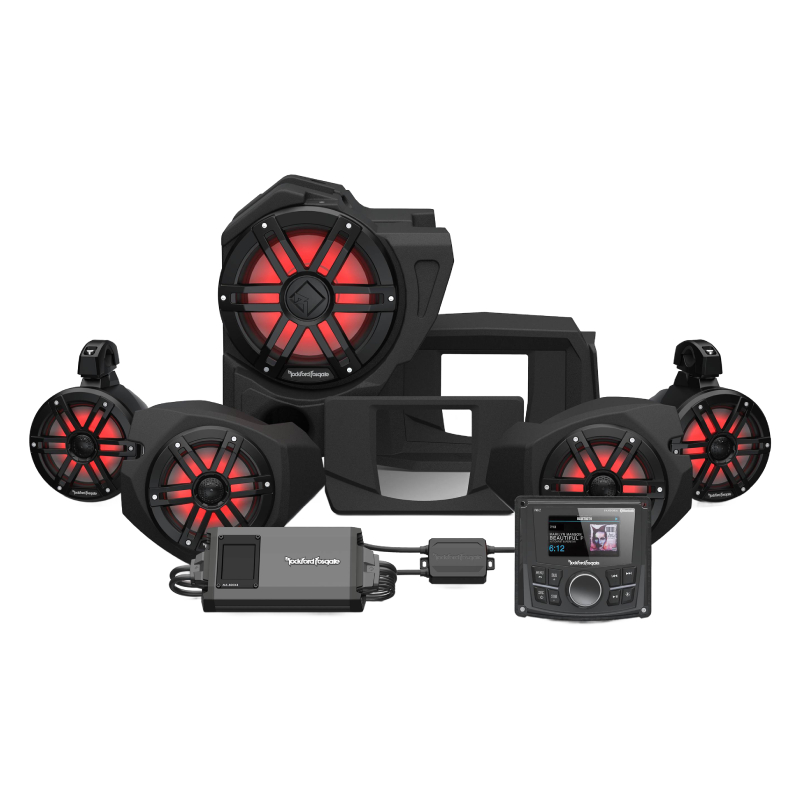

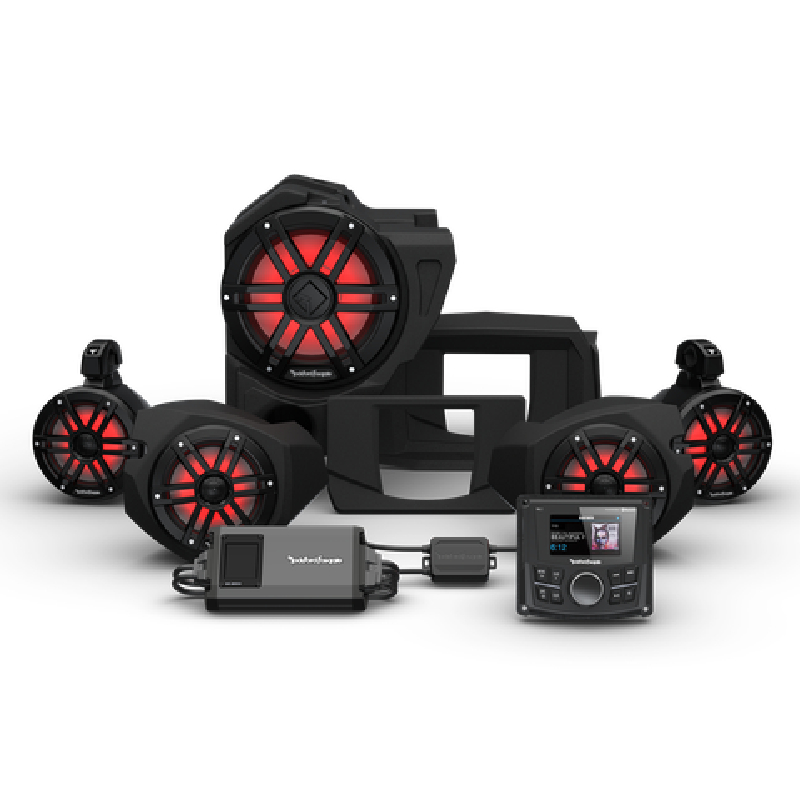

Rockford Fosgate RZR14-STG4 Stage-4 Audio System for Select 2014-Up Polaris RZR Models (Gen-3)


We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

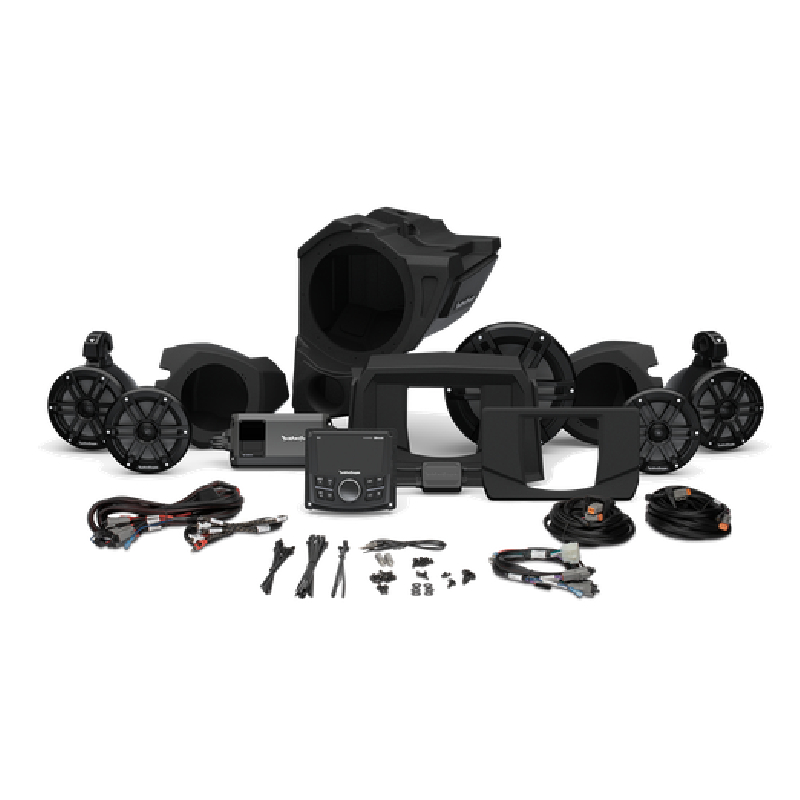

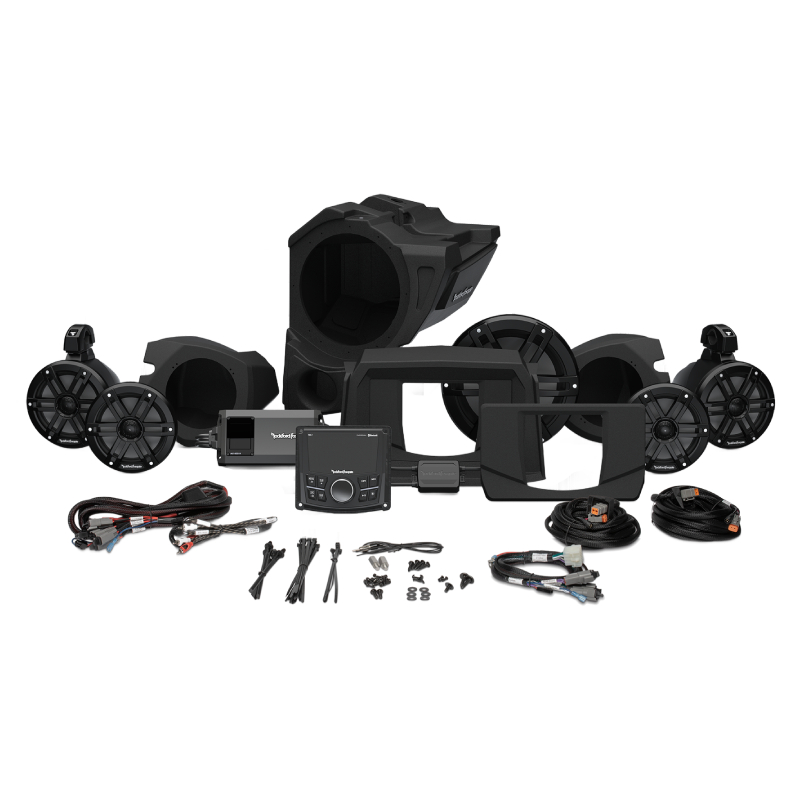

What's Inside?
  • • PMX-2 Compact AM/FM/WB Digital Media Receiver
  • • RZR14-DK Upper/Lower Dash Kit
  • • (2) RZR14-FSE Color Optix™ 6.5" Front Loaded Speaker Enclosures
  • • (2) M1-65B M1 6.5” Color Optix™ Marine 2-Way Speakers - Black
  • • M5-800X4 4-channel IPX6 Element Ready™ amplifier
  • • RZR14-FWE Color Optix™ 10" Front Loaded Subwoofer Enclosure
  • • M1D2-10B M1 10" DVC 2Ω Element Ready™ Color Optix™ Subwoofer - Black
  • • RZR14-K8 8 AWG Amp Installation Kit
  • • (2) M1WL-65MB M1 6.5" Element Ready™ Color Optix™ Moto-Can Speaker - Black
  • • RZR14-RSW16 Rear Color Optix™ Speaker Add-On Harness
  • • PMX-RGB Color Optix™ speaker color controllable
  • • Owner's Manual

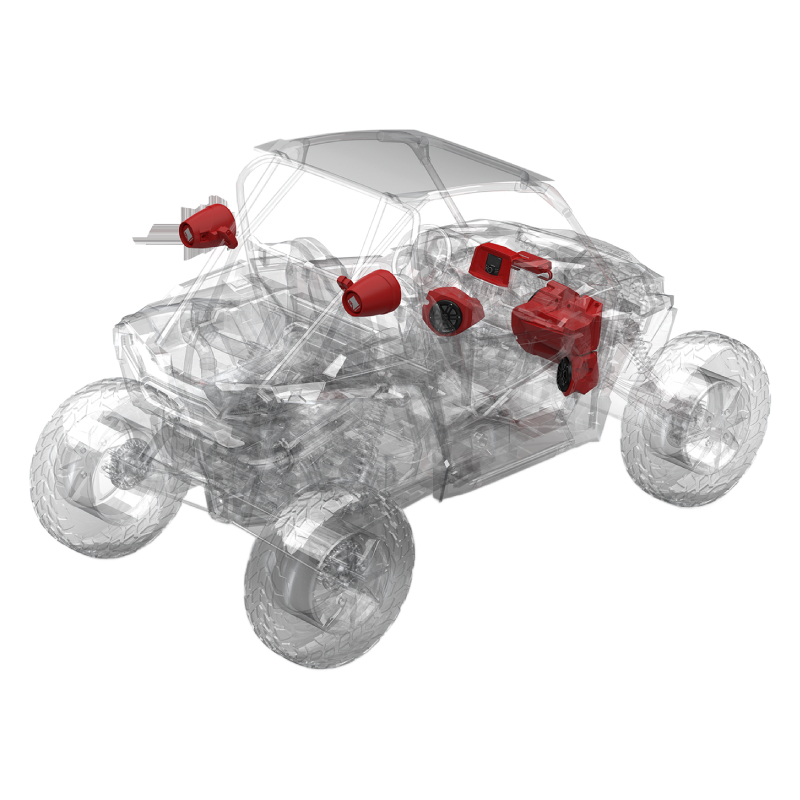

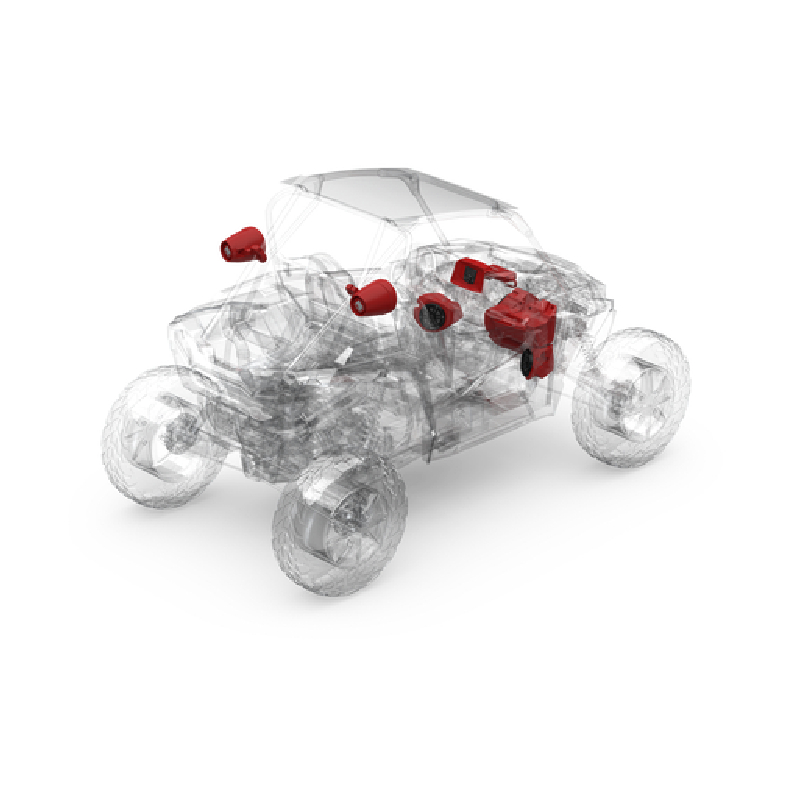

All-in-One Trail Dominator Audio Upgrade

The Rockford Fosgate RZR14-STG4 is built for riders who want a full factory-integrated audio transformation that turns every trail into a live concert. This Stage-4 system is designed specifically for select Polaris RZR models, giving you a complete high-output setup that feels like it was built into the machine from day one. At the center is the advanced PMX-2 marine-certified source unit, fully sealed and IPX-rated to handle dust, water, vibration, and brutal off-road conditions while still giving you smooth, reliable control over your entire system. It is tough, responsive, and made to survive wherever you take your RZR.

Full Surround Sound Built for Open-Air Chaos

This setup goes big with a complete multi-speaker configuration that delivers sound from every direction. You get front and rear M1-series 6.5-inch speakers paired with Moto-Can enclosures for strong midrange clarity and wide sound coverage, plus a dedicated 10-inch subwoofer system that brings deep, powerful bass you can actually feel while riding. The subwoofer uses a switchable impedance design so you can dial in the low-end response depending on how hard you want it to hit. Everything works together to create a balanced, immersive soundstage that stays clear even when the terrain gets loud.





Power, Control, and Color That Hits Different

Driving all that sound is a high-performance 4-channel M5 amplifier built with Class-AD efficiency for clean, distortion-free output even under heavy load. The system also gives you full control through the PMX-2 interface, including Bluetooth streaming, USB playback, Apple device support, Pandora integration, multi-zone EQ tuning, and adjustable crossover settings so you can fine-tune every part of your audio. On top of that, the Color Optix RGB lighting system lets you customize speaker and subwoofer lighting through the PMX-RGB controller and RF Connect app, adding a full visual experience that moves with your music.

Built Rugged, Installed Easy, Tuned Like a Pro

Every part of the RZR14-STG4 is engineered for real off-road punishment, using Element Ready speaker construction with UV-resistant materials, sealed housings, stainless hardware, and IPX-rated protection against mud, water, dust, and vibration. Inside the system, LCP dome tweeters, VAST surround technology, ICC hidden crossovers, and Klippel-verified motor structures work together to keep your sound sharp, efficient, and low on distortion. Installation stays simple thanks to plug-and-play wiring with pre-terminated Molex and Deutsch connectors plus model-specific mounting kits, so you get a clean factory-style fit without complicated modifications.




Frequently Asked Questions (FAQ)


  • • Why does my RZR need different dash parts depending on its year?
    Older 2014–2018 RZR models use a specific lower pocket assembly with the dash kit, while the amplifier also uses a different mounting bracket. Using the wrong pieces can make the receiver or amplifier appear impossible to mount correctly.
  • • Why won't the subwoofer fit when my RZR has a factory heater?
    The front 10-inch subwoofer enclosure occupies the area where the Polaris under-dash heater is installed. Because of this physical conflict, RZR models equipped with the factory heater are not compatible with the subwoofer version of the Stage 4 system.
  • • Why is my RZR not compatible even though it is an XP 1000?
    The RZR14-STG4 supports specific RZR generations and configurations rather than every XP 1000 ever produced. Changes in chassis, trim, factory equipment, and newer platforms can affect compatibility, so the exact model should be checked before purchasing.
  • • Why does the installation require removing so many panels?
    This is a complete system containing the receiver, dash kit, front speakers, rear Moto-Can speakers, amplifier, subwoofer, RGB controller, and wiring. Rockford's installation procedure includes seat removal, dashboard disassembly, speaker wiring, subwoofer mounting, amplifier installation, lighting connections, testing, and reassembly.
  • • Why do my rear Moto-Can speakers seem difficult to mount?
    The rear speakers use vehicle-specific mounting hardware and clamps, but accessories around the roll cage can interfere with their intended position. A rear tire or snorkel can also affect Moto-Can placement on certain RZR configurations.
  • • Why does the system turn on but produce no audio?
    Rockford Fosgate notes that products returned for failure are often found to have no actual fault, with incorrect installation being a common cause. If the receiver powers up without sound, recheck the amplifier power, speaker harnesses, source connections, and signal wiring before assuming a component is defective.
  • • Why isn't the bass as strong as I expected from the 10-inch subwoofer?
    The Stage 4 combines a 10-inch DVC subwoofer with an 800-watt four-channel amplifier, but bass performance still depends on correct wiring, enclosure installation, signal settings, and power connections. A loose connection or incorrect configuration can make a capable subwoofer sound noticeably weaker.
  • • Why are my Color Optix lights not working even though the speakers play music?
    The audio and RGB illumination use separate connections. The system includes a PMX-RGB controller, so a speaker can operate normally while the lighting remains inactive if the RGB wiring or controller connection is incorrect.
  • • Do I have to cut or drill my RZR to install the Stage 4 system?
    For compatible applications, the system is designed around vehicle-specific enclosures, mounting hardware, and plug-and-play harnesses, with no cutting or drilling normally required. Correct fitment and the proper year-specific dash components are still important for achieving that installation.
  • • Is the RZR14-STG4 powerful enough for riding with the engine running?
    The package uses an 800-watt four-channel amplifier, four 6.5-inch speakers, rear Moto-Can speakers, and a dedicated 10-inch subwoofer. It is designed as a complete high-output powersports system, although engine, wind, and trail noise can make any audio system seem less powerful while the vehicle is moving.

SPECIFICATIONS



FEATURES


Features:

  • Ultimate Factory-Integrated Off-Road Audio Command System: The Rockford Fosgate RZR14-STG4 is a fully engineered, all-in-one audio upgrade designed for select Polaris RZR models, combining high-output amplification, premium marine speakers, and advanced headunit control for extreme trail performance.
  • Complete Multi-Speaker Stage-4 Configuration: Features a full-system layout with front and rear M1-series 6.5" speakers, Moto-Can speaker enclosures, and a dedicated 10" subwoofer system for deep, balanced, and immersive full-range sound.
  • Advanced PMX-2 Marine-Certified Source Unit: Includes a fully sealed, UV-resistant, IPX-rated digital media receiver engineered to withstand dust, vibration, water exposure, and extreme temperature environments.
  • High-Performance 4-Channel M5 Amplification System: Integrated amplifier delivers high-efficiency power output with Class-AD architecture, CLEAN setup calibration, and optimized gain control for distortion-free performance under load.
  • Dedicated 10" Subwoofer Bass Architecture: Features a high-output subwoofer system with switchable impedance design, delivering deep low-frequency response tailored for off-road environments.
  • Element Ready Speaker Engineering Across All Zones: M1-series and Moto-Can speakers are built with UV-resistant materials, sealed housings, stainless hardware, and IPX-rated protection for dust, water, mud, and vibration resistance.
  • Color Optix RGB Lighting Ecosystem: Integrated LED lighting across speakers and subwoofer allows full-color customization via PMX-RGB controller and RF Connect app for synchronized visual audio styling.
  • Precision Acoustic Technologies for High-Fidelity Output: Utilizes LCP dome tweeters, VAST surround design, ICC hidden crossovers, and Klippel-verified motor systems for improved clarity, efficiency, and reduced distortion.
  • Plug-and-Play Vehicle Integration Harness System: Includes pre-terminated Molex and Deutsch connectors with model-specific wiring kits and dash mounts for direct factory-fit installation without complex modification.
  • Fully Configurable Digital Audio Control Interface: PMX-2 supports Bluetooth streaming, USB media, Apple device integration, Pandora support, multi-zone EQ control, and adjustable crossover settings for complete system tuning flexibility.



Specifications:

PMX-2

  • Marine digital media receiver with AM/FM/WB tuner (does not play CDs)
  • Built-in amplifier (25 watts RMS/50 peak x 4 channels)
  • Works with Apple and Android smartphones
  • Built-in Bluetooth for music streaming (will not make calls)
  • USB port and aux input



M1-65B 6-1/2" 2-Way Front Speakers

  • Color Optix-compatible
  • Marine-rated speakers pre-loaded in custom-fit enclosures
  • Power handling up to 75 watts RMS (150 watts peak)
  • Salt-, fog-, and UV-resistant Santoprene rubber surround
  • Integrated 1" dome tweeter



M1WL-65MB 6-1/2" Roll Bar Speakers

  • Same great sound and features as the front speakers
  • 360° rotational mounting capability for unlimited flexibility
  • High density poly-ethylene enclosure with UV inhibitors



M1D2-10B 10" Marine Subwoofer w/ Enclosure

  • Power handling: 300 watts RMS (1200 watts peak)
  • Rugged, UV-stable injection-molded plastic construction
  • Dual 2-ohm voice coils
  • Durable Santoprene rubber surround



M5-800X4 4-Channel Amplifier

  • 100 watts RMS x 4 at 2 or 4 ohms (400 watts peak)
  • 200 watts RMS x 2 at 4 ohms in bridged mode
  • Variable low- and high-pass filters (50-250 Hz at 12 dB/octave)
  • Front and rear tone controls (45 Hz, 12,500 Hz)
  • UPC: 780687355142
  • Weight: 69
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
