Rockford Fosgate RNGR18-STG5 2018+ Ranger Stage-5 Audio System (Gen-2)
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

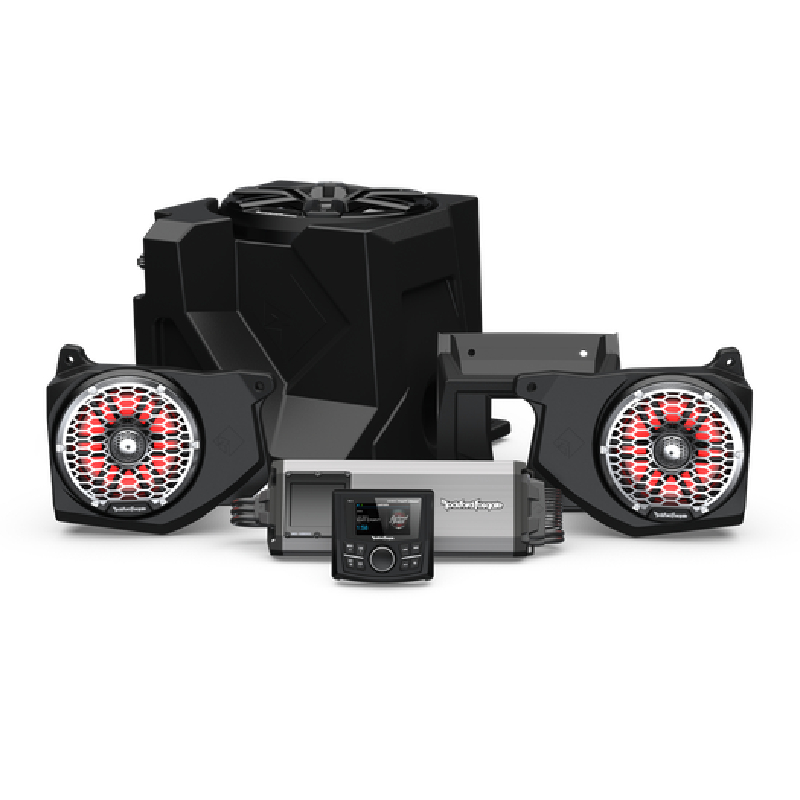

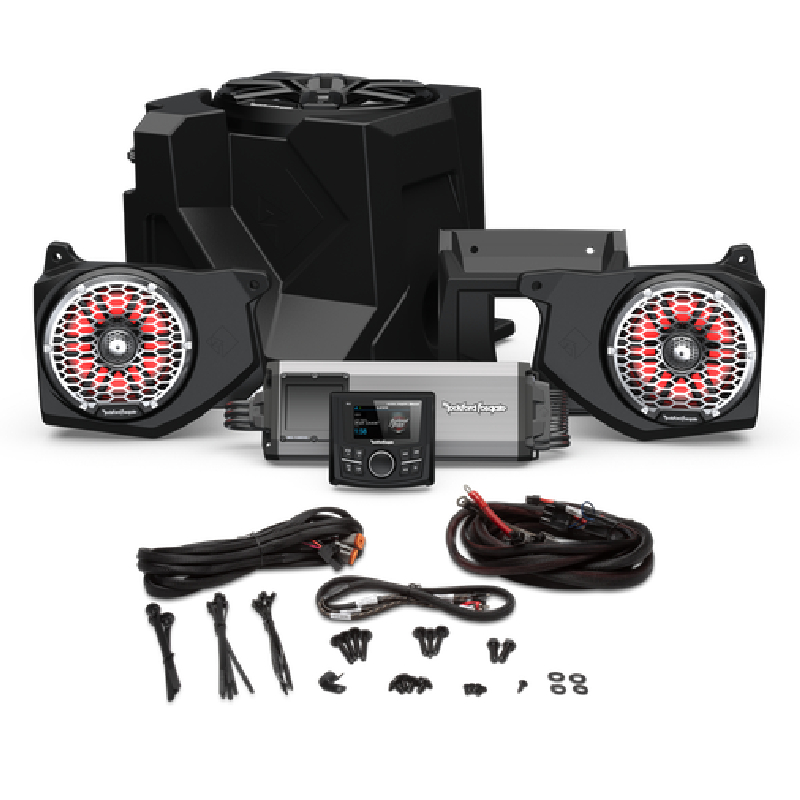

What's Inside?
- • (1 ea) PMX-3
- • (1 ea) RNGR18-DK
- • (1 pr) RNGR18-FSE
- • (1 pr) M2-65B
- • (1 ea) M5-1500X5
- • (1 ea) RNGR18-FWE
- • (1 ea) M2D4-10IB
- • (1 ea) RNGR18-K4
- • (1 ea) PMX-RGB
- • Owner's Manual
Element Ready™
Purpose built for the off-road environment, Rockford’s Element Ready™ products are built to stand up to water, dirt, mud and UV rays, making sure all your audio components perform regardless of the conditions.

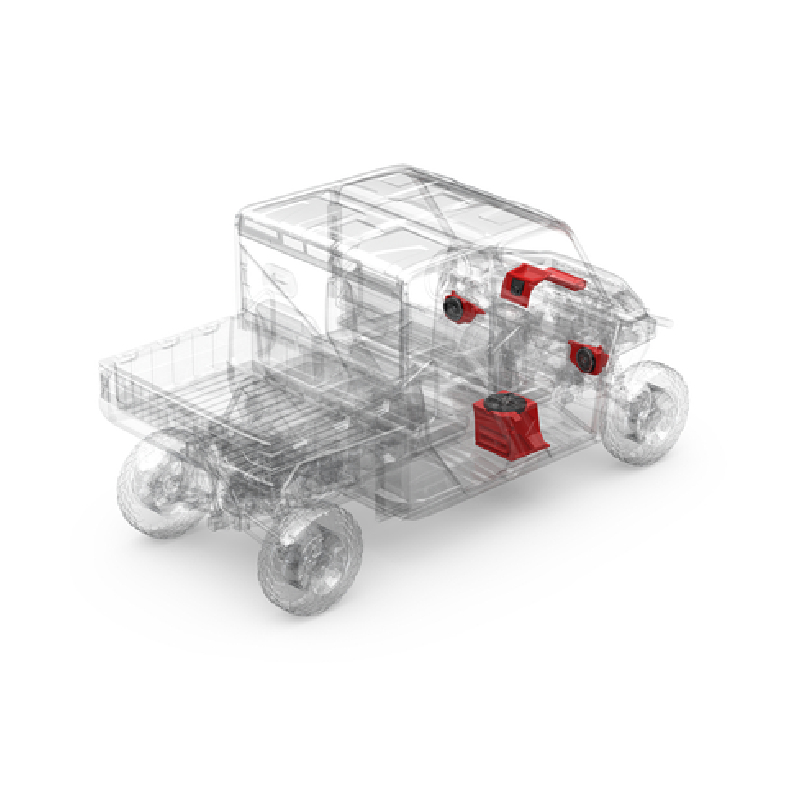

Stage-5 Audio System Kit
Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
Color Optix™
Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App.
Easy to Install
Minimal drilling, no cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.
Frequently Asked Questions (FAQ)
- • Why doesn’t the RNGR18-STG5 fit my Ranger even though it is a 2018 model?
The kit is designed for select full-size Ranger XP models, not every Ranger built in 2018. Non-XP models and certain configurations can have different mounting and dash layouts, so exact model verification is important before ordering.
- • Do I need Ride Command to use this Stage 5 package?
Not for the standard RNGR18-STG5 configuration. Rockford Fosgate also offers a separate RNGR18RC-STG5 version specifically for Rangers equipped with Polaris Ride Command, so choosing the correct version is essential.
- • Why is the installation more complicated than a normal speaker upgrade?
This is a complete audio system rather than a speaker-only replacement. Installation involves the dash, power harness, subwoofer wiring, speaker pods, amplifier, receiver, and Color Optix lighting, which explains why the job requires substantially more disassembly.
- • Why does my amplifier seem difficult to find a mounting location for?
The Stage 5 uses a large 1,500-watt five-channel amplifier, so it requires a suitable mounting position and careful wiring. Rockford's installation procedure includes a dedicated amplifier bracket and mounting step rather than simply leaving the amplifier loose beneath the dash.
- • Why did my bass disappear or become weak after installation?
The system uses a dedicated 10-inch DVC subwoofer and ported enclosure, so unusually weak bass can indicate a wiring, signal, or amplifier configuration issue. Checking subwoofer polarity and all amplifier connections is a good first troubleshooting step.
- • Can I install the RNGR18-STG5 if my Ranger has the factory HVAC system?
Yes, current fitment information lists the Polaris Ranger HVAC system as compatible. However, the HVAC equipment can make access around the dash and amplifier area tighter, so installation may require extra care.
- • Why does my Color Optix lighting work differently from the audio?
The RGB illumination uses a separate PMX-RGB Color Optix controller. The speakers can therefore operate normally even if an RGB connection, controller connection, or lighting configuration has a problem.
- • Why isn't the system as loud when I'm driving as it is when parked?
Off-road engine, tire, wind, and trail noise can mask music once the Ranger is moving. This is a common limitation of powersports audio: a system that sounds extremely loud at idle can seem noticeably less powerful at higher speeds.
- • Can I add more speakers or another subwoofer later?
The Stage 5's 1,500-watt five-channel amplifier is designed with expansion possibilities, including support for an additional 10-inch subwoofer and rear 6.5-inch speakers when the appropriate components are used.
- • Why should I disconnect the battery before starting the installation?
The installation procedure requires disconnecting the battery negative terminal before electrical work. This reduces the risk of shorts, electrical damage, fire, or injury while the amplifier, receiver, and vehicle-specific harnesses are being installed.
Features:

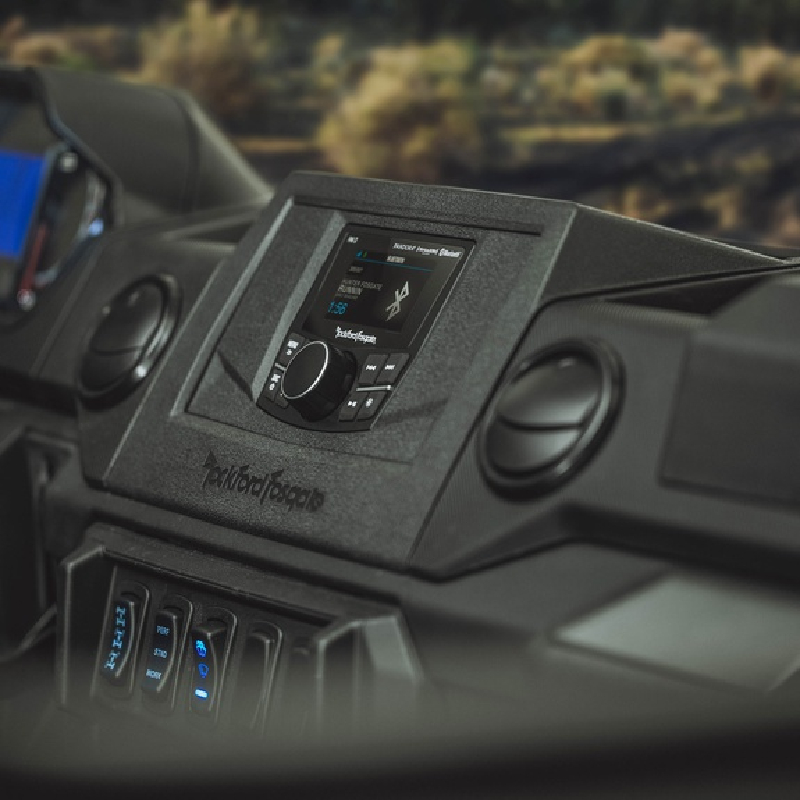

- PMX-3: Compact AM/FM/WB Digital Media Receiver 2.7" LCD w/ Backup Cam & SiriusXM® Ready
- RNGR18-DK: Dash kit for PMX-1, PMX-2 or PMX-3 on select Polaris® Ranger models

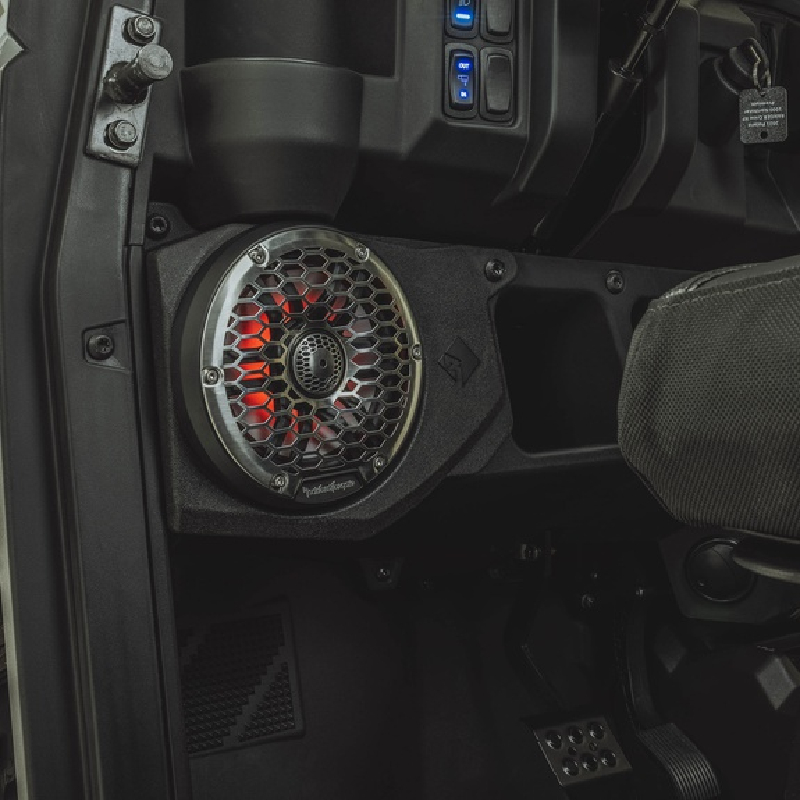

- RNGR18-FSE: 6.5" front Color Optix™ speaker pods for select Polaris® Ranger models
- M2-65B: M2 6.5” Color Optix™ Marine 2-Way Speakers - Black

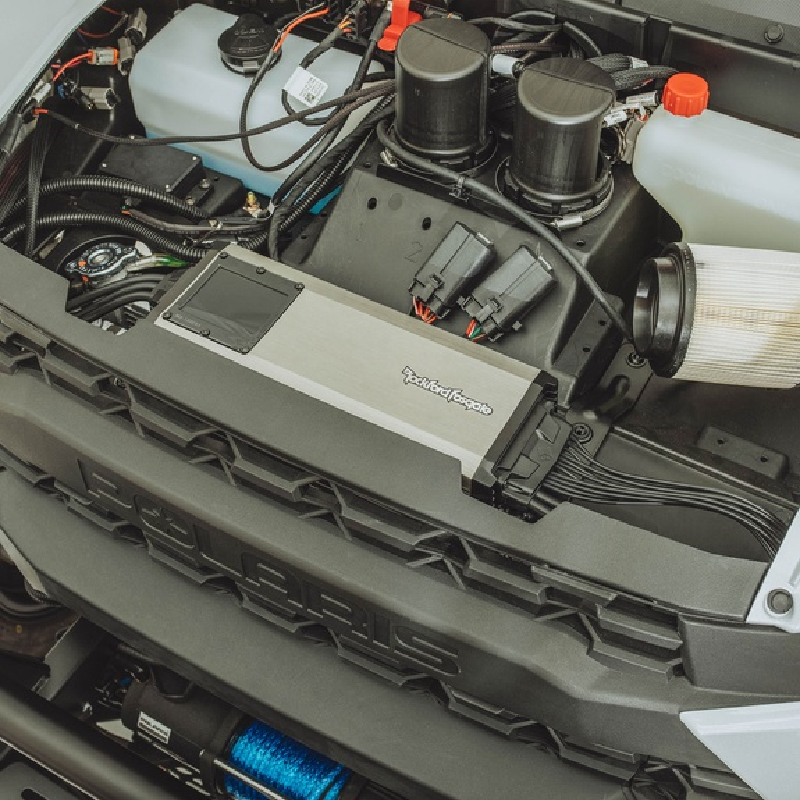

- M5-1500X5: 1500 Watt 5-Channel IPX6 Element Ready™ Amplifier

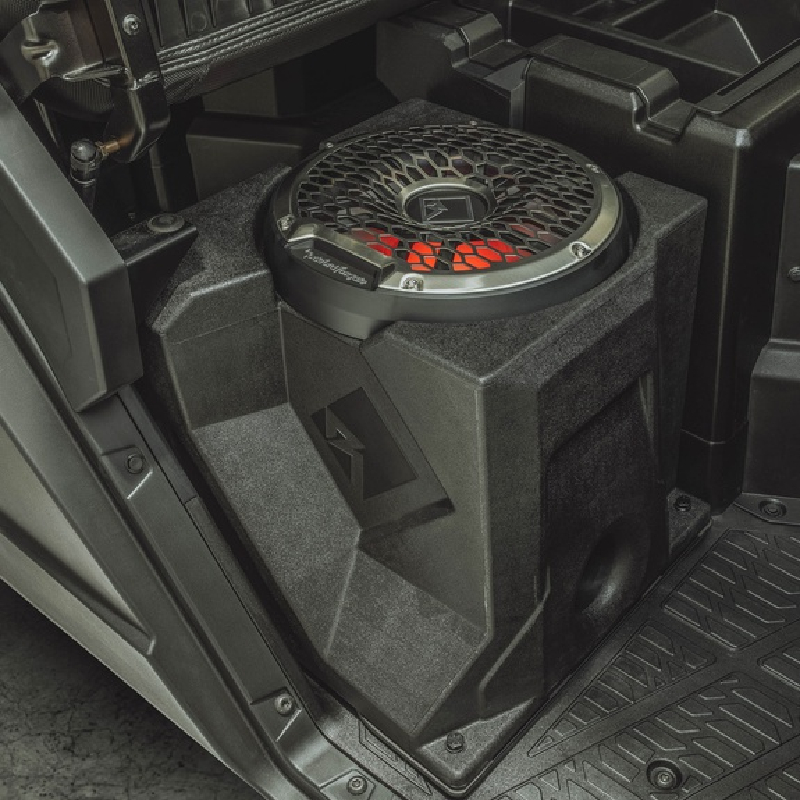

- RNGR18-FWE: Color Optix™ 10" ported subwoofer enclosure for select Polaris® Ranger models
- M2D4-10IB: M2 10" DVC 4Ω Element Ready™ Color Optix™ Subwoofer - Black
- RNGR18-K4: 4 AWG amp installation kit for select Polaris® Ranger models
- PMX-RGB: Color Optix™ Light Controller with Optional App Interface
Specifications:
- Speaker Qty: 3
- Amplifier Type: External
- Total Power: 1,500 Watts
- Mounting Hardware: Yes
- Grille/Trim Ring Included: Yes
- Included In The Box
- (1 ea) PMX-3
- (1 ea) RNGR18-DK
- (1 pr) RNGR18-FSE
- (1 pr) M2-65B
- (1 ea) M5-1500X5
- (1 ea) RNGR18-FWE
- (1 ea) M2D4-10IB
- (1 ea) RNGR18-K4
- (1 ea) PMX-RGB
- Shipping Weight: 79 Lbs (35.83 Kg)
- UPC: 780687361235
- Weight: 79
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
