Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

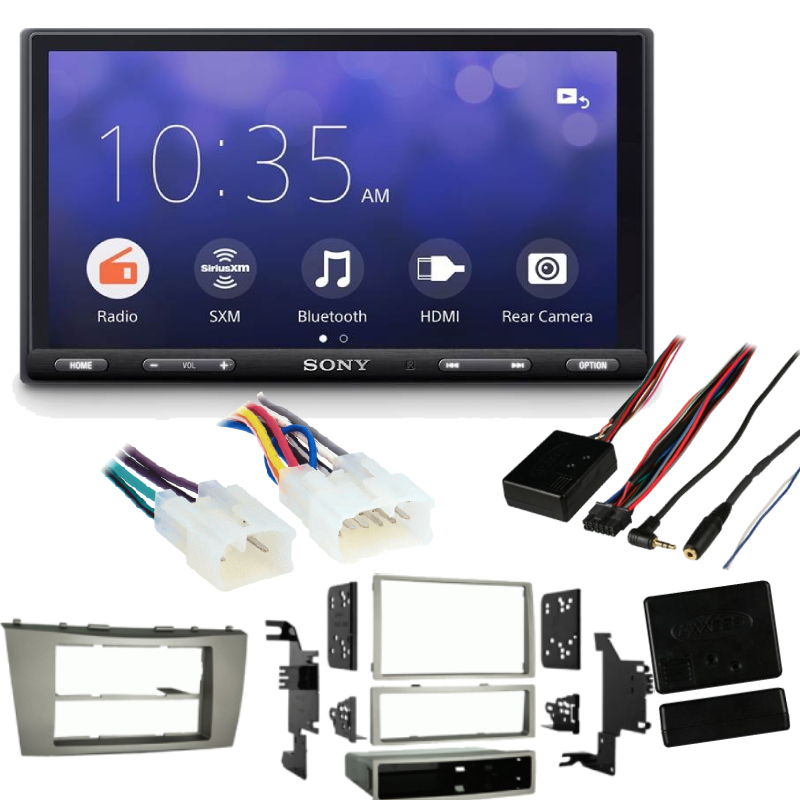

PCH Custom Audio Camry Radio Replacement-Bundle13 Radio Replacement Bundle for Camry includes the following: Sony XAV-AX5600 6.95'' Digital Media Receiver with CarPlay, Android Auto, Weblink Cast + Axxess AXSWC Universal Steering Wheel Control Interface + Metra 99-8218 Toyota Camry 2007-Up Dash Kit + Metra 70-1761 Car Harness for Hino, Scion, Subaru, and Toyota 1987-Up
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Sony XAV-AX5600
- • Axxess AXSWC
- • Metra 99-8218
- • Metra 70-1761
- • Owner's Manual

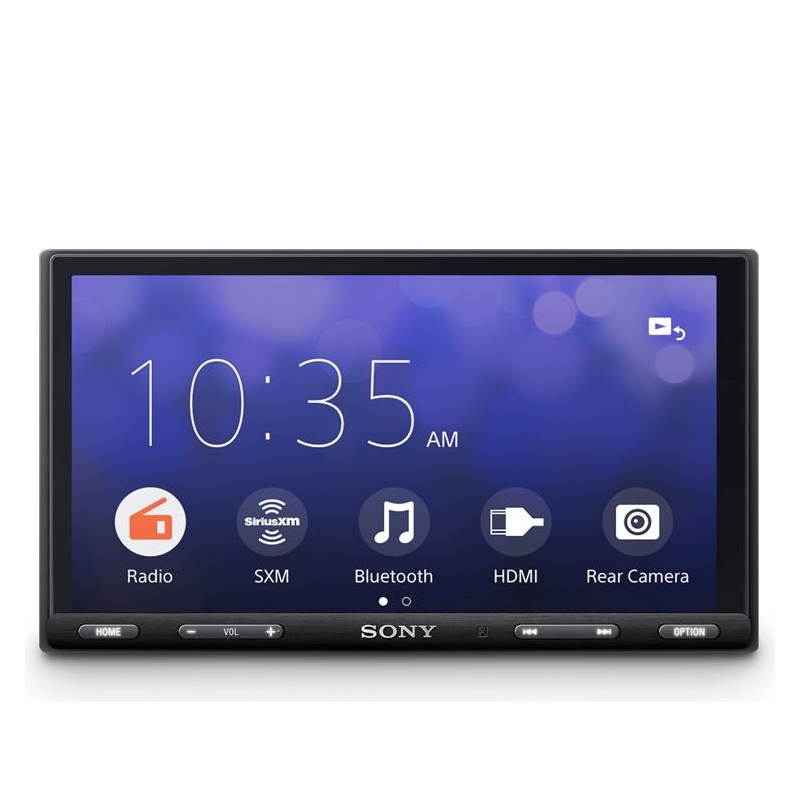

Sony XAV-AX5600 6.95'' Digital Media Receiver with CarPlay, Android Auto, Weblink Cast
Making Top-quality Electronic Devices
If you are looking to upgrade your factory receiver with a modern one but do not want to break the bank, the Kenwood DMX125BT would be an excellent option that you should look into. This 6.75-inch multimedia receiver has a capacitive touchscreen display and can fit on 2-DIN dash openings.

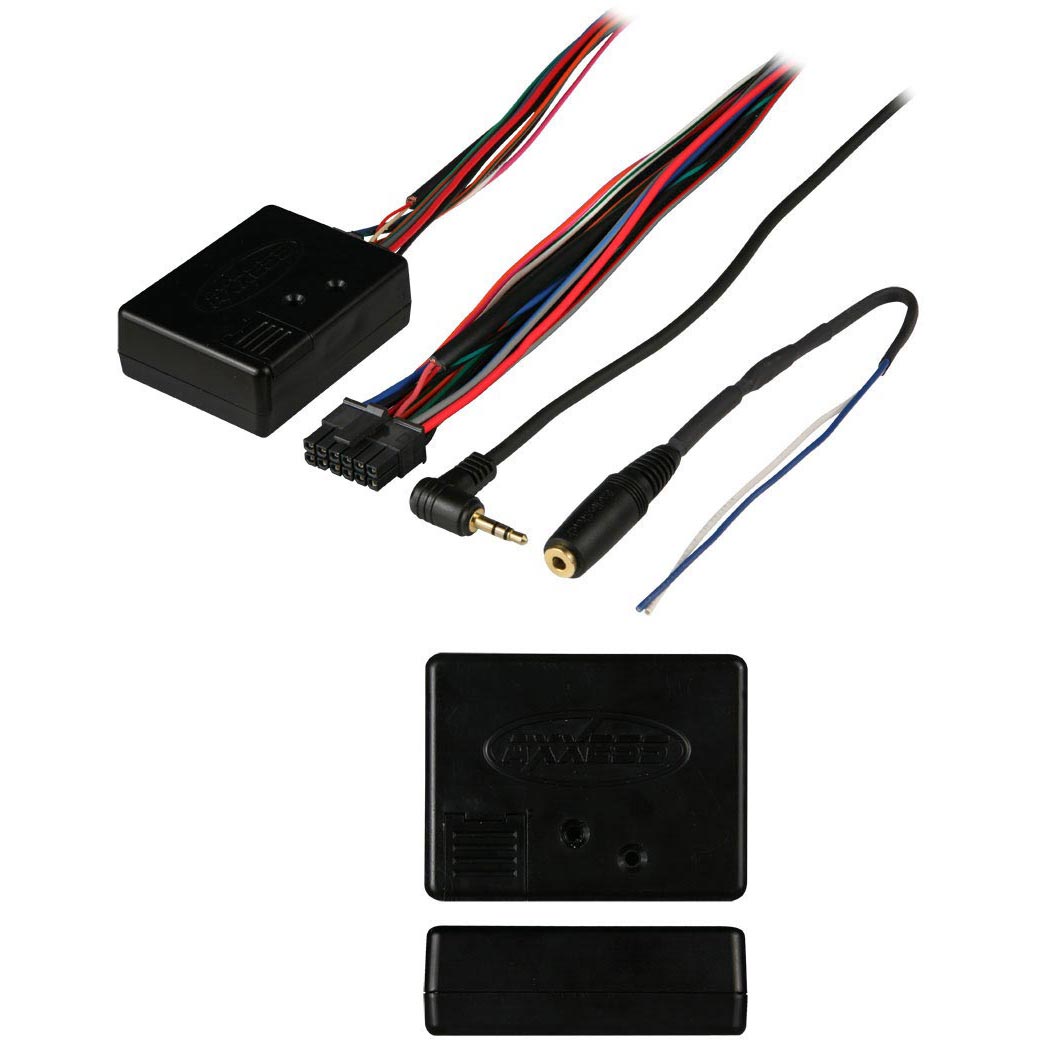

Axxess AXSWC Universal Steering Wheel Control Interface
Steering Wheel Control Harness
This wiring harness allows you to connect various electrical components of a car to the steering wheel. It is typically used to connect a hands-free device such as a Bluetooth headset, or a car stereo system, to the steering wheel. This harness is designed to provide a secure connection that ensures the electrical components are securely connected to the steering wheel.

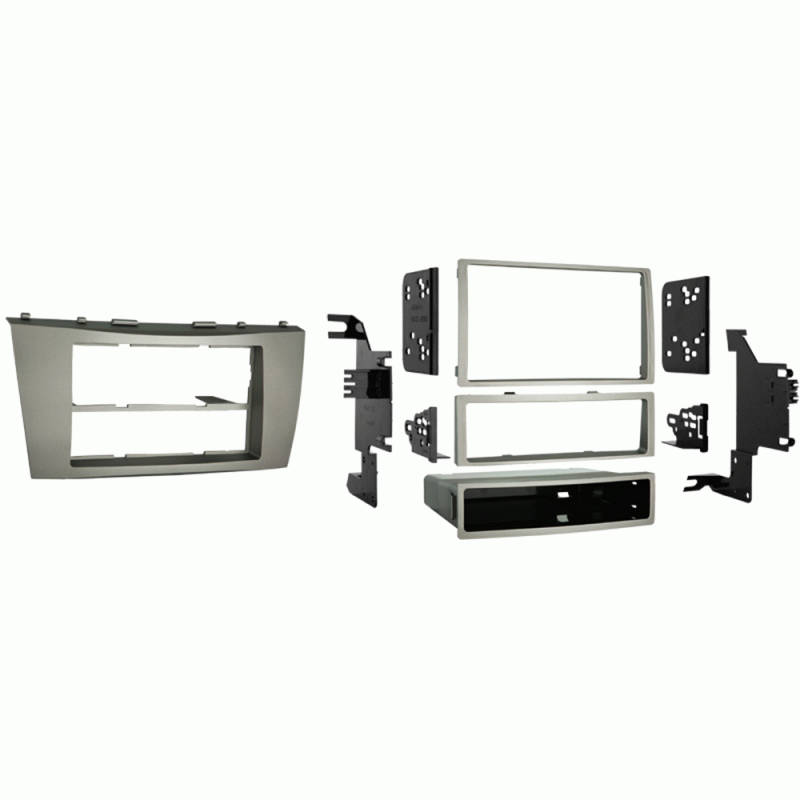

Metra 99-8218 Toyota Camry 2007-Up Dash Kit
Easy to Install
This stereo installation kit has been engineered to help you install either a 2" tall (Single-DIN) or a 4" tall (Double-DIN) aftermarket radio into the original vehicle dashboard. This dash kit makes radio replacement simple and comes with a pocket that is installed below the 2" radio to fill the extra space in the radio opening, which can be used for storage. The dash kit is painted silver and contoured to match the original look and feel of the vehicle's dashboard. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn't offer but requires this dash kit to make it fit.

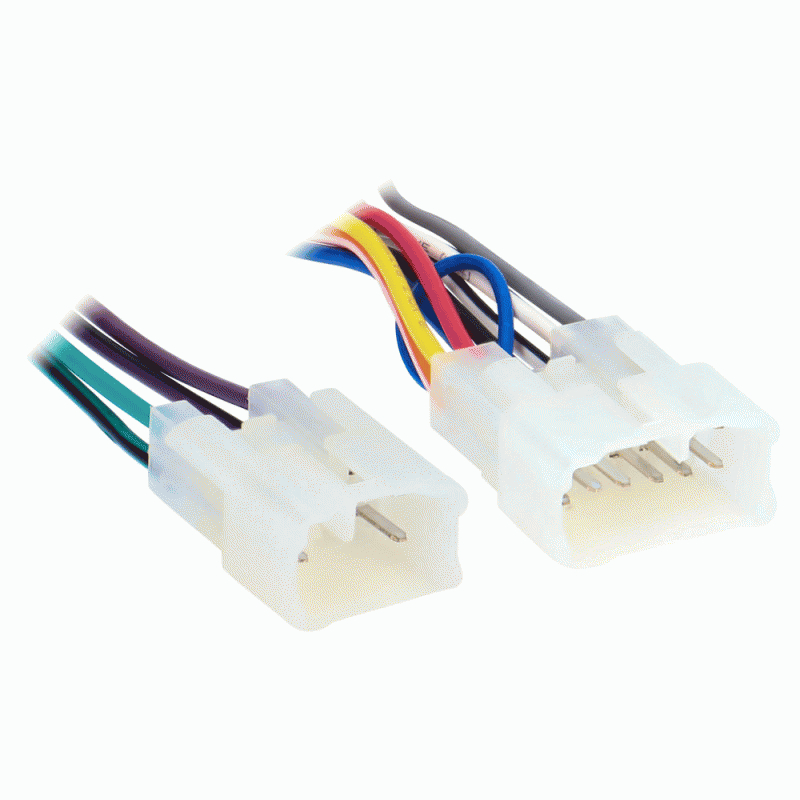

Metra 70-1761 Car Harness for Hino, Scion, Subaru, and Toyota 1987-Up
No cutting of factory wiring is needed
Install a new car radio faster with this wiring harness that plugs right into the vehicle's connectors, allowing you to hook up the radio into the vehicle's electrical system. On one side, the wiring harness is color-coded with wires that you'll connect or solder into the aftermarket radio/receiver.
XAV-AX5600 6.95'' Digital Media Receiver with CarPlay, Android Auto, Weblink Cast
Features:
- Pre Out: 3 Pre (Front/rear/sub X 1)
- Dso (Dynamic Stage Organizer): Yes
- Extra Bass: Yes (Off/1/2)
- Firmware Upgradability: Yes
- Output Power: 55 W X4
- Usb: Yes (Rear X2)
- Equalizer: 10-band Graphic Equalizer
- Rear View Camera In: Yes
- Bluetooth
- Weight: 2.20 Lb
- Dimensions (W X H X D): 7.01 X 3.94 X 5.47 Inches
Tuner Features
- Preset: FM18 / AM12
- Auto Memory: BTM
- RDS / EON: Yes (RBDS)
Bluetooth Profile & Features
- HFP 1.5: Yes (1.6)
- AVRCP: Yes (1.3)
- A2DP: Yes (1.3)
- PBAP: Yes (1.1)
- Call Volume Level Control: Yes
- Ring Volume Level Control: Yes
- External Microphone: Supplied
- Speed Dial: Yes (6 Memories)
- Signal Strength Indication: Yes
- Alphabetical Phonebook Sorting: Yes
- Last Dialed Call: Yes (Select From The Dialed Call History)
- Recent Calls (# Of): Yes
- Phone Battery Level Reminder: Yes
- Phonebook Access Via Pbap: Yes
Bluetooth Audio Features
- Meta Data Indication: Yes
- Pause (Bluetooth Audio): Yes
- Track +/-: Yes
- Repeat Control (Audio Device Side): Yes
- Audio Codec (Bluetooth Audio): Sbc / Aac
- Cue / Rev: Yes
- Shuffle Control (Audio Device Side): Yes
- Audio Level Adjustment: Yes (-6 Db To +6 Db)
- Group (Folder) +/-: Yes.
Panel Design
- Panel Surface Finish Color: Black
- Key Illumination: Yes (White)
Monitor(AVC)
- Screen Diagonal (Inch / Mm): 6.95 Inch
- Resolution (Dot): 800 X 480
- Contrast Ratio: 400
- Lcd Type: Tft Active Matrix
- Screen Size (W X H Mm): 156.6 X 81.6 (Mm)
- Screen Aspect: 17: 9
- Dimmer: Yes
- Brightness: 500 Cd/m2
User Interface
- Parking Control: Yes
- Rear View Camera-in Marker Setting: Yes
- Touch Panel: Yes/capacitive
- Parking Line Adjust: Yes
- Remote Commander: Rm-x170
- Gesture Command: Yes
- Aspect Ratio Select: Yes
USB Mass Storage Device Control Feature
- Usb Device Control (Video Playable File Extension): Only Usb1: .mp4 / .wmv / .mkv
- Usb Device Control (Repeat): Track / Folder / Drive
- Usb Device Control (Resume Play): Yes
- Usb Device Control (Audio Codec): Usb1: Pcm / Mp3 / Wma / Aac / Flac, Usb2: Mp3 / Wma / Flac
- Usb Device Control (Shuffle): Off / Folder / Device
- Usb Device Control (Pause): Yes
- Usb Device Control (Audio Playable File Extension): Usb1: .wav / .mp3 / .wma / .m4a / .flac, Usb2: .mp3 / .wma / .flac
- Usb Device Control (Video Codec): Only Usb1: Mpeg4-sp / Avc (H.264 Baseline) / Wmv / Mkv / Xvid
AXSWC Universal Steering Wheel Control Interface
Features:
- Works with Many Popular Aftermarket Receivers
- One Interface does it all – No additional interfaces needed
- Designed to be compatible with all major radio brands
- Auto detects (1) vehicle type, radio connection, and presets controls
- Ability to dual assign steering wheel control buttons
- Can be manually programmed for most vehicles
- Retains settings even after battery disconnection or interface removal
- All connections done at the radio location
- Micro “B” USB updatable
99-8218 Toyota Camry 2007-Up Dash Kit
Features:
- DIN radio provision with pocket
- ISO DIN radio provision with pocket
- ISO DDIN radio provision
WIRING & ANTENNA CONNECTIONS
- Wiring Harness:
- 70-1761 (Sold Separately)
- TYTO-01 (Sold Separately)
- Antenna Adapter: Not Required
70-1761 Car Harness for Hino, Scion, Subaru, and Toyota 1987-Up
Features:
- Plugs into Car Harness at radio
- Power – 4 Speakers
Vehicle Applications:
- Hino 1987-Up
- Scion 1987-Up
- Subaru 1987-Up
- Toyota 1987-Up
- See the Vehicle Application Guide for specific vehicle applications
(1) Power & speaker only, no illumination control (disregard illumination wire, will damage circuit)
- UPC:
- Weight: 9
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
