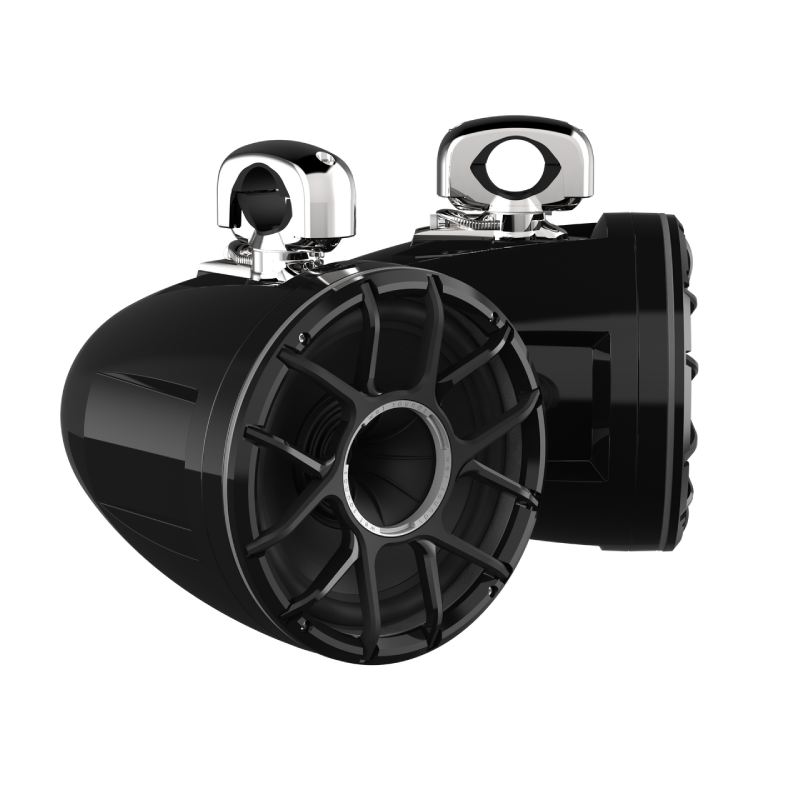

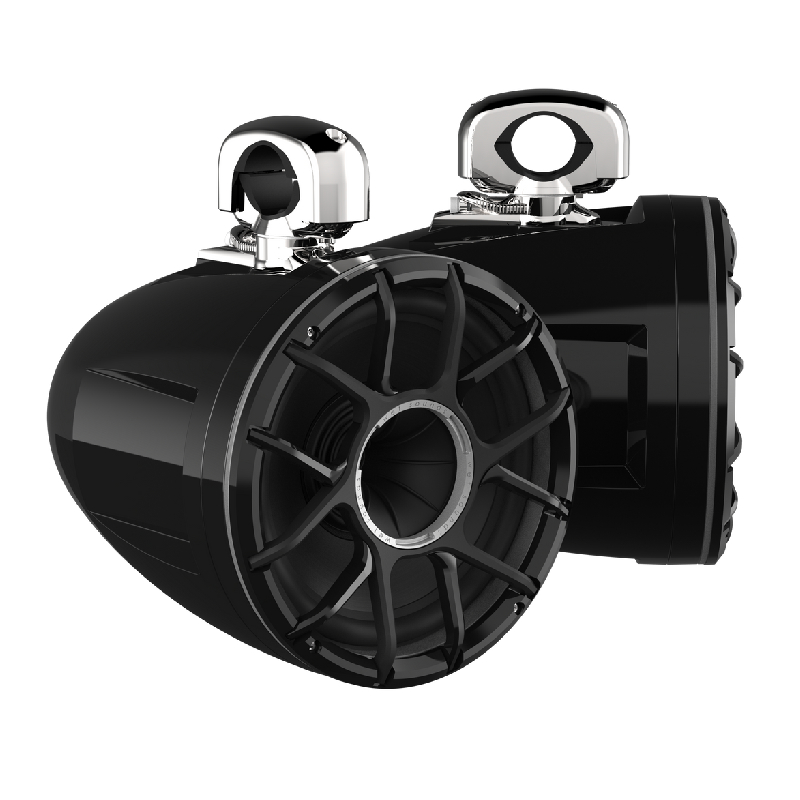

Wet Sounds REV 12 HD-B XZ-TC3-S Revolution HD Series 12" 400W RMS (800 Peak Power Handling) 4 Ohms, Horn Loaded Compression Driver (HDLC) Tower Speakers with XZ-Black Grille and Stainless Steel Swivel Quick Disconnect Clamp for tube diameter 1 7/8" to 3"
We are a Wet Sounds authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12" Revolution HD Series Tower Speakers
- • XZ-Black Grille
- • Stainless steel swivel quick-release clamp for 17/8" - 3" tubes
- • (2) 12" black marine tower speakers with 4" speaker harness and 9" RGB harness
- • (8) 1/2" Allen head screws (3mm)
- • Owner's Manual
Why Choose Wet Sounds REV 12 HD-B XZ-TC3-S Marine Speakers?
Extreme Projection, Massive Marine Power
Powered by Wet Sounds’ proprietary REV-TEC™ HD technology, the REV 12 HD delivers extreme long-range sound with exceptional clarity on and off axis, so your music stays loud and detailed far behind the boat. Its coaxial titanium horn-loaded compression driver produces clean, high-output highs with outstanding efficiency, while the 12" Kevlar-reinforced woofer with Santoprene surround delivers deep, punchy mid-bass built to dominate harsh marine environments.
Built Tough with Bold Style

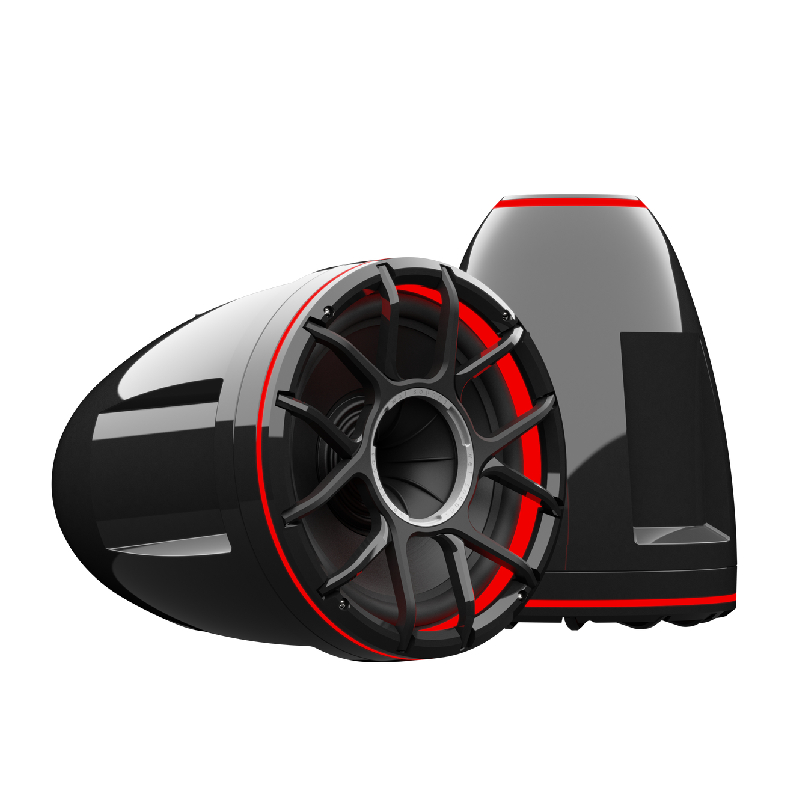

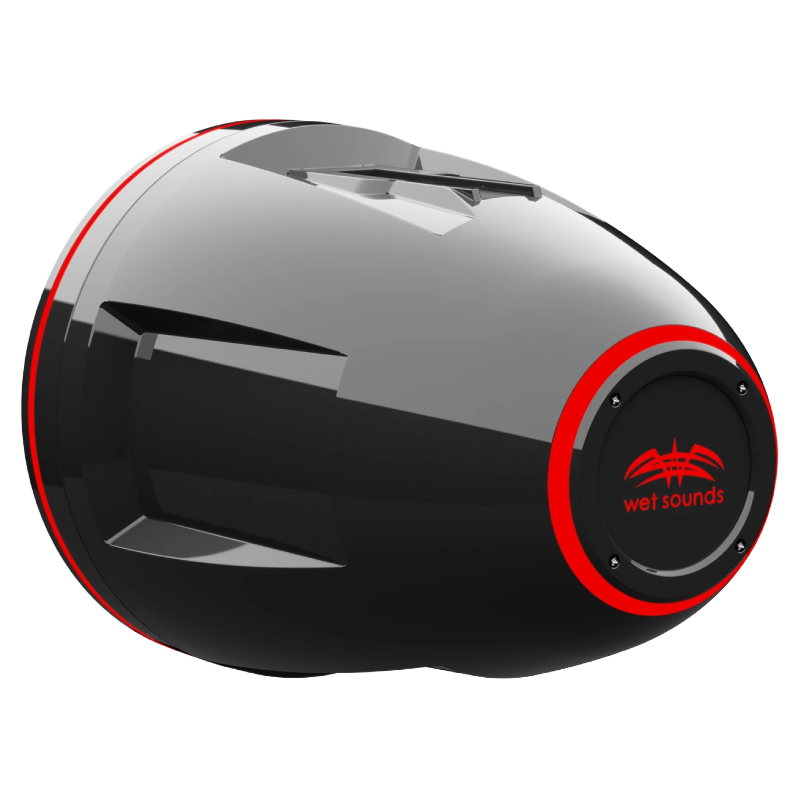

The REV 12 HD features a rugged, injection-molded reinforced composite enclosure with stainless-steel hardware, engineered to withstand UV exposure, moisture, and saltwater corrosion. Integrated front and rear RGB LED light rings with an illuminated logo badge add eye-catching style and enhanced visibility for nighttime riding, with LED connectors included for easy setup.
Ready-to-Mount with Adjustable Clamps

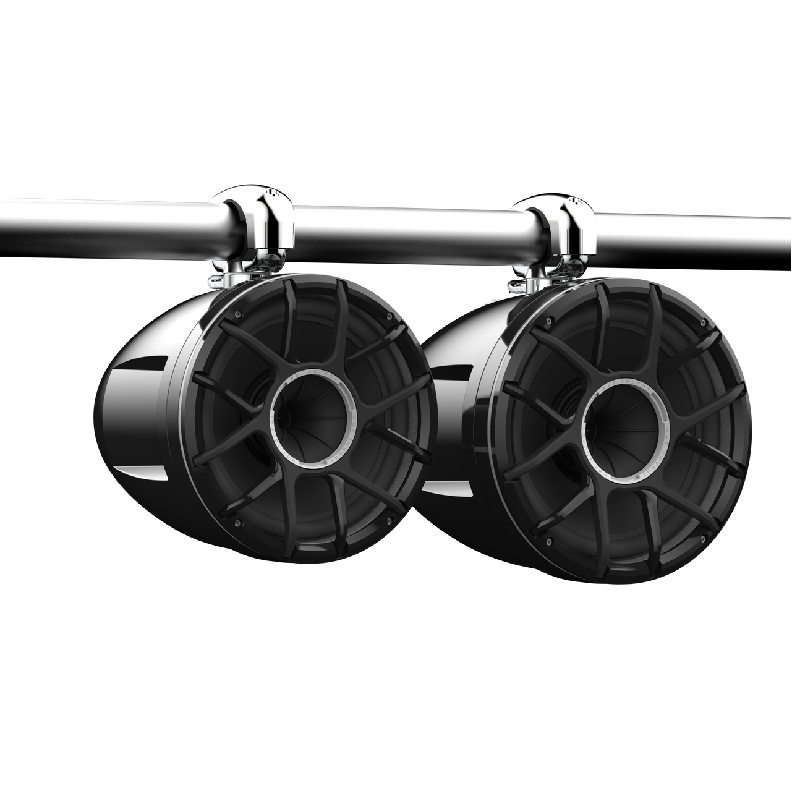

The REV 12 HD comes with aggressive XZ-B black grilles that protect the drivers while enhancing airflow and style. Heavy-duty TC3-S swivel clamps provide full adjustability and secure mounting on tower tubing from 1-7/8" to 3" diameter. This complete ready-to-mount package includes speakers, grilles, swivel clamps, and LED connectors—no additional hardware needed.
Frequently Asked Questions (FAQ)
- • Why do my marine tower speakers have no sound?
Check the amplifier power, fuse, speaker wiring, and audio source settings. If the connections are secure but sound is still missing, inspect the amplifier and speaker channels.
- • What amplifier do I need for these speakers?
Each speaker handles 400 watts RMS at 4 ohms, with 800 watts peak power. Choose a compatible marine amplifier that provides appropriate power without overdriving the speakers.
- • Why does the audio distort at high volume?
Distortion can occur when the amplifier clips or the gain is set too high. Adjust the gain, check the wiring, and avoid pushing the system beyond its limits.
- • Will the TC3-S swivel clamps fit my boat tower?
The compatible swivel clamps fit tower tubing approximately 1-7/8 to 3 inches in diameter. Measure your tower before installation and confirm the correct clamp configuration.
- • Why is one speaker louder than the other?
Uneven volume may result from loose wiring, incorrect balance settings, or amplifier channel problems. Check the connections and audio settings to restore balanced sound.
- • Can these speakers withstand water and sunlight?
They feature reinforced enclosures, marine-grade stainless steel hardware, and durable composite construction. Regular cleaning and proper care help maintain performance in harsh marine conditions.
- • Why is the bass not deep enough?
These 12-inch tower speakers deliver strong midbass but may not reproduce the deepest bass frequencies. Add a compatible marine subwoofer if you want fuller low-frequency output.
- • Can riders hear music clearly behind the boat?
The horn-loaded driver is designed to project clear audio over longer distances. Actual performance depends on speaker placement, amplifier power, boat speed, and surrounding noise.
- • Why are the RGB lights not working?
The integrated RGB rings and illuminated badge require a compatible RGB controller to operate. Check the controller, power supply, and lighting connections if the lights do not turn on.
- • Do the speakers include mounting clamps and grilles?
Grilles and mounting clamps are sold separately, depending on the selected product configuration. Confirm that your order includes the correct XZ grille and TC3-S swivel clamp accessories before installation.
- Diameter : 12 Inch
- Sensitivity : 91 dB
- Impedance : 4 Ohm
- Frequency Response : 58-20000 Hz
- Peak Power Handling : 800 Watts
- Color : Black
- RMS Power Handling : 400 Watts
Features:
- Extreme Long-Range Projection: Utilizes Wet Sounds’ proprietary REV-TEC™ HD driver technology, providing exceptional on-axis and off-axis sound clarity at long distances behind the boat.
- Horn-Loaded Compression Driver (HLCD): Features a coaxially mounted titanium horn-loaded compression driver, delivering clean, high-output highs with outstanding efficiency and minimal power loss.
- Powerful 12" Mid-Bass Performance: Equipped with a 12" Kevlar-reinforced composite cone woofer and Santoprene rubber surround for deep, punchy mid-bass and superior durability in harsh marine environments.
- Rugged Marine-Grade Construction: Injection-molded reinforced composite enclosure with stainless-steel hardware, built to resist UV exposure, moisture, and saltwater corrosion.
- Integrated RGB LED Lighting: Front and rear RGB LED light rings and illuminated logo badge add style and visibility for nighttime riding (LED connectors included).
- XZ-Style Grilles: Aggressive XZ-B black grille design enhances both aesthetics and airflow while protecting the drivers.
- TC3 Swivel Clamps Included: Heavy-duty TC3-S swivel clamps allow full adjustability and secure mounting on tower tubing from 1-7/8" to 3" diameter.
- Complete Ready-to-Mount Package: Includes speakers, grilles, swivel clamps, and LED connectors—no additional mounting hardware required.
Specifications:
- Speaker Size: 12"
- Speaker Type: HLCD Marine Tower Speaker
- Series: Revolution HD
- Color: Black
- Impedance: 4 ohms
- Power Handling (RMS): 400 watts per speaker
- Peak Power Handling: 800 watts per speaker
- Frequency Response: 58Hz – 20kHz
- Sensitivity: 91 dB @ 1W / 1m
- Mid-Bass Driver: 12" Kevlar-reinforced composite cone
- Tweeter: Titanium horn-loaded compression driver (HLCD)
- Enclosure: Injection-molded reinforced composite
- Lighting: Integrated RGB LED rings and illuminated badge
- Mounting Compatibility: TC3 swivel clamps (1-7/8" to 3" tubing)
- UPC: 810042176652
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
