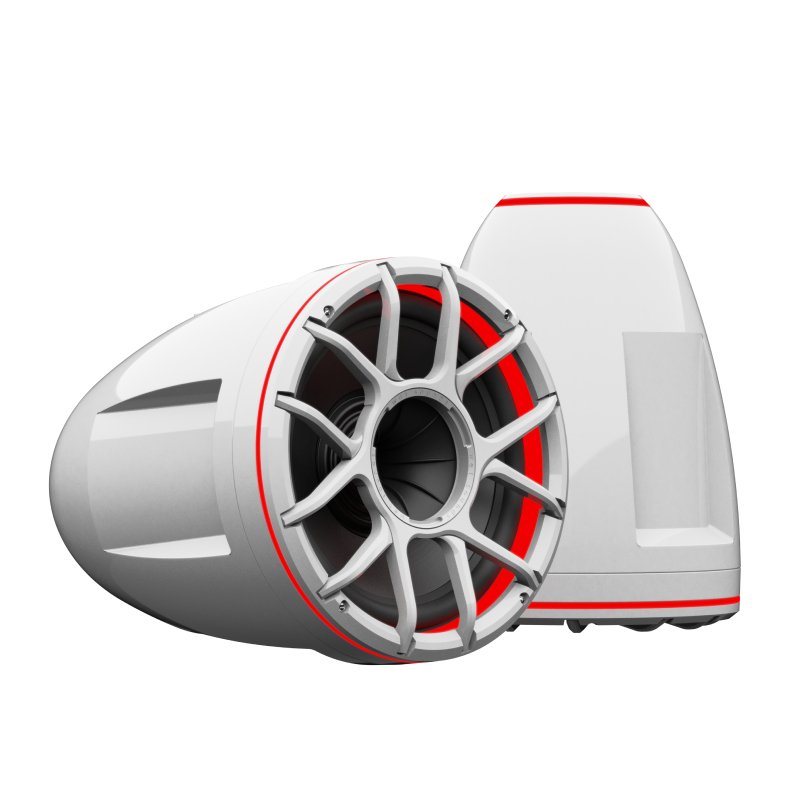

Wet Sounds REV 12 HD-W XZ-TC3-S Revolution HD Series 12" 800 Peak Power Handling 4 Ohms, Tower Speakers Horn Loaded Compression Driver (HDLC) with XZ-White Grille and Stainless Steel Swivel Quick Disconnect Clamp for tube diameter 1 7/8” to 3” (Pair)
We are a Wet Sounds authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 12" Revolution HD Series Tower Speakers

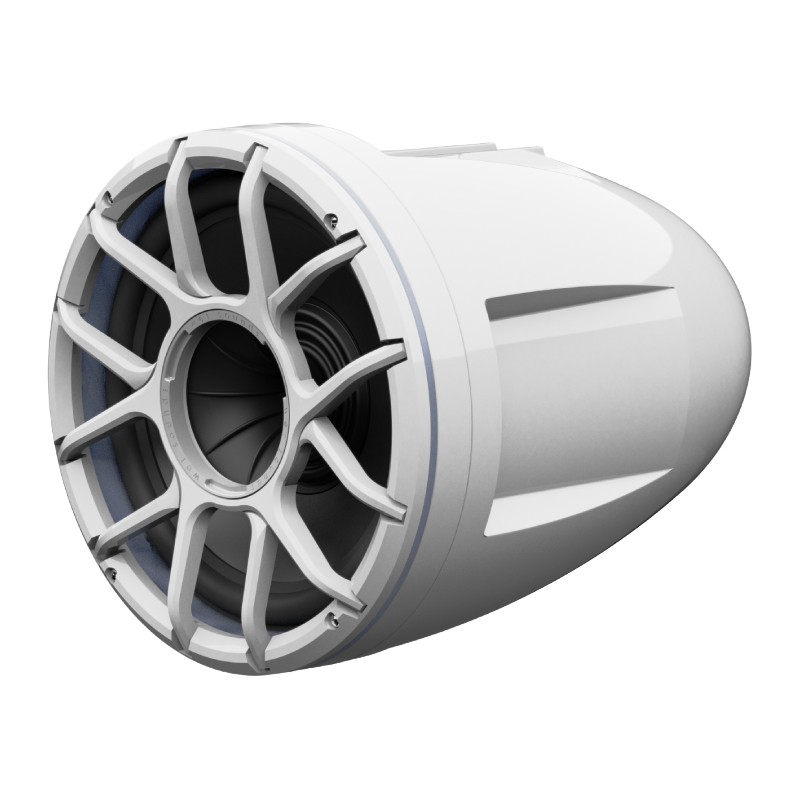

- • (2) XZ-White Grille

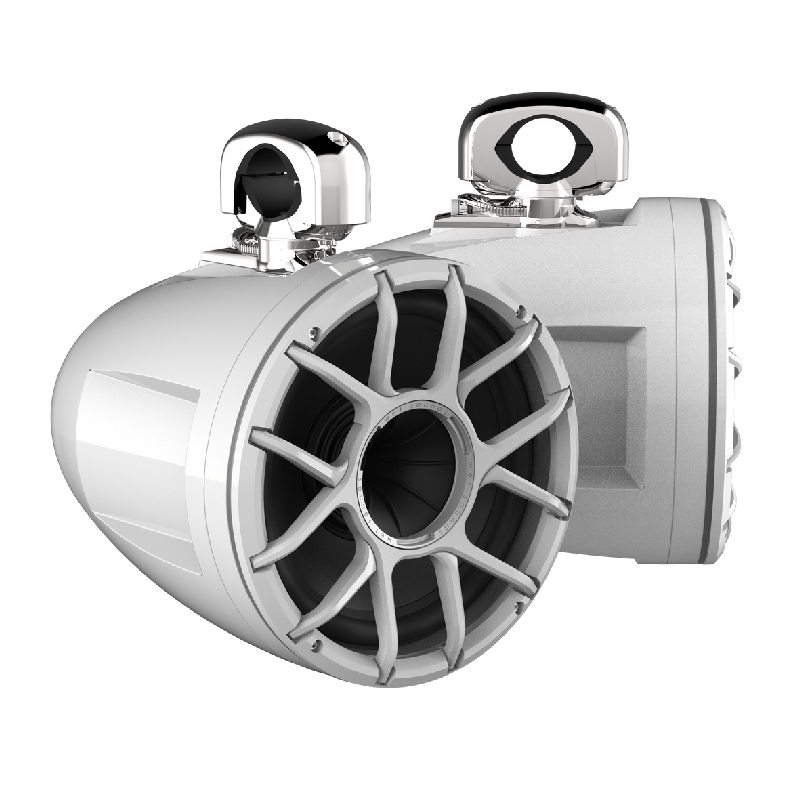

- • Stainless Steel Swivel Quick Disconnect Clamp for tube diameter 1 7/8” to 3”
- • (8) 1/2" Allen head screws (3mm)
- • Owner's Manual
Why Choose Wet Sounds REV 12 HD-W XZ-TC3-S Marine Speakers?
Powerful, Precision Audio for the Water
The 12" REV-TEC™ HD driver delivers rich, detailed bass and crystal-clear highs, engineered for optimal performance in marine environments. Paired with a coaxial titanium HLCD for high-output, horn-loaded treble and a Pro-Axial driver with thermoformed Santoprene surround, this system ensures durable, distortion-free sound even at high volumes.
Illuminate Your Sound with Style and Reliability

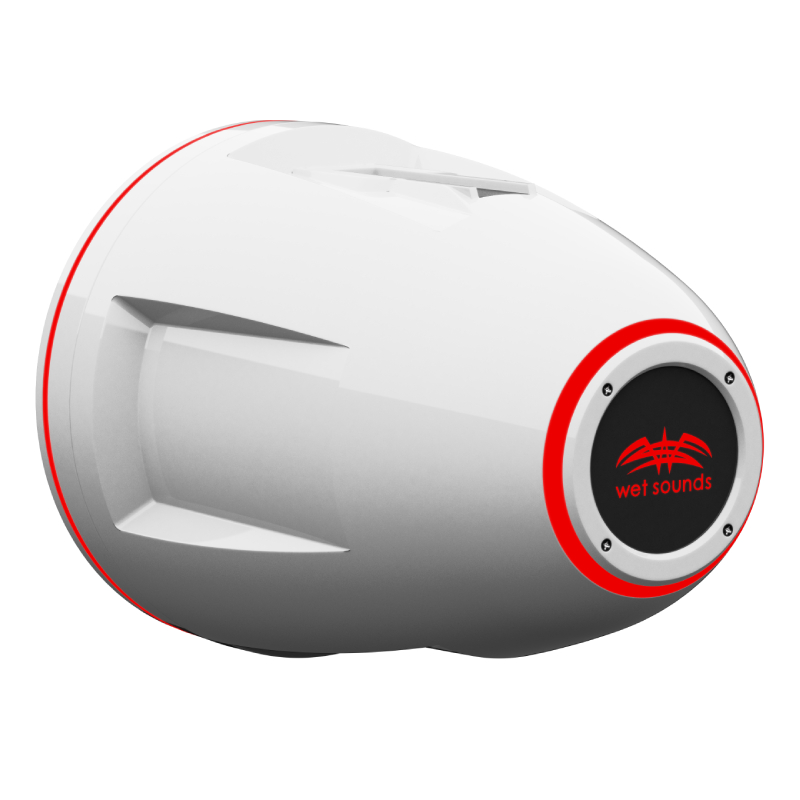

Integrated front and rear RGB LED rings provide vibrant, customizable lighting for nighttime enjoyment on the water. Built with marine-grade stainless steel hardware for long-lasting corrosion resistance and sold in pairs for balanced stereo sound, these speakers also feature three interchangeable grille styles in black or white to perfectly match your boat’s aesthetic.
Flexible Installation with Rugged, High-Quality Sound
With versatile mounting options including TC3 swivel clamps, mini swivel/fixed clamps, and REV HD X-Mount, these speakers install easily on towers, roll bars, or flat surfaces. The reinforced enclosure protects drivers from water, UV exposure, and impacts, while the optimized frequency response delivers crisp vocals, punchy bass, and dynamic highs—perfect for marine audio enthusiasts.
Frequently Asked Questions (FAQ)
- • Why does the sound distort at high volume?
Excessive gain, amplifier clipping, or insufficient clean power can cause distortion. Properly match the amplifier and adjust gain carefully for clear output.
- • What amplifier power is recommended?
Each speaker is rated at 400 watts RMS and 4 ohms. Use an amplifier capable of delivering clean, stable power without clipping.
- • Why is the bass weaker than I expected?
These provide strong mid-bass but are still tower speakers rather than dedicated subwoofers. Crossover settings and amplifier tuning can significantly affect bass.
- • Why is one speaker louder than the other?
Check amplifier channels, balance, polarity, wiring, and the swivel connector. Swapping amplifier channels can help determine whether the problem follows the speaker.
- • What should I check if there is no sound?
Inspect amplifier output, speaker connections, fuses, source settings, and the speaker plug inside the clamp. Incorrectly aligned connectors can interrupt audio.
- • Why does the speaker move after tightening the clamp?
Loose clamp bolts, incorrect hardware, or an improperly sized tower tube can allow movement. Tighten the hardware securely and verify the tube diameter.
- • Why aren't the RGB lights working?
Check the RGB controller, six-pin swivel connector, RGB wiring, and power connections. The swivel clamp requires the proper connector setup for RGB functionality.
- • Why does the audio cut out after using the quick-release clamp?
Make sure the male and female speaker plugs are correctly aligned and fully connected. An improperly seated connector can cause intermittent audio.
- • Why do I hear rattling while the boat is moving?
Loose mounting bolts, clamp components, grilles, or nearby tower hardware can vibrate. Inspect and tighten all mounting points before continued use.
- • Can the wiring be damaged during installation?
Yes. Sharp holes in the tower can damage speaker wires. Deburr drilled openings and use rubber grommets to protect the wiring from abrasion.
- Diameter : 12 Inch
- Sensitivity : 91 dB
- Impedance : 4 Ohm
- Frequency Response : 58-20000 Hz
- Peak Power Handling : 800 Watts
- Color : White
- RMS Power Handling : 400 Watts
Features:
- 12" REV-TEC™ HD Driver: Delivers rich, detailed bass and clear highs, optimized for marine environments.
- Coaxial Titanium HLCD: Produces high-output, horn-loaded treble, ensuring clarity at high volumes.
- Pro-Axial Driver with Thermoformed Santoprene Surround: Provides durability and distortion-free performance.

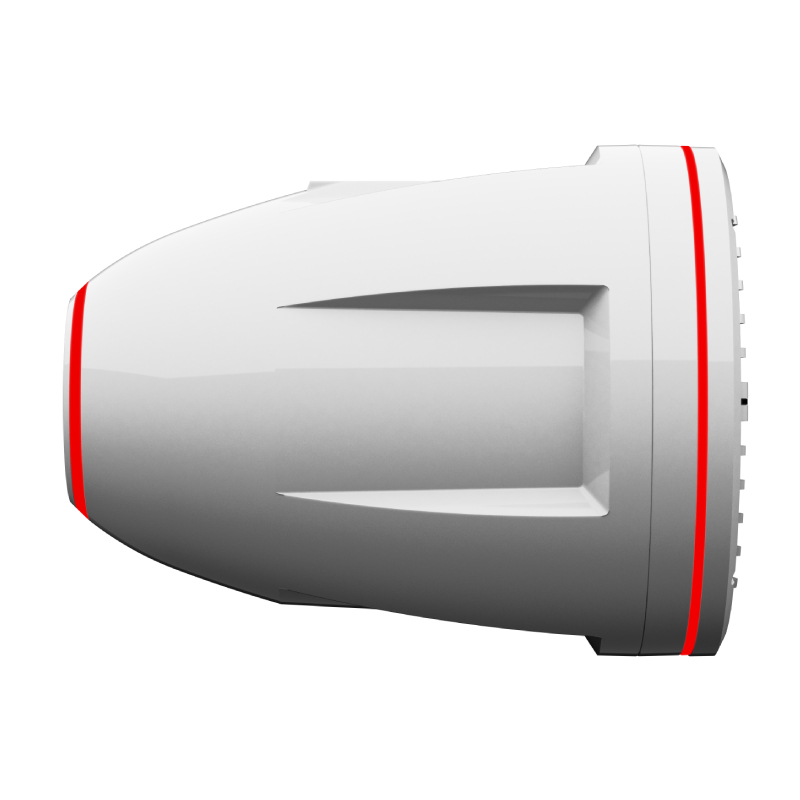

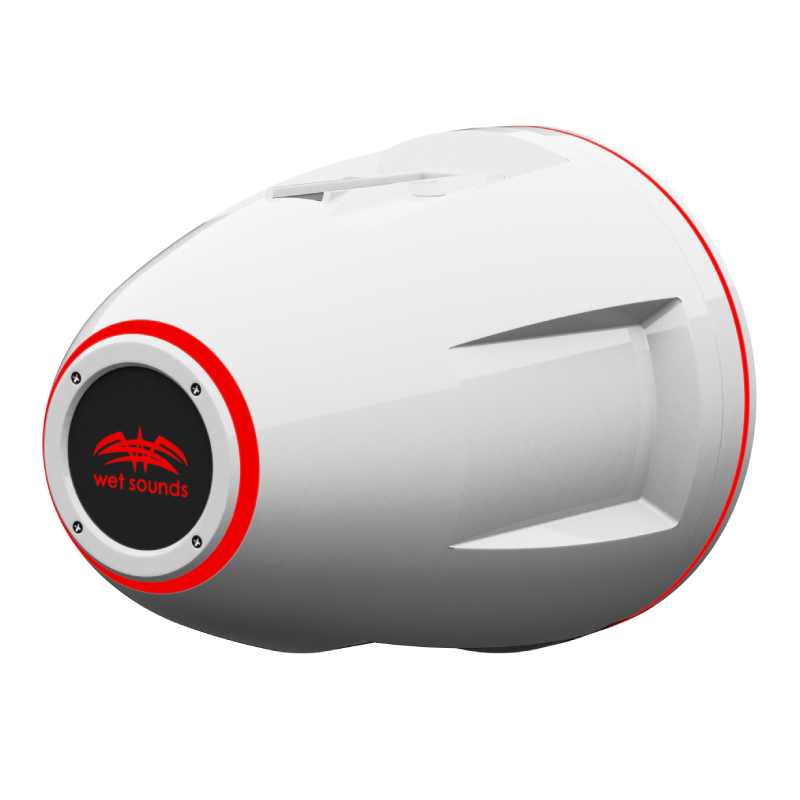

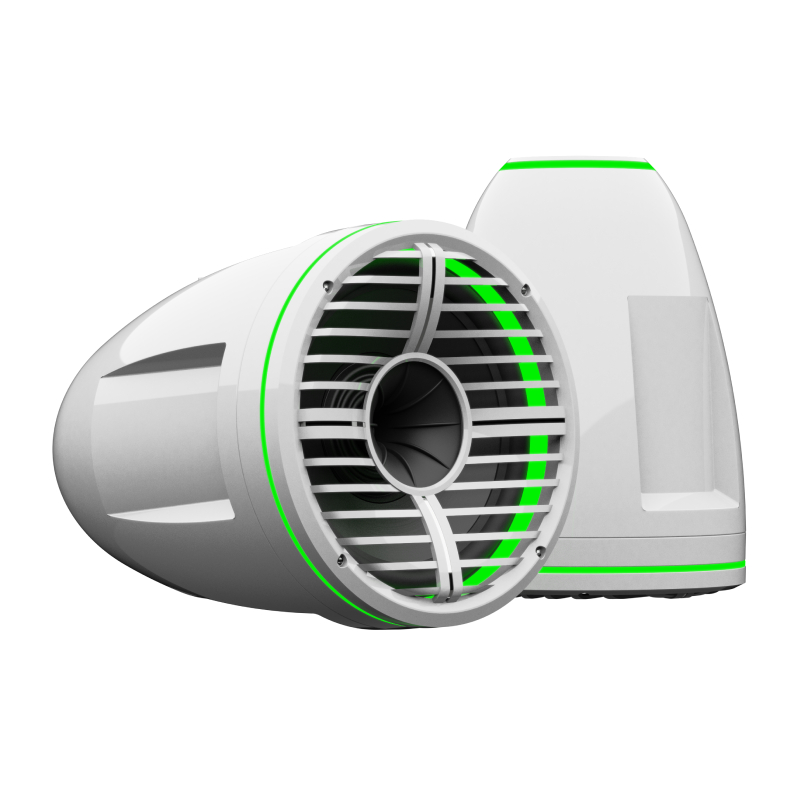

- Integrated Front & Rear RGB LED Rings: Adds customizable, vibrant lighting for night-time listening.
- Marine-Grade Stainless Steel Hardware: Corrosion-resistant and built to last in harsh marine conditions.
- Sold in Pairs: Ensures balanced stereo sound for a full audio experience.

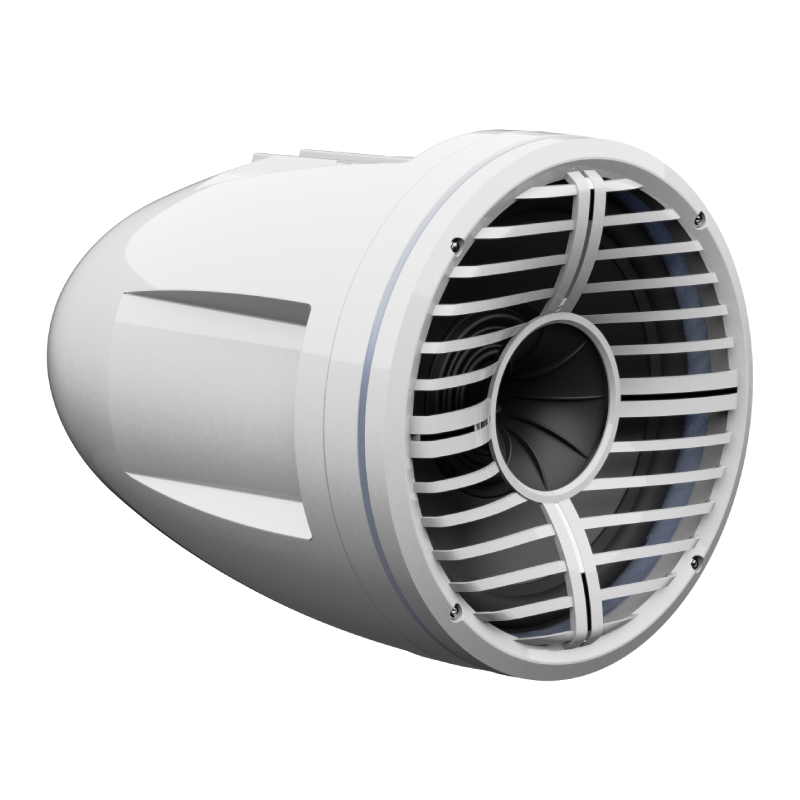

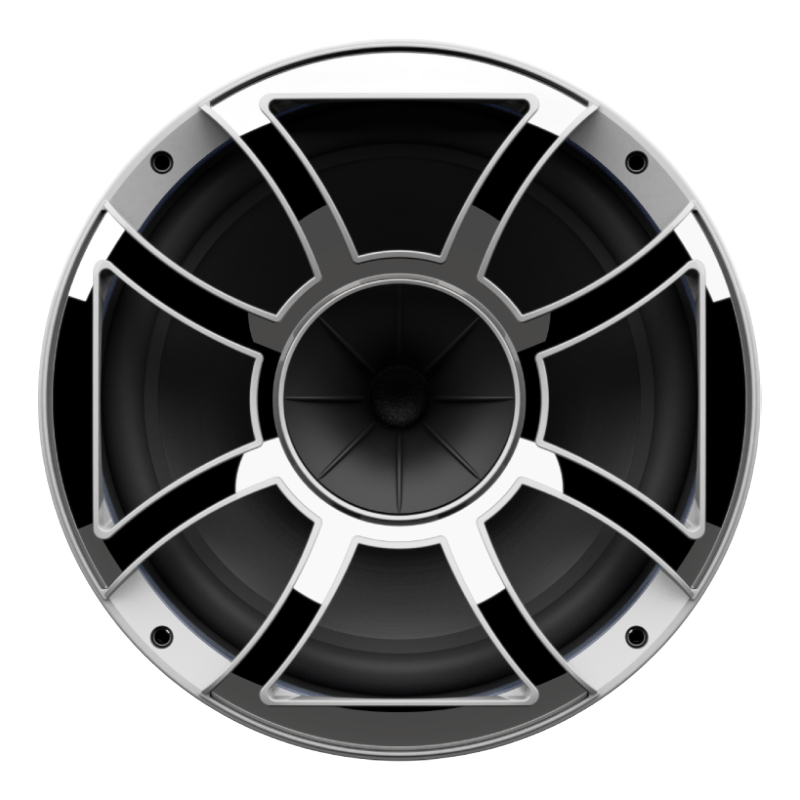

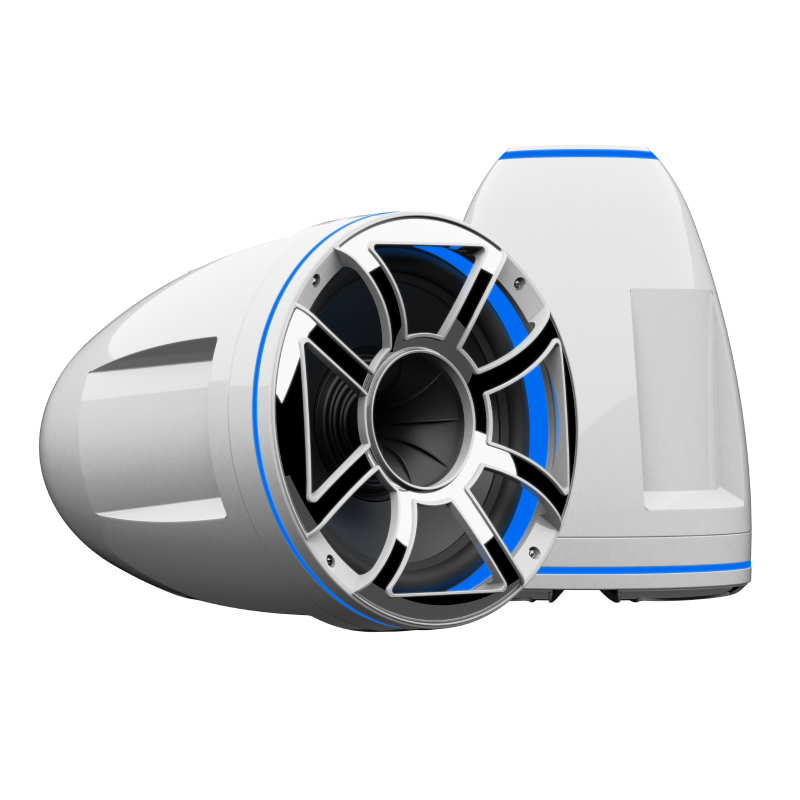

- 3 Interchangeable Grille Styles: Customize the speaker in black or white to fit your boat’s aesthetic.
- Versatile Mounting Options: Compatible with TC3 swivel clamps, mini swivel/fixed clamps, and REV HD X-Mount, allowing easy installation on towers, roll bars, or flat surfaces.
- Reinforced Enclosure: Protects drivers from water, UV exposure, and impacts, extending lifespan.
- Optimized Frequency Response: Engineered for crisp vocals, punchy bass, and dynamic highs, ideal for marine audio enthusiasts.
Specifications:
- RMS Power Handling: 400 W
- Peak Power Handling: 800 W
- Impedance: 4Ω
- Frequency Response: 58 Hz – 20 kHz
- Sensitivity: 91 dB @ 1W/1m
- Driver Composition: 12” REV-TEC woofer with coaxial titanium HLCD
- Hang Height: 13.36" (339 mm)
- Width: 11.93" (303 mm)
- Depth: 15.30" (389 mm)
- UPC: 810042177154
- Weight: 15
