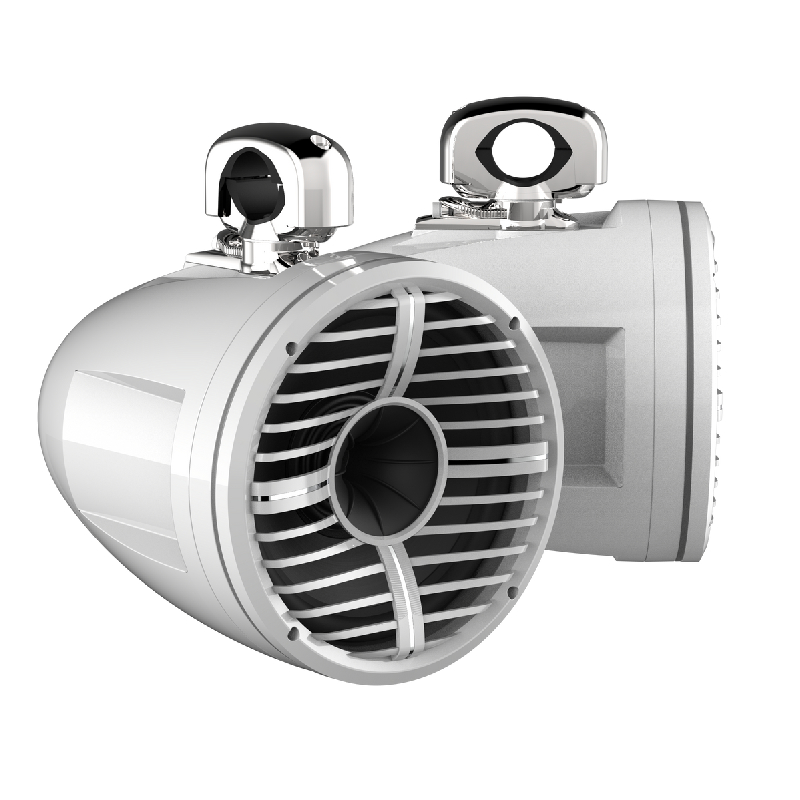

Revolution HD Series 12" 400W RMS (800 Peak Power Handling) 4 Ohms, Horn Loaded Compression Driver (HDLC) Tower Speakers with XW-White Grille and Stainless Steel Swivel Quick Disconnect Clamp for tube diameter 1 7/8" to 3"
We are a Wet Sounds authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 12" marine tower speakers (black) with attached 4" speaker
- • (8) 1/2" Allen head screws (3mm)
- • XW-White Grille:
- • Stainless Steel Swivel Quick Disconnect Clamp for tube diameter 1 7/8" to 3"
- • Owner's Manual
Why Choose Wet Sounds REV 12 HD-W XW-TC3-S Marine Speakers?
Extreme Distance Wakeboard Power
Built using proprietary REV TEC technology, this high-output pair delivers full-range sound quality across long distances, ensuring crystal-clear audio both on-axis and way off-axis when riding outside the wake. Cranking out a massive 400 Watts RMS (800W Peak) at 4 Ohms, these 12-inch tower speakers combine a high-efficiency 10-inch polymer composite woofer with a coaxially mounted 1-inch titanium Horn Loaded Compression Driver (HLCD) to project phenomenal volume without losing detail.
Heavy-Duty Composite Marine Construction
Designed to handle continuous outdoor exposure, the REV 12 HD-W features a rugged composite enclosure built to resist the harshest environments. Backed by a 1,000-hour ASTM-D4587 UV-resistance rating and ASTM-B117 salt-spray resistance, this enclosure shields internal components from sun fading, corrosion, and water exposure.
Dynamic RGB Lighting and Custom Style
Light up the water and transform your boat's night profile with integrated RGB LED rings surrounding the woofer cones and rear logo badges. Featuring a 4-pin wiring harness, the built-in LEDs allow you to select static colors like Red, Green, Blue, Aquamarine, or Lime Green, or hook up an optional RGB controller for custom lighting scenes.
Frequently Asked Questions (FAQ)
- • Why does the sound distort at high volume?
Excessive gain, amplifier clipping, or insufficient clean power can cause distortion. Proper gain adjustment and adequate amplifier power help maintain clear output.
- • What amplifier power is recommended?
Each speaker is rated at 400 watts RMS and 4 ohms. Use a properly matched amplifier that can provide clean power without clipping.
- • Why does the bass sound weaker than expected?
These tower speakers deliver strong mid-bass but are not dedicated subwoofers. Crossover settings and amplifier tuning can significantly affect bass response.
- • Why is one speaker louder than the other?
Check amplifier channels, balance, polarity, wiring, and connectors. Swapping amplifier channels can help determine whether the issue follows the speaker.
- • What should I check if there is no sound?
Inspect amplifier output, speaker wiring, connectors, fuses, source settings, and polarity. Loose connections can prevent audio from reaching the speaker.
- • Why does the speaker rotate or move after installation?
Loose clamp hardware, incorrect tower tubing size, or insufficient tightening can allow movement. Verify the clamp fit and securely tighten all mounting hardware.
- • Why aren't the RGB lights working?
Check the RGB controller, wiring, power connection, and swivel-clamp connector. A loose or incorrectly connected RGB lead can prevent the lights from operating.
- • Why does the audio cut out when the speaker is rotated?
Inspect the swivel connector and internal wiring for a loose connection. Make sure the connector is fully seated and the wiring is not being pinched.
- • Why do I hear rattling while the boat is moving?
Loose mounting bolts, clamp components, grilles, or nearby tower hardware can vibrate. Inspect and tighten all mounting points before continued use.
- • Can the tower wiring be damaged during installation?
Yes. Sharp or unfinished openings can damage speaker wires. Deburr drilled holes and use rubber grommets to protect wiring from abrasion.
- Diameter : 12 Inch
- Sensitivity : 91 dB
- Impedance : 4 Ohm
- Frequency Response : 58-20000 Hz
- Peak Power Handling : 800 Watts
- Color : White
- RMS Power Handling : 400 Watts
Features:
- Overview: This Wet Sounds Tower Speaker package includes a pair of Wet Sounds REV 12 HD-W 12" Tower Speakers (white) and a matching pair of REV 12 HD XS-W Grilles.
- REV TEC Technology: The REV 12 HD marine tower speaker uses Wet Sounds' proprietary REV TEC technology. Unlike most conventional designs, REV TEC technology provides remarkable volume and amazing full range sound quality on-axis and off-axis at long distances, even while riding outside the wake and being almost parallel to boat.
- HLCD Driver Design: The REV 12 HD tower speaker utilizes a 10" Advanced Polymer Composite cone woofer, with a Santoprene rubber surround, and a coaxially-mounted 1" horn-loaded compression driver (HLCD) made of titanium for stellar performance in the marine environment. The high frequency transducer is Wet Sounds' proprietary titanium HLCD (horn loaded compression driver).
- This driver was designed to provide a wide; horizontal trajectory that would not only produce sound in the directed path but will disperse sound off axis with little to no degradation.
- The HLCD: is considered to be one of the most efficient transducer designs providing remarkable output while using less power. Wet Sounds unique (patent protected) design incorporates the HLCD mounted to the rear of the midbass driver. Wet Sounds Pro-Axial design allows the compression sound to travel through the voice coil former and out of the (patent protected) horn flare that is mounted coaxially. This provides phenomenal volume and accurate clarity.
- Crossover Network: A full passive crossover network delivers tuned frequencies to the drivers resulting in rich smooth sound.
- Rugged Marine Enclosure: The REV 12 HD marine tower speakers utilize an advanced composite enclosure that's been specifically designed for the harsh marine environment. The enclosure carries a 1,000-hour ASTM-D4587 UV-resistance rating, as well as ASTM-B117 salt-spray resistance rating.
- RGB LED Light Rings:The REV 12 HD marine speakers feature integrated light rings around the woofer cone and around the the rear logo badge. A 9" lighting wire harness, terminated in a 4-pin Molex plug, is provided for connection and includes a Black +12V (+) wire along with Red, Green, and Blue Ground (-) wires, letting you choose a static LED color. Available static color options include: Red, Green, Blue, Lime Green, Magenta, Aquamarine, and Blue-White. An optional RGB LED lighting controller (sold separately - please see the Accessories tab) can be used for additional color options.
- Speaker Harness: The marine tower speakers feature an attached 4" speaker harness, terminated in a 2-pin Molex plug, containing Red and Black wires for positive and negative connections to your marine amplifier.
- Grilles: The Wet Sounds REV 12 HD marine tower speaker bundle includes a pair of Wet Sounds XS-style speaker grilles.
- Optional Mounting Clamps: The Wet Sounds REV 12 HD marine tower speakers do not include any mounting clamps or mounting hardware. The marine tower speakers can be used with Wet Sounds TC3-S clamps (swivel) and X-Mount Adapter kit (both sold separately).
Specifications:
- Tweeter Composition: Titanium
- Woofer Composition: Polymer composite
- Woofer Surround: Santoprene rubber
- Parts Warranty: 2 Years
- Labor Warranty: 2 Years
- Sensitivity: 91 dB at 1 watt
- Style: Wakeboard tower
- Frequency Response: 58Hz-20kHz
- Max RMS Power Handling: 400
- Peak Power Handling (Watts): 800
- Impedance (Ohms): 4
- UPC: 810042177147
- Weight: 13
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
