Kenwood Excelon P-HD1F Front Amplifier package For Select 2014-up Harley-Davidson® Motorcycles — Includes a 2-channel Amp and 6-1/2" Fairing Speakers
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

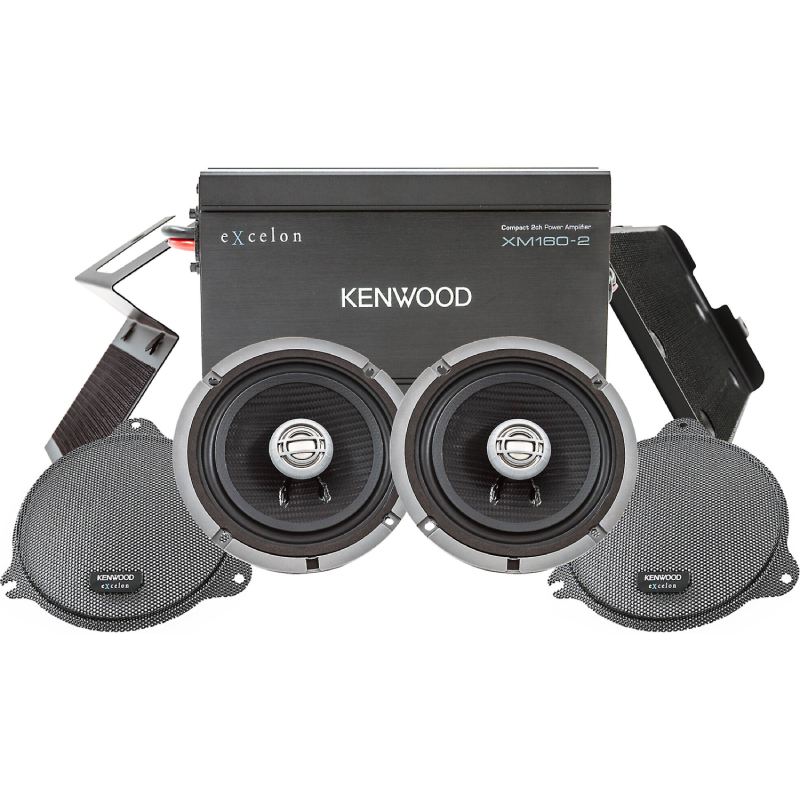

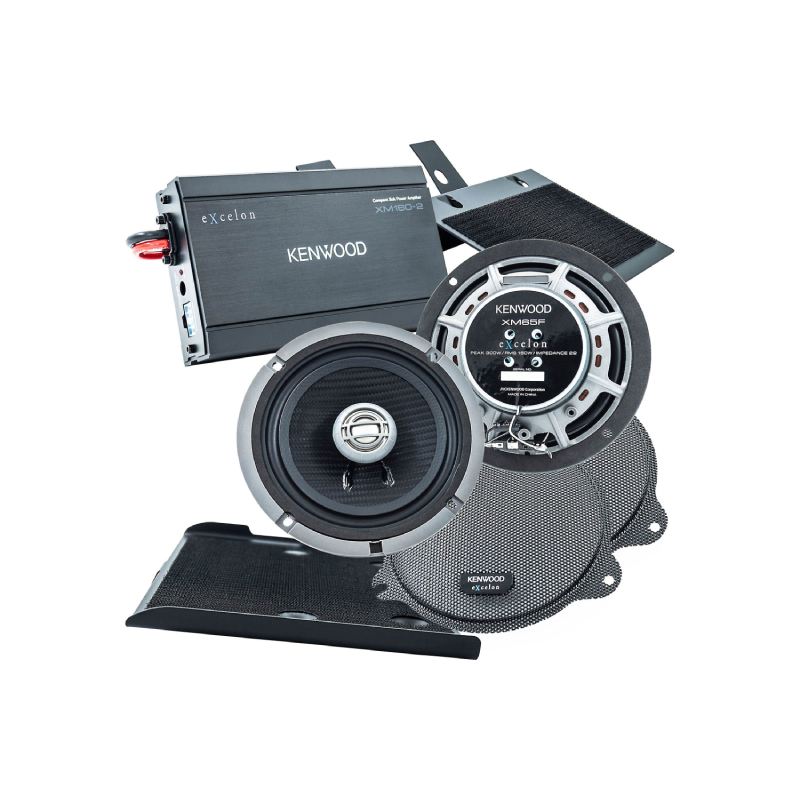

What's Inside?
- • Motorsports Amplifier:
- • 2-Channel amplifier with attached 6" speaker and 8" power/ground harnesses (inline 15A ATO fuse)
- • Street Glide mounting plate (attached to amplifier)
- • Road Glide mounting plate
- • 5' Power & ground harness with inline 15A ATO fuse
- • 17" Input/Bypass harness
- • 21" Front output harness
- • 6" Input Link harness
- • Ten 6" wire ties
- • 4 Star washers
- • Front Speakers:
- • Two 6.5" 2-way speakers
- • 2 Gilles
- •Owner's Manual
No Wire Trimming or Special Modifications Required
This package includes a 2-channel Kenwood Excelon XM160-2 amplifier that'll produce big-time power. This compact Class D amp is built to handle life on the road, so you'll enjoy excellent performance no matter where your travels take you. The XM160-2 is made to rock hard and run cool, even when tucked into a tight space. Plus, the high-efficiency design won't overload your motorcycle's electrical systems, and it'll work with your factory radio or any aftermarket receiver. You'll install your amp using the included mounting plates and Harley-specific wiring kit — no wire trimming or special modifications required.
Features Fairing Speakers
If you're ready to upgrade the sound on your 2014-up Harley-Davidson®, Kenwood has a solution. The Excelon P-HD1FR speaker and amp package features fairing speakers and a compact, powerful amplifier. Designed specifically for select Road Glide and Street Glide models (excluding CVO® models), this kit fits right into your Harley and there's no flashing of the Harley radio required.
Includes a Pair of Kenwood Excelon XM65F 6-1/2" Speakers
The package includes a pair of Kenwood Excelon XM65F 6-1/2" speakers that fit right into the fairing locations on your Road Glide or Street Glide. These rugged, weather-resistant coaxial speakers are a perfect match for the system's amp, so they'll really boost your bike's audio quality. The rugged, road-ready design stands up to moisture and vibration.
Features:
- No Flashing Required: The Kenwood amplifier is tuned for the best performance with a stock Harley-Davidson headunit, letting you install the amp without the need for flashing the factory radio.
- Power: The Kenwood XM160-2 amplifier can output 80W RMS (2Ω) x 2 channels.
- Class D Design: The amplifier features a Class D design, which uses digital switching power supplies. The result is a more efficient amplifier, generating less heat than Class AB amps of equal power. The Class D design also allows the amplifier to be built on a small chassis, and installed where space is limited.
- Signal Sensing: The amplifier has a signal-sensing turn-on circuit on the speaker level input. When a signal is detected on the speaker level inputs, the amplifier will automatically power on. When the signal is no longer detected, the amp will turn off. This allows you to install the amplifier without a remote turn-on lead.
- Input Sensitivity Control: The XM160-2 features an Input Sensitivity control, letting you dial in the maximum headunit signal while keeping it below the distortion point.

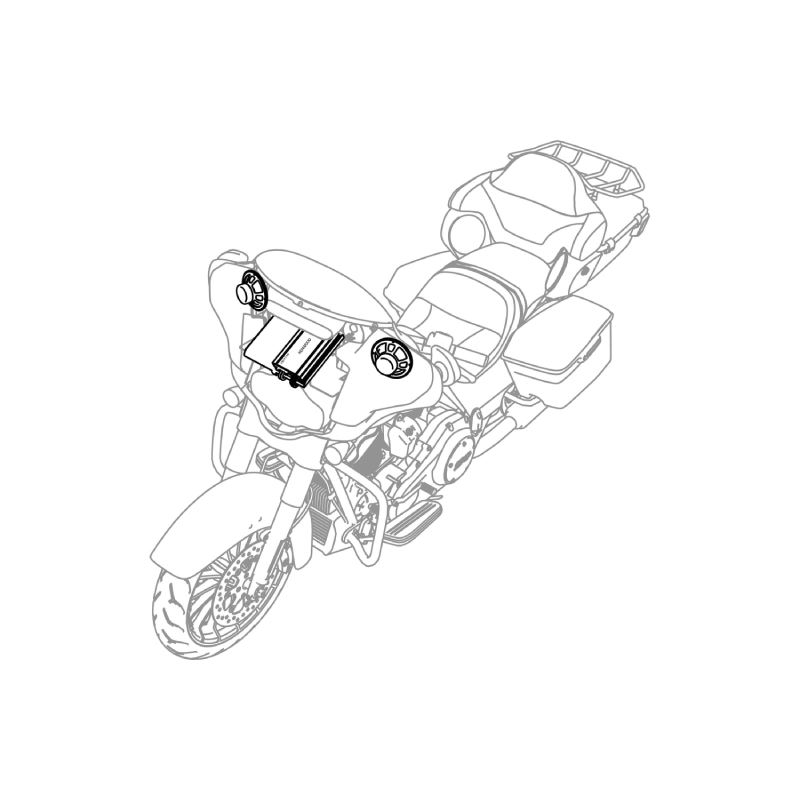

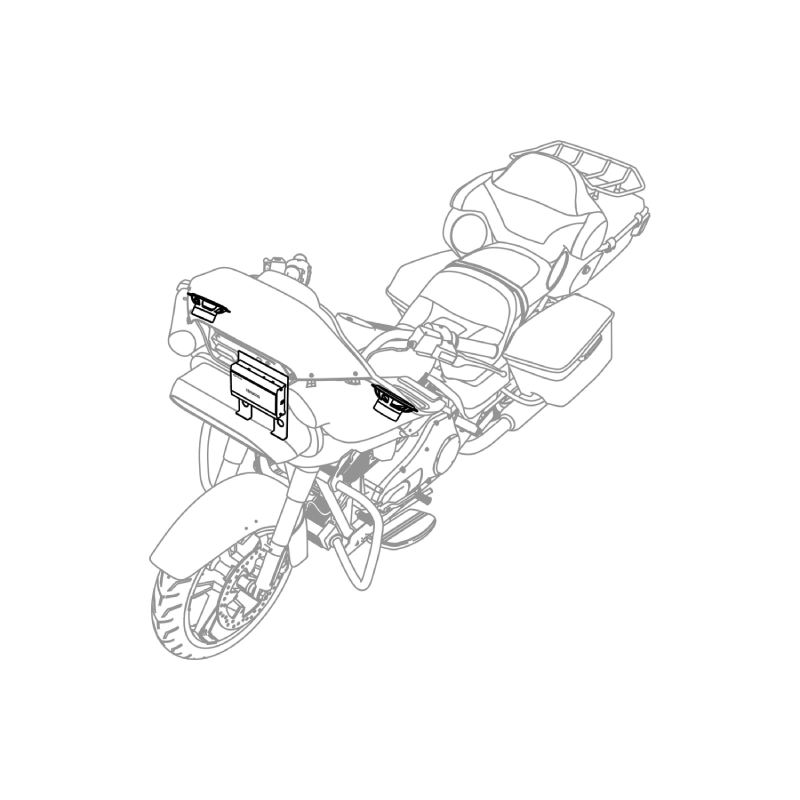

- Mounting: Two amplifier mounting plates are provided for Harley-Davidson Road Glide/Road Glide Ultra and Street Glide/Street Glide Ultra. Both brackets include pre-applied hook-and-loop fastener as well as on the amplifier, letting you easily attach/detach the amp to either mounting plate. The mounting plates use factory hardware for mounting.
- Harley Davidson Integration: The Kenwood XM65F motorsports 6-1/2" speakers are designed for installation into select 2014-up Harley-Davidson Street Glide/Street Glide Ultra, Road Glide/Road Glide Ultra, and CVO Ultra motorcycles. The XM65F speakers mount into the factory front location using the factory mounting hardware and wiring. Replacement speaker grilles are provided.
- Construction: The XM65F speakers feature a 6-1/2" IMPP (Injection Molded Polypropylene) woofer cone and a coaxially-mounted 1" PEI (Poly-Ether-Imide) dome tweeter.
Connections:
- Power & Ground: The amplifier features an attached 8" power & ground input harness consisting of 10-gauge wire terminated in a Molex plug. An additional 5' power & ground harness attaches to this and gets run to the vehicle battery. The amp's 8" power wire includes an inline 15A ATO fuse, and the 5' extension includes an additional inline 15A fuse for protection at the battery. The power and ground wires are terminated in 0.32" ring terminals.
- Speaker Level Input/Bypass: A 17" 8-pin harness provides the input channels, with connectors that plug directly into the factory radio output wiring. A 4-pin Bypass harness is attached, letting you jumper the input signal back out to additional amplifiers (sold separately) using the provided Input Link harness.
- Speaker Output: A 21" 4-pin output harness provides the connection to the Harley-Davidson factory front speaker wires.
Kenwood Excelon XM65F 6-/2" full-range speakers
- designed for your Harley's fairing speaker locations
- IMPP woofer cones
- 1" PEI dome tweeters
- power handling: 150 watts RMS (300 watts peak)
- frequency response: 40-25,000Hz
- impedance: 2 ohms
- mounting depth: 2.925"
- warranty: 2 years
Kenwood Excelon XM160-2-channel amplifier
- high-efficiency design works with Harley-Davidson electrical systems
- speaker-level input for OEM or aftermarket receiver
- Class D amp technology
- 80 watts RMS x 2 (2 ohms)
- includes mounting plates and amplifier wiring kit
- warranty: 2 years
- UPC:
- Weight: 30
