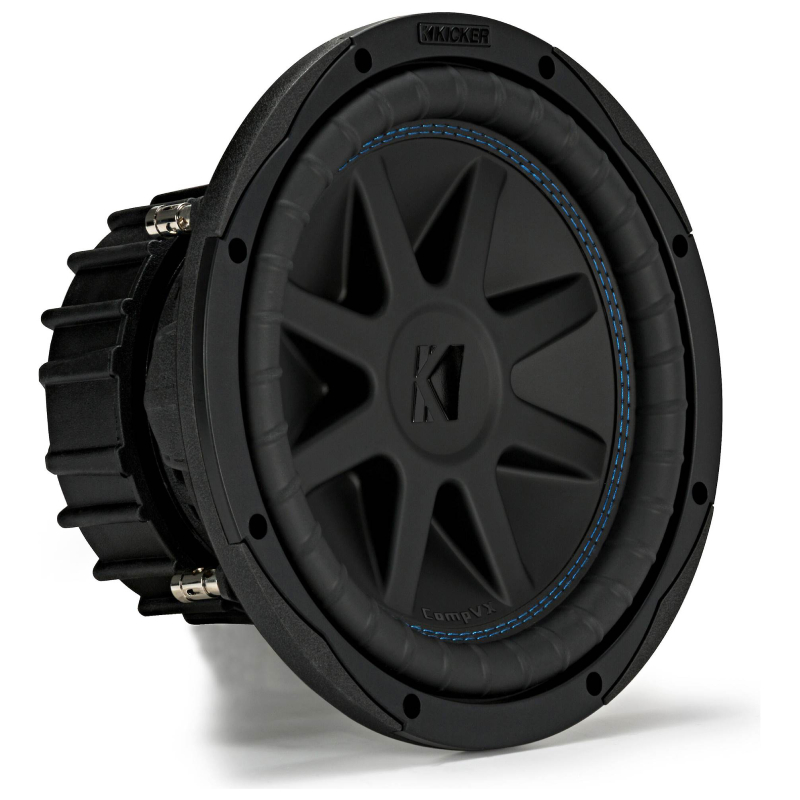

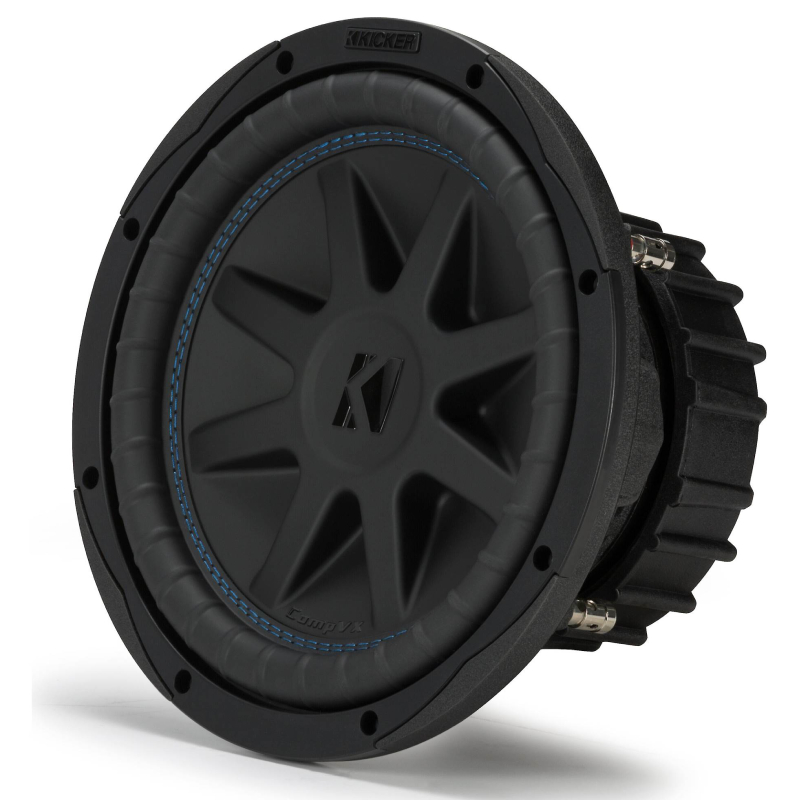

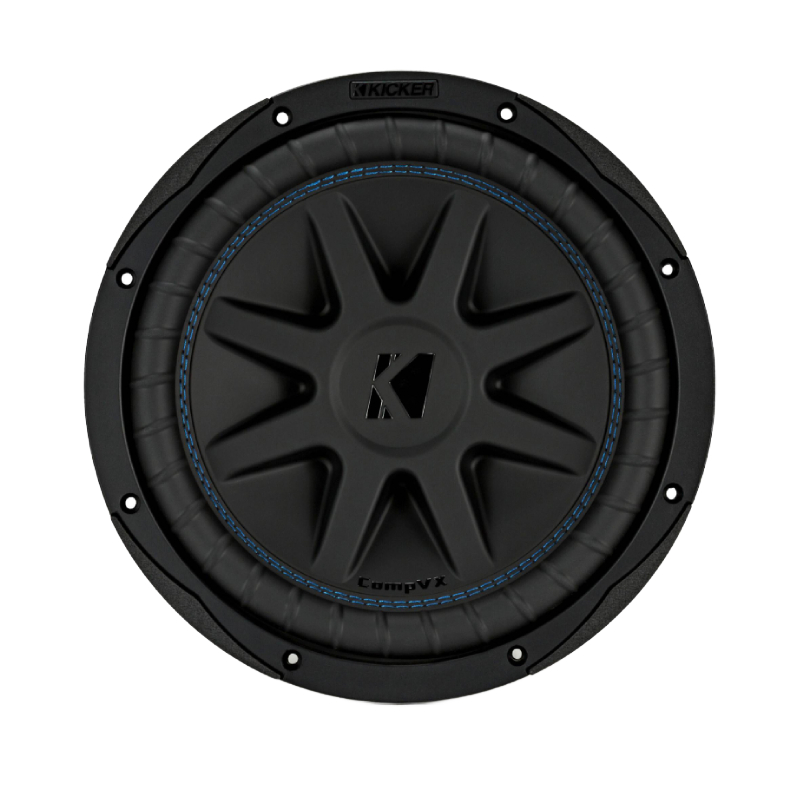

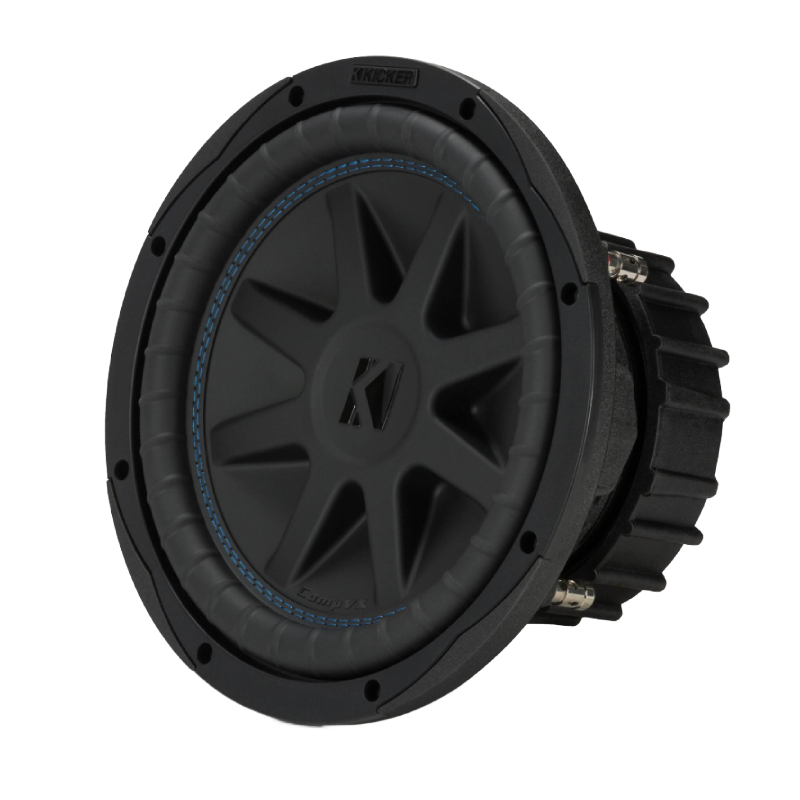

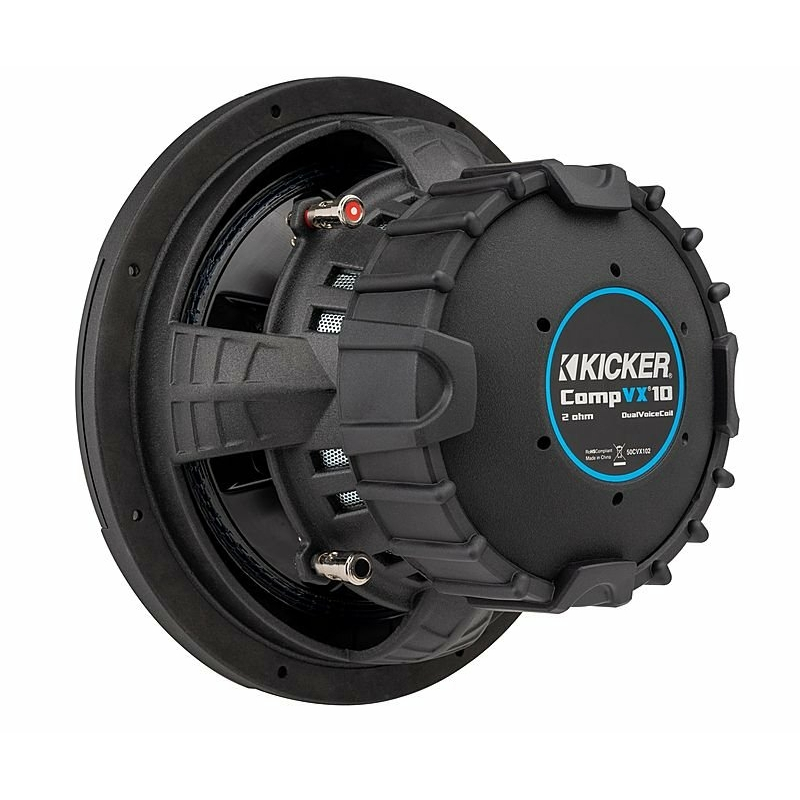

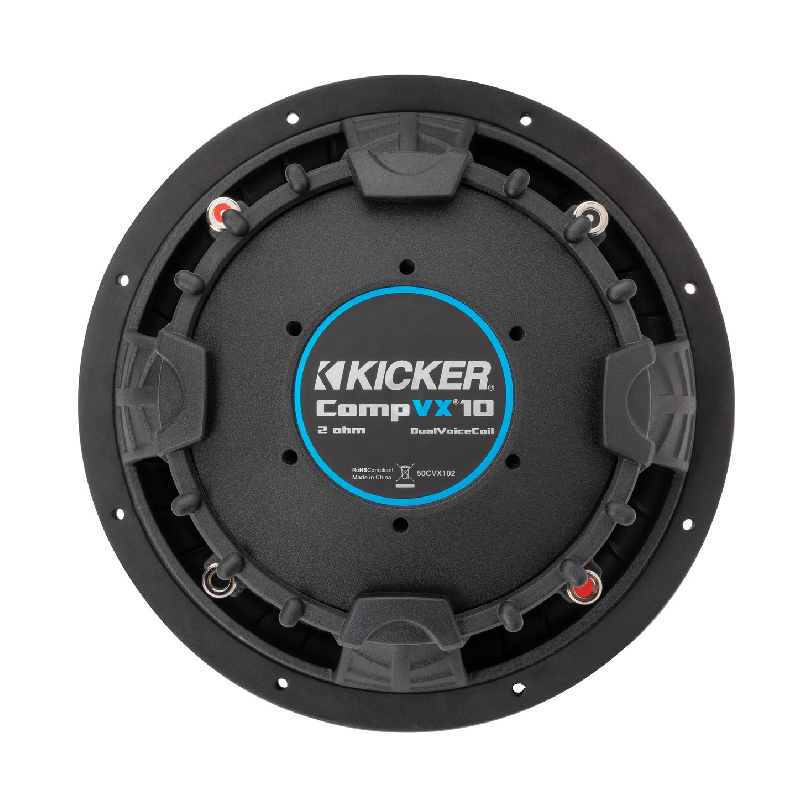

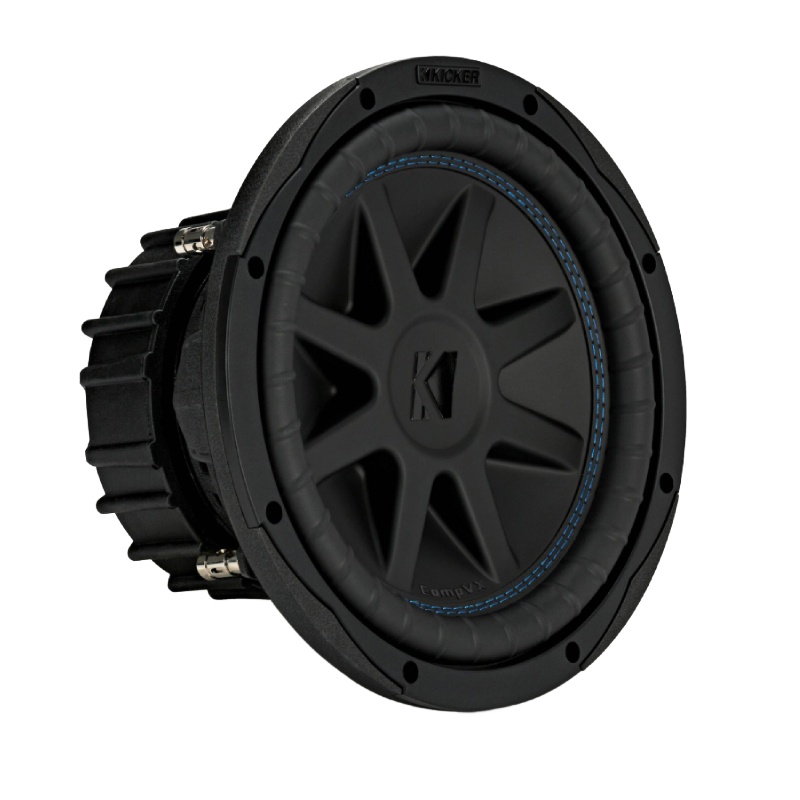

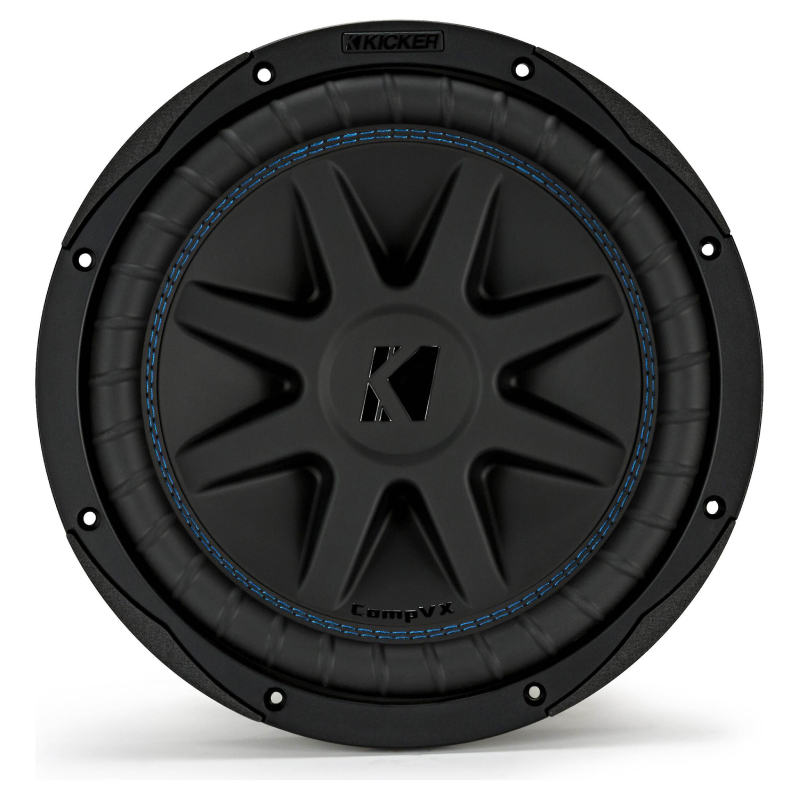

Kicker 50CVX102 CompVX Series 10" 600W RMS (1200W Peak Power Handling) 2 Ohms, Dual Voice Coil Component Car Subwoofer (New Model Replacement for 44CVX102)
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" CompVX Series Dual Voice Coil Component Car Subwoofer
- • Template on the box lid
- • Information sheet (inclues QR code for manual)
- • Owner's Manual
Why Choose Kicker 50CVX102 Component Car Subwoofer?
Engineered for Powerful, Precise, and Durable Bass
With dual 2-Ohm voice coils, this subwoofer offers flexible wiring options for seamless amplifier matching. The thick polypropylene cone delivers strength and stiffness for accurate bass even under high excursion, while signature double blue stitching reinforces the surround for long-lasting durability. A ribbed Santoprene surround allows maximum linear excursion while protecting the cone, and SoloKon cone reinforcement integrates the cone with the back brace for extreme rigidity and minimal distortion, ensuring clean, powerful bass every time.
Durable, High-Power Performance
The oversized suspension system keeps cone movement controlled and prevents misalignment during high-power operation. High-strength insulated tinsel leads provide reliable voice coil connections under extreme loads, while the high-temperature voice coil handles up to 600 watts RMS without overheating, delivering consistent, powerful bass even during extended play.
Precision Engineering for Powerful, Reliable Bass
Perimeter venting efficiently cools the motor, reducing the risk of power compression during high-output sessions. A massive ceramic magnet with UniPlate pole piece maximizes magnetic efficiency and heat dissipation, while the cast aluminum basket provides a rigid structure to prevent flex and ensure accurate cone movement. Satin nickel spring-loaded speaker terminals simplify wiring and accommodate up to 10-gauge wire for easy, secure installation.
Frequently Asked Questions (FAQ)
- • Why does it have weak bass even with a good amplifier?
Weak output is usually caused by an enclosure that does not meet the recommended specifications or improper amplifier tuning. Check the enclosure volume, crossover settings, and speaker polarity to improve bass performance.
- • Can I install this in a sealed or ported enclosure?
Yes. It is designed to deliver excellent performance in both enclosure types when built according to the recommended internal volume and port dimensions.
- • Why does my amplifier go into protection mode when the bass gets loud?
This is commonly caused by an impedance mismatch, loose wiring, or amplifier overheating. Verify the final speaker load and inspect all power and speaker connections carefully.
- • Can I connect this to my factory head unit?
Yes. An external amplifier is required, and many factory audio systems also need a line output converter to provide the proper signal for the amplifier.
- • Why does the bass sound distorted when I increase the volume?
Amplifier clipping, excessive gain, or incorrect crossover settings are the most common causes. Proper amplifier tuning helps maintain clean bass while protecting the subwoofer from damage.
- • Does it require a break-in period?
Yes. Playing music at moderate listening levels for several hours allows the suspension to loosen naturally and improves overall low-frequency response.
- • Why do I hear rattling noises from my trunk instead of clean bass?
Loose trim panels, license plates, and enclosure hardware commonly vibrate during heavy bass. Tightening loose components or adding sound-deadening material usually resolves the issue.
- • Can I use an amplifier that produces more RMS power than the subwoofer is rated for?
Yes. A properly adjusted amplifier with clean output and adequate headroom is generally safer than an underpowered amplifier that clips.
- • Why does the cone move but produce almost no bass?
This usually indicates incorrect crossover settings, reversed speaker polarity, or an air leak in the enclosure. Double-check the amplifier configuration and all speaker wiring before assuming the subwoofer is faulty.
- • Can I wire two subwoofers to a single mono amplifier?
Yes. Make sure the combined impedance matches the amplifier's supported operating range before connecting both subwoofers.
- Diameter : 10 Inch
- Sensitivity : 85.7 dB
- Depth : 5-15/16 Inch
- Impedance : 2 Ohm
- Frequency Response : 24-500 Hz
- Peak Power Handling : 1200 Watts
- Top Mount Depth : 5.9 Inches
- Shallow Mount : No Inch
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 0.80-1.25 Cubic ft.
- Suggested Ported Box Volume : 1.25-1.75 Cubic ft.
- Mounting Depth : 5-15/16 Inches
- RMS Power Handling : 600 Watts
Features:
- Dual 2-Ohm Voice Coils: Offers flexible wiring options for optimal amplifier matching.
- Thick Polypropylene Cone: Provides strength, stiffness, and precise bass reproduction under high excursion.
- Signature Double Blue Surround Stitching: Reinforces the surround for durability and long-term performance.
- Ribbed Santoprene Surround: Protects the cone while allowing maximum linear excursion.
- SoloKon Cone Reinforcement: Integrates cone and back bracing for extreme rigidity and minimal distortion.
- Oversized Suspension System: Maintains control over high-power movement and prevents cone misalignment.
- High-Strength Insulated Tinsel Leads: Ensures reliable voice coil connections under extreme power.
- High-Temperature Voice Coil: Handles up to 600 watts RMS without overheating.
- Perimeter Venting for Thermal Management: Cools the motor efficiently, reducing risk of power compression.
- Massive Ceramic Magnet & UniPlate Pole Piece: Maximizes magnetic efficiency and heat dissipation.
- Cast Aluminum Basket: Rigid structure prevents flex, ensuring accurate cone movement.
- Satin Nickel Spring-Loaded Speaker Terminals: Simplifies wiring and accepts up to 10-gauge wire.
Specifications:
- Size: 10" (25 cm)
- Impedance: 2 Ohm DVC
- Recommended Amplifier Power: 600 watts RMS
- Peak Power Handling: 1200 watts
- Frequency Response: 24–500 Hz
- Sensitivity: 85.7 dB at 1 watt / 1 m
- Mounting Depth: 5-15/16" (15.1 cm)
- Mounting Cutout: 9-3/16" (23.3 cm)
- Minimum Sealed Box Volume: 0.8 cu. ft. (22.7 L)
- Maximum Sealed Box Volume: 3.0 cu. ft. (85 L)
- Minimum Vented Box Volume: 1.25 cu. ft. (35.4 L)
- Maximum Vented Box Volume: 1.75 cu. ft. (49.6 L)
- UPC: 0713034042617
- Weight: 20
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
