Alpine  S2-A60M-Bundle

Alpine S2-A60M S-Series 600W RMS x 1 @2Ohms (1100 Max Power) Class D Mono Power Amplifier + (50% OFF) Aunex AE-4K 4 Gauge Premium Amplifier Wiring Kit

Item #91902

Condition:   Brand New

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$345.92

Reg. Price $499.90  Save $153.98

Out of Stock Check out other products listed below
Alpine Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

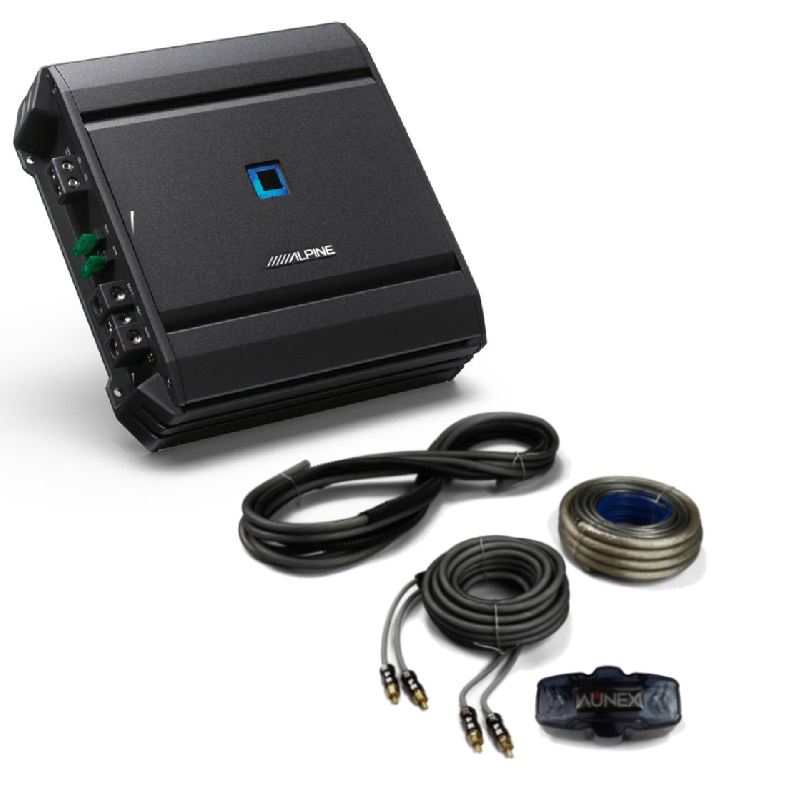

Alpine S2-A60M S-Series 600W RMS x 1 @2Ohms (1100 Max Power) Class D Mono Power Amplifier + (50% OFF) Aunex AE-4K 4 Gauge Premium Amplifier Wiring Kit


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •Alpine S2-A60M
  • •Aunex AE-4K
  • • Owner's Manual

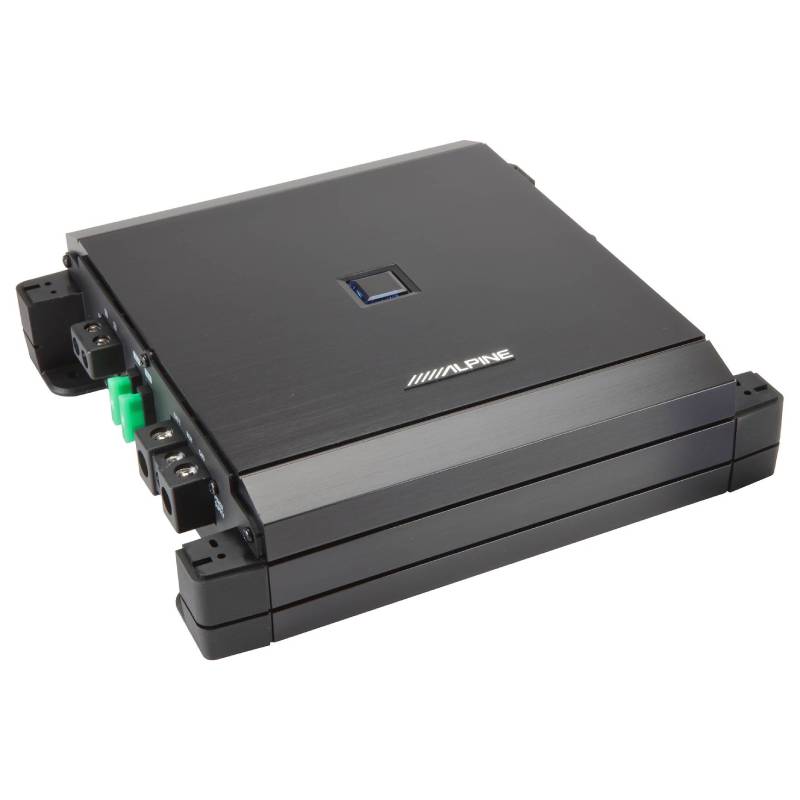

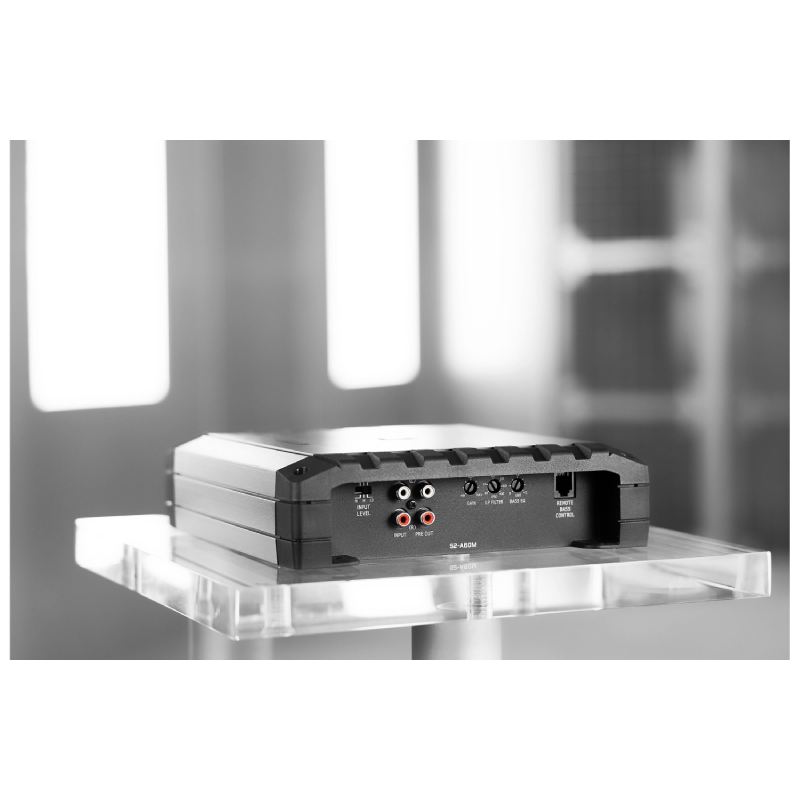

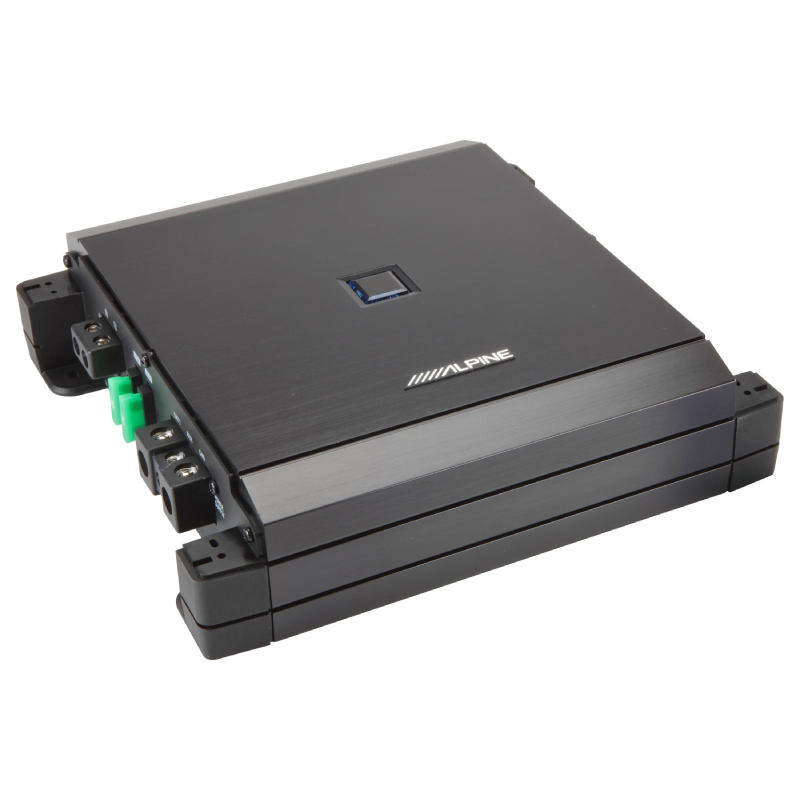

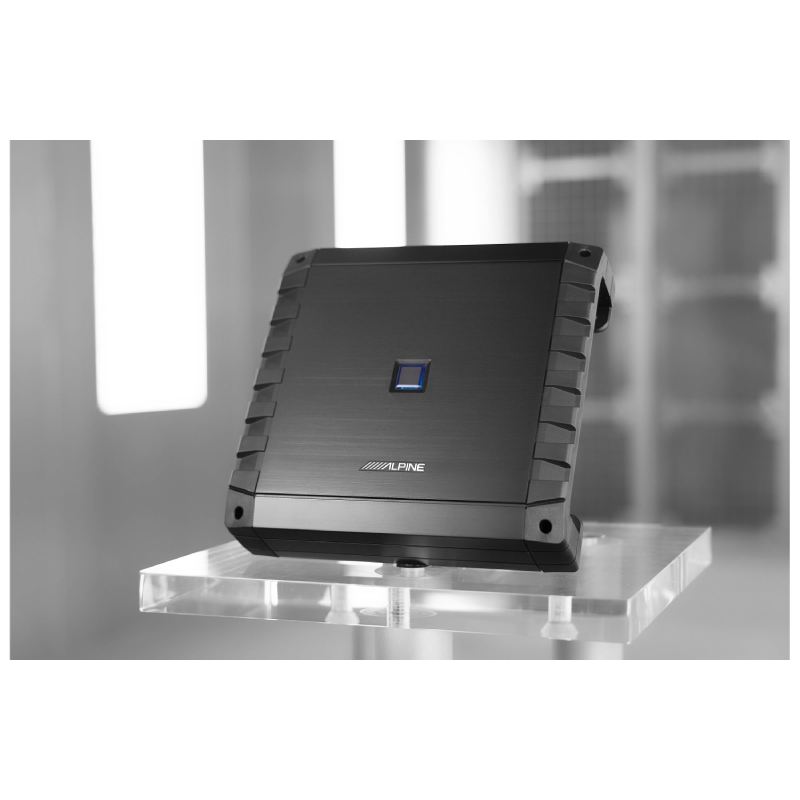

Alpine S2-A60M S-Series 600W RMS x 1 @2Ohms (1100 Max Power) Class D Mono Power Amplifier

If you want to enhance your car audio system and elevate your driving experience, the Alpine S2-A60M amplifier is a game-changer. This amplifier is designed with precision engineering and cutting-edge technology and delivers powerful crystal-clear sound reproduction. In this article, we will explore the key features and benefits of the Alpine S2-A60M, from its compact size to impressive power output.

Aunex AE-4K Elite Series 4 Gauge Premium Amplifier Wiring Kit

Tinned OFC Ultra-Flex Cable is a type of car audio cable that is composed of tinned oxygen-free copper (OFC) and is designed to be highly flexible. This type of cable is commonly used for connecting speakers and amplifiers in a car audio system. The tinned OFC provides excellent conductivity, while the flexible design makes it easy to work with in tight spaces.

Alpine  S2-A60M S-Series 600W RMS x 1 @2Ohms (1100 Max Power) Class D Mono Power Amplifier

Features:

  • Class D 2 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
  • 4 ohms: 330 watts x 1 channel
  • 2 ohms: 600 watts x 1 channel
  • Pulse Width Modulated MOSFET power supply
  • LED Power/Protect Light
  • Optional remote bass level control available for purchase Alpine RUX-KNOB.2
  • Soft start turn-on

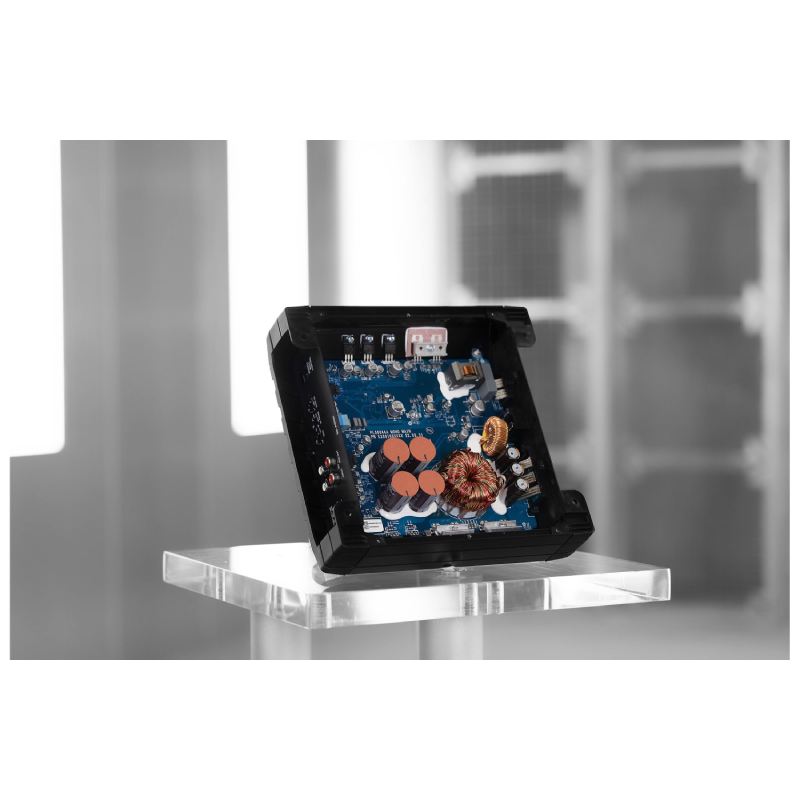

  • Improved heat sink and protection circuit design
  • Speaker-level (high-level) inputs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Frequency Response: 10 - 400 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ratio: 85 dB
  • Variable low-pass filter: 50 - 400 Hz
  • Variable Bass Boost: 0 - 12 dB
  • Fuse Rating: 30A x 2
  • 4 AWG gauge power and ground wiring is recommended for installation.



Specifications:

  • Total Max Power: 1100W
  • Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 1 x 600W
  • Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 1 x 330
  • Crossover: Variable LPF, 50-400Hz (-12dB/oct )
  • Power Requirements: 14.4 V.DC (9 - 16 V allowable)
  • Input Sensitivity (RCA Input): Hi: 0.5 - 10 V Lo: 0.2 - 4.0 V
  • High Level Input with automatic power on
  • Cable size: Power Cable AWG 4, SPK Cable AWG 8
  • Frequency Response (+0, -3dB: 1W into 4 ohms): 10Hz - 400Hz
  • THD+N (@ 10W into 4 ohms): <0.03%
  • THD+N (@ 50W into 4 ohms): <0.08%
  • Damping Factor: >1000
  • Signal to Noise (@ 50 Watts into 4 Ohms): >105dB
  • Weight: 1.9 kg
  • Heat Sink (WxHxD) mm: 204 x 58 x 204
  • Terminal Layout: One side

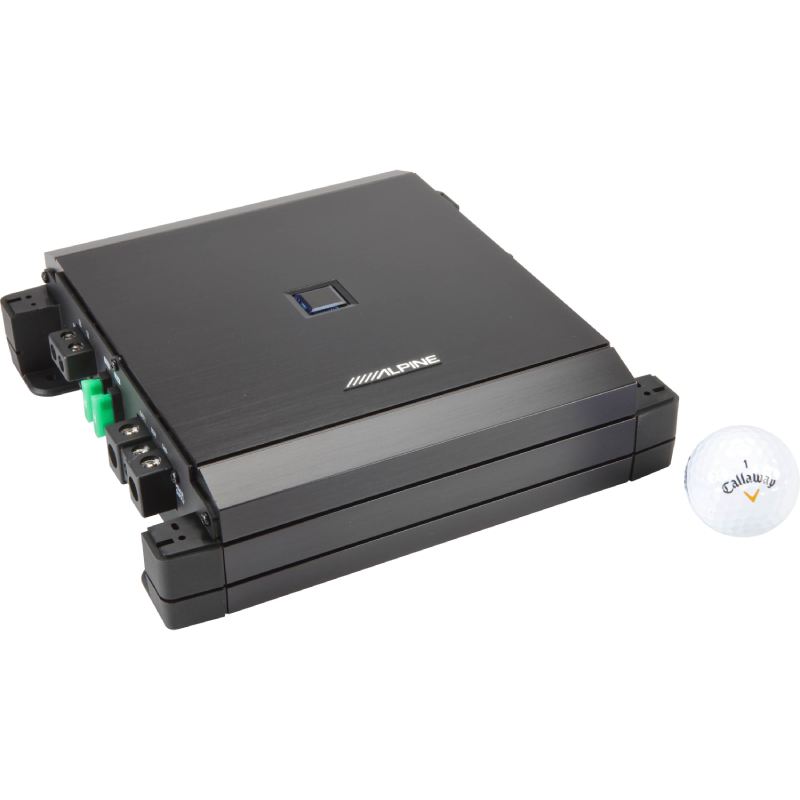

  • Small footprint for easy installation

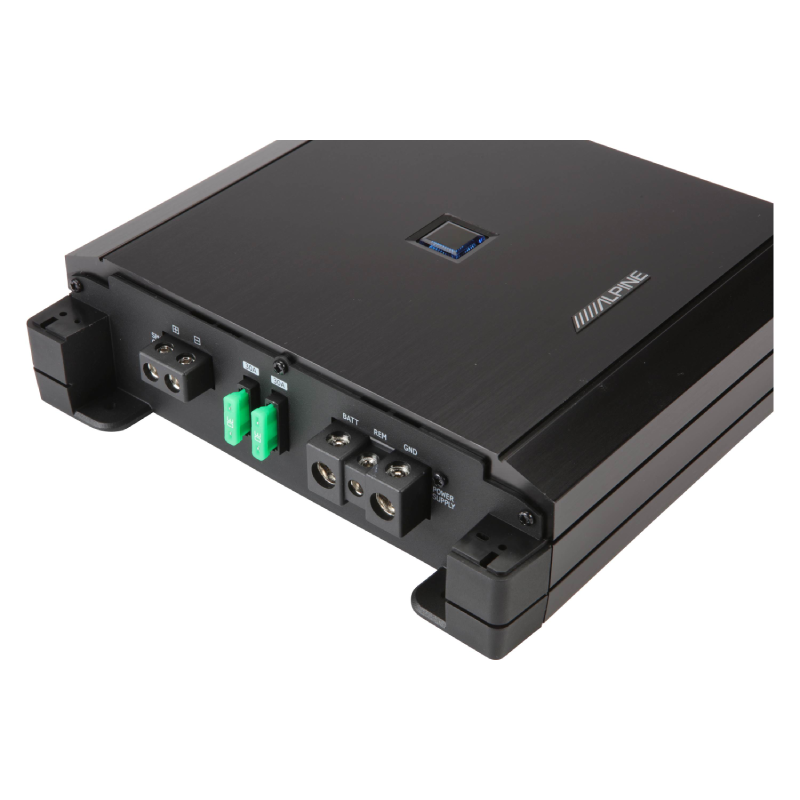

  • Screw terminals (for speaker and power cables
  • Amplifier Type: Class-D (Digital)
  • Channel Design: Mono Channel
  • Thermal Management Control
  • Top Mounted LED Power/Status Indicator
  • Speaker Level Input with remote turn on
  • Crossover: Adjustable Low-pass (LPF)
  • Gain Control: Adjustable
  • Bass EQ
  • Bass Control: Remote Bass Control (RUX-KNOB2) Ready

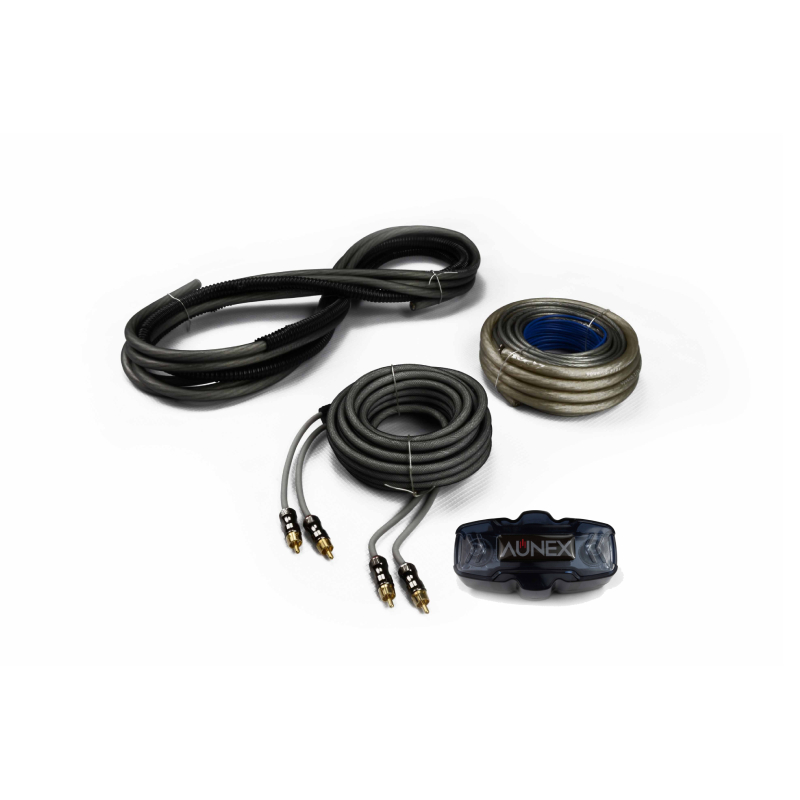

Aunex  AE-4K Elite Series 4 Gauge Premium Amplifier Wiring Kit

Features:

  • 20ft - 6.1m 4 Gauge Tinned OFC Ultra-Flex Power Cable - 1,872 Stranda
  • 6ft - 1.8m 4 Gauge OFC Ultra-Flex Ground Cable - 1,872 Strands
  • 30ft - 9.1m 12 Gauge Tinned OFC Ultra-Flex Speaker Wire - 292 Strands
  • 20ft - 6.1m Tinned OFC Remote Cable - 74 Strands

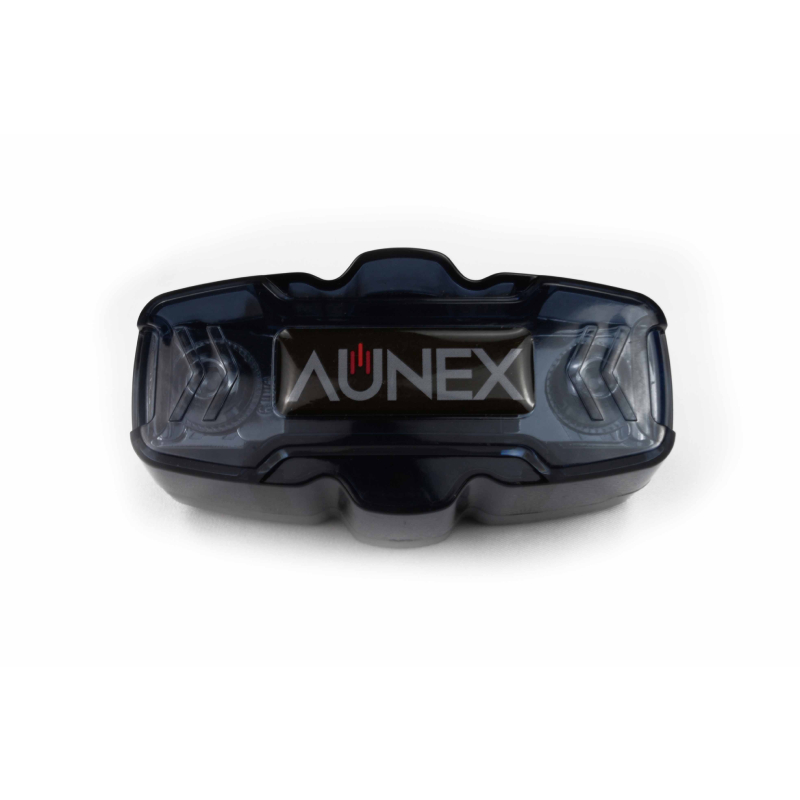

  • 20ft - 6.1m 2 Channel 4-Layer Shielding RCA interconnects with Advance Twinning Construction 100A ANL High Temperature Poly Carbonate Fuse Holder
  • 1/0-4 Gauge Fuse Holder Rubber Adapter
  • (10) High Temperature Wire Ties
  • Firewall Grommet, Ring Terminals, Fork Terminals, Butt Connectors and Self Tapping Screws Included.
  • UPC: 798418840812
  • Weight: 11
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
