Aunex  AP800.1D-Bundle5

Aunex AP800.1D Monoblock Amplifier + Pioneer TS-WX1220AH 12" Built-In Subwoofer Amplifier + Aunex AP-8K Amplifier Wiring Kit

Item #92125

Product Highlights

  • Aunex AP800.1D
  • Pioneer TS-WX1220AH
  • Aunex AP-8K

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

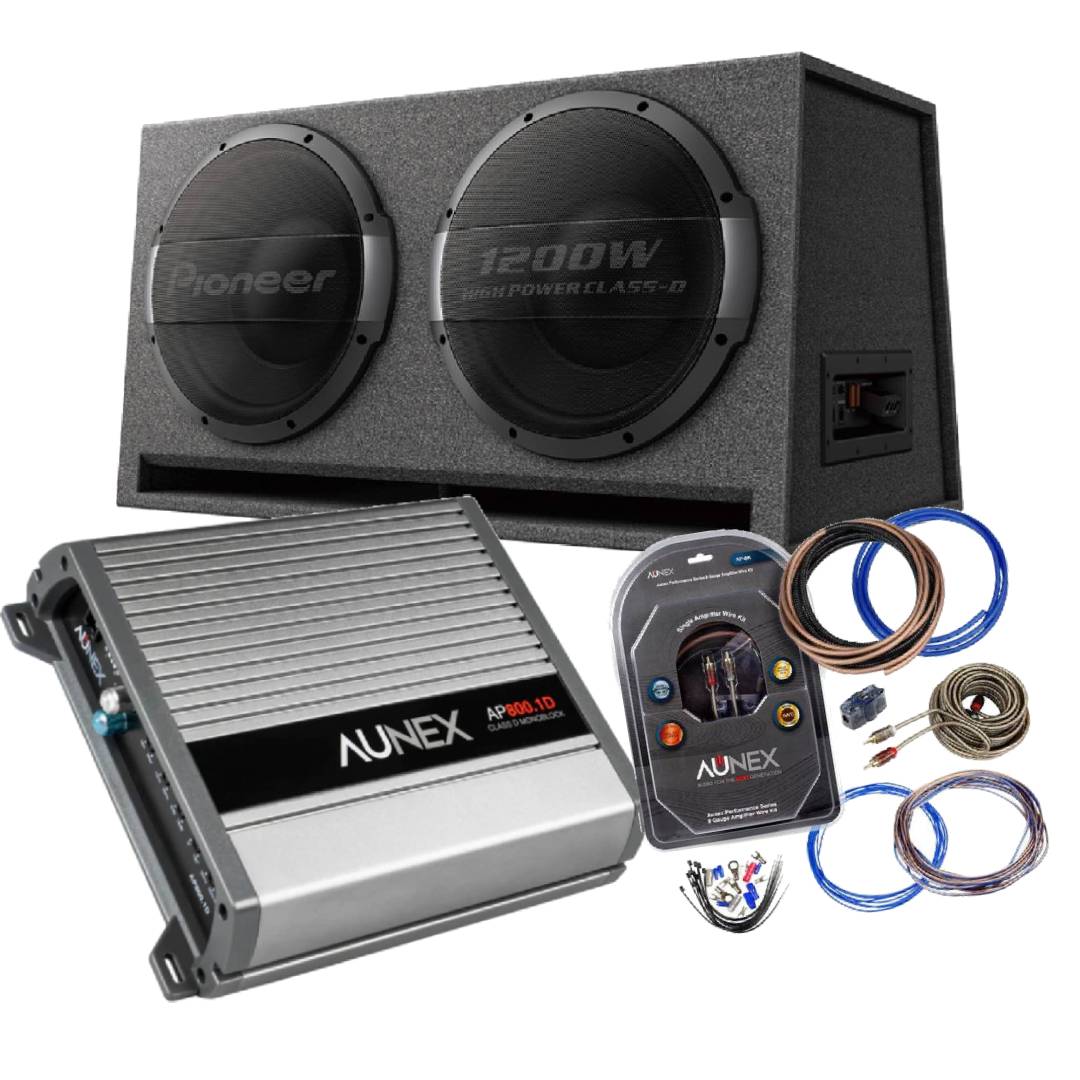

Aunex AP800.1D-Bundle5 Aunex AP800.1D Monoblock Amplifier + Pioneer TS-WX1220AH 12" Built-In Subwoofer Amplifier + Aunex AP-8K Amplifier Wiring Kit


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Aunex AP800.1D
  • • Pioneer TS-WX1220AH
  • • Aunex AP-8K

AP800.1D AP Series 800W x 1 @4Ohms, 1600W Max Power Class D Monoblock Amplifier

Unleash the Power of Sound

The Aunex AP800.1D amplifier is a game-changer for car audio enthusiasts looking to upgrade their bass performance. With its powerful 800-watt output and advanced features, it delivers exceptional bass reproduction, elevating your in-car audio experience. Using Class-D amplifier technology, it operates efficiently and minimizes strain on your vehicle's electrical system.

TS-WX1220AH 12" 1000W RMS (3000W Peak Power Handling) 1200W Peak Power Built-In Amplifier Double Powered Bass Reflex Subwoofer System

Unleash the Power of Bass

Upgrade your vehicles sound system with this easy to install dual driver subwoofer package for strong powerful bass, a maximum power of 3000 W and a nominal power of 1000 W. (Remote control and cables included).

AP-8K 8 Gauge Complete Amplifier Wiring Kit 100% Copper OFC

Power Up Your Sound

The Aunex AP-8K wiring kit is a complete solution for installing and connecting your car's audio amplifier, specially crafted to work seamlessly with the Aunex AP-8K amplifier. It comprises essential components, such as high-quality power and ground cables designed to handle the amplifier's power needs effectively.






SPECIFICATIONS



FEATURES

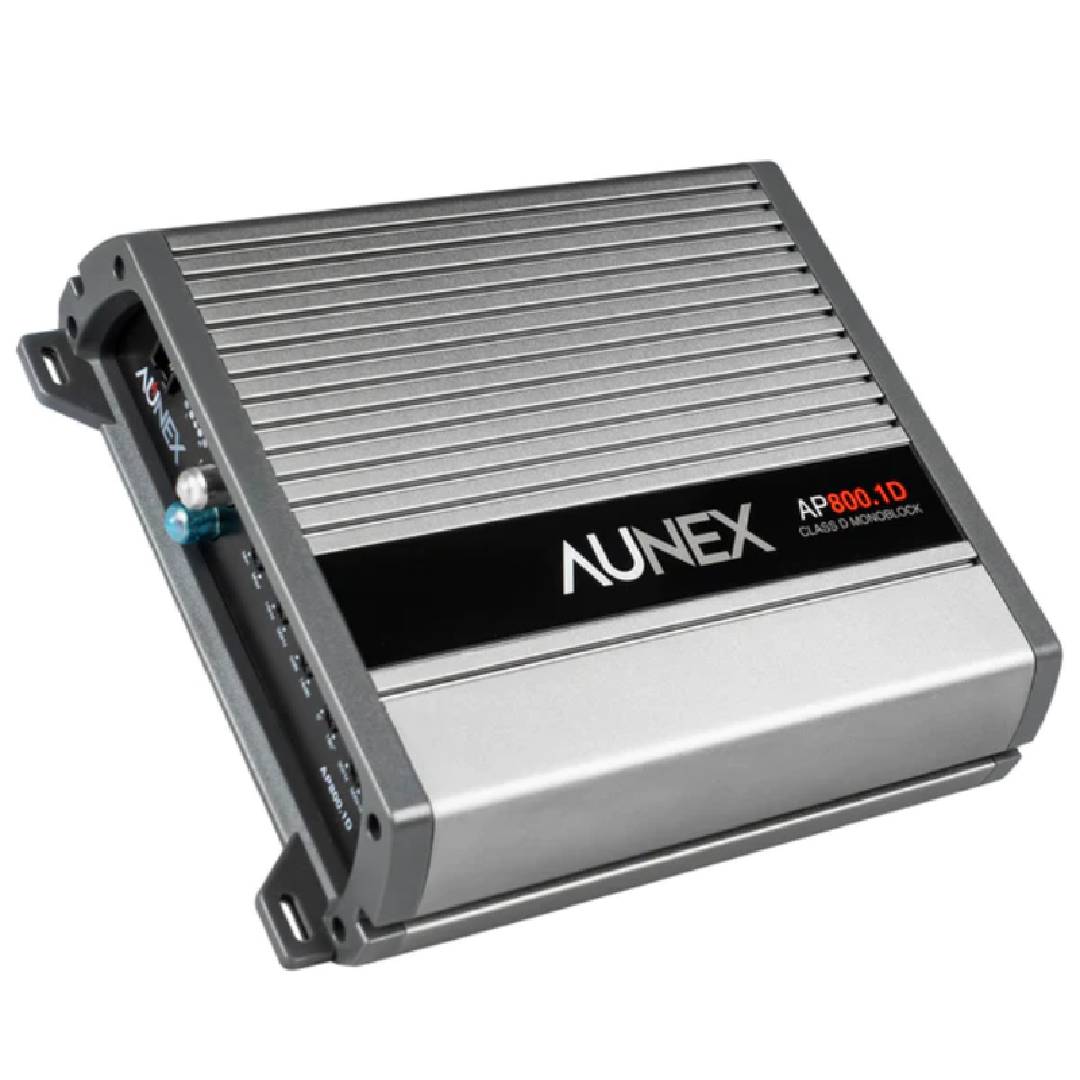

AP800.1D AP Series 800W x 1 @4Ohms, 1600W Max Power Class D Monoblock Amplifier

Features:

  • Heavy Density Aluminum Extruded Heatsink
  • 2 Layer PCB, SMD Technology
  • Differential Balanced RCA Inputs
  • Fully Variable Crossover: 30Hz - 500Hz @ 24dB/Octave Slope
  • Fully Variable Infrasonic Filter: 10Hz - 50Hz @ 24dB/Octave
  • Boost Eq. 0 - 18dB @ 45Hz Center
  • Auto-Sensing in High-Level Input Mode
  • Power and Protection Logo Illuminated Status Indicator
  • 4 Gauge Power and Ground Terminals
  • 12 Gauge Speaker Output Terminals
  • Advance Protection Circuit Monitoring: Short, Thermal, Overload, And Impedance
  • Finish: Anodized with Texture Paint



Specifications:

  • Channels: 1
  • Rated RMS Power 4 Ohms Mono @ 14.4V: 300 Watts x 1
  • Rated RMS Power 2 Ohms Mono @14.4V: 600 Watts x 1
  • Rated RMS Power 1 Ohm Mono @ 14.4V: 800 Watts x 1
  • Peak Music Power: 1600 Watts
  • Frequency Response: 10Hz - 500Hz
  • THD + Noise: <0.5%
  • S/N Ratio A-Weighted: >105dB
  • Input Sensitivity (Low Level RCA): 250mV - 6V
  • Input Sensitivity (High Level Speaker Output): 450mV - 11V
  • Crossover Low Pass (24dB/Octave): 50Hz - 500Hz
  • Boost EQ Low Pass - 45Hz Centered: 0 - 18dB
  • Infrasonic Filter: 10Hz - 50Hz
  • Phase - Fully variable: 0 - 108°
  • Efficiency @ 4 Ohm: 85%
  • Operating Voltage: 9 - 17 Volts
  • Fuse Requirement: 80A (Included)
  • Dimensions (H x W x D): 2.0" x 8.5" x 7.2"

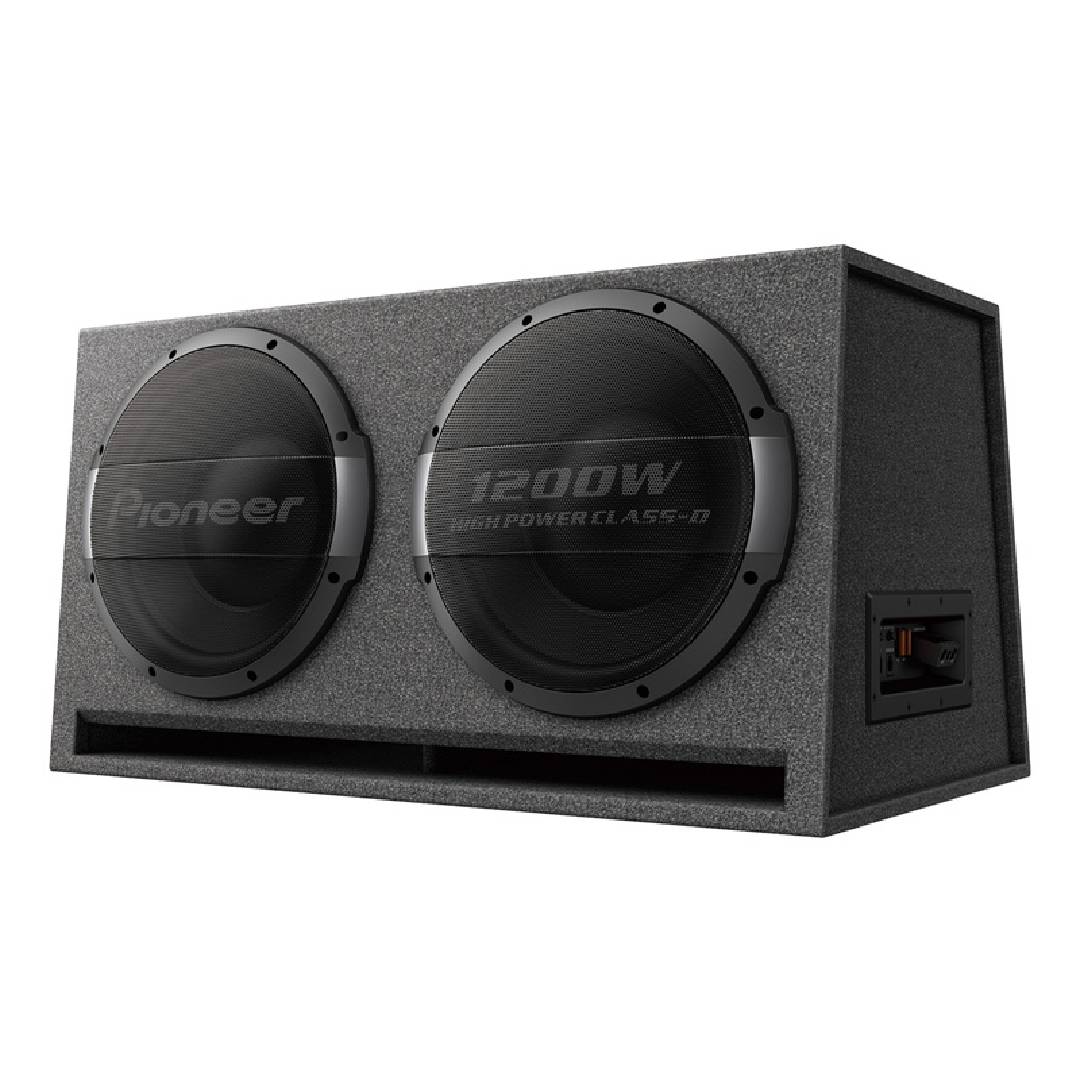

TS-WX1220AH 12" 1000W RMS (3000W Peak Power Handling) 1200W Peak Power Built-In Amplifier Double Powered Bass Reflex Subwoofer System

Specifications:

  • CarSoundFit App: Yes
  • Size: 30 cm (12") x 2
  • Type: Double powered bass reflex subwoofer system
  • Maximum power: 3000 W
  • Nom Power: 1000 Watt
  • Frequency response: 20 Hz - 2.9 kHz
  • Sensitivity: 118 dB (in car, 2V) dB
  • Impedance: 0.3 ohms
  • Woofer material: Pulp
  • Surround: Urethane
  • Voice Coil type: Copper round wire 4-layers single voice coil
  • Voice Coil bobbin type: Kapton
  • Terminals: Faston
  • Magnets: FERRITE
  • 30cm / 12" Enclosed Active : Yes
  • LPF: 50 Hz - 200 Hz (-12dB / oct)
  • Weight: 22.8 kg
  • Dimensions: 745x459(375)x400 mm

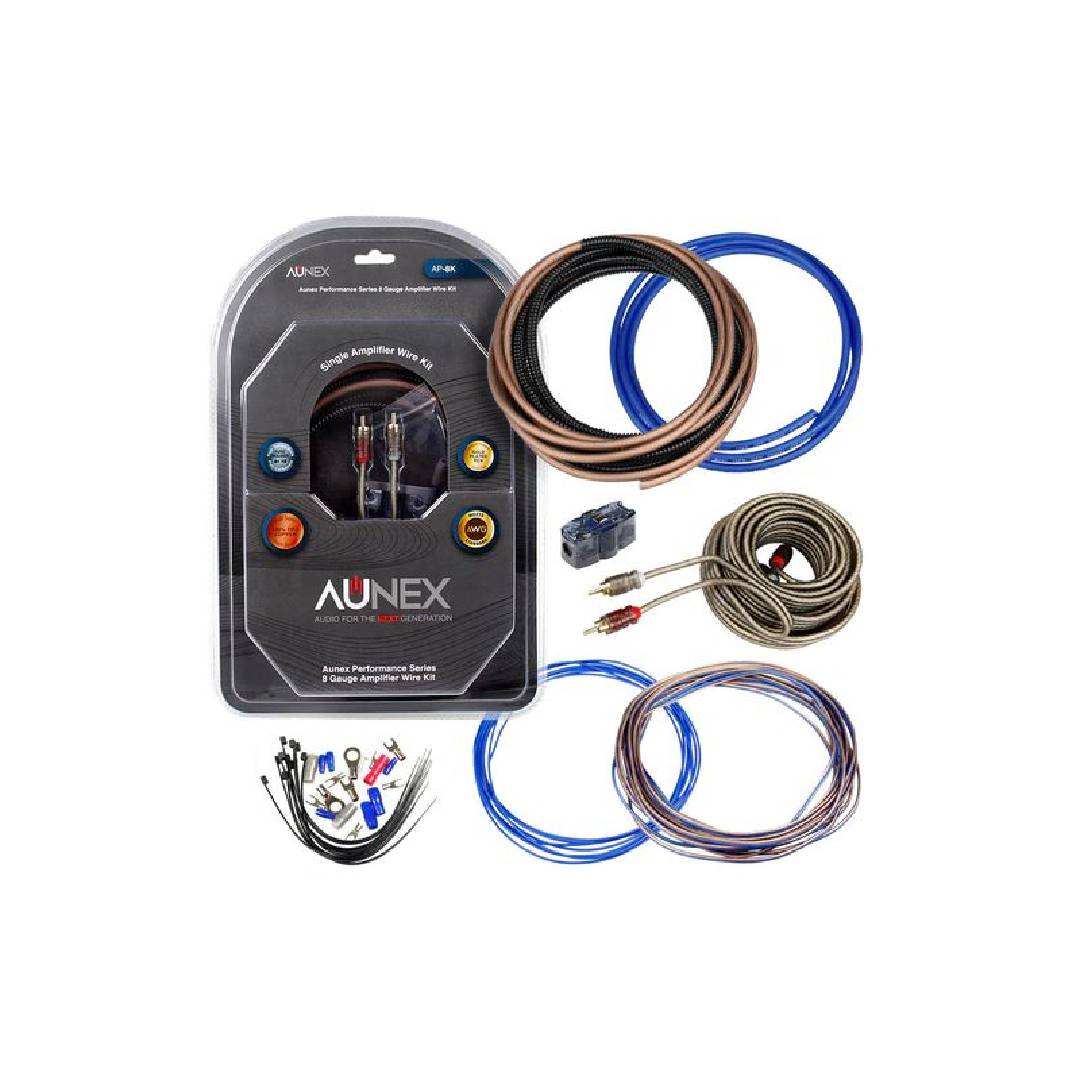

AP-8K 8 Gauge Complete Amplifier Wiring Kit 100% Copper OFC

Features:

  • 17 Ft. of 8 Gauge 100% OFC Ultra-Flex Power Cable — 427 Strands
  • 6 Ft. of 8 Gauge 100% OFC Ultra-Flex Ground Cable — 427 Strands
  • 30 Ft. of 16 Gauge 100% OFC Ultra-Flex Speaker Wire — 67 Strands
  • 17 Ft. 100% OFC Remote Cable — 74 Strands
  • 17 Ft. 2 Channel Dual Layer Shielding RCA Interconnects with Advance Twinning Construction (ATC)
  • 60A Mini ANL High-Temperature Polycarbonate Fuse Holder
  • 4 - 8 Gauge Fuse Holder Rubber Adapter
  • 10 - High-Temperature Wire Ties
  • Firewall Grommet, Ring, Spade and Fork Terminals and Self Tapping Screws Included
  • UPC: 798418840652
  • Weight: 60
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
