Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

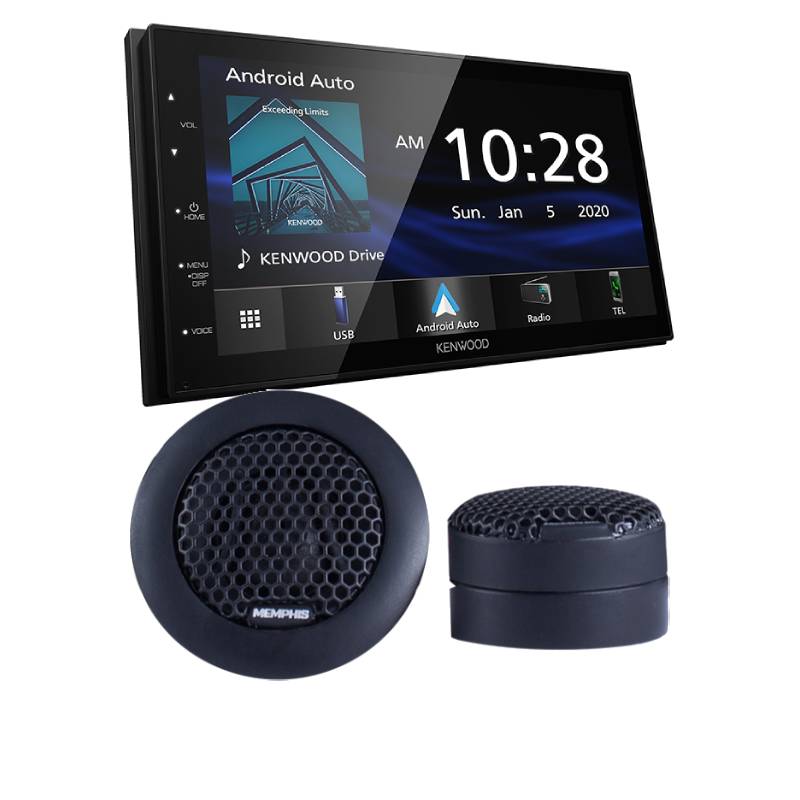

Kenwood DMX47S 6.8" Digital Multimedia Receiver + Memphis Audio SRX1 Carplay Upgrade Receiver & Tweeters
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Kenwood DMX47S
- •Memphis Audio SRX1
- • Owner's Manual

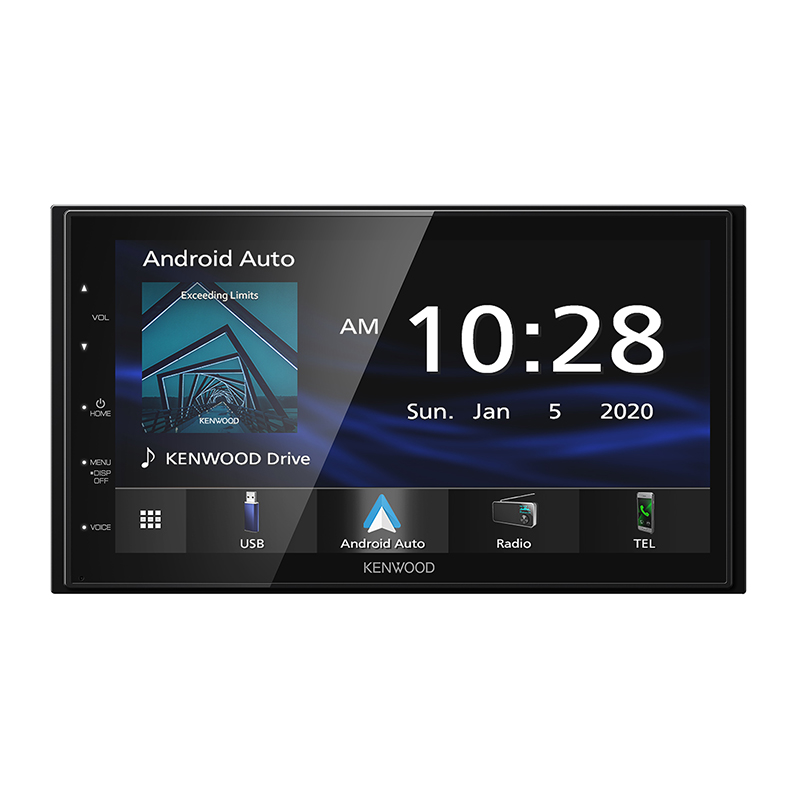

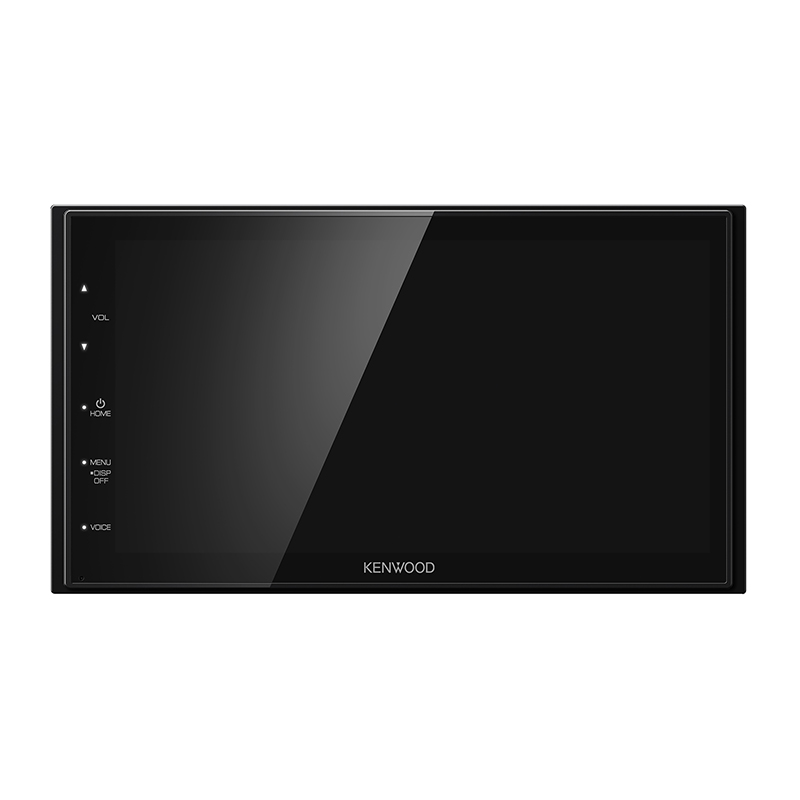

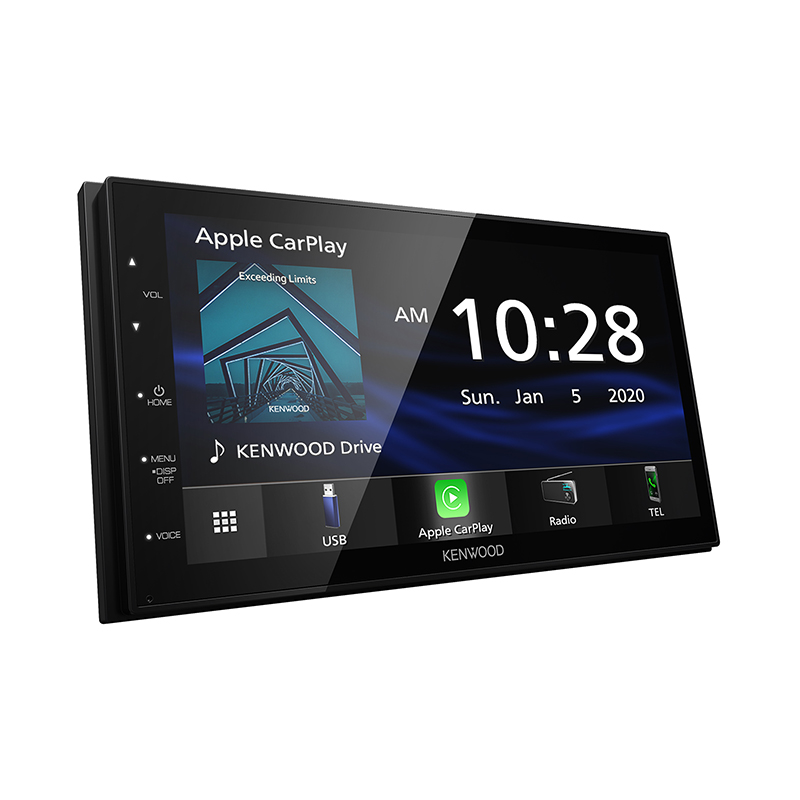

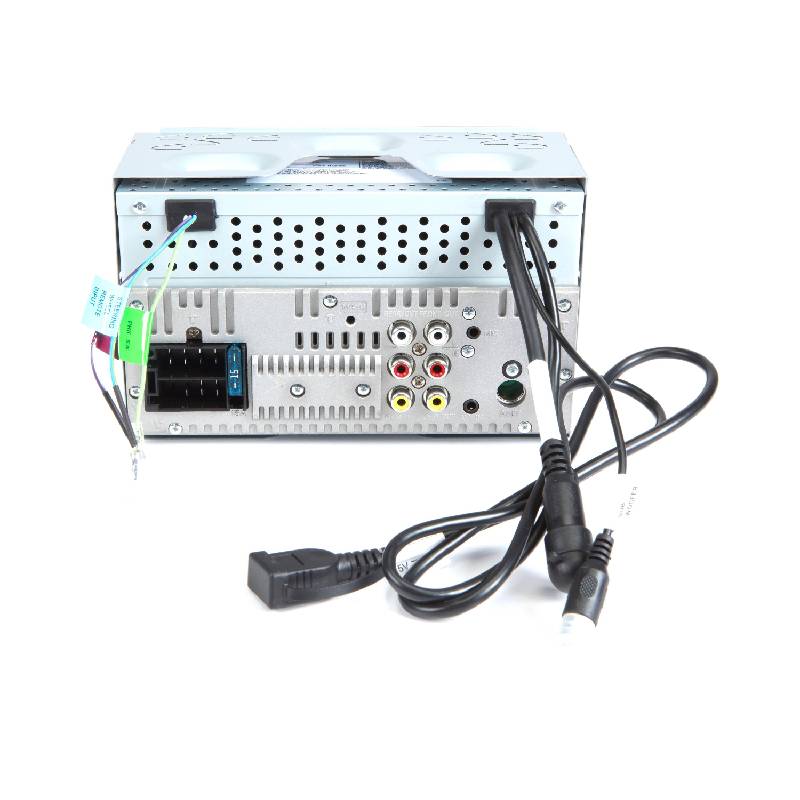

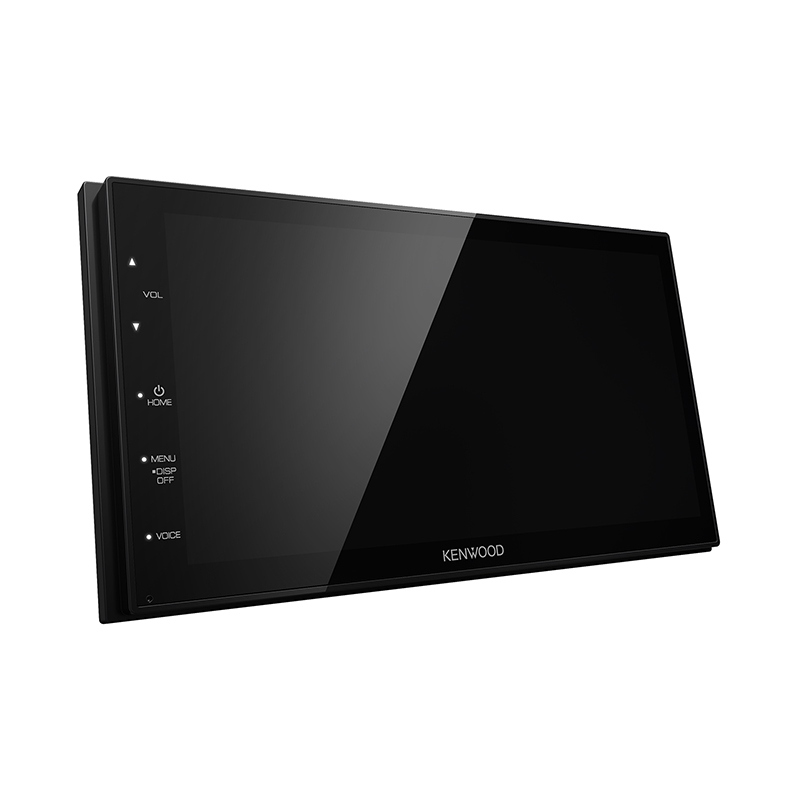

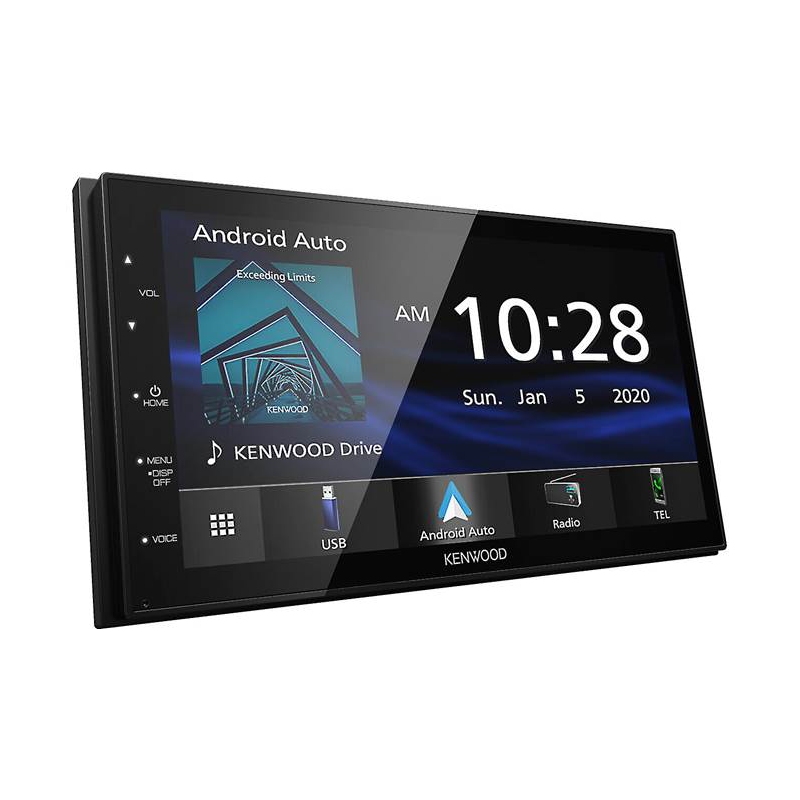

Kenwood DMX47S 6.8" Digital Multimedia Receiver with Capacitive Touch Screen, Built-in Bluetooth, Android Auto, Apple CarPlay, USB Mirroring for Android
In today's situation, having a multimedia receiver like the Kenwood DMX47S is a massive advantage for any car owner. Not only is it affordable, but it also comes with many features that improve your driving and entertainment experience while on the road.

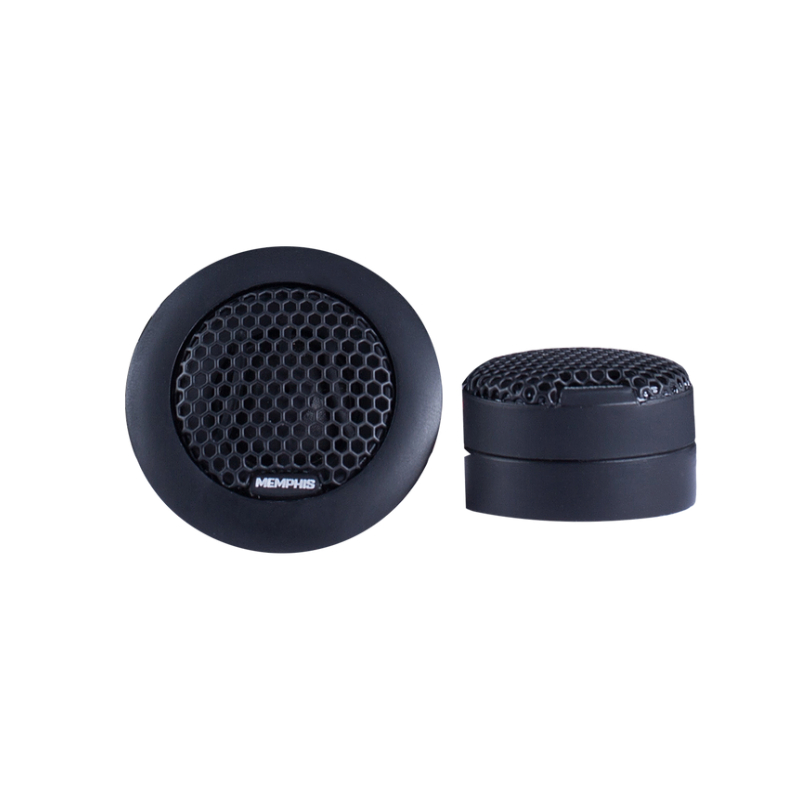

Memphis Audio SRX1 Street Reference Series 1" (40 Watts Peak Power Handling) Electrostatic Car Soft Dome Tweeters
The Memphis Audio SRX1 is a high-quality car tweeter designed to enhance the audio experience in your vehicle. With its impressive performance and sleek design, this tweeter is a popular choice among car audio enthusiasts. The SRX1 features a 1-inch Mylar dome tweeter that delivers crisp and clear high-frequency reproduction. Its silk dome construction ensures smooth and accurate sound production, allowing you to enjoy detailed and precise audio playback. The tweeter is capable of handling up to 20 watts of RMS power, providing ample power for a dynamic sound experience.
- Satellite Radio Ready : Yes
Kenwood DMX47S 6.8" Digital Multimedia Receiver with Capacitive Touch Screen, Built-in Bluetooth, Android Auto, Apple CarPlay, USB Mirroring for Android
Features:
- 6.8" WVGA Monitor with Capacitive Touch Panel
- Apple CarPlay™ & Android Auto™
- USB Mirroring for Android
- 13 Band EQ with Digital Time Alignment
- Rear View Camera Input with Parking Guidelines
- Built-in Bluetooth
- Short Chassis
- 2 Preouts 2V + Subwoofer Out
Monitor Section:
- Picture size: 6.75inches(diagonal) wide
- W x H: 151.8 x 79.7mm, 5-15/16 x 3-1/8 inch
- Display system: Transparent TN LCD panel
- Drive system: TFT active matrix system
- Number of pixels:1,152,000
- 800H x 480V x RGB
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Back lighting: LED
USB I/F Section:
- USB Standard: USB2.0 High Speed
- File System: FAT 16/32 , exFAT
- Maximum Power Supply Current: DC5V=1.5A
- D/A Converter: 24Bit
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / .mkv
- Frequency response 192k Sampling: 20 - 20,000 Hz
- 96k Sampling: 20 - 20,000 Hz
- 48k Sampling: 20 - 20,000 Hz
- 44.1k Sampling: 20 - 20,000 Hz
- Total harmonic distortion 1kHz: 0.2
- Signal to Noise ratio: 75dB
- Dynamic range: 75dB
Bluetooth Section:
- Technology: Bluetooth Ver4.1
- Frequency: 2.402 – 2.480 GHz
- RF Output Power: (E.I.R.P.) +8dBm (Avg.), Power Class 1
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Audio Codec: SBC / AAC
- Multi Profile Support: Multi Profile
Profile:
- HFP (V1.6) (Hands Free Profile)
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (V1.5) (Audio/Video Remote Control Profile)
- PBAP (Phonebook Access Profile)
Graphics equalizer:
- BAND: 13 Band
- frequency (Hz) (BAND1-13): 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k
- Gain: -09 to +09 (-9dB to +9dB)
2Way X'Over:
- HIGH PASS FILTER frequency (Hz): Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250
- SLOPE: -6/ -12/ -18/ -24 dB/Oct.
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
- LOW PASS FILTER frequency (Hz): 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through
- SLOPE: -6/ -12/ -18/ -24 dB/Oct.
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
Position:
- Front / Rear /Subwoofer Delay: 0 to 6.1m (0.01m Step)
- Gain: -8 to 0dB
- Subwoofer Level: -40 to +6dB
FM:
- Frequency Range: 87.9 - 107.9 MHz
- (Frequency step): (200kHz)
- Usable sensitivity: 16.2dBf
- S/N:30dB: 1.8μV/75 Ohms
- Quieting sensitivity -
- DIN S/N 46dB -
- Frequency response / (±3.0dB): 30Hz - 14kHz
- S/N (dB): 50dB (MONO)
- Selectivity -
- Stereo separation: 35dB (1kHz)
AM:
- Frequency Range: 530 - 1700 kHz
- (Frequency step): (10kHz)
- Usable sensitivity: 99μV(40dBμ)
- Video: Color system of external video input NTSC/ PAL
- External video input level (Mini jacks): 1.0Vp-p / 75 Ohms
- External audio max input level (RCA jacks): 1.5V / 25k Ohms
- Video Output level (RCA jacks): 1.0Vp-p / 75 Ohms
Audio:
- Maximum Power Output (Front&Rear): 45Wx4
- Full Bandwidth Power / (at less than 1%THD): 21Wx4
- Output frequency band: 20 - 20,000Hz
- Preout level (V): 2.0V / 10k Ohms
- Preout impedance (Ω): 1.4k Ohms
- Speaker Impedance (Ω): 4-8 Ohms
General:
- Operating voltage: 12V DC Car Battery
- Installation Dimensions WxHxD: 182 x 112 x 75 (mm) 7-3/16 x 4-7/16 x 2-15/16 (inch)
- Main Unit Installation size W x H x D(w/o sleeve): 178 x 100 x 75 (mm) 7 x 3-15/16 x 2-15/16 (inch)
- Weight Main unit: 1.1 kg / 2.4 lbs
- (Including Sleeve and Trim plate): 1.3 kg / 2.8 lbs
Memphis Audio SRX1 Street Reference Series 1" (40 Watts Peak Power Handling) Electrostatic Car Soft Dome Tweeters
Features:
- SR Coaxial Speakers
- Efficient paper cone
- Mylar tweeter
- Lightweight foam surround
- Slim mounting depth
- Optional grills sold separately
Specifications:
- Speaker Size: 1
- Design: 1-way
- Tweeter Design: Dome
- Impedance (Ohms): 4
- Tweeter Composition: Mylar
- Woofer Composition: ---
- Woofer Surround: ---
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- Sensitivity (1W at 1 meter): 97
- Sensitivity at 2.83 volts: N/A
- Frequency Response: 5000 - 20k Hz
- Minimum RMS Wattage: ---
- Maximum RMS Wattage: 20
- Peak Power Handling (Watts): 40
- Top-mount Depth (Inches): 0 9/16
- Bottom-mount Depth (Inches): N/A
- Cutout Diameter or Length (inches): 0
- Mounting Height (Inches): 0.791
- UPC: 798418840546
- Weight: 18
- Authorized Internet Dealer
Warranty: 1 Year Manufacturer warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 1 year from the original date of purchase with proper return authorization.
