PowerBass  ASA3-400.4-Bundle

PowerBass ASA3-400.4 4-channel Amplifier + PowerBass 2XL-63C 6.5" Speakers + PowerBass 2XL-673 6.75" Speakers

Item #92146

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

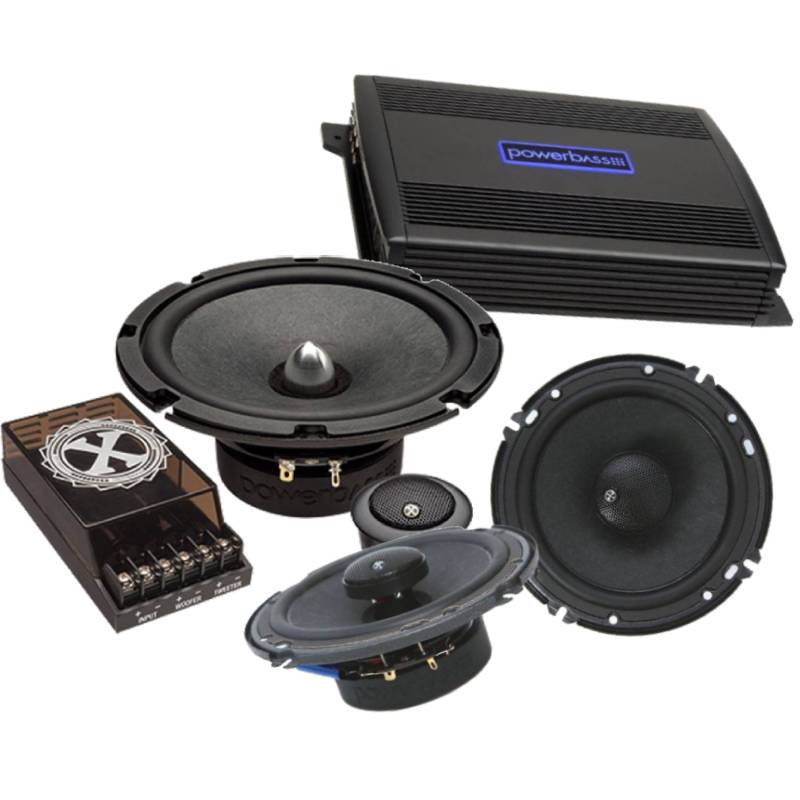

PowerBass ASA3-400.4-Bundle includes PowerBass ASA3-400.4 4-channel Amplifier + PowerBass 2XL-63C 6.5" Speakers + PowerBass 2XL-673 6.75" Speakers


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • PowerBass ASA3-400.4
  • • PowerBass 2XL-63C
  • • PowerBass 2XL-673

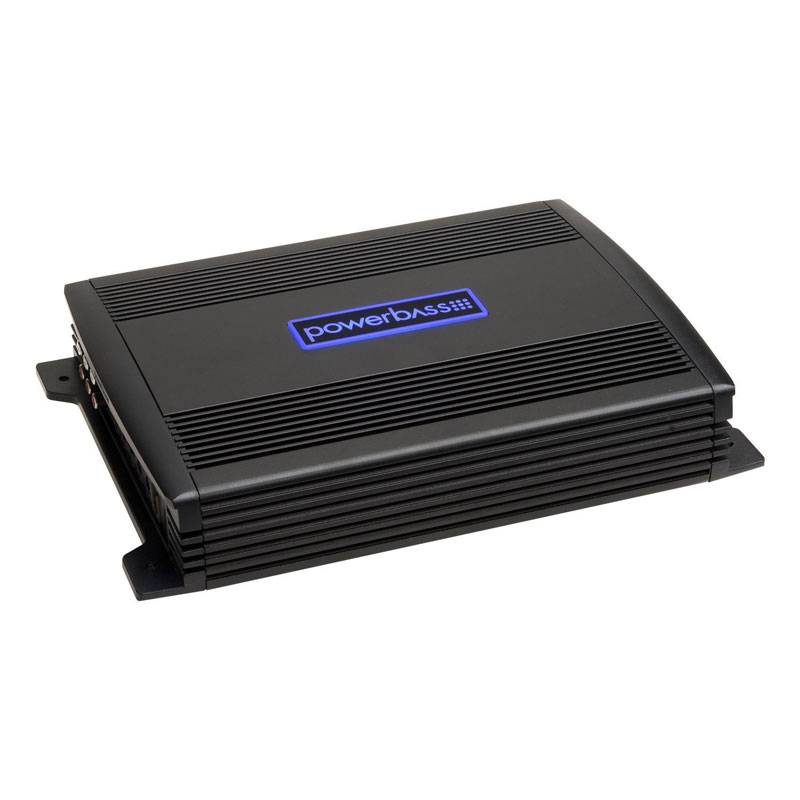

ASA3-400.4 ASA-Series 100W x 4 @2Ohms, 800W Max Power Class A/B 4-channel Full Range Amplifier

Unleash the Sound of Adventure

This amplifier is designed to enhance the audio quality of your car's sound system and provide enough power to drive speakers effectively. When installing a car audio amplifier, it's important to follow the manufacturer's instructions, ensure proper wiring, and set up the gain and crossover settings correctly to achieve the best audio performance while avoiding damage to your speakers.

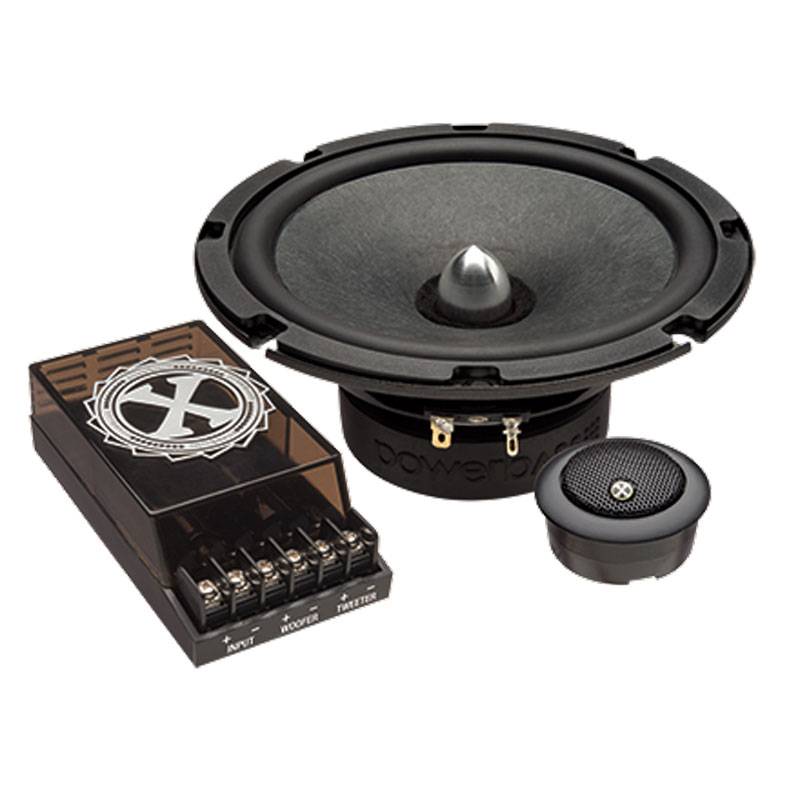

2XL-63C 6.5" 120W RMS (240W Peak Power Handling) 3 Ohms 2-Way Component Speaker System

Redefining Car Audio Excellence

The PowerBass 2XL-63C is designed for car audio enthusiasts who want to enhance the sound quality in their vehicle. The 6.5-inch size is suitable for midrange and mid-bass frequencies, making it a good choice for filling out the lower and mid-frequency spectrum of your car audio system. The 3-ohm impedance may require some adjustments to your car's audio system to ensure proper compatibility, as it's not the standard 4-ohm impedance found in many car speakers. The 2-way component design can help with sound clarity and separation between different frequency ranges.

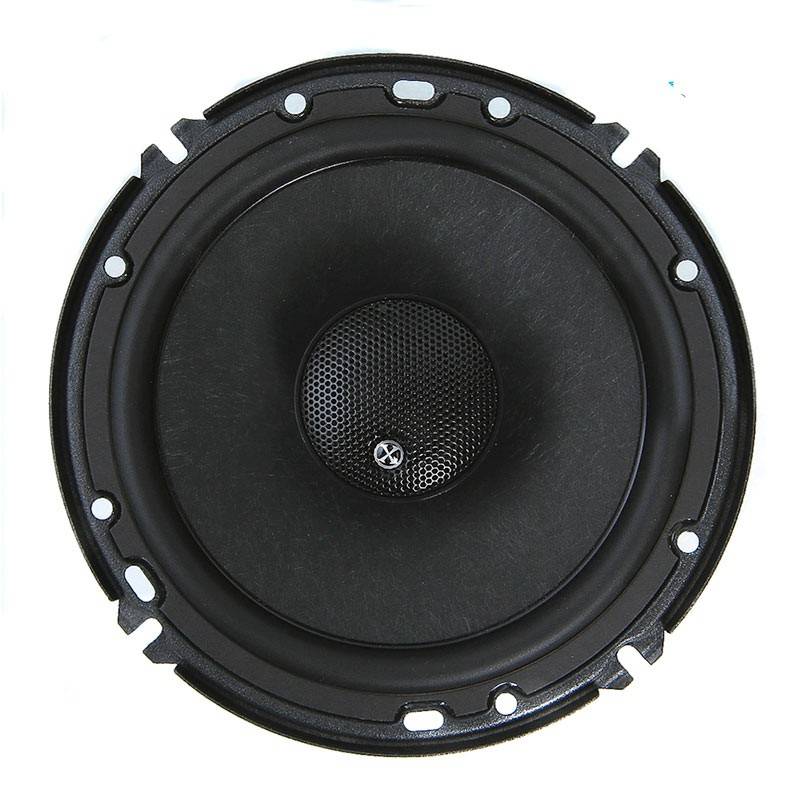

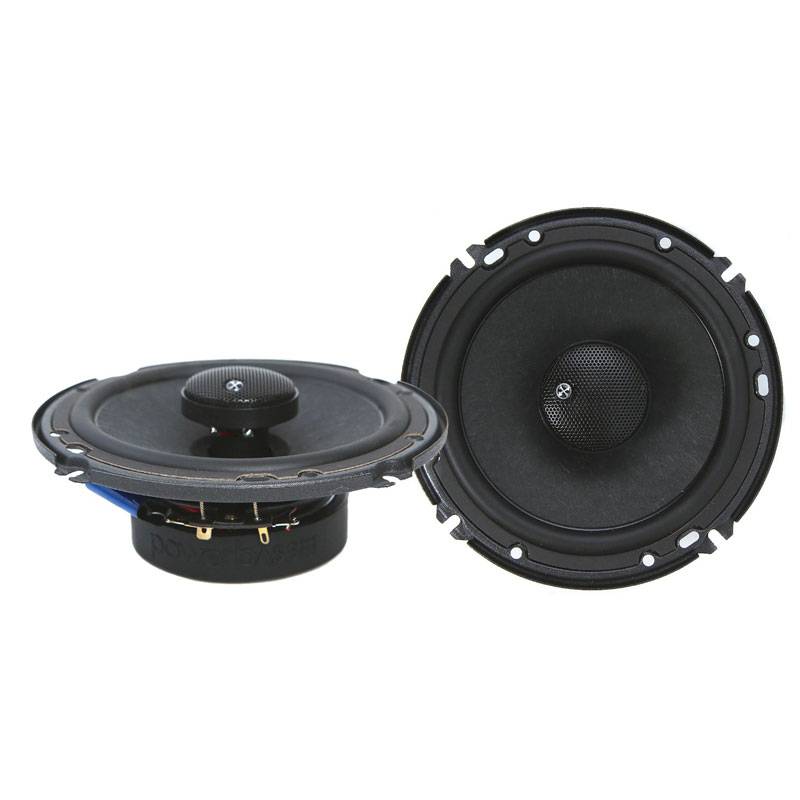

2XL-673 6.75" 75W RMS (150W Peak Power Handling) 3 Ohms Full Range Coaxial Car Speakers

Experience the Ultimate In-Car Audio with PowerBass 2XL-673

The PowerBass 2XL-673 6.75" 3 Ohms Full Range Coaxial Car Speakers are a set of car audio speakers designed to provide audio entertainment in a vehicle. These are full-range speakers, which means they are designed to reproduce a wide range of frequencies, from low bass tones to high treble tones. This allows for a more balanced and complete audio experience in your car.


SPECIFICATIONS



FEATURES


ASA3-400.4 ASA-Series 100W x 4 @2Ohms, 800W Max Power Class A/B 4-channel Full Range Amplifier

Features:

  • 4-Channel 400 Watt High Efficiency Class A/B Design
  • 2-ohm Stable (4-ohm in Bridged Mode)
  • PWM MOSFET Power Supply
  • Low Level RCA Input/Low Level RCA Pass Through Output
  • Remote Soft Delay Turn On/Off Circuit
  • Variable High/Low Pass Electronic Crossover
  • Variable 18dB Bass Boost EQ @ 45 Hz
  • Variable Gain Control
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
  • Wired Secondary Remote Gain Control (Optional PB-GAIN1)
  • Switchable Logo Back Lighting



Specifications

  • Peak Power: 800 watts
  • Subwoofer Frequency Range: 20 Hz - 250 Hz
  • Power Supply: Unregulated PWM
  • Inputs: RCA Input/RCA Pass-Through Output
  • Dimensions (in Inches): 12.0" x 8.3" x 2.3"
  • Depth: 12.0"
  • Channels (mono): 4
  • 4-ohm Power: 50 watts x 4
  • 4-ohm Mono Power: 200 watts x 2
  • 2-ohm Power: 100 watts x 4
  • 1-ohm Mono Power: N/A
  • Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
  • Variable Subsonic Freq: N/A
  • Equalization Boost/Cut: 0 - 18 dB
  • Height: 2.3"
  • Width: 8.3"
  • Subwoofer EQ Frequency: 45 Hz
  • Variable Subwoofer EQ: 0 - 18 dB
  • Low-Pass Crossover Freq: 40 Hz - 250 Hz
  • High-Pass Crossover Freq: 40 Hz - 250 Hz
  • Crossover Slope: 12 dB
  • Input Sensitivity: 0.25 V - 6.0 V
  • S/N Ratio: >94 dB
  • Total Harmonic Distortion: 0.05% at Rated Power
  • Strapped Output Power @ 2ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 50 watts x 4
  • Output Power (14.4 V) @ 2 ohm: 100 watts x 4
  • Output Power (14.4 V) @ 1 ohm: N/A
  • Frequency Response: 20 Hz - 22 kHz





2XL-63C 6.5" 120W RMS (240W Peak Power Handling) 3 Ohms 2-Way Component Speaker System

Features:

  • 6.5" 2-Way Component Speaker System
  • Hybrid 4 Layer Paper/Wool Blend Woofer Cone
  • Butyl Rubber Surround
  • Bilit Aluminum CNC Cut Phase Plug
  • 14 oz. Y-35 Woofer Magnet
  • EFF Motor Structures (Efficient Flux Field)
  • Rigid Tooled Basket with Stainless Steel Finish
  • 1" Silk Dome Tweeter w/Neodymium Magnet
  • Convertible Mount Tweeter for either Co-Axial or Standalone Tweeter Mount
  • Computer Aided External 12dB 2-way Crossover Network
  • 3-ohm System Impedance



Specifications:

  • Nominal Impedance: 3-ohm
  • Material: Non woven wool paper / silk dome tweeter
  • Magnet Size: 14 oz
  • Sensitivity (1W / 1M): 92 dB
  • Mounting Depth: 2.48 in
  • Size: 6.5 in
  • Frequency Response: 59 Hz - 20 kHz
  • Power Handling (RMS/Peak): 120 / 240 watts





2XL-673 6.75" 75W RMS (150W Peak Power Handling) 3 Ohms Full Range Coaxial Car Speakers

Features:
  • 6.75" Co-Axial Speaker System
  • OEM Drop in Replacement Design
  • Hybrid 4 Layer Paper/Wool Blend Woofer Cone
  • Butyl Rubber Surround
  • 12 oz. Motor Structure
  • EFF Motor Structures (Efficient Flux Field)
  • Rigid Tooled Basket With Flat Black Finish
  • 1" Silk Dome Tweeter



Specifications:

  • Nominal Impedance: 3 ohms
  • Material: Non woven wool paper for the main driver and silk dome tweeter
  • Magnet Size: 12 oz
  • Sensitivity (1W / 1M): 89 dB
  • Mounting Depth: 1.9 inches
  • Voice Coil Impedance: Not specified
  • Size: 6.75 inches
  • Sensitivity: 89 dB
  • Frequency Response: 60 Hz - 20 kHz
  • Voice Coil Size: Not specified
  • Power Handling (RMS/Peak): 75 watts RMS / 150 watts peak
  • UPC: 798418840775
  • Weight: 21
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
