PowerBass  ASA3-600.2-Bundle

PowerBass ASA3-600.2 ASA-Series Class A/B 2-channel Full Range Amplifier + PowerBass 2XL-63.3C 2XL Series 6.5" 3 Ohms 3-Way Component Speaker Package

Item #92149

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

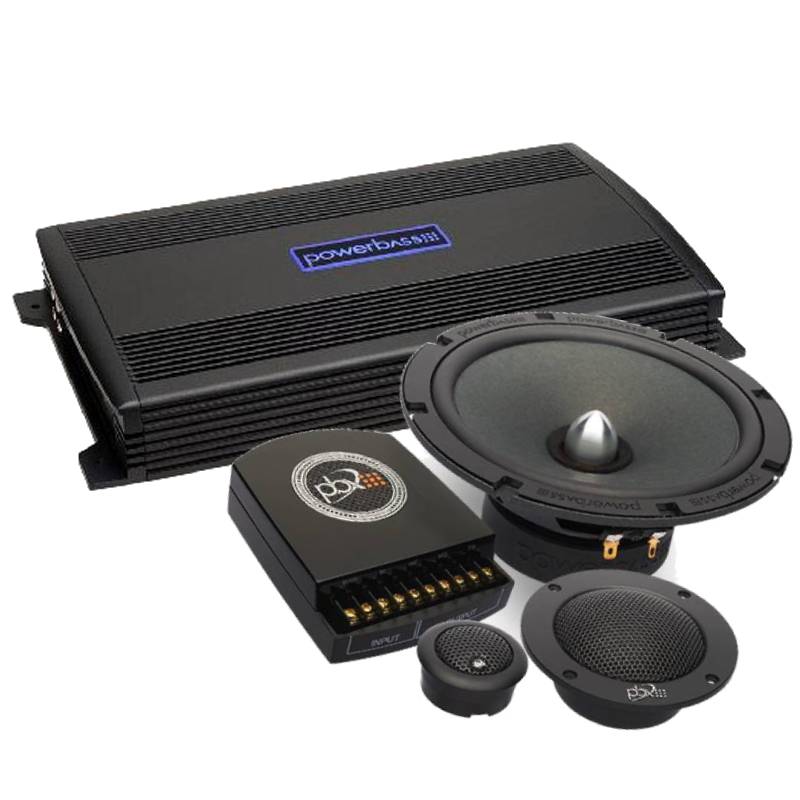

PowerBass ASA3-600.2-Bundle includes PowerBass ASA3-600.2 ASA-Series Class A/B 2-channel Full Range Amplifier + PowerBass 2XL-63.3C 2XL Series 6.5" 3 Ohms 3-Way Component Speaker Package


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • PowerBass ASA3-600.2
  • • PowerBass 2XL-63.3C

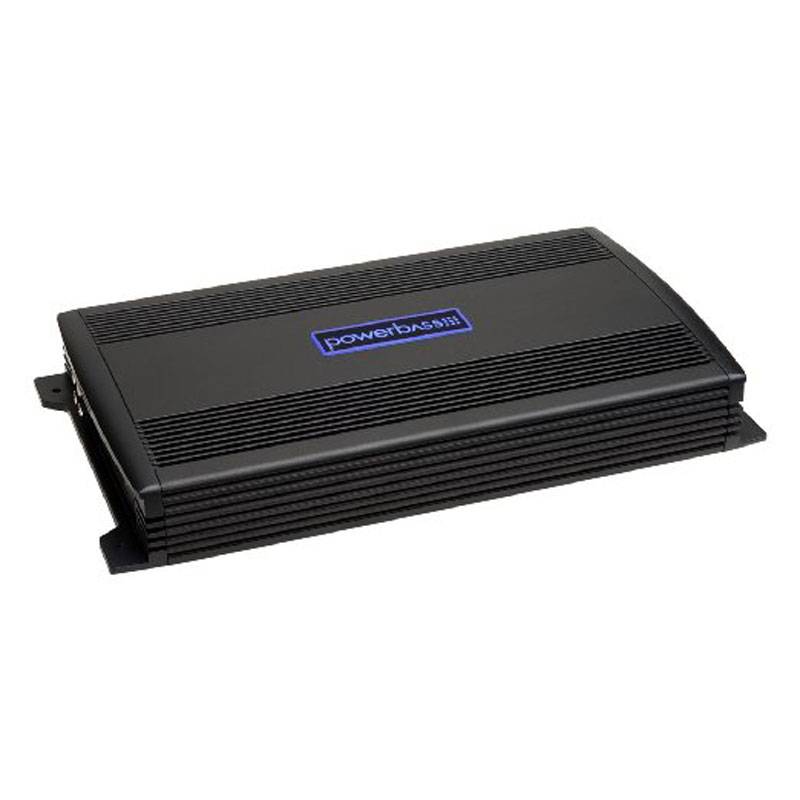

ASA3-600.2 ASA-Series 300W x 2 @2Ohms, 1200W Max Power Class A/B 2-channel Full Range Amplifier

Unleash the Sound

The PowerBass ASA3-600.2 is a top-notch car amplifier designed for outstanding audio performance in your vehicle's sound system. It's built with versatility and durability in mind, offering a host of features to enhance your listening experience. This two-channel amplifier delivers a peak power output of 1200 watts, making it effortless to drive various speakers or subwoofers. Its Class A/B circuitry ensures a balance of efficiency and exceptional sound quality, resulting in clear and precise audio playback across different frequency ranges. Plus, it comes with adjustable crossover and bass boost controls, granting you the flexibility to fine-tune the sound to your liking.

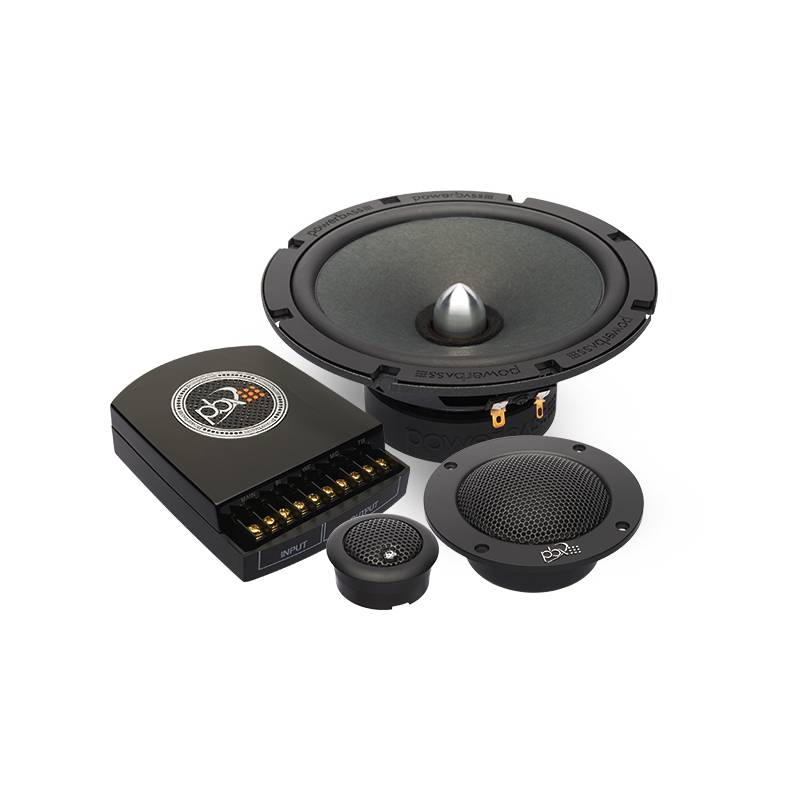

2XL-63.3C 2XL Series 6.5" 120W RMS (240W Peak Power Handling) 3 Ohms 3-Way Component Speaker

Where Quality Meets Power for Unmatched Sound Performance

The PowerBass 2XL-63.3C is designed to provide good sound quality and handle a decent amount of power. It's important to note that the performance of speakers also depends on the quality of the installation and the components they are paired with, such as an amplifier and source unit.


SPECIFICATIONS



FEATURES


ASA3-600.2 ASA-Series 300W x 2 @2Ohms, 1200W Max Power Class A/B 2-channel Full Range Amplifier

Features:
  • 2-Channel 600 Watt High Efficiency Class A/B Design
  • 2-ohm Stable (4-ohm in Bridged Mode)
  • PWM MOSFET Power Supply
  • Low Level RCA Input/Low Level RCA Pass Through Output
  • Remote Soft Delay Turn On/Off Circuit
  • Variable High/Low Pass Electronic Crossover
  • Variable 18dB Bass Boost EQ @ 45 Hz
  • Variable Gain Control
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
  • Wired Secondary Remote Gain Control (Optional PB-GAIN1)
  • Switchable Logo Back Lighting



Specifications:

  • Peak Power: 1200 watts
  • Subwoofer Frequency Range: 20 Hz - 250 Hz
  • Power Supply: Unregulated PWM
  • Inputs: RCA Input/RCA Pass-Through Output
  • Dimensions (in Inches): 15.7" x 8.3" x 2.3"
  • Depth: 15.7"
  • Channels (mono): 2
  • 4-ohm Power: 150 watts x 2
  • 4-ohm Mono Power: 600 watts x 1
  • 2-ohm Power: 300 watts x 2
  • 1-ohm Mono Power: N/A
  • Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
  • Subwoofer EQ Frequency: 45 Hz
  • Variable Subwoofer EQ: 0 - 18 dB
  • Low-Pass Crossover Freq: 40 Hz - 250 Hz
  • High-Pass Crossover Freq: 40 Hz - 250 Hz
  • Crossover Slope: 12 dB
  • Input Sensitivity: 0.25 V - 6.0 V
  • S/N Ratio: >94 dB
  • Total Harmonic Distortion: 0.05% at Rated Power
  • Strapped Output Power @ 2 ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 150 watts x 2
  • Output Power (14.4 V) @ 2 ohm: 300 watts x 2
  • Output Power (14.4 V) @ 1 ohm: N/A
  • Frequency Response: 20 Hz - 22 kHz



2XL-63.3C 2XL Series 6.5" 120W RMS (240W Peak Power Handling) 3 Ohms 3-Way Component Speaker

Features:

  • 6.5" 3-Way Component Speaker System
  • Hybrid 4 Layer Paper/Wool Blend Woofer Cone
  • Butyl Rubber Surround
  • Billet Aluminum CNC Cut Phase Plug
  • 14 oz. Y-35 Woofer Magnet
  • EFF Motor Structures (Efficient Flux Field)
  • Rigid Tooled Basket with Flat Black Finish
  • 2.75" Soft Dome Mid-range Drivers
  • Proprietary DDC Impregnated Mid-Range Membrane
  • 1"  Pivoting Silk Dome Tweeter w/Neodymium Magnet
  • Computer Aided External 12dB 3-way Crossover Network
  • 3-ohm System Impedance
  • Conventional or Bi-Amplified Input



Specifications:

  • Nominal Impedance: 3-ohm
  • Material: Non Woven Wool Paper / silk dome tweeter
  • Magnet Size: 14 oz
  • Sensitivity (1W / 1M): 92 dB
  • Mounting Depth: 2.5 in
  • VC Impedance: 3 ohm
  • Size: 6.5"
  • Frequency Response: 59 Hz - 20 kHz
  • Voice Coil Size: 1"
  • Power Handling (RMS/Peak): 120 / 240 watts
  • UPC: 798418840805
  • Weight: 17
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
