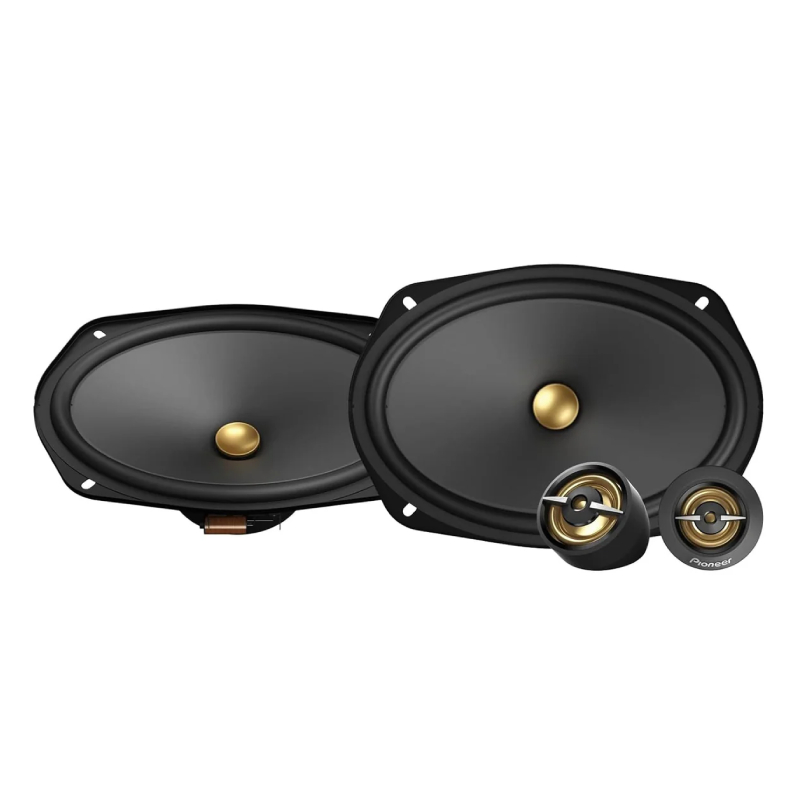

Pioneer TS-A6901C A-Series 6x9" 450W Peak Power Handling at 4 Ohms, 2-way Component Car System
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

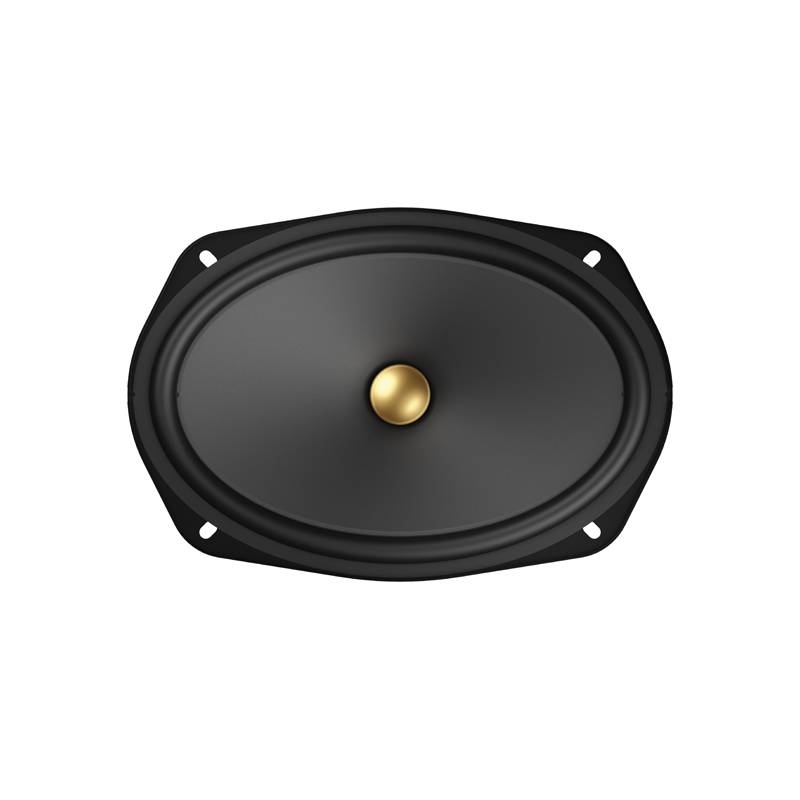

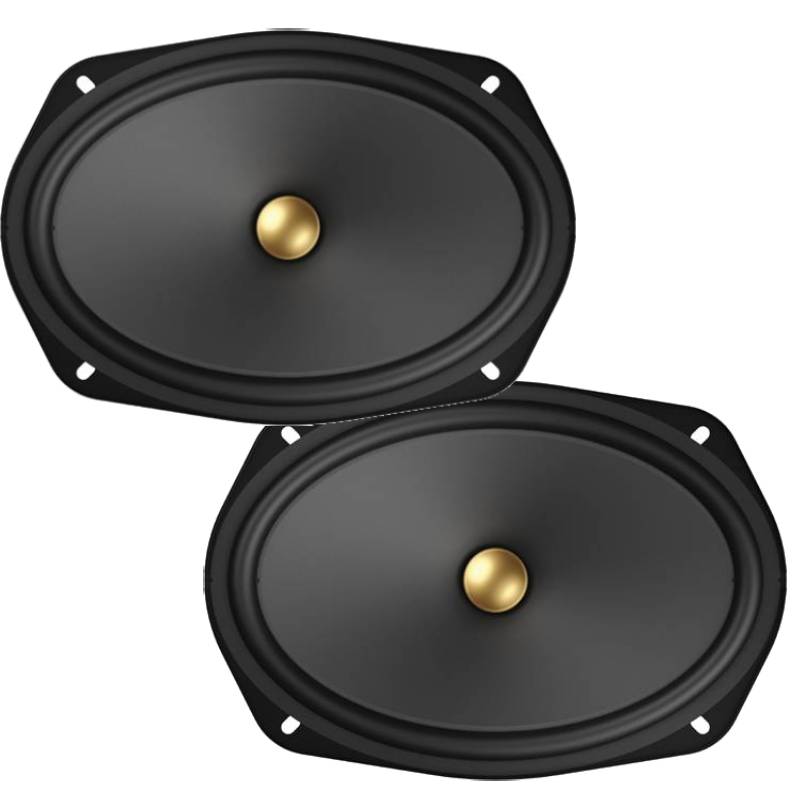

- • (2) 6"x9" woofers

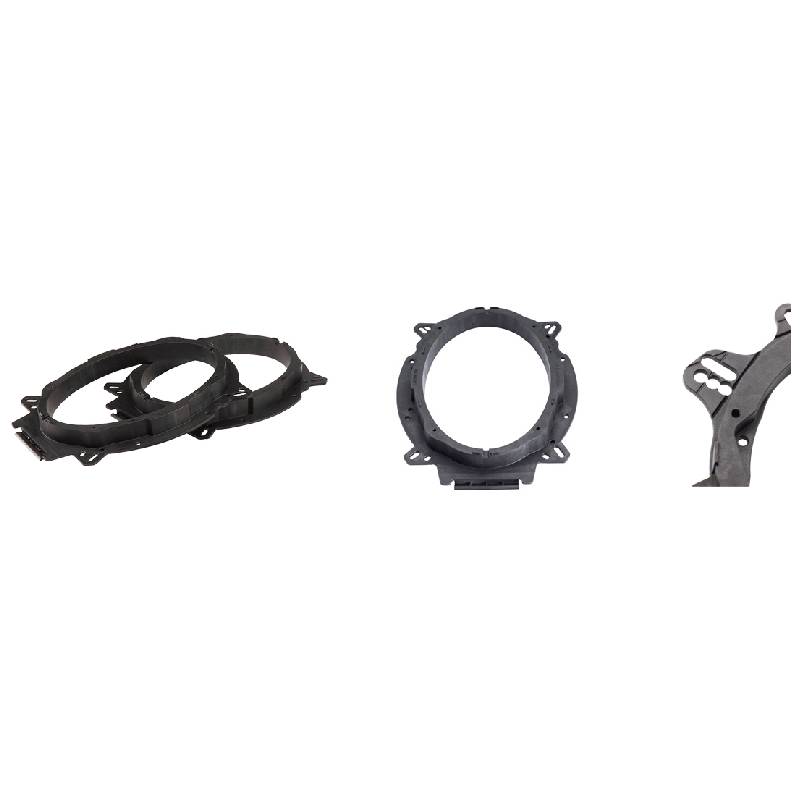

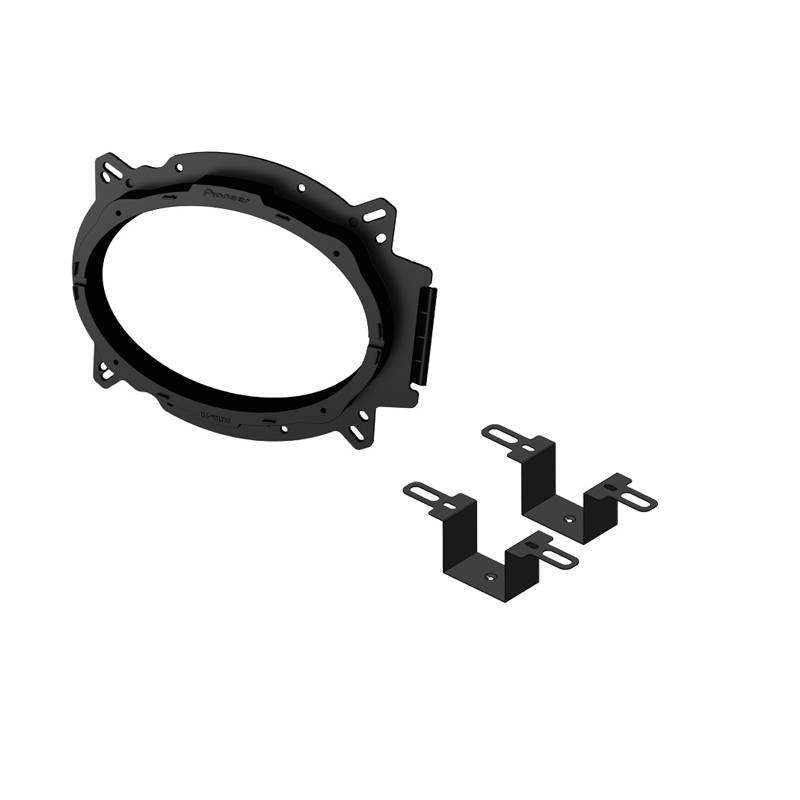

- • (2) Pioneer Multi-Fit mounting brackets
- •(8) 1-1/8" Screws
- •(8) 3/8" Screws
- • (2) tweeters (with attached 10" speaker leads terminated with quick-connects)
- • (2) Lengths of speaker wire (each has quick slides to connect to the woofer-a 40" tweeter output leg with integrated crossover-and an 11" input leg)
- • (2) Tweeter angled surface mount housings
- • (2) Tweeter flush mount rings
- • (2) Tweeter factory mount brackets
- • (2) Adhesive backed foam discs
- • (6) 1/2" Screws
- • Warranty information
- • Template and specs on box
- • Owner's Manual
Why Choose Pioneer TS-A6901C Component System?
Drive to the Beat of Perfection
The Pioneer TS-A6901C A-Series speakers have been meticulously engineered to seamlessly integrate power handling, size considerations, and advanced component design, all with the singular goal of delivering unparalleled audio excellence within the confines of a car audio setup.
Discover Clarity in Every Frequency
A 2-way component system features individual drivers for different frequency ranges in each speaker: a woofer for lows and a tweeter for highs. This configuration enhances sound quality across all frequencies, contrasting with coaxial speakers where drivers share the same axis.
Crank Up the Quality
These speakers possess a 4-ohm impedance, indicating their resistance to alternating current within a circuit. Car audio setups commonly function at 4 ohms, making these speakers generally compatible with the majority of car stereos and amplifiers.
Frequently Asked Questions (FAQ)
- • Why do the tweeters sound too sharp after installation?
High frequencies may sound harsh if the treble is set too high or the tweeters are aimed directly at the listener. Lowering the treble and adjusting the tweeter angle can create a more balanced sound.
- • Can I use this component speaker system with my factory radio?
Yes. The speakers will work with most factory stereos, although adding an external amplifier will provide better clarity and higher output.
- • Why isn't one of the tweeters producing any sound?
Loose quick-connect terminals, damaged speaker wires, or incorrect crossover wiring can prevent the tweeter from receiving audio. Check all wiring connections before replacing the tweeter.
- • Do I need to use the included crossover wiring?
Yes. The integrated crossover separates high frequencies from low frequencies to protect the tweeters and improve overall sound quality.
- • Why is there very little bass after replacing my factory speakers?
Incorrect polarity, poor door sealing, or insufficient amplifier power can reduce bass response. Verify the speaker wiring and ensure the woofers are mounted securely.
- • Can I choose between flush-mount and surface-mount tweeter installation?
Yes. The package includes flush-mount rings, angled surface-mount housings, and factory mounting brackets for flexible installation.
- • Why do the speakers distort when I raise the volume?
Distortion is typically caused by amplifier clipping or excessive gain settings. Proper amplifier tuning helps deliver clean sound while protecting the speakers.
- • Will these speakers fit my vehicle without modifications?
They fit many vehicles using the included Multi-Fit mounting brackets, but compatibility depends on your vehicle's mounting depth and factory speaker openings. Always confirm fitment before installation.
- • Why do my door panels vibrate after installing these speakers?
Higher-output speakers can cause loose trim panels and clips to rattle during playback. Tightening the panels and adding sound-deadening material can significantly reduce vibrations.
- Diameter : 6x9 Inch
- Sensitivity : 92 dB
- Frequency Response : 29-58000 Hz
- Peak Power Handling : 450 Watts
- RMS Power Handling : 100 Watts
Features:
- 450 Watts Max Power
- 100 Watts RMS
- 20mm Polyetherimide (PEI) Tweeter

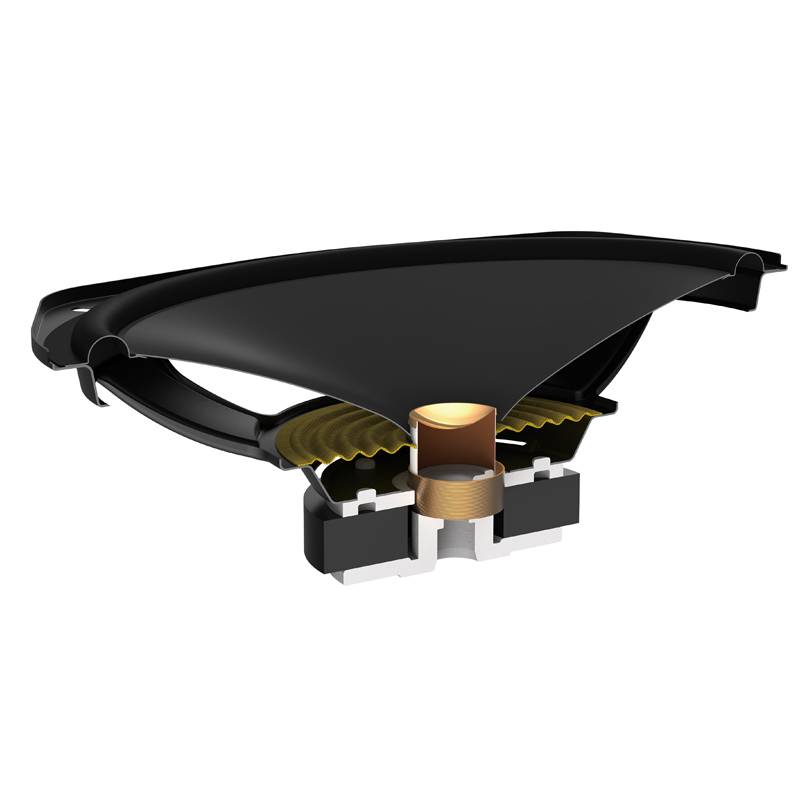

- 6 x 9" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
- Universal woofer basket design expands installation
- Sold as pair
Specifications:
- System Type: 2-way Component
- Sound Pressure Level (Sensitivity): 92 dB (+- 1.5dB)
- Frequency Range: 29 Hz to 58k Hz
- Continuous Power Handling (RMS): 100 Watts
- Maximum Peak Power Handling: 450 Watts
- Nominal Impedance: 4 ohms
- Woofer Diameter: 6 x 9"
- Woofer Cone Material: Carbon and mica reinforced IMPP
- Woofer Surround Material: Elastic polymer
- Woofer Basket Material: Iron Plate Press
- Woofer Magnet Material: Ferrite
- Woofer Magnet Weight: 13 oz
- Woofer Voice Coil Bobbin: Glass Imide
- Woofer Voice Coil Wire: Copper
- Woofer Mounting Depth: 2-7/8" (Shallow basket)
- Tweeter Type: Separate Component Polyetherimide (PEI) hard dome tweeter
- Tweeter Diameter: 20 mm
- Tweeter Diaphragm Material: Film (PEI)
- Tweeter Magnet Material: Neodymium
- Tweeter Magnet Weight: 0.17
- Warranty (must be purchased from an Authorized Pioneer Dealer): 1 year
- UPC: 884938509459
- Weight: 8
