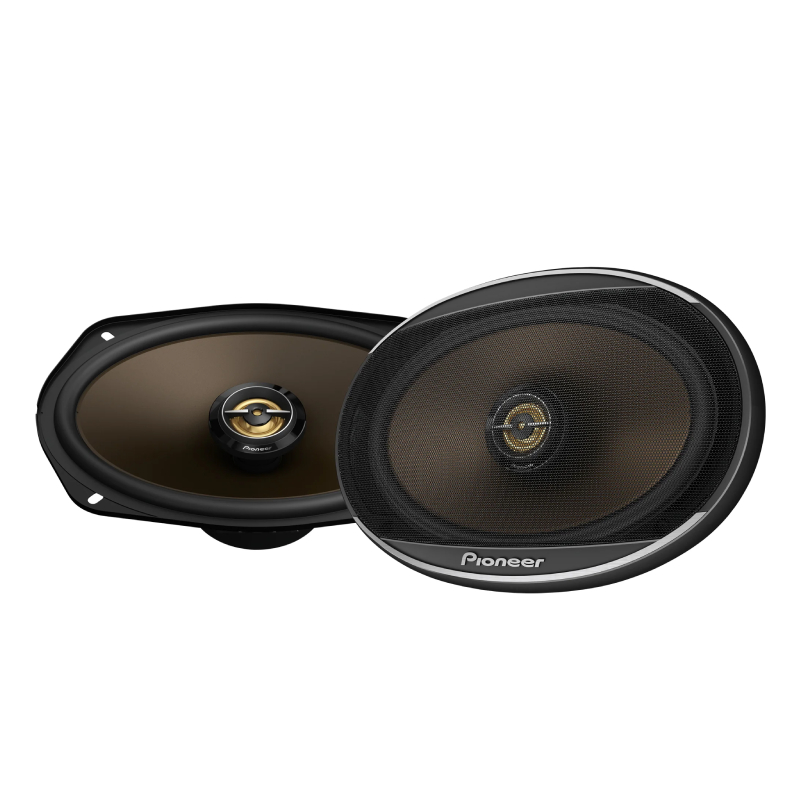

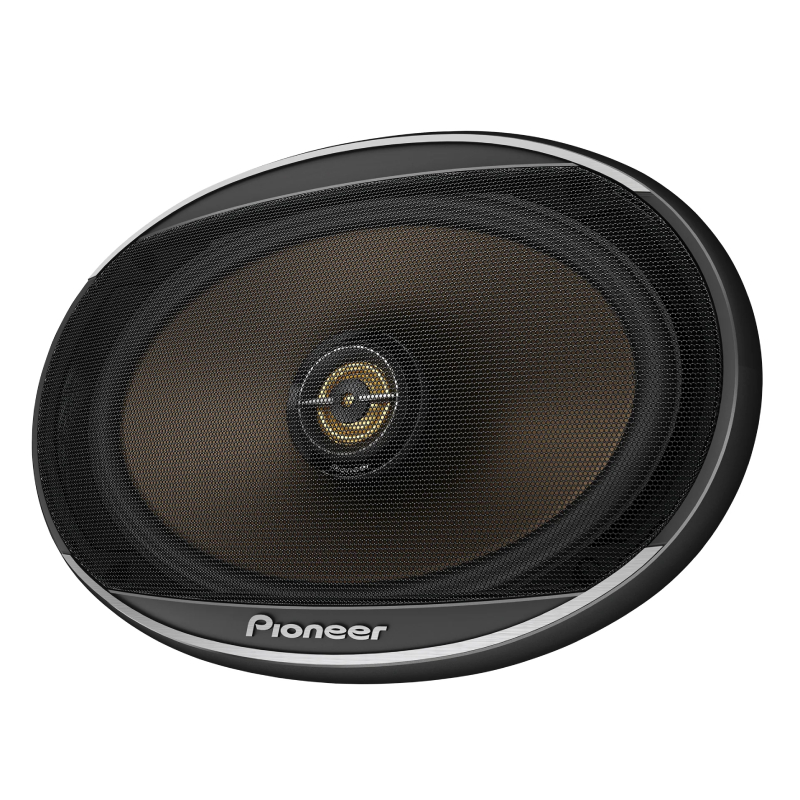

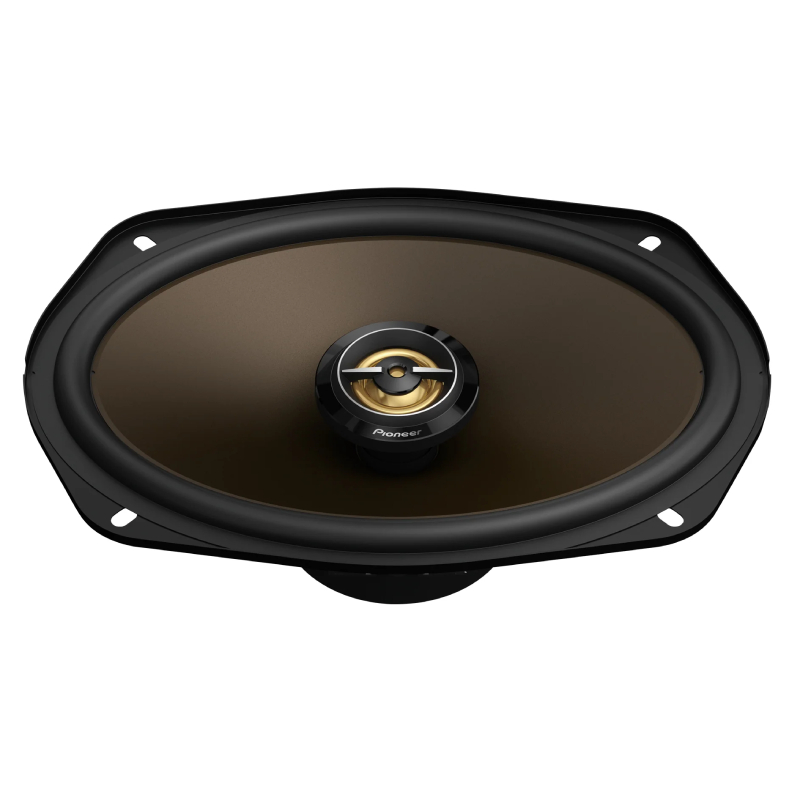

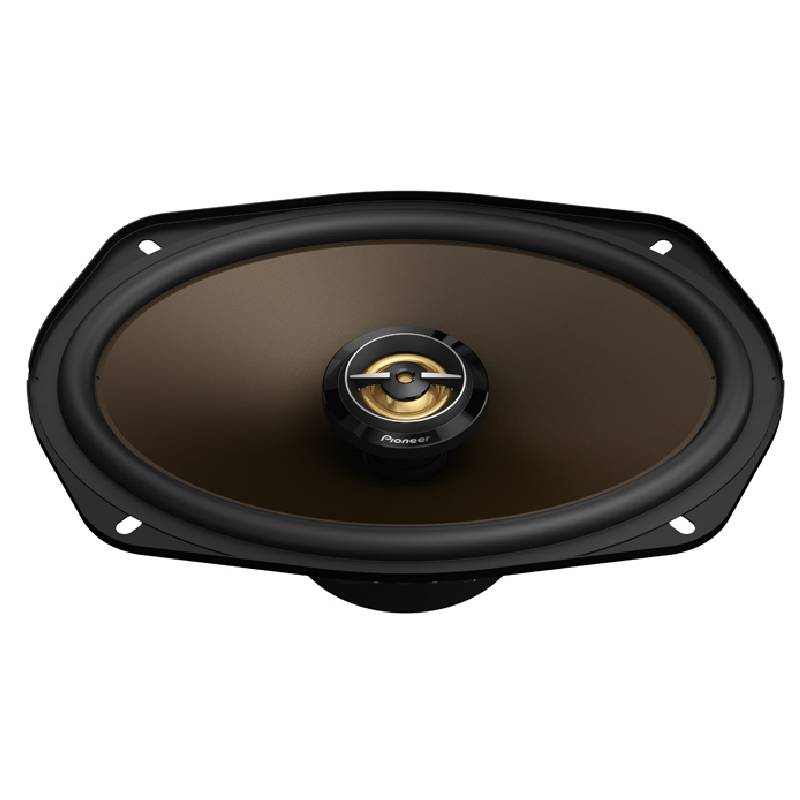

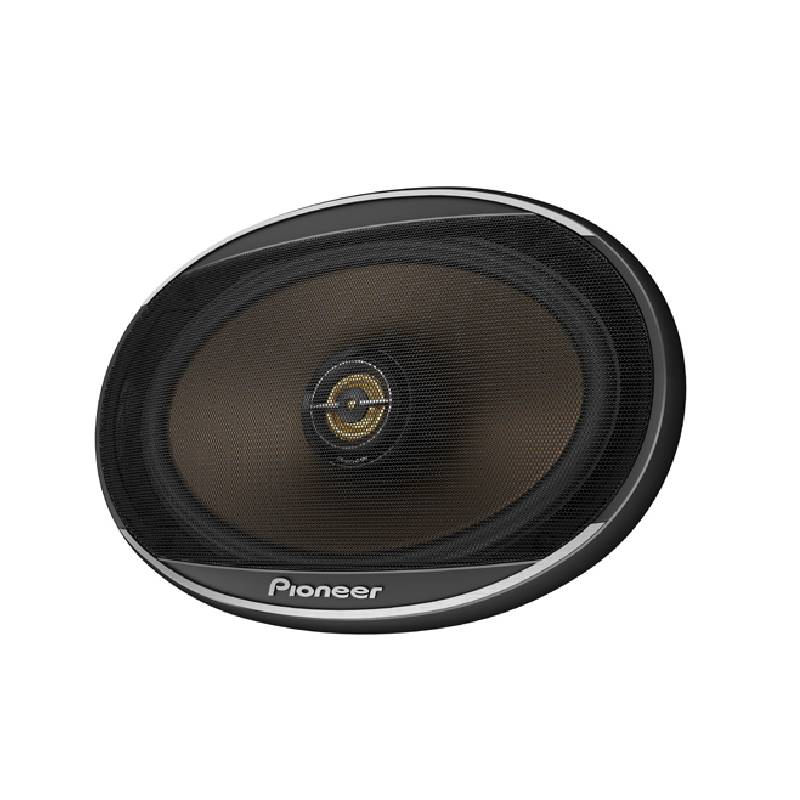

Pioneer TS-A523FH A-Series 6"x9" 460W Peak Power Handling at 4 Ohms, 2-way Coaxial Car Speakers (Sold as Pair)
We are a Pioneer authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) 6"x9" A-Series 2-way Coaxial Car Speakers
- • (2) Grilles
- • (2) Grille frames
- • (2) Multi-application mounting brackets
- • (2) 12" lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
- • (8) 1-1/8" screws
- • (8) 3/8" screws
- • Warranty information
- • Specifications and template on box
- • Owner's Manual
Why Choose Pioneer TS-A693FH Full Range Car Speakers?
Built to Wake Up Your Car Audio Experience
An aramid fiber and mica-reinforced IMPP woofer cone provides tight, clean bass with minimal distortion at high volumes. Its 2-way coaxial layout seamlessly balances deep lows with clear mids and detailed highs for a vibrant upgrade over flat factory sound.
Clear Highs, Wide Soundstage, Easy Upgrade Fit
PEI tweeters deliver wider high-frequency dispersion for an open, immersive soundstage with natural vocal clarity. Paired with a fast-responding, rigid cone and included multi-fit mounting brackets, they offer sharp detail and effortless installation across various factory speaker locations.
Frequently Asked Questions (FAQ)
- • Why do the speakers sound harsh when I turn the volume up?
Harsh sound is usually caused by amplifier clipping or excessive treble settings. Reducing the gain and properly tuning the equalizer can improve overall clarity.
- • Why is the bass weaker than I expected after installation?
Weak bass is commonly caused by incorrect speaker polarity or limited factory head unit power. Checking the wiring and adjusting the crossover or EQ settings can improve bass response.
- • Can I use these with my factory radio?
Yes. They work with most factory stereos, although an aftermarket amplifier will deliver cleaner power and improved sound quality.
- • Why do the speakers vibrate the rear deck at higher volumes?
More powerful speakers can cause loose trim panels, brake light housings, or rear deck components to rattle. Tightening loose hardware and adding sound-deadening material can greatly reduce vibrations.
- • Why do the speakers cut out during long listening sessions?
This can happen if the amplifier overheats, wiring becomes loose, or the protection circuit activates. Inspect the wiring and make sure the amplifier has adequate ventilation.
- • Can I install these without replacing my factory wiring?
Yes. Most factory speaker wiring is suitable for normal installations, though a vehicle-specific wiring adapter may simplify the installation process.
- • Why do the speakers sound different depending on the music source?
Streaming quality, Bluetooth compression, and audio file formats all affect sound quality. Using higher-quality audio sources often results in noticeably better performance.
- • Why do I hear a humming noise after installing an amplifier?
A humming sound is usually caused by poor grounding or electrical interference. Inspect the amplifier ground and route signal cables away from power cables whenever possible.
- • Is it worth upgrading all four speakers instead of just the rear pair?
Yes. Replacing all speakers creates a more balanced soundstage and delivers a more consistent listening experience throughout the vehicle.
- Diameter : 6x9 Inch
- Sensitivity : 92 dB
- Impedance : 4 Ohm
- Frequency Response : 29-49000 Hz
- Peak Power Handling : 460 Watts
- Design : 2 Way
- RMS Power Handling : 95 Watts
Features:

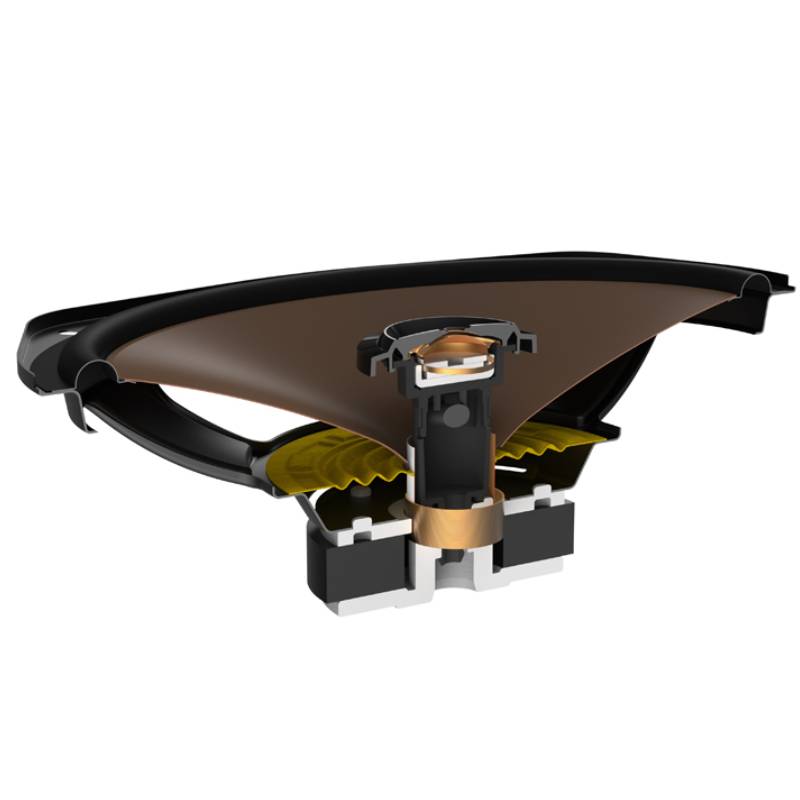

- Advanced Composite Woofer Engineering: Each speaker utilizes an aramid fiber and mica reinforced injection-molded polypropylene cone, delivering improved structural integrity, consistent thickness, and precise linear movement for cleaner bass reproduction with reduced distortion.
- Enhanced Wide Dispersion Tweeter Technology: Equipped with PEI (Polyetherimide) tweeters designed to produce broad sound dispersion, improving stereo imaging and delivering clearer vocals with a more natural and spacious sound presentation.
- Integrated Full-Range Coaxial System Design: Combines woofer and tweeter elements into a single optimized acoustic platform, ensuring smooth frequency blending and balanced audio output across low, mid, and high ranges.
- Rigid Lightweight Cone Optimization Structure: Engineered with a low-mass yet highly rigid cone design that improves responsiveness, enhances efficiency, and maintains sound clarity even under high-volume conditions.
- Adaptable Vehicle Mounting Bracket System: Includes Pioneer mounting brackets designed for flexible installation across multiple vehicle applications, ensuring stable fitment and reliable alignment in compatible factory speaker locations.
Specifications:
- System Type: Coaxial 2-way
- Sound Pressure Level (Sensitivity): 92 dB (+- 1.5dB)
- Frequency Range: 29 Hz to 49k Hz
- Continuous Power Handling (RMS): 95 Watts
- Maximum Peak Power Handling: 460 Watts
- Nominal Impedance: 4 ohms
- Woofer Diameter: 6" x 9"
- Woofer Cone Material: Aramid fiber reinforced IMPP
- Woofer Surround Material: Elastic Polymer
- Woofer Basket Material: Iron Plate Press
- Woofer Magnet Material: Ferrite
- Woofer Magnet Weight: 11.39 oz
- Woofer Voice Coil Bobbin: Glass Imide
- Woofer Voice Coil Wire: Copper
- Woofer Mounting Depth: 2-7/8" (Shallow basket)
- Tweeter Type: Component Polyetherimide (PEI) hard dome tweeter
- Tweeter Diameter: 18 mm
- Tweeter Diaphragm Material: Film (PEI)
- Tweeter Magnet Material: Neodymium
- Tweeter Magnet Weight: 0.17 oz
- Warranty (must be purchased from an Authorized Pioneer Dealer): 1 year
- UPC: 884938509473
- Weight: 3
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Way better than my old speakers. Bass is fantastic for a 6x9. Well worth the upgrade!
