Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
Pioneer AVIC-W8600NEX-Bundle Pioneer AVIC-W8600NEX 2-DIN 7" Multimedia Navigation Receiver + Pioneer TS-A120S4E A Series 12” 400W RMS Car Subwoofer + Car Subwoofer Monoblock Car Amplifier
We are an authorized dealer so you get up-to-date, fully warrantied products.
What's Inside?
- •Pioneer AVIC-W8600NEX
- •Pioneer TS-A120S4E
- •Memphis Audio SRX500D.1
- •Owner's Manual

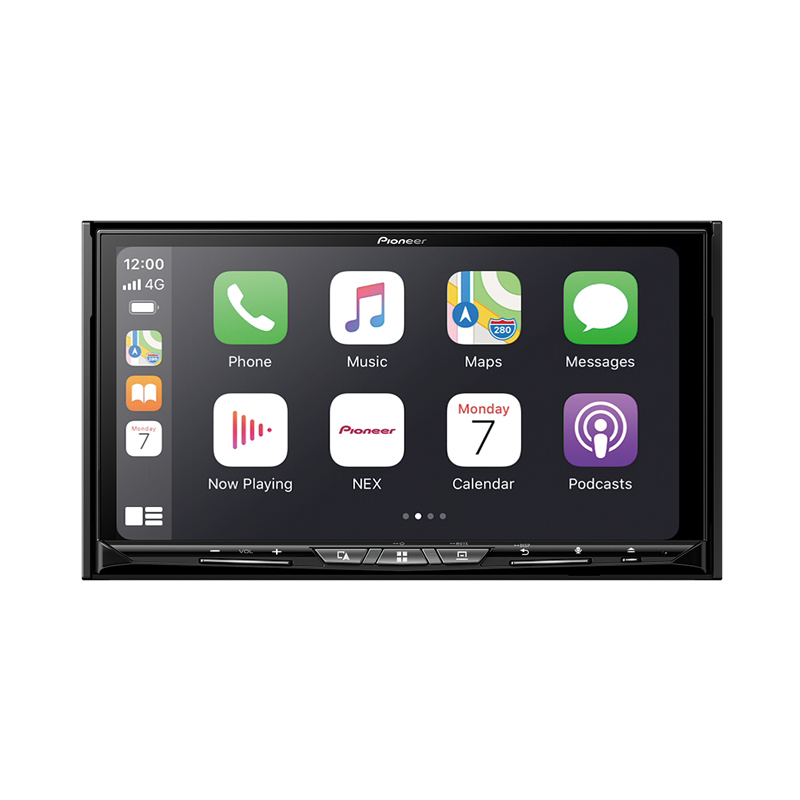

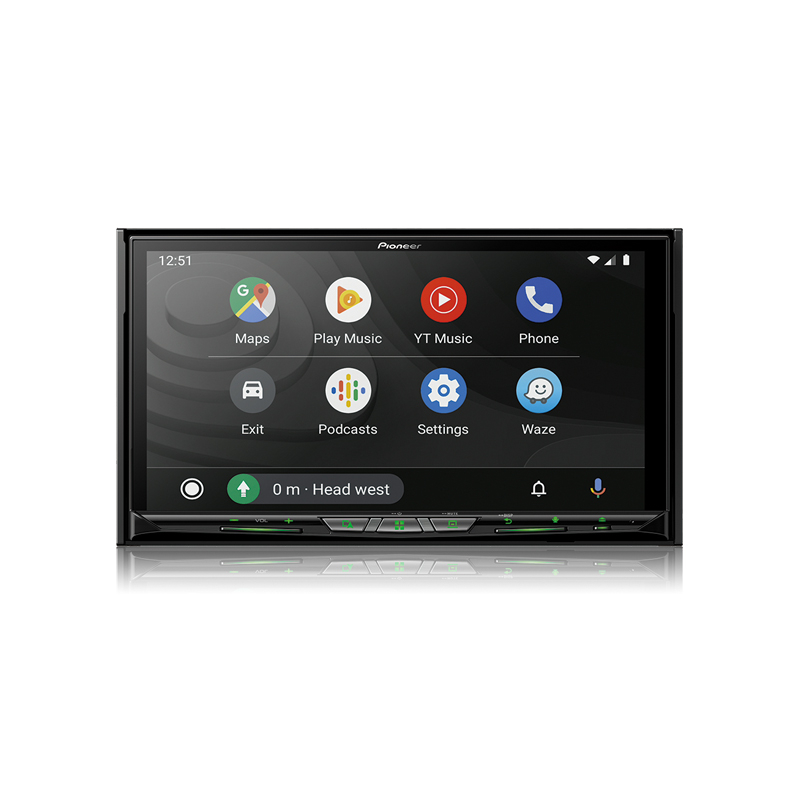

Pioneer AVIC-W8600NEX 2-DIN 7" Multimedia Navigation Receiver with Amazon Alexa, Android Auto™, Apple CarPlay® (wired/wireless), and Bluetooth®
Apple CarPlay®
The AVIC-W8600NEX features Apple CarPlay®, the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and verbally send and listen to messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.

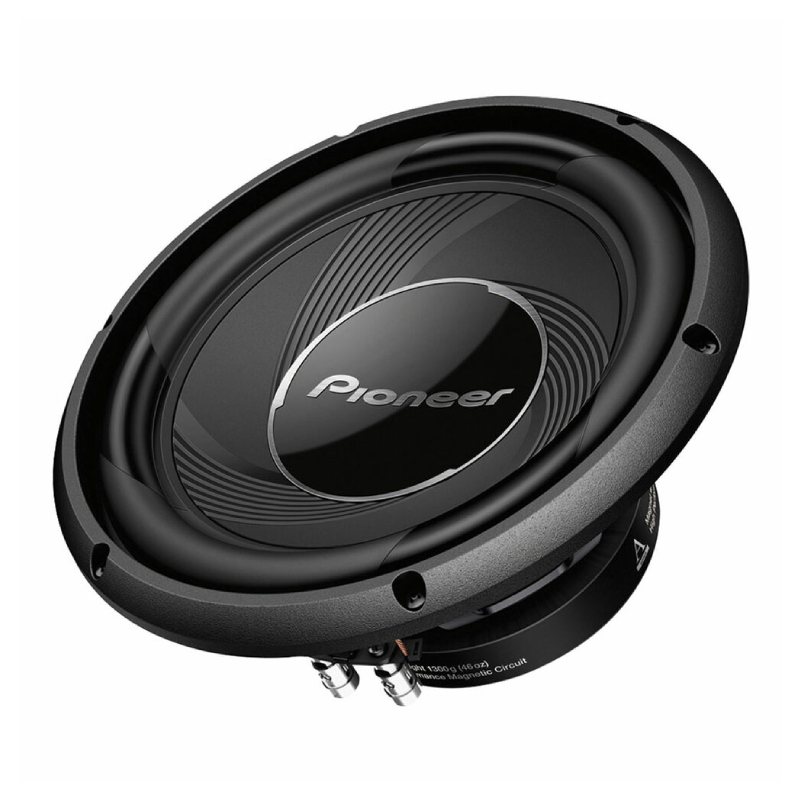

Pioneer TS-A120S4E A Series 12” 400W RMS (1400W Peak Power Handling) Single 4 Ohms Voice Coil Impedance Car Subwoofer
The Cone is Supported by a Rolled Rubber Surround
The Pioneer TS-A120S4E is a high-quality 12-inch subwoofer designed to deliver powerful and precise bass performance in-car audio systems. With its impressive features and reliable construction, it offers an enhanced audio experience that brings depth and impact to your music.

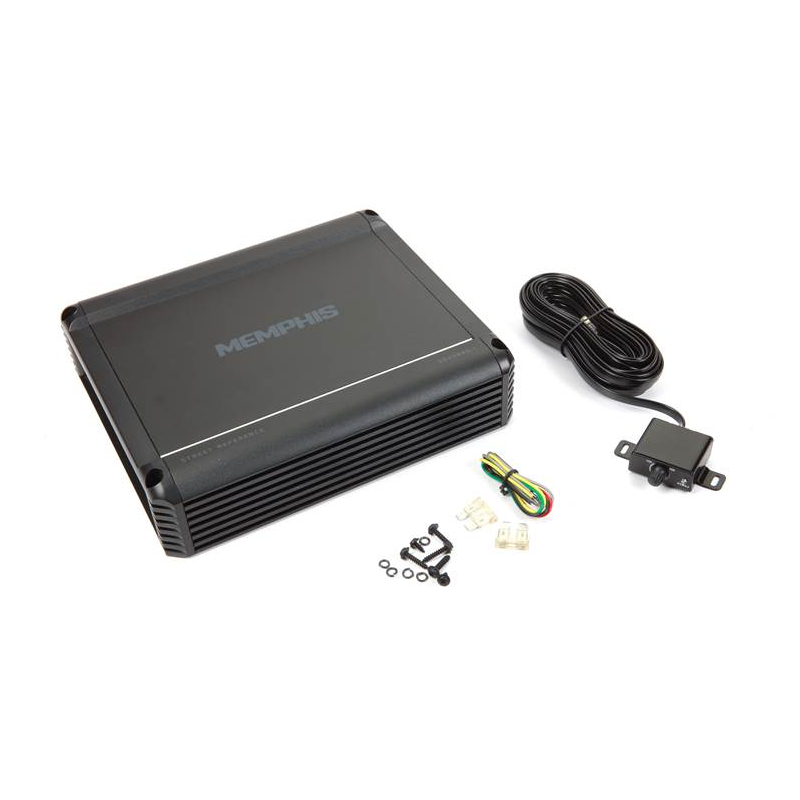

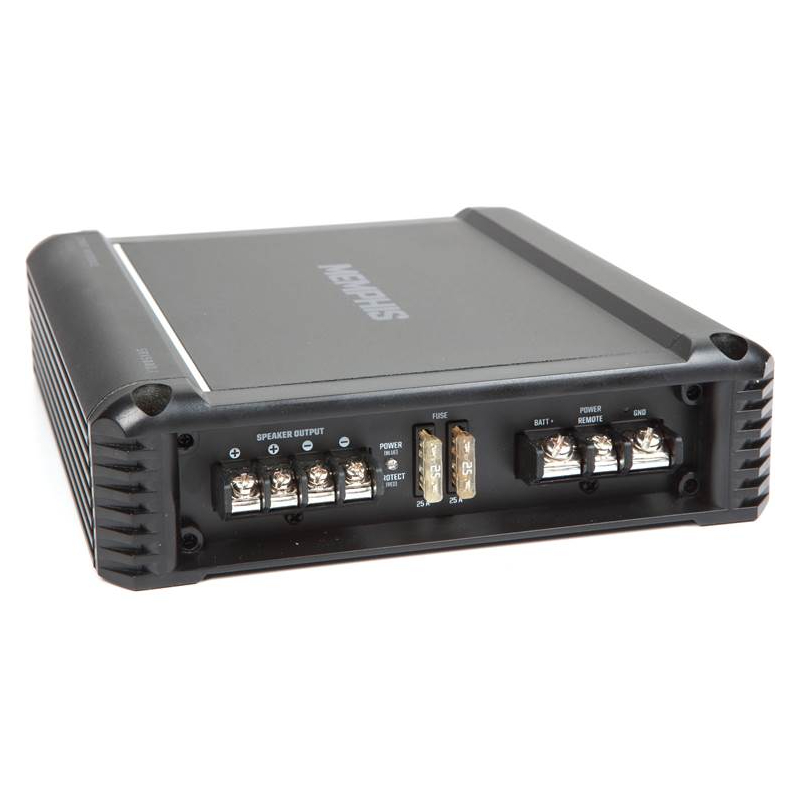

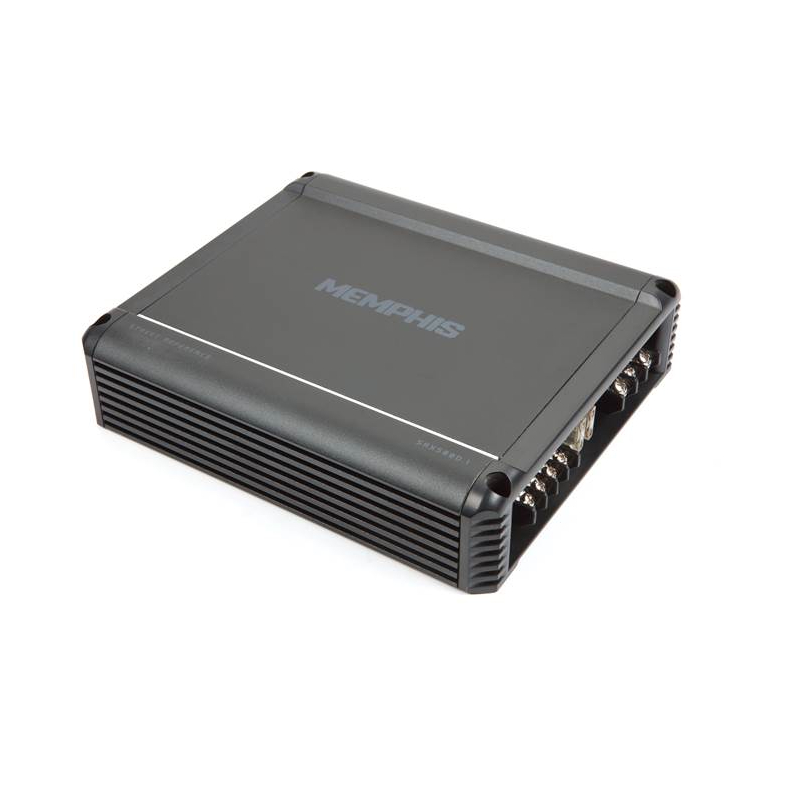

Memphis Audio SRX500D.1 Street Reference Series 500W x 1 RMS @2Ohms 1000W Max Power, Class D Monoblock Car Amplifier
Ultimate Combination of Performance, Aggressive Style and Value
An entry-level subwoofer amplifier that can bring out the best of your car subwoofer, the Memphis Audio SRX500D.1 is meant to deliver a clean and massive bass output without breaking the bank. This amplifier also has a good load of valuable features for subwoofer applications while packing a lot of power in a compact chassis.The Memphis Audio SRX500D.1 comes with Class-D amplifier technology, allowing this compact subwoofer amplifier to produce heart-thumping bass and massive power. Its aluminum chassis and heat sinks give the amplifier an efficient way to dissipate heat from long periods of use.
Pioneer AVIC-W8600NEX 2-DIN 7" Multimedia Navigation Receiver with Amazon Alexa, Android Auto™, Apple CarPlay® (wired/wireless), and Bluetooth®
Features:
- 7" WVGA (Capacitive)
- Apple CarPlay® (Wired, Wireless)
- Android Auto™ (Wired, Wireless)
- Amazon Alexa Built-in when Paired with Pioneer Vozsis App
Specifications:
- Continuous Power Output: 22 W x 4-Channel
- Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output: 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
- RCA Preamp Outputs: 6-ch
- RCA Pre-out: 4V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
DISPLAY
- Back Light: LED
- Brightness Control: Yes
- Color Customization: 5 display colors, 112 key colors
- Device (Non-DIN/Modular Unit): 2-DIN
- Dimmer: Automatic with vehicle illumination, Timer Controlled, Manual
- Display Off Mode: Yes
- Home Screen Customization: Yes
- Monitor Mechanism: Motorized
- Resolution: WVGA (800 x 480)
- Screen Size/Aspect Ratio: 7"/16:9
- Touch Screen: Capacitive

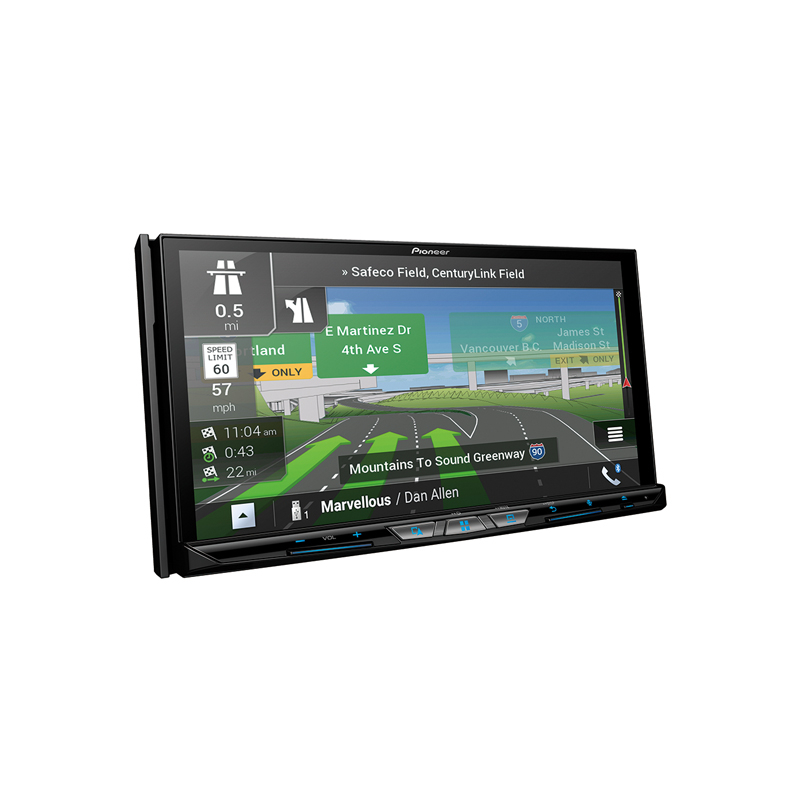

NAVIGATION
- 3D City Maps: Included
- 3D Landmarks: Included
- Coverage Area: Alaska, Canada, Contiguous 48 States, Hawaii, Puerto Rico
- Display Modes: 2D Heading-Up, 2D North-Up, 3D View
- Enhanced Junction View & Realistic Road Signs: Yes
- External GPS Antenna: Yes
- Free Lifetime Traffic by Total Traffic: Yes
- Lane Formation: Yes
- Map Data: 16gb Flash Memory
- Map Provider: HERE
- Navi Menu Language: English, French, Spanish
- Point of Interest: Approx 12 Million
- RDS-TMS Traffic Tuner: Yes
- Speed Limit & Warnings: Yes
- Text to Speech (TTS) Voice Guidance with Street Names: English, French, Spanish
BLUETOOTH
- Advanced Audio Distribution Profile (A2DP): Yes
- AVRCP: 1.6
- Built-in Bluetooth®: Yes
- Dual Phone Connection: Yes
- Hands-Free: Yes
- Microphone Included: Yes
- Phone Registration: 5-phone
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
- Sound Retriever Air: Mode 1/Mode 2/Off
TUNER
- Best Station Memory: Yes
- HD Radio™: Built In / Artist Experience / Multicasting
- Local Seek tuning: Yes
- Presets: 18 FM, 6 AM
- RDS: Yes
- SiriusXM-Ready™ (Tuner Sold Separately): Yes
INTEGRATION
- Amazon Alexa: Paired with Pioneer Vozsis
- Android Auto™: Wireless Connection or Wired USB Connection
- Apple® CarPlay: Wireless Connection or Wired USB Connection
- Mirroring: Miracast-Android Phones Only
- Mobile Operating System: Android / Apple iOS
- Pandora®: With Apple CarPlay or Android Auto
- Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
- Siri® Eyes Free (VR) (Internet Required): iPhone Only
- Spotify: With Apple CarPlay or Android Auto
- Voice Control: Yes
- WiFi: Yes
DIGITAL MEDIA PLAYBACK
- Audio Playback via CD: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / CD Audio Playback
- Audio Playback via DVD: AAC Audio Playback / MP3 Audio Playback / WMA Audio Playback
- Audio Playback via SD: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
- Audio Playback via USB: MP3 Audio Playback / WMA Audio Playback / AAC Audio Playback / FLAC Audio Playback (Hi-Res) / WAV Audio Playback (Hi-Res)
- Audio Video Playback via CD-R/CD-RW: AVI Audio Video Playback / DivX Audio Video Playback / DVD Audio Video Playback
- Audio Video Playback via DVD-R/RSL/-RDL/DVD-RW: AVI Audio Video Playback / DivX Audio Video Playback / DVD Audio Video Playback
- Audio Video Playback via SD: .f4V / .3gp / .avi / .flv / .mkv / .mov / .mp4 / .mpg/mpeg / .vob / .wmv/.asf / H.263 / H.264
- Audio Video Playback via USB: .f4V / .3gp / .avi / .flv / .mkv / .mov / .mp4 / .mpg/mpeg / .vob / .wmv/.asf / H.263 / H.264
- Image Display via SD: JPEG
- Image Display via USB: JPEG
AUDIO
- Advanced Sound Retriever: Mode-1/Mode-2/Off
- Bass Boost: Yes
- Auto EQ (CD-MC20 Microphone sold separately): Yes
- Automatic Level Control: Mode-1/Mode-2/Off
- Built-in Amplifier: MOSFET 50 W x 4
- Crossover Network Mode: HPF/Band Pass/LPF
- Crossover Standard Mode: HPF/LPF
- Customizable Graphic Equalizer: 13 Band
- DA Converter: 24 Bit
- Digital Signal Processor: Built In
- Dynamic Bass Enhancer: Yes
- Easy EQ (EEQ) Preset Equalizer: Yes
- Loudness: High/Mid/Low/Off
- Speaker Output: 4-ch
- Spectrum Analyzer: Yes
- Subwoofer Control: Yes
EXPANDABILITY
- Dual Zone Rear-Seat Entertainment: Yes
- OEM Integration: iDatalink® Maestro™ - RR (DATA)
- Parking Assist Lines: Yes
- RCA Video Output: Yes
- SD/SDHC Memory Card Slot: SD
- USB: Dual Rear Type-A (5 V, 1.5 A)
- USB Direct Control for iPhone®: 5s and newer
INPUTS
- Input 1: Backup Camera Dedicated
- Input 2: AUX (Minijack)
- Input 3: A/V or 2nd Camera
- Input 4: HDMI Standard (Type A)
GENERAL
- Detachable Face Security: Fixed
- Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
- Music Browser: USB
- Remote Control: Included
- Steering Wheel Control Ready (Adapter Sold Separately): Yes

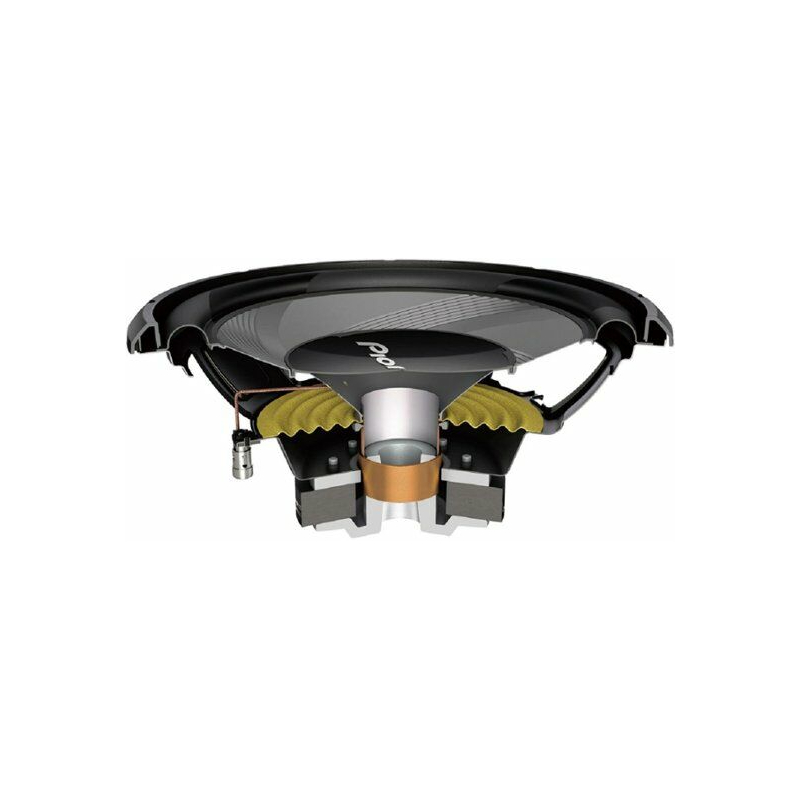

Pioneer TS-A120S4E A Series 12” 400W RMS (1400W Peak Power Handling) Single 4 Ohms Voice Coil Impedance Car Subwoofer
Features:
- Pioneer’s A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.
- Specially designed voice coil offers higher power handling, linear movement and greater excursion for extreme bass output.
- Cone provides increased strength and rigidity for optimized bass response.
Specifications:
- System Type: Component Subwoofer
- Sensitivity (1W/1m): 87 dB
- Frequency Range: 22 Hz to 1.6 kHz
- CTA-2031 Compliant: Yes
- Warranty: 1 Year
- Continuous Power handling (RMS) - Watts: 400 Watts
- Maximum Peak Power Handling - Watts: 1400 Watts
- Nominal Impedance - OHM: 4
- Shape: Round
- Size: 12"
- Cone Material: IMPP - Composite
- Center Cap Material: ABS
- Surround Material: Rubber
- Surround Type: Rolled
- Basket Material: Stamped Metal
- Magnet Material: Ferrite
- Magnet Weight: 46 oz
- Voice Coil Type: Single Voice
- Voice Coil Bobbin: Alminum
- Voice Coil wire: Copper
- Damper: Poly cotton Aramid
- Gasket: PP
- Wire Terminals: Push Type
- Unit Size (Dimensions): 12-1/2"
- Mounting Depth: 5-3/8"
- Cut Out dimensions: 11-1/8"
- Equivalent Compliance (VAS) [L]: 56.1
- Free Air Resonance (Fs) [Hz]: 32.1
- Total Speaker "Q" (Qts): 0.7
- Linear Excursion (Xmax) [mm]: 8.25
- Recommended Sealed Box Volume [L]: 35.4
- Port Box volume [L]: 42.5
- Port Length: 6-1/2"
- Port Diameter: 3"
Memphis Audio SRX500D.1 Street Reference Series 500W x 1 RMS @2Ohms 1000W Max Power, Class D Monoblock Car Amplifier
Features:
- Class D amplifier technology
- variable low-pass filter (30-250 Hz, 12 dB/octave)
- selectable bass boost (0, 6, 12 dB at 45 Hz)
- variable subsonic filter (15-50 Hz, 12 dB/octave)
- preamp and speaker-level inputs
- wired remote level control included
- wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended
- fuse rating: 25A x 2
- dimensions: 9-3/4"W x 2-3/16"H x 8"D
Specifications:
- RMS Power Output (Watts x Channels): 350 x 1
- Peak Power Output (Watts x Channels): 1000 x 1
- Power at 2 Ohms (Watts x Channels): 500 x 1
- Minimum Impedance Unbridged: 2
- Minimum Impedance: 2
- Best Frequency Response: 30-250 Hz
- THD at Rated RMS Power: 0.5%
- Signal to Noise Ratio: 90 dB
- UPC: 713783829286
- Weight: 22
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
