Aunex  AP800.1D-Bundle6

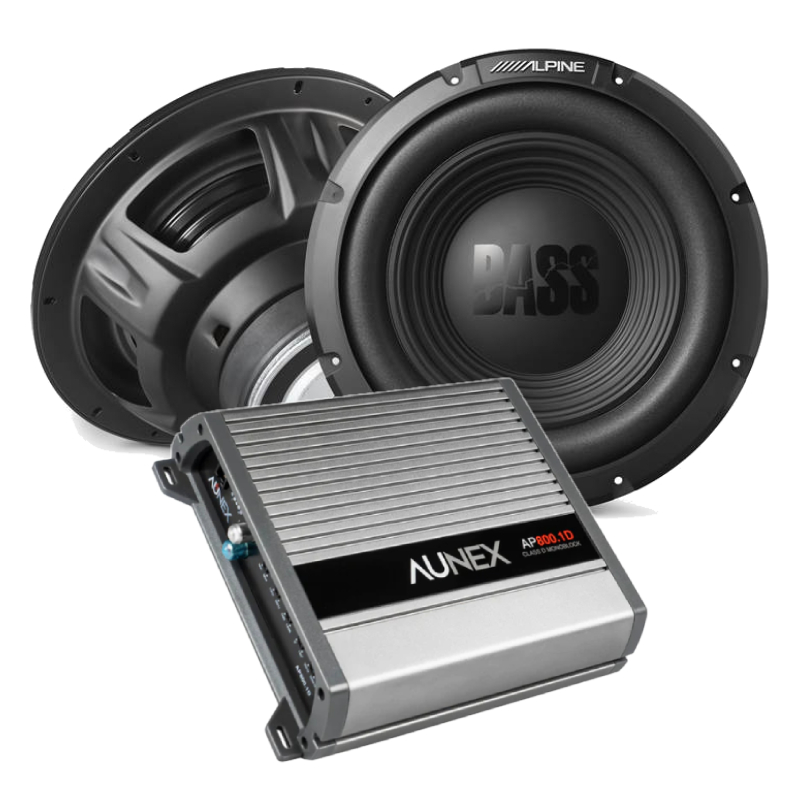

Aunex AP800.1D Monoblock Amplifier + 2 Set of Alpine W12S4 BassLine Series 12" 250W RMS Car Subwoofer

Item #92414

Product Highlights

  • Aunex AP800.1D Monoblock Amplifier
  • 800W RMS, Class-D design
  • 2 sets of Alpine W12S4 BassLine 12" subwoofers
  • 250W RMS each, 4-ohm impedance

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Aunex AP800.1D-Bundle5 includes Aunex AP800.1D Monoblock Amplifier + Pioneer TS-WX1220AH 12" Built-In Subwoofer Amplifier + Aunex AP-8K Amplifier Wiring Kit


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Aunex AP800.1D
  • •(2 Set) Alpine W12S4
  • • Owner's Manual

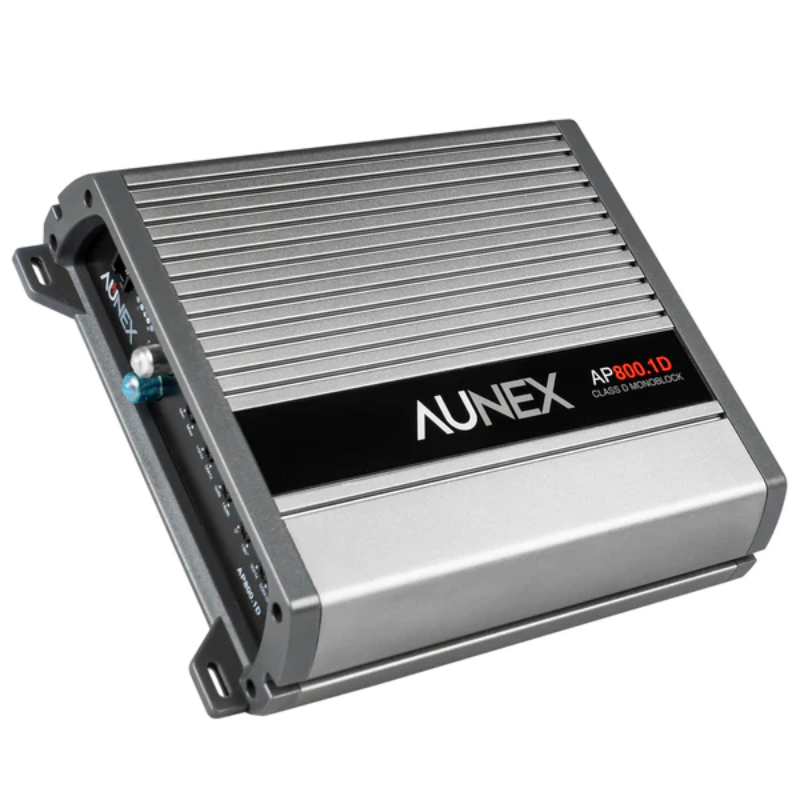

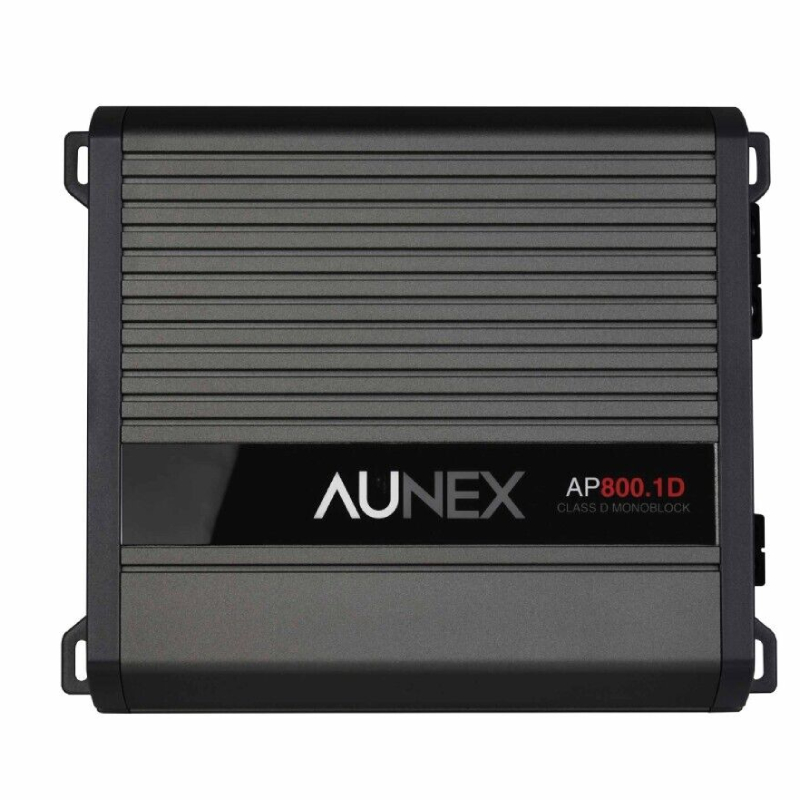

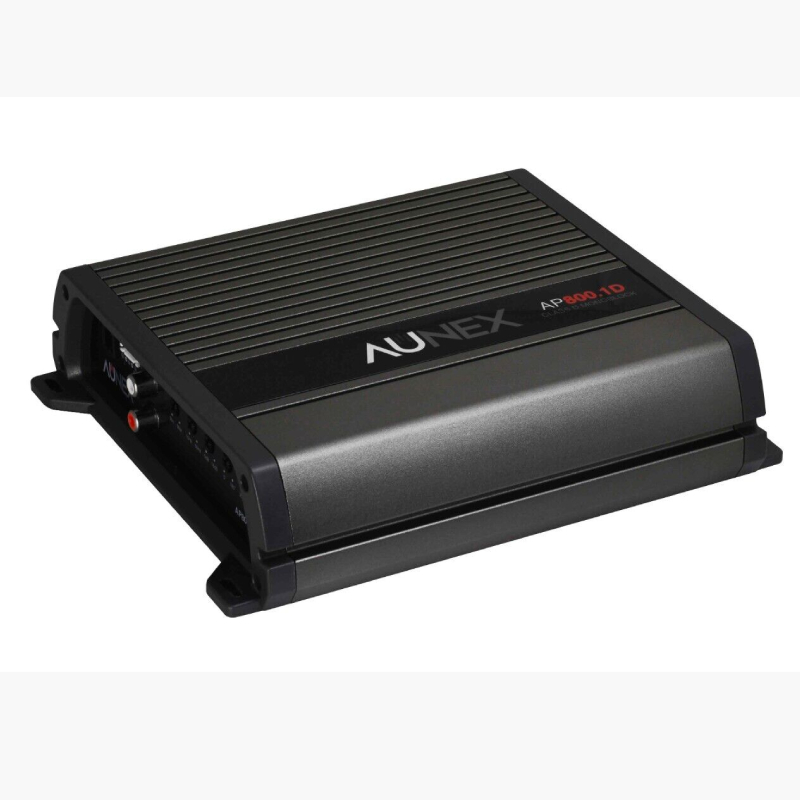

AP800.1D AP Series 800W x 1 @4Ohms, 1600W Max Power Class D Monoblock Amplifier

Unleash the Power of Sound

The Aunex AP800.1D amplifier is a game-changer for car audio enthusiasts looking to upgrade their bass performance. With its powerful 800-watt output and advanced features, it delivers exceptional bass reproduction, elevating your in-car audio experience. Using Class-D amplifier technology, it operates efficiently and minimizes strain on your vehicle's electrical system.

Alpine W12S4 BassLine Series 12" 250W RMS (750W Peak Power Handling) Single 4 Ohm Voice Coil Car Subwoofer

BASS For All

The 2017 BASS subwoofers are engineered to be fun and loud in a budget friendly category by combining retro styling with enough efficiency to run on 250W RMS. An optimized magnet circuit allows more focused magnetism in the gap which results in improved efficiency. This means tighter bass control and more output!


SPECIFICATIONS



FEATURES


AP800.1D AP Series 800W x 1 @4Ohms, 1600W Max Power Class D Monoblock Amplifier

Features:

  • Heavy Density Aluminum Extruded Heatsink
  • 2 Layer PCB, SMD Technology
  • Differential Balanced RCA Inputs
  • Fully Variable Crossover: 30Hz - 500Hz @ 24dB/Octave Slope
  • Fully Variable Infrasonic Filter: 10Hz - 50Hz @ 24dB/Octave
  • Boost Eq. 0 - 18dB @ 45Hz Center
  • Auto-Sensing in High-Level Input Mode
  • Power and Protection Logo Illuminated Status Indicator
  • 4 Gauge Power and Ground Terminals
  • 12 Gauge Speaker Output Terminals
  • Advance Protection Circuit Monitoring: Short, Thermal, Overload, And Impedance
  • Finish: Anodized with Texture Paint



Specifications:

  • Channels: 1
  • Rated RMS Power 4 Ohms Mono @ 14.4V: 300 Watts x 1
  • Rated RMS Power 2 Ohms Mono @14.4V: 600 Watts x 1
  • Rated RMS Power 1 Ohm Mono @ 14.4V: 800 Watts x 1
  • Peak Music Power: 1600 Watts
  • Frequency Response: 10Hz - 500Hz
  • THD + Noise: <0.5%
  • S/N Ratio A-Weighted: >105dB
  • Input Sensitivity (Low Level RCA): 250mV - 6V
  • Input Sensitivity (High Level Speaker Output): 450mV - 11V
  • Crossover Low Pass (24dB/Octave): 50Hz - 500Hz
  • Boost EQ Low Pass - 45Hz Centered: 0 - 18dB
  • Infrasonic Filter: 10Hz - 50Hz
  • Phase - Fully variable: 0 - 108°
  • Efficiency @ 4 Ohm: 85%
  • Operating Voltage: 9 - 17 Volts
  • Fuse Requirement: 80A (Included)
  • Dimensions (H x W x D): 2.0" x 8.5" x 7.2"

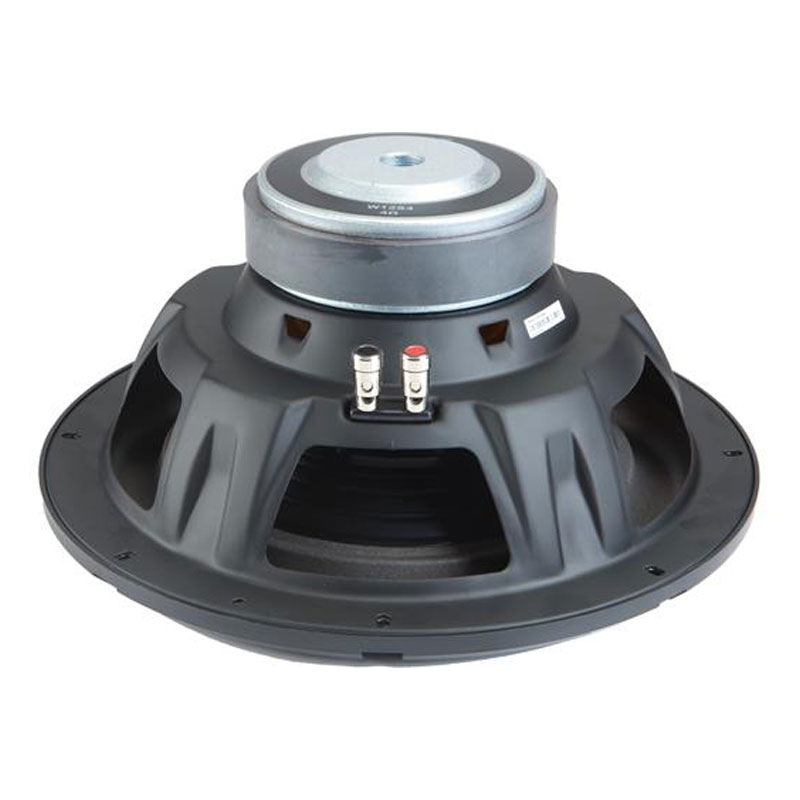

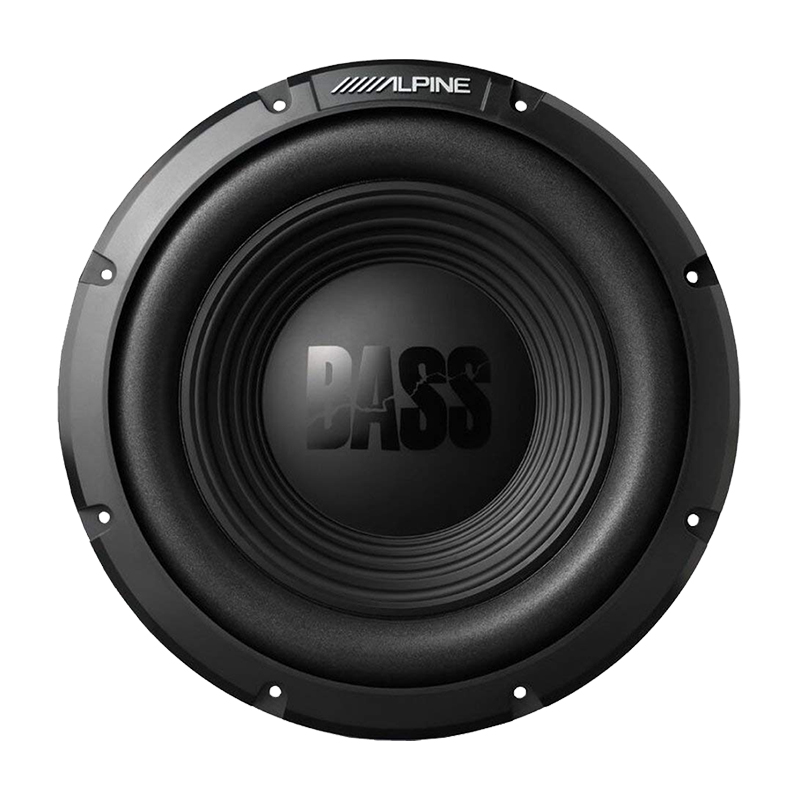

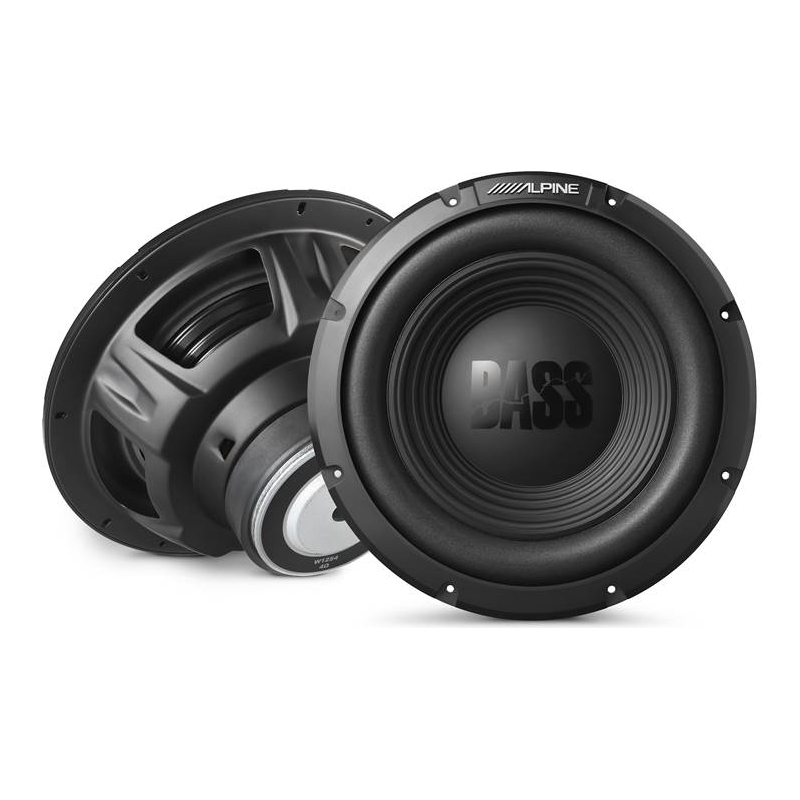

Alpine  W12S4 BassLine Series 12" 250W RMS (750W Peak Power Handling) Single 4 Ohm Voice Coil Car Subwoofer

Features:

  • 12" 4-ohm subwoofer
  • polypropylene and mica cone with poly-foam surround
  • stamped steel frame
  • power handling: 50-250 watts RMS
  • peak power: 750 watts
  • sensitivity: 87.9 dB
  • frequency response: 22-200 Hz
  • top-mount depth: 5-5/16"
  • sealed box volume: 1.09 cu. ft.
  • ported box volume: 1.91 cu. ft.
  • grille not included



Specifications:

  • Size: 12 -inch
  • Impedance (Ohms): 4
  • Cone Material: Polypropylene and Mica
  • Surround Material: Poly-Foam
  • Port diameter (inches): N/A
  • Port length (inches): N/A
  • Free-Air: No
  • Dual Voice Coil: No
  • Sensitivity: 87.9 dB at 1 watt
  • Frequency Response: 22 - 200 Hz
  • Max RMS Power Handling: 250
  • Peak Power Handling (Watts): 750
  • Top Mount Depth (inches): 5 5/16
  • Bottom Mount Depth (inches): N/A
  • Cutout Diameter or Length (inches): 10 9/16
  • Vas (liters): 64.3
  • Fs (Hz): 30
  • Qts: 0.49
  • Xmax (millimeters): 10
  • Parts Warranty: 1 Year
  • Labor Warranty: 1 Year
  • Ideal Sealed Box Volume (cubic feet): 1.09
  • Minimum Sealed Box Volume (cubic feet): 0.75
  • Maximum Sealed Box Volume (cubic feet): 1.5
  • Ideal Ported Box Volume (cubic feet): 1.84
  • Minimum Ported Box Volume (cubic feet): 1.43
  • Maximum Ported Box Volume (cubic feet): 2.43
  • UPC: 713783828856
  • Weight: 30
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
