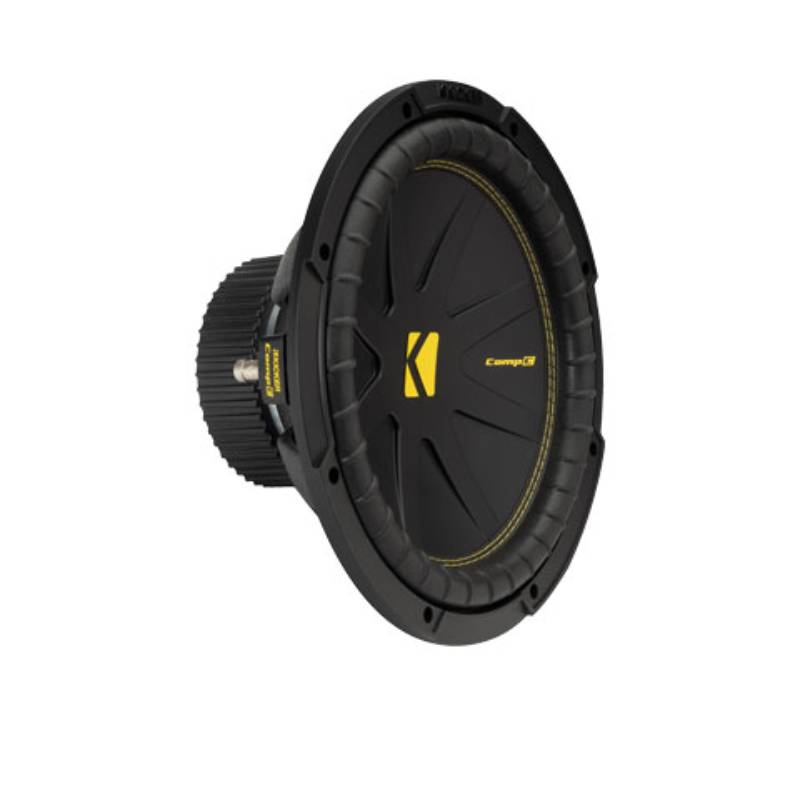

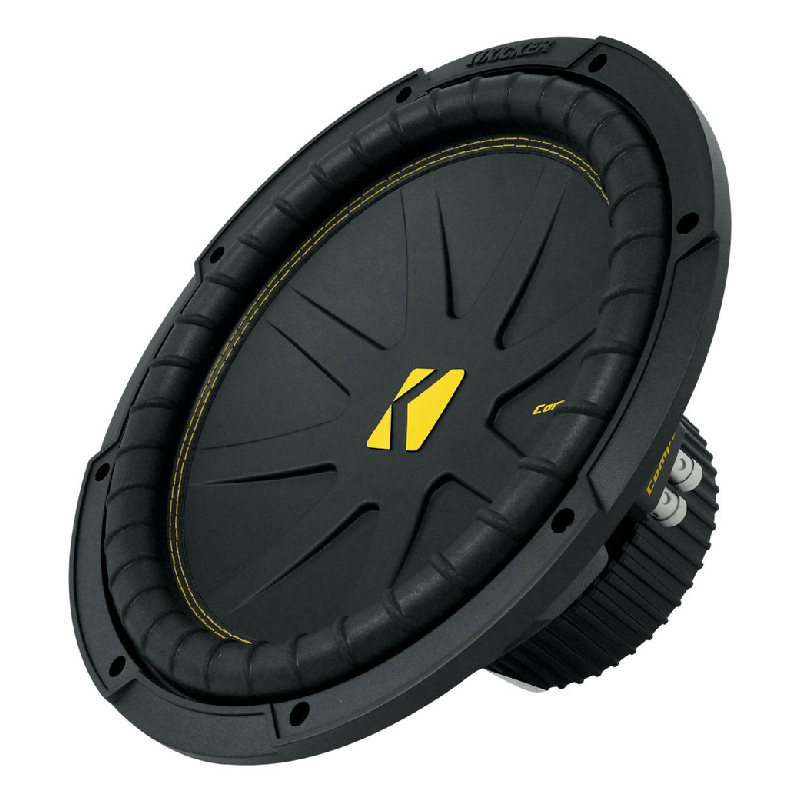

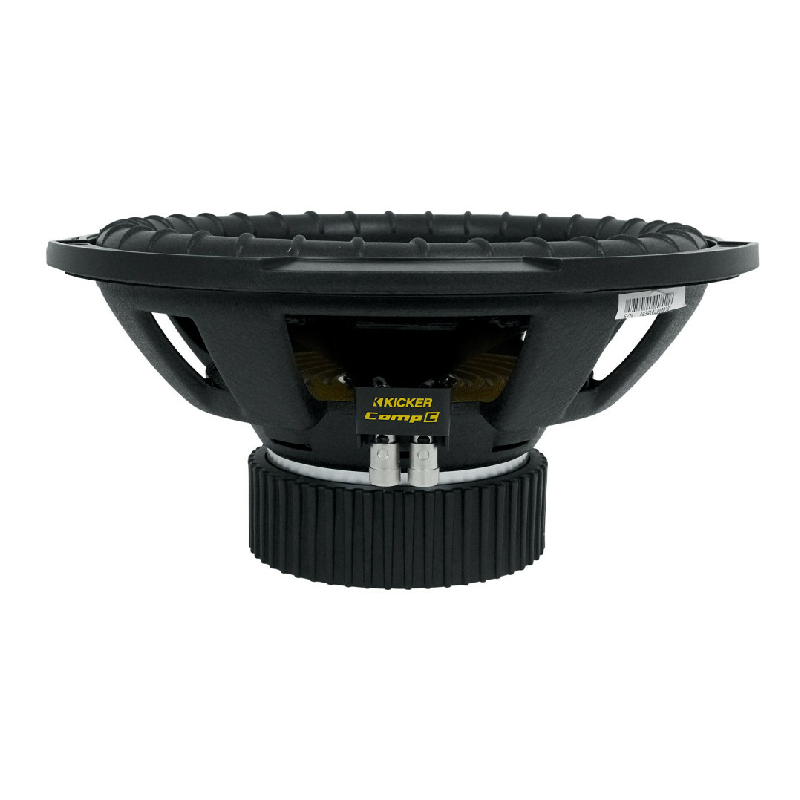

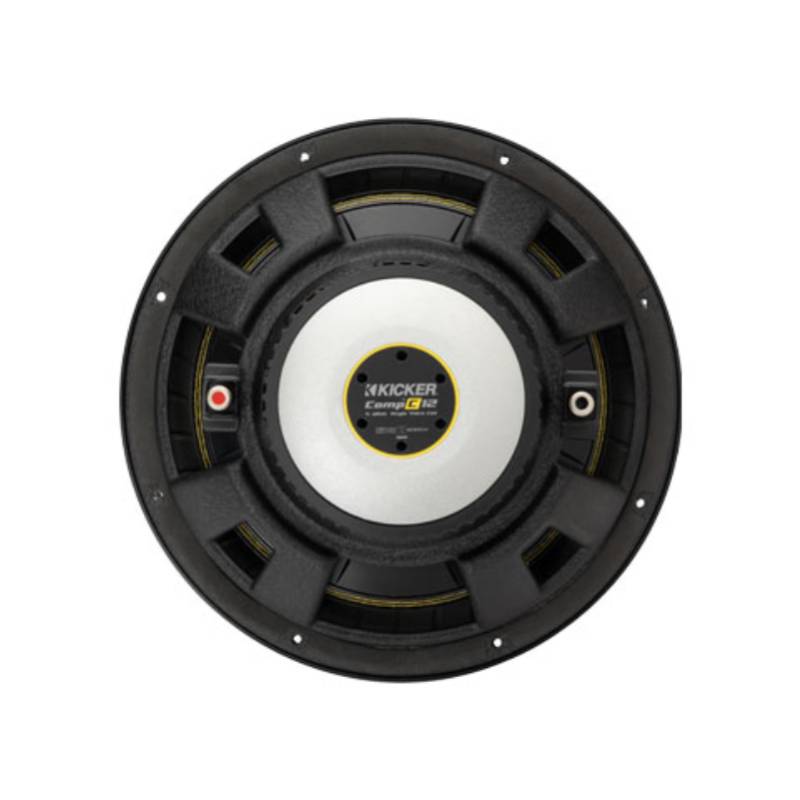

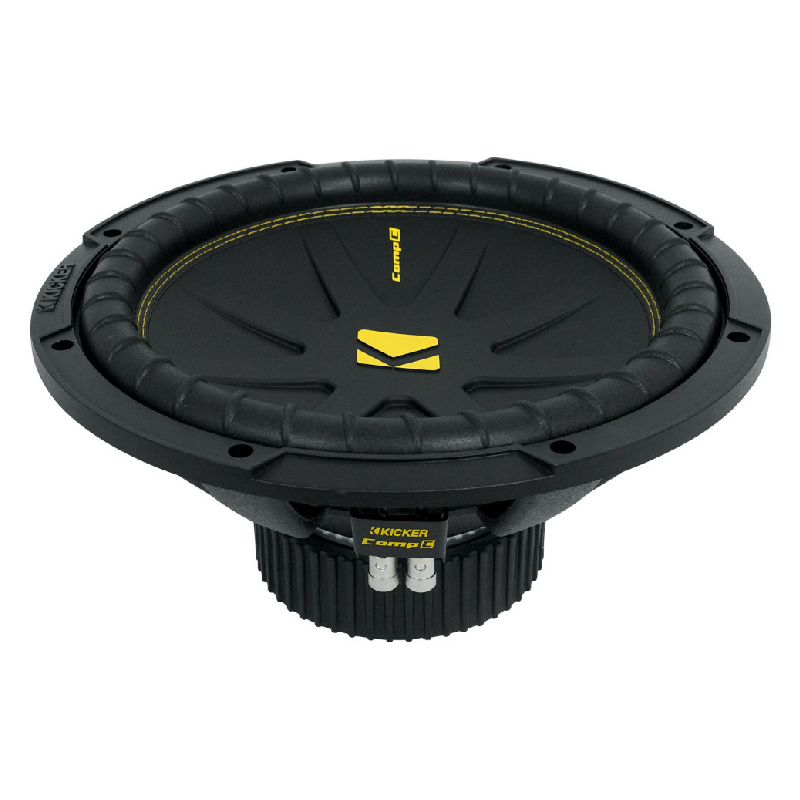

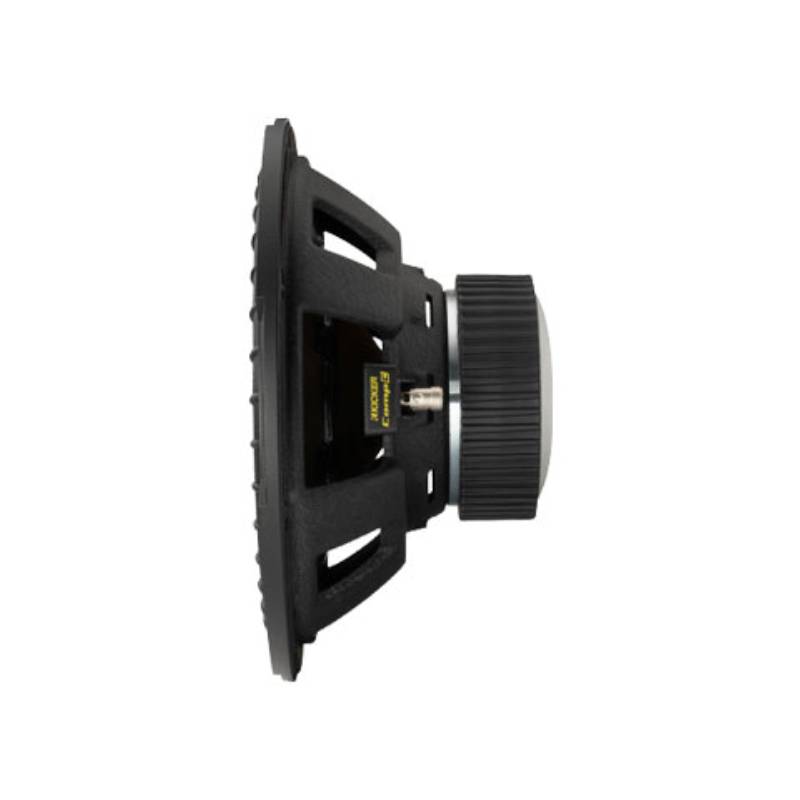

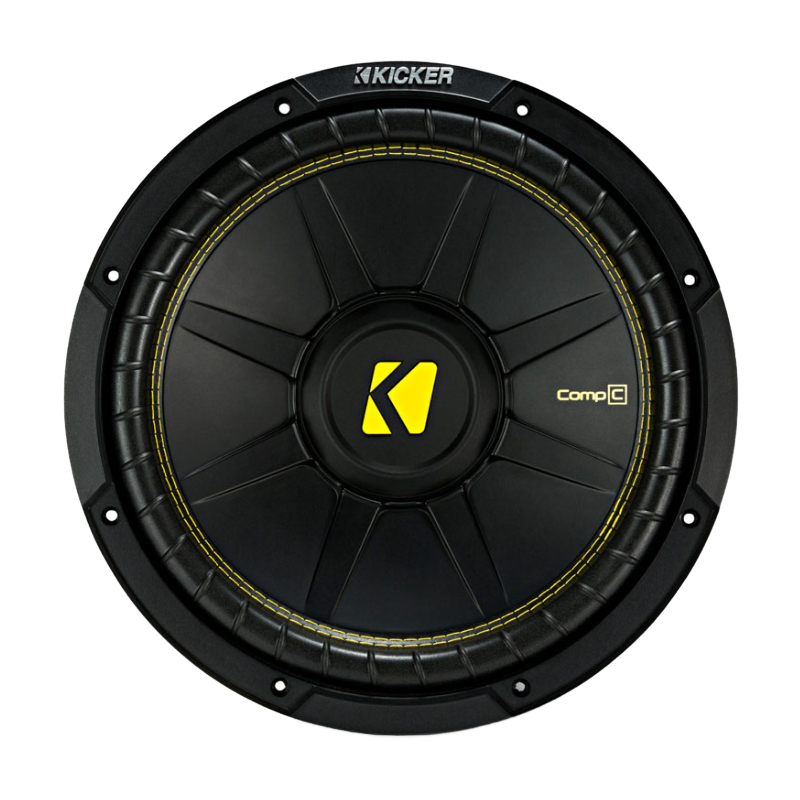

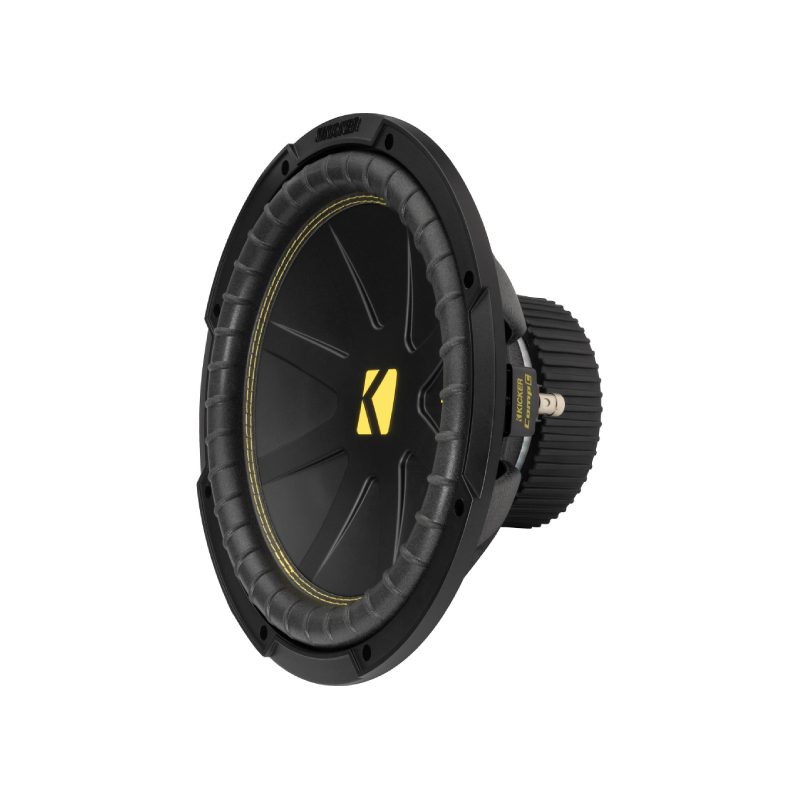

Kicker 50CWCD124 CompC Series 12" 300W RMS (600W Peak Power Handling) 4 Ohms, Dual Voice Coil Component Car Subwoofer
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 12" CompC Series Dual Voice Coil Component Car Subwoofer
- • (2) Kicker decals
- • Information sheet with QR code to owner's manual
- • Owner's Manual
Why Choose Kicker 50CWCD124 Component Car Subwoofer?
Flexible Wiring and Accurate, Durable Bass
Featuring dual 4-Ohm voice coils, this subwoofer allows versatile parallel or series wiring to match your amplifier setup. The injection-molded polypropylene cone ensures durability and delivers precise, distortion-free bass even under high-excursion conditions.
Cool, Durable, and Deep-Performing Bass
Forced-air cooling keeps the subwoofer running reliably even at high power levels. The ribbed polyurethane surround allows smooth cone movement and extended excursion for deeper, more impactful bass, while signature yellow surround stitching reinforces the surround for added durability and long-lasting performance.
Durable Construction for Reliable, Accurate Bass
High-strength Spiralead tinsel leads ensure secure voice coil connections even under heavy load, while the stamped steel basket provides a sturdy foundation that minimizes vibration, delivering precise, distortion-free performance.
Frequently Asked Questions (FAQ)
- • Why does it produce weak bass after installation?
Weak bass is usually caused by an enclosure that doesn't meet the recommended specifications or incorrect amplifier tuning. Check the enclosure volume, crossover settings, and speaker polarity before increasing the amplifier gain.
- • Can I install this in either a sealed or ported enclosure?
Yes. It is designed to perform well in both enclosure types when built according to the recommended internal volume and tuning requirements.
- • Why does my amplifier keep entering protection mode?
This commonly indicates an impedance mismatch, loose wiring, or an electrical short. Verify the wiring configuration and confirm your amplifier is stable at the final speaker load.
- • Can I use this with my factory car stereo?
Yes. An external amplifier is required, and many factory audio systems also require a line output converter to provide the proper signal.
- • Why does the bass become distorted when I turn up the volume?
Distortion is typically caused by amplifier clipping, excessive gain, or improper crossover settings. Proper amplifier tuning helps produce clean bass while protecting the subwoofer.
- • Does it require a break-in period before it performs its best?
Yes. Playing music at moderate listening levels for several hours allows the suspension to loosen naturally and improves bass response.
- • Why is there a rattling noise coming from my trunk during heavy bass?
Loose trim panels, license plates, or enclosure hardware are the most common causes. Tightening loose components and adding sound-deadening material can significantly reduce unwanted vibrations.
- • Can I use an amplifier with more RMS power than the subwoofer is rated for?
Yes. A properly adjusted amplifier with clean power is generally safer than an underpowered amplifier that clips under heavy load.
- • Why does the cone move but produce almost no bass?
This usually happens because of incorrect crossover settings, reversed speaker polarity, or an air leak in the enclosure. Inspect the amplifier configuration and verify all speaker wiring before replacing any equipment.
- • Can I wire multiple subwoofers to one mono amplifier?
Yes. Calculate the combined impedance carefully and make sure it matches the amplifier's supported operating range before connecting multiple subwoofers.
- Diameter : 12 Inch
- Sensitivity : 87.1 dB
- Impedance : 4 Ohm
- Frequency Response : 27-500 Hz
- Peak Power Handling : 600 Watts
- Top Mount Depth : 5.75 Inches
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 1.0-2.0 Cubic ft.
- Suggested Ported Box Volume : 1.75-2.25 Cubic ft.
- RMS Power Handling : 300 Watts
Features:
- Dual Four-Ohm Voice Coils: Provides flexibility for parallel or series wiring with your amplifier setup.
- Injection-Molded Polypropylene Cone: Offers durability and accurate bass response under high excursion.
- Forced-Air Cooling: Keeps the subwoofer running cool and reliable even at high power levels.
- Ribbed Polyurethane Surround: Ensures smooth cone movement and extended excursion for deeper bass.
- Signature Yellow Surround Stitching: Reinforces the surround and provides extra durability.
- High-Strength Spiralead Tinsel Leads: Maintains secure voice coil connections under heavy load.
- Stamped Steel Basket: Offers a sturdy foundation for precise, distortion-free performance.
- High-Temperature Voice Coil: Capable of handling 150–300 watts RMS with minimal thermal stress.
- Spring-Loaded Speaker Terminals: Simplifies wiring and allows for secure connections.
Specifications:
- Size: 12" (30 cm)
- Impedance: 4 Ohm DVC
- Recommended Amplifier Power: 150–300 watts RMS
- Peak Power Handling: 600 watts
- Frequency Response: 27–500 Hz
- Sensitivity: 87.1 dB at 1 watt / 1 m
- Fs: 30.6 Hz
- Outer Frame Dimension: 12-5/8" (32 cm)
- Mounting Depth: 5-3/4" (14.6 cm)
- Mounting Cutout: 11" (27.9 cm)
- Minimum Sealed Box Volume: 1.25 cu. ft. (35.4 L)
- Maximum Sealed Box Volume: 3.5 cu. ft. (99.1 L)
- Minimum Vented Box Volume: 1.75 cu. ft. (49.6 L)
- Maximum Vented Box Volume: 2.25 cu. ft. (63.7 L)
- UPC: 713034039631
- Weight: 10.6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
