MG series 12“Subwoofer Incl. Protection Grille 76 mm (3")Dual Voice Coil, 700W RMS (1400W Peak Power Handling) 2 Ohms
We are a Musway authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- 1 12"Subwoofer Incl. Protection
- User Manual/Documentation
- Warranty Information

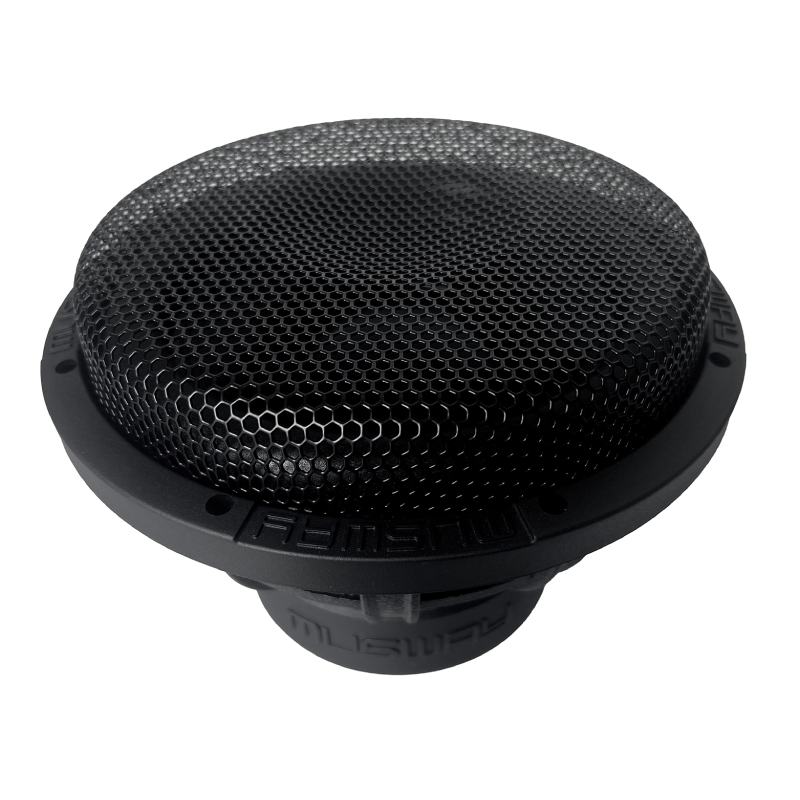

- Comes with the innovative cast aluminum basket and stable grille.
Equipped with double magnets.
The MG subwoofers seamlessly embody this philosophy, effortlessly showcasing their craftsmanship upon inspection. Upon opening the attractive packaging, one quickly discerns the robust protection grille, eliminating the need for additional safeguards. The standout feature of each MG woofer, however, is undoubtedly the recently redesigned aluminum cast basket. With its graceful struts and expansive ventilation windows behind the spider, it serves as a visual highlight. Professionals can already anticipate that the double magnets equipped in these woofers will expertly deliver flawless bass across various genres.
Product Highlights:
Innovative cast aluminum basket.
Equipped with double magnets.
Unique characteristics such as moving mass and Thiele/Small parameters
The MG12 combines innovative features, technical excellence, and craftsmanship to deliver an outstanding subwoofer that caters to the needs of sound enthusiasts.
High-quality workmanship and exciting sound
Equipped with a robust grille, a meticulously crafted cast aluminum basket, and potent dual magnets, this subwoofer confidently generates a diverse range of bass tones. The MG12 boasts an impressively extended and uniform cone excursion, precisely governed by specially shaped dual spiders. Moreover, its adaptability shines through as it excels in both closed enclosures and bass reflex constructions, showcasing remarkable versatility. Brace yourself for the awe-inspiring performance of this exceptional subwoofer!.
- Diameter : 12 Inch
- Low Frequency Response : 30 Hz
- Sensitivity : 91 dB
- Impedance : 2 Ohm
- Peak Power Handling : 1400 Watts
- Top Mount Depth : 7.1 Inches
- Shallow Mount : No
- Number of Voice Coils : Dual
- Suggested Sealed Box Volume : 1.7665 Cubic ft.
- Suggested Ported Box Volume : 1.2365 Cubic ft.
- Mounting Depth : 7.13 Inches
- RMS Power Handling : 700 Watts
Features And Specifications
Design Highlights:
- MG subwoofers feature a visually stunning design.
- Sturdy protection grille is included in the packaging.

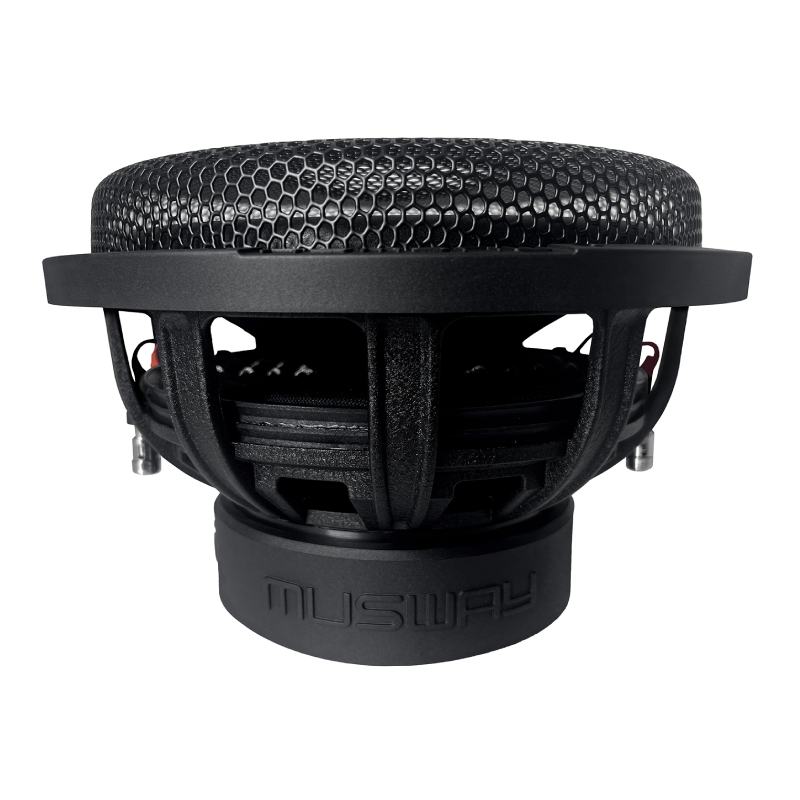

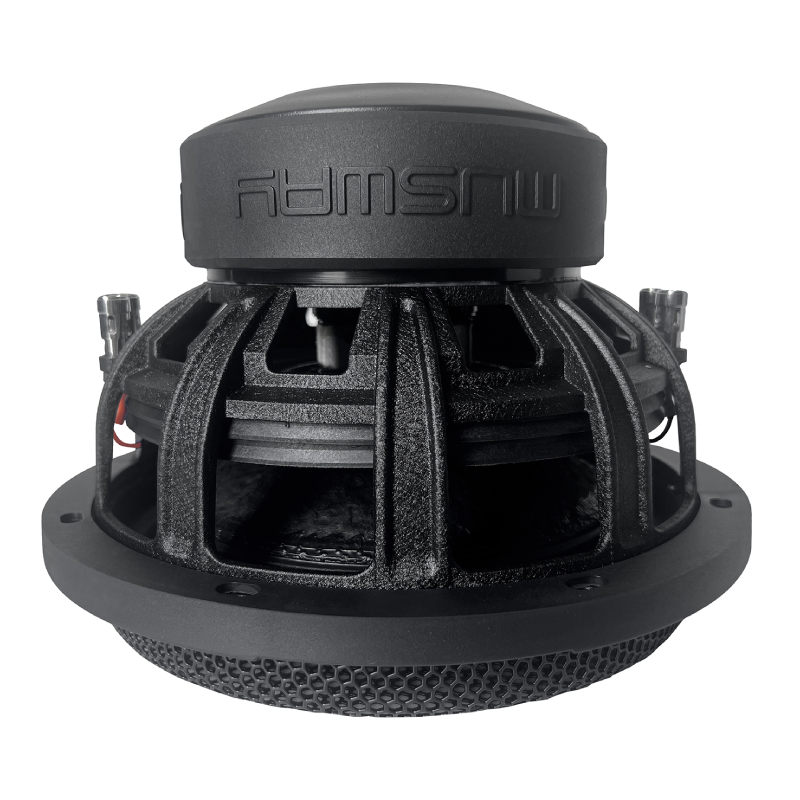

- Newly designed aluminum cast basket with delicate struts and large ventilation windows.
Technology Details:
- Woofers equipped with double magnets for confident bass production.
- Long and even membrane stroke, with MG12 offering up to +/- 22 mm (total 44 mm).
- Specially shaped dual spiders made of polycotton for precise control.
- Copper-clad aluminum voice coils (CCAW) keep the moving mass (Mms) low.
- Favorable Thiele/Small parameters for suitability in closed housings.
Performance Characteristics:
- MG version excels with a speaker volume of 25 liters, playing deep and clean bass down to 43 Hz (-3 dB).
- Suitable for those who prioritize high impulse fidelity and cleanliness.
Bass Reflex Constructions:
- For fuller bottom-end, bass reflex constructions are recommended.
- Utilizes air in the housing with a specially tuned reflex channel.
- All three woofers can play down to below 30 Hz in bass reflex setups.
Specifications
- Power Handling: 700 Watts RMS, 140 Watts Max.
- Impedance: Dual 2 Ohms
- Voice Coil: 76 mm (3")
- Basket Material: Sturdy Aluminum Cast
- Protection Grille: Pre-assembled
- Magnet: 2 x 1.7 kg (60 oz.)
- Resonant Frequency (Fs): 30 Hz
- Total Q Factor (Qts): 0.4
- Equivalent Volume (VAS): 64 L
- Sensitivity (SPL): 91 dB/2.38V/1m
- Maximum Excursion (Xmax): +/- 22 mm
- Installation Depth: 181 mm
- Installation Diameter: 285 mm
- UPC: 4251476408685
- Weight: 27.112
