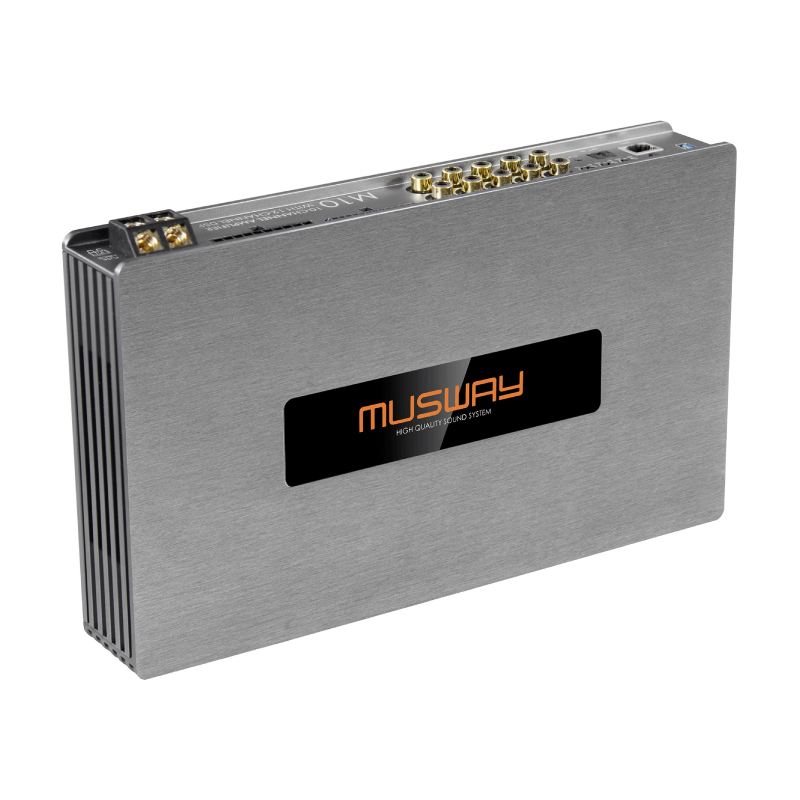

Musway M10 10-Channel 135W x 8 at 2 Ohm + 9th and 10th Channel 220W x 2 at 2 Ohm, Class-D Full Range Car Amplifier with 14-Channel Digital Sound Processor Output - German Engineered
We are a Musway authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10-Channel Class-D Full Range DSP Amplifier
- • 1.5 m USB Cable
- • 24-pole Cable Adapter (High Level Inputs)
- • 20-pole Cable Adapter (Speaker Outputs)
- • Mounting Plate incl. Screws
- • (2) 40 A replacement fuse
- • 4 mm hex key
- • Owner's Manual
Seamless Integration for Advanced Car Audio Systems
Discover the power and precision of the new Musway M10—featuring 10 Class-D channels and an integrated 14-channel DSP with 4 outputs, it's the ultimate solution for hi-fi enthusiasts looking to build advanced car audio systems with minimal cabling, perfectly suited for BMW and Mercedes models needing strong, dedicated subwoofer performance.
Versatile Inputs and Seamless Integration for Complex Factory Systems

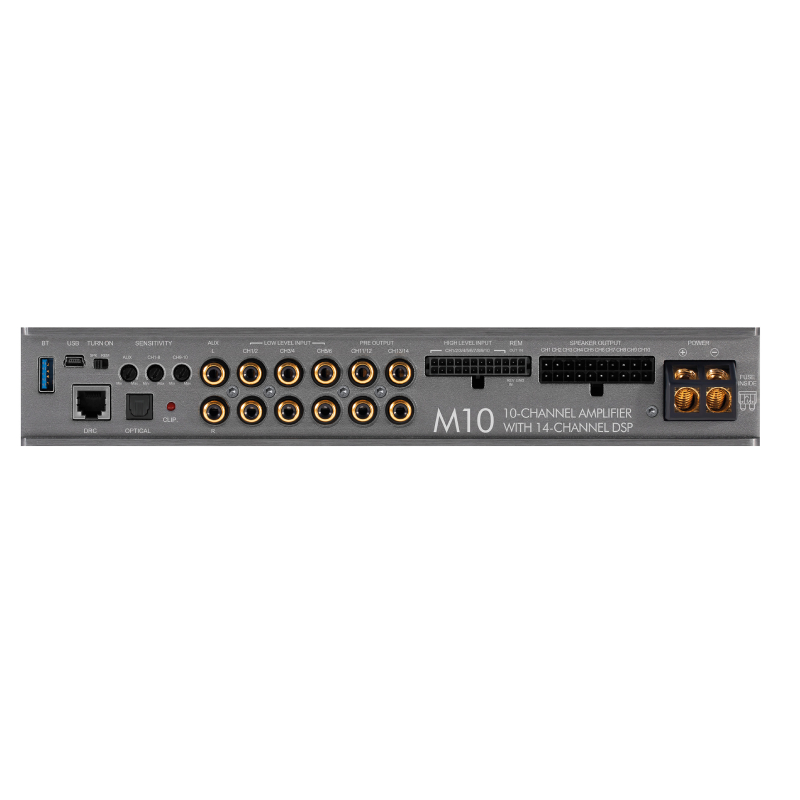

The M10 amplifier delivers exceptional versatility with six RCA inputs, an AUX input, and 10 high-level inputs that connect directly to speaker signals—supporting up to 24 V/RMS on channels 1–8 and an impressive 32 V/RMS on channels 9 and 10, making it perfect for vehicles with complex factory audio systems, all while ensuring safe integration with built-in EPS® protection.
Precision Power and Smart Control for High-End Car Audio
Unlock high-performance car audio with the Musway M10—featuring EPS® signal protection, Start-Stop readiness, Burr-Brown and Analog Devices DSP, powerful 64-bit processing, crystal-clear sound, and optional Bluetooth® streaming and remote DSP control.
- Number of Channels : 10
- Frequency Response : 5-22000 Hz
- Amplifier Class : D
- Fuse Rating : 2x40 A
- Built In DSP : Yes
Features:
- Smart Signal Protection: High-Level Input with EPS® keeps your system safe from overloads
- Always Ready: Start-Stop compatibility with hassle-free Auto Turn-On
- Elite Audio Hardware: Burr-Brown converters and Analog Devices DSP for precision sound
- Powerful Processing: Dual 64-bit, 295 MHz DSP controllable via PC or smartphone app
- Smooth and Stable: Soft-Clipping ensures clean performance at 2 Ohm loads
- Crystal-Clear Sound: Impressive 95dB Signal-to-Noise Ratio
- Full-Range Fidelity: Wide Frequency Response from 15 Hz to 22 kHz (-3dB)
- Ultra-Low Distortion: Just 0.05% THD at 1 kHz, 4 Ohms, 90% Power
- Total Input Control: Individually adjustable sensitivity (Ch 1–8, Ch 9–10, AUX) with Clipping LEDs
- Wireless Freedom (Optional): Add BTS, BTS-HD, or BTA2 Bluetooth® dongles for streaming and DSP app control
- Take Command (Optional): DRC1 digital remote with OLED display puts full DSP control at your fingertips
Musway DSP Software for Windows:
Specifications:
POWER SUPPLY
- Voltage: 7.6 – 17.3 VDC
- Idle Current: 2.0 A
- Switched Off: <0.1 mA
- Remote IN: 7.5 – 15 VDC (1 mA)
- Remote OUT: 11 – 15 VDC (200 mA)
- Internal Fuse on PC Board: 40 A × 2
AMPLIFIER STAGE
- Distortion (THD, 1 kHz @ 4 Ω, 10 W): 0.01 %
- Bandwidth (-3 dB, 2 V RMS, 4 Ω): 5 Hz – 22 kHz
- S/N Ratio (@ A-weighted, 1 V, Max Power): 95 dB A
- Damping Factor (@ 1 kHz, 2 V RMS, 4 Ω): >100
- Input Sensitivity: CH 1–8: 8 – 24 V RMS (High-level), CH 9–10: 8 – 32 V RMS (High-level), 2 – 6 V RMS (Low-level), 1 – 8 V RMS (AUX)
- Input Impedance: 13 Ω (High-level), 47 kΩ (AUX/Low-level)
Output Power @ 13.8 VDC, 1% THD
- 8 × 155 W RMS @ 2 Ω (Channels 1–8 DHR*) + 2 × 220 W RMS @ 2 Ω (Channels 9/10)
- 8 × 80 / 135 W RMS @ 4 / 2 Ω (Channels 1–8) + 2 × 120 / 220 W RMS @ 4 / 2 Ω (Channels 9/10)
Output Power Bridged @ 13.8 VDC, 1% THD
- 4 × 310 W RMS @ 4 Ω (Channels 1–8 DHR*) + 1 × 440 W RMS @ 4 Ω (Channels 9/10)
- 4 × 270 W RMS @ 4 Ω (Channels 1–8) + 1 × 440 W RMS @ 4 Ω (Channels 9/10)
- UPC: 6972502090251
- Weight: 7
- Authorized Internet Dealer
Warranty: 3 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 3 Year(s) from the original date of purchase with proper return authorization.
