JL Audio MAX-KIT Professional-grade, Dual FFT measurement System With Five Microphones
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

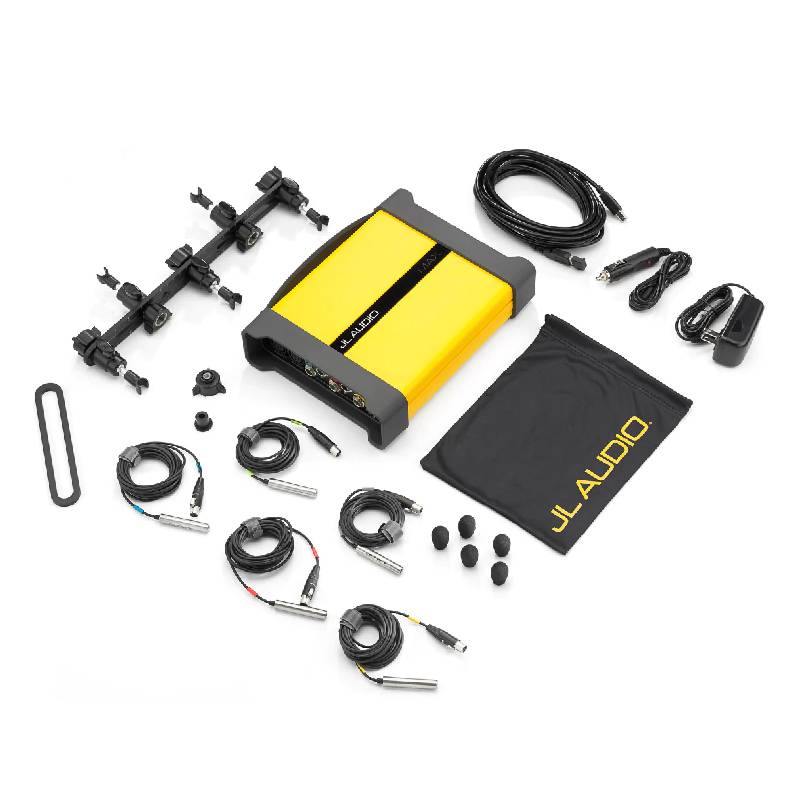

What's Inside?

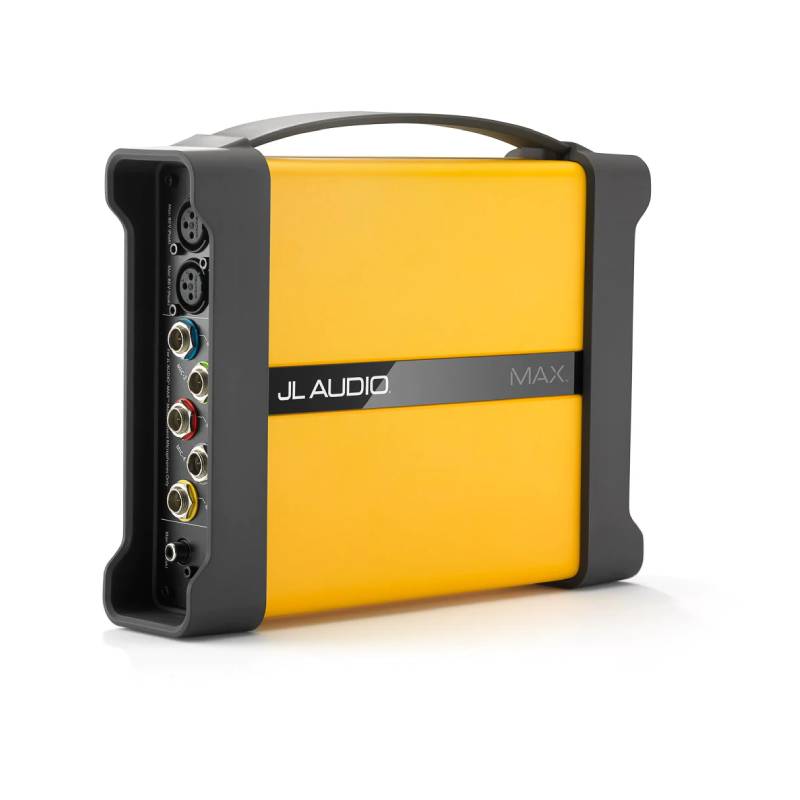

- •MAX™ hardware interface

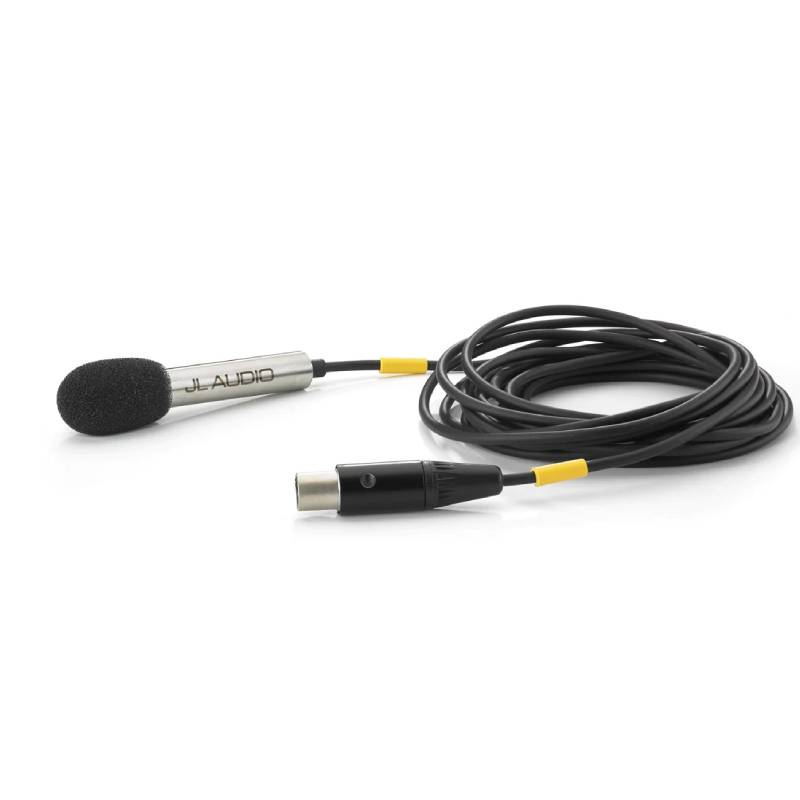

- •Five measurement microphones

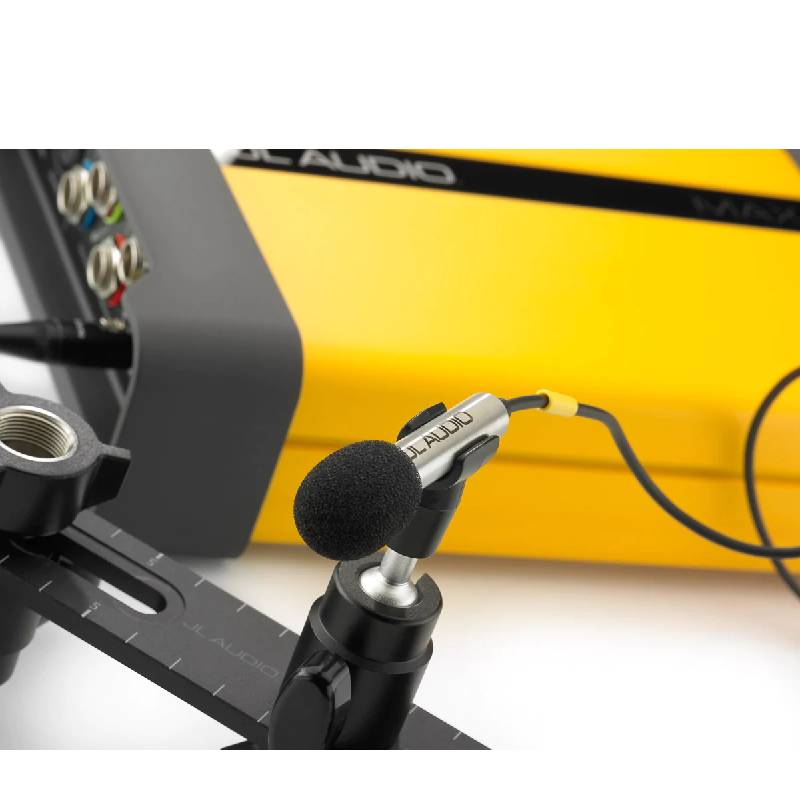

- •Multi-mic fixture
- •Mounting accessories
- •Cables and power supplies

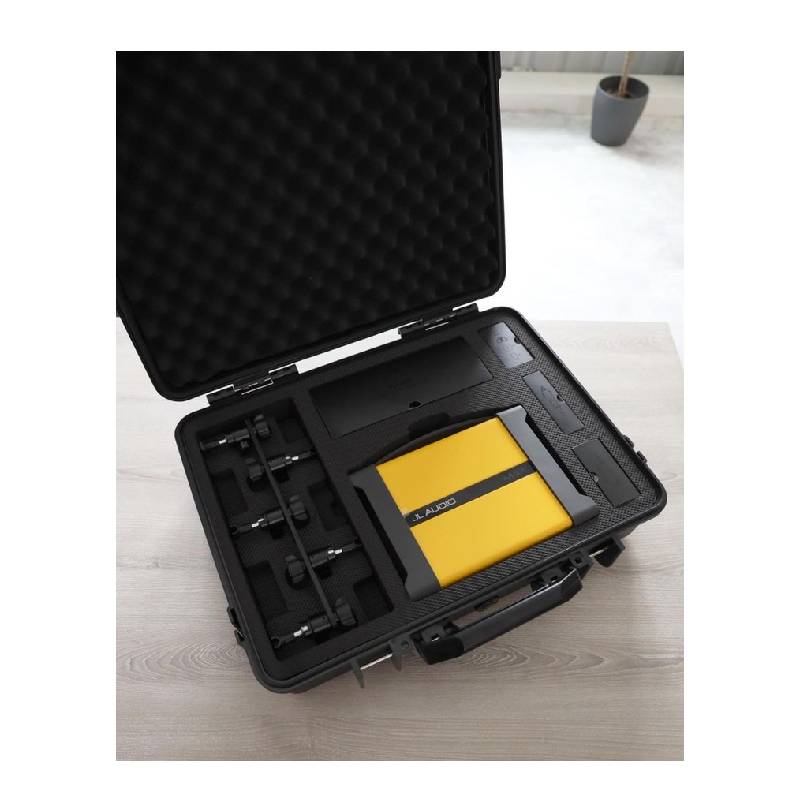

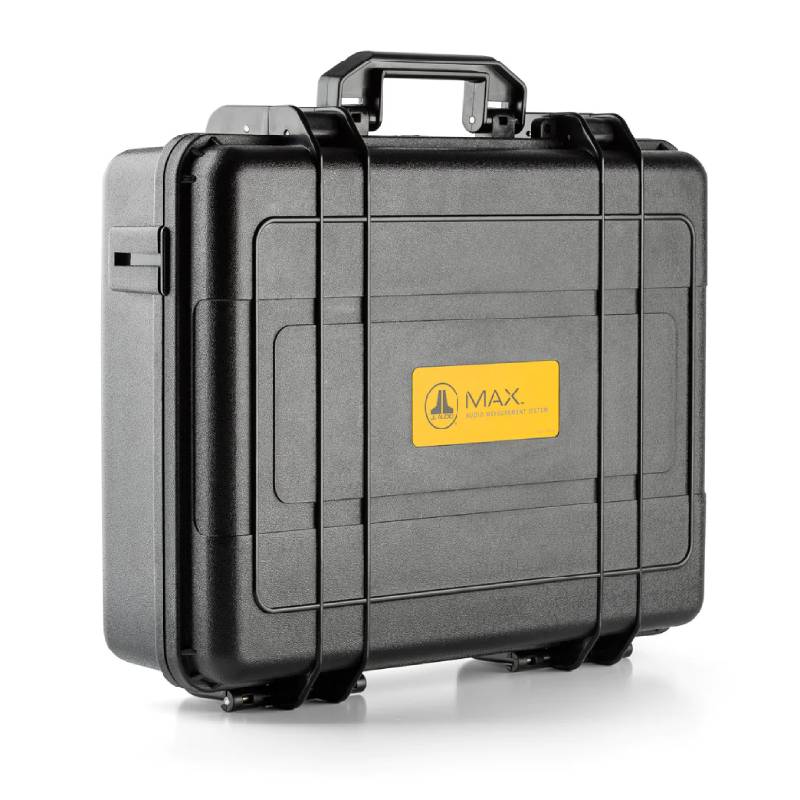

- •All components are conveniently packed in a locking, waterproof hard case for secure transportation and storage.
- •Additionally, an optional specialized probe kit, known as the "MAX-PROBE KIT" (90922), is available separately.
- •Owner's manual
Professional-Grade Dual FFT Measurement System
MAX™ stands out as a premier solution in audio measurement technology, boasting a meticulously engineered dual Fast Fourier Transform (FFT) system. This sophisticated system ensures unparalleled accuracy and precision in capturing audio data across a wide frequency spectrum. By employing dual FFT, MAX™ offers users a comprehensive view of audio characteristics, allowing for detailed analysis of both magnitude and phase responses. Whether you're conducting critical system diagnostics or fine-tuning audio performance, MAX™ provides the professional-grade tools necessary for precise measurement and optimization.
Versatile Applications Across Audio Domains
MAX™ transcends limitations by catering to a diverse array of audio environments and applications. From residential settings to automotive installations, marine vessels, and professional sound reinforcement venues, MAX™ is engineered to excel in any scenario. Its adaptability makes it indispensable for audio engineers, integrators, and enthusiasts alike, offering a single solution for measuring and optimizing audio systems across various domains. Whether you're optimizing a home theater setup or fine-tuning a concert hall's sound system, MAX™ delivers the versatility and performance needed to achieve exceptional results.
Seamless Integration with VXi and MVi DSP Controls
MAX™ sets a new standard for user convenience with its seamless integration with VXi and MVi DSP controls. This integration streamlines the measurement setup process, allowing users to configure and adjust parameters effortlessly through the intuitive TüN® 4.0 software interface. By consolidating measurement and DSP control functions into a single platform, MAX™ eliminates the need for complex setups and multiple software applications, saving time and enhancing workflow efficiency. Whether you're fine-tuning equalization settings or optimizing channel delays, MAX™ provides a seamless and intuitive user experience, empowering you to achieve optimal audio performance with ease.
Real-Time Testing and Analysis
MAX™ empowers users with real-time testing, troubleshooting, and analysis capabilities, providing instant insights into audio system performance. Whether you're monitoring level fluctuations, identifying frequency anomalies, or evaluating time-domain characteristics, MAX™ delivers comprehensive data in real-time, enabling swift and informed decision-making. Its responsive interface and advanced visualization tools ensure that users can quickly identify issues and make adjustments on the fly, minimizing downtime and maximizing productivity. With MAX™, real-time audio analysis becomes a seamless and intuitive process, allowing users to achieve optimal results with precision and efficiency.
Enhanced Measurement Capabilities
MAX™ sets itself apart with its advanced measurement capabilities, leveraging innovative features such as 5-microphone averaging and dual FFT analysis. This sophisticated approach to measurement ensures exceptional accuracy and reliability, even in complex audio environments. By averaging measurements from multiple microphones, MAX™ mitigates the effects of environmental noise and variability, providing consistent and dependable results. Additionally, its dual FFT analysis enables simultaneous measurement of multiple transfer functions, allowing users to capture a comprehensive snapshot of audio system performance. Whether you're conducting critical diagnostics or fine-tuning audio parameters, MAX™ offers the advanced measurement capabilities needed to achieve superior results with confidence.
Features:
What can you do with MAX™?
- Test, troubleshoot and analyze any audio system with full detail on the three dimensions of audio: level, frequency and time… all in real time!
- Streamline the tuning of car audio DSP products in real-world shop environments. Simply connect the hardware, place the microphone array, launch TüN® software and go!
- Quickly test room modes for home audio and home theater subwoofer placements, and accurately adjust crossover and phase controls for a seamless transition to the subwoofer.
- Evaluate individual or multiple audio zones in a marine installation for frequency response and level.

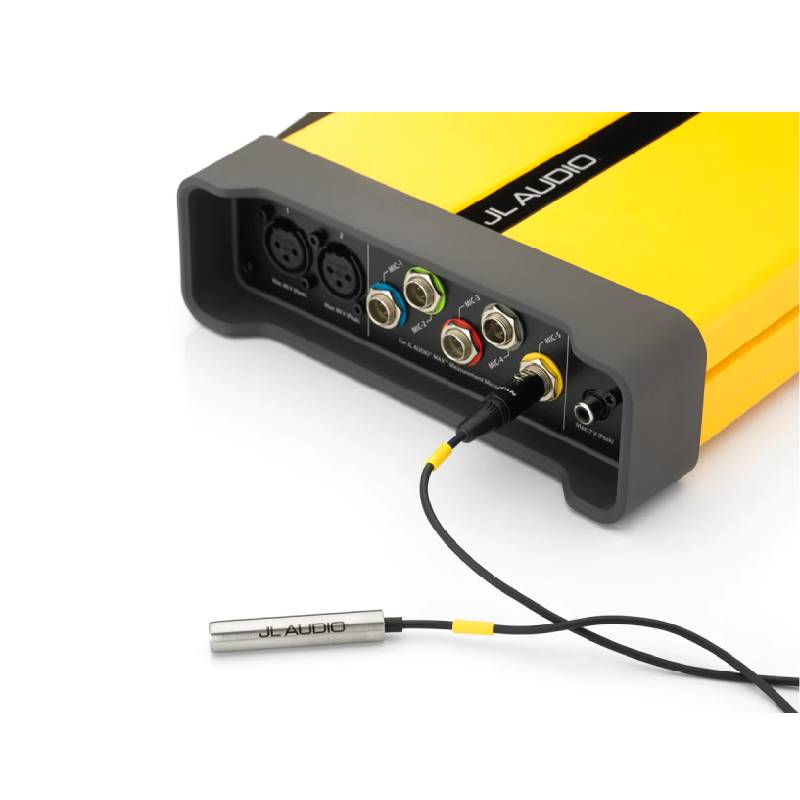

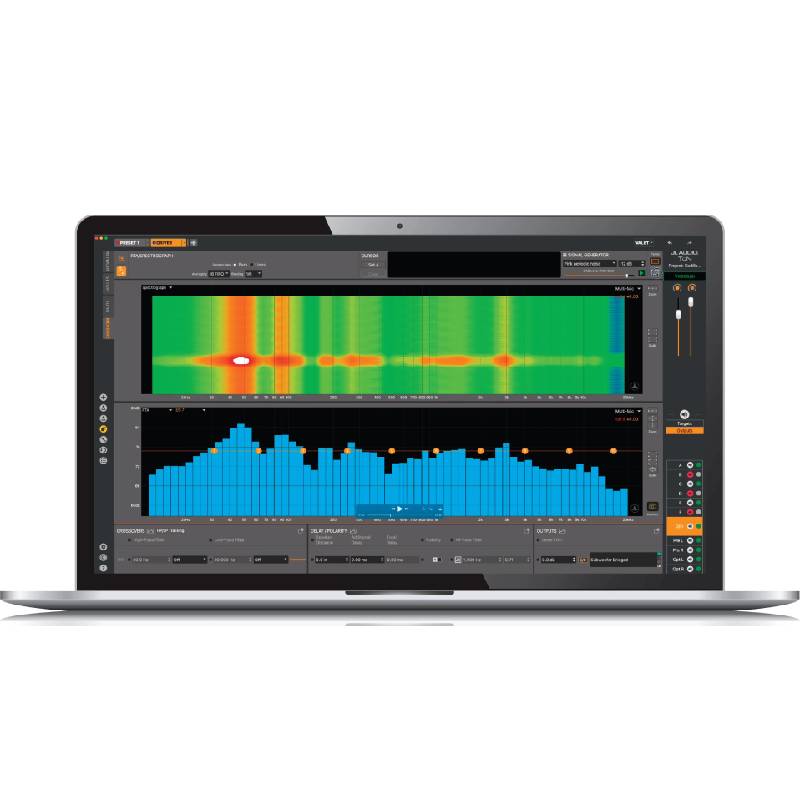

- Get the best measurements possible with 5-microphone averaging! MAX™ multiplexes up to five included microphones to conduct single FFT measurements of level and frequency response (RTA and spectrograph).

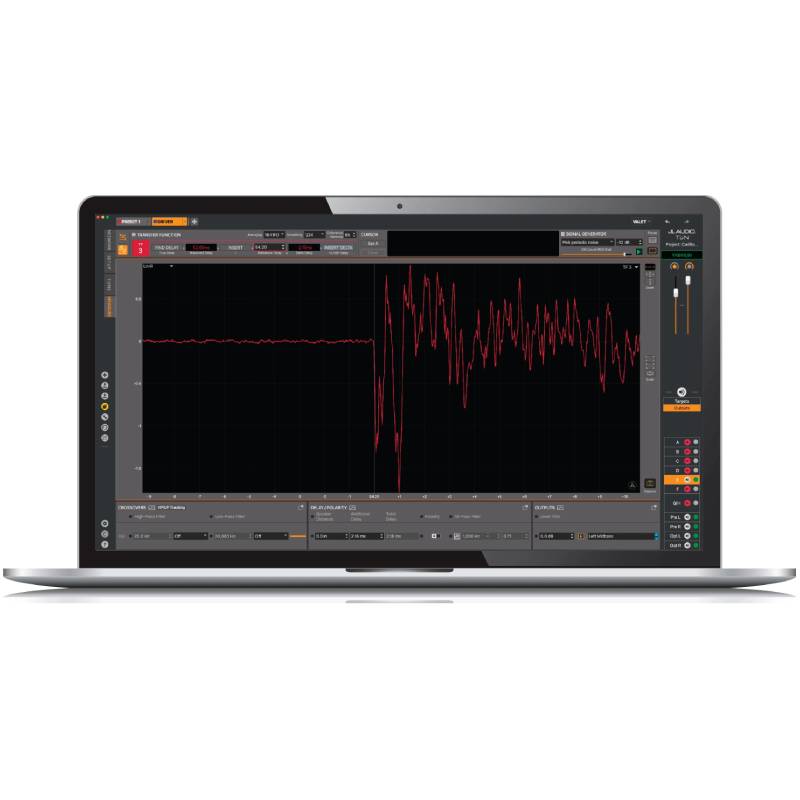

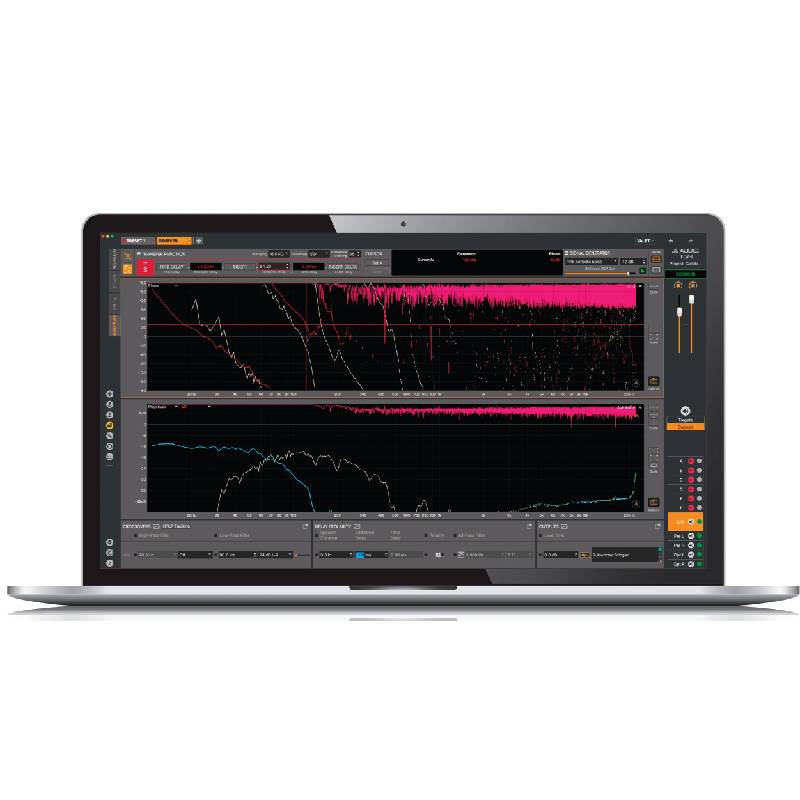

- Conduct Dual FFT measurements of up to five simultaneous transfer functions with precise displays of magnitude (frequency response), phase, impulse response (delay) and coherence (noise immunity).
- Each transfer function captures all the audio data for real-time or comparative analysis.
- Built-in Test Signal Generator (pink and white noise, sine waves, square waves, etc.), plus WAV file playback capability.
Powerful Automations with VXi and MVi amplifiers:
- Automatic True Delay feature sets VXi/MVi channel delays in a flash, far more accurately than any other method.

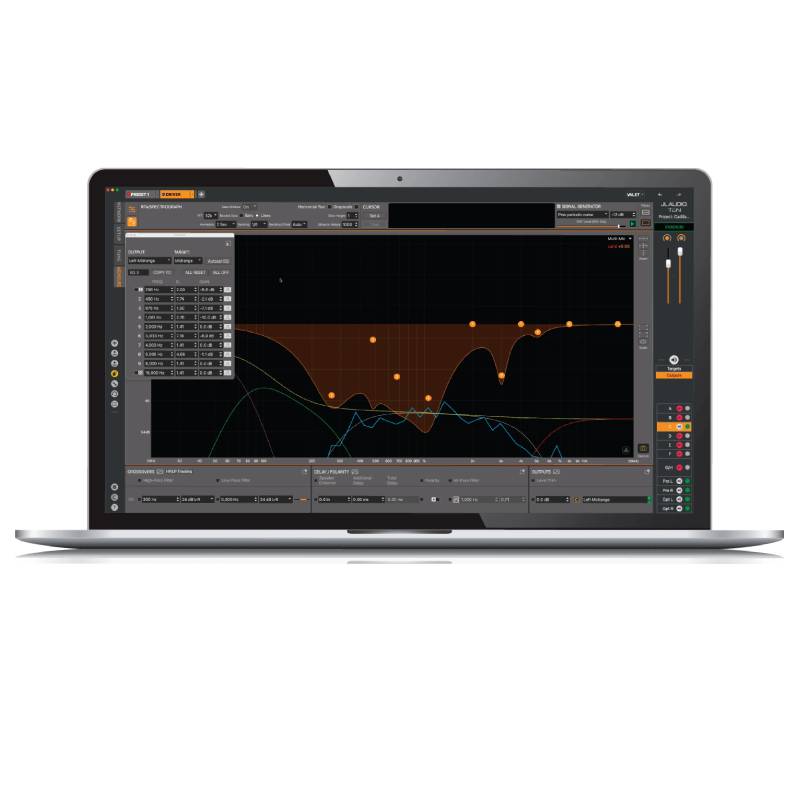

- Autoset EQ feature sets the VXi/MVi parametric EQ’s to your selected target, in seconds. You can also overlay VXi/MVi equalizer controls over the frequency response display to perform precise, manual EQ adjustments with real time visual feedback.
MAX is Incredibly Flexible and Accurate!
- MAX™ measurement accuracy is on par with professional test equipment that sells for tens of thousands of dollars.

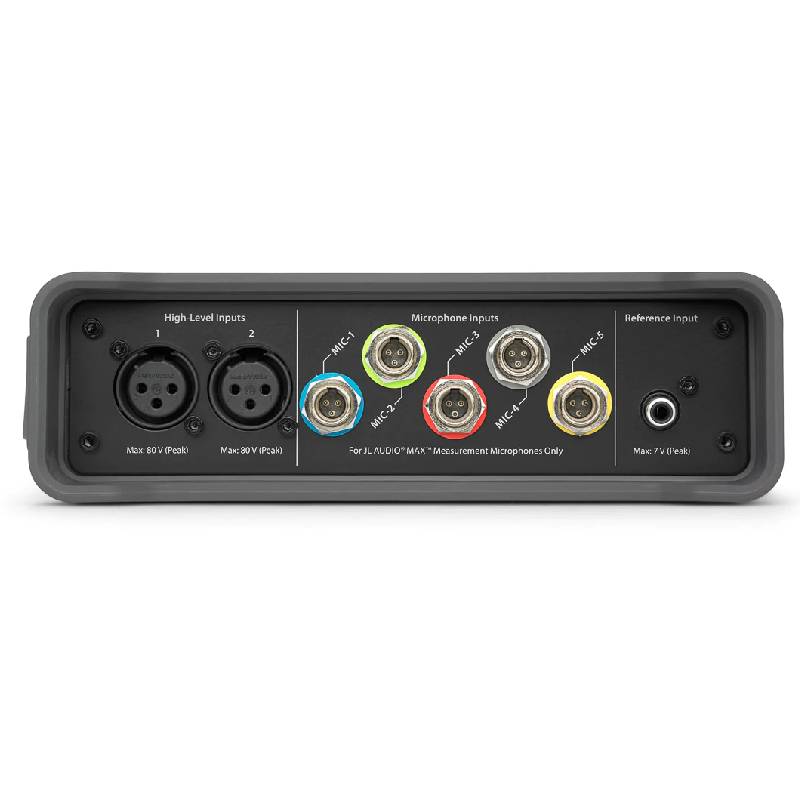

- Wide Range of Inputs (up to five microphones, high-level analog signals up to 80V, low-level analog signals up to 7V, optical digital S/PDIF signals)

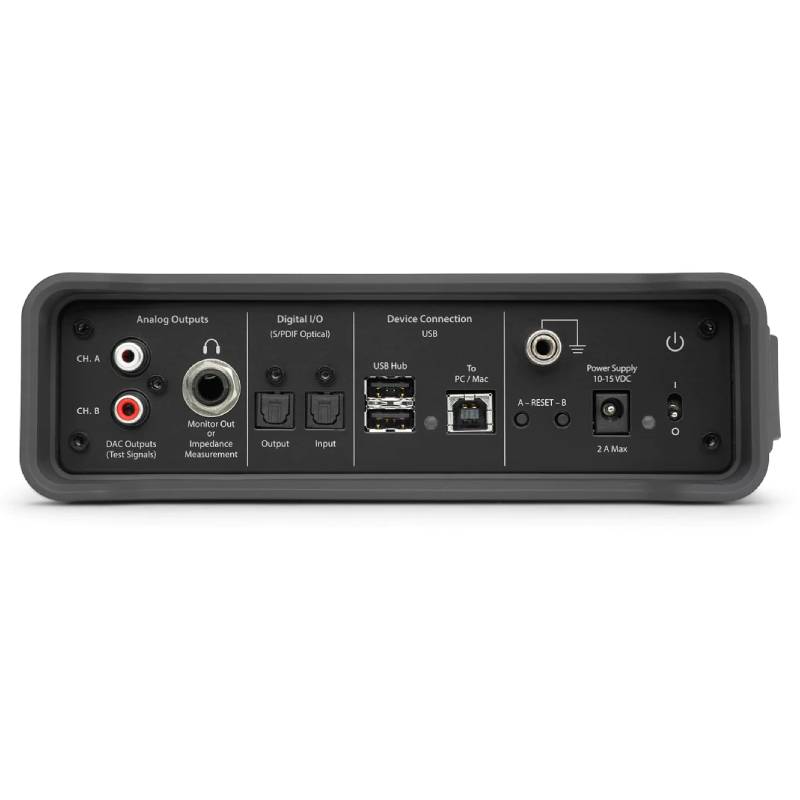

- Multiple Signal Outputs (built-in DAC feeding analog line level outputs and headphone outputs, plus optical digital output)
- A built-in USB Hub simplifies connection to computer and DSP amplifiers, or other USB devices (not intended for charging devices).
What else will you need:
- A PC (Windows 10), or Mac (OS 11 Big Sur or newer)
- Our free TüN® 4 software, available below
- A mic stand or tripod to support the multi-mic holder.
Specifications:
Inputs
- Pin Configuration: XLR (Pin 1 - GND, Pin 2 - Signal +, Pin 3 - Signal -)
- Input Impedance: 73 kΩ
- Flatness ± 0.1 dB: 5 Hz - 15 kHz @ 44.1 kSR, 48 kSR, 96 kSR
- Flatness ± 0.5 dB:
- 5 Hz - 20 kHz @ 44.1 kSR
- 5 Hz - 22 kHz @ 48 kSR
- 5 Hz - 35 kHz @ 96 kSR
- Crosstalk, 5 Hz - 20 kHz: ≤ – 95 dB
- Crosstalk @ 1 kHz: ≤ – 110 dB
- THD @ 1 kHz: ≤ 0.0012%
- THD+N, 5 Hz: - 20 kHz ≤ 0.035%
- ADC headroom: -4.84 dBFS @ 80 VAC peak (56.57 Vrms sine)
- Maximum DC offset level: 50 VDC, Pin 2 or 3 to GND, Pin 1 - DC
- Pin Configuration: Mini-XLR (Pin 1 - GND, Pin 2 - Signal +, Pin 3 - 2 VDC)
- Input Impedance: 2.2 kΩ
- Flatness ± 0.05 dB: 10 Hz - 10 kHz @ 44.1 kSR, 48 kSR, 96 kSR
- Crosstalk, 5 Hz - 20 kHz: ≤ – 115 dB
- Crosstalk @ 1 kHz: ≤ – 120 dB
- THD @ 1 kHz: ≤ 0.0009%
- THD+N, 5 Hz - 20 kHz: ≤ 0.01%
- ADC headroom: -39.5 dBFS @ 94 dB SPL
- Pin Configuration: RCA Female (Center Pin - Signal +, Shell - Signal –)
- Input Impedance ~ 100 kΩ
- Flatness ± 0.1 dB: 5 Hz - 15 kHz @ 44.1 kSR, 48 kSR, 96 kSR
- Flatness ± 0.5 dB:
- 5 Hz - 20 kHz @ 44.1 kSR
- 5 Hz - 22 kHz @ 48 kSR
- 5 Hz - 35 kHz @ 96 kSR
- THD @ 1 kHz: ≤ 0.005%
- THD+N, 5 Hz - 20 kHz: ≤ 0.035%
- Connector: TOSLINK
- Sample Rates: 44.1 kHz - 96 kHz
- Bit Depth: 24 bit PCM
- Output Level: Defined by Signal Generator level control
- UPC: 699440906029
- Weight: 20
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
