JL Audio  MMA-1-HTML

NMEA 2000® Network, MFD Data Interface for use with MediaMaster®

Item #92965

Condition:   Brand New

Product Highlights

  • Compatible with NMEA 2000® networks
  • Interfaces with MediaMaster® systems
  • Facilitates data exchange between devices
  • Enhances multimedia control on MFDs

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$529.99

Reg. Price $599.99  Save $70.00
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

JL Audio Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


JL Audio Banner for Onlinecarstereo

JL Audio MMA-1-HTML NMEA 2000® Network, MFD Data Interface for use with MediaMaster®


We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

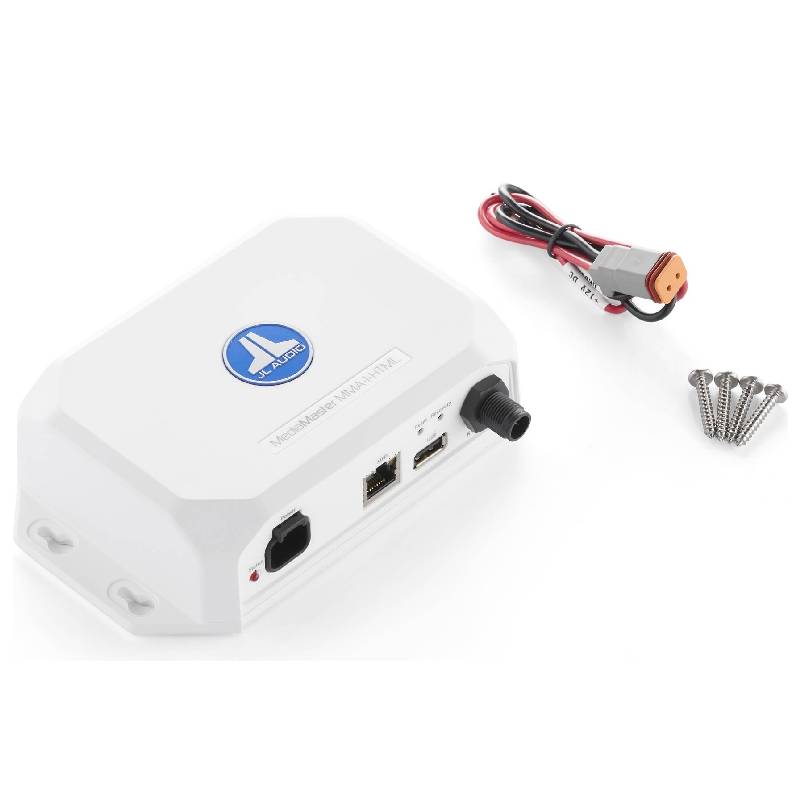

What's Inside?
  • • NMEA2000 network MFD data interface module
  • • 16" Wiring harness (1A fuse)
  • • (4) Screws
  • • Warranty Information
  • Owner's Manual





Designed for MM105 and MM105-HR Source Units

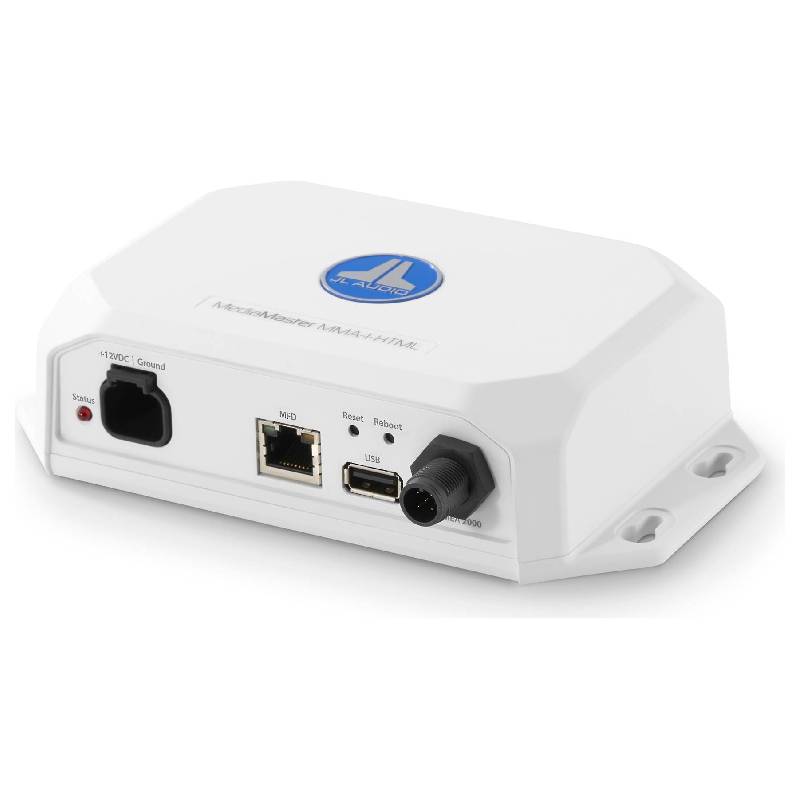

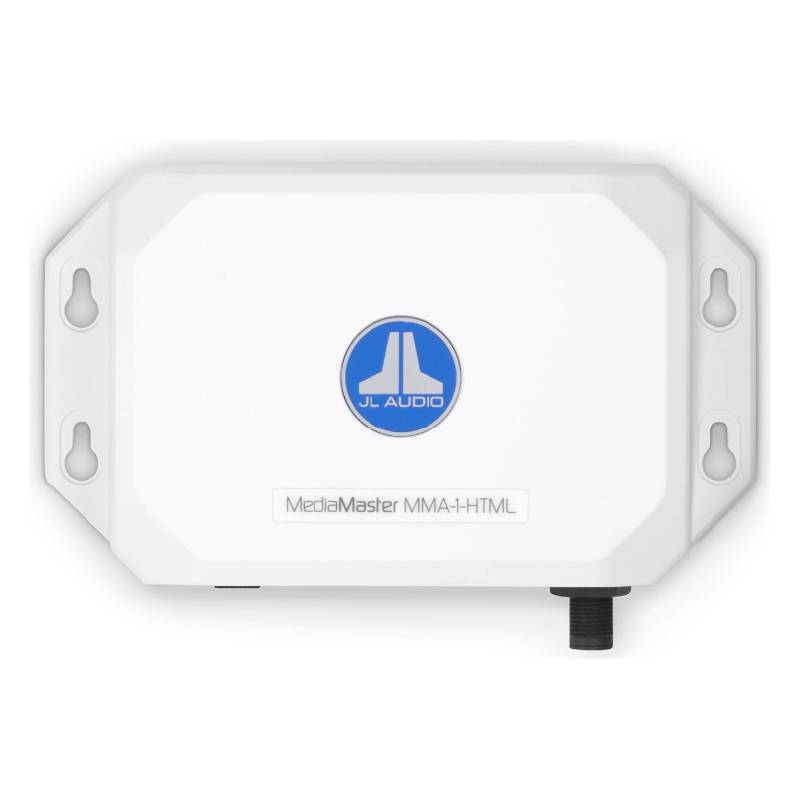

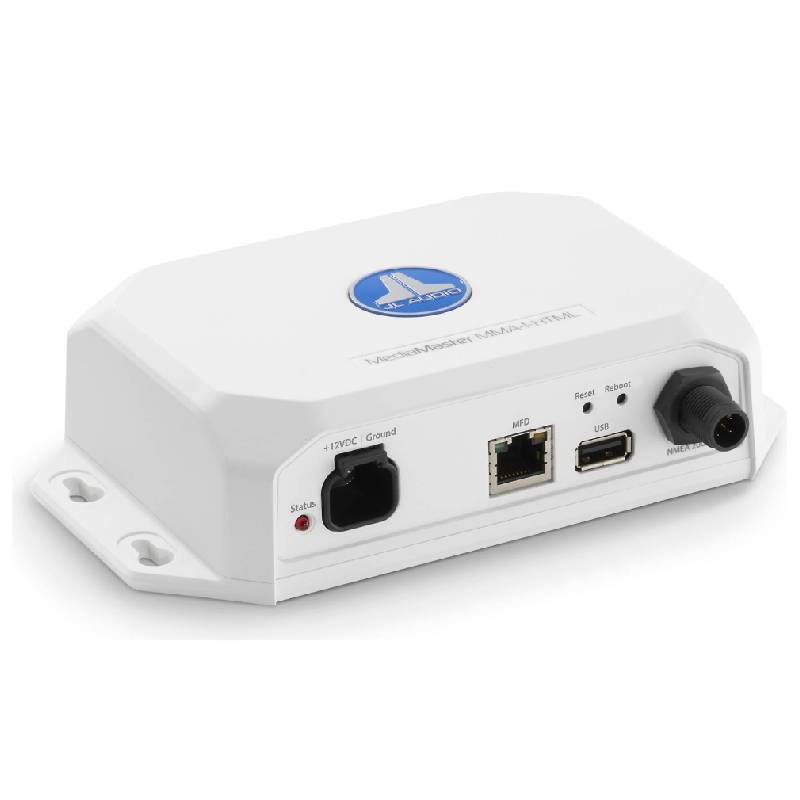

The MMA-1-HTML is a NMEA 2000® certified data interface engineered to generate MediaMaster® themed UI navigation and controls directly onto your vessel's compatible MFD (Multi-Function Display). Exclusively designed for use with MM105 and MM105-HR source units, the MMA-1-HTML allows you to pilot your boat and control your MediaMaster® seamlessly, via your helm's MFD display.

Automatically Recognizes the Host Mediamaster®

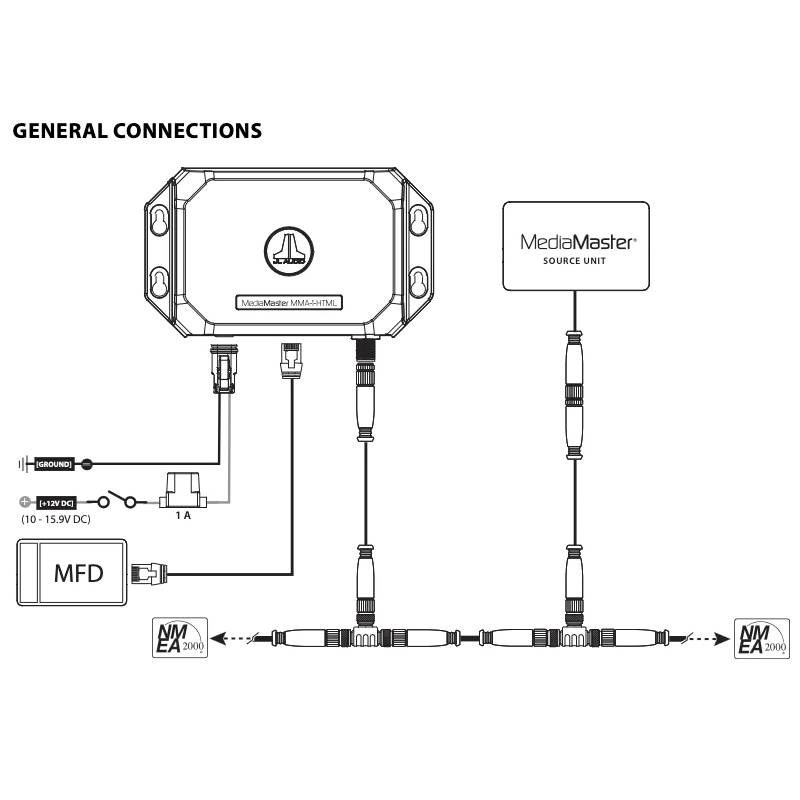

Outfitted with a NMEA 2000® Micro-C connector (LEN 1), the MMA-1-HTML interfaces with a vessel's NMEA 2000® network using applicable NMEA 2000® cables and connectors (not included). The MMA-1-HTML automatically recognizes the host MediaMaster® source unit and will then project its familiar screen info and navigation controls onto your MFD's display, resulting in a true MediaMaster® user experience.




SPECIFICATIONS



FEATURES


Features:

  • Seamless MediaMaster Control: The MMA-1-HTML allows you to operate your JL Audio MediaMaster® 105 (and related models) directly from your vessel’s compatible MFD (Multi-Function Display).
  • NMEA 2000 Certified Interface: Connects to a vessel’s NMEA 2000 network to project MediaMaster navigation and control onto the helm display.
  • Full Functionality at Your Fingertips: Control Power On/Off, Source Selection, Playback, Volume, Zone Volume, Menu Options, System Setup, Audio Settings, Favorites, and more.
  • Compatible Source Units: Works exclusively with JL Audio MediaMaster® MM55, MM55-HR, MM105, and MM105-HR marine source units.
  • Flexible Mounting Options: Can be mounted horizontally or vertically, secured with included stainless steel screws, and hidden from direct water spray.
  • Compact Design: Measures 6.8125" W × 1.75" H × 4.625" D for discreet installation on the helm.
  • Power & Ground Harness Included: 16" harness with in-line 1A fuse on +12VDC and black ground wire ensures safe operation.
  • Plug-and-Play Experience: Automatically recognizes the connected MediaMaster unit, giving a true MediaMaster user interface on your MFD.



Specifications:

  • Product Type: NMEA 2000 MFD Data Interface
  • Compatibility: MediaMaster® MM55, MM55-HR, MM105, MM105-HR

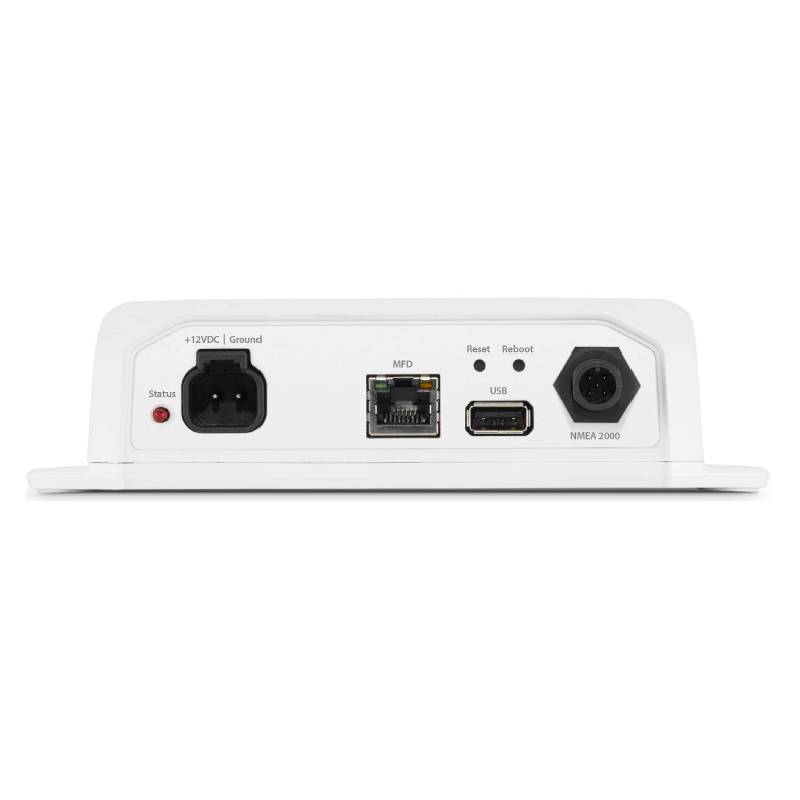

  • Network Connection: NMEA 2000 Micro-C connector (LEN 1)
  • Required Accessories: NMEA 2000 cables and connectors or MMC-PN2K powered network cable (sold separately)
  • Control Functions: Power, Source, Playback, Volume, Zone Volume, Menu, System Setup, Audio Settings, Favorites
  • Mounting: Horizontal or vertical, hidden from spray, stainless steel screws included
  • Dimensions: 6.8125" W × 1.75" H × 4.625" D
  • Power/Ground: 16" harness with in-line 1A fuse (+12VDC red, ground black)
  • Condition: Brand new
  • UPC: 699440999564
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
