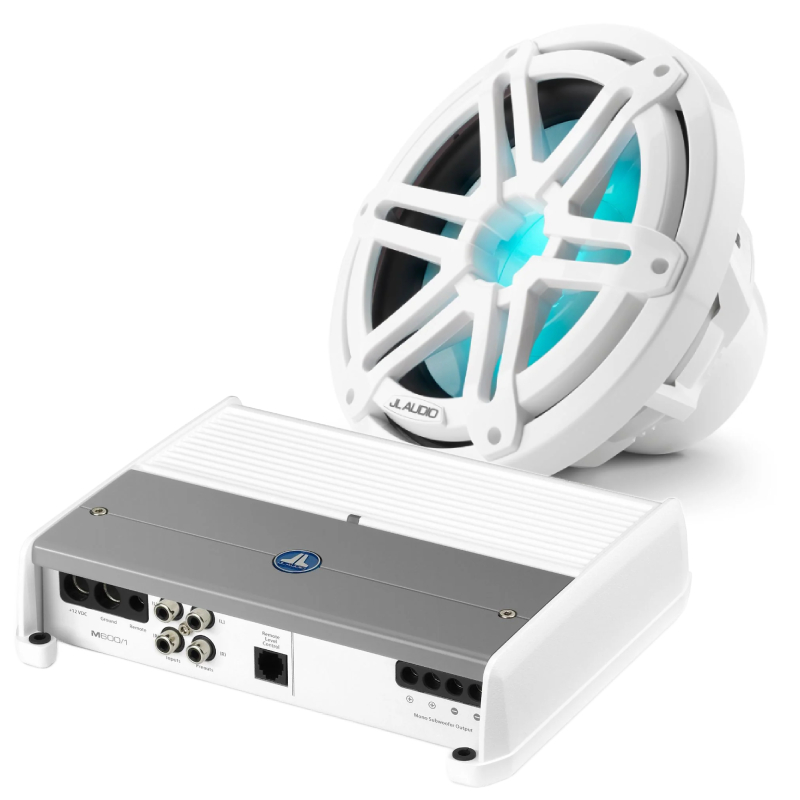

JL Audio  M600/1-Bundle

M-Series 600W Max Power, Class-D Marine Mono Subwoofer Amplifier + M3 Series 10" 350W Peak Power Handling 4 Ohm, Marine Subwoofer

Item #93077

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

JL Audio M600/1 M-Series 600W Max Power, Class-D Marine Mono Subwoofer Amplifier + JL Audio M3-10IB-S-Gw-i-4 M3 Series 10" 350W Peak Power Handling 4 Ohm, Marine Subwoofer


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • M600/1 600W Class-D Marine Mono Subwoofer Amplifier
  • • M600/1 2.5mm Allen wrench
  • • M600/1 JL Audio emblem
  • • M600/1 Owner's manual
  • • M3-10IB-S-Gw-i-4 (1) 10" Marine subwoofer with fixed grille
  • • M3-10IB-S-Gw-i-4 (6) 1-1/2" Stainless-steel screws
  • • M3-10IB-S-Gw-i-4 (6) Stainless-steel flat washers
  • • M3-10IB-S-Gw-i-4 Owner's manual
Gives Additional Protection

Primarily made for marine applications, the JL Audio M600/1 can push your subwoofer to its maximum potential while being loaded with some of the best technologies JL Audio can offer. Thanks to its stainless-steel chassis, it gives additional protection from corrosion, as it is surely constantly exposed to water as a marine amplifier.

Advanced Rollback Protection Circuitry

The JL Audio M600/1 uses Advanced Rollback Protection circuitry, which automatically tones down the amp's peak power output without any change in its gain until it cools down to a safe operating temperature and prevents it from any unnecessary shutdowns. The M600/1 is also equipped with JL Audio's NexD Switching technology, which uses a self-oscillating modulator to help cancel out noise from unstable power flow.



Built for Real Marine Duty

The JL Audio M3-10IB-S-Gw-i-4 is a high-quality marine subwoofer designed to deliver impressive low-frequency performance in marine environments. This subwoofer is built with durability in mind and can produce powerful and accurate bass while enduring challenging boating conditions.

Deliver Years of Listening Enjoyment

Featuring a 10-inch long-excursion woofer, the M3-10IB-S-Gw-i-4 offers deep and impactful bass that enhances the audio experience on the water. A power handling capability of up to 175 watts continuously ensures dynamic and immersive bass response.



M-Series 600W Max Power, Class-D Marine Mono Subwoofer Amplifier

Features:

  • mono marine amplifier
  • 400 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms)
  • Class-D design
  • white and gray powder-coat finishes, gasketed control cover, and stainless steel hardware
  • variable low-pass filters (50-500 Hz, 12 or 24 dB per octave)
  • subsonic filter (30 Hz)
  • optional remote level control
  • preamp-level inputs
  • preamp outputs
  • 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
  • 8-1/2"W x 2-1/16"H x 7-1/8"D



M3 Series 10" 350W Peak Power Handling 4 Ohm, Marine Subwoofer

Features:

  • 10" 4-ohm marine subwoofer
  • built-in RGB LED illumination
  • injection-molded mica-filled polypropylene woofer with synthetic rubber surround
  • Centrex polymer basket and grille, with stainless steel back plate
  • gold-plated, marine-grade brass binding posts
  • marine-grade synthetic fiber spider
  • designed for free air applications
  • also works in sealed boxes: 2.5 cu ft optimum volume
  • power range: 175 watts RMS (350 watts peak power)
  • sensitivity: 87.2 dB
  • top-mount depth: 5-1/8"
  • cutout diameter: 8-7/8"



Specifications:

  • Continuous Power Handling (RMS): 175 W
  • Nominal Impedance (Znom): 4 Ohms
  • Nominal Diameter: 10.0 in / 250 mm
  • Overall Diameter (A): 10.75 in / 273 mm
  • Mounting Hole Diameter (B): 8.875 in / 225 mm
  • Bolt Hole Circle Diameter (C): 9.706 in / 247 mm
  • Motor Outer Diameter (D): 5.29 in / 134 mm
  • Mounting Depth (E): 5.12 in / 130 mm
  • Driver Displacement: 0.04 cu ft / 1.13 L
  • Net Weight: 6.5 lb / 2.94 kg
  • Free Air Resonance (Fs): 41.84 Hz
  • Electrical “Q” (Qes): 0.806
  • Mechanical “Q” (Qms): 11.751
  • Total Speaker “Q” (Qts): 0.754
  • Equivalent Compliance (Vas): 1.29 cu ft / 36.53 L
  • One-Way Linear Excursion (Xmax)*: 0.42 in / 11 mm
  • Efficiency (1 W / 1 m)**: 87.23 dB SPL
  • Effective Piston Area (Sd): 50.68 sq in / 0.0327 sq m
  • DC Resistance (Re): 3.957 Ω
  • Infinite Baffle Use: Yes (preferred)
  • Min. Sealed Enclosure Volume: 2.0 cu ft / 56.6 L (or larger)
  • Optimum Sealed Enclosure Volume: 2.5 cu ft / 70.8 L
  • UPC:
  • Weight: 21.01
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
