MB Quart  DK2-168

Discus Series 5x7/6x8" 100W Peak Power Handling, 4-Ohms, 2-way coaxial car speakers

Item #93086

Condition:   Brand New

Product Highlights

  • Discus Series 5x7/6x8" Speakers
  • 100W Peak Power Handling
  • 4-Ohms
  • 2-Way Coaxial
  • Durable construction

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$69.99


Out of Stock Check out other products listed below
MB Quart Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


MB Quart Banner

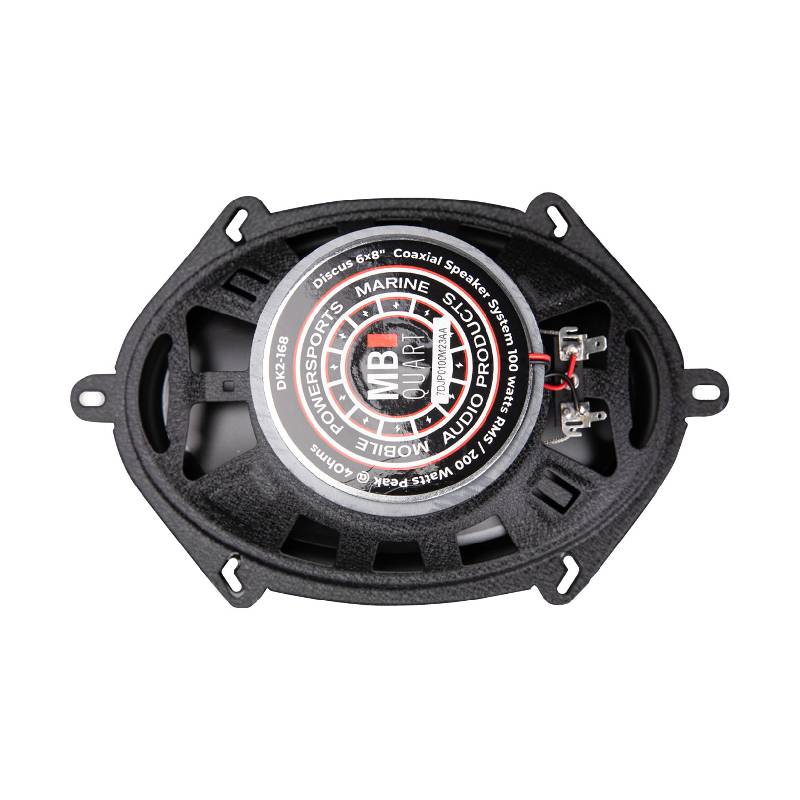

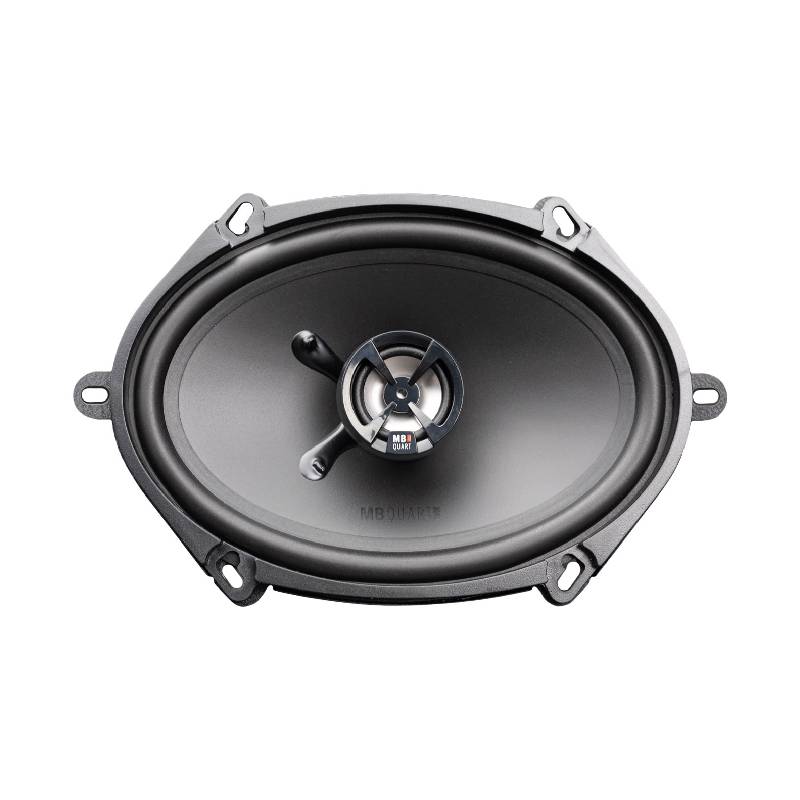

MB Quart DK2-168 - Discus Series 5x7/6x8" 100W Peak Power Handling, 4-Ohms, 2-way Coaxial car speakers


We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

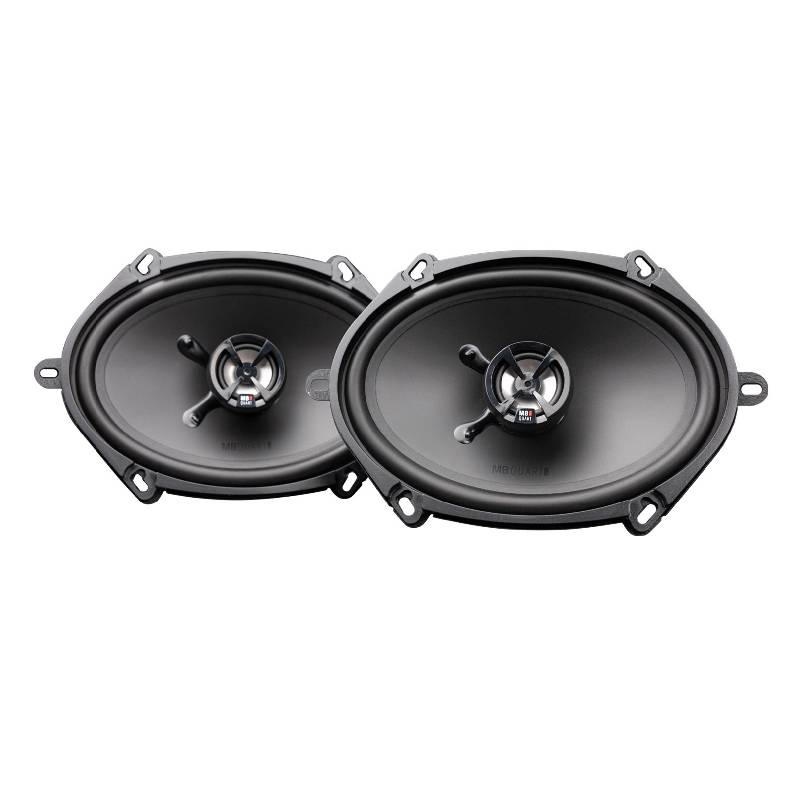

  • • (2) 5x7/6x8" Coaxial Speakers
  • • Owner's Manual
Image 1
Aluminum Dome Tweeters

The speaker boasts aluminum inverted dome tweeters, lightweight thermal-formed polypropylene cones, durable butyl rubber surrounds with high-temp adhesive, a pure copper voice coil, natural fiber spider with epoxy, over-coil cooling, 6dB internal crossover, heavy-gauge stamped steel frames, and a compact ferrite magnet motor, while recommending spade connectors or solder for optimal connection with highly conductive Tinsel Leads.


SPECIFICATIONS


  • Diameter : 5x7/6x8 Inch
  • Sensitivity : 88 dB
  • Impedance : 4 Ohm
  • Frequency Response : 46-20000 Hz
  • Peak Power Handling : 100 Watts
  • Design : 2 Way
  • RMS Power Handling : 500 Watts

FEATURES


Features:

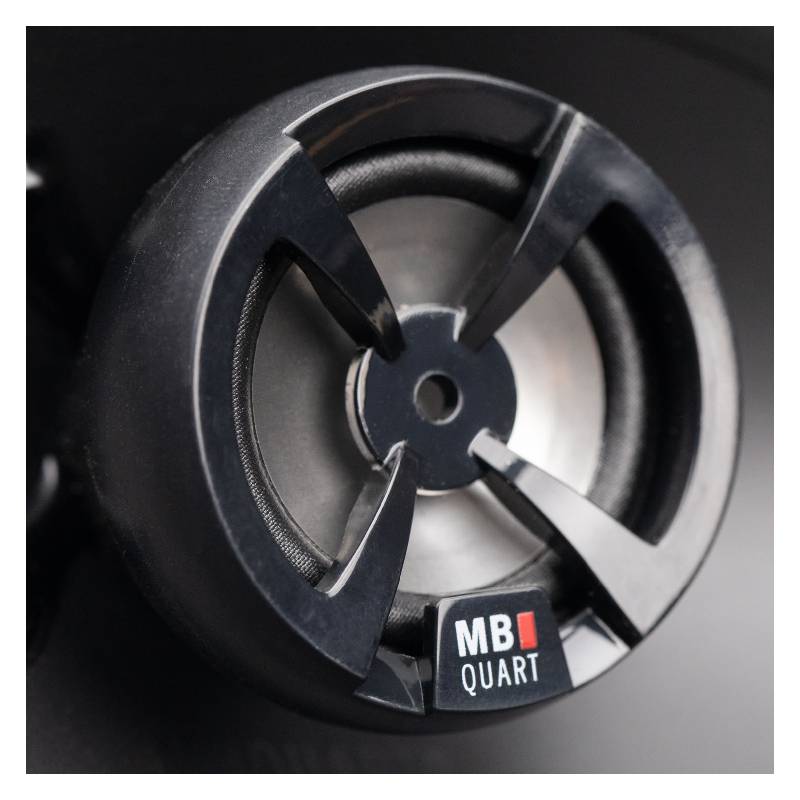

  • Tweeters: Aluminum inverted dome tweeters for great sound and increased reliability.
  • Cone Material: Lightweight thermal-formed polypropylene cones for faster midrange response.
  • Surround / Cone Coupling: Butyl rubber surrounds for durability and deeper mid-bass impact. High temp adhesive ensures the cone and surround stay connected in high-power uses or extreme weather.
  • Voice Coil / Former Assembly: Pure Copper voice coil for a strong magnetic field. Kapton voice coil former is lightweight and dissipates heat efficiently.

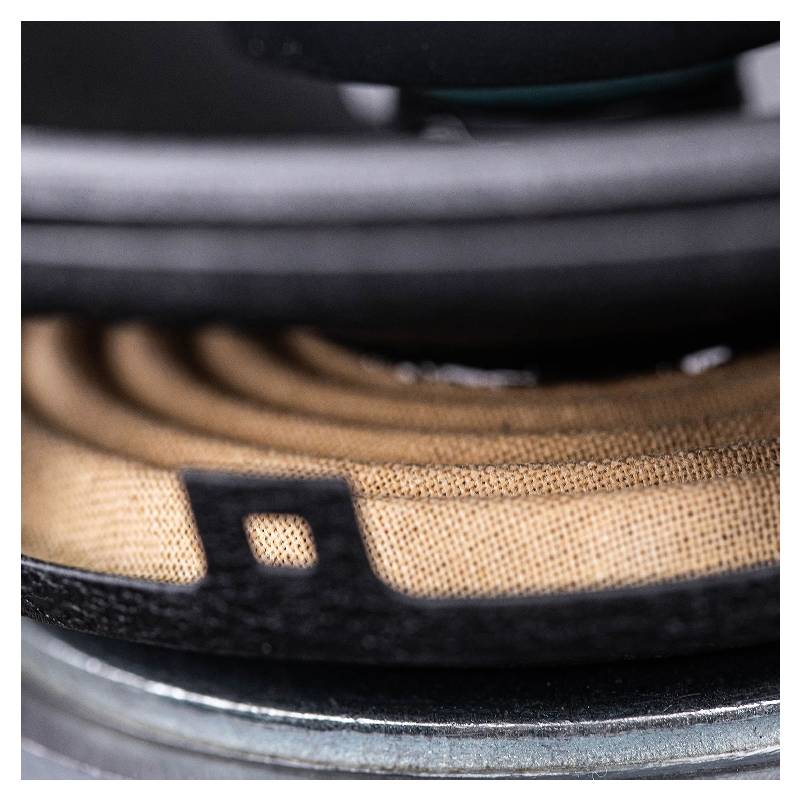

  • Spider: Natural fiber provides flexibility, and infused epoxy gives strength during manufacturing.
  • Cooling System: Over-coil cooling system allows air exchange over the voice coil through the spider.
  • Crossover: 6dB internal crossover integrated into the design for smooth midrange to tweeter frequency transitions.
  • Frame: Heavy gauge progressive-die stamped steel frames for ultimate rigidity.
  • Motor: Ferrite magnet motor creates a strong magnetic field while remaining small enough to fit nearly every application.

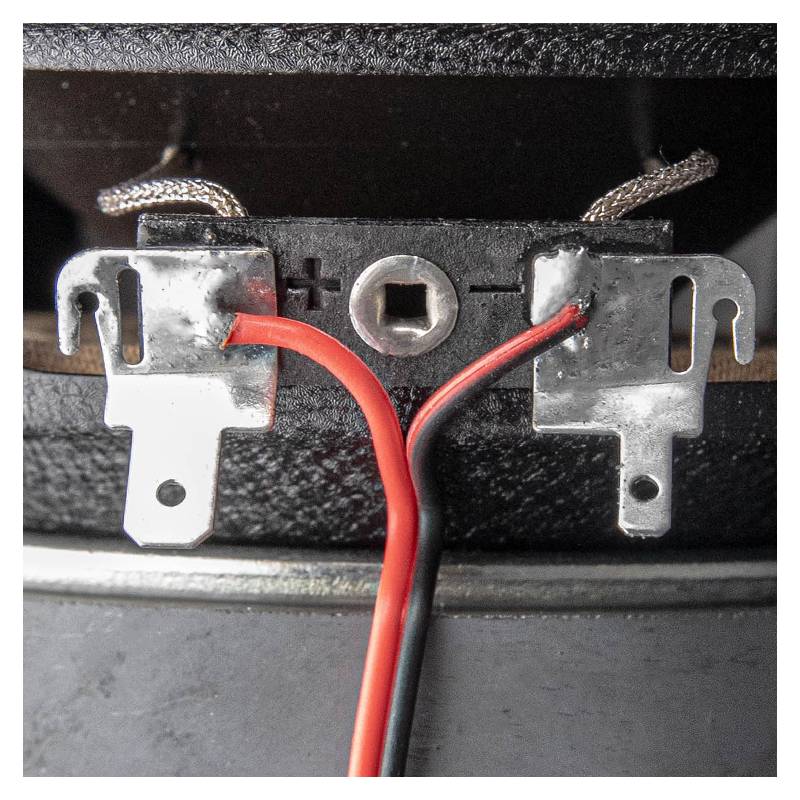

  • Connectors: Use spade connectors or solder direct for the best connection. Tinsel Leads are highly conductive while remaining flexible during high-power applications.



Specifications:

  • Weight: 4.3 lbs
  • Dimensions: 12.75 × 9.75 × 3.63 in
  • Item Weight (lbs): 3.65
  • Item Length (in): 7.0
  • Item Width (in): 5.0
  • Item Height (in): 2.75
  • Type: Speaker
  • Brand: MB Quart
  • Series: Discus
  • Category: Mobile
  • Condition: New
  • Color: Black



Speaker Specifications:

  • RMS Power Handling (watts): 50
  • Peak Power Handling (watts): 100
  • Impedance (ohms): 4
  • Frequency Response: 46Hz-20kHz
  • Sensitivity: 88dB
  • Crossover Slope: 12dB/octave
  • Mounting Diameter / Cut Out (in): 5.67
  • Outside Diameter (in): 8.60 x 5.56
  • Mounting Depth / Chassis Depth (in): 2.13
  • Speaker Size (in): 5 x 7 / 6 x 8 Compatible Vehicle Fitment: Universal
  • UPC: 806576235040
  • Weight: 4
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
