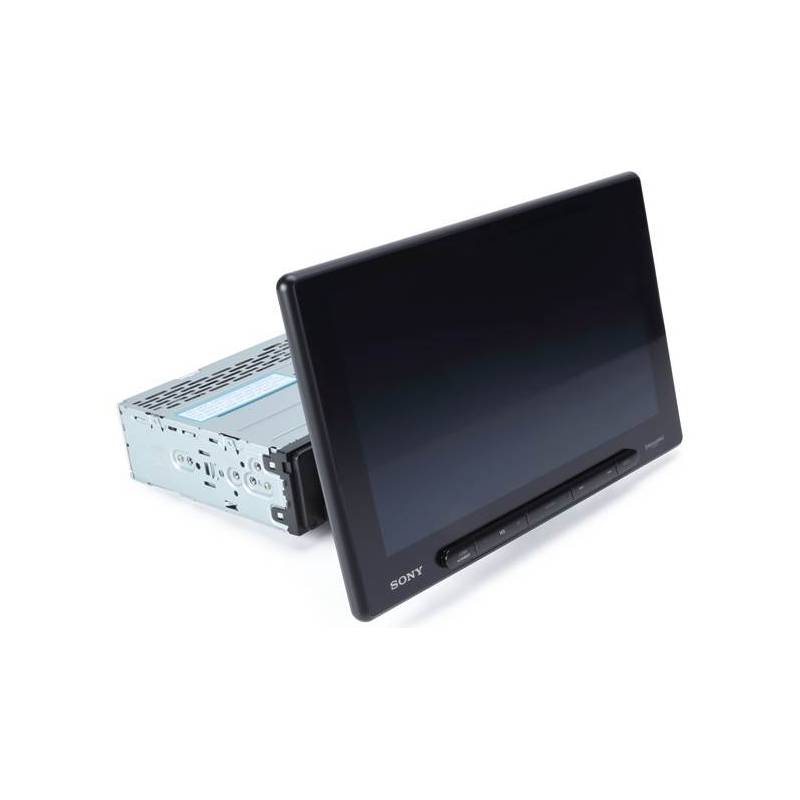

Sony XAV-AX8500 1-DIN 10.1" Digital Multimedia Car Receiver with HDMI Connectivity, Apple CarPlay, Android Auto, and Bluetooth
We are a Sony authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

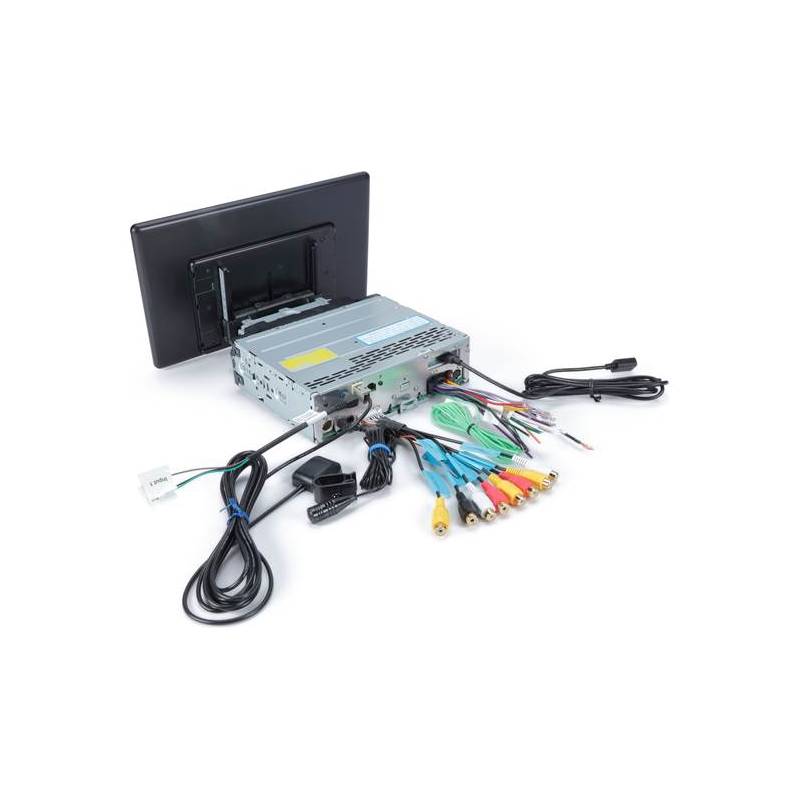

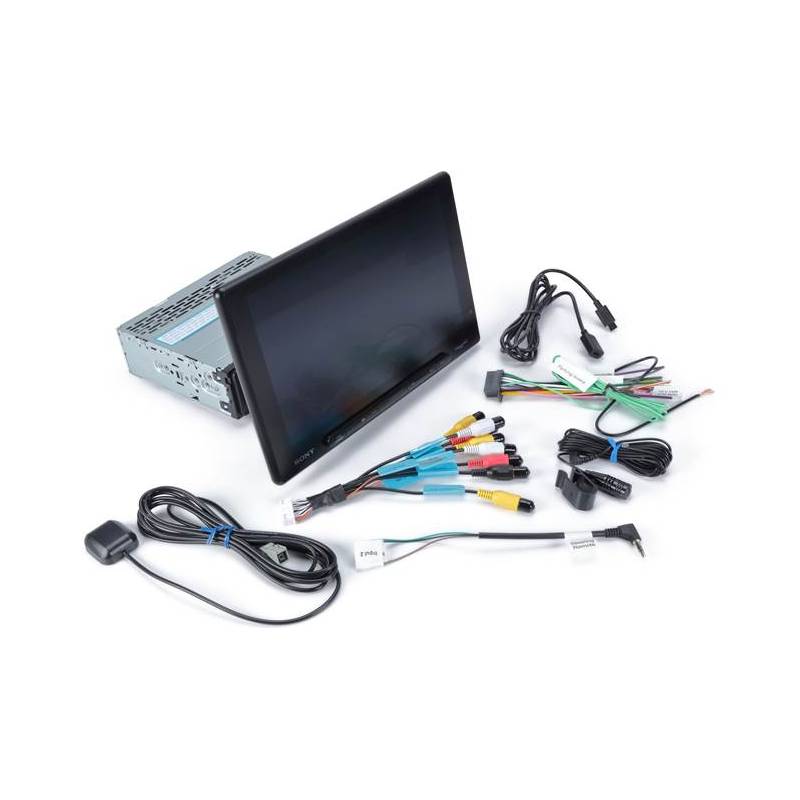

What's Inside?
- •Single-DIN source unit (10A fuse)
- •10.1" Touchscreen monitor
- •Wiring harness (attached 6.5' parking brake wire)
- •Camera/Preout harness
- •3-Wire to 3.5mm SWC adapter
- •59" USB-C extension cable
- •GPS antenna (attached 10' cable terminated by a FAKRA connector)
- •GPS Antenna mounting plate
- •Microphone with visor-bracket (attached 12' cable terminated by a right-angle mono-3.5mm connector)
- •Surface bracket
- •Two-sided tape
- •(4) M5x9mm ISO-screws
- •(4) M4x6mm machine screws
- •M3x8mm machine screw
- •(2) Plastic covers
- •(2) Wire-ties
- •Operating Instructions
- •Warranty Information
- •Installation Note
- •Angle Adjustment note
- •Owner's Manual

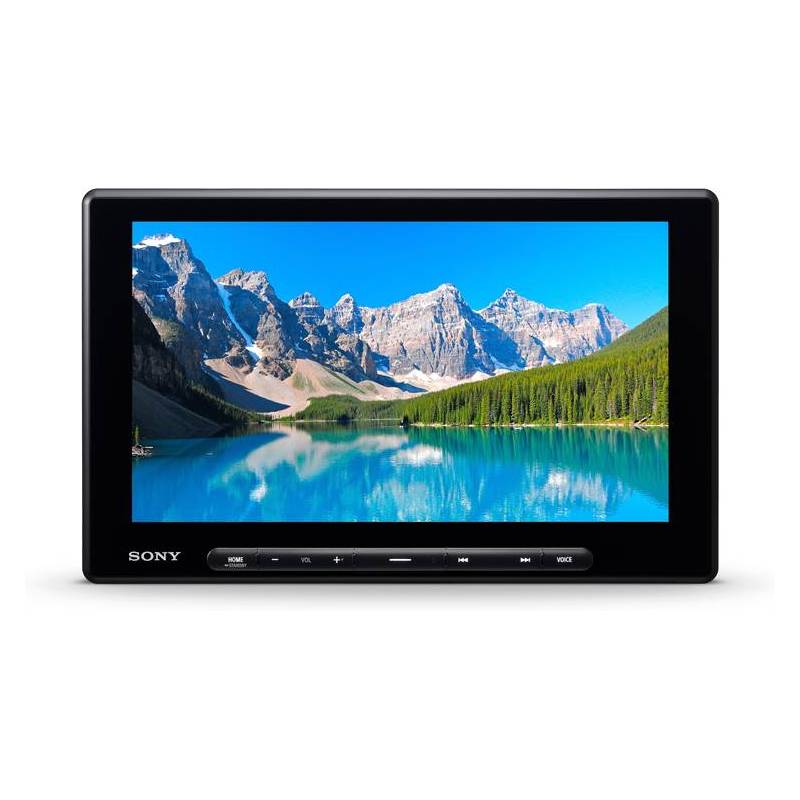

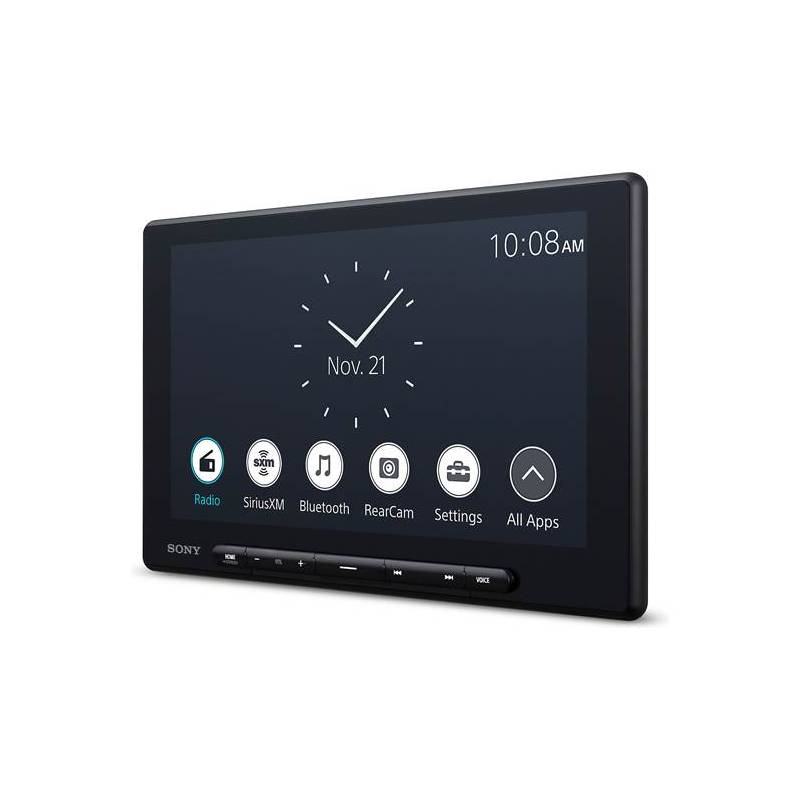

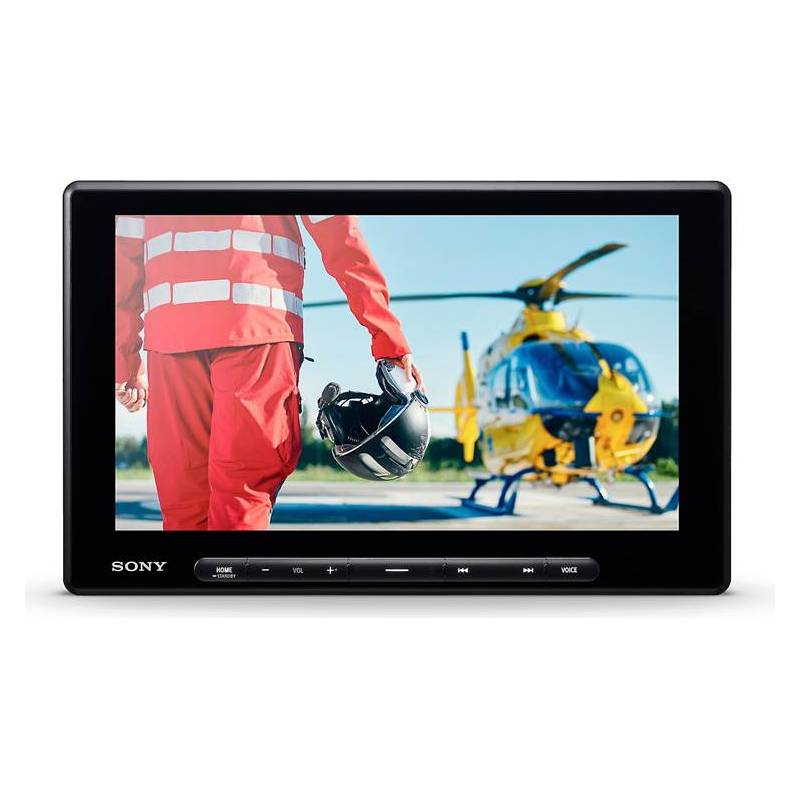

Oversized high-definition display
A large floating 25.7 cm (10.1 inch) capacitive touchscreen with 1280 x 720-pixel high resolution offers crisp detail, higher brightness and contrast for superior in-car experience.

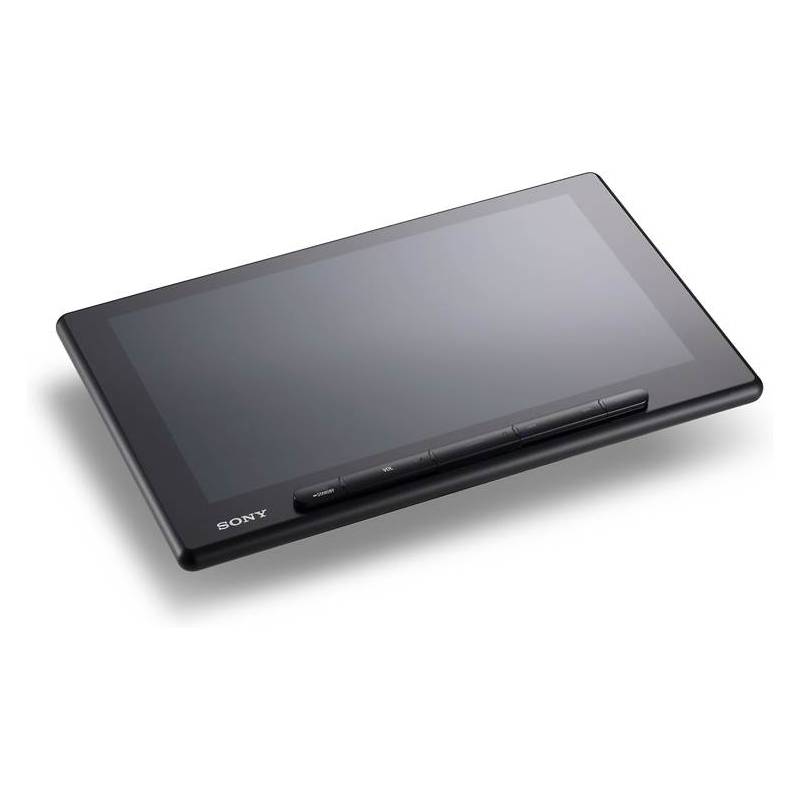

Gapless Anti-glare Display
Unlike a conventional display, the LCD is bonded directly to the protective glass touch layer with a transparent adhesive. The result is an extremely precise touch experience along with enhanced contrast and visual performance. The internal anti-glare filter hugely improves touchscreen visibility by reducing sunlight reflections, ensuring easier and safer driving.LEFT image : Display device with no anti-glare filter. RIGHT image : Display device with anti-glare filter

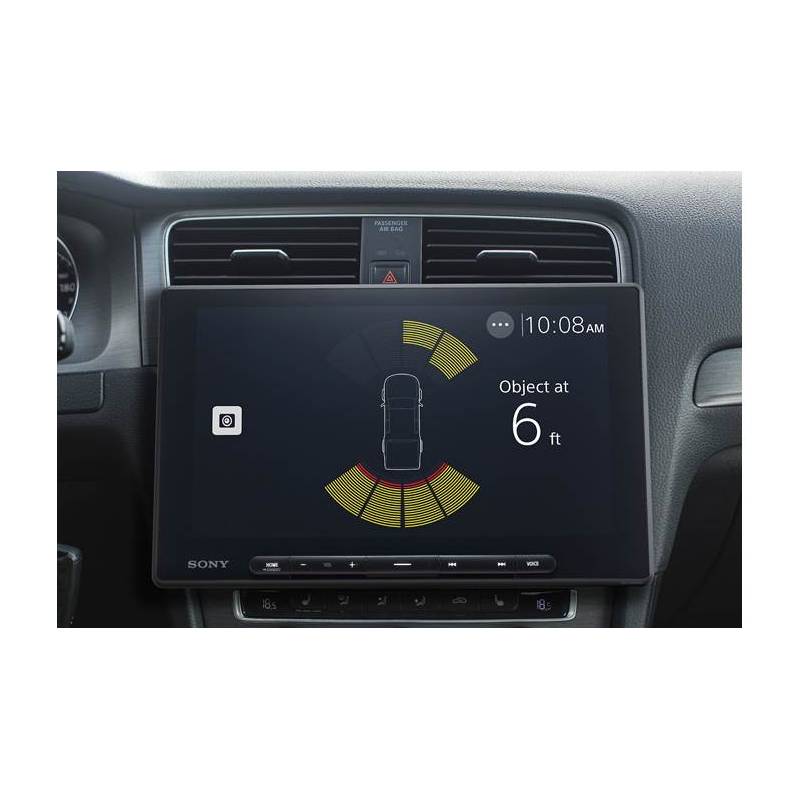

3-camera trigger inputs

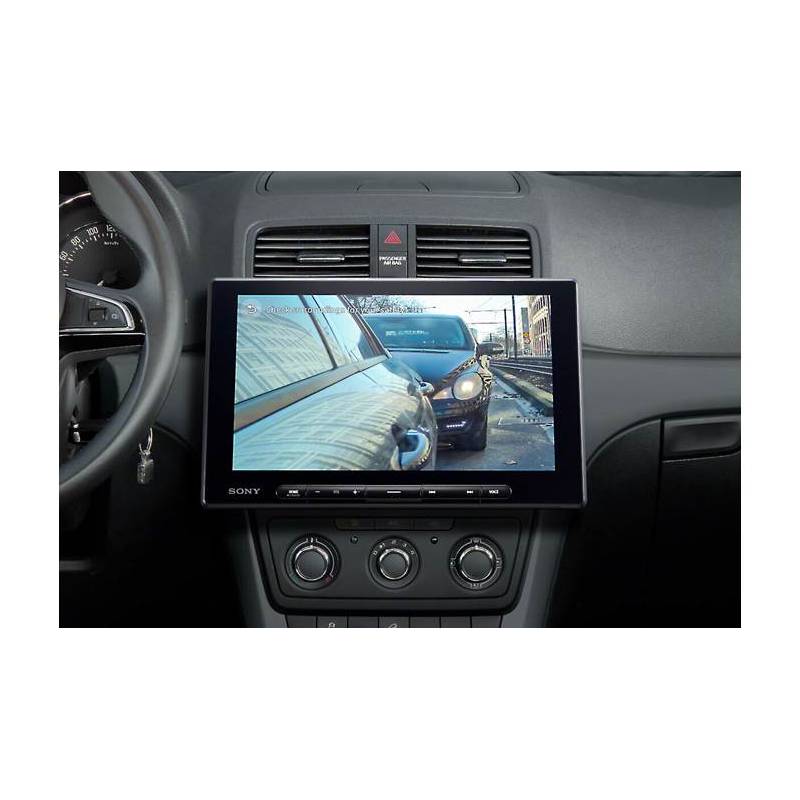

You can see the images of up to three connected cameras when you shift the vehicle's transmission lever to the reverse position or tap the dedicated icons on the home screen. By utilising the supplied trigger wires, each camera image can be switched on and off, or from one to another automatically by detecting the vehicle's turn signals or sensing compatible signals such as that for a connected front camera. An adjustable parking guide is also available for reverse gear.

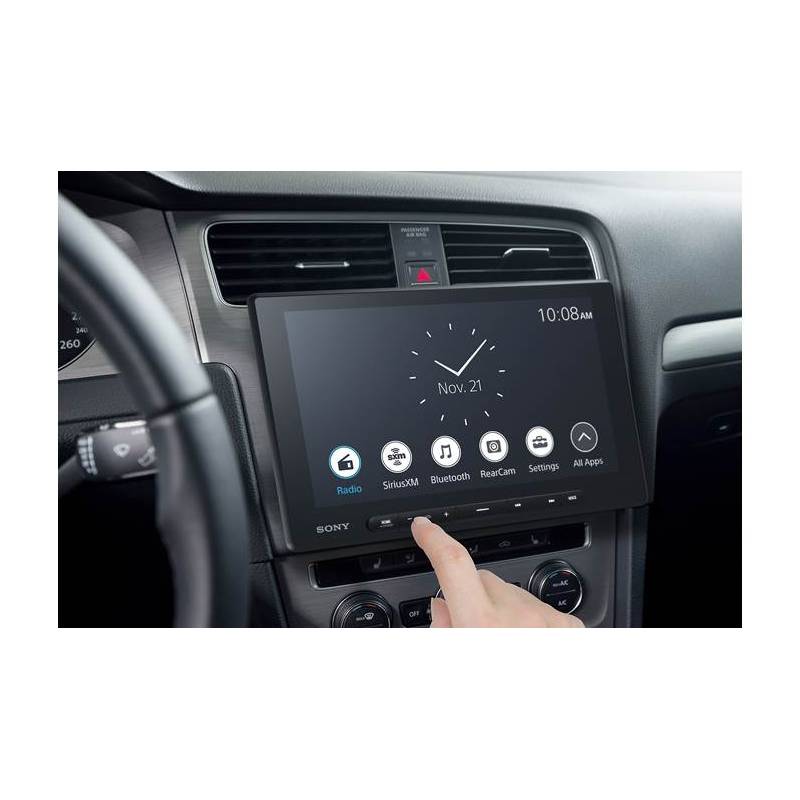

Safer, Easier operation
The button design features large keys to seamlessly fit with the sleek display. Access volume, source, sound settings and voice control, for safe and easy operation on the road.
Customisable viewing angle for every journey

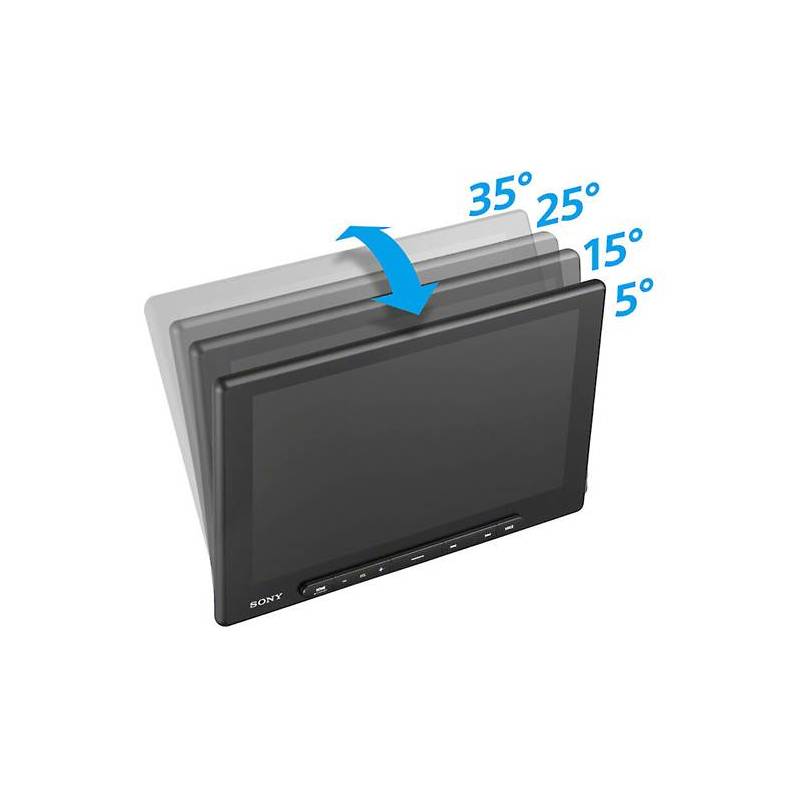

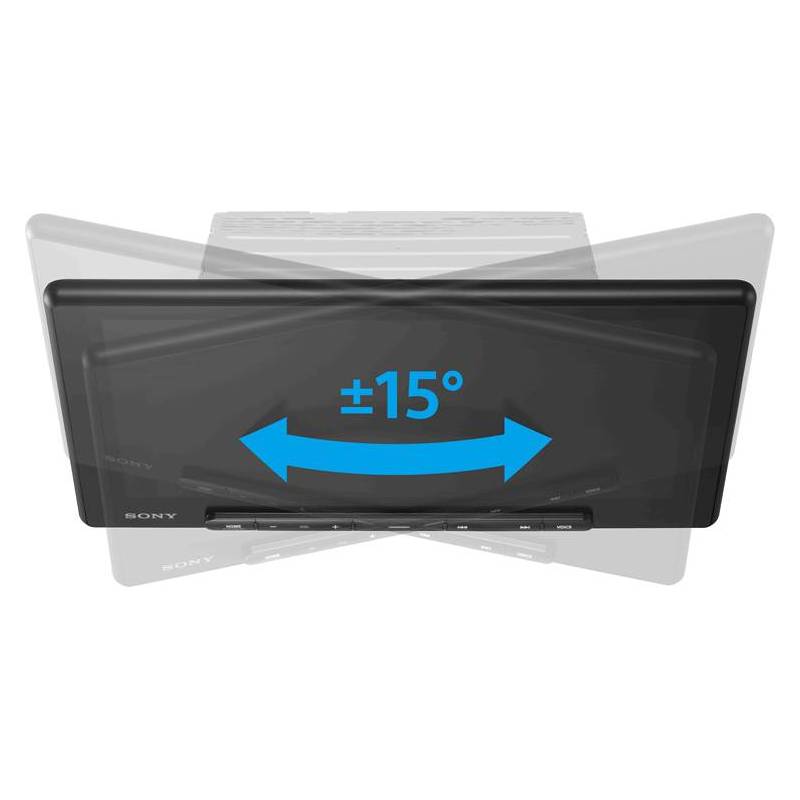

The display joint allows you to manually tilt and swivel the display – both at ±15 degrees – to suit your personal preference. This range of movement allows you to not only alter the angle according to your preferred seating position, but also to avoid things like reflection of the direct sunlight, or to share the navigation screen with your passengers. LEFT image: With no tilt and swivel function. RIGHT image: With tilt and swivel function

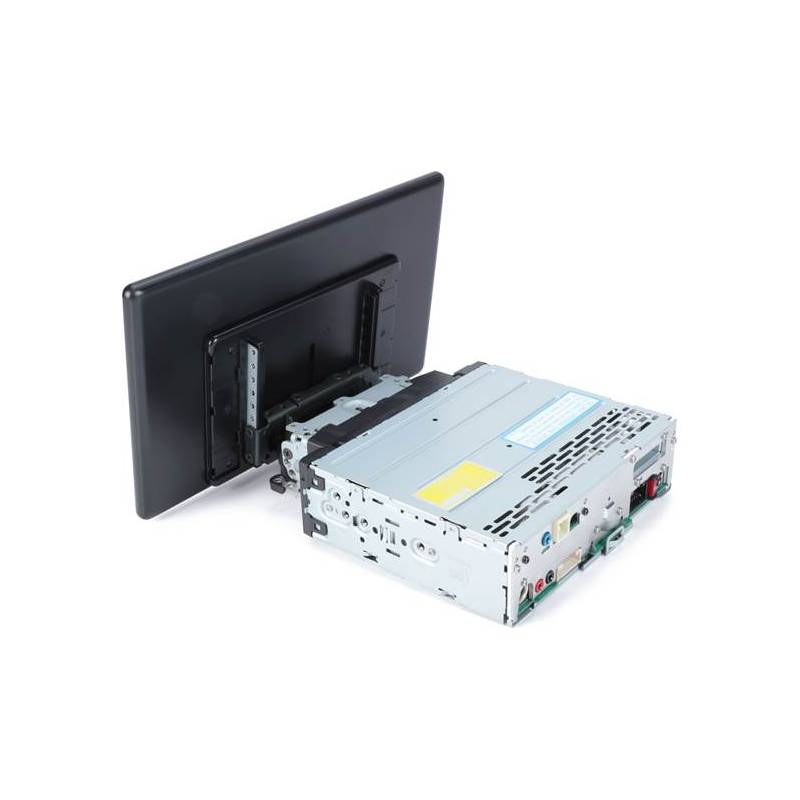

The screw-less tilt and swivel mechanism is designed to be easily adjusted without tools yet remain static and stable even under harsh vehicle vibration. The sturdy display joint offers four-way installation adjustment, including sub-tilt for horizontal swivelling, making it easier to position the oversized display perfectly.
Enhanced wireless audio streaming with LDAC
Enjoy the convenience of Bluetooth® wireless audio and exceptional sound quality thanks to LDAC. Connect compatible devices to stream audio at 96 kHz / 24-bit with bitrates up to 3x higher (990 kbps) than conventional Bluetooth.
Environment in mind
Our products are not only designed to be stylish but also with the environment in mind. For the individual packaging of the XAV-AX8500, 90% of the cushions are made of paper materials, and compared to the prior model, printed information has been carefully considered for simplicity and length to reduce printer ink usage by approximately 80%, reflecting Sony's commitment to reducing environmental impact.
- CD-R/CD-RW Compatible : Yes
- CD Text : No
- Satellite Radio Ready : Yes
- Built In Crossovers : No
- Subwoofer Preamp Outputs : Yes
- Built-in EQ : Yes
- DIN : 1
- Preamp Voltage : 5 volts
- Display Size : 10.1 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : No
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Front USB Input : 1
- Rear USB Input : 1
- Preamp Outputs : 6
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
- USB Mirroring : No
Features:
- Big screen with updated flexibility: The XAV-AX8500 digital multimedia receiver features a 25.7 cm (10.1 inch) capacitive HD touchscreen with an updated display joint featuring a new tilt and swivel mechanism. Together with both wireless and wired connectivity to your smartphone and various devices, and sound customisation, it offers a safe and enjoyable driving experience.

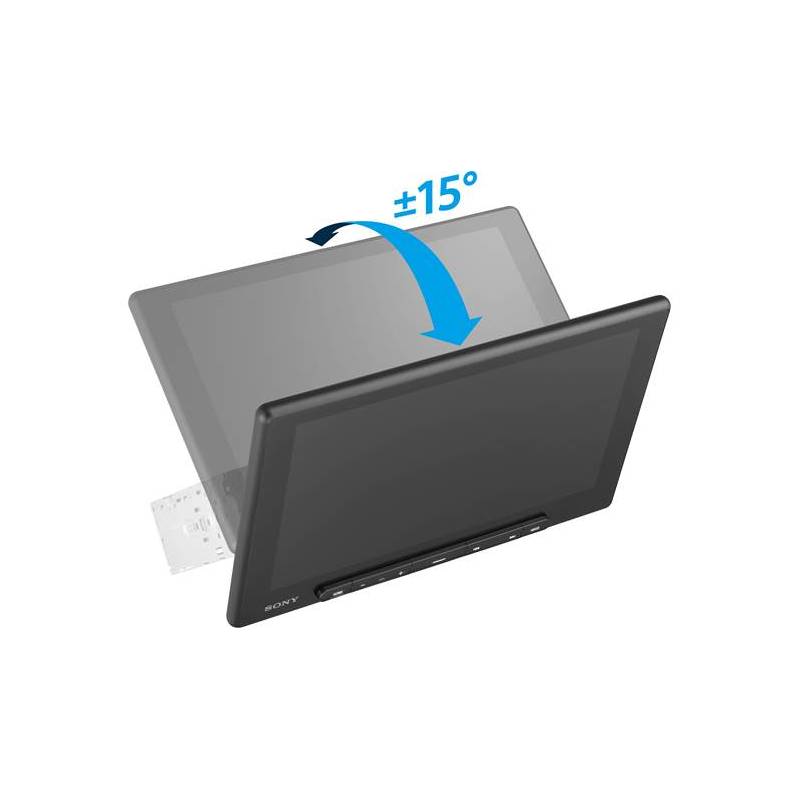

- Easily adjustable tilt and swivel: The newly designed tilt and swivel mechanism lets you manually adjust the oversized high-definition display's viewing angles. The display joint's screw-less structure gives you a range of ±15 degrees, both horizontally and vertically, with no tools required – even after installation.

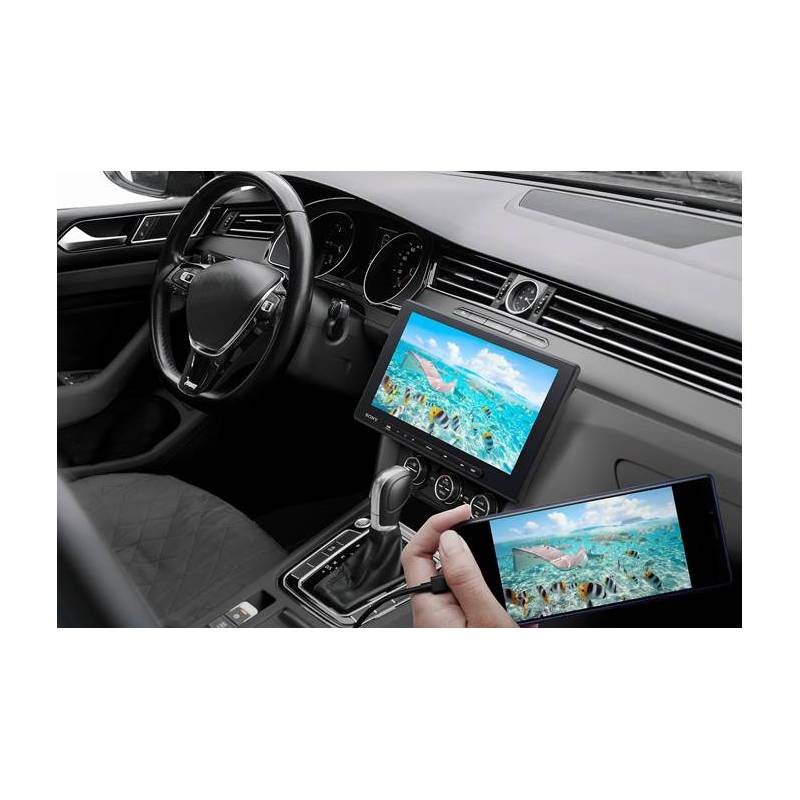

- HDMI Input: HDMI connectivity allows you to hook up an external audio and visual source device or a compatible smartphone, so you can view your favourite content when your car is parked

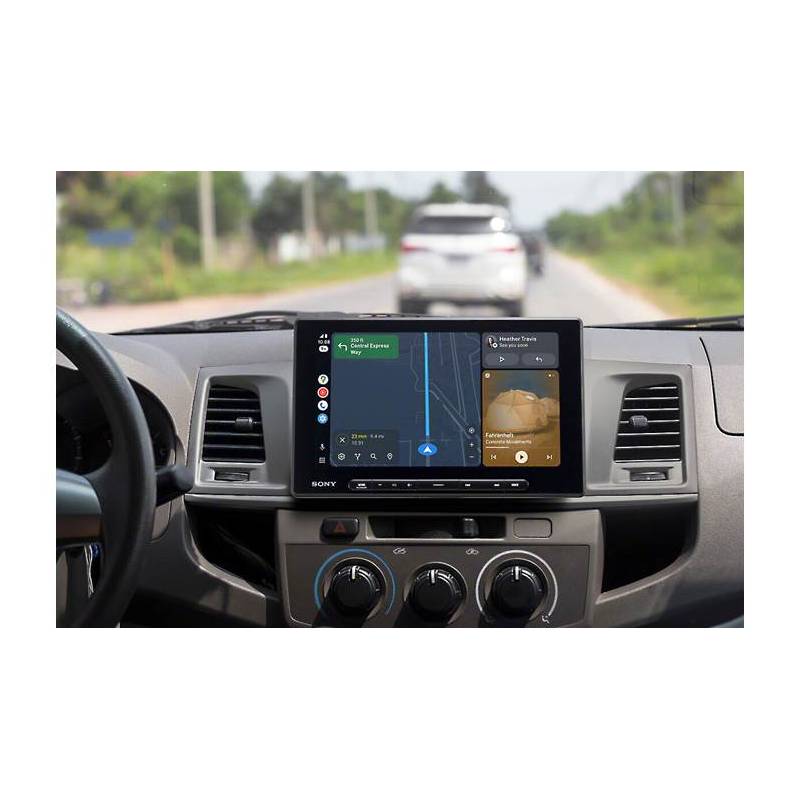

- Fully wireless smartphone connectivity: Thanks to a Wi-Fi® connection to your smartphone, together with the supplied GPS antenna, you can use voice control to navigate, communicate and play music on the road even with your device in your pocket.
- Sound customisation: The built-in DSP offers sound processing and time alignment—down to a remarkable 1 cm for each of the five addressable channels (four speakers and subwoofer via pre-out). A 14-band EQ lets you adjust the overall sound to your music or taste, and with the three-zone crossover, you can arrange the perfect match of front, rear and subwoofers.
Specifications:
- AUX Input: No
- Audio/video Input: Micro-HDMI (rear)
- USB Input Rear: (USB-C)
- USB Port Power: 3A
- Backup Camera Input: Yes
- Second Camera Input: Yes
- CarPlay: Wireless
- Android Auto: Wireless
- Siri Control: Yes
- Alexa Voice Control: N
- Android Control: Yes
- Memory Card Slot: USB memory
- Bluetooth Compatible: Built-in
- Satellite Radio Ready: SiriusXM
- HD Radio: No
- Navigation: Optional
iPod Compatibility
- Full size: No
- Nano: No
- Touch: No
- iPhone: 5S and newer
General
- RMS Power (CTA-2006): 20 watts
- RMS Power (Manufacturer): 20 watts
- Peak Output: 55 watts
- RMS Power Bandwidth: 20-20kHz
- Preamp Outputs: 6-channel
- Sub Preamp Outputs: Yes
- Switchable Rear Preamp Outputs: No
- Video Screen: Yes
- Navigation App Compatible (iOS): Apple, Google, Waze
- Navigation App Compatible (Android): Google, Waze
- Preamp Voltage: 5 volts
- Screen Size: 10.1
- Screen Type: Swipeable (Capacitive)
Display Color
- Key Button Color: White
- EQ Bands: 8
- Wireless Remote: Optional
- Steering Wheel Control Compatible: Adapter required
- Parts Warranty: 3 Years
- Labor Warranty: 3 Years
Tuner
- FM Sensitivity: 7 dBf
- European Tuning: No
- Seek/Scan: Seek
- Radio Data System: Yes
File Playback
- Music File Playback: MP3,WMA,AAC,ALAC,FLAC,WAV,DSD
- High-res Playback: ALAC,FLAC,WAV,DSD
- UPC:
- Weight: 6
