Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

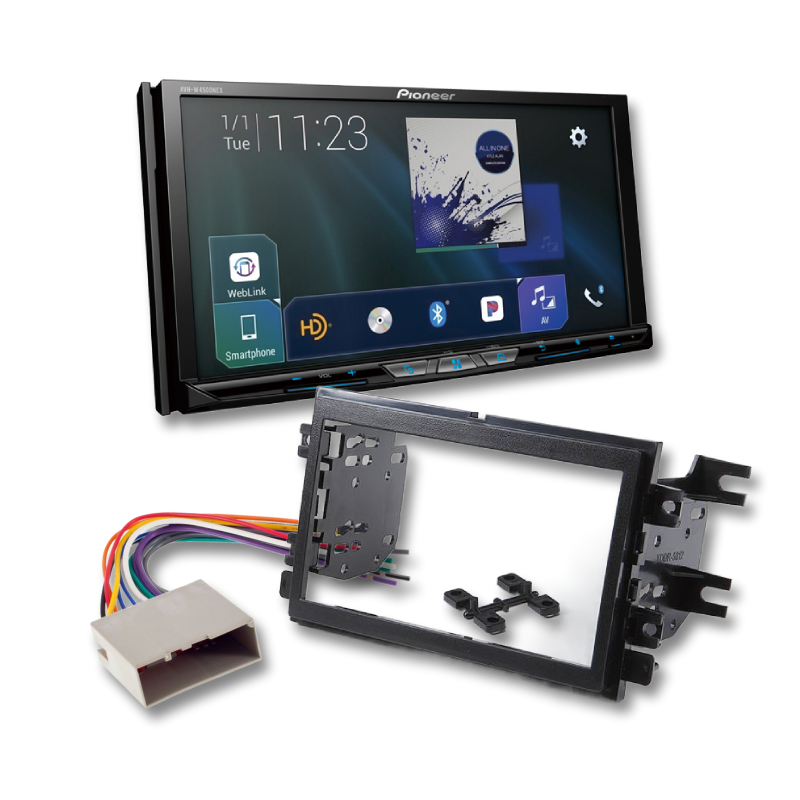

Pioneer AVH-W4500NEX 6.94" Touchscreen 2-DIN Multimedia DVD Receiver + Metra Electronics 95-5812 Ford Multi-Kit 2004-Up + Metra Electronics 70-5520 OEM Deck Harness for 2005-2009 Ford Mustang
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • AVH-W4500NEX DVD receiver (10A fuse)
- • AVH-W4500NEX Detchable 6.95" touchscreen monitor (installed)
- • AVH-W4500NEX Wiring harness
- • AVH-W4500NEX AV/preout harness
- • AVH-W4500NEX Remote control (CD-R33)
- • AVH-W4500NEX CR2025 3V lithium battery (installed in remote)
- • AVH-W4500NEX GPS antenna (attached 11.5' cable)
- • AVH-W4500NEX 58" USB extension cable
- • AVH-W4500NEX Microphone w/ bracket (attached 13' cable terminated by a right-angle 2.5mm connector)
- • AVH-W4500NEX Two-sided tape
- • AVH-W4500NEX (6) Pan-head ISO screws (M5 x 9mm)
- • AVH-W4500NEX (6) Flat-head ISO screws (M5 x 9mm)
- • AVH-W4500NEX Wire-tie
- • AVH-W4500NEX Self-adhesive square
- • AVH-W4500NEX (3) Self-adhesive clips
- • AVH-W4500NEX Soft face case
- • AVH-W4500NEX Sticker labels
- • AVH-W4500NEX Quick Start Guide
- • AVH-W4500NEX Installation Manual
- • AVH-W4500NEX Important Information for the User
- • AVH-W4500NEX Online Product Registration
- • AVH-W4500NEX Warranty Sheet
- • AVH-W4500NEX Apple CarPlay note
- • AVH-W4500NEX USB Type-C Phone Caution note
- • AVH-W4500NEX Owner's Manual
- • 95-5812 Double-DIN radio housing
- • 95-5812 Single-DIN radio housing w/ integrated pocket
- • 95-5812 Single-DIN trim ring
- • 95-5812 2 Double-DIN brackets
- • 95-5812 4 Single-DIN brackets
- • 95-5812 4 Screws
- • 95-5812 4 Spacers
- • 95-5812 Installation Instructionss
- • 95-5812 Owner's Manual
- • 70-5520 OEM Deck Harness
- • 70-5520 Owner's Manual
Apple CarPlay
The AVH-W4500NEX features Apple CarPlay, the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and verbally send and listen to messages with just a word or a touch. Apple CarPlay requires iPhone 5 or newer with the latest version of iOS.
AVH-W4500NEX - What's in the Box?
Android Auto and Apple
The AVH-W4500NEX also features Android Auto, which extends the Android platform into the car in a way that’s purpose-built for driving. Android Auto automatically brings you useful information and organizes it into simple cards that appear just when they’re needed. It’s designed to minimize distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices.
Pioneer NEX models with Apple CarPlay Tutorial
Hands-Free Calling and Audio Streaming
Stay safe and obey local hands-free laws with built-in Bluetooth (HFP). Easily pair a Bluetooth enabled phone to the AVH-W4500NEX without having to go through complicated settings. When a registered Bluetooth device is in proximity to the receiver, the auto connection function automatically pairs the two units. The AVH-W4500NEX with Bluetooth also includes superior call quality reception using Wideband Speech Handsfree Profile 1.6. Wideband Speech nearly doubles the bandwidth of frequencies of a normal Bluetooth call (when compared to calls without Wideband Speech)**.
Understanding Standard Mode 2-Way or Network Mode 3-Way Set Up
Loaded with More Features
Pandora is personalized internet radio that is designed to help you discover new music that you'll love mixed in with music that you already know. With the AVH-W4500NEX, you can enjoy superior sound quality and full control of the Pandora experience in your car directly from the touchscreen display of the receiver. You are able to give tracks "thumbs up" or "thumbs down," bookmark a song so you can purchase it later, easily switch between your personalized radio stations, and view full track data and album art.
Pandora is compatible with Apple iOS, as well as Android devices that support the Bluetooth Serial Port Profile (SPP). Simply download the free Pandora Radio app to your iPhone or Android device, connect to the AVH-W4500NEX and take your music to the next level.
Painted Scratch-resistant
The Metra Electronics 95-5812 is a car stereo installation kit designed for select Ford vehicles from 2004 to 2011. The kit includes a dash kit, and an optional wiring harness and antenna adapter, allowing for a seamless installation of an aftermarket stereo system.
The dash kit is made of high-quality ABS plastic and is designed to match the factory dash perfectly. It features a matte black finish that complements the interior of the vehicle. The kit also includes brackets and mounting hardware for a secure installation.
The optional wiring harness is pre-wired for easy installation and features color-coded wires to make connecting to the new stereo system simple. The harness also includes a chime interface that retains the factory warning chimes, such as the seatbelt warning and door chime.
Designed to Simplify the Installation of an Aftermarket Car Stereo
The Metra Electronics 70-5520 is a wiring harness designed to simplify the installation of an aftermarket car stereo in select Ford vehicles. The harness connects to the factory wiring and allows the user to avoid cutting and splicing the original wires, which can be time-consuming and potentially damaging.
The 70-5520 harness is compatible with many Ford models from 2003 to 2010, including the Ford Expedition, Explorer, F-150, and Mustang. It features color-coded wires that match the aftermarket stereo's wiring, making it easy to connect the two systems without confusion.
Pioneer AVH-W4500NEX 6.94" Touchscreen 2-DIN Multimedia DVD Receiver
Features:
- Enhanced User Interface: More advanced than ever before, NEX features a responsive, powerful and intuitive touchscreen user interface that is easy to use and highly customizable. Clearly, NEX is designed specifically for today’s smartphone and tablet-driven lifestyle. The NEX user interface has been updated with easy side-by-side layout customization, play/pause skip operation and larger album artwork.
- Stay Connected: Connect your compatible iOS or Android™ smartphone with NEX for a truly connected experience, bringing many of your favorite apps right into the dashboard and letting you communicate using advanced high-quality Bluetooth connectivity. All NEX models feature built-in Bluetooth® that enables both hands-free calling and audio streaming. Including the latest Hands-Free Profile (HFP 1.6) with Wideband Speech capability, NEX provides more natural sound quality and details during calls. When streaming music, NEX even lets you browse and select the media stored on your smartphone using the AVRCP 1.6 profile.
- Sound Quality for All: Your car and your music are as unique as you are. With a Pioneer NEX in-dash receiver, sound quality features like built-in Auto EQ and Time Alignment, 13-Band Graphic Equalizer with touch panel swipe settings and built-in high/low pass crossover with adjustable points and slopes provide you with the controls to tailor the listening experience to your vehicle and listening preferences. The CD-MC20 microphone is required for Auto EQ features and is sold separately.
- Enjoy Flac Files: Your love of high-res audio does not need to stop at the front door. Enjoy FLAC files in your vehicle without the need to convert. Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.
Specifications:
- CTA-2006: Yes
- Continuous Power Output: 22 W x 4-Channel
- Load Impedance Allowance: 4 Ohm (4 Ohm to 8 Ohm Allowable)
- Max Power Output:
- 50 W x 4-ch 4 ohm / 50 W x 2-ch 4 ohm
- 70 W x 1-ch (subwoofer) 2 Ohm
- RCA Preamp Outputs: 6-ch
- RCA Pre-out: 4V
- RMS Power Output (CTA-2006): 14 W RMS x 4-ch 4 ohm
- Back Light: LED
- Brightness Control: Yes
- Color Customization: 5 display colors, 112 key colors
- Device (Non-DIN/Modular Unit): 2-DIN
- Dimmer: Automatic with vehicle illumination, Timer Controlled, Manual
- Display Off Mode: Yes
- Home Screen Customization: Yes
- Monitor Mechanism: Motorized
- Resolution: WVGA (800 x 480)
- Screen Size/Aspect Ratio: 7", 16:9
- Touch Screen: Resistive
- Advanced Audio Distribution Profile (A2DP): Yes
- AVRCP: 1.6
- Built-in Bluetooth®: Yes
- Dual Phone Connection: Yes
- Hands-Free: Yes
- Microphone Included: Included
- Phone Registration: 5-phone
- Secure Simple Pairing (SSP): Yes
- Serial Port Profile (SPP): Yes
- Sound Retriever Air: Mode 1/Mode 2/Off
- Best Station Memory: Yes
- HD Radio™: Built In / Artist Experience / Multicasting
- Local Seek tuning: Yes
- Presets: 18 FM, 6 AM
- RDS: Yes
- SiriusXM-Ready™ (Tuner Sold Separately): Yes
- Amazon Alexa: Paired with Pioneer Vozsis
- Android Auto™: Wireless Connection or Wired USB Connection
- Apple® CarPlay: Wireless Connection or Wired USB Connection
- Mirroring: Miracast-Android Phones Only
- Mobile Operating System: Android / Apple iOS
- Pandora®: Source through iPhone/Android
- Pioneer App Compatibility: Vozsis Android, Vozsis iPhone
- Siri® Eyes Free (VR) (Internet Required): iPhone Only
- Spotify: With Apple CarPlay or Android Auto
- Voice Control: Yes
- Weblink: Yes
- Audio/Video formats supported via CD, DVD, SD, USB
- Various file types for audio, video, and images supported across different media sources
- Audio
- Various sound controls and enhancements including EQ presets, sound levels, amplification details, and speaker output
- Expandability
- Dual Zone Rear-Seat Entertainment: Yes
- OEM Integration: iDatalink® Maestro™ - RR (DATA)
- Parking Assist Lines: Yes
- RCA Video Output: Yes
- SD/SDHC Memory Card Slot: SDXC
- USB: Dual Rear Type-A (5 V, 1.5 A)
- Backup Camera Dedicated
- AUX (Minijack)
- A/V or 2nd Camera
- HDMI Standard (Type A)
- Detachable Face Security: Detachable
- Multi-Language Display: English, French, Spanish Portuguese, Chinese (Simplified)
- Music Browser: SD Card / USB1 / USB2
- Remote Control: Included
- Steering Wheel Control Ready (Adapter Sold Separately): Yes
Metra Electronics 95-5812 Ford Multi-Kit 2004-Up
Features:
- Stereo installation kit designed to fit any standard 4” tall aftermarket radio
- Made from the highest quality ABS plastic for an original factory-like fit and finish
- Includes brackets and hardware parts needed with detailed installation instructions
- A tech support number is available for installation help 7 days a week.
- See the Vehicle Application Guide for vehicle specific applications (sold separately)
- 40-CR10 (sold separately)
Metra Electronics 70-5520 OEM Deck Harness
Features:
Allows installation of an aftermarket radio using the existing factory wiring and connectors. No cutting of factory wiring is needed.
- Wiring harness for fast and easy radio installation
- Plugs into the car's original radio connectors on one side
- To retain the factory AV/DVD, use 70-5520AV in addition
- Color-coded wires on the other side are connected to the aftermarket radio
- No wire cutting needed for factory radio connectors
- 24-way plug provides electrical power to the radio and speaker connection
- A tech support number is available for installation help 7 days a week
- Enter your vehicle model to see if this is compatible with your vehicle
- UPC: 798418839038
- Weight: 9
- Authorized Internet Dealer
Warranty: 1 Year Onlinecarstereo.com warranty.
1 Year warranty from Onlinecarstereo.com implies that repairs must be returned to Onlinecarstereo.com, not the manufacturer. More information can be found in our help section under returns & warranties.
What's not covered : Misuse, abuse, defacement, physical damage of any kind, and improper installation / operation. Video and multimedia equipment with damaged or cracked screens.Subwoofers and speakers are not warrantied if the defect is due to physical damage.
