JL Audio  10TW3-D4-Bundle

10TW3-D4 10" 800W Peak Power Handling 4 Ohm, Dual Voice Coil Shallow-Mount Car Subwoofer + AP800.1D AP Series 800W x 1 RMS @4Ohms, 1600W Max Power Class D Monoblock Amplifier

Item #93392

Condition:   Brand New

Product Highlights

  • 10" shallow-mount subwoofer=
  • Dual voice coil
  • Class D monoblock
  • 1600W max power
  • Easy installation

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$583.96

Reg. Price $729.98  Save $146.02

Out of Stock Check out other products listed below
JL Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

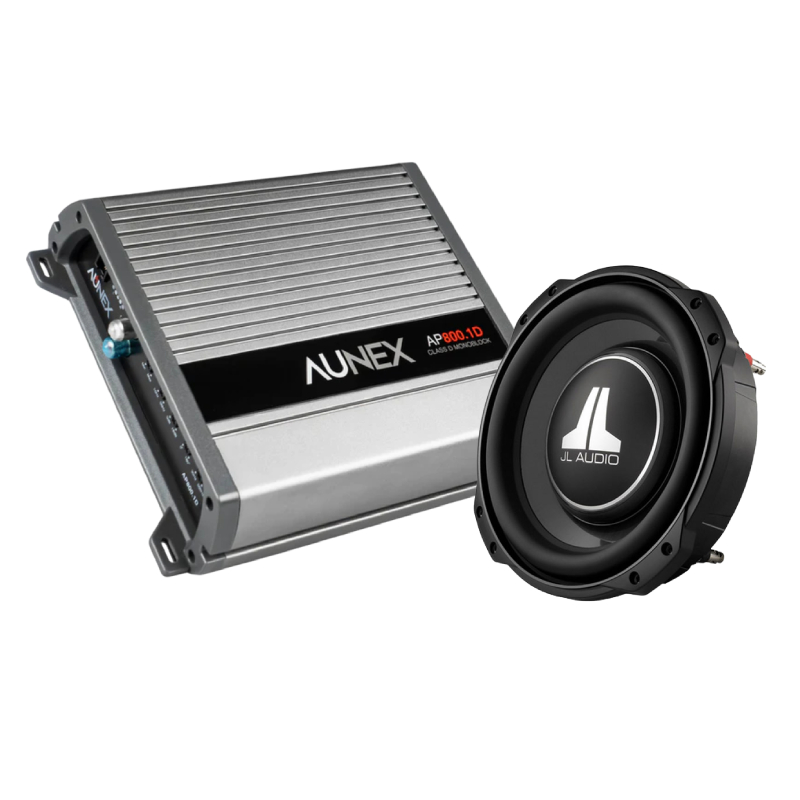

JL Audio 10TW3-D4 10" 800W Peak Power Handling 4 Ohm, Dual Voice Coil Shallow-Mount Car Subwoofer + Aunex AP800.1D AP Series 800W x 1 RMS @4Ohms, 1600W Max Power Class D Monoblock Amplifier


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 10TW3-D4 10" Thin-Line subwoofer
  • • 10TW3-D4 Voice coil connection warning
  • • 10TW3-D4 Owner's manual
  • • AP800.1D AP Series Mono Class D Amplifier
  • • AP800.1D Remote Level Controller and Cable
  • • AP800.1D High-Level Speaker Plug
  • • AP800.1D (6) Self Tapping Screws
  • • AP800.1D (2) Allen Wrenches
  • • AP800.1D Sticker
  • • AP800.1D Instruction Manual





Shallow-mount Design

A car subwoofer with a shallow-mount design and comes with a lot of impressive features, the JL Audio 10TW3-D4 is the perfect upgrade for your car's factory subs. This 10-inch subwoofer has the ability to put in some heart-pounding bass and would not need too much space to be installed inside your vehicle.

Polypropylene Cone and a Rubber Surround

It has a mica-filled polypropylene cone and a rubber surround, which gives the subwoofer the needed rigidity and durability to withstand the effects of extended usage at high volume levels while being able to produce an accurate bass response with only minimal distortion.



Produce a Clean and Punchy Low-frequency Performance

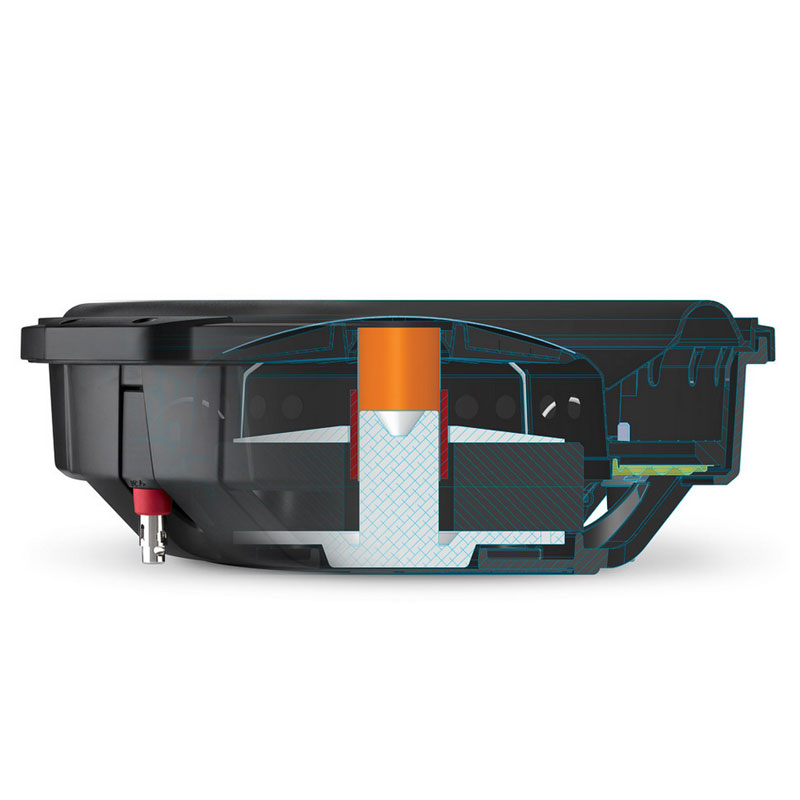

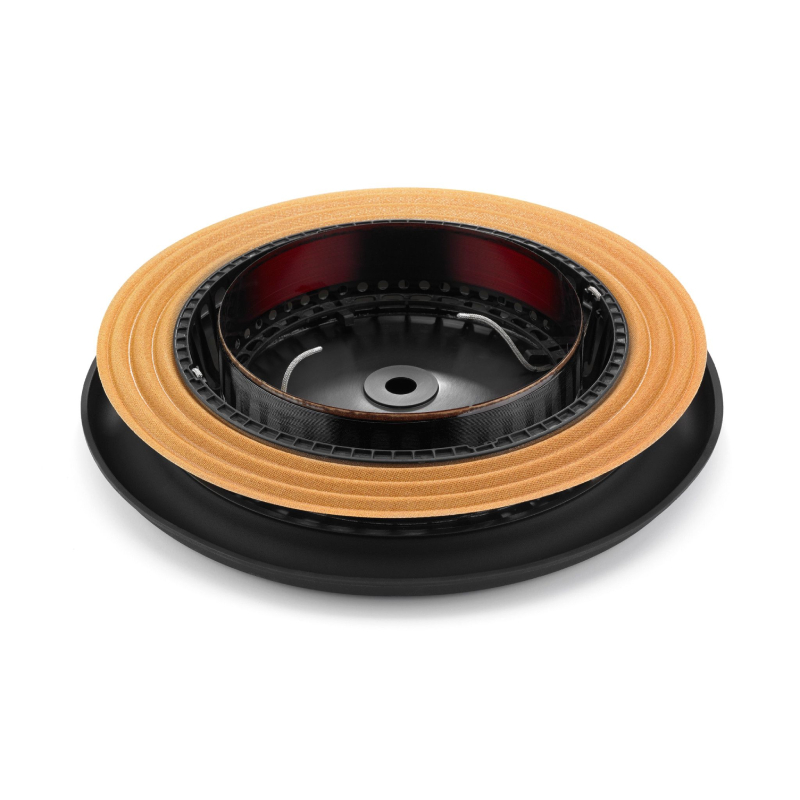

It uses JL Audio's DMA-optimized motor design, which helps reduce the distortion while being able to produce a clean and punchy low-frequency performance. It also has JL Audio's famous Concentric Tube Suspension, which significantly improves the subwoofer's excursion, allowing for more air pressure, and resulting in louder and better bass performance.

Deep and Loud With Less Distortion

The JL Audio 10TW3-D4 has a power output of 400 Watts RMS and can reach up to 800 Watts of peak power. It has a frequency response of 24 up to 200 Hz and a sensitivity rate of 82.1 dB, which allows the subwoofer to go really deep and loud with less distortion



Aunex AP Series Amplifier

For car audio enthusiasts seeking to enhance their bass performance, the Aunex AP800.1D amplifier is a game-changer. With its robust power output and advanced features, this amplifier delivers unparalleled bass reproduction, taking your in-car audio experience to new depths. The Aunex AP800.1D boasts a continuous power output of 800 watts, providing the punch you need to feel the bass in your music. Its Class-D amplifier technology ensures high efficiency, minimizing power consumption and reducing strain on your car's electrical system.

Delivers Powerful and Accurate Output

Equipped with a variable low-pass filter and infrasonic filter, the AP800.1D allows for precise tuning and customization of your bass output. This flexibility enables you to fine-tune the amplifier's settings to match your subwoofer and create the perfect balance of bass in your audio system. Built with high-quality components and sturdy construction, the Aunex AP800.1D amplifier is designed to deliver consistent and reliable performance. Its compact size allows for easy installation, while its heat sink design ensures efficient heat dissipation, preventing overheating and ensuring long-term durability.

Flexible Configuration Options

Upgrade your car audio system and experience powerful bass like never before with the Aunex AP800.1D amplifier. With its impressive power output, efficiency, and flexible configuration options, this amplifier elevates your bass performance. Immerse yourself in deep, thumping bass and elevate your in-car audio experience with the Aunex AP800.1D amplifier.

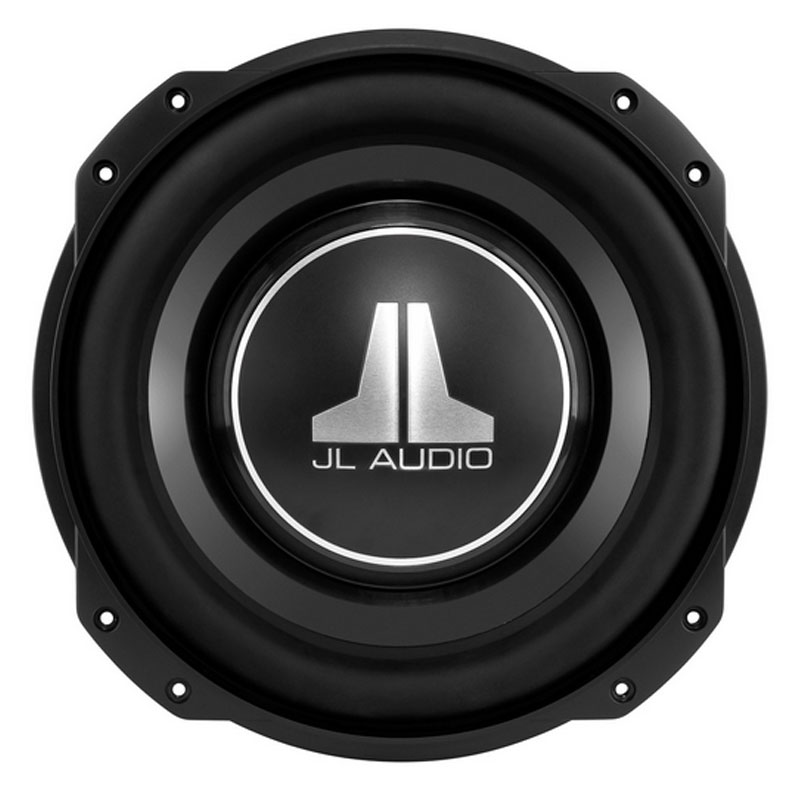

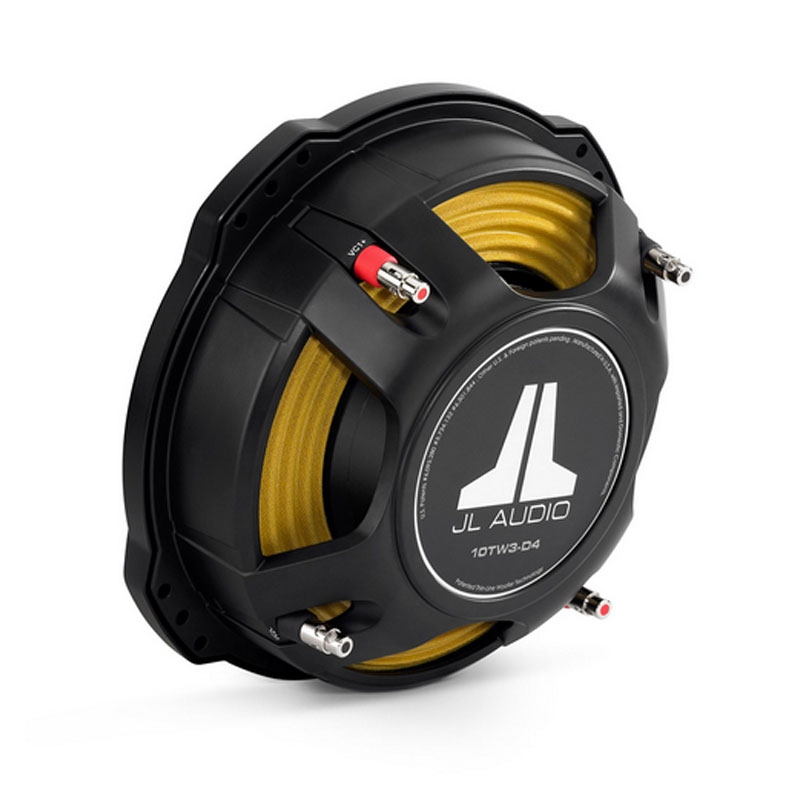

10TW3-D4 10" 800W Peak Power Handling 4 Ohm, Dual Voice Coil Shallow-Mount Car Subwoofer

Features:

  • Very shallow mounting depth (3.25 / 3.50 Inches)
  • No pole vent: permits mounting close to rear wall of enclosure.
  • Very small sealed enclosure volume requirements
  • Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
  • DMA-optimized motor designs
  • “concentric tube” architecture
  • Patented “floating cone attach method” technology
  • Cast alloy frame
  • Injection molded, mica-filled polypropylene cone
  • Rubber surround
  • Aluminum-alloy dust cap and rear cap with JL Audio logo
  • Precision-built in USA at JL Audio’s Miramar, Florida factory with global components



Specifications:

  • 10" subwoofer with dual 4-ohm voice coils
  • shallow-mount design with small airspace requirements
  • mica-filled polypropylene cone with rubber surround
  • cast alloy basket
  • top-mount depth: 3-1/4"
  • power range: 100-400 watts RMS
  • peak power handling: 800 watts
  • frequency response: 24-200 Hz
  • sensitivity: 82.1 dB
  • sealed box volume: 0.519 cubic feet

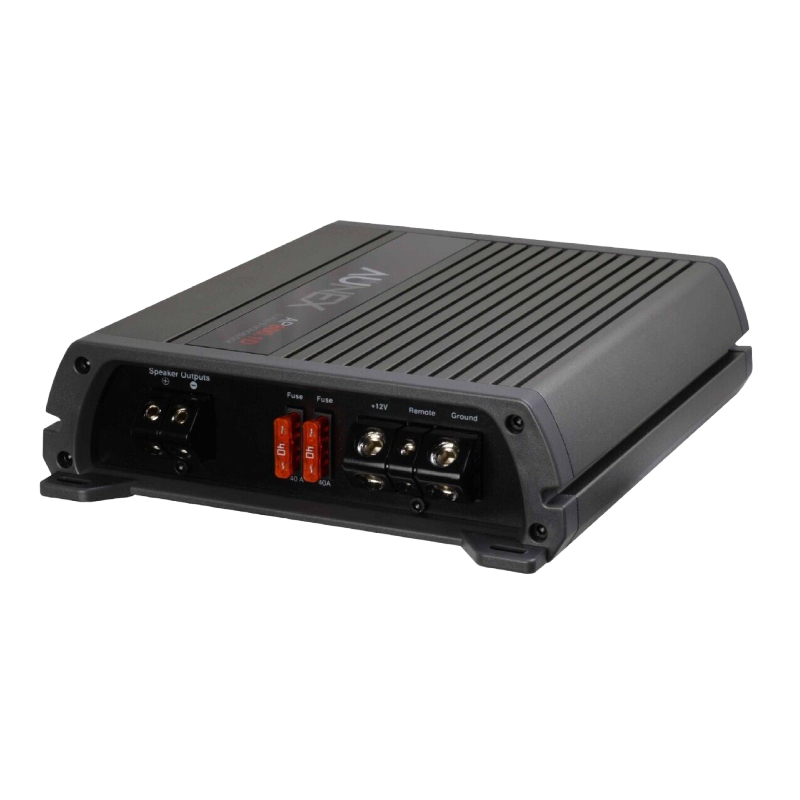

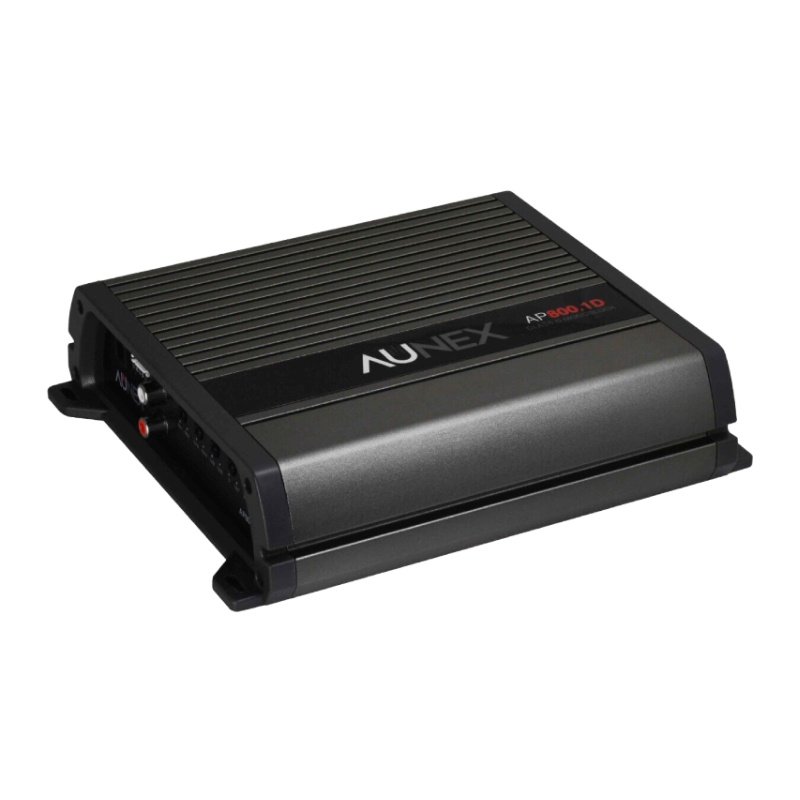

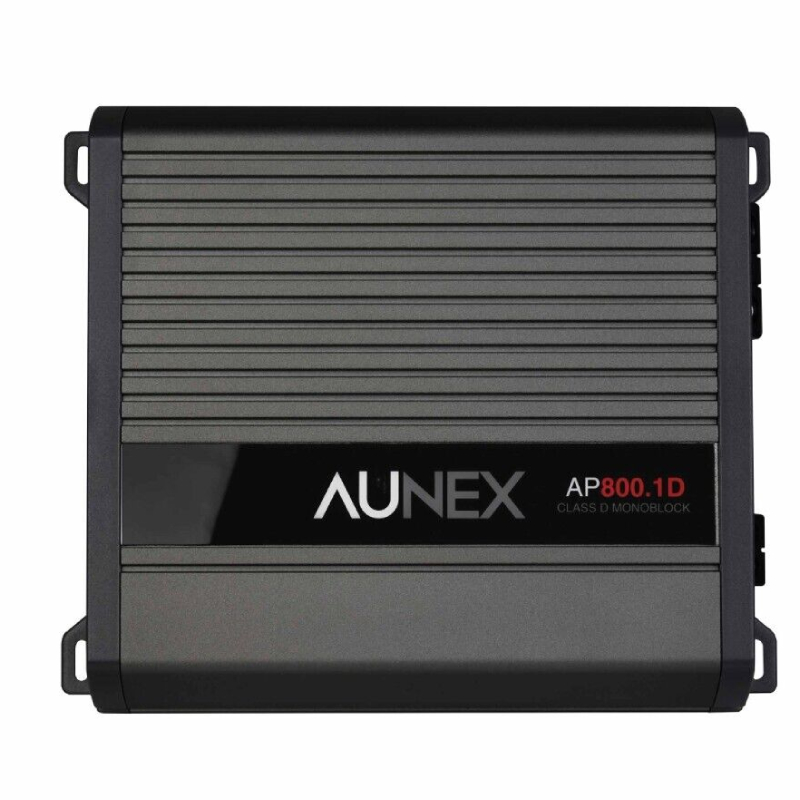

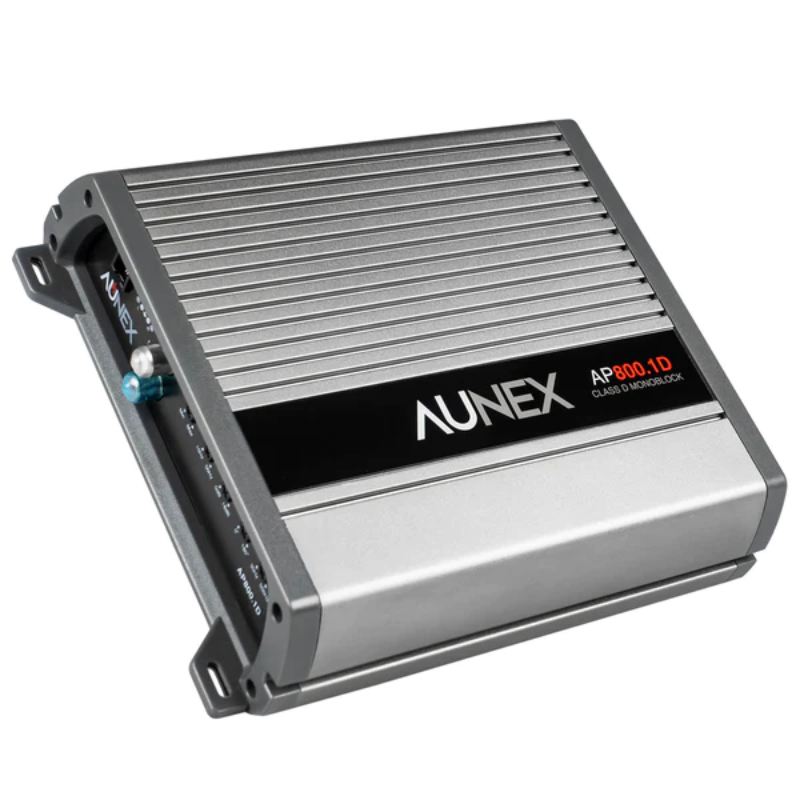

AP800.1D AP Series 800W x 1 RMS @4Ohms, 1600W Max Power Class D Monoblock Amplifier

Features:

  • Heavy Density Aluminum Extruded Heatsink
  • 2 Layer PCB, SMD Technology
  • Differential Balanced RCA Inputs
  • Fully Variable Crossover: 30Hz - 500Hz @ 24dB/Octave Slope
  • Fully Variable Infrasonic Filter: 10Hz - 50Hz @ 24dB/Octave
  • Boost Eq. 0 - 18dB @ 45Hz Center
  • Auto-Sensing in High-Level Input Mode
  • Power and Protection Logo Illuminated Status Indicator
  • 4 Gauge Power and Ground Terminals
  • 12 Gauge Speaker Output Terminals
  • Advance Protection Circuit Monitoring: Short, Thermal, Overload, And Impedance
  • Finish: Anodized with Texture Paint



Specifications:

  • Channels: 1
  • Rated RMS Power 4 Ohms Mono @ 14.4V: 300 Watts x 1
  • Rated RMS Power 2 Ohms Mono @14.4V: 600 Watts x 1
  • Rated RMS Power 1 Ohm Mono @ 14.4V: 800 Watts x 1
  • Peak Music Power: 1600 Watts
  • Frequency Response: 10Hz - 500Hz
  • THD + Noise: <0.5%
  • S/N Ratio A-Weighted: >105dB
  • Input Sensitivity (Low Level RCA): 250mV - 6V
  • Input Sensitivity (High Level Speaker Output): 450mV - 11V
  • Crossover Low Pass (24dB/Octave): 50Hz - 500Hz
  • Boost EQ Low Pass - 45Hz Centered: 0 - 18dB
  • Infrasonic Filter: 10Hz - 50Hz
  • Phase - Fully variable: 0 - 108°
  • Efficiency @ 4 Ohm: 85%
  • Operating Voltage: 9 - 17 Volts
  • Fuse Requirement: 80A (Included)
  • Dimensions (H x W x D): 2.0" x 8.5" x 7.2"
  • UPC:
  • Weight: 21.01
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
