JL Audio PES110-TW1-2 StowAway Series 10" 300W RMS (600W Peak Power Handling) 2 Ohms, Subwoofer in Sealed Enclosure
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 10" StowAway Series Subwoofer in Sealed Enclosure
- • Sealed enclosure containing a TW1 subwoofer
- • Grille (installed)
- • Input harness
- • Owner's Manual
Why Choose JL Audio PES110-TW1-2 Enclosed Car Subwoofer?
Compact Power, Deep Bass

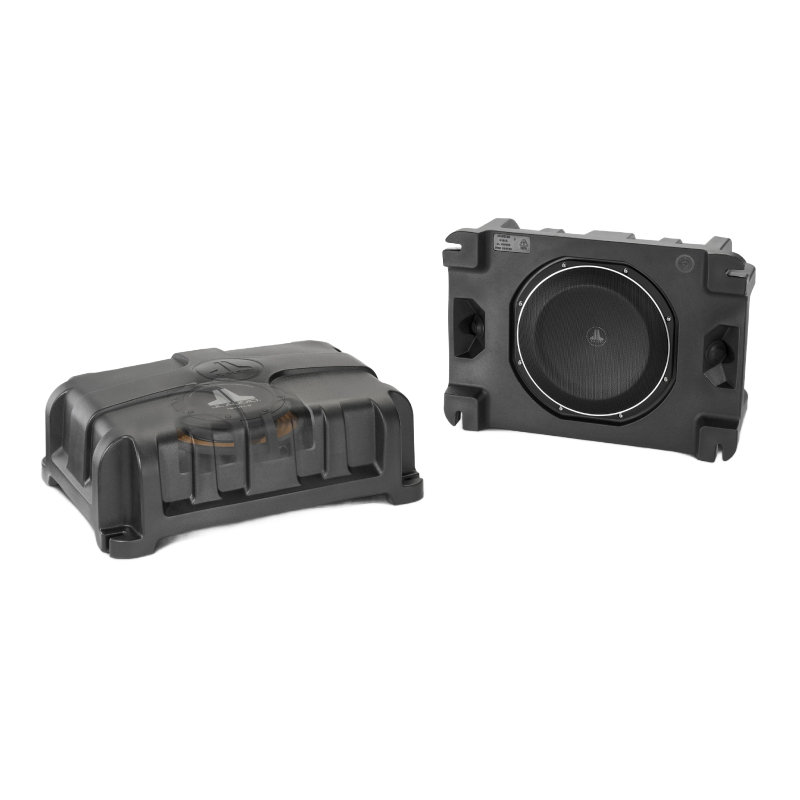

This enclosed subwoofer features a single 10TW1-2 driver with a sleek black textured finish and debossed logo. Designed for amplifiers in the 75–300W range, it delivers deep, powerful bass with a nominal 2Ω impedance for easy integration into your system.
Marine-Grade Down-Firing Subwoofer Enclosure – Durable and Versatile

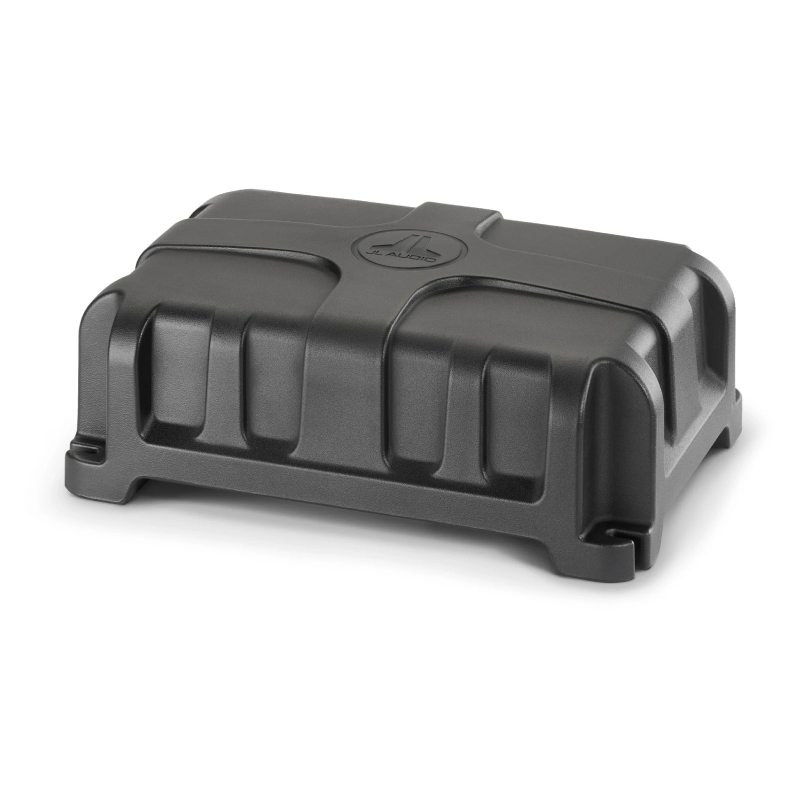

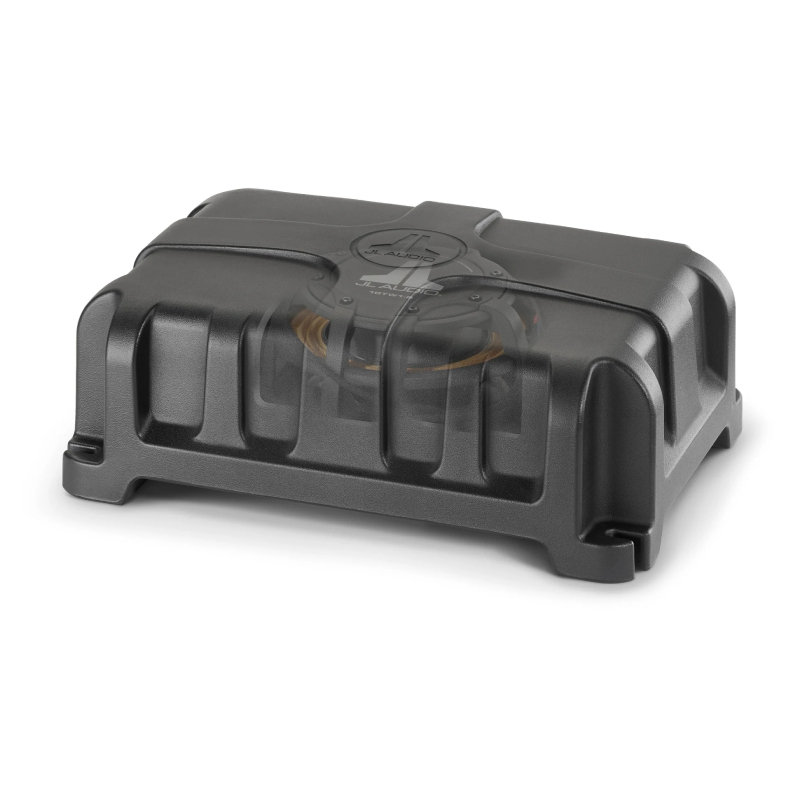

This down-firing hard-shell enclosure enhances subwoofer performance and is built from marine-grade materials for long-lasting durability. Slotted mounting feet allow “off-the-floor” installation, making it ideal for areas shared with cargo or exposed to the elements.
Marine Subwoofer Enclosure – Protection and Performance

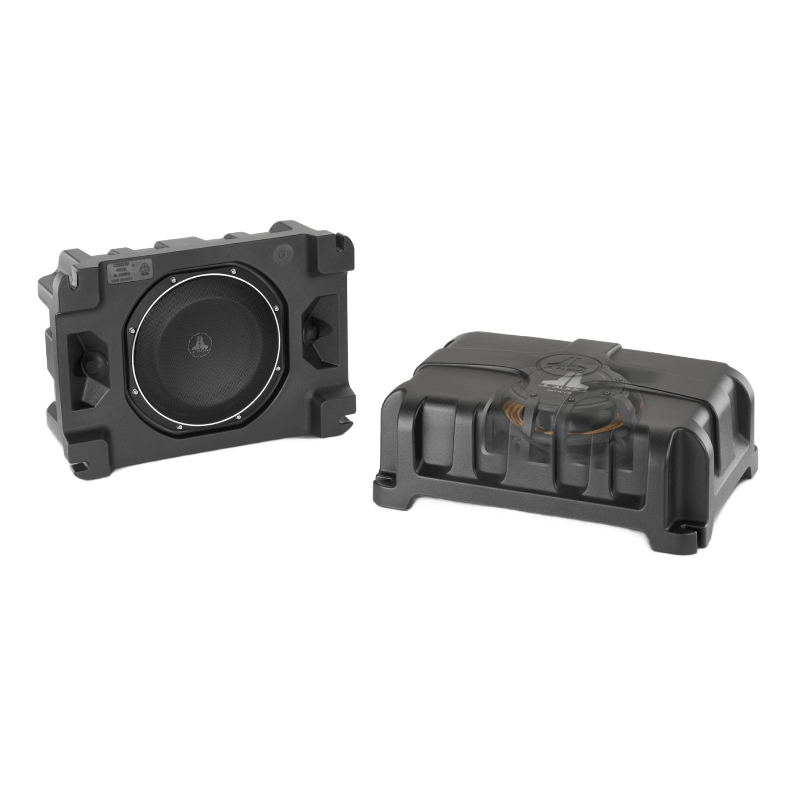

This low-profile enclosure is optimized for the TW1 subwoofer, featuring selectable harness exits at opposite ends and a protective mesh grille to safeguard the speaker. Mounting hardware is not included, so ensure the enclosure is securely affixed to prevent movement and vibration during use.
Frequently Asked Questions (FAQ)
- • Why does my JL Audio PES110-TW1-2 powered subwoofer have very little bass?
Weak bass is usually caused by incorrect input settings, low amplifier gain, or improper crossover adjustments. Verify the signal source, crossover frequency, and bass level controls to achieve stronger low-frequency output.
- • Can I install the it under a seat?

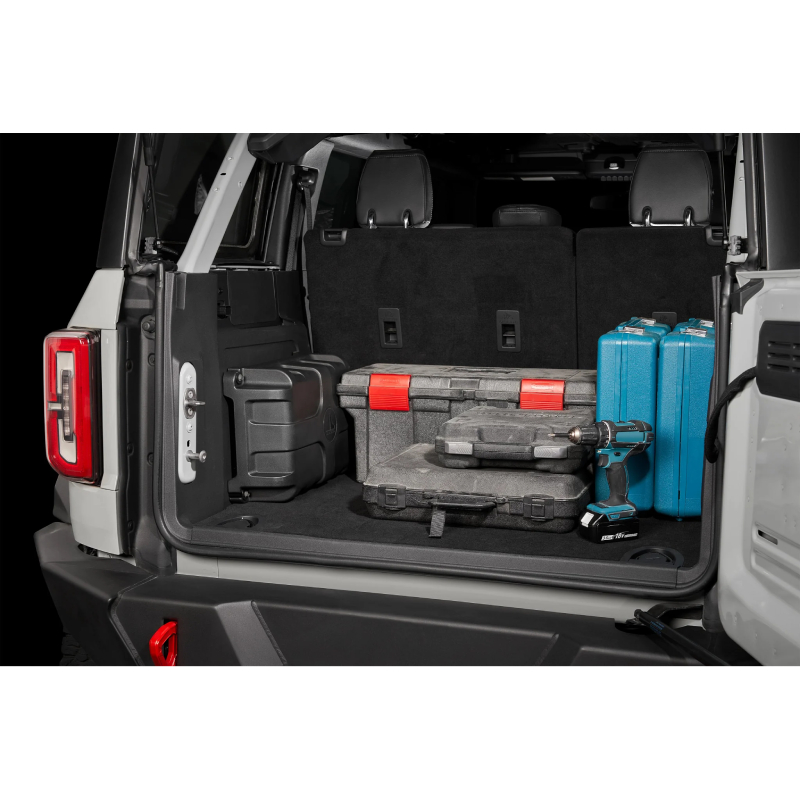

Yes, the compact enclosure is designed for space-saving installations in many cars, trucks, and SUVs. Always measure the available clearance and allow enough ventilation around the amplifier for reliable operation.
- • Why does it keep shutting off while I'm listening to music?
This usually happens because of low battery voltage, poor ground connections, or the amplifier entering protection mode. Inspect the power wiring, fuse, and grounding point before assuming the subwoofer is faulty.
- • Can I connect the JL Audio PES110-TW1-2 to a factory radio without RCA outputs?
Yes, the powered enclosure supports speaker-level inputs, making it compatible with many factory audio systems. Using the correct wiring harness helps maintain clean signal quality during installation.
- • Why do I hear distortion from it at higher volume?
Distortion is commonly caused by excessive gain, bass boost, or a clipped input signal from the head unit. Proper amplifier tuning and clean source signals will produce tighter, cleaner bass.
- • Does it need an external amplifier?
No, the enclosure includes a built-in amplifier that is matched specifically to the TW1 subwoofer. You only need proper power, ground, and audio connections for normal operation.
- • Why do I hear rattling in my vehicle after installing the JL Audio PES110-TW1-2?
The rattling is usually caused by loose trim panels, license plates, or interior components rather than the subwoofer itself. Securing nearby panels and tightening hardware will often eliminate unwanted vibrations.
- • How should I maintain it?
Keep the enclosure clean by wiping it with a soft cloth and avoid exposing it to excessive moisture or standing water. Periodically inspect the wiring connections to ensure reliable long-term performance.
Learn how to wire subwoofers
- Diameter : 10 Inch
- Sensitivity : 82.5 dB
- Impedance : 2 Ohm
- Frequency Response : 26-200 Hz
- Peak Power Handling : 600 Watts
- Number Of Subwoofers : 1
- Enclosure Type : Sealed
- Amplified : No
- RMS Power Handling : 300 Watts
Features:
- Subwoofer System: Enclosed subwoofer with a single 10TW1-2 subwoofer
- Finish: Black texture with debossed logo on top
- Power Handling: Recommended amplifier power: 75–300 watts
- Nominal Impedance: 2 ohms
- Design: Down-firing hard-shell for enhanced subwoofer performance
- Materials: Constructed from marine-grade materials for durability
- Installation: Slotted mounting feet at each corner for “off-the-floor” installations
- Suitability: Suitable for mounting areas shared with cargo or exposed to the elements
- Prewiring: Selectable harness exits located underneath at opposite ends
- Enclosure: Low-profile design optimized for the TW1 subwoofer's small box requirements
- Protective Features: Includes a protective mesh grille to safeguard the subwoofer
- Mounting Hardware: Not included; final mounting method must securely affix the enclosure to prevent movement and vibration
Specifications:
- Continuous Power Handling (RMS): 300 W
- System Nominal Impedance: 2 Ω
- Enclosure Type: Sealed
- Finish: Black Texture
- Grille Included: Yes
- Diameter : 10 Inch
- Sensitivity : 82.5 dB
- Impedance : 2 Ohm
- Frequency Response : 26-200 Hz
- Peak Power Handling : 600 Watts
- Top Mount Depth : 4-3/8 Inches
- Shallow Mount : Yes
- Number of Voice Coils : Single
- Suggested Sealed Box Volume : 0.35 Cubic ft.
- Suggested Ported Box Volume : 0.625 Cubic ft.
- RMS Power Handling : 300 Watts
- Height (H): 7.0 in / 178 mm
- Width (W): 18.0 in / 457 mm
- Depth (D): 12.5 in / 318 mm
- Mounting Location Depth (A): 10.66 in / 271 mm
- Mounting Location Width (B): 16.16 in / 410 mm
- UPC: 699440929981
- Weight: 20
