Audison  SR 6.600.2

SR.2 Series 6-Channel 140W RMS x 4 at 2-Ohms + 185W RMS x 2 at 2-Ohms, Class-D Car Amplifier

Item #93647

Condition:   Brand New

Product Highlights

  • SR.2 6-Channel
  • 140W x4 (2O)
  • 185W x2 (2O)
  • Class-D Amplifier
  • Car Audio Power

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$599.99

Add Extended Warranty
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

No Credit needed for acima logoLearn More

Audison Authorized Dealer

Huge Saving on Other items:


Huge Saving on Other items:


Audison Banner

Audison SR 6.600.2 - SR.2 Series 6-Channel 140W RMS x 4 at 2-Ohms + 185W RMS x 2 at 2-Ohms, Class-D Car Amplifier


We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

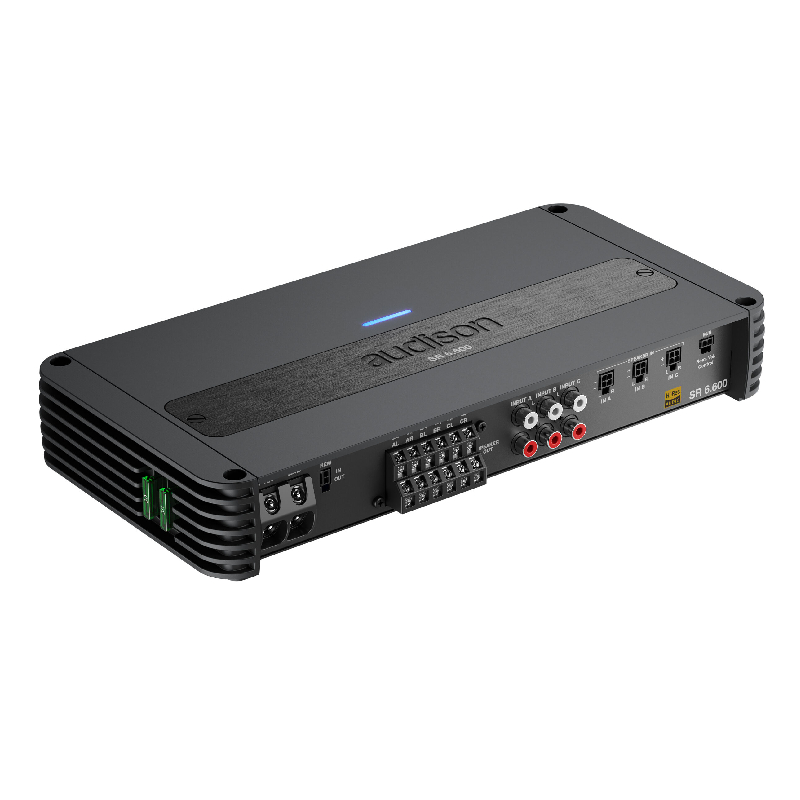

Image 1
Introducing the Audison SR 6.600.2: Revolutionizing In-Car Audio with Hi-Res Certification

At Audison, we are dedicated to providing exceptional sound quality and innovative car audio systems. We are excited to introduce our newest creation – the Audison SR 6.600 6-Channel Amplifier with Hi-Res Audio Certification. This amplifier is designed to transform your in-car listening experience, establishing a new benchmark in audio excellence.


SPECIFICATIONS


  • Maximum Power : 1120 Watts
  • Number of Channels : 6
  • Frequency Response : 10-42000 Hz
  • Amplifier Class : D
  • Fuse Rating : 30 A

FEATURES


Features:

  • Weight: 2.52 kg
  • Dimensions:
  • Dimension A: 314 mm
  • Dimension B: 284 mm
  • Dimension C: 155 mm
  • Dimension D: 135 mm
  • Dimension E: 47.4 mm



General Specifications

  • Channels: 6
  • Class: D-Class
  • Efficiency: >87%
  • High Level Input: Yes
  • Low Level Input: Yes
  • Digital Input: No
  • Power Supply
  • Power Supply Voltage / Fuse: 11 ÷ 17 VDC
    • Operating Power Supply Voltage: 11 ÷ 17 VDC / 2 x 30A
    • Idling Current: 2.2 A
    • Idling Current When Off: 0.04 mA
    • Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 54 A
    • Remote OUT: 4 ÷ 15 VDC (150 mA)
    • Remote IN: 4 ÷ 15 VDC (1 mA)
    • ART (Automatic Remote Turn On/Off from OUTPUT BTL speakers - Selectable): 1.5 ÷ 7 VDC
  • Amplifier Stage
    • Distortion – THD @ 100 Hz, 4Ω, 70% Rated Power: 0.05%
    • Bandwidth A: 10Hz ÷ 42 kHz
    • S/N Ratio A: 102 dBA
    • Damping Factor A:
    • A Ch/B Ch: 100
    • C Ch: 400
  • Input Specifications
    • Input Sensitivity Pre-In: 0.32 ÷ 8 VRMS
    • Pre In Impedance: >10 kOhm
    • Input Sensitivity Speaker-In: 1.6 ÷ 40 VRMS
    • Input Impedance Speaker-In: 3Ohm ÷ 100kOhm (depends on Polyfuse specifications)
  • Power Output
    • Total Power RMS: 1120 W
    • Minimum Load Impedance:
    • Ch 1-4: 2Ω
    • Ch 5-6: 1Ω
    • 1+2/3+4 Bridged: 4Ω
    • 5+6 Bridged: 2Ω
  • Output Power (RMS) @14.4 VDC, 1% THD
    • 6Ch Mode:
    • @4Ω: 85 x 4 + 110 x 2
    • @2Ω: 140 x 4 + 185 x 2
    • Ch1-4 @2Ω, Ch5-6 @1Ω: 140 x 4 + 300 x 2
  • 5Ch Mode:
    • @4Ω: 85 x 4 + 370 x 1 (Ch5/6 bridged)
    • @2Ω: 130 x 4 + 600 x 1 (Ch5/6 bridged)
  • 4Ch Mode:
    • @4Ω: 280 x 2 (bridged) + 110 x 2
    • @2Ω: 130 x 2 + 260 x 1 + 600 x 1
  • 3Ch Mode:
    • @4Ω: 280 x 2 + 370 x 1 (Ch5/6 bridged)
    • 280 x 2 (Ch1-4 @4Ω) + 600 x 1 (Ch5/6 bridged @2Ω)
  • Adjustable Crossover
    • Filter Pass A:
    • Full
    • Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct.
  • Filter Pass B:
    • Full
    • Hi-pass: 50 ÷ 500 Hz @ 12 dB/Oct
    • Band-pass: 50 ÷ 700 Hz (Hi) / 50 ÷ 5 kHz (Lo) @ 12 dB/Oct
  • Filter Pass C:
    • Full
    • Hi-pass: 50 ÷ 700 Hz @ 12 dB/Oct
    • Lo-pass: 50 ÷ 700 Hz @ 12 dB/Oct
  • CEA Specifications
    • Output Power @ 4?, 1% THD+N, 14.4 V: 75 W x 4 Ch + 85 W x 2 Ch
    • SN Ratio (ref. 1W output):
    • A Ch, B Ch: 84 dBA
    • C Ch: 84 dBA
  • Inputs/Outputs
    • Input Type: Pre-In / Speaker-In
    • Inputs/Outputs Sub CH: –
    • Inputs/Outputs Phase: No
    • Inputs/Outputs Bass Boost: No
    • Inputs/Outputs Subsonic: No
    • Remote Sub Volume: -20 ÷ 6 dB
  • UPC:
  • Weight: 5
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
