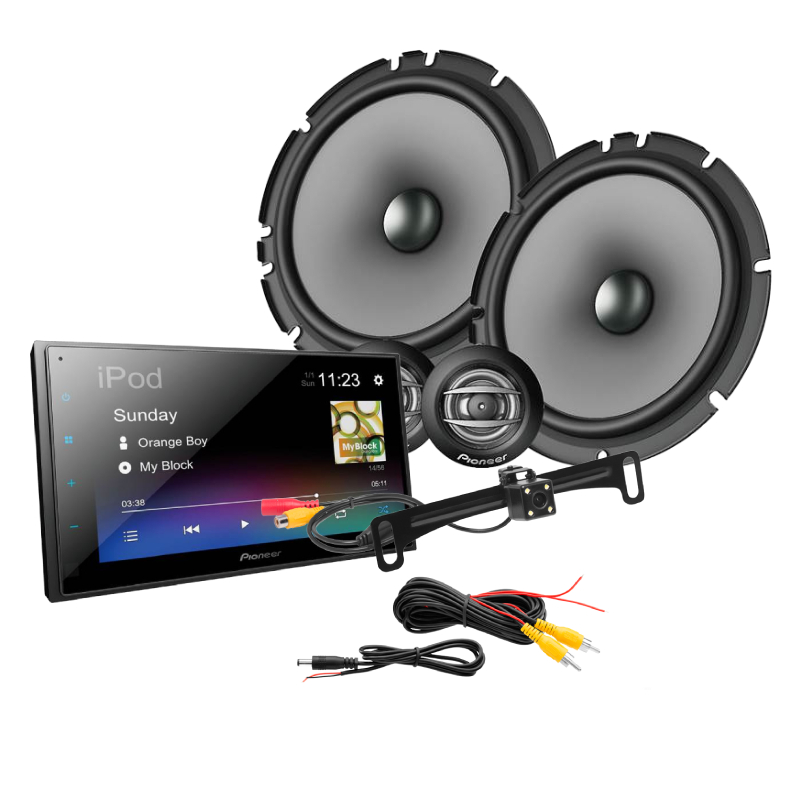

Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
DMH-341EX 2-DIN 6.8" Digital Multimedia Video Receivers with Capacitive touch panel, RGB illumination, WebLink, Amazon Alexa, and iPhone & Android smartphone compatible + TS-A1607C A-Series 6.5" 350W Peak Power Handling 4 Ohms 2-way Car Component Speakers System + ELPC40B Rear-View License Plate Mount Camera with Weather Proof, High-resolution Color, and Wide-angle View
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • DMH-341EX Digital multimedia receiver (10A fuse)

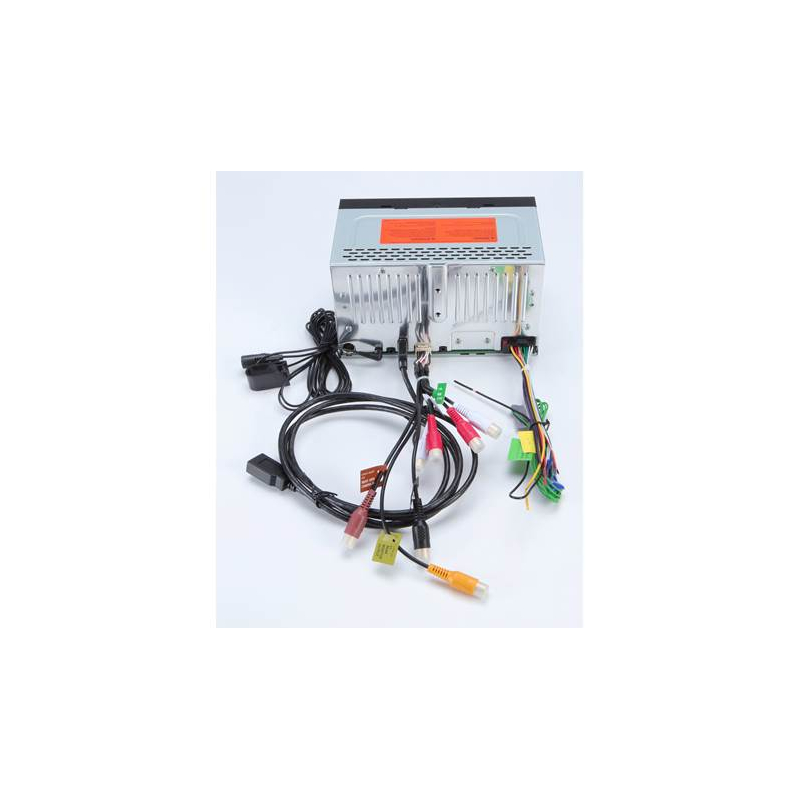

- • DMH-341EX Wiring harness (6.5' Parking brake wire)
- • DMH-341EX Preout/AV harness

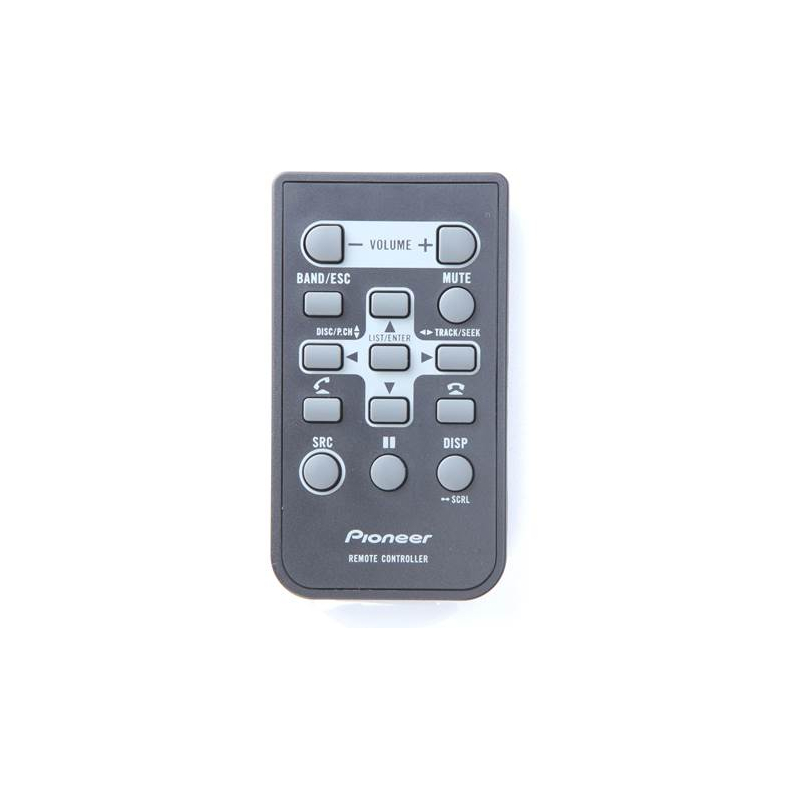

- • DMH-341EX Remote control (CXE9605)
- • DMH-341EX CR2025 3V lithium battery (installed in remote)
- • DMH-341EX 58" USB extension cable
- • DMH-341EX Microphone w/ visor-bracket (attached 10' cable terminated by a right-angled 2.5mm connector)
- • DMH-341EX Two-sided tape
- • DMH-341EX (6) Pan-head ISO screws (M5 x 9mm)
- • DMH-341EX (6) 6 Counter-sunk ISO screws (M5 x 9mm)
- • DMH-341EX Installation Manual
- • DMH-341EX Quick Start Guide
- • DMH-341EX Warranty Sheet
- • TS-A1607C (2) A-Series 6.5" Component Speakers
- • TS-A1607C (2) Tweeters
- • TS-A1607C (2) Speaker connection cables
- • TS-A1607C User manual
- • ELPC40B Rear-View License Plate Mount Camera
- • ELPC40B User Manual
Help Your Driving Experience
In upgrading to a new multimedia receiver, you should highly consider if it comes with modern features that could help your driving experience take it to the next level, making it more comfortable for you while you are on the road. For the Pioneer DMH-341EX, not only is it equipped with the latest features, but it is also budget-friendly.
Has a Bluetooth Connectivity Option

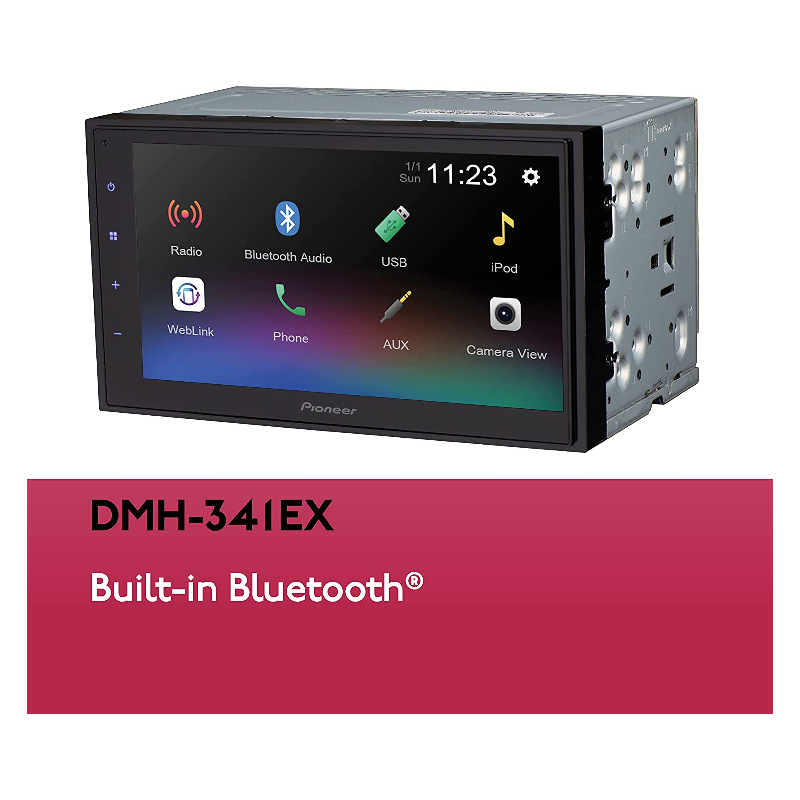

The 6.75-inch Pioneer DMH-341EX multimedia receiver has a Bluetooth connectivity option, allowing you to answer phone calls hands-free and stream music wirelessly. Using Pioneer's Weblink app, you can select some apps from your phone using the receiver's touchscreen display. With Pioneer's Vozsis app, you can also use voice commands with Amazon's Alexa.
Built-in MOSFET Amplifier
Although you have the option to connect the Pioneer DMH-341EX receiver with an external car amplifier, it still comes with a built-in MOSFET amplifier of its own, which can handle a power output of 14 Watts RMS and can reach up to 50 Watts of peak power. It has a 5-channel preamp output, where you can connect a pair of front and rear speakers while also connecting a mono sub for a full-range audio experience.
Has a 13-band Graphic EQ
The Pioneer DMH-341EX has a 13-band graphic EQ, so you can shape the amplifier's frequency response and tune it to the acoustics inside of your vehicle. It also has high and low-pass filters, filtering out unwanted frequencies, resulting in a defined audio quality, and protects your subwoofer from blowing off.
Elevate Your Car Audio Experience!
The Pioneer A Series speakers are expertly designed to complement subwoofers and full-range loudspeakers, delivering powerful bass for an immersive musical experience. Pioneer's OPEN & SMOOTH sound approach ensures seamless transitions between midrange and tweeter drivers, resulting in a consistent off-axis frequency response ideal for cars. The A Series offers enhanced flexibility and sound quality through an integrated inline crossover network, providing multiple installation choices along with fitting adapters and tweeter mounts.
Versatile Setup, Enhanced Sound, and Effortless Installation

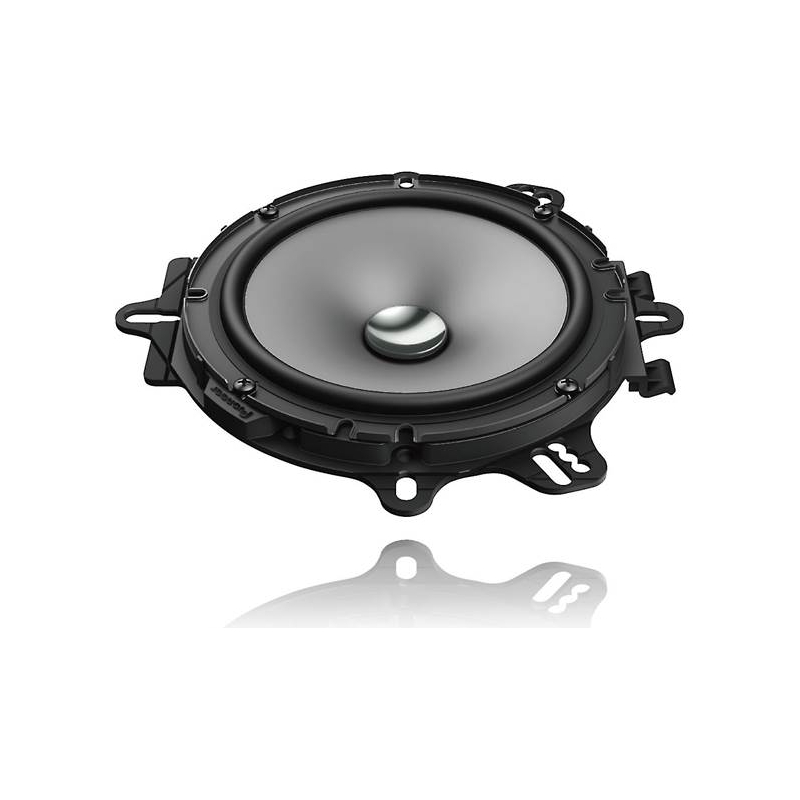

The setup offers versatile options and enhanced audio through 6-1/2" multi-fit adapters and varied tweeter mount positions. Furthermore, it simplifies installation by integrating a built-in crossover, eliminating the requirement for extra elements.
Harmonizing Automotive Audio
The Pioneer OPEN & SMOOTH sound philosophy ensures a fluid and effortless shift between midrange and tweeter drivers, resulting in a consistent off-axis frequency response. This design is tailored for automotive uses, particularly when speakers are directed away from the listener's ears.
Unleash the Power of Sound with Pioneer CarSoundFit App!
Pioneer's CarSoundFit app lets you use your smartphone to simulate and compare the sound of your car's speakers to Pioneer's audio upgrades. Experience the enhanced sound quality Pioneer offers for your vehicle by immersing yourself in a virtual listening demo. Get the free Pioneer CarSoundFit app for this and more Pioneer car speaker experiences.
Weatherproof
Specially outfitted for the elements with an IP68 rating this backup Camera laughs at a forecast with a rainy outlook The internal parts are protected against water and moisture making it a great choice for peace of mind driving.
Wide Angle
170-degree wide angle view for maximum visibility behind your vehicle Back up with confidence knowing that you are getting the whole picture.
Guide Distance
Unique distance guide lines on the image Repeat object’s distortion and help to control the distance to obstacles from any angle.
- Satellite Radio Ready : No
- DIN : 2

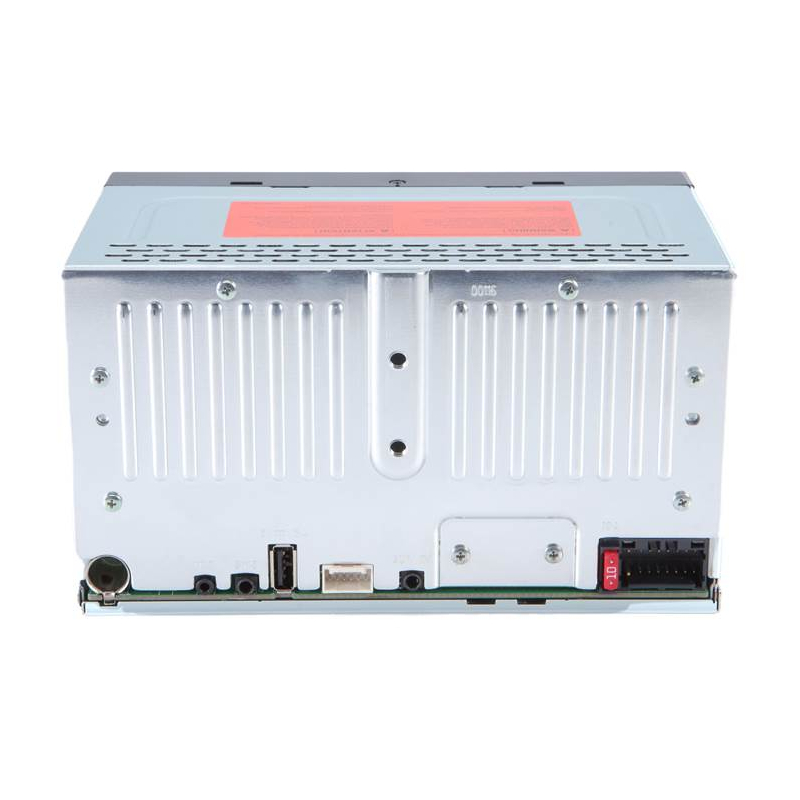

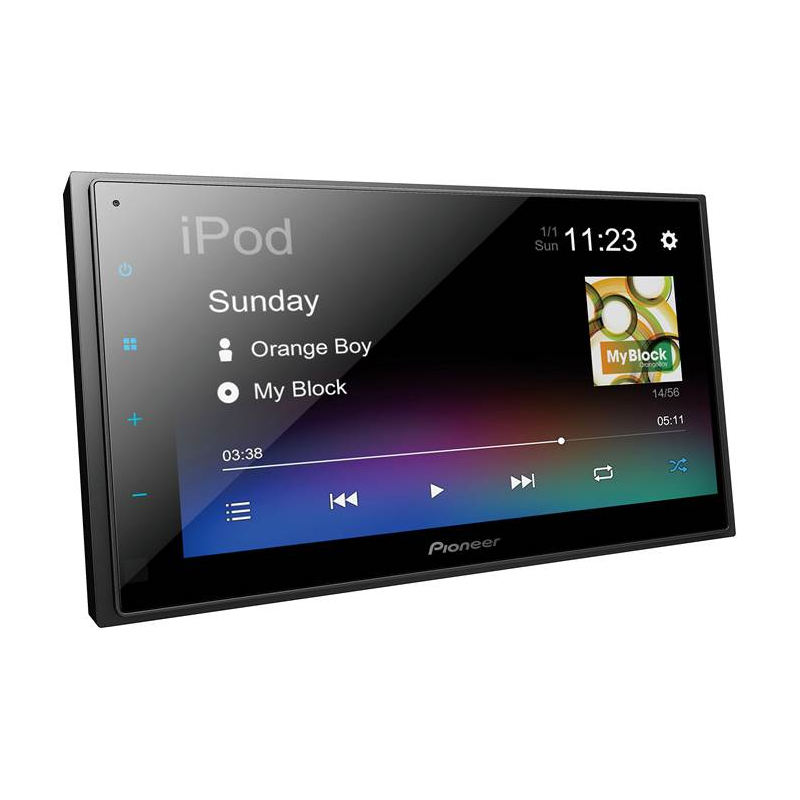

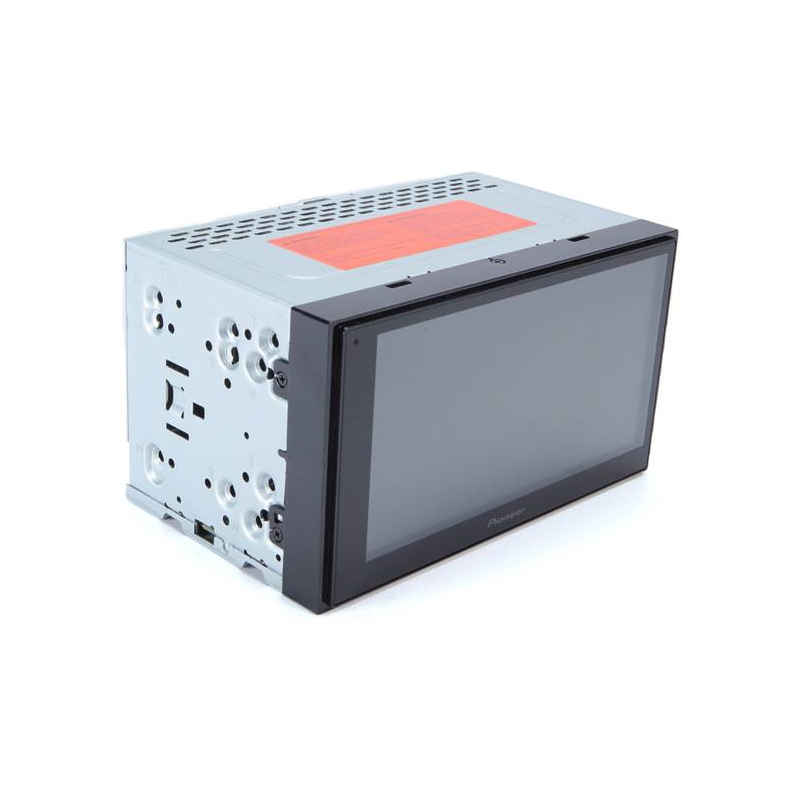

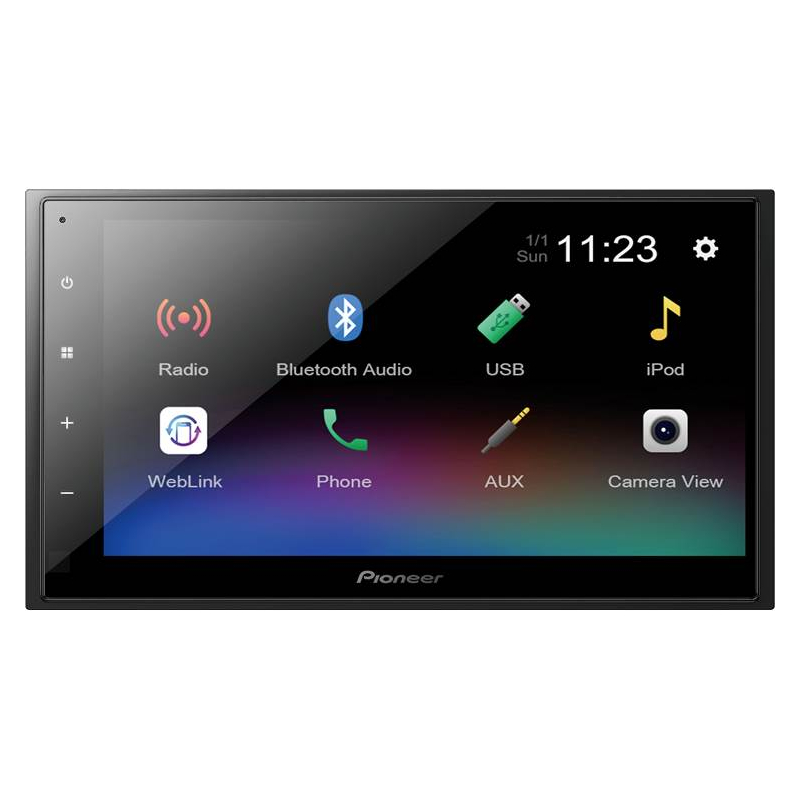

DMH-341EX 2-DIN 6.8" Digital Multimedia Video Receivers with Capacitive touch panel, RGB illumination, WebLink, Amazon Alexa, and iPhone Android smartphone compatible
Features:
- 6.8-inch Capacitive touch panel
- RGB illumination (5 display colors, 112 key colors)
- 13-band GEQ
- Selectable preset wallpapers
- Rear USB and Rear AUX-IN (Audio & Video)
- Rear View Camera Input
- Video Output
- 3 RCA Pre-Out (2V) Front & Rear & SW (monaural)
- Bluetooth (A2DP/HFP/AVRCP)
- Rear BT Mic Input
- Wired Remote Input
- Reduced Chassis depth
- Wireless Remote (Included)

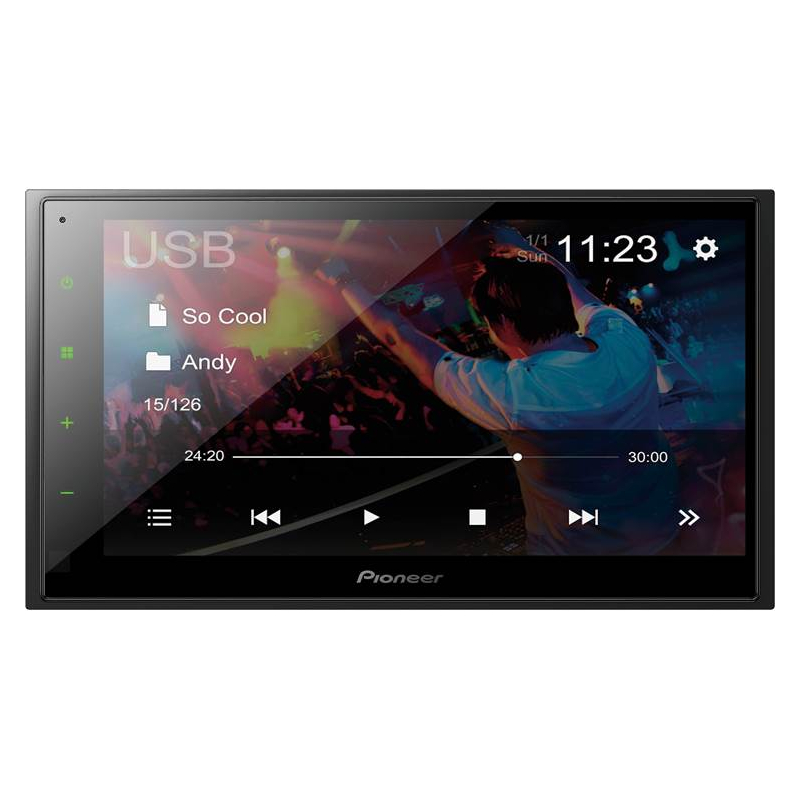

Digital Media Playback
- Audio CODEC from USB (WMA, MP3, WAV, AAC, FLAC)
- Video CODEC from USB (AVI,DivX,Xvid,MPEG-2/4,WMV,JPEG)
Smartphone Connectivity
- WebLink

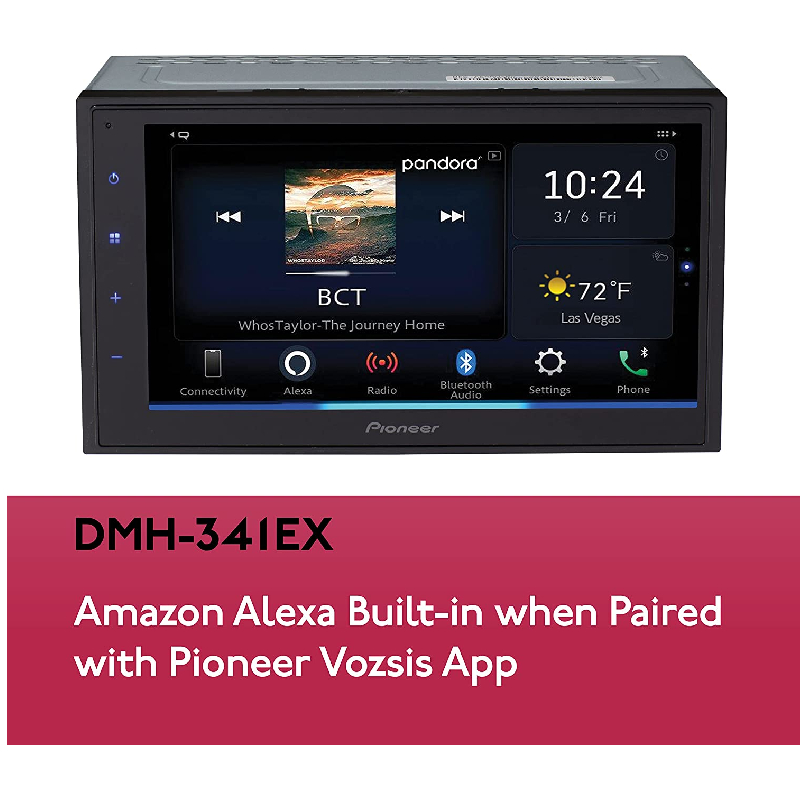

- Amazon Alexa when Paired with Pioneer Vozsis App
- iPhone & Android smartphone compatible
- iPod interface via USB

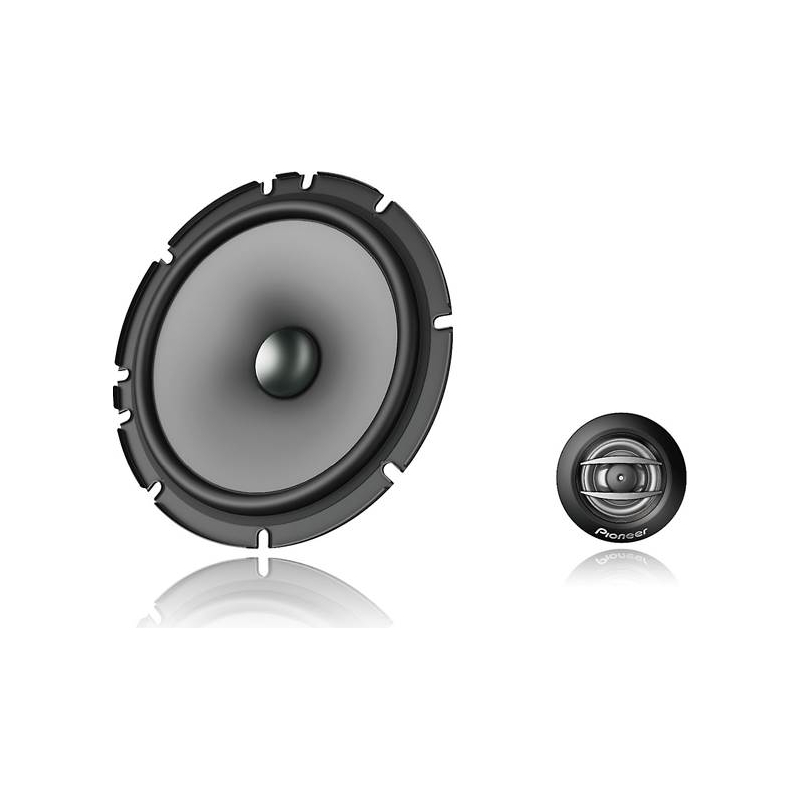

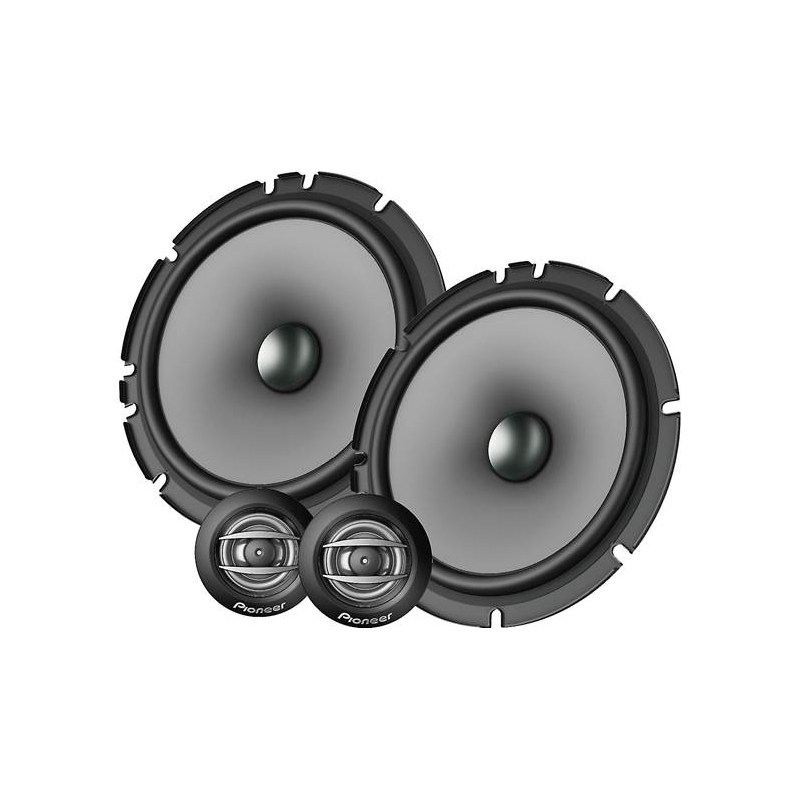

TS-A1607C A-Series 6.5" 120W RMS (350W Peak Power Handling) 4 Ohms 2-way Component Speakers
Features:
- 350 Watts Max Power (80 Watts Nominal)
- 20mm PI Tweeter
- 1-5/8" cellulose fiber cone midrange
- 6-1/2" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
Specifications:
System
- System Type: 2-way Component
- Sound Pressure Level (Sensitivity): 85 dB (+- 1.5dB)
- Frequency Range: 34 Hz to 49 kHz
- Continuous Power Handling (RMS): 80 Watts
- Maximum Peak Power Handling: 350 Watts
- Nominal Impedance: 4 ohms

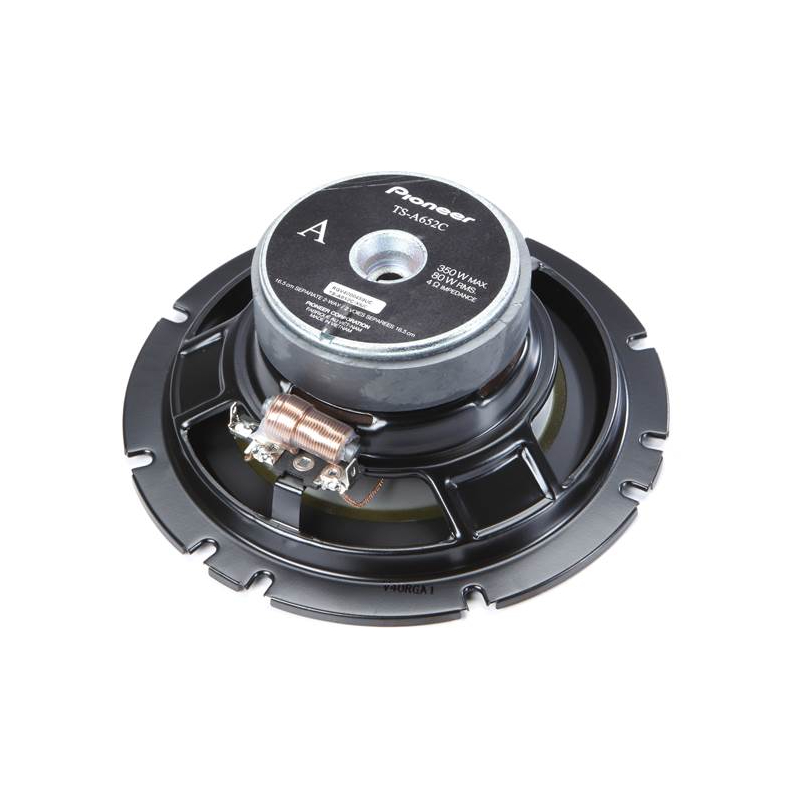

Woofer
- DiameterL: 6-1/2"
- Cone Material: Carbon and mica reinforced IMPP in moonstone gray
- Surround Material: Elastic polymer
- Magnet Material: Ferrite
- Magnet Weight: 11.3 oz

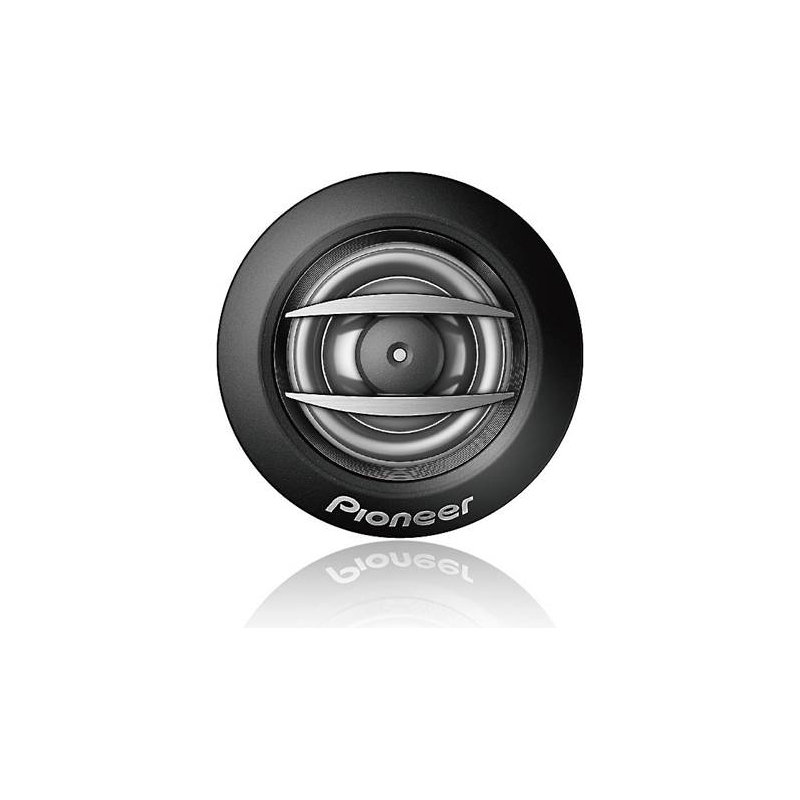

Tweeter
- Type: Serparate component polyimide hard dome tweeter
- Diameter: 20 mm
Crossover Network
- Crossover Frequency: 2,500 Hz
ELPC40B Rear-View License Plate Mount Camera with Weather Proof, High-resolution Color, and Wide-angle View
Features:
- Hidden mount behind the license plate with Existing License Plate Mounting Screws
- High Resolution Color Camera
- On-screen Display Distance Guide
- Low Light Visibility
- Weather Proof
- Wide Angle View
- NTSC Output
- UPC:
- Weight: 18
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
